?     Asked on 4/29/2015by Inyo Visitor

I need an O ring for tank lid Pn 570059 Can you help
 Reply

A  Answered on 4/29/2015 by InyoPools Product Specialist Lennox H.

The p/n 570059 is a lid for an American Products Commander Filter, lid o-ring for an American Products Commander Filter.
 Reply


?     Asked on 6/25/2015by homayoon hatefi

I have a stainless steel DE filter tank 48 SQ feet,model #584090 serial#A09825 the O ring of it is deteriorated my pool repair agent got me one but it was too big ,I had to cut it short and apply electrical tape to stick the ends together . now the tank has leak under the clamp ,please advise me the item O ring , This tank was purchased 1992. Thank you.
 Reply

A  Answered on 6/27/2015 by InyoPools Product Specialist Lennox H.

Hi Homayoon, The model # 584090 crossed reference to a American Products Titan Stainless Steel D.E., which the replacement tank o-ring will be the 18" Tank O-ring (AP530028).
 Reply


?     Asked on 7/26/2015by Inyo Visitor

Will this O ring work properly with an Anthony Apollo model VA38? What us the thickness of the ) ring? Thanks, Blaine Patrick@comc ast.net
 Reply

A  Answered on 7/26/2015 by InyoPools Product Specialist Hector F.

Yes this is the correct o-ring for the Anthony Apollo VA-38 filter and its approximate thickness is .31 inches.
 Reply


?     Asked on 8/16/2015by Nick

I have a stainless still filter 18" in diameter. Clamp has American Products Inc name on it and a number 530030. I want to make sure that ap530028 would be a correct replacement for my existing o ring. Thanks, Nick
 Reply

A  Answered on 8/18/2015 by InyoPools Product Specialist Lennox H.

Hi Nick, The 18" Tank O-ring (AP530028) will work if your unit was manufacture prior to 11/94.
 Reply


?     Asked on 10/6/2015by Joe

Will this o-ring fit an Atlas Filter #46336 (p/n FA370)? The data sheet I have for filter assembly list Tank O Ring, 18." Diameter. Thanks
 Reply

A  Answered on 10/9/2015 by InyoPools Product Specialist Lennox H.

Hi Joe, The O-ring, For 18" Tank (AP530028) will fit the Premier Atlas D.E. Filter. However I was not able to cross reference #46336 or p/n FA370 to the Premier Atlas D.E. Filter.
 Reply


?     Asked on 11/12/2015by David Meza

Hi I have an American products Titan Vertical grid filter type D.E. model no. 58409000 with a filtrating area of 48 Sq. Ft, currently it has a damaged triangular o-ring installed. Will this oring fit? Is the current triangular one installed the correct one? Regards David Meza
 Reply

A  Answered on 11/12/2015 by InyoPools Product Specialist Charlie R.

David,Yes, this is the correct tank o-ring for your filter if you purchased the filter before 11/94. If purchased after, the o-ring is part #  4655-10.
 Reply


?     Asked on 4/9/2016by Paul

Hi I have American Titan vertical grid filter 60sq model 586090 would this fit
 Reply

A  Answered on 4/11/2016 by InyoPools Product Specialist Lennox H.

Hi Paul, This O-ring will fit the American Products Titan Stainless Pre-94.
 Reply


?     Asked on 5/21/2016by Esther Bathgate

Would the O-Ring #530028 work on an KDI AMERICAN PRODUCTS EARTH FILTER.
 Reply

A  Answered on 5/25/2016 by InyoPools Product Specialist Lennox H.

Hi Esther, The only American Products DE filter this o-ring will fit is the American Products Titan Stainless Steel D.E. Filter, I'm not finding a KDI American Products DE Filter.
 Reply


?     Asked on 6/14/2016by Tim

Would this O-ring fit on a Heldor Clearflo DE tank?
 Reply

A  Answered on 6/14/2016 by InyoPools Product Specialist Patrick P.

Hi Tim, For the Heldor Clear Flo Filter you would need this 18" Heldor Clear Flo O-Ring
 Reply


?     Asked on 6/26/2016by Alain

would this O-ring work on my Premier Atlas 48 model PA 48, can you help me ?
 Reply

A  Answered on 6/26/2016 by InyoPools Product Specialist Alex V.

Alain, Yes. This o-ring will work on 18" STAINLESS STEEL - MODELS PA 24,36, 48, 60. & 72
 Reply


?     Asked on 6/29/2016by Alain

Please would you confirm the shipping price for this item to France? thanks for your response
 Reply

A  Answered on 6/30/2016 by InyoPools Product Specialist Alan M.

Orders shipped outside of the continental United States require special shipping charges over and above our standard shipping charge. Once we receive your order, we will contact you with the exact shipping charge for your order. You will then have the ability to accept the shipping charges or cancel the order. You will not be billed until you accept the shipping charges.
 Reply


?     Asked on 3/28/2017by Barbara Warda

same as Swimrite Atlas Filter part #28-828-671 ??
 Reply

A  Answered on 3/29/2017 by InyoPools Product Specialist Lennox H.

Hi, Barbara. Yes, this is the correct replacement for the Swimrite Atlas Filter part # 28-828-671.
 Reply


?     Asked on 8/18/2017by Renata

Hi, I have a vertical grid D.E. 36 sq ft made by American Products Co ( Titan) model no. 582090 will this outing fit the tank lid?
 Reply

A  Answered on 8/19/2017 by InyoPools Product Specialist Lennox H.

Hi, Renata. This o-ring will fit the Titan model # 582090 if it was manufactured before 11/94.
 Reply


?     Asked on 8/24/2017by joe

will this fit american model # 584090 48 sqft de filter?
 Reply

A  Answered on 8/24/2017 by InyoPools Product Specialist Stacey M.

Hello Joe, Yes, this is the correct tank o-ring for your filter if you purchased the filter before 11/94. If purchased after, the o-ring is part #  4655-10.
 Reply

  • Commented on 11/5/2019 by Product Owner

    I have the same model filter but I have no idea if it was purchased before 11/94. Is there a way of telling the purchase date or is there a difference in o-rings? Thank you (Model# 584090)
     Reply

    • Commented on 11/12/2019 by InyoPools Product Specialist Lennox H.

      Jeff, If you do not know when your unit was manufactured, measure the o-ring cross diameter.
       Reply


?     Asked on 4/23/2018by Jorge

Will this fit a Hayward De 6000 filter
 Reply

A  Answered on 4/23/2018 by InyoPools Product Specialist Hector F.

The correct tank o ring for your model filter is part number 4820-02. You can also view the parts diagram for your filter model by clicking here
 Reply


?     Asked on 5/17/2018by Inyo Visitor

Is the 18 inch O ring mean the diameter of the tank is 18 inches?
 Reply

A  Answered on 5/17/2018 by InyoPools Product Specialist Hector F.

Not necessarily because the o ring may sit in a channel that may make the actual filter diameter different based on the mold design. Ultimately you really want to try your best to locate the specific filter model to cross reference parts for it.
 Reply


?     Asked on 9/9/2018by Bob

Will this o-ring fit on my 24 sq. ft. American Titan Verticle Grid Filter Model 581090 ?
 Reply

A  Answered on 9/15/2018 by InyoPools Product Specialist Lennox H.

Hi, Bob. Yes, this Tank O-ring will fit your model filter is it was manufactured before 11-94.
 Reply


?     Asked on 4/10/2019by Dan Tan

Will this fit my American Titan Vertical Grid Filter model #586090?
 Reply

A  Answered on 4/10/2019 by InyoPools Product Specialist Lennox H.

Hi, Dan. It will if your filter was manufactured prior to 11/94.
 Reply


?     Asked on 5/13/2019by Trish

Is this a generic replacement part or the original Anthony?
 Reply

A  Answered on 5/13/2019 by InyoPools Product Specialist Michelle B.

Hello, This will be the generic part.
 Reply


?     Asked on 6/1/2019by Inyo Visitor

Will this fit a Wet Industries 54 Square Foot filter model #980649?
 Reply

A  Answered on 6/3/2019 by Industry Professional

We are not able to verify based on the filter model info. the 90-423-2094 measures 17-13/16" x 5-1/6" & is for an 18" tank.
 Reply


?     Asked on 7/3/2020by Christopher Burdge

Does this fit a Pentair flter clamp for model 583090
 Reply

A  Answered on 8/25/2020 by InyoPools Product Specialist Lennox H.

Hi, Christopher. Yes, it will if your unit was manufactured before 11-94. If it was not, you will need P/N 53008800Z
 Reply


?     Asked on 1/12/2021by Dan

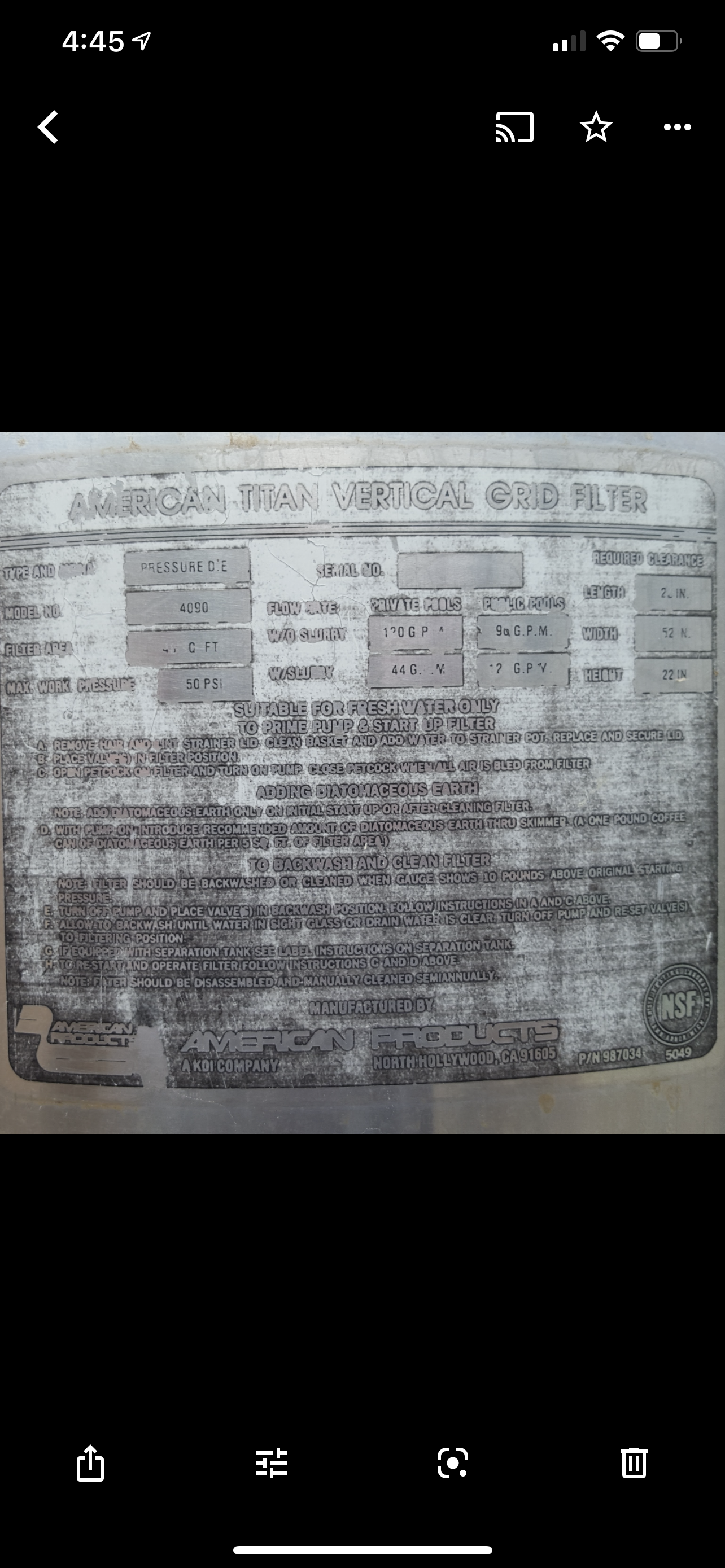

I have an American Titan Verticle Grid Filter model 4090 and i need the rubber o-ring to seal the tank lid down. Can you help? See attached photo from my tank label.

 Reply

A  Answered on 1/13/2021 by InyoPools Product Specialist Joe S.

The correct oring need would PART # 4657-06
 Reply


?     Asked on 8/19/2021by Michael

Hi, I have an American Products Titan CM Vertical Grid Filter Model #57026000 made before '94. Will this O-ring fit? Thanks.
 Reply

A  Answered on 8/19/2021 by InyoPools Product Specialist Craig C.

Hello Michael.    Attached please find an exploded parts diagram for the American Products Titan CM DE Filter.    American Products Titan CM D.E   Part Key 17 identifies the tank body o-ring as 59021000.   O-ring (59021000)   The Tank o-ring AP530028 is the correct part number for the tank body o-ring American Products Titan Stainless Steel DE.  Attached please find an exploded parts diagram for the Titan Stainless Steel DE Filter for reference.   American Products Titan Stainless Steel D.E.
 Reply


?     Asked on 10/10/2021by Dixon

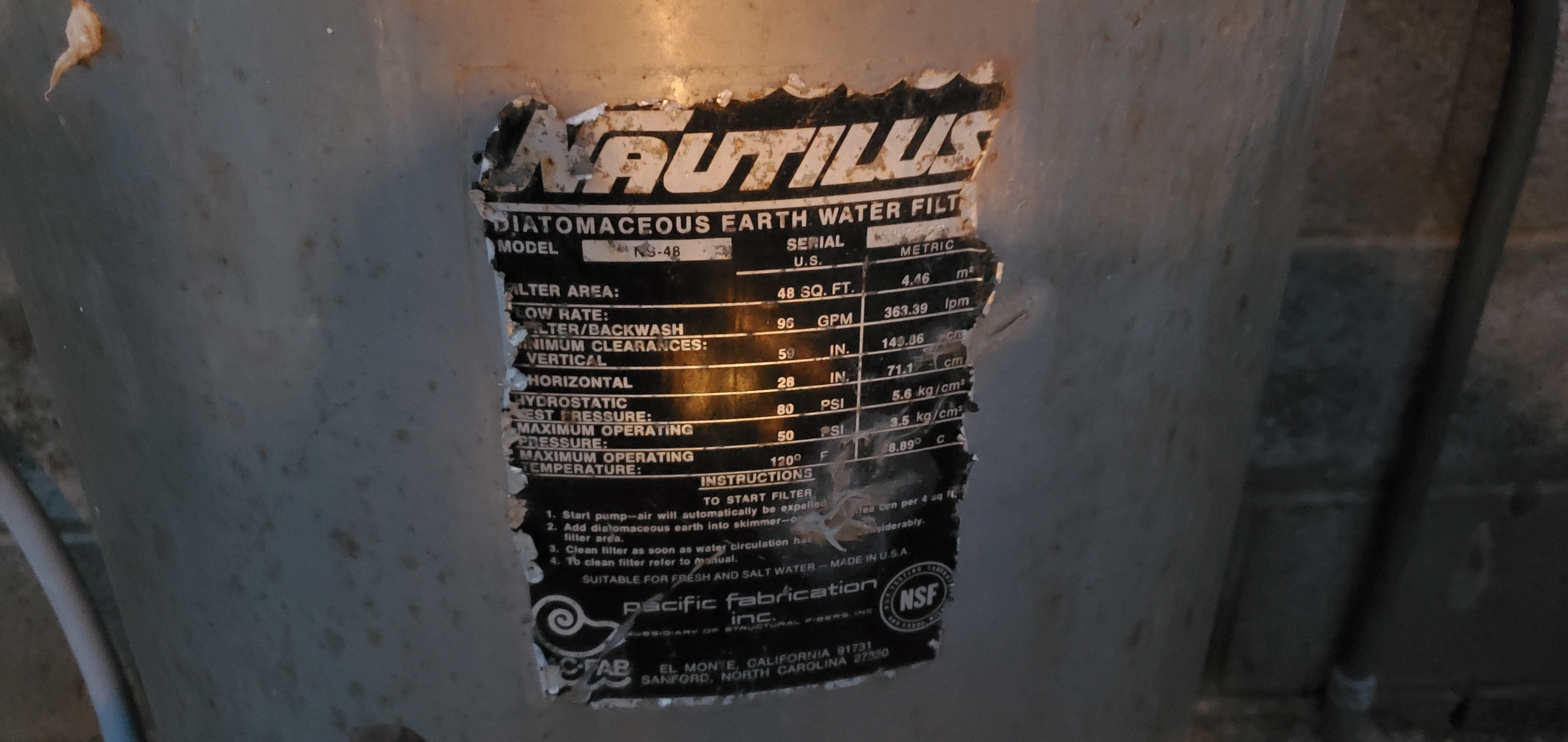

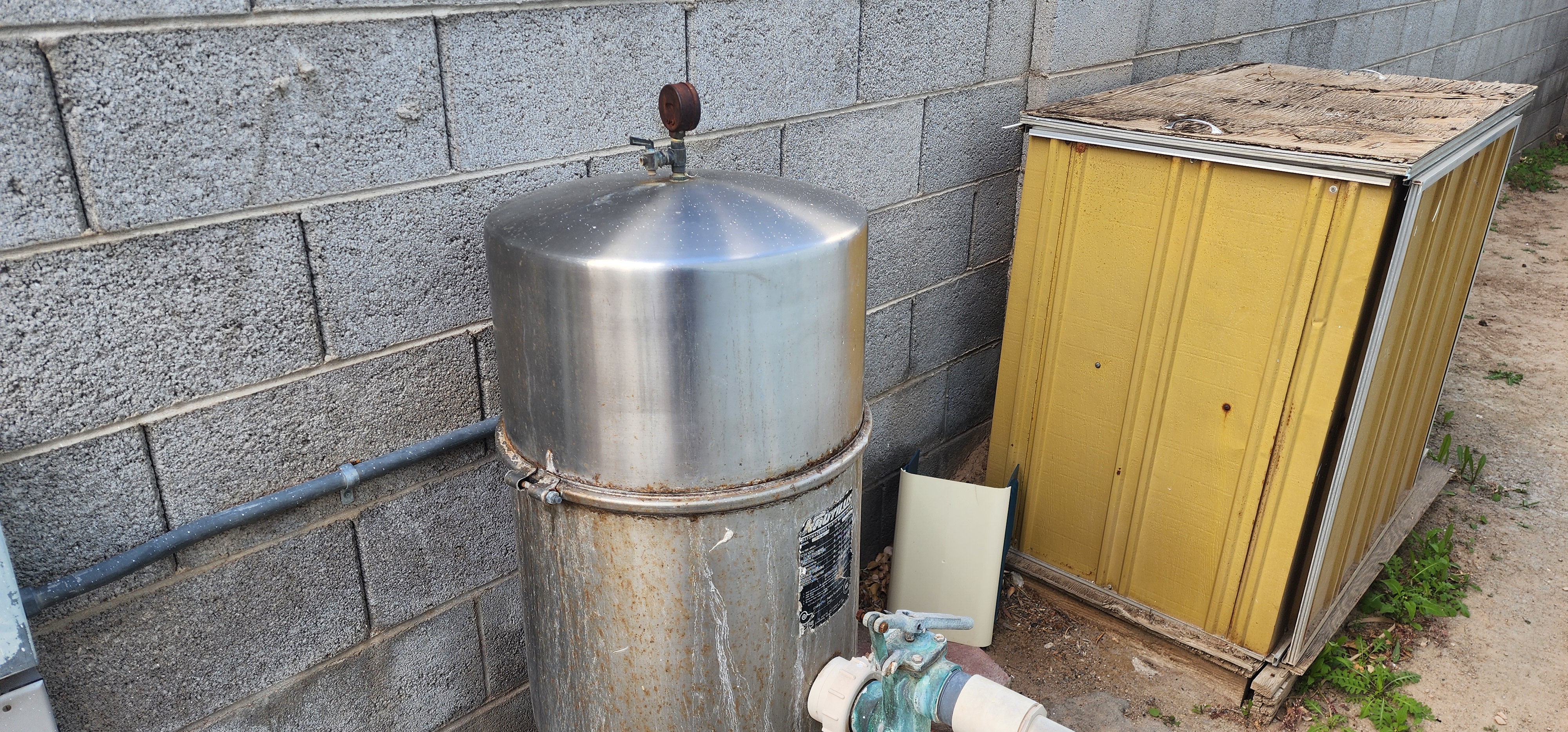

Hello, We have an OLD Pac Fab DE Filter. We think the part # for the filter 19-3440. We need an O-Ring replacement. We think it is approx 17 3/4". The configuration seems to be beveled but I read that the O-ring can become flattened over time. What O-Ring do you suggest? Thanks for the help!
 Reply

A  Answered on 10/11/2021 by InyoPools Product Specialist Rich N.

Hi Dixon.  There are a number of old Pac-Fab DE filters out there and we probably have parts for all of them!  Send some pictures of the filter and any labels that might be on it (even labels on the filter valve can be helpful) to upload@inyopools.com so we can be sure to recommend exactly what you need.
 Reply


?     Asked on 11/22/2021by Guy Houston

do you have an o-ring that will fit an American products Titan CMVertical grid filter model 57024000? Thanks
 Reply

A  Answered on 12/10/2021 by InyoPools Product Specialist Craig C.

Hello Guy.  Attached please find an exploded parts diagram for the American Products Titan CM DE Filter.  American Products Titan CM D.E.   Replacement tank body o-ring, Key item 17, is the compatible replacement.   O-ring (59021000)
 Reply
