?     Asked on 4/14/2016by Jerry

Does this plug come with the o-ring or must that be purchased separately?
 Reply

A  Answered on 4/14/2016 by InyoPools Product Specialist Alan M.

Hello Jerry, The o-ring is included with the Plug (86202000).
 Reply


?     Asked on 10/3/2016by Jack

what size wrench fits this plug?
 Reply

A  Answered on 10/3/2016 by InyoPools Product Specialist Scott W.

I believe it is a 1.5" combination wrench.
 Reply


?     Asked on 5/30/2017by phil

this looks like the plug in my clean and clear 420.
 Reply

A  Answered on 5/31/2017 by InyoPools Product Specialist Hector F.

This would be the inspection plug for the Pentair Clean and Clear 420 model filter.
 Reply

  • Commented on 3/2/2020 by Product Owner

    So what is the correct O-ring for this plug?
     Reply

    • Commented on 3/3/2020 by InyoPools Product Specialist Lennox H.

      Phil, The O-ring - 51005000  is what is used with this Plug.
       Reply


?     Asked on 7/17/2017by Johnny

will this plug fit a 320 clean & clear plus
 Reply

A  Answered on 7/17/2017 by InyoPools Product Specialist Lennox H.

Hi, Johnny. This Inspection Plug will fit the CCP 320 units that were manufactured after 11/98.
 Reply


?     Asked on 7/19/2017by David

I bought this plug to replace the one in my CC240P but it doesn't seem to want to thread into it. It only goes in a couple of threads and then stops. Is there a different plug i should be using for this system?
 Reply

A  Answered on 7/20/2017 by InyoPools Product Specialist Lennox H.

Hi, David. If this plug did not work then you will need the Drain Cap Assembly - 51516200 which is used on units manufactured after 11/98.
 Reply


?     Asked on 4/30/2019by Frank

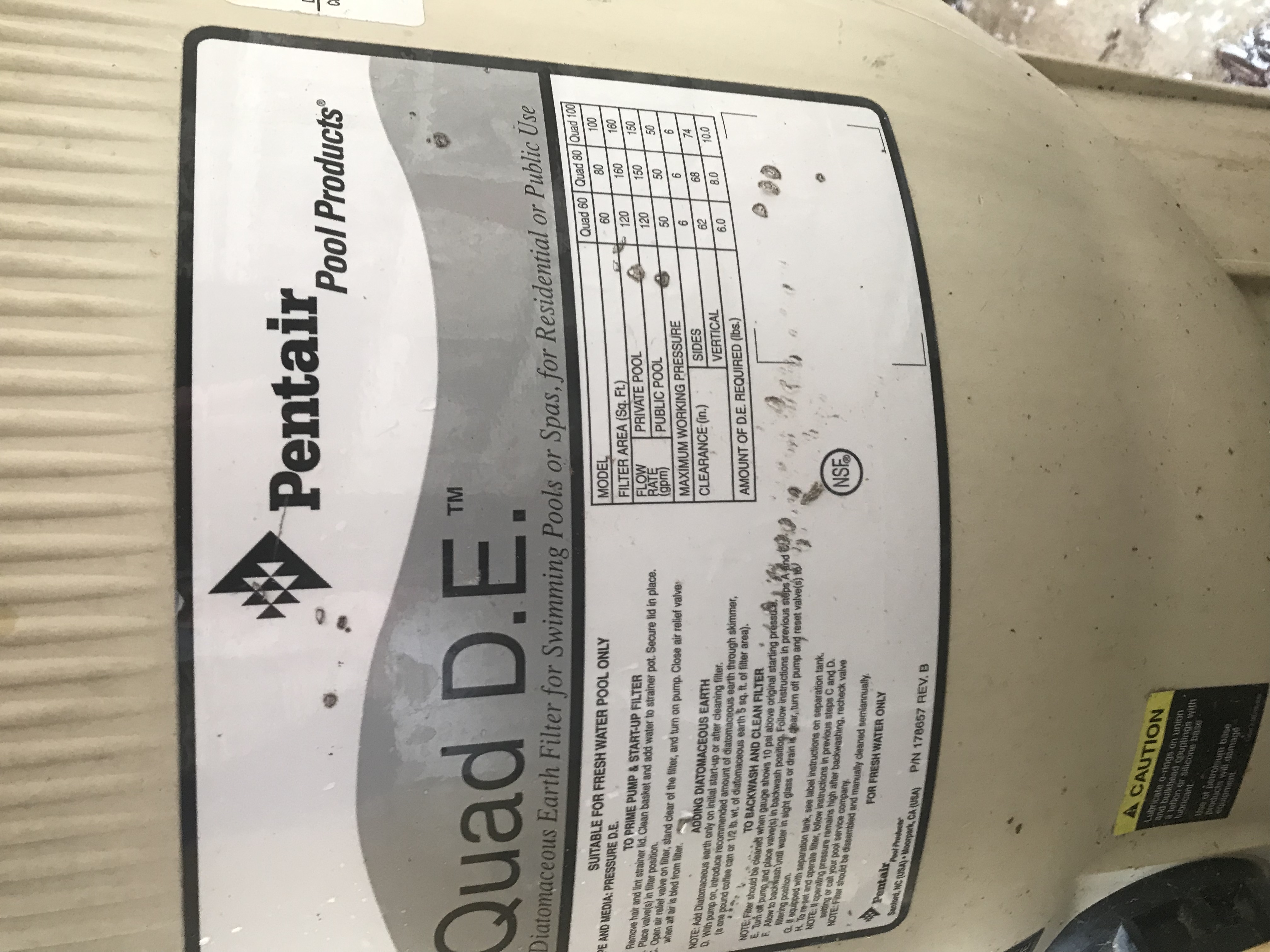

Is this the correct drain plug for a Pentair Quad DE 60 manufactured in May 2010?
 Reply

A  Answered on 5/2/2019 by InyoPools Product Specialist Steve M.

Hi, Frank. This Plug will NOT work, you will need p/n 190030.
 Reply

  • Commented on 5/12/2019 by Product Owner

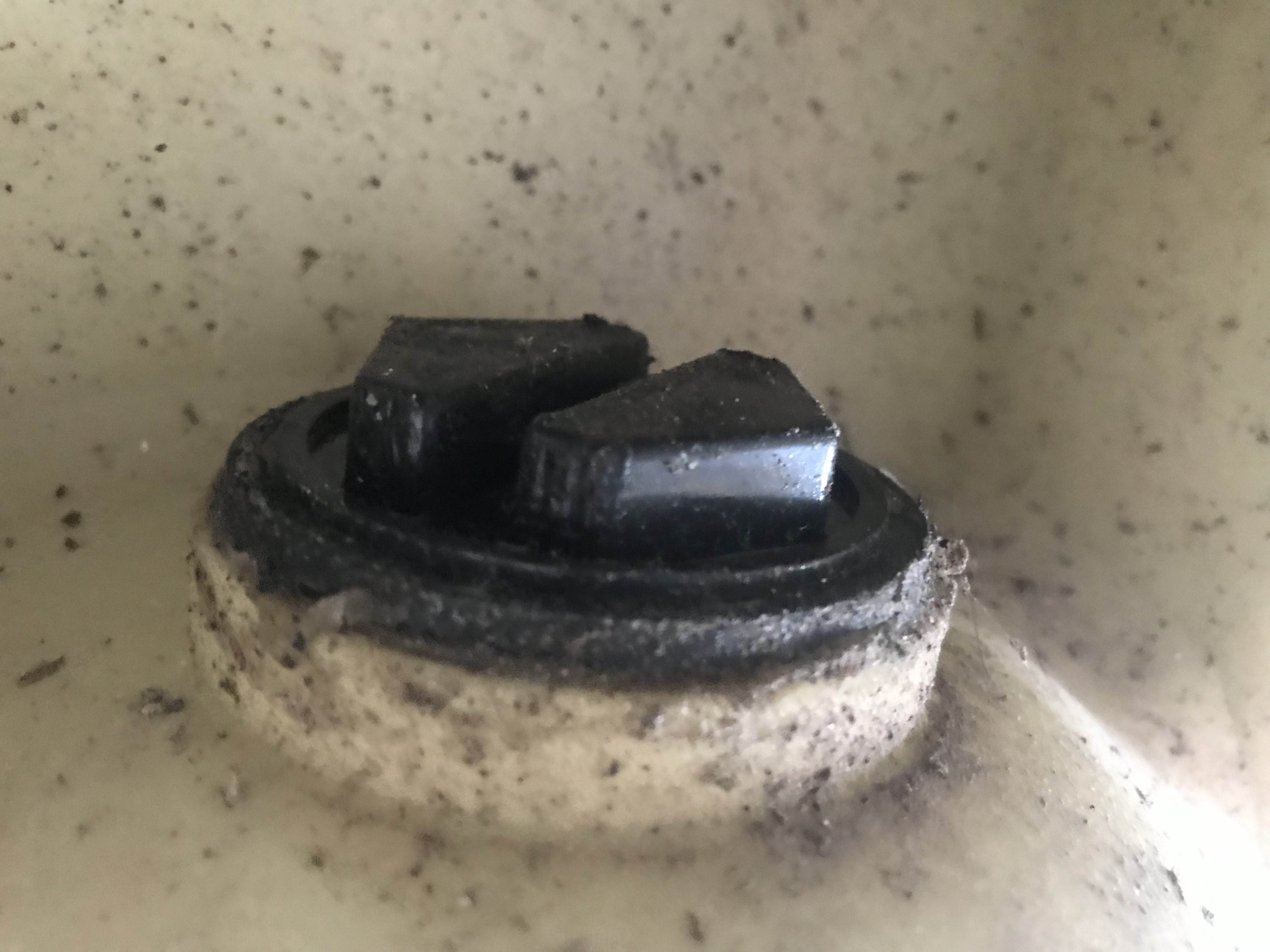

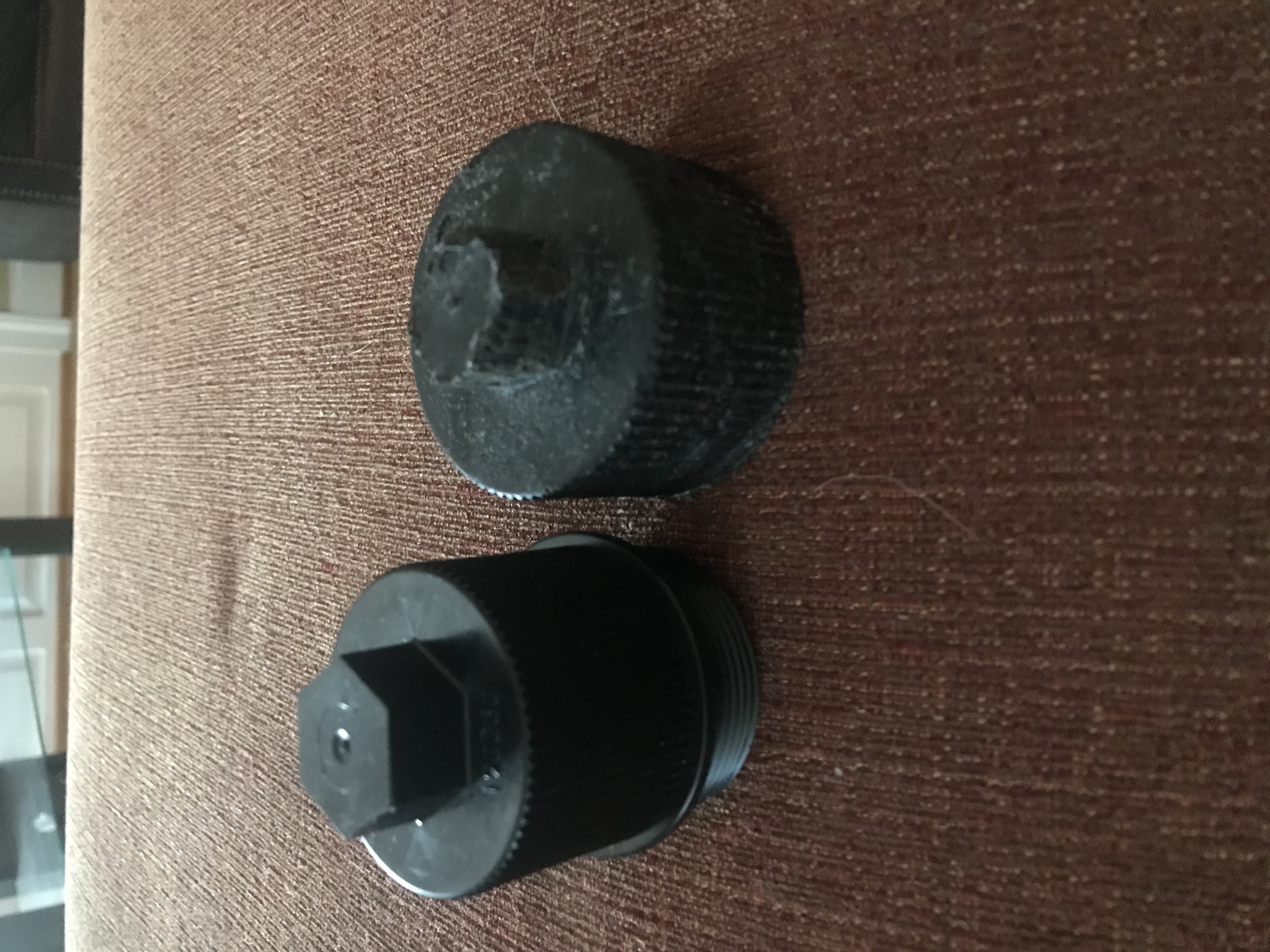

    I ordered the part you mention but it is smaller than the part that broke off (154712 pictured). The plug that remains in my filter is also pictured and it resembles this part. Is my setup abnormal?

     Reply

  • Commented on 5/12/2019 by Product Owner

    I ordered the part you mention but it is smaller than the part that broke off (154712 pictured). The plug that remains in my filter is also pictured and it resembles this part. Is my setup abnormal?
     Reply

  • Commented on 5/12/2019 by Product Owner

    I ordered the part you mention but it is smaller than the part that broke off (154712 pictured). The plug that remains in my filter is also pictured and it resembles this part. Is my setup abnormal?

     Reply

  • Commented on 5/12/2019 by Product Owner

    I ordered the part you mention but it is smaller than the part that broke off (154712 pictured). The plug that remains in my filter is also pictured and it resembles this part. Is my setup abnormal?

     Reply

  • Commented on 5/12/2019 by Product Owner

    I ordered the part you mention but it is smaller than the part that broke off (154712 pictured). The plug that remains in my filter is also pictured and it resembles this part. Is my setup abnormal?
     Reply

  • Commented on 5/12/2019 by Product Owner

    I ordered the part you mention but it is smaller than the part that broke off (154712 pictured). The plug that remains in my filter is also pictured and it resembles this part. Is my setup abnormal?
     Reply

  • Commented on 5/5/2019 by Product Owner

    I have ordered part number 190030 but it does not match the cap that broke off my filter drain (p/n 154712) nor the plug that remains installed. They are not similar in size. I can’t seem to find anything that looks similar to what I have installed.

     Reply

  • Commented on 5/5/2019 by Product Owner

    I have ordered part number 190030 but it does not match the cap that broke off my filter drain (p/n 154712) nor the plug that remains installed. They are not similar in size. I can’t seem to find anything that looks similar to what I have installed.

     Reply


?     Asked on 4/7/2020by Randy Beck

does this plug fit the 20 year old PacFab Triton FNS Plus DE Filter
 Reply

A  Answered on 4/8/2020 by InyoPools Product Specialist Lennox H.

Hi, Randy. Yes, this is the correct part used on with the PacFab Triton FNS Plus DE Filter manufactured prior to 5/21/05.
 Reply


?     Asked on 4/20/2022by Mark Freeman

Does this fit Pentair CC150?
 Reply

A  Answered on 4/20/2022 by InyoPools Product Specialist Joe S.

Good day, yes this plug will work for the following units PENTAIR CLEAN AND CLEAR MODELS CC50 (160314), CC75 (160315), CC100 (160316), CC150 (160317), CC200 (160318).
 Reply


?     Asked on 6/15/2022by steven warrington

does this fit pentair fns r plus nsfw 50 pin 180008
 Reply

A  Answered on 6/15/2022 by InyoPools Product Specialist Craig C.

Hello Steven.  The Plug, Inspection fits the Pentair FNS Plus DE Filter model 180008.  Attached please find the Pentair FNS Plus D.E. Filter exploded parts diagram for reference.
 Reply
