?     Asked on 4/18/2013by Guest

Does part # 4602-1152,"Top Assy., Valve 2" Black (e-50-s2b", come with a spider gasket?
 Reply

A  Answered on 4/18/2013 by InyoPools Product Specialist Patrick P.

Part # 4602-1152, "Top Assy., Valve 2" Black (e-50-s2b", the spider gasket is not included and is sold separately, which is part # 4600-1148.
 Reply


?     Asked on 11/16/2014by Mike

Is this a direct replacement for the Pentair TM-22 control valve, top cover on mine is cracked and need a replacement
 Reply

A  Answered on 11/17/2014 by InyoPools Product Specialist Alex V.

Mike, Yes. This will fit the TM22 and SM20 valves.
 Reply


?     Asked on 4/13/2015by Inyo Visitor

sorry to be redundant but this is a replacement for 14971-sm20e-50?
 Reply

A  Answered on 4/13/2015 by InyoPools Product Specialist Robert M.

This is the correct top assembly for the SM20 series.
 Reply


?     Asked on 5/23/2015by RON

Does this assembly include the diffuser gasket?
 Reply

A  Answered on 5/23/2015 by InyoPools Product Specialist Patrick P.

Hi Ron, No the spider gasket is not included in this assembly, we do carry the Spider Gasket here.
 Reply


?     Asked on 5/26/2015by Inyo Visitor

will this replace multiport valve on the Praher sm20-2
 Reply

A  Answered on 5/26/2015 by InyoPools Product Specialist Lennox H.

This will replace the Top Assy for your Praher SM20-2 MultiPort Valve.
 Reply


?     Asked on 5/27/2015by Joe

Will this unit, Top Assy., Valve 2" Black (e-50-s2b), have all the parts, e.g., O-rings, gaskets, etc., I will need to install? Will the unit come with hints, instructions? Thank you,
 Reply

A  Answered on 5/27/2015 by InyoPools Product Specialist Patrick P.

Hi Joe, Yes this top assembly does come will all the parts like the o-rings, gaskets and spring. I don't beleive this comes with any instructions but we do have this Multiport Video here which should be helpful for your installation. You can always call us for assistance as well. Update: All the gaskets minus the spider gasket are included with this top assembly, here is the proper Spider Gasket for This Top Assembly.
 Reply


?     Asked on 5/27/2015by Joe

You told "guest," "Does part # 4602-1152,"Top Assy., Valve 2" Black (e-50-s2b", come with a spider gasket?Inyo AnswerAnswered on 04/18/2013 by Product Specialist Patrick P.Part # 4602-1152, the spider gasket is not included and is sold separately, which is part # 4600-1148. Will I need to order the spider gasket as an extra purchase in addition to the Top Assy? Or, as per your previous answer, all the gaskets, o-rings, spring, etc., are included. Thank you,
 Reply

A  Answered on 5/27/2015 by InyoPools Product Specialist Patrick P.

Joe, I'm sorry about that I did answer your last question incorrectly, the spider gasket does not come with the top assembly. The spider gasket E-12-S-2 is purchased seperately
 Reply


?     Asked on 8/31/2015by Frank

This will fit/replace the Praher TM-22 valve head will it not? Many thanks!
 Reply

A  Answered on 9/4/2015 by InyoPools Product Specialist Lennox H.

Hi Frank, The 2" Top Valve Assy Black (E-50-S2B) will fit onto your Praher TM-22 Valve.
 Reply


?     Asked on 4/3/2016by Paul

will this replace the top of a Purex Triton SM-20. I think there was another letter or number but this has worn off. It has 2" connections.
 Reply

A  Answered on 4/4/2016 by InyoPools Product Specialist Lennox H.

Hi Paul, The E-50-S2B will fit onto the Purex Triton SM-20 Valve.
 Reply


?     Asked on 5/24/2016by mike

will this replace a Jandy top Ser #2928274 ?
 Reply

A  Answered on 5/30/2016 by InyoPools Product Specialist Lennox H.

Hi Mike, We will need to know the model # of the instead of the serial number in order to confirm if this top will fit.
 Reply


?     Asked on 5/27/2016by Inyo Visitor

Can you use this Top Valve Assembly to replace a purex triton model sm 20-3?
 Reply

A  Answered on 5/27/2016 by InyoPools Product Specialist Patrick P.

Yes this top valve assembly can be used on the Purex Triton SM20-3 valve.
 Reply


?     Asked on 6/7/2016by AQB

Does this valve assy comes with the cover o-ring?
 Reply

A  Answered on 6/12/2016 by InyoPools Product Specialist Patrick P.

Hi AQB, The cover o-ring is included with the valve but the spider gasket is not.
 Reply


?     Asked on 9/24/2016by Jean-Loup

I have a Purex triton TM-22. Will this work?
 Reply

A  Answered on 9/27/2016 by InyoPools Product Specialist Lennox H.

Hi Jean. Yes, this Top Assy will fit the TM-22 model valve.
 Reply


?     Asked on 10/12/2016by Steve

Will this fit the pentair valve model number SM-20-2, valve assermblt model SM2-pp2? Also, my valve is leaking water up through the handle. Any idea what could be causing that? The washer valve spring?
 Reply

A  Answered on 10/13/2016 by InyoPools Product Specialist Hector F.

Yes that is a correct top valve assembly replacement and there are tune up kits if you choose to replace those seals and such. Those kits are listed as the first items on this parts diagram for your valve.
 Reply


?     Asked on 1/15/2017by Gene B.

Will the Top Assembly (Part # 4602-1152) fit my Sta-rite 2" multi-port side mount filter valve? Thanks
 Reply

A  Answered on 1/16/2017 by InyoPools Product Specialist Andy O.

Hello Gene- This will fit the TM22 and SM20 models valves by Pentair. We would need your model to tell you for certain that this will work with your valve.
 Reply


?     Asked on 1/18/2017by Inyo Visitor

I have a sta-rite S&D75 filter fitted with a black valve (no markings) which appears identical to the sta-rite 18201-0200 (model B) valve shown on your site. The unit was fitted in 1994. Is this this the correct top valve assembly for the 18201-0200 valve?
 Reply

A  Answered on 1/19/2017 by InyoPools Product Specialist Lennox H.

Hi, Yes, this is the correct Top Assembly for the Sta-Rite Valve - 18201-0200.
 Reply


?     Asked on 3/14/2017by Lynwood

Is this compatible with tm22 multi port valve?
 Reply

A  Answered on 3/14/2017 by InyoPools Product Specialist Andy O.

Hello Lynwood-  The Top Assy., Valve 2" Black (e-50-s2b) will work for your TM22 Valve.
 Reply


?     Asked on 4/1/2017by Dale

Will this top assy. replace the top assy of the Baker Hydro Multiport Valve 30B0047 2 inch?
 Reply

A  Answered on 4/3/2017 by InyoPools Product Specialist Lennox H.

Hi, Dale. Yes, this 2 Valve Top Assy - E-50-S2B will fit the Baker Hydro Valve - 30B0047,
 Reply


?     Asked on 5/4/2017by rich

I have a BH 2" DE Multiport valve. The part number is 30B3905932 will e50-s2b be a suitable replacement.
 Reply

A  Answered on 5/5/2017 by InyoPools Product Specialist Lennox H.

Hi, Rich. I was not able to confirm if this Top Assembly will fit p/n 30B3905932. Please email pictures of the valve to upload@inyopools.com.
 Reply


?     Asked on 5/11/2017by Stephen

will this replace a millennium unground series model TM-22?
 Reply

A  Answered on 5/11/2017 by InyoPools Product Specialist Lennox H.

Hi, Stephen. Yes, this Top Assembly will fit the TM-22 Series valve.
 Reply


?     Asked on 7/19/2017by Chris

I have a Praher SM20-1 and need the top assembly. The handle is not popping up into place when I move it from one setting to another.
 Reply

A  Answered on 7/21/2017 by InyoPools Product Specialist Robert M.

Hello Chris - You could use either the 4602-1152 (black) or 4600-1152 (white) as the top assembly replacement for the SM20-1. The only difference is the color of the plastic.
 Reply


?     Asked on 7/27/2017by Inyo Visitor

Does this item come with a spider gasket. Do I need anything else?
 Reply

A  Answered on 7/27/2017 by InyoPools Product Specialist Lennox H.

Hi. The Cover O-ring - E7S2 and or the Diverter Gasket - E12S2 is not included with this Valve Top Assy which I recommend getting.
 Reply


?     Asked on 9/3/2017by Simon HIRSCHL

Does this item come with the new spring and washers all inside it, or do I need to buy these parts separately? Simon
 Reply

A  Answered on 9/5/2017 by InyoPools Product Specialist Lennox H.

Hi, Simon. The spring is included with this valve top assembly. The Cover O-ring - E7S2 and the Diverter Gasket - E12S2 have to be purchased separately.
 Reply


?     Asked on 9/29/2017by Kurtis Moore

Does this come with new O ring
 Reply

A  Answered on 10/2/2017 by InyoPools Product Specialist Lennox H.

Hi, Kurtis Moore. The Cover O-ring - E7S2 and the Diverter Gasket - E12S2 are sold separately.
 Reply


?     Asked on 5/7/2018by linda

will this part fit in a jacuzzi replacement value 7 position tm22 sandfilter tm31 filter ty linda
 Reply

A  Answered on 5/8/2018 by InyoPools Product Specialist Andy O.

Hello Linda- The Top Assy, Valve 2" white w/ decal (e-50-s2) 4600-1152 will be the correct top assembly for your TM22 valve.
 Reply


?     Asked on 5/16/2018by Inyo Visitor

will this fit a jandy sm20-2 MVP?
 Reply

A  Answered on 5/17/2018 by InyoPools Product Specialist Hector F.

Yes, this assembly will work for that model valve.
 Reply


?     Asked on 5/26/2018by Inyo Visitor

Will this fit model # SM-20-3
 Reply

A  Answered on 5/27/2018 by InyoPools Product Specialist Lennox H.

Hi. Yes, this Valve Top Assy will fit the SM-20-3 Valve. The Cover O-ring - E7S2 and the Diverter Gasket - E12S2 will have to be purchased separately.
 Reply


?     Asked on 6/9/2018by Carmine Lombardi

I have a Pentair Valve Mod SM20-2/ Valve Assembly Mod SM2-PP2 that is leaking from the valve handle. Is this the right part and do I have to replace the hole top handle assembly? Thank You.
 Reply

A  Answered on 6/9/2018 by InyoPools Product Specialist Lennox H.

Hi, Carmine. Replacing this Top Valve Assy along with the Cover O-ring - E7S2 and the Diverter Gasket - E12S2 should resolve and prevent any future issues.
 Reply


?     Asked on 5/27/2019by Gianna Clavelli

HI I need a SM20-2 key assembly.
 Reply

A  Answered on 5/27/2019 by InyoPools Product Specialist Patrick P.

Hi Gianna, This 4602-1152 is the correct key assembly for the SM20-2
 Reply


?     Asked on 5/27/2019by Gianna Clavelli

I have a Jandy SM20-2 key assembly that is leaking through. Will this fix the problem? I already replaced the 0-ring gasket.
 Reply

A  Answered on 5/27/2019 by InyoPools Product Specialist Patrick P.

Yes this should fix your problem.
 Reply


?     Asked on 9/2/2019by Jim

Does this work with STA_RITE 18201-0300? They look exactly the same
 Reply

A  Answered on 9/3/2019 by Industry Professional

The part you chose was a Praher valve If the multiport on there is a 18201-300 then it is a actual sta rite part. That part will not work. Here is a list of the components you may not need all of them * the label is not available Handle, Pentair Sta-Rite 1-1/2"-2" Side/Top Mount Valve # 27-102-1100 Handle Pin, Pentair Sta-Rite 1-1/2"-2" Side Mount/TM-22 # 27-102-1136 Label is Unavailable Washer, Pentair Sta-Rite 1-1/2" Side Mount/2" TM-22 # 27-102-1106 Cover, Pentair Sta-Rite 1-1/2"-2" Side Mount Valve # 27-102-1108 Washer, Pentair Sta-Rite 1-1/2"-2" Side Mount/TM-22-L # 27-102-1116 Spring, Pentair Sta-Rite 1-1/2"-2" Side Mount/TM-22-L # 27-102-1118 for 1 1/2 inch valve O-Ring, 5-1/4" ID, 1/8" Cross Section, Generic #90-423-5252 for 2 inch valve O-Ring, 6-3/4" ID, 1/8" Cross Section, Generic # 90-423-5261 Diverter, Pentair Sta-Rite 1-1/2" Side Mount Valve # 27-102-1122 Gasket, 5-1/8"OD, 5 Spokes, G-416 # 27-102-1126

 Reply


?     Asked on 3/26/2020by james

Hello - I have a TM-22 (not sure if there are any letters after TM22). I just need to order the "Top Valve Assy". Is this the correct part to order? The only other identifiers I see on this is it says 125.GPM US Rated flow. Please see attached 5 pictures

 Reply

A  Answered on 3/26/2020 by InyoPools Product Specialist Patrick P.

Hi James, Yes this would be the proper top valve assembly for the TM-22. We would also suggest replacing the E-12-S-2 Spider Gasket when replacing the top assembly.
 Reply

  • Commented on 3/26/2020 by Product Owner

    Thanks.. does this also come with the decal
     Reply

    • Commented on 3/26/2020 by InyoPools Product Specialist Patrick P.

      Hi James, Yes the decal is included.
       Reply

      • Commented on 3/26/2020 by Product Owner

        Dumb question. Does this come with the handle too built in with the gaskets / washers etc. Just want to make sure everything is included in the picture. I did order the spider gasket too.
         Reply

        • Commented on 3/26/2020 by InyoPools Product Specialist Patrick P.

          Hi James, No worries, yes the handle is included.
           Reply

      • Commented on 3/26/2020 by Product Owner

        I ordered this gasket too http://www.inyopools.com/Products/07501352018089.htm - was this the correct one? I also saw this one which looked similar - http://www.inyopools.com/Products/00101352063822.htm# so was not sure. Have a great day and thanks for all your help :)
         Reply

        • Commented on 3/26/2020 by InyoPools Product Specialist Patrick P.

          Hi James the gasket you ordered is correct.
           Reply


?     Asked on 5/10/2020by Timothy Gulla

The multi-port valve is leaking out the backwash hose and there is no identifiying information left on the unit to know which parts to order. I believe it is a Jandy, but not sure. Also, this part if the correct one come with spider gasket & top o ring? Thank you
 Reply

A  Answered on 12/7/2020 by InyoPools Product Specialist Hector F.

Hi Timothy, could you send us a few photos? One of the complete valve, and another looking down onto it? To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
 Reply


?     Asked on 6/11/2020by Paul Allard

I have a Starite System 3 the muti port valve part number is 18201-0200. This looks like a match. Am I correct?
 Reply

A  Answered on 6/12/2020 by InyoPools Product Specialist Hector F.

Yes, this would the correct top valve assembly for your Sta-Rite model 182010200 multiport valve.
 Reply


?     Asked on 11/8/2020by Tim

I have a Jandy Model "DV ASSY 7-POS 1 1/2 V-FLING TRI" multiport valve assembly. The top leaks out the handle. Will this part fit? It looks a little different (mine has less screws on top...) Thanks!

 Reply

A  Answered on 11/9/2020 by InyoPools Product Specialist Megan C.

Hi Tim, the top complete valve cover kit for the Jandy multiport valve model 39263105 is part number 4628-21.
 Reply

  • Commented on 11/9/2020 by Product Owner

    That looks perfect. Thank you so much!!!!
     Reply


?     Asked on 5/16/2021by Scott J.

I have a Jandy DEL48. I have water leaking out around multi port valve handle and getting DE back into pool after filter starts up. Will this valve work? Thank you.
 Reply

A  Answered on 5/17/2021 by InyoPools Product Specialist Patrick P.

Hi Scott, Yes this would be the proper replacement top valve assembly for your DEL48 Valve
 Reply


?     Asked on 7/8/2021by Bob Nib

Is this assembly a match for the multiport valve connected to my Jandy DEL60? Hoping I've found the pot of gold at the end of the rainbow with this. While I'm here, what are the part numbers for the top O ring and the spider gasket? Figure I'll get extras to keep on hand. Thanks.

 Reply

A  Answered on 7/8/2021 by InyoPools Product Specialist Craig C.

Hello Bob.  The Praher Top Valve Assembly 2" Black-E-50-S2B is compatible with the Jandy Multiport Valve A0553645 which is installed on your Jandy DEL60 DE Filter.  The Top Cover o-ring is part number E-7-S2 (#6 on attachment) and the Spider Gasket is part number E-12-S-2 (#13 on attachment).  Attached please find an exploded parts diagram for the Jandy Side Mount Multiport Valve model A0553645.   Jandy Side Mount Valve-DE (SM20-2)
 Reply


?     Asked on 10/4/2022by Alan Margossian

will this fit a Pentair SM-20 ? Also i have a question on the Spider Gasket installation. I have gone through 2 of them this past summer. They are lifting up on one of the spokes so the valve leaks after going from backwash back to filter. I can reset the spider gasket but it will leak again after the next backwash. Should I be using a gasket cement or RTV Silicone to get the gasket to stay in the grooves/channels?
 Reply

A  Answered on 10/5/2022 by InyoPools Product Specialist Hector F.

Hi Alan, yes this is the correct top valve assembly for the model SM-20 multiport valve. Also yes it is recommended to use clear RTV silicone or Loctite when installing the new spider gasket to hold them in place.
 Reply


?     Asked on 10/10/2022by Alexander

I believe I have a Pentair/PacFab 270067 diverter which is over 20 years old. I am leaking water around the handle after having just replaced the spider gasket (it was leaking before I replace the gasket). Will this fit my model diverter?
 Reply

A  Answered on 10/10/2022 by InyoPools Product Specialist Hector F.

Hi Alexander, yes the top key cover valve assembly should resolve that handle leak as the entire assembly comes with the seals and such under the handle intact. However the correct assembly is actually part number 4600-067. I have emailed you an estimate that you can convert to an order aswell if you'd like.
 Reply


?     Asked on 5/21/2023by ROBIN SHEADER

IT SHIWS THE MODEL AS SM20-AO IS THIS THE SAME AS THE SM20-2?
 Reply

A  Answered on 5/21/2023 by InyoPools Product Specialist Hector F.

Hello Robin, so essentially the SM-20-AO and SM-20-2 are in the same series however can have slight differences in the bottom/main body of them. Please click here to view the parts diagram for your series valves to view images.
 Reply


?     Asked on 6/2/2024by Robert Story

Does this replace SM20-2?
 Reply

A  Answered on 6/3/2024 by InyoPools Product Specialist Robert M.

Yes, this top assembly will work with the SM20-2.
 Reply


?     Asked on 9/25/2024by Jingsong Wu

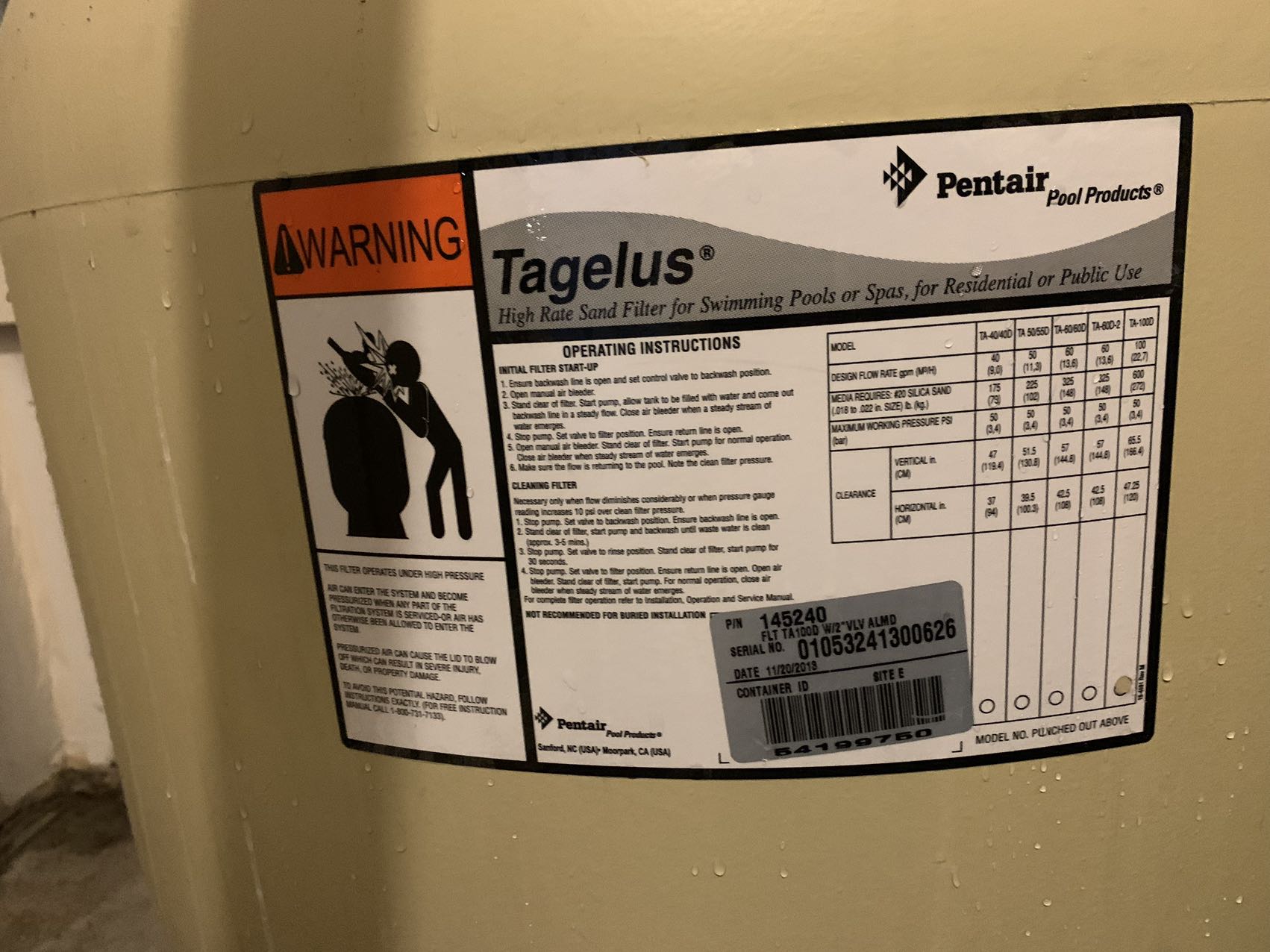

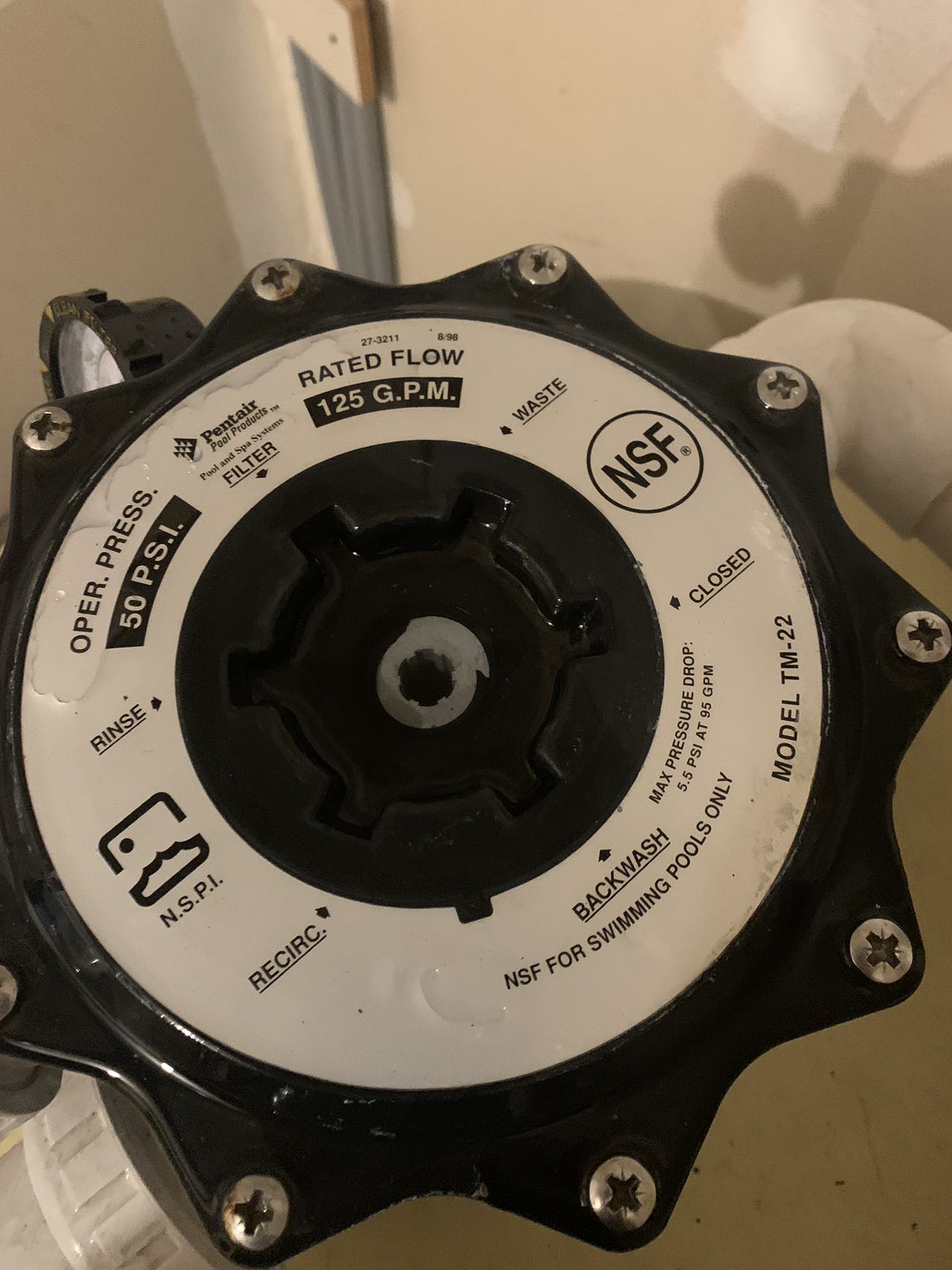

Hello, Is this one suitable to my Pentair Tagelus Model TM - 22, which is shown on the attchment. The handle is broken, I want to repair it. Could you please help me to ensure that I buy the right parts? Thank you!

 Reply

A  Answered on 9/25/2024 by InyoPools Product Specialist Rich N.

Yes, the Praher Top Valve Assembly, 2", Black - E-50-S2B will be a perfect replacement for the top valve assembly on your TM-22 valve.
 Reply
