Jacuzzi 6 Way Dial Parts

DVK-6, 15VK-24, 15VK-27/33, BOLT ON VALVES

VALVES ARE CALLED 6 WAY, BUT ACTUALLY HAVE 7 POSITIONS

FITS JACUZZI FILTERS: LASER, SANDTRAP & MFM 17 THRU 24

THESE VALVES ARE ALL VERY SIMILAR. INTERNAL PARTS ARE THE SAME. THE DIFFERENCE IS BASICALLY IN THE INLET/OUTLET PORTS.

DVK-6 (KEY A) HAS 1 1/2” FEMALE PIPE THREAD PORTS

15VK-24 (KEY B) HAS EXTERNAL UNION THREADS. THESE FIT THE DISTINCTIVE JACUZZI UNIONS (KEY C)

15VK-24 & 15VK-27/33 ARE THE SAME VALVE, THE 15VK-27/33 INCLUDES THE ADDITIONAL PARTS SHOWN

Jacuzzi 6 Way Dial Diagram
 Click to zoom in

Available Parts:

Part # 39258800R Mfg # 39258800R

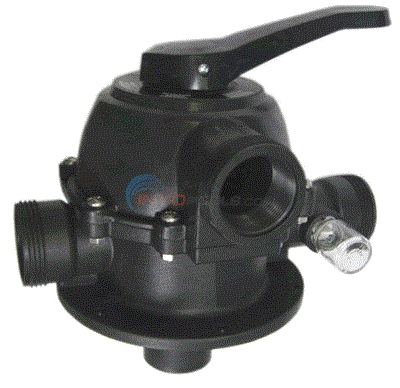

COMPLETE DVK-6 TOP MOUNT VALVE, CURRENT STYLE

$153.46 IN STOCK
Part # 39262803R Mfg # 39262803R

VALVE, DIAL, 7 POSITION (39262803)

$153.16 IN STOCK
B OBSOLETE COMPLETE 15VK-24 VALVE
Mfg # 39-2584-05

OBSOLETE COMPLETE 15VK-24 VALVE

NOT AVAILABLE
Part # 4627-25 Mfg # 31158603R2

UNION ADAPTER 1 1/2" ()

$44.29 IN STOCK
Part # 4628-20 Mfg # 39262209K

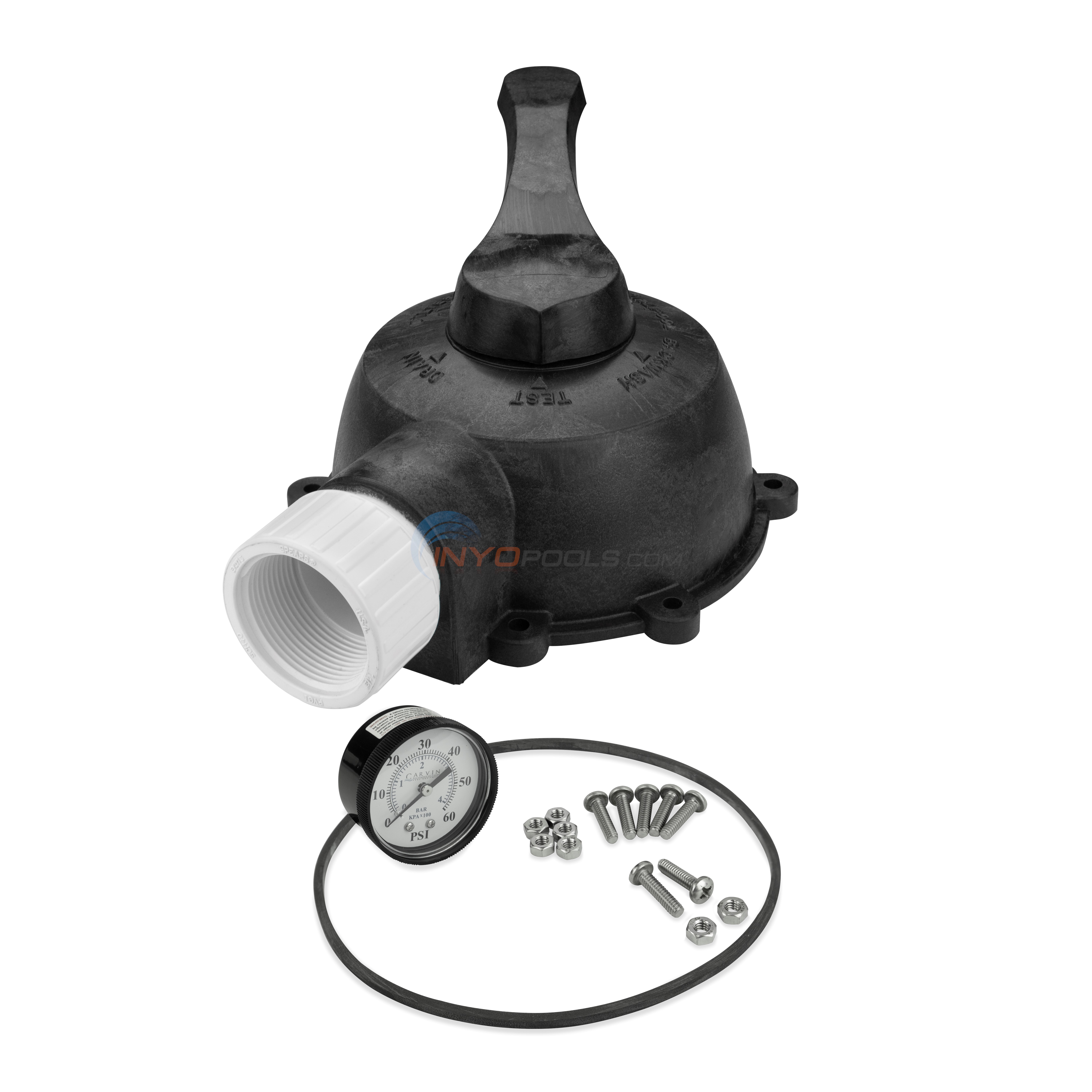

COVER KIT-KEY,COVER&HNDL.ASSY. (39262209RKIT)

$140.64 IN STOCK
Part # 4628-01A Mfg # 39251707RK

HANDLE REPAIR KIT DV4/6/7 (39251707RKIT)

$22.43 IN STOCK
Part # 4628-13A Mfg # 39251509K

DIVERTER REPAIR KIT DV6/7 (39251509RKIT)

$55.80 IN STOCK
Part # 9175-02 Mfg # 0602-15

UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)

$16.19 IN STOCK
Part # 4628-01 Mfg # 39255302R

HANDLE (39251707RBLK)

$25.99 IN STOCK
Part # 4628-02 Mfg # 14225502R

PIN, HANDLE

$8.68 IN STOCK
3 No Longer Available WASHER Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352041679.htm">4628-51</a>
Mfg # 14-3834-00

No Longer Available WASHER Replace With 4628-51

NOT AVAILABLE
Part # 4628-51 Mfg # 14223002R3

14-2230-02-R3

$19.65
Part # 4628-05 Mfg # 39251608R

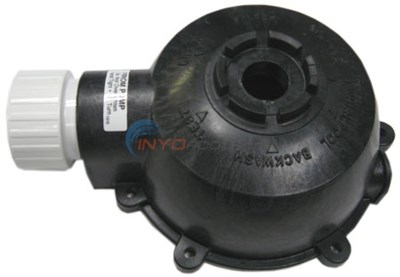

COVER, VALVE (39251608RBLK)

$87.97 IN STOCK
Part # 4628-05A Mfg # 39257100R

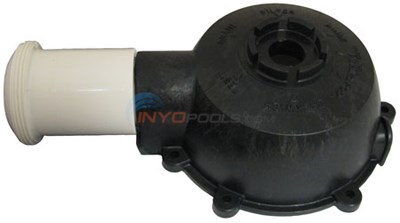

COVER, RMST DV UNION 15VK (39257100R000)

$126.28

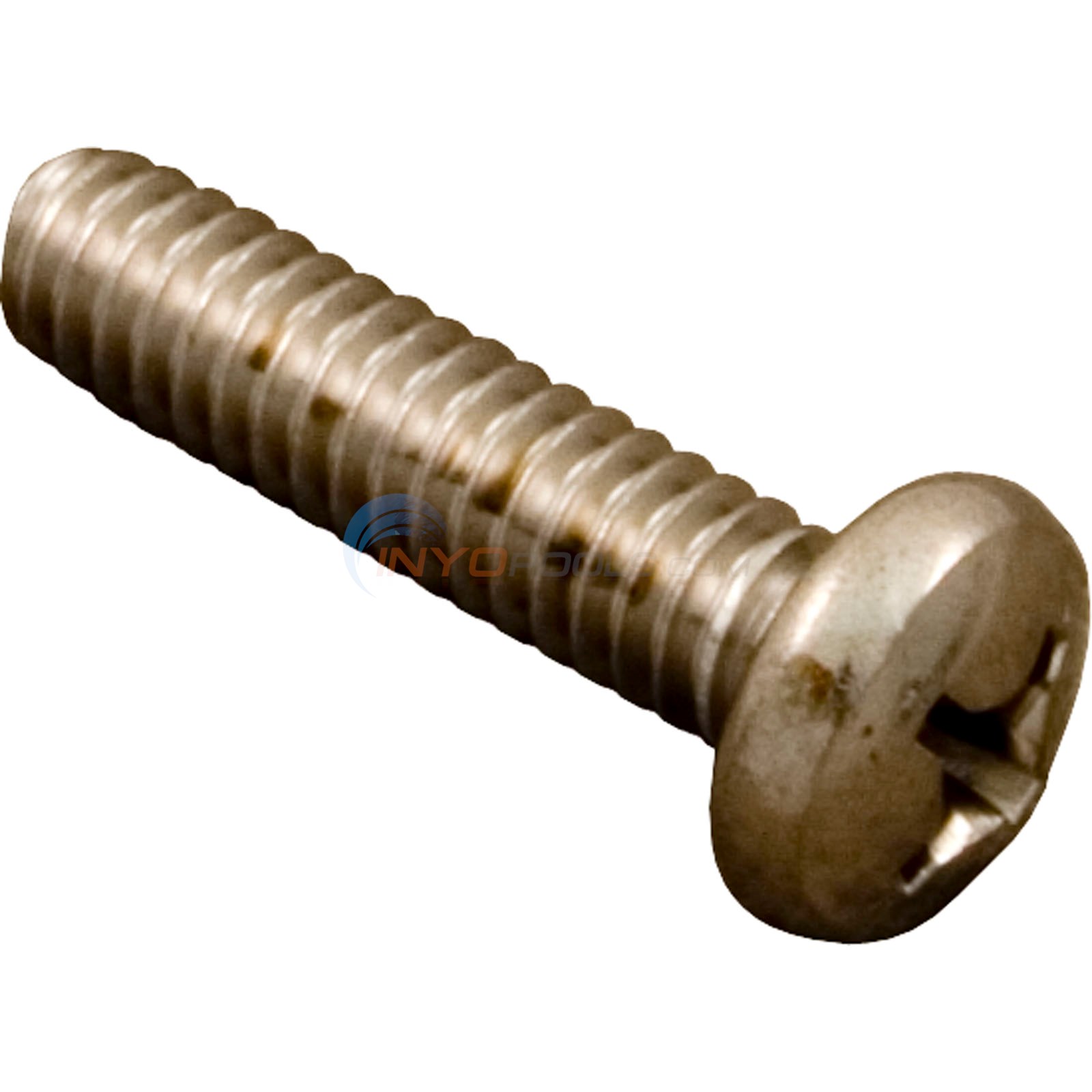

Part # 4628-06 Mfg # 14428700R

SCREW, VALVE COVER (14428700R000)

$38.29 IN STOCK
Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$10.34 IN STOCK
Part # 6930-0 Mfg # 14072508R

NUT 1/4-20 S.S. (4700-13N)

$11.55 IN STOCK
Part # 4628-10 Mfg # 214

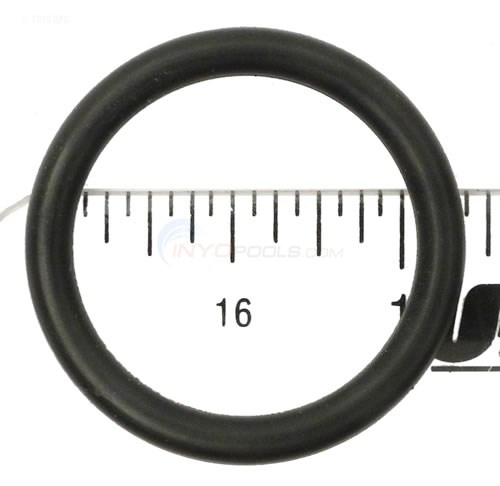

O-RING, KEY ASSY.

$15.19 IN STOCK
Part # 4628-11 Mfg # 14383301R

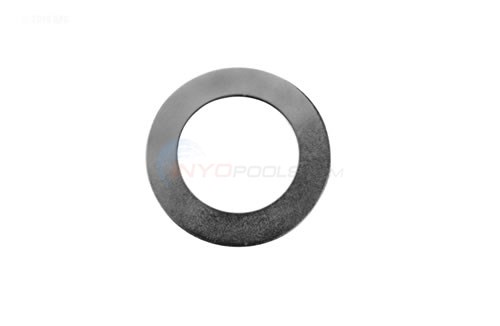

WEAR, WASHER (14383301R000)

$15.51 IN STOCK
Part # 4628-12 Mfg # 16026205R

SPRING, COMPRESSION (16026205R000)

$18.62 IN STOCK
Part # 4628-13 Mfg # 39068705R

KEY ASSEMBLY WITH GASKET (39251509R000)

$42.12 IN STOCK
Part # 4628-14 Mfg # 47025853R

GASKET. VALVE COVER (SQ. RING) (47025853)

$14.02 IN STOCK

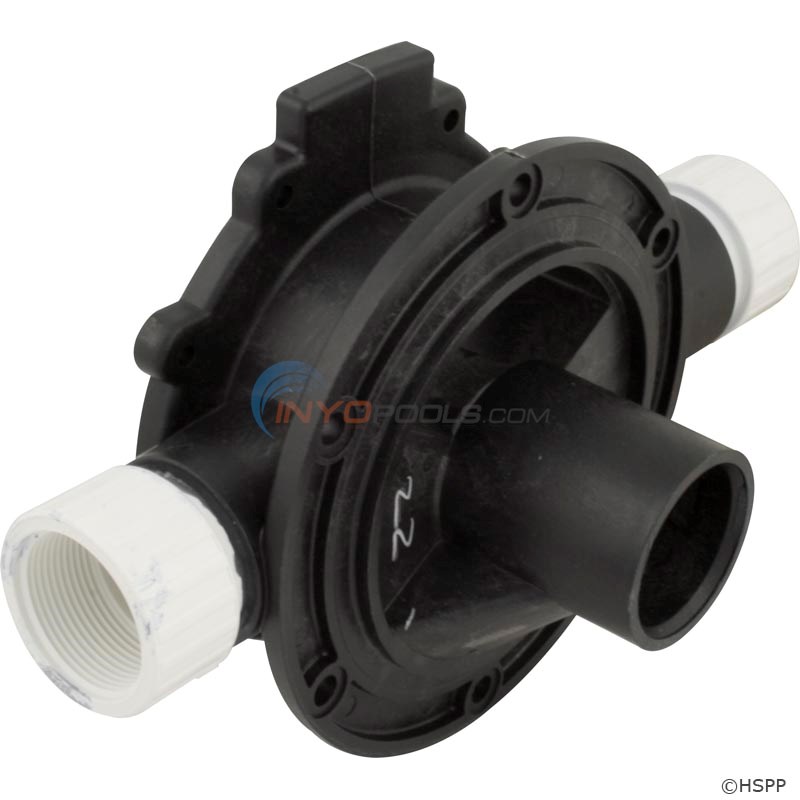

Part # 4628-15 Mfg # 39258108R

BODY, PORT DVK-6 (39258108R000)

$126.28
Part # 4628-15A Mfg # 39257209R

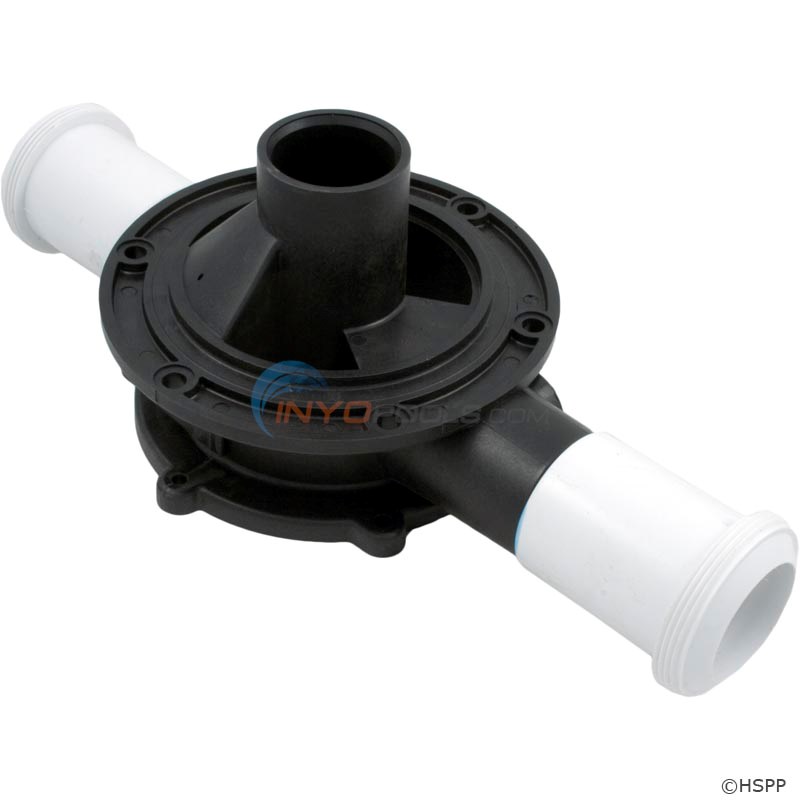

BODY, RMST DV UNION (39257209R000)

$138.70
Part # 4628-16 Mfg # 13038203R

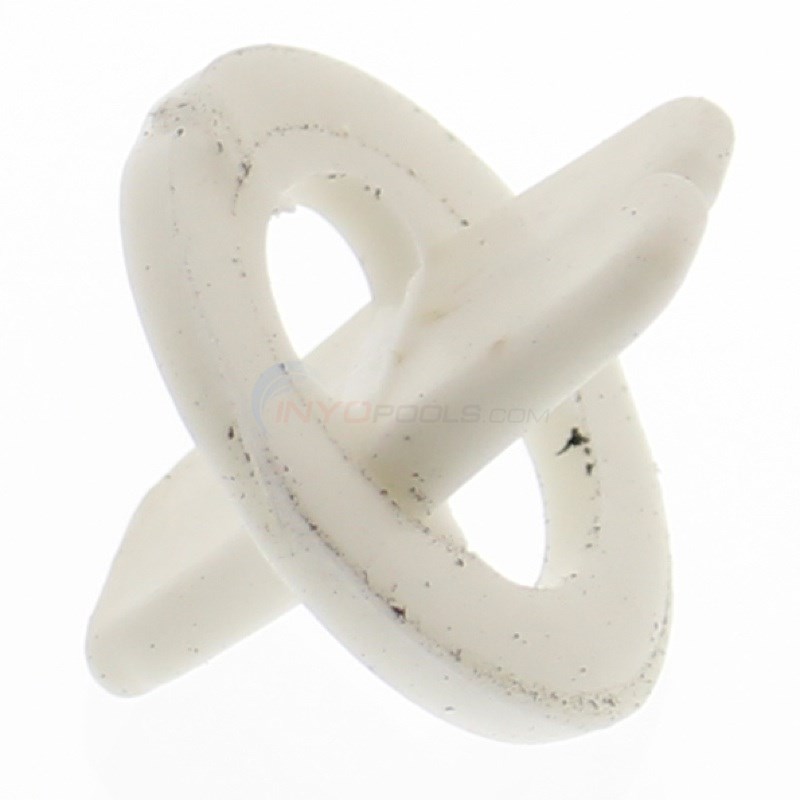

GASKET, DEFLECTOR (13038203R000)

$14.02 IN STOCK
Part # 4628-17 Mfg # 23257702R

SIGHT GLASS (23257702R000)

$18.36 IN STOCK
* THIS JACUZZI DVK-6 BOLT ON VALVE IS NO LONGER AVAILABLE



THERE ARE 2 DIFFERENT REPLACEMENTS AVAILABLE FOR THIS VALVE



BOTH REPLACEMENTS WILL REQUIRE SOME RE-PLUMBING THE PUMP PORT, RETURN PORT, AND WASTE PORT ARE IN DIFFERENT

POSTIONS ON THE REPLACEMENT VALVES COMPARED TO THE ORIGINAL



THERE IS NO OTHER OPTION FOR REPLACEMENT OTHER THAN 1 OF THE 2 REPLACEMENT VALVES SHOWN BELOW

********************************************************************

REPLACMENT VALVES:



4625-35 JACUZZI OEM DVK-7 BOLT ON VALVE



4625-80 PRAHER DVK-6 / DVK-7 BOLT ON REPLACEMENT VALVE



** NO COVER KIT MADE FOR 15VK VALVES ORDER KEYS 5B, E & F
