Advantage In Ground Pump - Pool Master Parts

PREVIOUSLY SOLD AS THE SONFARREL “POOL MASTER” PUMP

Advantage In Ground Pump - Pool Master Diagram

Click to zoom in

Diagram #	Part Title
1	Lid, Pump Pot
2	O-ring, Lid
3	Strainer Basket
4	Housing - Pot
5	Nut, Union 1-1/2"
7	O-ring, Union
6	Tailpiece, Union 1-1/2" Slip
8	1.5" MIP x Union Thread
9	O-ring, Plug
10	Plug, 1/2"
11	Nut, 5/16" Hex
12	Washer, 5/16"
13	Gasket, Square Flange
14	Housing, Volute
15	O-ring, Volute Housing
16	Ring, Diffuser
17	Diffuser

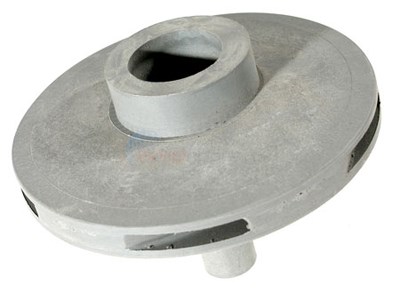

18	Impeller, 1/2 HP (Blue)
19	Shaft Seal, Pump 3/4" PS-201
20	Seal Plate
21	Clamp, Band SS
22	Knob, Band Clamp
23	Washer, Star 3/8"
24	Nut, Hex 3/8"-16
25	Base, Motor
26	Isolator, Motor

View Parts List

Diagram #	Part Title
1	Lid, Pump Pot
2	O-ring, Lid
3	Strainer Basket
4	Housing - Pot
5	Nut, Union 1-1/2"
7	O-ring, Union
6	Tailpiece, Union 1-1/2" Slip
8	1.5" MIP x Union Thread
9	O-ring, Plug
10	Plug, 1/2"
11	Nut, 5/16" Hex
12	Washer, 5/16"
13	Gasket, Square Flange
14	Housing, Volute
15	O-ring, Volute Housing
16	Ring, Diffuser
17	Diffuser
18	Impeller, 1/2 HP (Blue)
19	Shaft Seal, Pump 3/4" PS-201
20	Seal Plate
21	Clamp, Band SS
22	Knob, Band Clamp
23	Washer, Star 3/8"
24	Nut, Hex 3/8"-16
25	Base, Motor
26	Isolator, Motor

Available Parts:

Mfg # 320101

Lid, Pump Pot

NOT AVAILABLE

Part # 5056-15 Mfg # 435

O-ring, Lid

$11.65 IN STOCK

Qty:

Advantage In Ground Pump - Pool Master Parts

View Parts List

Available Parts:

Lid, Pump Pot

Housing - Pot

Plug, 1/2"

Gasket, Square Flange

Housing, Volute

Ring, Diffuser

Diffuser

Impeller, 3/4 HP (Red)

Impeller, 1.0 HP (Gray)

Impeller, 1.5 HP (Green)

Impeller, 2.0 HP (Black)

Seal Plate

Base, Motor

Isolator, Motor
