Aqua Flo A Series Pump Parts

INGROUND POOL PUMP

Aqua Flo A Series Pump Diagram

Click to zoom in

Diagram #	Part Title
**	Tune Up Kit - Aqua Flo A-Series Pump
1	Motor 1/2 HP Full Rate
*	Protective Pool Motor Cover
2	Shaft Extension
3	Screw, Shaft Extension 1/4"-20 x 5/16"
4	Bracket, .33 - 2.0 HP
5	Bolt, Hex 5/16"-18" x 5/8"
6	Screw, Hex Cap 3/8"-16 x 5/8"
7	Gasket, Volute .33 - 2.0 HP
8	Shaft Seal, Pump 5/8" (Standard)
***	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
9	Impeller, .33 HP
10	Volute, .33 - 2.0 HP
11	Base, Plastic
12	Bolt, Hex 5/16"-18 x 1"
13	Washer, 5/16"
14	Plug, Brass 1/4"
15	Gasket, Volute 5"
16	Trap Body, 5" - 1-1/2" Suction
17	Basket, Trap 5"
18	O-ring, Trap Cover, 5”
19	Lid, Trap 5"
20	Handle, Lock

View Parts List

Diagram #	Part Title
**	Tune Up Kit - Aqua Flo A-Series Pump
1	Motor 1/2 HP Full Rate
*	Protective Pool Motor Cover
2	Shaft Extension
3	Screw, Shaft Extension 1/4"-20 x 5/16"
4	Bracket, .33 - 2.0 HP
5	Bolt, Hex 5/16"-18" x 5/8"
6	Screw, Hex Cap 3/8"-16 x 5/8"
7	Gasket, Volute .33 - 2.0 HP
8	Shaft Seal, Pump 5/8" (Standard)
***	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
9	Impeller, .33 HP
10	Volute, .33 - 2.0 HP
11	Base, Plastic
12	Bolt, Hex 5/16"-18 x 1"
13	Washer, 5/16"
14	Plug, Brass 1/4"
15	Gasket, Volute 5"
16	Trap Body, 5" - 1-1/2" Suction
17	Basket, Trap 5"
18	O-ring, Trap Cover, 5”
19	Lid, Trap 5"
20	Handle, Lock

Available Parts:

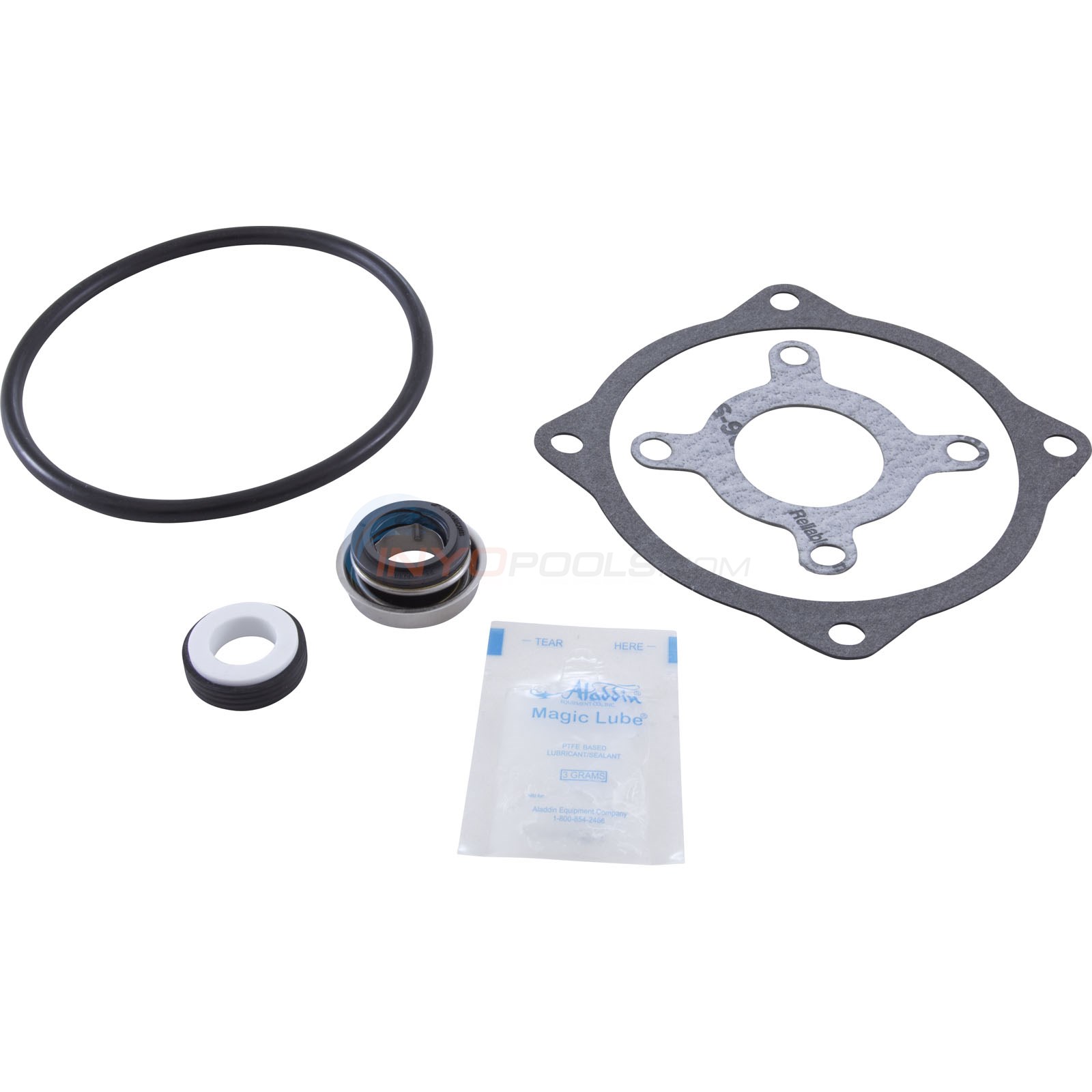

Tune Up Kit - Aqua Flo A-Series Pump

Part # APCK1030

Tune Up Kit - Aqua Flo A-Series Pump

$36.71 IN STOCK

Qty:

Motor 1/2 HP Full Rate

Part # 5201X Mfg # B120

Motor 1/2 HP Full Rate

$268.97

Service Factor 1.6 Voltage 115/230 Max Amps 10.6/5.3 Frame 56C

Service Factor 1.6 Voltage 115/230 Max Amps 10.6/5.3 Frame 56C

Motor 3/4 HP Full Rate

Part # 5202X Mfg # B121

Motor 3/4 HP Full Rate

$269.00 IN STOCK

Service Factor 1.5 Voltage 115/230 Max Amps 14.6/7.3 Frame 56C

Service Factor 1.5 Voltage 115/230 Max Amps 14.6/7.3 Frame 56C

Qty:

Motor ,Two Compartment C-Face Keyed 1.0HP Sgl Spd 115/230V

Part # SK1102 Mfg # SK1102

Motor ,Two Compartment C-Face Keyed 1.0HP Sgl Spd 115/230V

$303.23 IN STOCK

Service Factor 1.5 Voltage 115/230 Max Amps 17.0/8.5 Frame 56C

Service Factor 1.5 Voltage 115/230 Max Amps 17.0/8.5 Frame 56C

Qty:

Motor 1.5 HP Full Rate

Part # 5204X Mfg # B123

Motor 1.5 HP Full Rate

$429.00 IN STOCK

Service Factor 1.3 Voltage 115/230 Max Amps 19.4/9.7 Frame 56C

Service Factor 1.3 Voltage 115/230 Max Amps 19.4/9.7 Frame 56C

Qty:

Motor 2.0 HP Full Rate

Part # 5205X Mfg # B124

Motor 2.0 HP Full Rate

$436.14 IN STOCK

Service Factor 1.3 Voltage 230 Max Amps 11.2 Frame 56C

Service Factor 1.3 Voltage 230 Max Amps 11.2 Frame 56C

Qty:

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$38.08 IN STOCK

Qty:

Shaft Extension

Part # 5126-02 Mfg # 150

Shaft Extension

$40.51 IN STOCK

Qty:

Screw, Shaft Extension 1/4"-20 x 5/16"

Part # 5050-03 Mfg # 99730000

Screw, Shaft Extension 1/4"-20 x 5/16"

$8.94 IN STOCK

Qty:

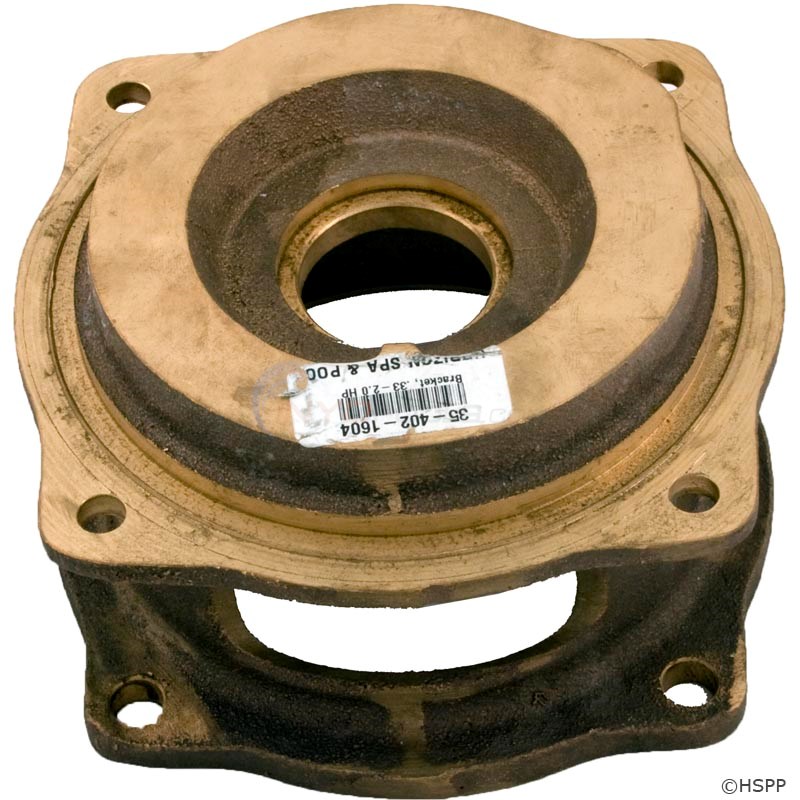

Bracket, .33 - 2.0 HP

Part # 5126-03 Mfg # V40-460

Bracket, .33 - 2.0 HP

$312.38 IN STOCK

Qty:

4

Bracket w/ Foot, .33 - 2.0 HP

Mfg # 91140100

Bracket w/ Foot, .33 - 2.0 HP

NOT AVAILABLE

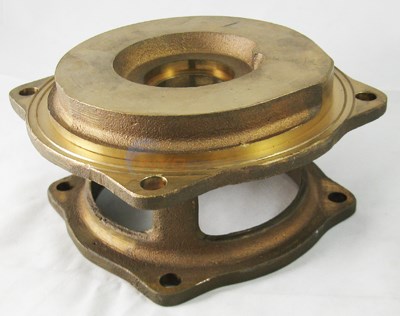

Bracket, 3.0 HP

Part # 5126-05 Mfg # 91140150

Bracket, 3.0 HP

$600.17

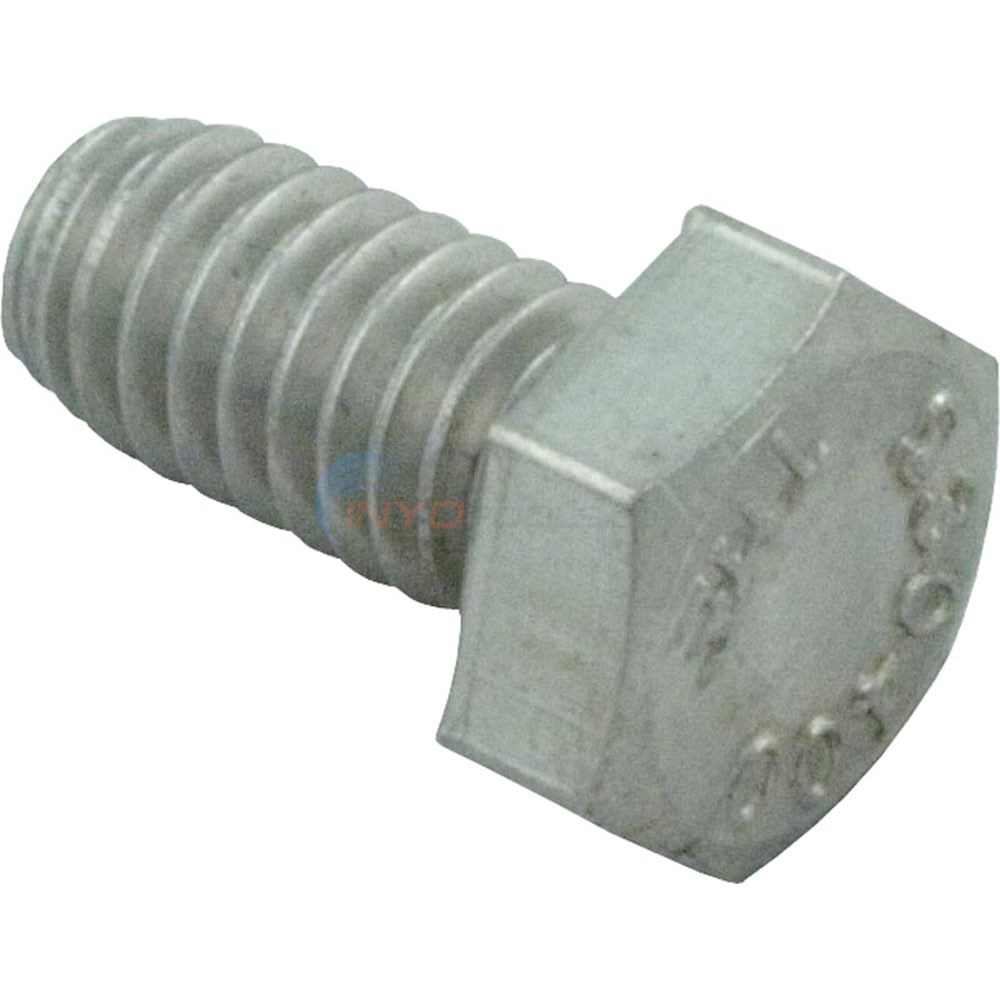

Bolt, Hex 5/16"-18" x 5/8"

Part # 5126-06 Mfg # 99050030

Bolt, Hex 5/16"-18" x 5/8"

$12.78

6

Screw, Hex Cap 3/8"-16 x 5/8"

Mfg # 99050050

Screw, Hex Cap 3/8"-16 x 5/8"

NOT AVAILABLE

Gasket, Volute .33 - 2.0 HP

Part # 91500050 Mfg # G-44

Gasket, Volute .33 - 2.0 HP

$15.06 IN STOCK

Qty:

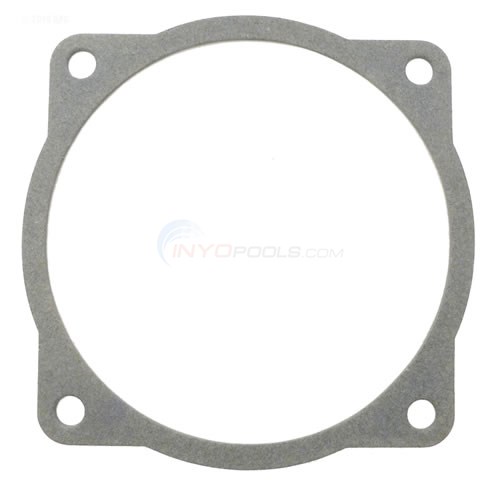

Gasket, Volute 3.0 HP

Part # 5085-05 Mfg # G-221

Gasket, Volute 3.0 HP

$15.55 IN STOCK

Qty:

Shaft Seal, Pump 5/8" (Standard)

Part # 5250-106 Mfg # PS-1000

Shaft Seal, Pump 5/8" (Standard)

$7.99 IN STOCK

Qty:

Shaft Seal, Pump 5/8" (Heavy Duty)

Part # 5250-225 Mfg # PS-3865

Shaft Seal, Pump 5/8" (Heavy Duty)

$17.05 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$5.31 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

Part # LUBE-10ML

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

$31.97 IN STOCK

Qty:

9

Impeller, .33 HP

Mfg # 91691000

Impeller, .33 HP

NOT AVAILABLE

Impeller, .5 HP

Part # 5050-06B Mfg # V40-453

Impeller, .5 HP

$166.31

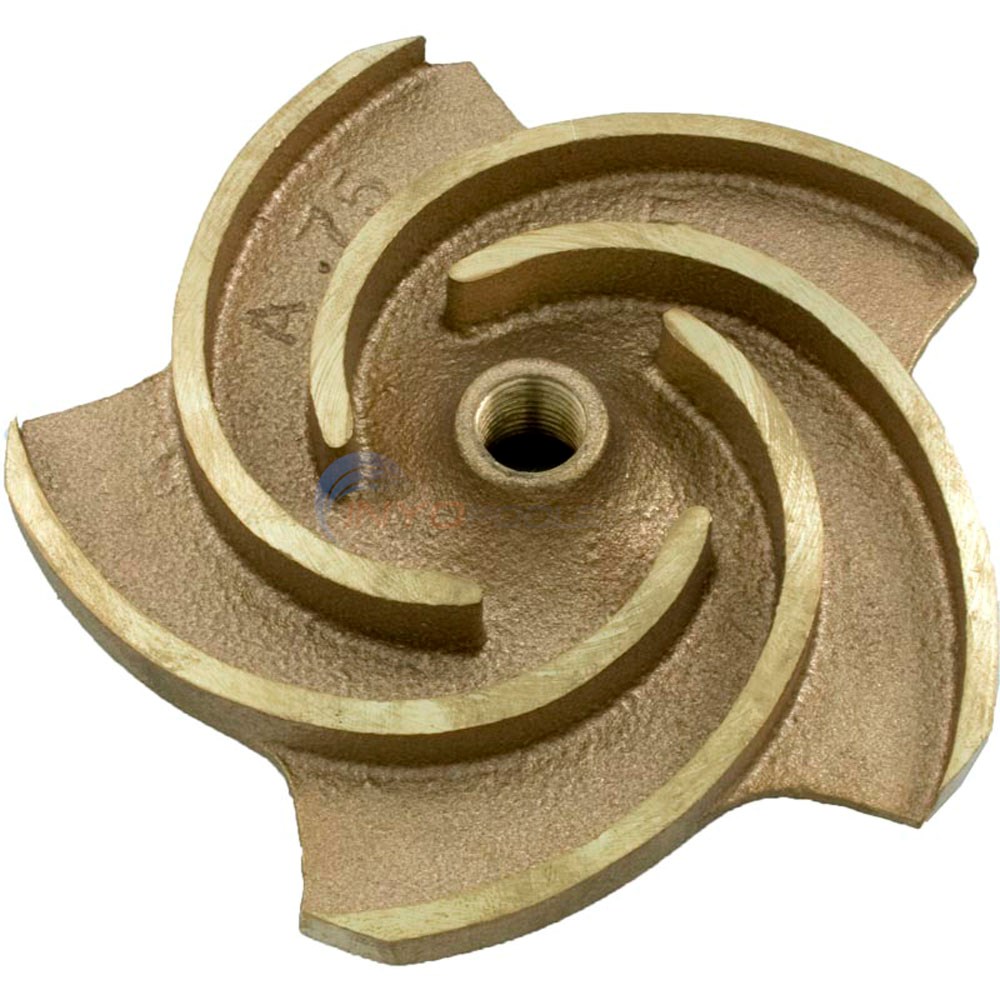

Impeller, .75 HP

Part # 5126-10 Mfg # 91691101

Impeller, .75 HP

$159.92 IN STOCK

Qty:

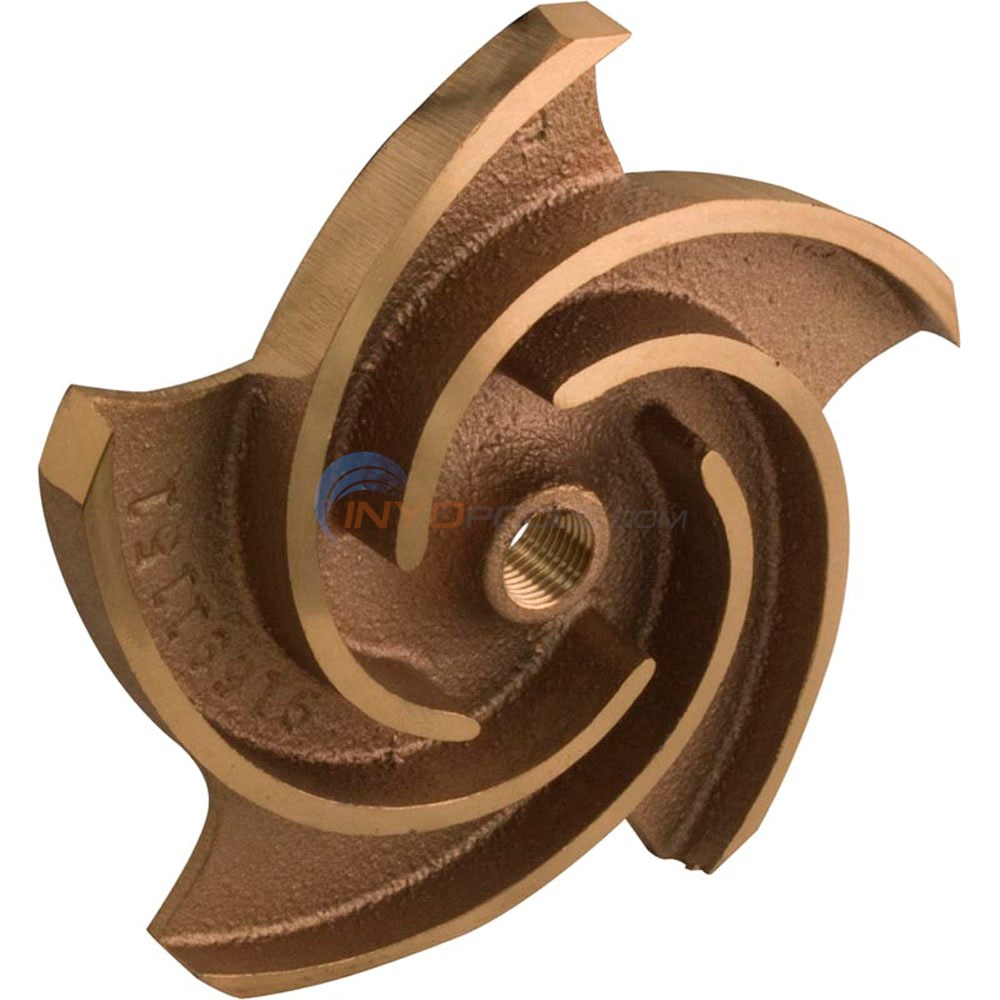

Impeller, 1.0 HP

Part # 5126-11 Mfg # 91691151

Impeller, 1.0 HP

$159.92 IN STOCK

Qty:

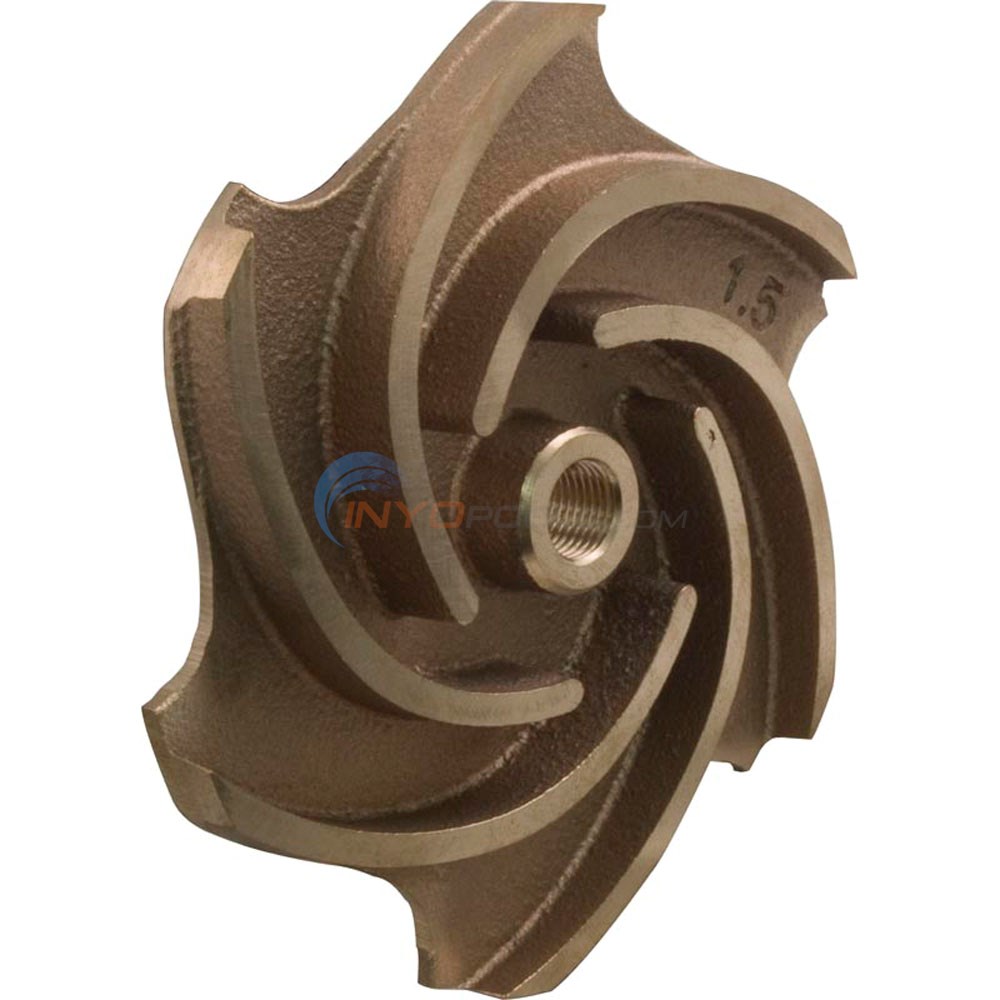

Impeller, 1.5 HP

Part # 5126-12 Mfg # 91691201

Impeller, 1.5 HP

$164.72 IN STOCK

Qty:

Impeller, 2.0 HP

Part # 5050-06F Mfg # V40-457

Impeller, 2.0 HP

$168.45 IN STOCK

Qty:

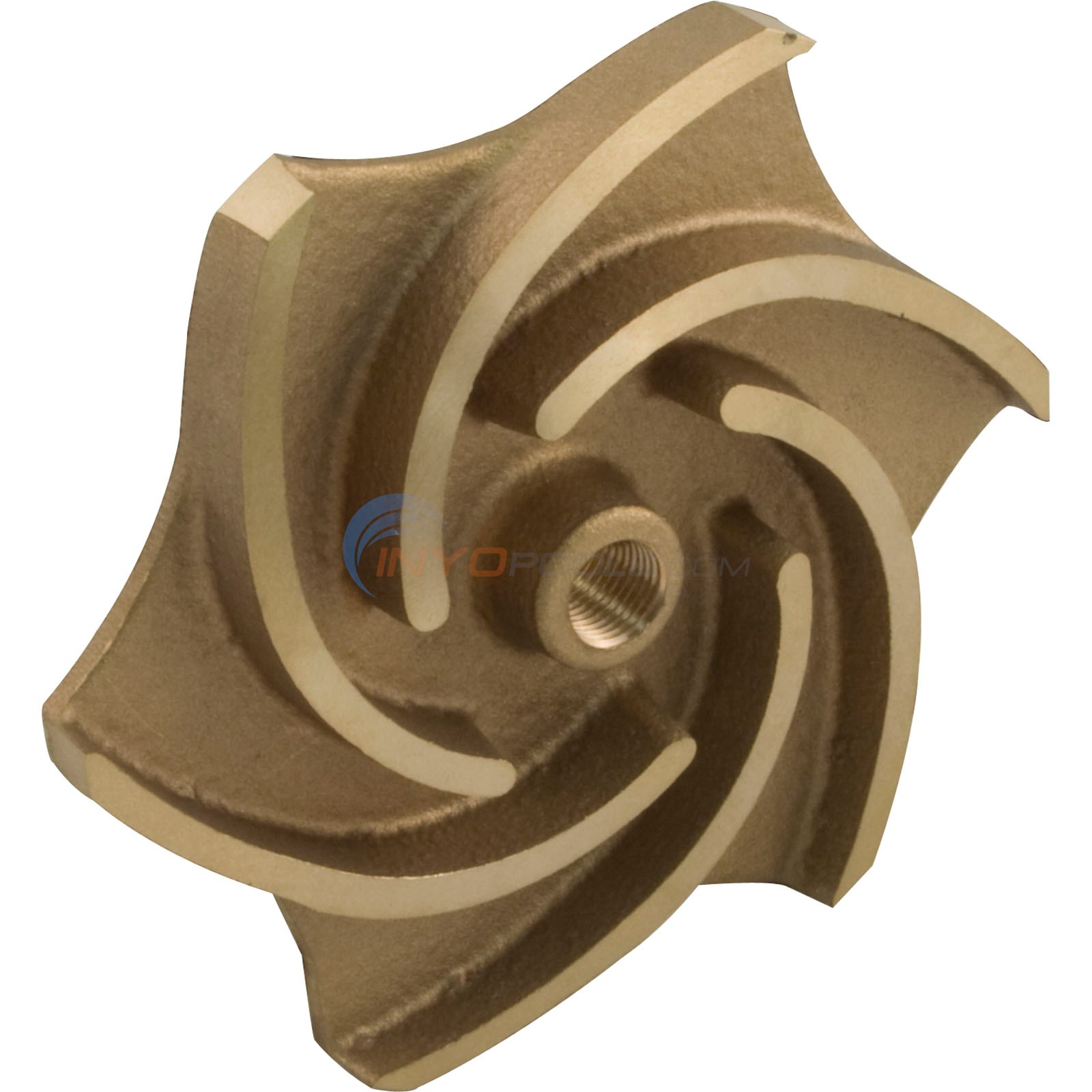

Impeller, 3.0 HP

Part # 5126-09F Mfg # 91691300

Impeller, 3.0 HP

$200.44 IN STOCK

Qty:

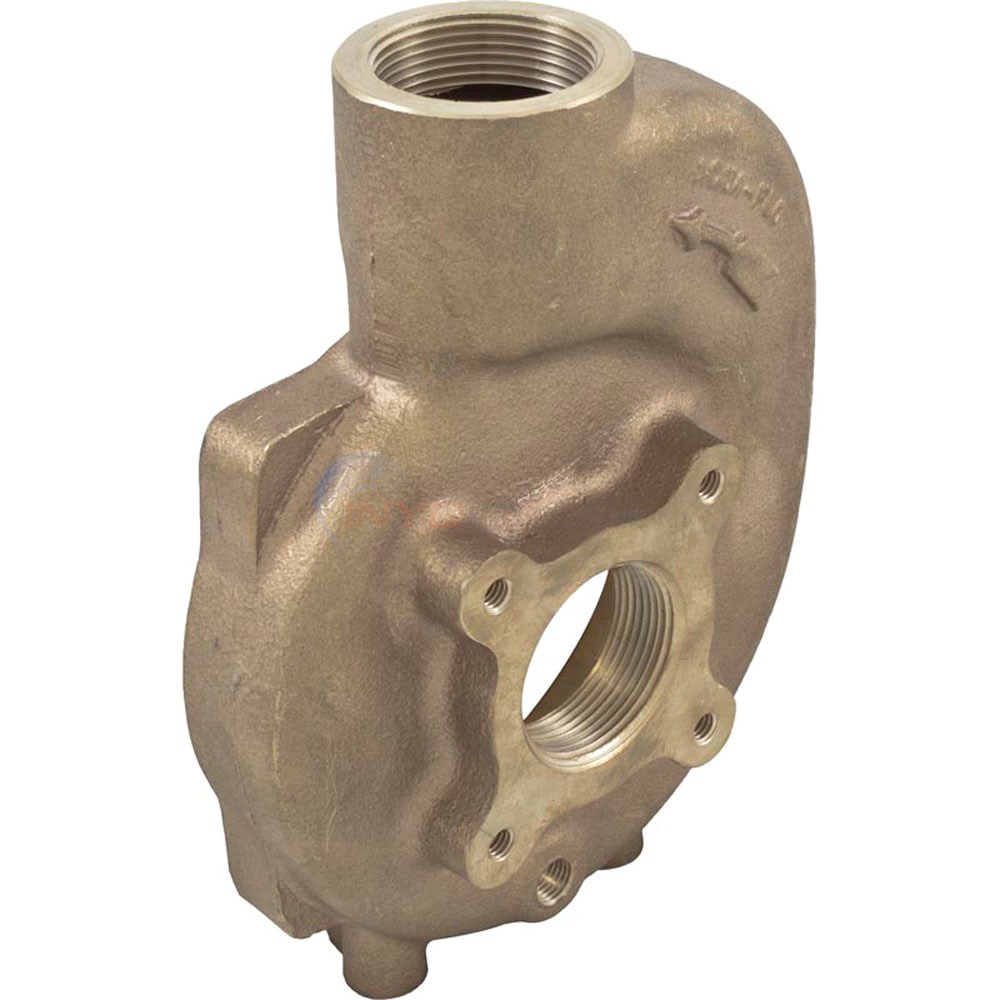

Volute, .33 - 2.0 HP

Part # 5126-29 Mfg # 92770050

Volute, .33 - 2.0 HP

$333.71

10

Volute w/o Foot, .33 - 2.0 HP

Mfg # 92770060

Volute w/o Foot, .33 - 2.0 HP

NOT AVAILABLE

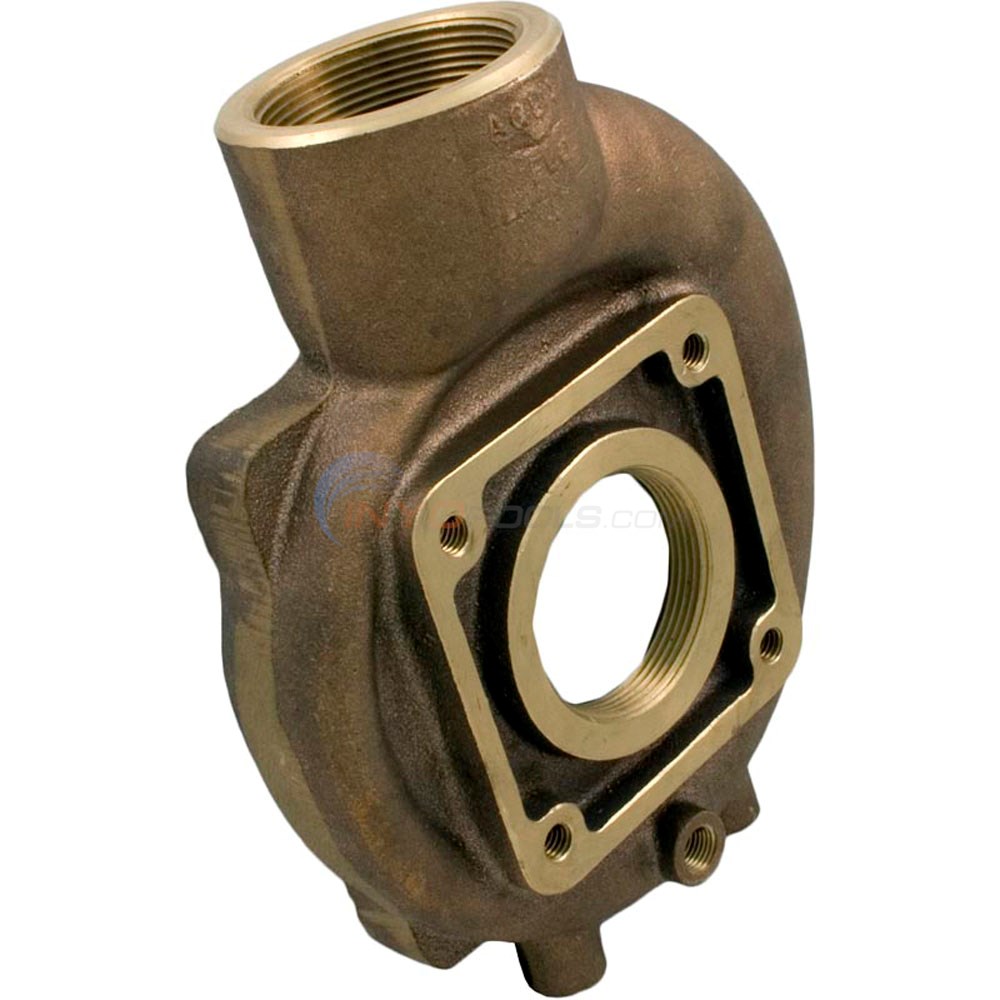

Volute, 3.0 HP

Part # 5126-10B Mfg # 92770150

Volute, 3.0 HP

$431.80

10

Volute, 100% Drain .33 - 2.0 HP

Mfg # 92770200

Volute, 100% Drain .33 - 2.0 HP

NOT AVAILABLE

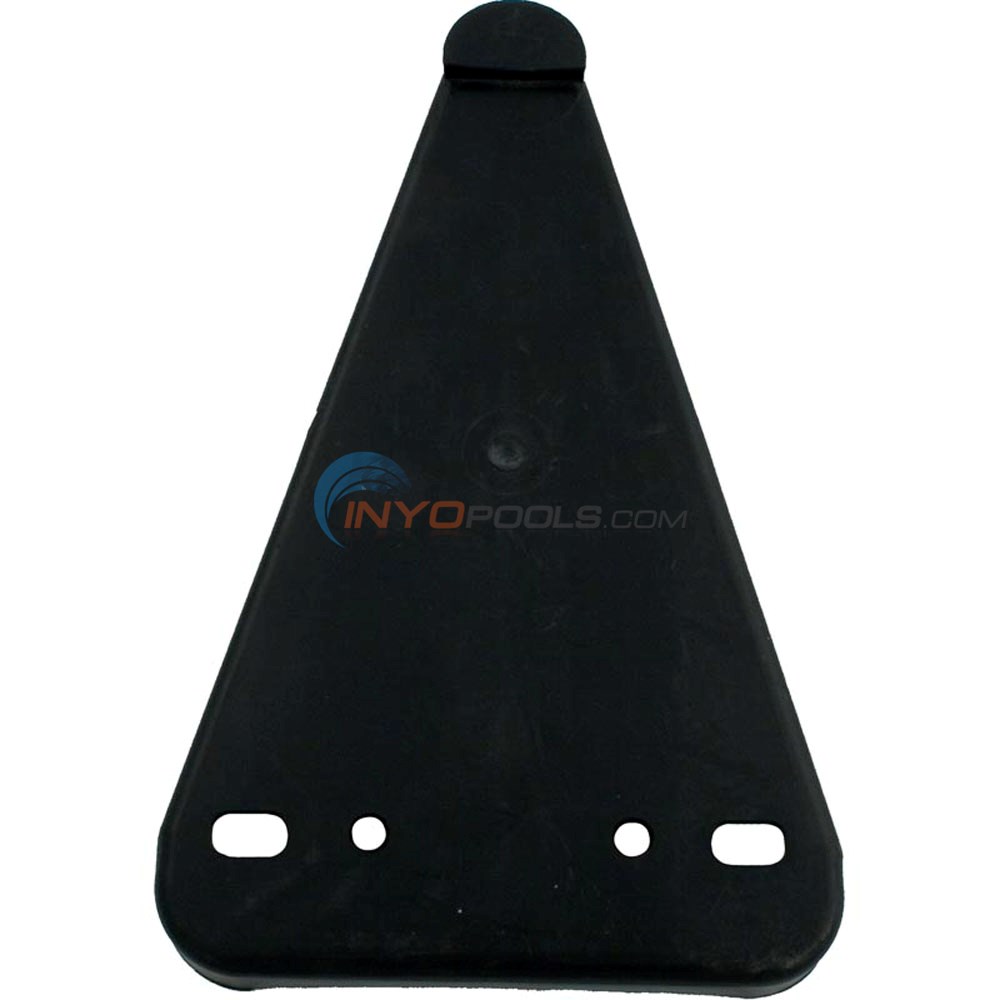

Base, Plastic

Part # 5123-09 Mfg # 91100100

Base, Plastic

$107.67 IN STOCK

Qty:

11

Base, Cast Iron

Mfg # 91100050

Base, Cast Iron

NOT AVAILABLE

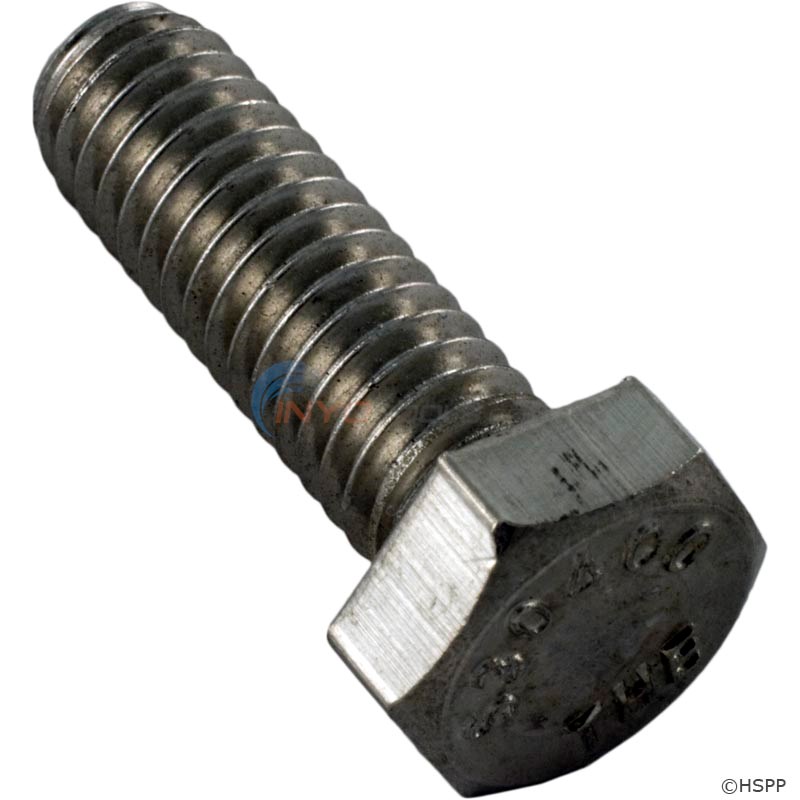

Bolt, Hex 5/16"-18 x 1"

Part # 5126-15 Mfg # 99050110

Bolt, Hex 5/16"-18 x 1"

$11.71

Washer, 5/16"

Part # 99890050

Washer, 5/16"

$12.05

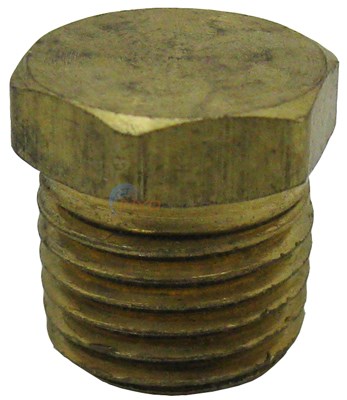

Plug, Brass 1/4"

Part # 5123-18A Mfg # 92290000

Plug, Brass 1/4"

$23.44 IN STOCK

Qty:

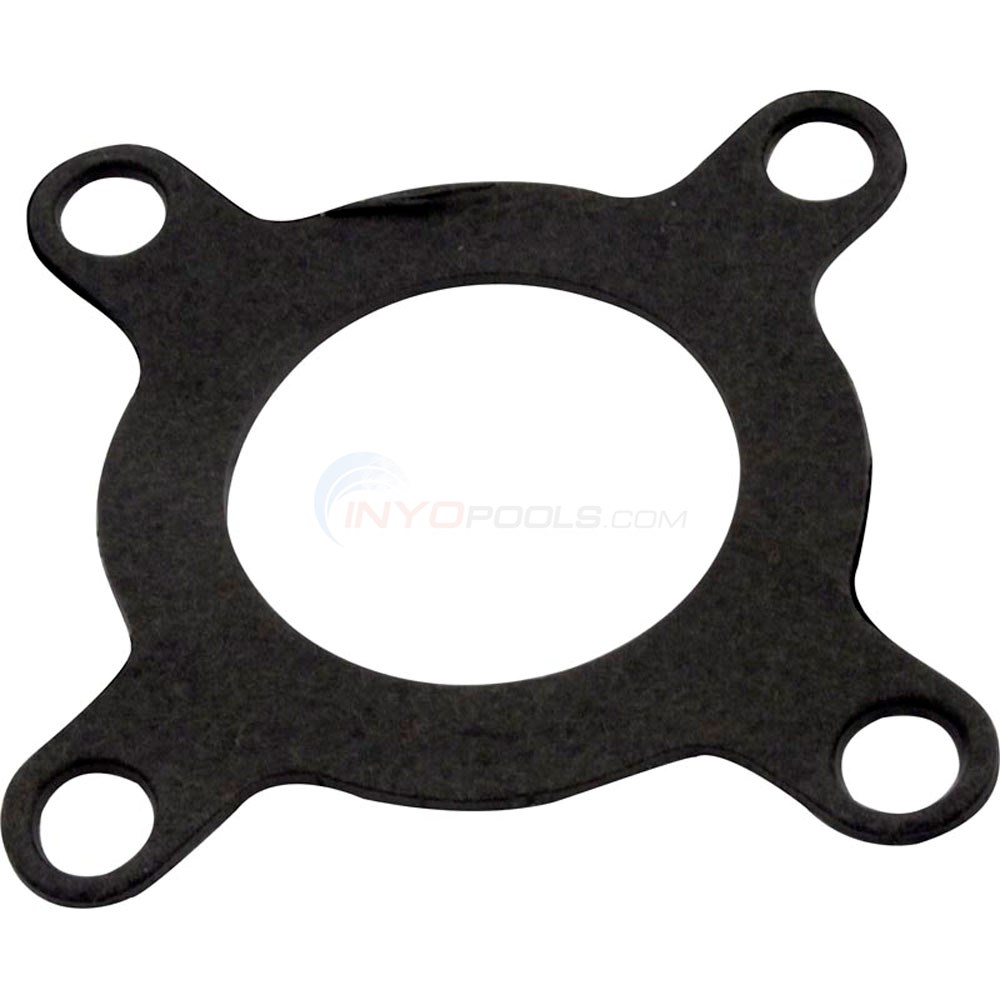

Gasket, Volute 5"

Part # 5010-39 Mfg # G-57

Gasket, Volute 5"

$11.71 IN STOCK

Qty:

Gasket, Volute 6" & 8"

Part # 5050-21 Mfg # G-18

Gasket, Volute 6" & 8"

$14.86 IN STOCK

Qty:

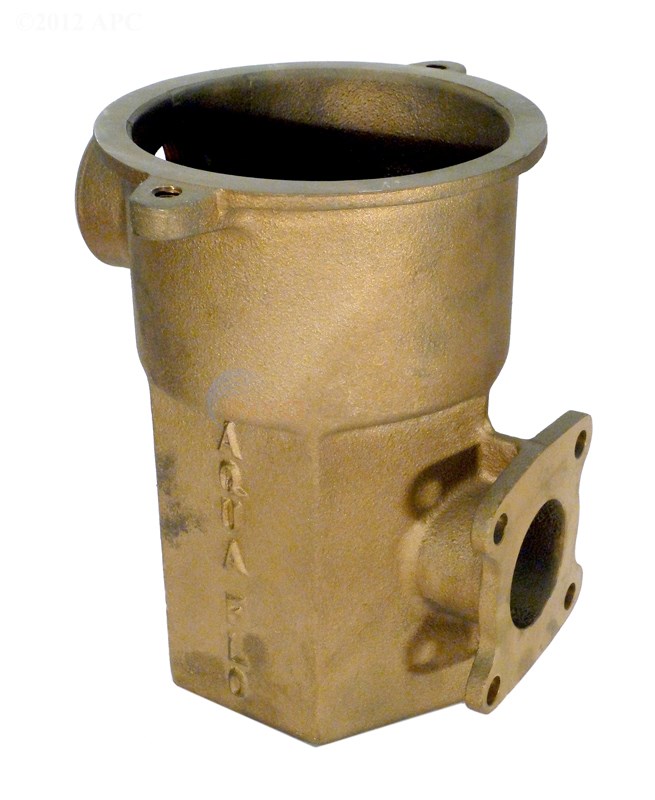

Trap Body, 5" - 1-1/2" Suction

Part # 5126-16 Mfg # 92620000

Trap Body, 5" - 1-1/2" Suction

$478.71 IN STOCK

Qty:

Trap Body, 5" - 2" Suction

Part # 5126-18 Mfg # 92620050

Trap Body, 5" - 2" Suction

$610.62

Trap Body Assembly, 6" x 2" Suction - 91040030

Part # 5126-27 Mfg # 91040030

Trap Body Assembly, 6" x 2" Suction - 91040030

$852.15

Basket, Trap 5"

Part # 5121-18 Mfg # 91110000

Basket, Trap 5"

$19.18 IN STOCK

Qty:

Basket, Trap 6"

Part # 5400-B034 Mfg # B-34

Basket, Trap 6"

$22.37 IN STOCK

Qty:

O-ring, Trap Cover, 5”

Part # 5080-13A Mfg # 429

O-ring, Trap Cover, 5”

$13.03 IN STOCK

Qty:

O-ring, Trap Cover, 6”

Part # 5066-C1 Mfg # O-12

O-ring, Trap Cover, 6”

$7.94 IN STOCK

Qty:

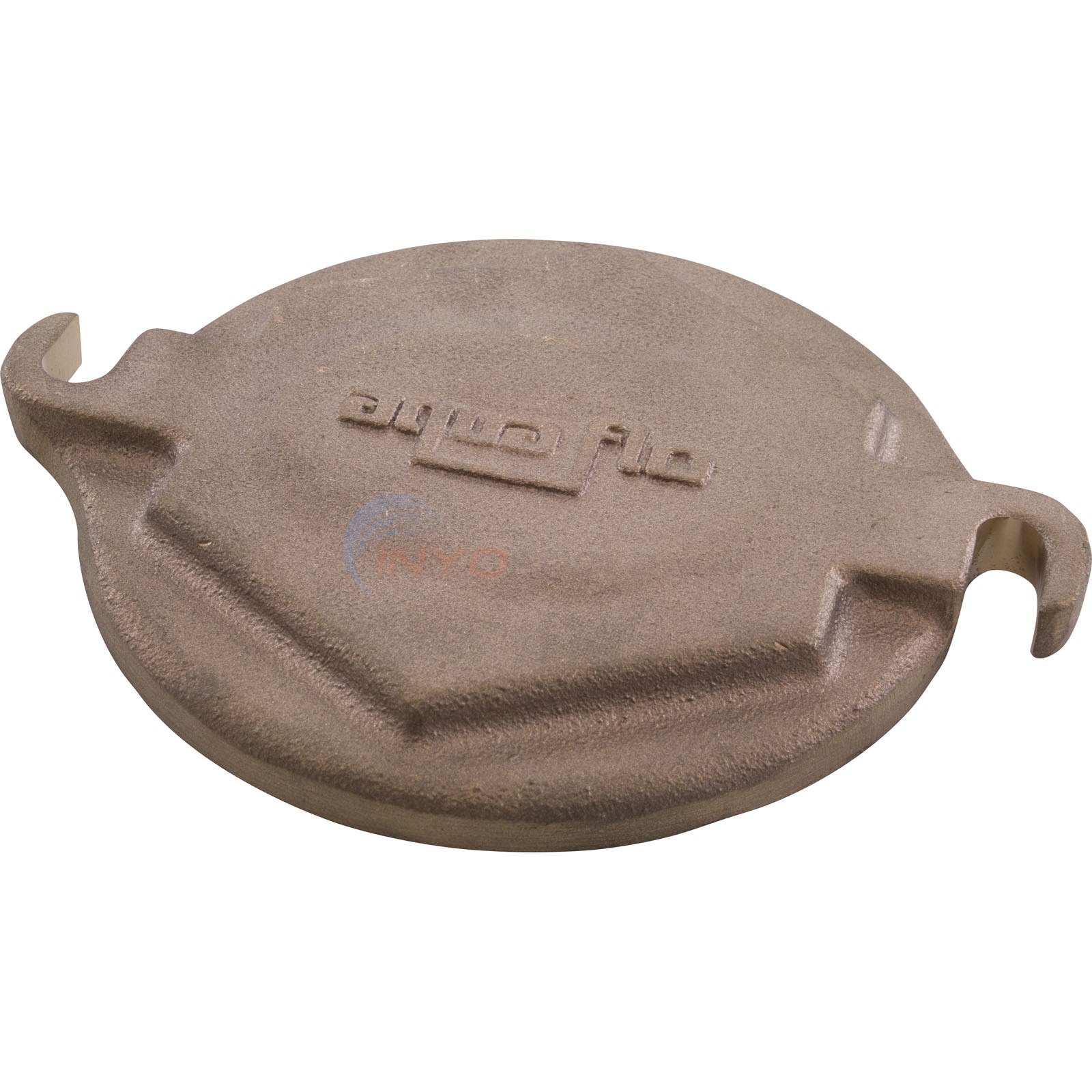

Lid, Trap 5"

Part # 5126-22

Lid, Trap 5"

$121.54

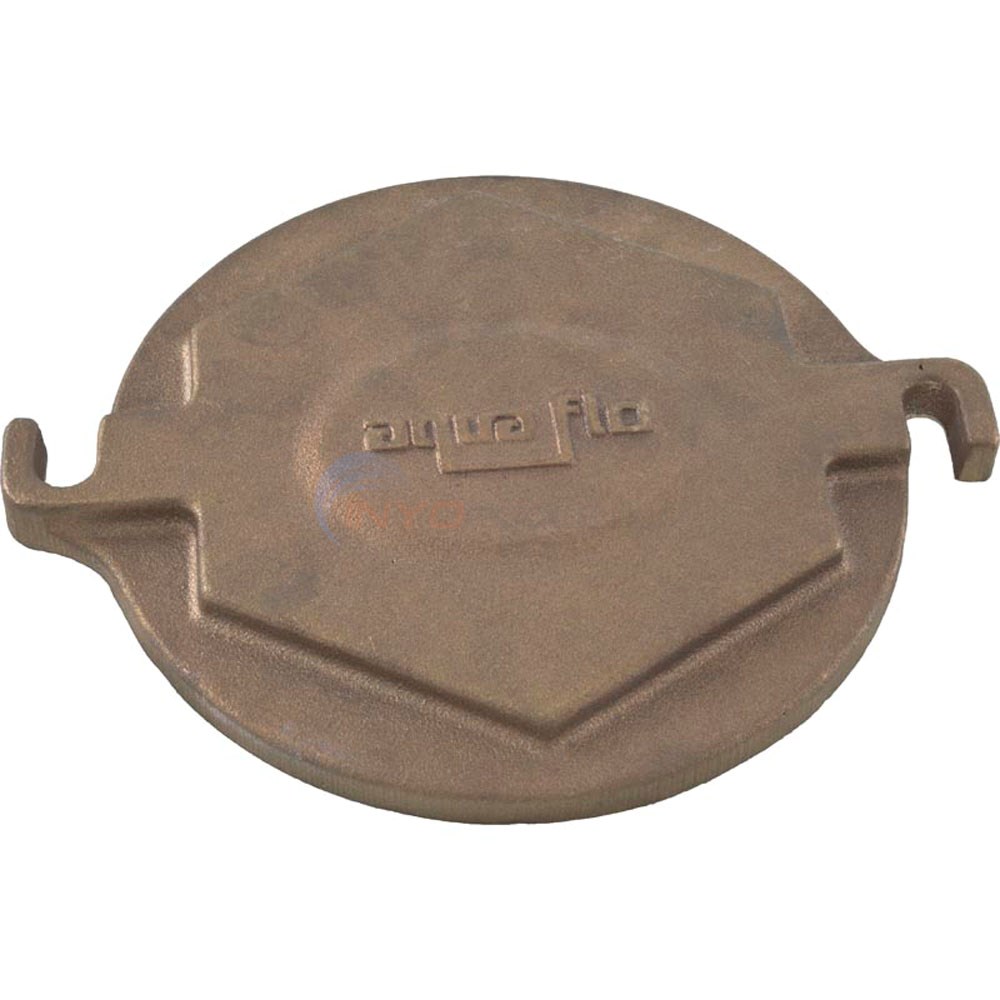

Lid, Trap 6"

Part # 5126-28 Mfg # 91230050

Lid, Trap 6"

$169.58 IN STOCK

Qty:

Handle, Lock

Part # 5050-17 Mfg # V40-468

Handle, Lock

$58.00 IN STOCK

Qty:

* NOT SHOWN
** O-RING/GASKET REPAIR KIT
