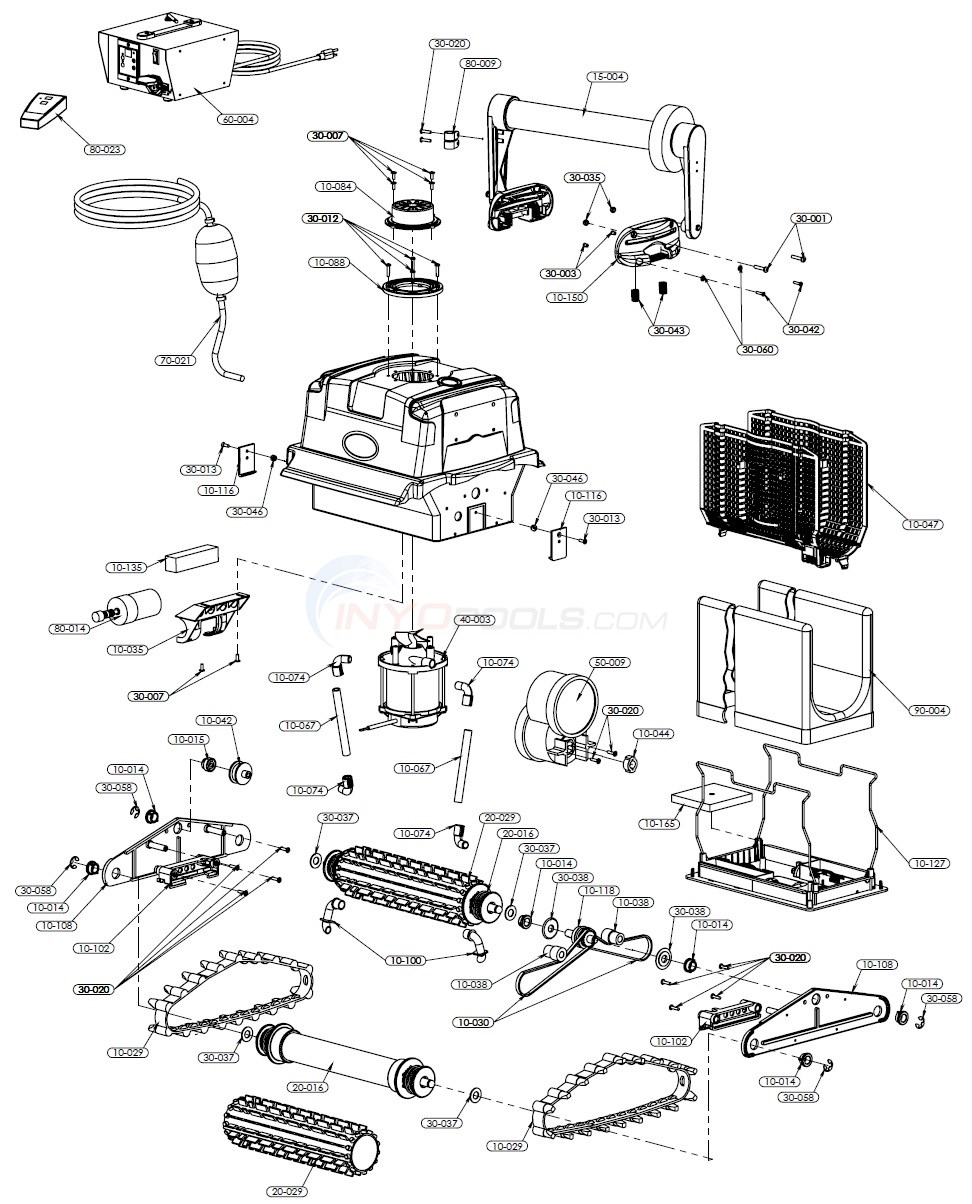

Aquabot Turbo T (with Remote) Parts

Click to zoom in

Diagram #	Part Title
90-004	Aftermarket Aquabot Fine Filter Bag - Generic

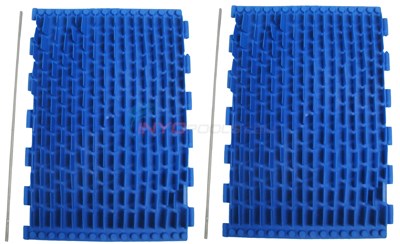

20-029	SK Brush, Rubber EZ, Blue, 12", 2 Brushes, 2 Pins
10-014	BUSHING, .5 ID, NYLON, WHITE; (EA/4/4)
10-015	BUSHING, WHITE; (EA/1/1)
10-029	DRIVE TRACK, G TYPE, BLUE; (EA/2/2)

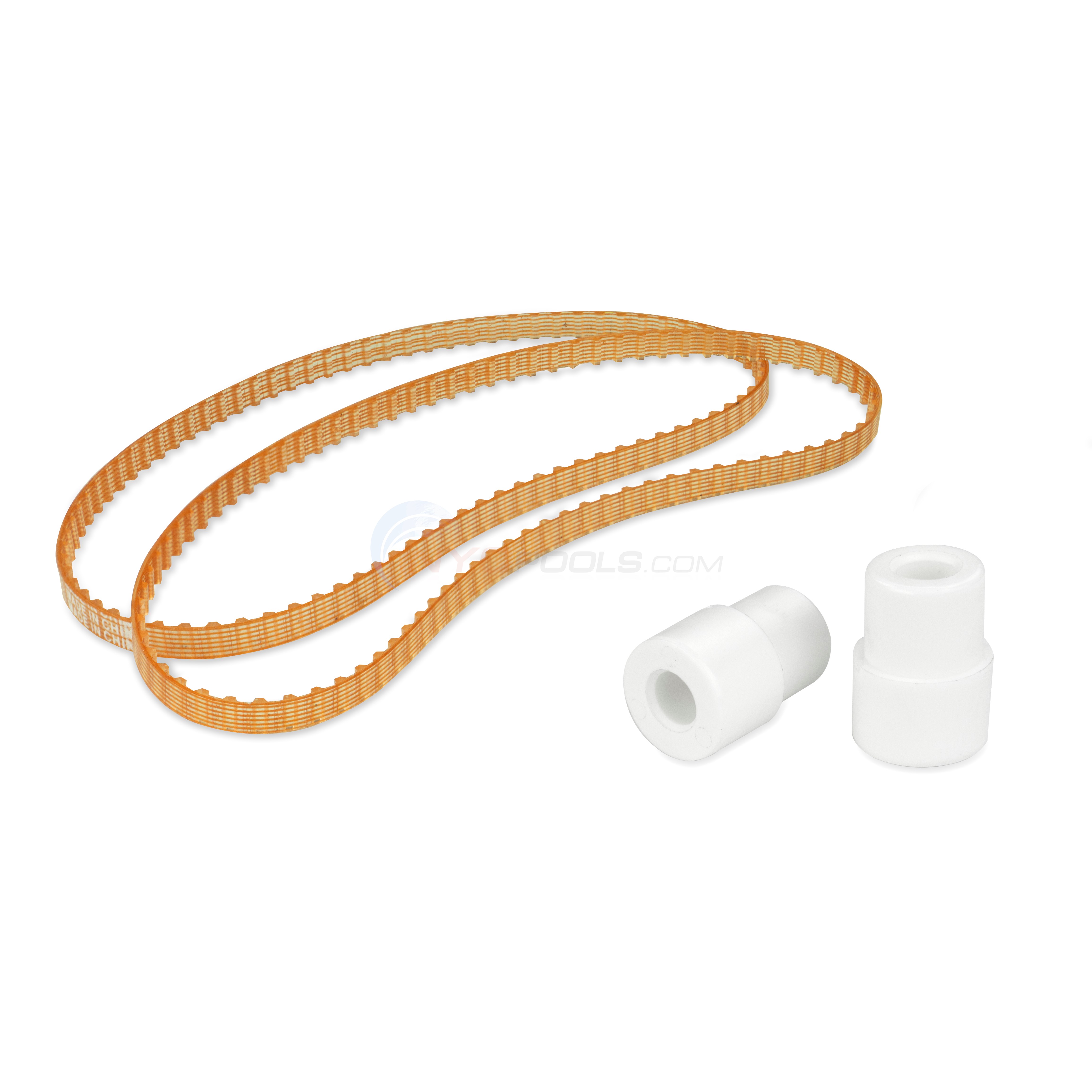

10-030	Generic Drive Belt Kit
10-035	HOLDER, EXTERNAL CAPACITOR; (EA/1/1)
10-038	SLEEVE ROLLER, STEPPED
10-042	ROLLER, NYLON, LARGE; (EA/1/1)
10-044	GROOVED PIN COVER; (EA/1/1)

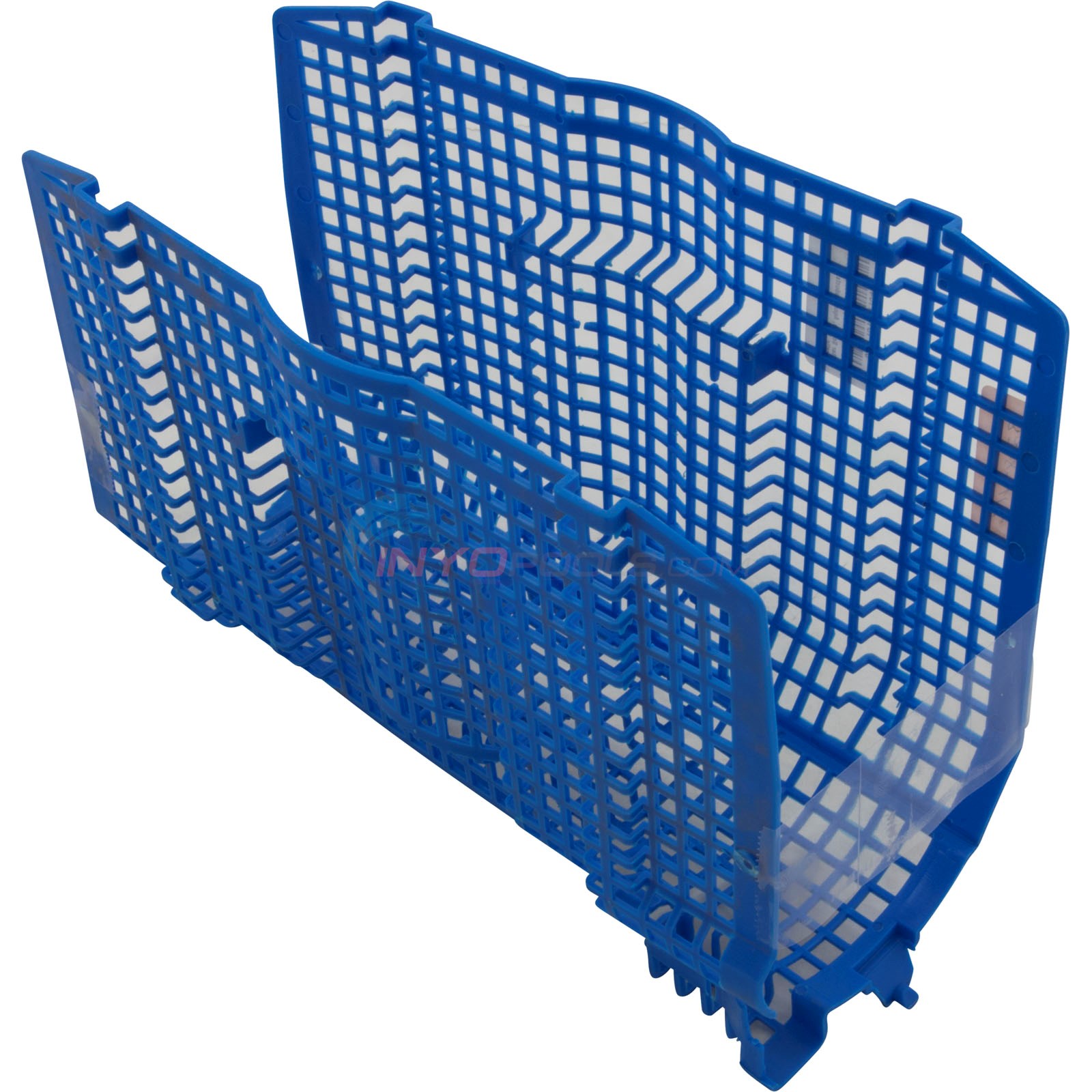

10-047	FILTER SCREEN, RECTANGLE, BLUE, NO STRINGS, (EA/1/1)
10-067	TUBING, CLEAR, POWER WASH; (EA/2/2)
10-074	ELBOW, NATURAL, PW SYSTEM; (EA/2/2)
10-084	OUTLET TOP, WHITE; (EA/1/1)
10-088	OUTLET, RING ONLY, WHITE; (EA/1/1)

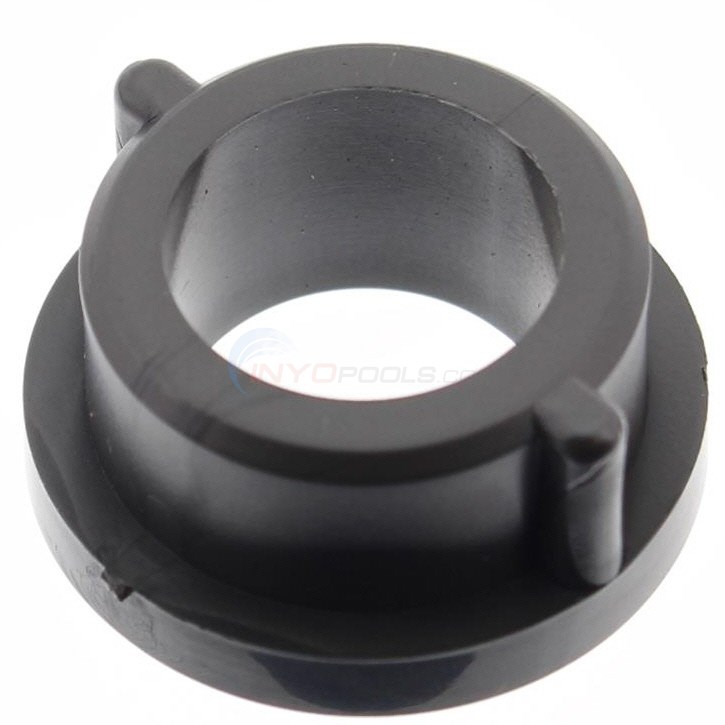

10-091	BUSHING, NYLON, BLACK PER EACH
10-100	NOZZLE, JET TUBE, WHITE; (EA/2/2)
10-102	BRACKET, WHITE, FOR JET NOZZLE; (EA/1/1)

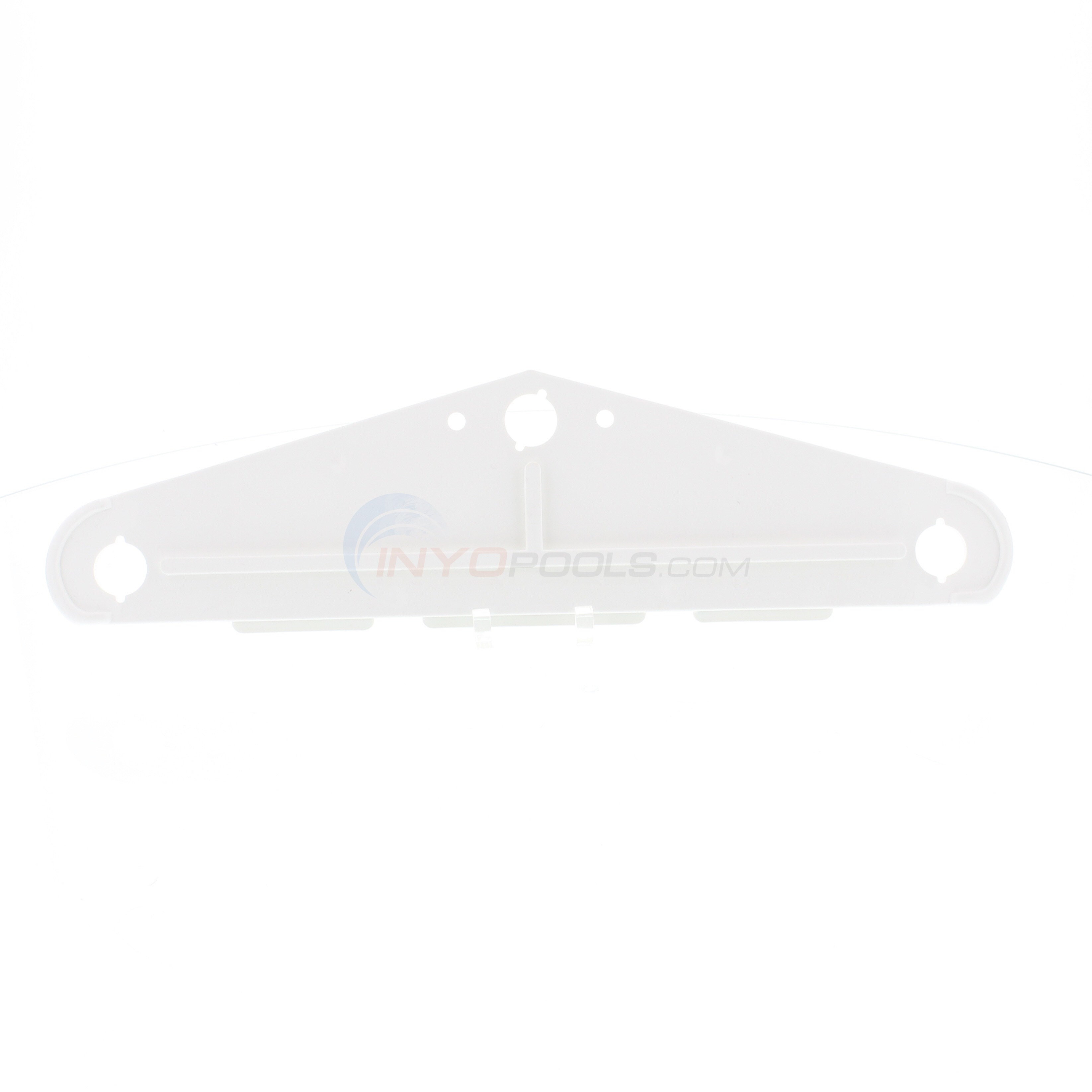

10-108	SIDE PLATE, WHITE, BASIC; (EA/1/1)
10-116	LOCK TAB, NATURAL; (EA/2/2)

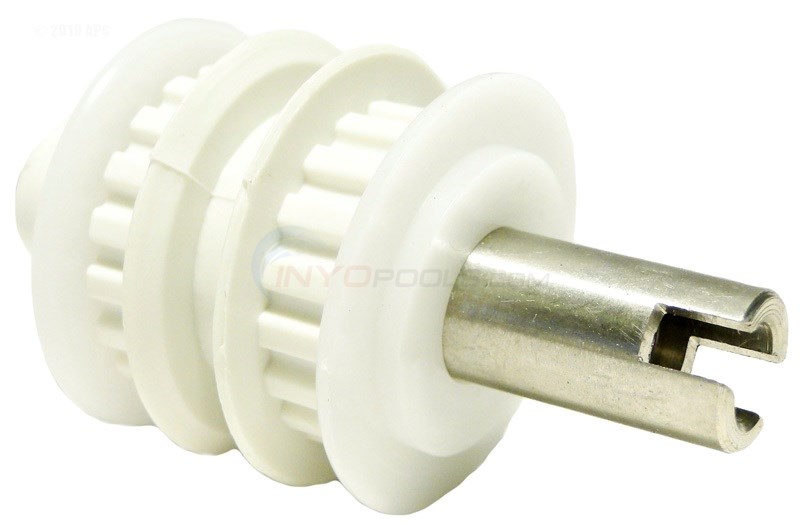

10-118	PULLEY ASSY, LARGE PULLEY W WASHERS; (EA/1/1)

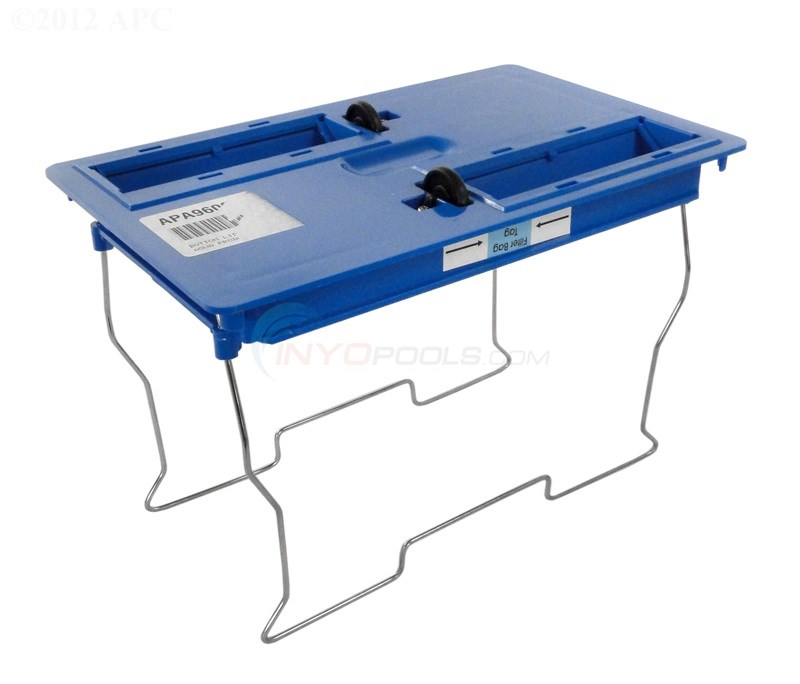

10-127	BOTTOM LID, ASSY, BLUE, ADVANCED, W/WHEELS; (EA/1/1)
10-135	FLOAT, UNDER MOTOR, 1" x 4" x 1"T; (EA/1/1)
10-150	SK HANDLE BRACKET, OVAL,WHITE;(EA/1/1)

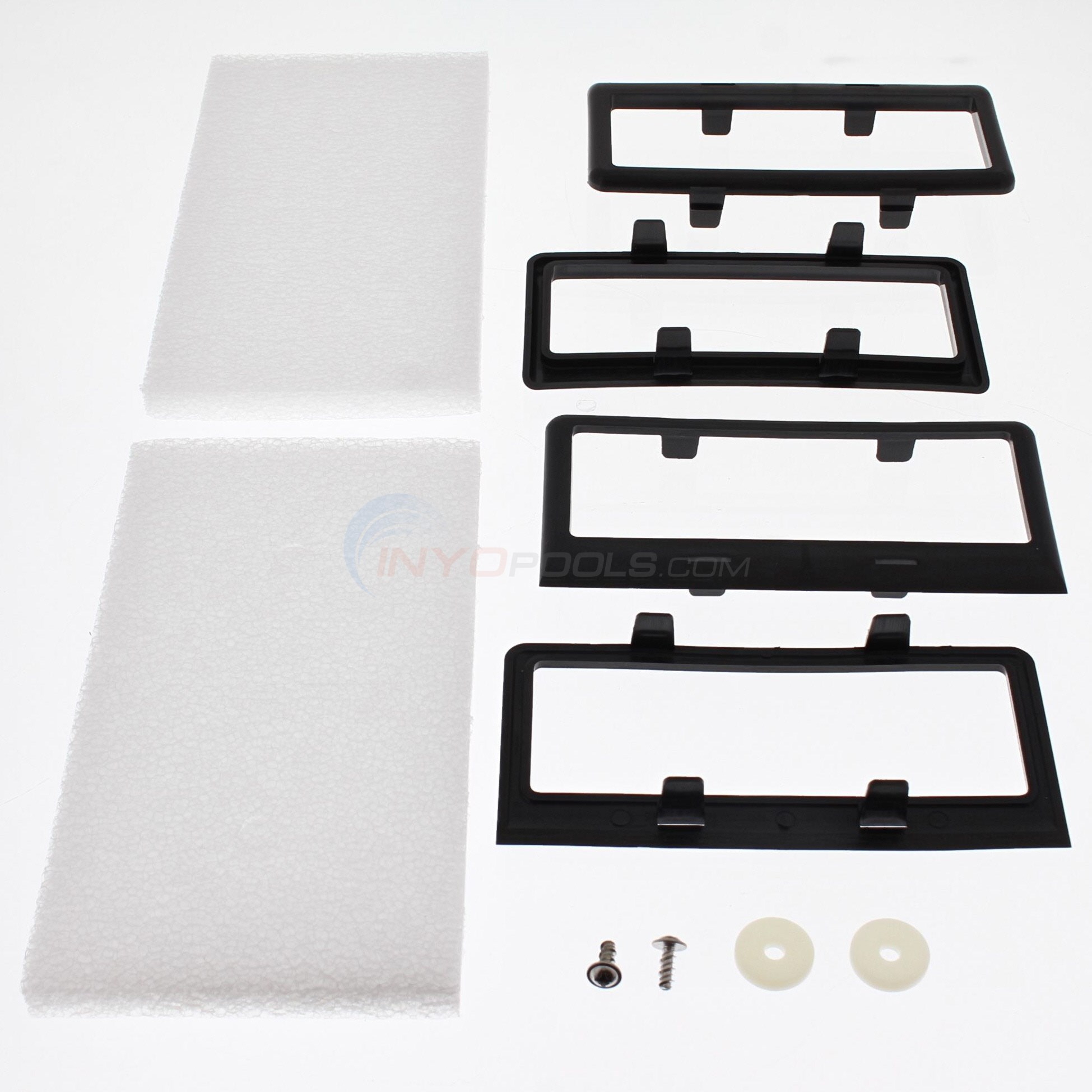

10-165	SPARE PARTS KIT, BOTTOM LID W/ROLLERS; (EA/1/1)
15-004	HANDLE ASSY, WHITE, COMPLT W/OVAL BRACKET; (EA/1/1)

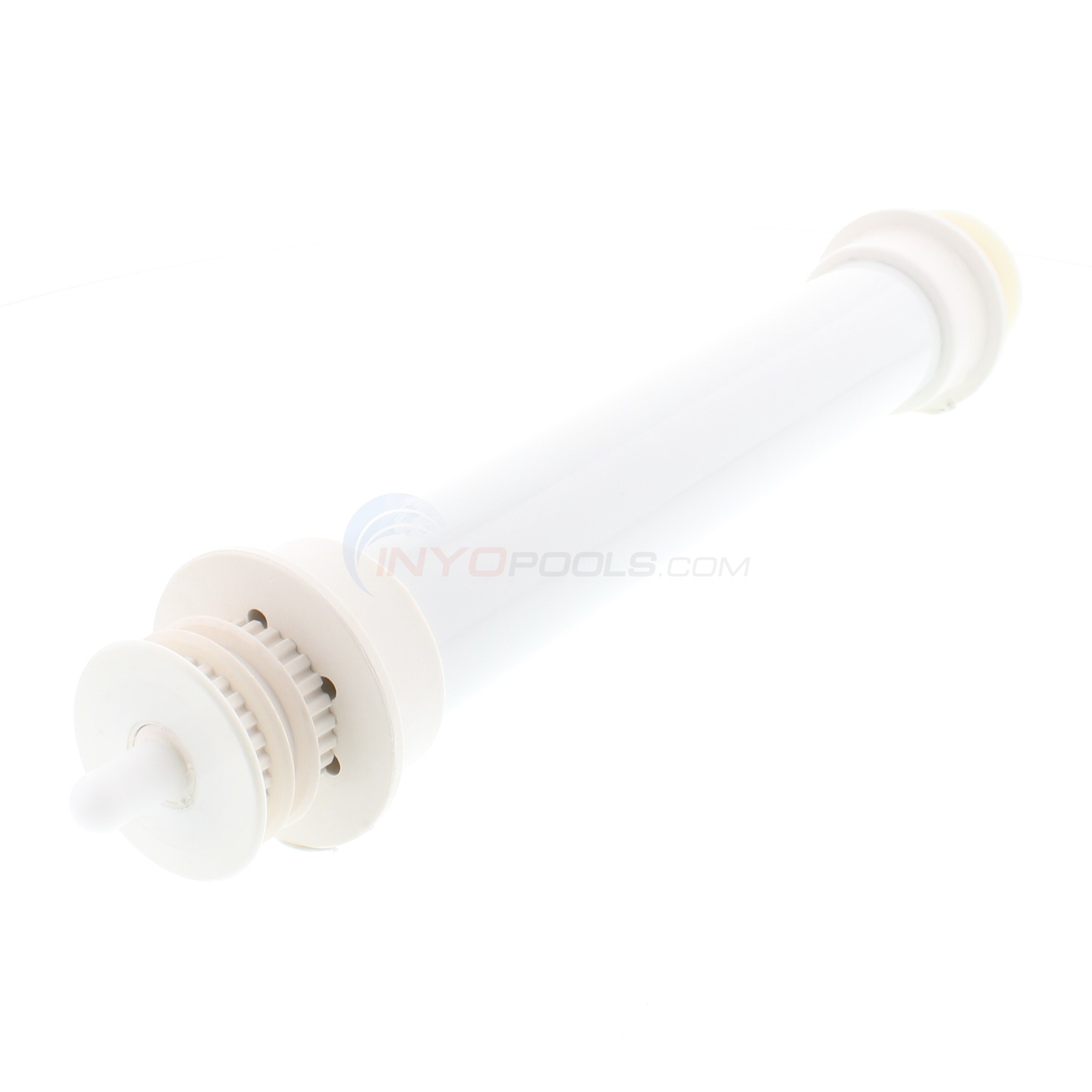

20-016	WHEEL TUBE, RESIDENTIAL, 12"; (EA/1/1)
30-001	SCREW, S/S, PH-PN; (EA/4/4)
30-003	INSERT, BRASS, PRESS-IN; (EA/4/4)
30-005	LOWER CASING PIN; (EA/1/1)
30-007	SCREW, #8 X 7/16", S/S, PH-PN; (EA/2/2)
30-012	SCREW, 8-18 .75", S/S, PH-PN TC; (EA/4/4)
30-013	SCREW - LOCK TAB -BODY ASS./DUMAX
30-020	SCREW, #8 .6875", S/S, PH-PN; (EA/2/2)

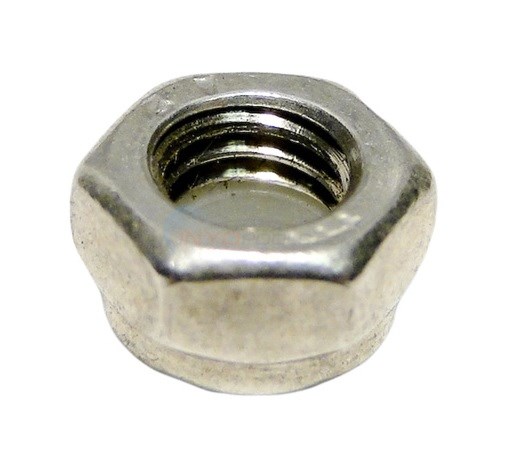

30-035	NUT, S/S, HEX LOCK M5; (EA/2/2)
30-037	WASHER, NYLON, FLAT, 1" OD X 1/2" ID X .0625"T; (EA/2/2)
30-038	WASHER, ACETYL, 1.5" OD X .5" ID X .125"T; (EA/2/2)
30-042	SCREW, S/S, PH-PN, 6/32 x 5/8; (EA/1/1)
30-043	SPRING, FOR HANDLE BRKT; (EA/2/2)
30-046	NUT, S/S, LOCK; (EA/1/1)

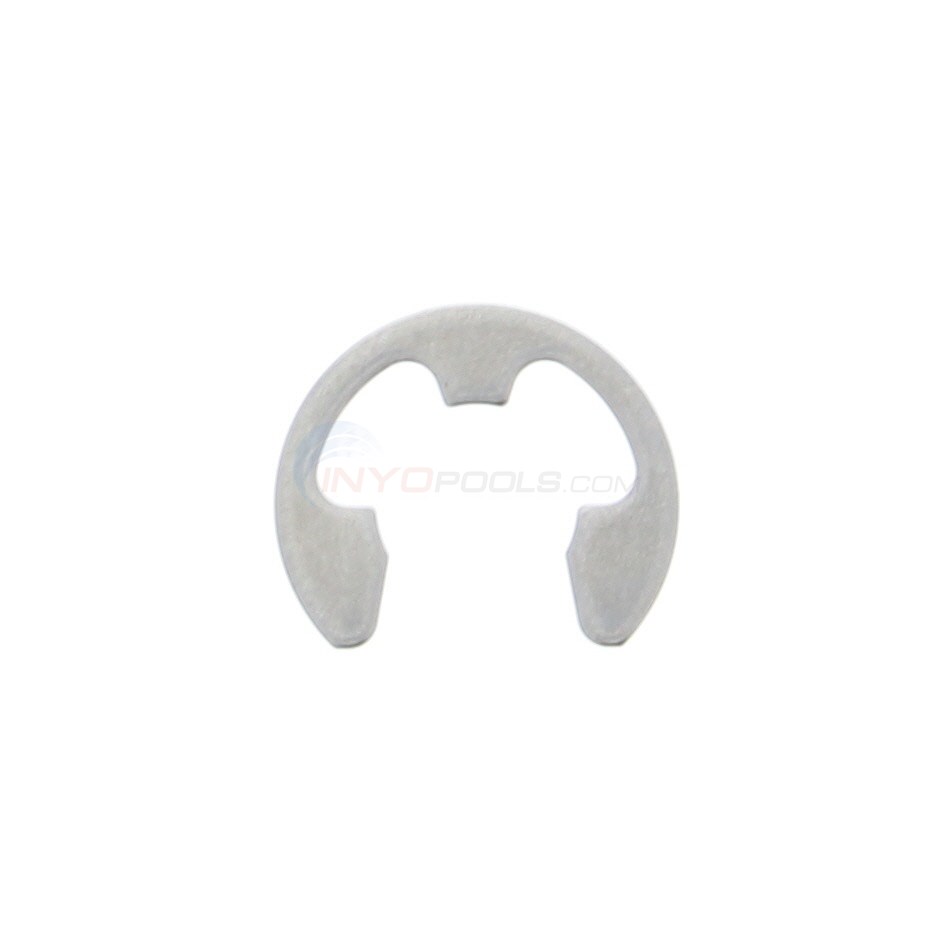

30-058	RETAINER RING, .5",S/S, E STYLE; (EA/4/4)
60-004	POWER SUPPLY, US, 120/36V, 6A, DIGITAL, 7HR, 2PRF, RC, ADMX, ABTTRC; (EA/1/1)

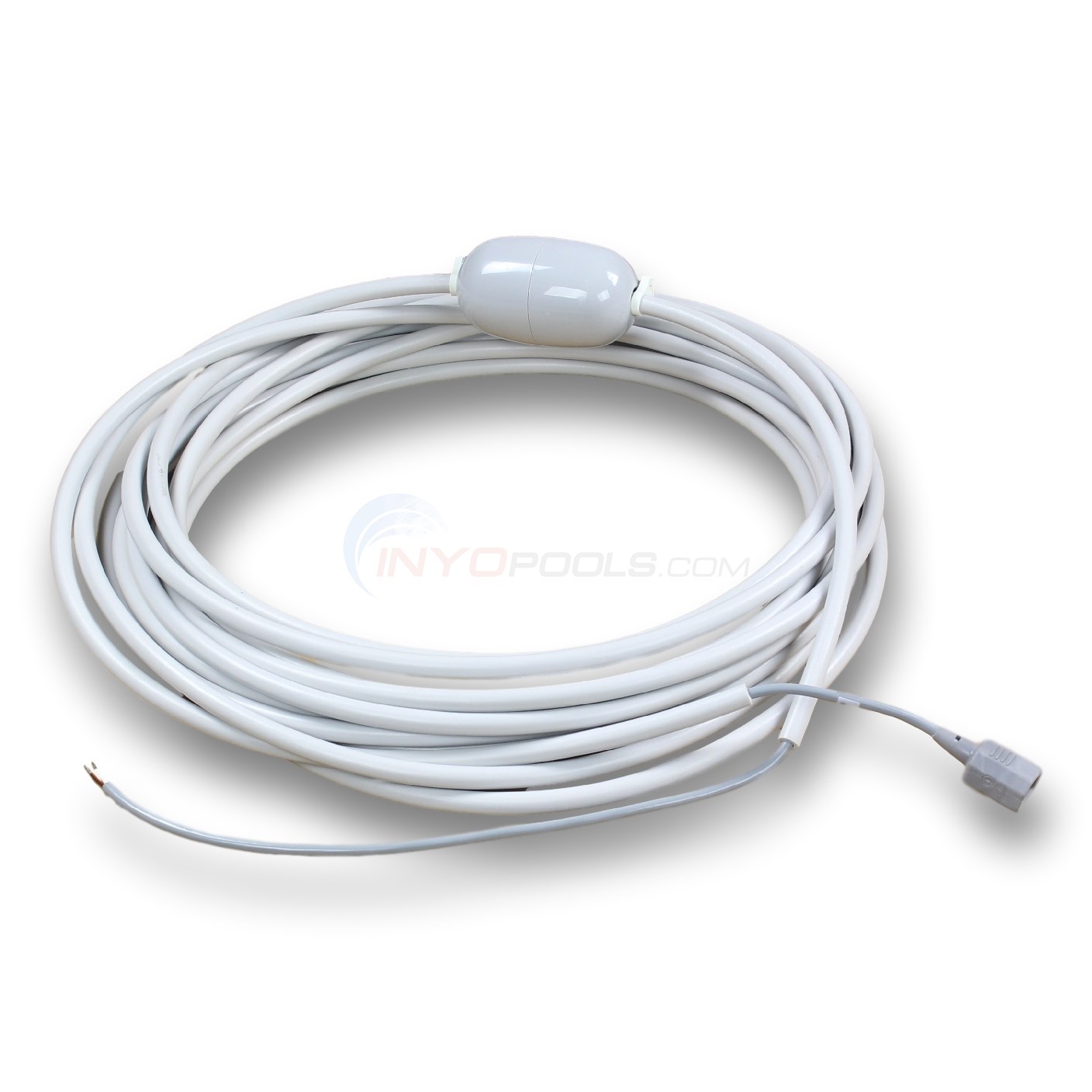

70-021	CABLE, ASSY, 2C/60', 17AWG, GRAY, LDP, 2PRM, FLOAT; (EA/1/1)
80-009	P CLIP, 7/16", BLUE, COATED; (EA/2/2)
80-014	CAPACITOR, EXTERNAL, BLUE; (EA/1/1)
80-017	TIE, PLT PANDUIT, MINI; (EA/2/2)
80-023	TRANSMITTER, BASIC, 2 KEY, FCC; (EA/1/1)
80-035	SK MOTOR INSTALL KIT 1; 1 (1617) 3.5", 1 (1619) 4.5", 2 (5474); (EA/1/1)
80-037	SK MOTOR INSTALL KIT 3; 1 (1611) 2", 1 (1633); (EA/1/1)

View Parts List

Diagram #	Part Title
90-004	Aftermarket Aquabot Fine Filter Bag - Generic
20-029	SK Brush, Rubber EZ, Blue, 12", 2 Brushes, 2 Pins
10-014	BUSHING, .5 ID, NYLON, WHITE; (EA/4/4)
10-015	BUSHING, WHITE; (EA/1/1)
10-029	DRIVE TRACK, G TYPE, BLUE; (EA/2/2)
10-030	Generic Drive Belt Kit
10-035	HOLDER, EXTERNAL CAPACITOR; (EA/1/1)
10-038	SLEEVE ROLLER, STEPPED
10-042	ROLLER, NYLON, LARGE; (EA/1/1)
10-044	GROOVED PIN COVER; (EA/1/1)
10-047	FILTER SCREEN, RECTANGLE, BLUE, NO STRINGS, (EA/1/1)
10-067	TUBING, CLEAR, POWER WASH; (EA/2/2)
10-074	ELBOW, NATURAL, PW SYSTEM; (EA/2/2)
10-084	OUTLET TOP, WHITE; (EA/1/1)
10-088	OUTLET, RING ONLY, WHITE; (EA/1/1)
10-091	BUSHING, NYLON, BLACK PER EACH
10-100	NOZZLE, JET TUBE, WHITE; (EA/2/2)
10-102	BRACKET, WHITE, FOR JET NOZZLE; (EA/1/1)
10-108	SIDE PLATE, WHITE, BASIC; (EA/1/1)
10-116	LOCK TAB, NATURAL; (EA/2/2)
10-118	PULLEY ASSY, LARGE PULLEY W WASHERS; (EA/1/1)
10-127	BOTTOM LID, ASSY, BLUE, ADVANCED, W/WHEELS; (EA/1/1)
10-135	FLOAT, UNDER MOTOR, 1" x 4" x 1"T; (EA/1/1)
10-150	SK HANDLE BRACKET, OVAL,WHITE;(EA/1/1)
10-165	SPARE PARTS KIT, BOTTOM LID W/ROLLERS; (EA/1/1)
15-004	HANDLE ASSY, WHITE, COMPLT W/OVAL BRACKET; (EA/1/1)
20-016	WHEEL TUBE, RESIDENTIAL, 12"; (EA/1/1)
30-001	SCREW, S/S, PH-PN; (EA/4/4)
30-003	INSERT, BRASS, PRESS-IN; (EA/4/4)
30-005	LOWER CASING PIN; (EA/1/1)
30-007	SCREW, #8 X 7/16", S/S, PH-PN; (EA/2/2)
30-012	SCREW, 8-18 .75", S/S, PH-PN TC; (EA/4/4)
30-013	SCREW - LOCK TAB -BODY ASS./DUMAX
30-020	SCREW, #8 .6875", S/S, PH-PN; (EA/2/2)
30-035	NUT, S/S, HEX LOCK M5; (EA/2/2)
30-037	WASHER, NYLON, FLAT, 1" OD X 1/2" ID X .0625"T; (EA/2/2)
30-038	WASHER, ACETYL, 1.5" OD X .5" ID X .125"T; (EA/2/2)
30-042	SCREW, S/S, PH-PN, 6/32 x 5/8; (EA/1/1)
30-043	SPRING, FOR HANDLE BRKT; (EA/2/2)
30-046	NUT, S/S, LOCK; (EA/1/1)
30-058	RETAINER RING, .5",S/S, E STYLE; (EA/4/4)
60-004	POWER SUPPLY, US, 120/36V, 6A, DIGITAL, 7HR, 2PRF, RC, ADMX, ABTTRC; (EA/1/1)
70-021	CABLE, ASSY, 2C/60', 17AWG, GRAY, LDP, 2PRM, FLOAT; (EA/1/1)
80-009	P CLIP, 7/16", BLUE, COATED; (EA/2/2)
80-014	CAPACITOR, EXTERNAL, BLUE; (EA/1/1)
80-017	TIE, PLT PANDUIT, MINI; (EA/2/2)
80-023	TRANSMITTER, BASIC, 2 KEY, FCC; (EA/1/1)
80-035	SK MOTOR INSTALL KIT 1; 1 (1617) 3.5", 1 (1619) 4.5", 2 (5474); (EA/1/1)
80-037	SK MOTOR INSTALL KIT 3; 1 (1611) 2", 1 (1633); (EA/1/1)

Available Parts:

Part # 010-000 Mfg # 010-000

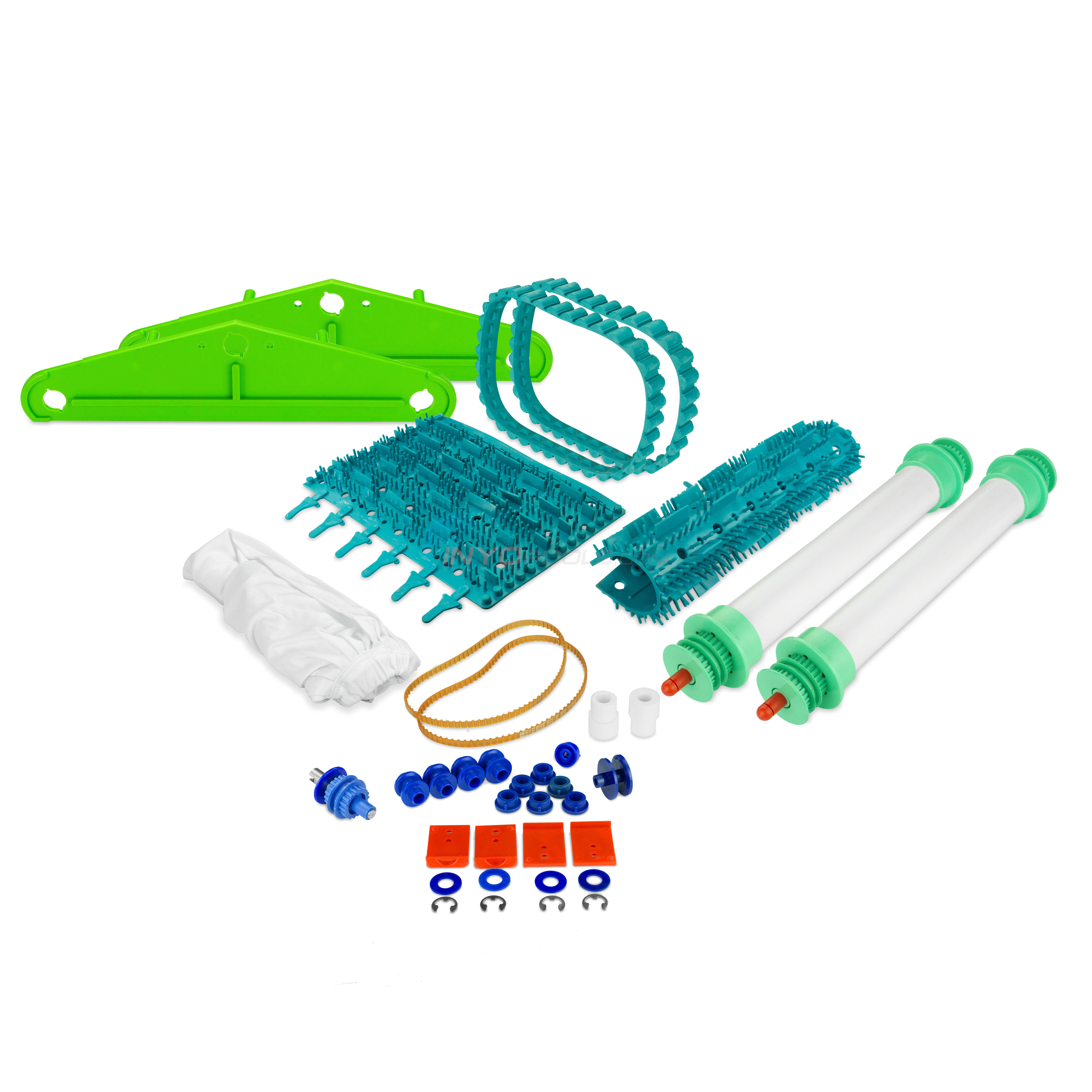

Tune Up Kit w/ (2) Rubber Brushes for Aqua Products Pool Cleaners
