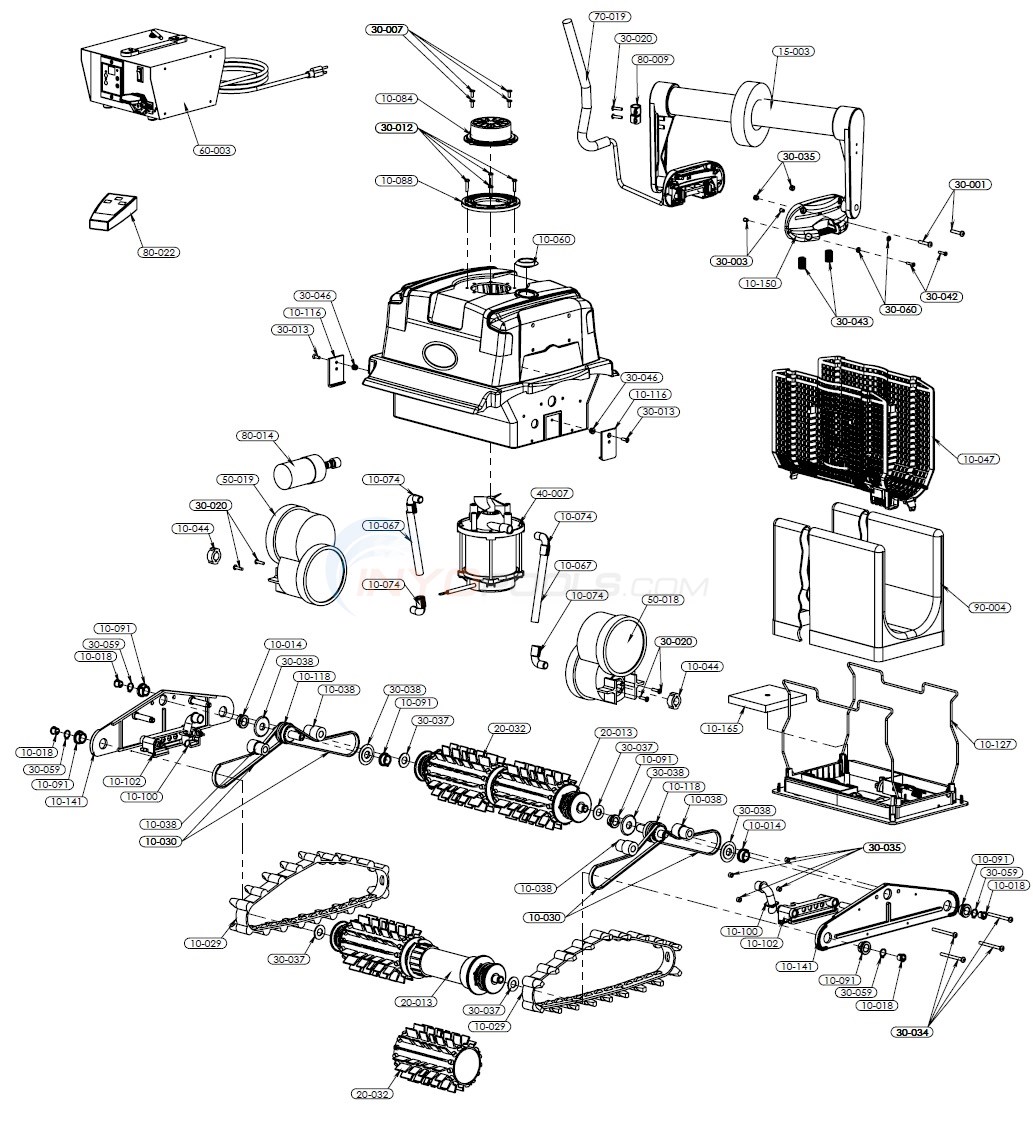

Aquabot Turbo T4 RC Parts

Click to zoom in

Diagram #	Part Title
10-014	BUSHING, .5 ID, NYLON, WHITE;

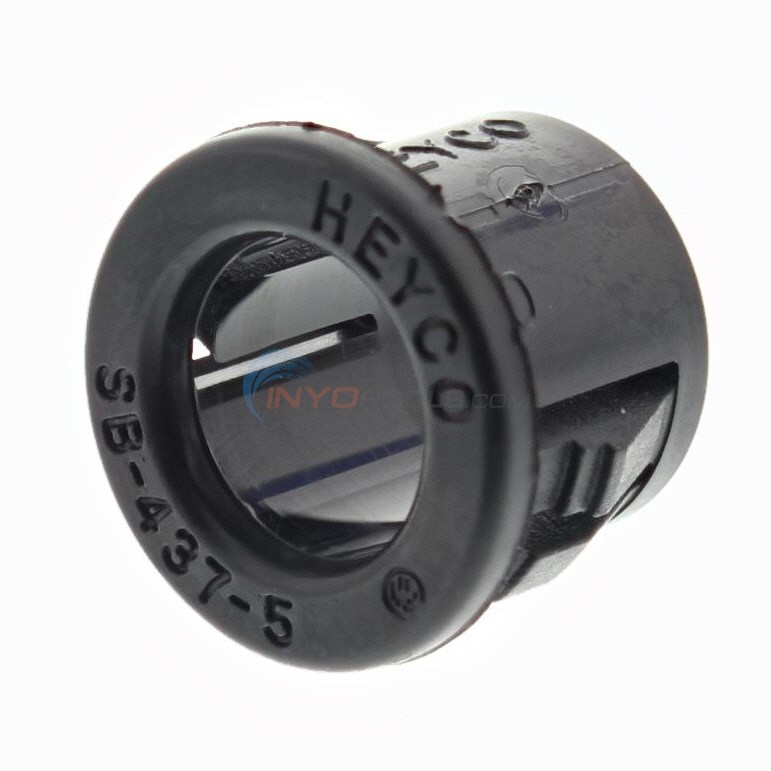

10-018	BUSHING, 7/16" OD X 5/16" ID, SNAP;
10-029	DRIVE TRACK, G TYPE, BLUE; (EA/2/2)
10-030	Generic Drive Belt Kit
10-038	SLEEVE ROLLER, STEPPED
10-044	GROOVED PIN COVER; (EA/1/1)
10-047	FILTER SCREEN, RECTANGLE, BLUE, NO STRINGS, (EA/1/1)
10-060	CAP PLUG, WHITE, 1.125"; (EA/1/1)
10-067	TUBING, CLEAR, POWER WASH; (EA/2/2)
10-074	ELBOW, NATURAL, PW SYSTEM; (EA/2/2)
10-084	OUTLET TOP, WHITE; (EA/1/1)
10-088	OUTLET, RING ONLY, WHITE; (EA/1/1)
10-091	BUSHING, NYLON, BLACK; (EA/2/2)
10-100	NOZZLE, JET TUBE, WHITE; (EA/2/2)
10-102	BRACKET, WHITE, FOR JET NOZZLE; (EA/1/1)
10-116	LOCK TAB, NATURAL; (EA/2/2)
10-118	PULLEY ASSY, LARGE PULLEY W WASHERS; (EA/1/1)
10-127	BOTTOM LID, ASSY, BLUE, ADVANCED, W/WHEELS; (EA/1/1)
10-141	SIDE PLATE ASSY, BASIC, WHITE, 6 HOLES; (EA/1/1)
10-150	SK HANDLE BRACKET, OVAL,WHITE;(EA/1/1)
10-165	SPARE PARTS KIT, BOTTOM LID W/ROLLERS; (EA/1/1)
15-003	HANDLE ASSY, WHITE, COMPLT W/OVAL BRACKET, FLOAT; (EA/1/1)
20-013	WHEEL TUBE ASSY, SPLIT, S/S AXLE, CLUTCH; (EA/1/1)

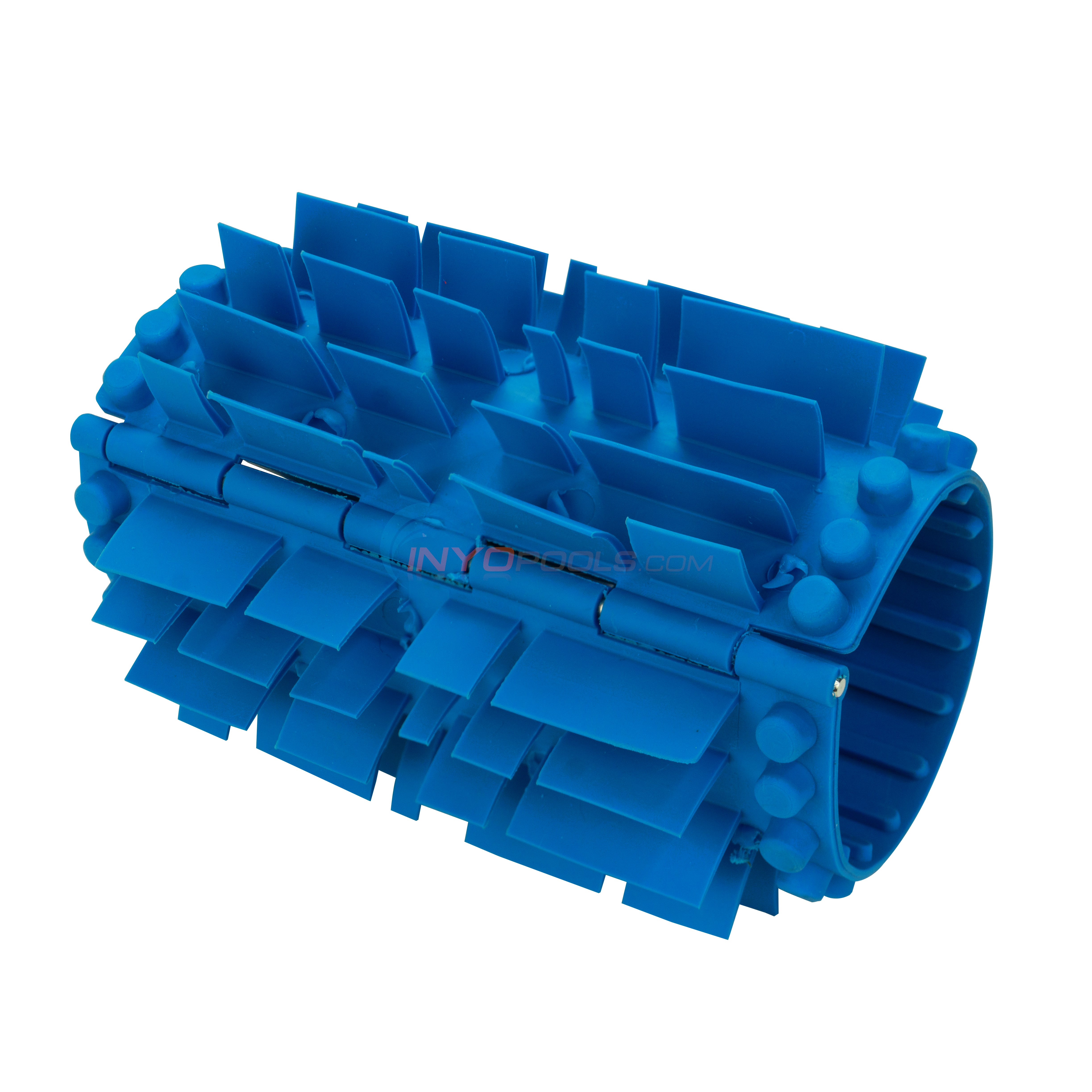

20-032	SK BRUSH, RUBBER EZ, BLUE, 5.8", 4 BRUSHES, 4 PINS;(EA/1/1)
30-001	SCREW, S/S, PH-PN; (EA/4/4)
30-003	INSERT, BRASS, PRESS-IN; (EA/4/4)
30-007	SCREW, #8 X 7/16", S/S, PH-PN; (EA/2/2)
30-012	SCREW, 8-18 .75", S/S, PH-PN TC; (EA/4/4)
30-013	SCREW - LOCK TAB -BODY ASS./DUMAX
30-020	SCREW, #8 .6875", S/S, PH-PN; (EA/2/2)
30-034	SCREW, S/S, PH-PN, 10-32 x 2.108 (EA/8/8)
30-035	NUT, S/S, HEX LOCK M5; (EA/2/2)
30-037	WASHER, NYLON, FLAT, 1" OD X 1/2" ID X .0625"T; (EA/2/2)
30-038	WASHER, ACETYL, 1.5" OD X .5" ID X .125"T; (EA/2/2)
30-042	SCREW, S/S, PH-PN, 6/32 x 5/8; (EA/1/1)
30-043	SPRING, FOR HANDLE BRKT; (EA/2/2)
30-046	NUT, S/S, LOCK; (EA/1/1)

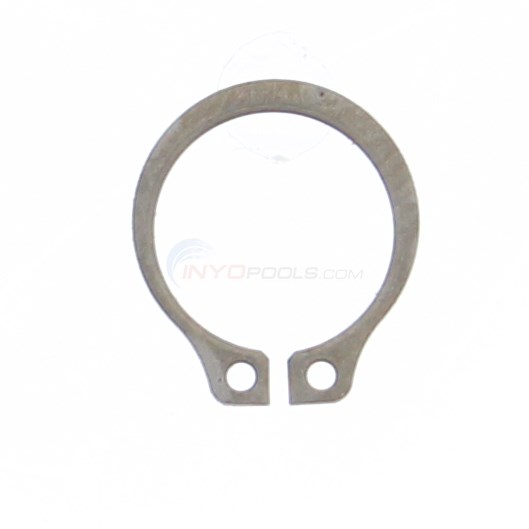

30-059	RETAINING RING, S/S, .500", C CLIP; (EA/4/4)
30-060	WASHER, S/S, 5/32; (EA/2/2)
60-003	POWER SUPPLY, US, 120/36V, 6A, DIGITAL, 7HR, 2PRF, RC, ABTURT4, ADMXRC PRGM; (EA/1/1)
70-019	CABLE ASSY, 2C/75', 17AWG, FLT, BLUE, LDP, 2PRM, 2PRM, GROMMET; (EA/1/1)
80-009	P CLIP, 7/16", BLUE, COATED; (EA/2/2)
80-014	CAPACITOR, EXTERNAL, BLUE; (EA/1/1)
80-020	TIE, PLT PANDUIT, 6"; (EA/4/4)
80-022	TRANSMITTER, FCC, 3 BUTTON; (EA/1/1)
80-037	SK MOTOR INSTALL KIT 3; 1 (1611) 2", 1 (1633); (EA/1/1)

View Parts List

Diagram #	Part Title
10-014	BUSHING, .5 ID, NYLON, WHITE;
10-018	BUSHING, 7/16" OD X 5/16" ID, SNAP;
10-029	DRIVE TRACK, G TYPE, BLUE; (EA/2/2)
10-030	Generic Drive Belt Kit
10-038	SLEEVE ROLLER, STEPPED
10-044	GROOVED PIN COVER; (EA/1/1)
10-047	FILTER SCREEN, RECTANGLE, BLUE, NO STRINGS, (EA/1/1)
10-060	CAP PLUG, WHITE, 1.125"; (EA/1/1)
10-067	TUBING, CLEAR, POWER WASH; (EA/2/2)
10-074	ELBOW, NATURAL, PW SYSTEM; (EA/2/2)
10-084	OUTLET TOP, WHITE; (EA/1/1)
10-088	OUTLET, RING ONLY, WHITE; (EA/1/1)
10-091	BUSHING, NYLON, BLACK; (EA/2/2)
10-100	NOZZLE, JET TUBE, WHITE; (EA/2/2)
10-102	BRACKET, WHITE, FOR JET NOZZLE; (EA/1/1)
10-116	LOCK TAB, NATURAL; (EA/2/2)
10-118	PULLEY ASSY, LARGE PULLEY W WASHERS; (EA/1/1)
10-127	BOTTOM LID, ASSY, BLUE, ADVANCED, W/WHEELS; (EA/1/1)
10-141	SIDE PLATE ASSY, BASIC, WHITE, 6 HOLES; (EA/1/1)
10-150	SK HANDLE BRACKET, OVAL,WHITE;(EA/1/1)
10-165	SPARE PARTS KIT, BOTTOM LID W/ROLLERS; (EA/1/1)
15-003	HANDLE ASSY, WHITE, COMPLT W/OVAL BRACKET, FLOAT; (EA/1/1)
20-013	WHEEL TUBE ASSY, SPLIT, S/S AXLE, CLUTCH; (EA/1/1)
20-032	SK BRUSH, RUBBER EZ, BLUE, 5.8", 4 BRUSHES, 4 PINS;(EA/1/1)
30-001	SCREW, S/S, PH-PN; (EA/4/4)
30-003	INSERT, BRASS, PRESS-IN; (EA/4/4)
30-007	SCREW, #8 X 7/16", S/S, PH-PN; (EA/2/2)
30-012	SCREW, 8-18 .75", S/S, PH-PN TC; (EA/4/4)
30-013	SCREW - LOCK TAB -BODY ASS./DUMAX
30-020	SCREW, #8 .6875", S/S, PH-PN; (EA/2/2)
30-034	SCREW, S/S, PH-PN, 10-32 x 2.108 (EA/8/8)
30-035	NUT, S/S, HEX LOCK M5; (EA/2/2)
30-037	WASHER, NYLON, FLAT, 1" OD X 1/2" ID X .0625"T; (EA/2/2)
30-038	WASHER, ACETYL, 1.5" OD X .5" ID X .125"T; (EA/2/2)
30-042	SCREW, S/S, PH-PN, 6/32 x 5/8; (EA/1/1)
30-043	SPRING, FOR HANDLE BRKT; (EA/2/2)
30-046	NUT, S/S, LOCK; (EA/1/1)
30-059	RETAINING RING, S/S, .500", C CLIP; (EA/4/4)
30-060	WASHER, S/S, 5/32; (EA/2/2)
60-003	POWER SUPPLY, US, 120/36V, 6A, DIGITAL, 7HR, 2PRF, RC, ABTURT4, ADMXRC PRGM; (EA/1/1)
70-019	CABLE ASSY, 2C/75', 17AWG, FLT, BLUE, LDP, 2PRM, 2PRM, GROMMET; (EA/1/1)
80-009	P CLIP, 7/16", BLUE, COATED; (EA/2/2)
80-014	CAPACITOR, EXTERNAL, BLUE; (EA/1/1)
80-020	TIE, PLT PANDUIT, 6"; (EA/4/4)
80-022	TRANSMITTER, FCC, 3 BUTTON; (EA/1/1)
80-037	SK MOTOR INSTALL KIT 3; 1 (1611) 2", 1 (1633); (EA/1/1)

Available Parts:

Part # 010-000 Mfg # 010-000

Tune Up Kit w/ (2) Rubber Brushes for Aqua Products Pool Cleaners

$175.86
