Baker Hydro Slide Valve Parts

Model 30B0001

Click to zoom in

Diagram #	Part Title
A	OBSOLETE COMPLETE PUSH PULL VALVE
1	Piston Assy.(less O-ring)

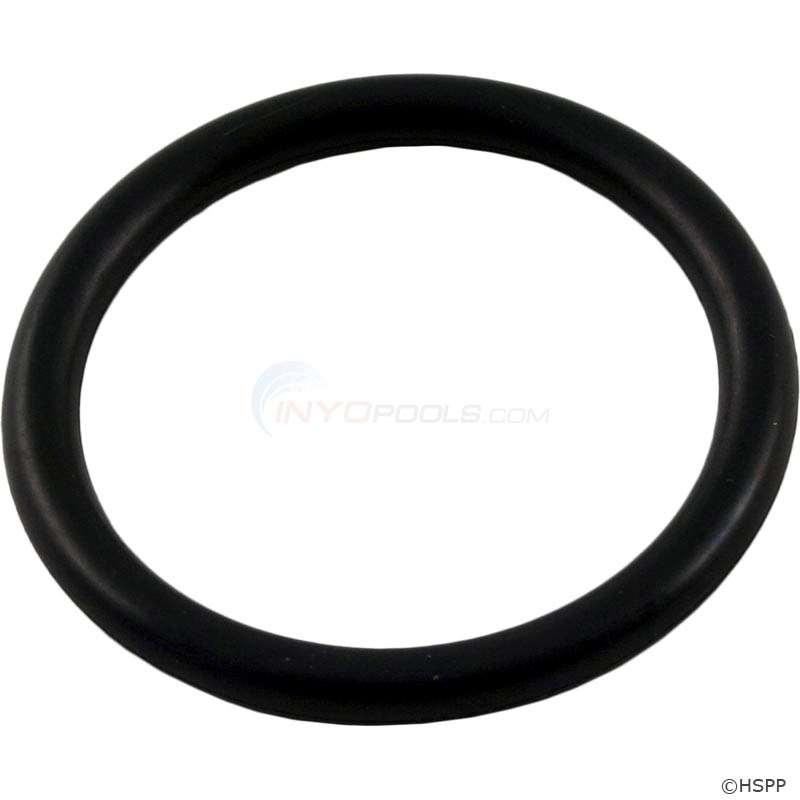

2**	O-ring, For Piston
3**	OBSOLETE PIN

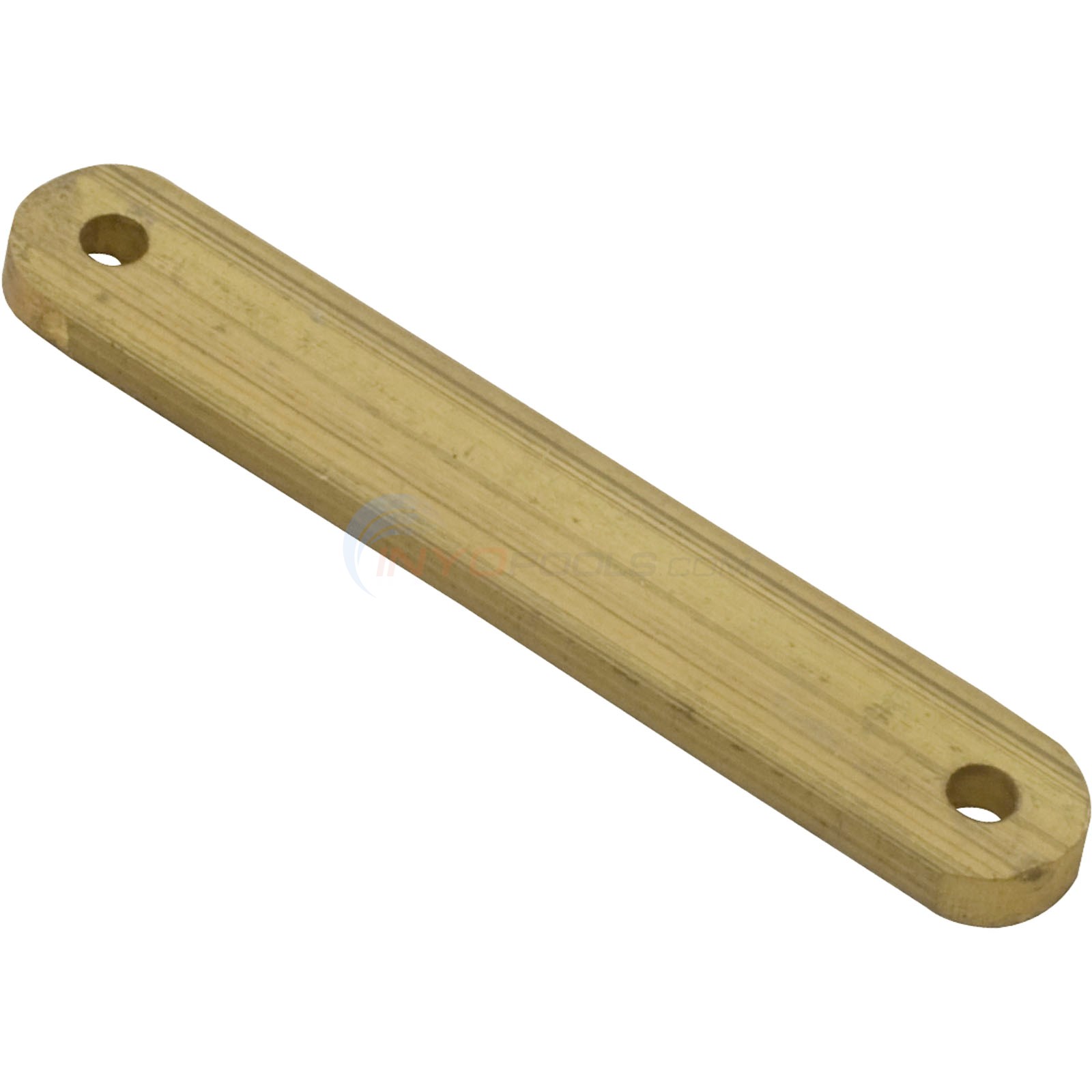

4	LINKAGE BAR

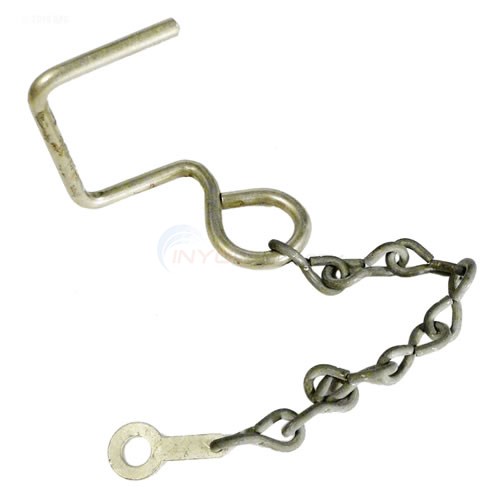

5	LOCK PIN & CHAIN ASSY.
6**	OBSOLETE PIN

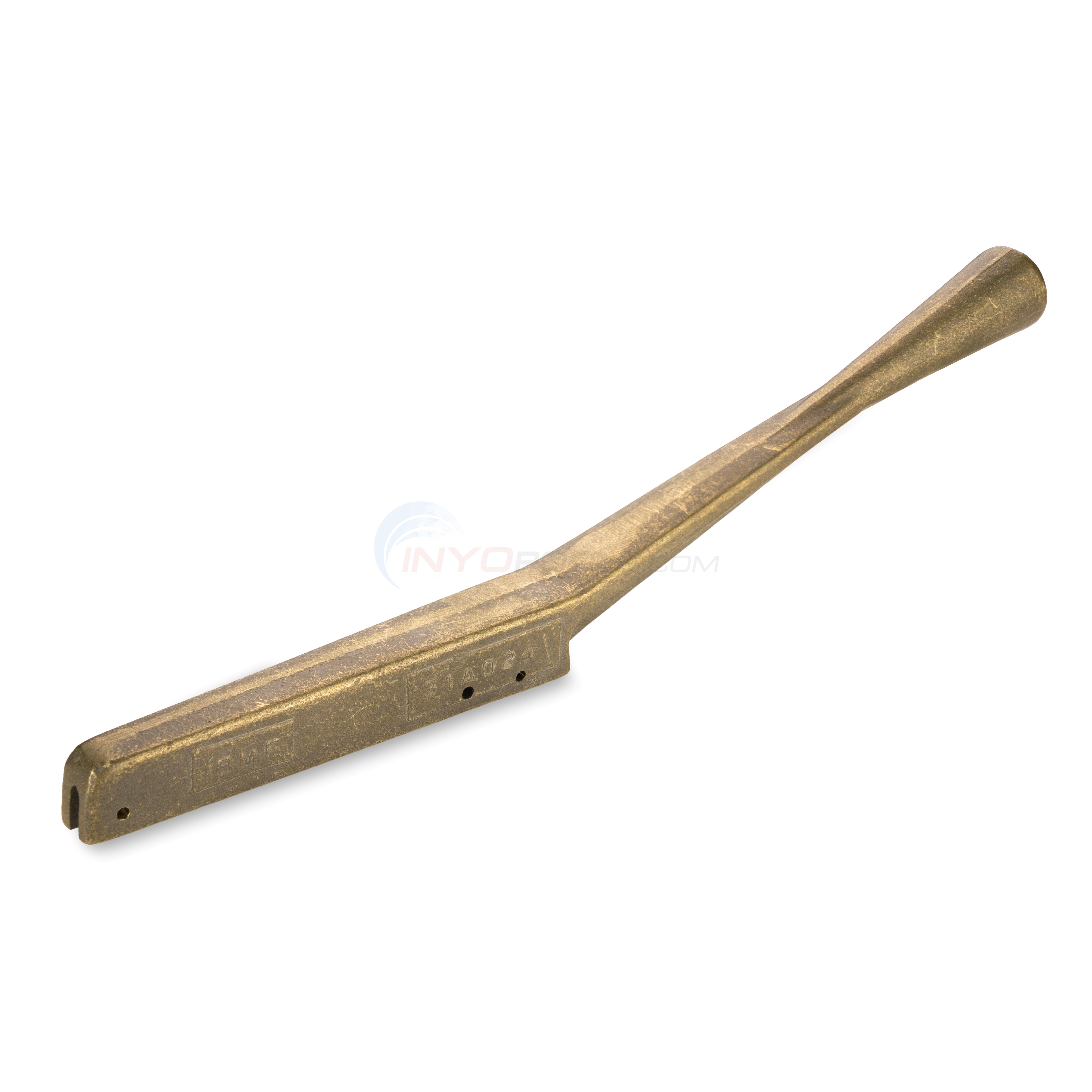

7	Handle, Lever
8**	O-ring

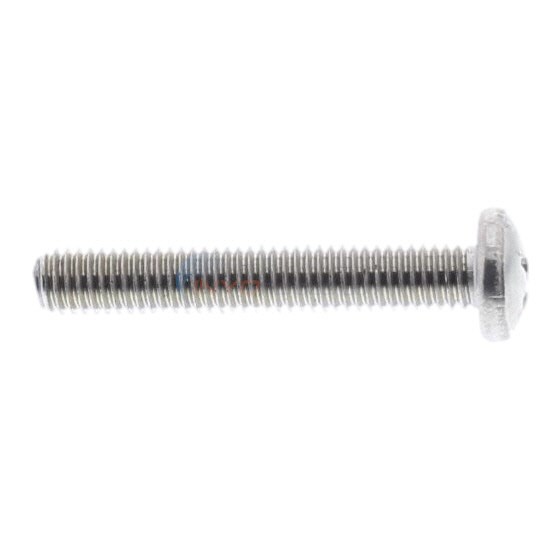

9	SCREW
10	SCREW

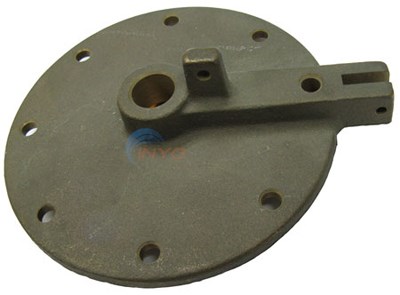

11	Plate, Top Index

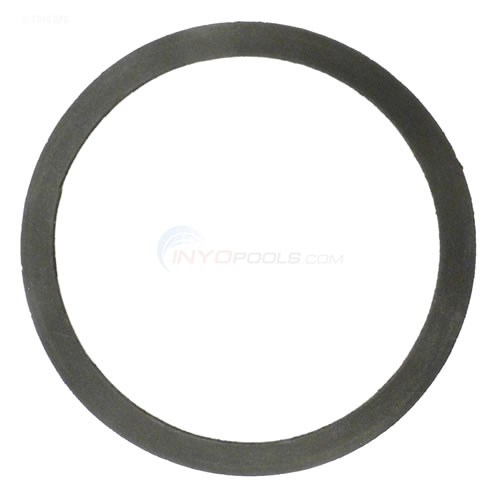

12	GASKET, TOP PLATE

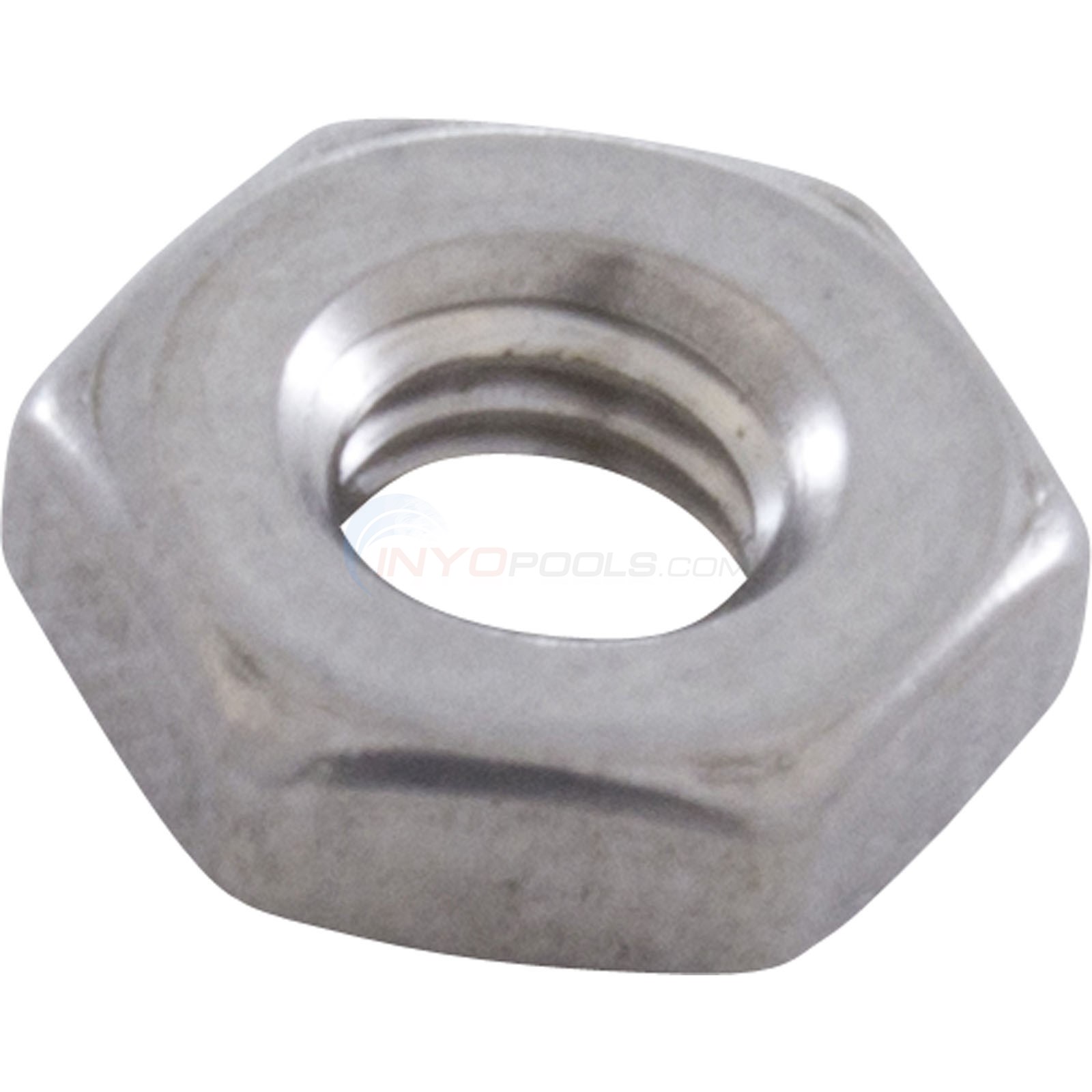

13	NUT, S.S.(SET OF 8)
14	OBSOLETE WASTE PORT BODY MODULE
15	Plug, Poly, 1/4" Mpt (3f14)
16	O-ring
17	OBSOLETE BODY MODULE
18	OBSOLETE MODULE, BOTTOM BODY
21	OBSOLETE SCREW
22	OBSOLETE COUPLING
23	ADAPTER KIT, VALVE 1 1/2IN
24	OBSOLETE 1 1/2" VALVE ADAPTER FOR BULKHEAD
25	ADAPTER, UNION WITHOUT O-RING

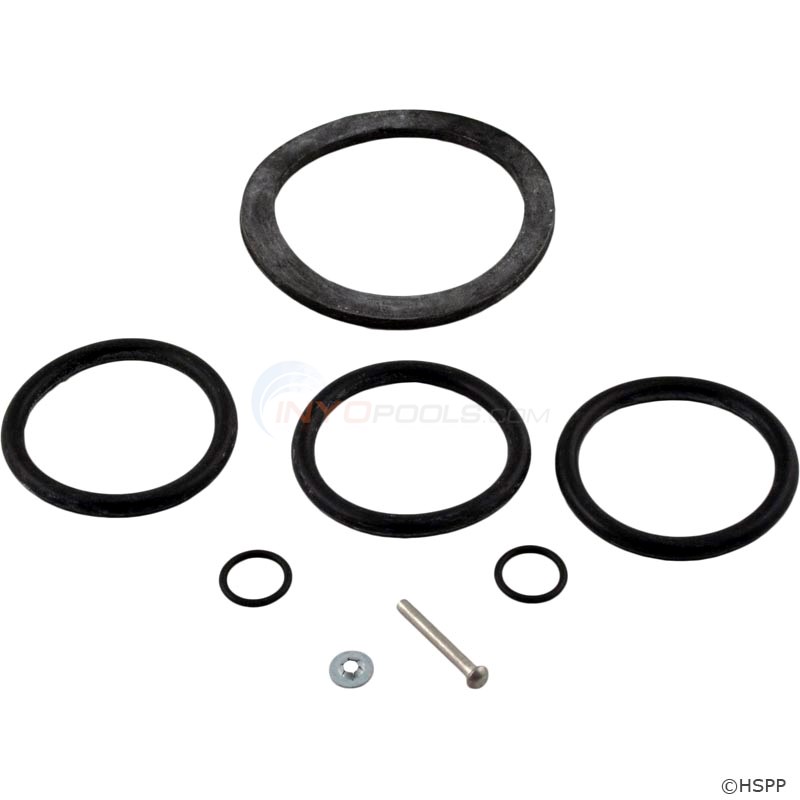

**	PISTON O-RING KIT
