Baracuda / Zodiac Beta Parts

BETA MODEL - ABOVE GROUND

Baracuda / Zodiac Beta Diagram

Click to zoom in

Diagram #	Part Title
1	BODY, OUTER TOP
2	BALL, FLOAT (70MM)
3	BODY, OUTER BOTTOM
4	WEIGHT, BELLY (W90147)
5	APRON, (TURQUOISE) (W49855)
6	COMPRESSION RING
8	FOOT PAD (TURQUOISE)
9	EXTENSION PIPE Replace With 3237-080
10	RETAINING RING, DIAPHRAGM
11	DIAPHRAGM
12	EXTENSION PIPE, OUTER With NUT
13	DEFLECTOR,WHEEL 12"(TURQUIOSE)
14	DISC, BETA
15	FLOWKEEPER VALVE
16	SKIMMER CUFF, ABOVE GROUND (W64700)
17	45 DEG. ELBOW (W90146)
18	HOSE CONNECTOR
19	POOL PULSE
20	HOSE DEFLECTOR, PACK OF 3
22	W47940
*	HOSE KIT, 11X1 METER, WHITE (W21205)

View Parts List

Diagram #	Part Title
1	BODY, OUTER TOP
2	BALL, FLOAT (70MM)
3	BODY, OUTER BOTTOM
4	WEIGHT, BELLY (W90147)
5	APRON, (TURQUOISE) (W49855)
6	COMPRESSION RING
8	FOOT PAD (TURQUOISE)
9	EXTENSION PIPE Replace With 3237-080
10	RETAINING RING, DIAPHRAGM
11	DIAPHRAGM
12	EXTENSION PIPE, OUTER With NUT
13	DEFLECTOR,WHEEL 12"(TURQUIOSE)
14	DISC, BETA
15	FLOWKEEPER VALVE
16	SKIMMER CUFF, ABOVE GROUND (W64700)
17	45 DEG. ELBOW (W90146)
18	HOSE CONNECTOR
19	POOL PULSE
20	HOSE DEFLECTOR, PACK OF 3
22	W47940
*	HOSE KIT, 11X1 METER, WHITE (W21205)

Available Parts:

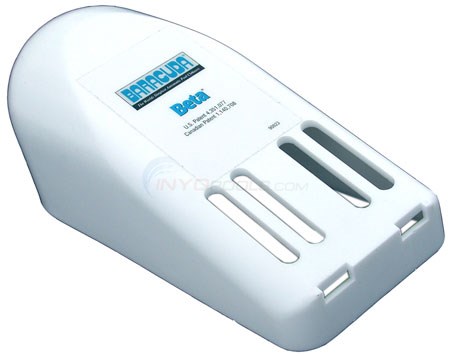

BODY, OUTER TOP

Part # 3232-01 Mfg # W50210

BODY, OUTER TOP

$134.56

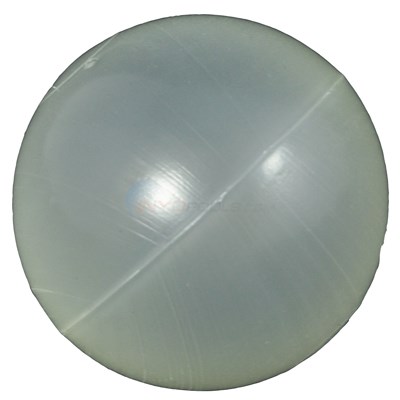

BALL, FLOAT (70MM)

Part # 3232-02 Mfg # W80200

BALL, FLOAT (70MM)

$46.57

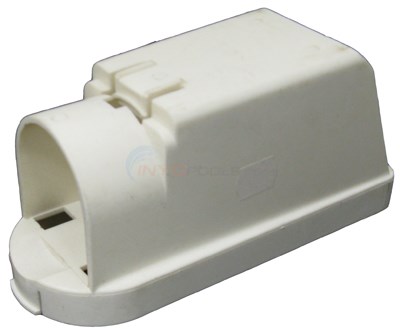

BODY, OUTER BOTTOM

Part # 3232-03 Mfg # W53005

BODY, OUTER BOTTOM

$165.61

WEIGHT, BELLY (W90147)

Part # 3230-04

WEIGHT, BELLY (W90147)

$93.15

APRON, (TURQUOISE) (W49855)

Part # 3232-05

APRON, (TURQUOISE) (W49855)

$198.74

COMPRESSION RING

Part # 3230-05 Mfg # W74000

COMPRESSION RING

$14.26 IN STOCK

Qty:

FOOT PAD (TURQUOISE)

Part # 3232-08 Mfg # W72955

FOOT PAD (TURQUOISE)

$114.89

9

EXTENSION PIPE Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352020055.htm">3237-080</a>

Mfg # W73406

EXTENSION PIPE Replace With 3237-080

NOT AVAILABLE

INNER EXTENSION PIPE, THREADED

Part # 3237-080 Mfg # W56525

INNER EXTENSION PIPE, THREADED

$48.64 IN STOCK

Qty:

RETAINING RING, DIAPHRAGM

Part # 3230-08 Mfg # W81600

RETAINING RING, DIAPHRAGM

$8.27 IN STOCK

Qty:

DIAPHRAGM

Part # 3230-09 Mfg # W81701

DIAPHRAGM

$64.98 IN STOCK

Qty:

EXTENSION PIPE, OUTER With NUT

Part # 3230-10 Mfg # W74055

EXTENSION PIPE, OUTER With NUT

$135.59

DEFLECTOR,WHEEL 12"(TURQUIOSE)

Part # 3230-12A Mfg # W46055

DEFLECTOR,WHEEL 12"(TURQUIOSE)

$49.68 IN STOCK

Qty:

DISC, BETA

Part # 3230-31 Mfg # W48140

DISC, BETA

$214.26

FLOWKEEPER VALVE

Part # 3237-130 Mfg # W60050

FLOWKEEPER VALVE

$103.41 IN STOCK

Qty:

SKIMMER CUFF, ABOVE GROUND (W64700)

Part # 3232-16 Mfg # W70264

SKIMMER CUFF, ABOVE GROUND (W64700)

$35.18 IN STOCK

Qty:

45 DEG. ELBOW (W90146)

Part # 3238-029 Mfg # W70244

45 DEG. ELBOW (W90146)

$14.13 IN STOCK

Qty:

HOSE CONNECTOR

Part # 3230-32 Mfg # W33205

HOSE CONNECTOR

$34.14 IN STOCK

Qty:

POOL PULSE

Part # 3230-22 Mfg # W44800

POOL PULSE

$83.83

HOSE DEFLECTOR, PACK OF 3

Part # 3232-20 Mfg # W24209

HOSE DEFLECTOR, PACK OF 3

$133.52

22

W47940

Mfg # NLA DISK, F/UNITS REP W/3230-31

W47940

NOT AVAILABLE

HOSE KIT, 11X1 METER, WHITE (W21205)

Part # 3232-26

HOSE KIT, 11X1 METER, WHITE (W21205)

$260.85 IN STOCK

Qty:

HOSE, 1 METER (WHITE) (EACH) (3232-26 = 11)

Part # 3232-26A Mfg # 3232-26

HOSE, 1 METER (WHITE) (EACH) (3232-26 = 11)

$43.47 IN STOCK

Qty:

* NOT SHOWN
