Jacuzzi DV-4 Dial Valve Parts

VALVE FOR JACUZZI 15MFM FILTER

The older DVK-4 is now listed as a DVK-5 valve

Jacuzzi DV-4 Dial Valve Diagram

Click to zoom in

Diagram #	Part Title
A	COMPLETE VALVE, DIAL - 4 POSITION EQFV (39258207)
1	HANDLE (39251707RBLK)
2	PIN, HANDLE
3	No Longer Available WASHER Replace With 4628-51
4	No Longer Available SHIM Replace With 4628-03
5	COVER, DV4 With BARB FITTING (39162102)
5A	COVER, DV 4 With O BARB FITTING (39255005)
6	Screw, #12 X 1 (set Of 4)
7	O-RING, KEY ASSY.
8	NLA WASHER REP W/4628-32
9	SPRING, COMPRESSION (16026205R000)
10	DIVERTER, DV 4 (39252002R000)
11	GASKET, 4 3/4" X 5" X 1/8" (47024856R000)
12	BODY, DV 4 (39069638R000)
13	POLY ADAPTOR, 1-1/2"MPT X 1-1/2" BARB

View Parts List

Diagram #	Part Title
A	COMPLETE VALVE, DIAL - 4 POSITION EQFV (39258207)
1	HANDLE (39251707RBLK)
2	PIN, HANDLE
3	No Longer Available WASHER Replace With 4628-51
4	No Longer Available SHIM Replace With 4628-03
5	COVER, DV4 With BARB FITTING (39162102)
5A	COVER, DV 4 With O BARB FITTING (39255005)
6	Screw, #12 X 1 (set Of 4)
7	O-RING, KEY ASSY.
8	NLA WASHER REP W/4628-32
9	SPRING, COMPRESSION (16026205R000)
10	DIVERTER, DV 4 (39252002R000)
11	GASKET, 4 3/4" X 5" X 1/8" (47024856R000)
12	BODY, DV 4 (39069638R000)
13	POLY ADAPTOR, 1-1/2"MPT X 1-1/2" BARB

Available Parts:

COMPLETE VALVE, DIAL - 4 POSITION EQFV (39258207)

Part # 39258207K Mfg # 39258207R

COMPLETE VALVE, DIAL - 4 POSITION EQFV (39258207)

$148.02

HANDLE (39251707RBLK)

Part # 4628-01 Mfg # 39255302R

HANDLE (39251707RBLK)

$25.23 IN STOCK

Qty:

PIN, HANDLE

Part # 4628-02 Mfg # 14225502R

PIN, HANDLE

$8.43 IN STOCK

Qty:

3

No Longer Available WASHER Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352041679.htm">4628-51</a>

Mfg # 14-3834-00

No Longer Available WASHER Replace With 4628-51

NOT AVAILABLE

WASHER ( SET OF 3)

Part # 4628-51 Mfg # 14223002R3

WASHER ( SET OF 3)

$19.08

4

No Longer Available SHIM Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352028566.htm">4628-03</a>

Mfg # 14-3851-08

No Longer Available SHIM Replace With 4628-03

NOT AVAILABLE

Washer, Anti-friction

Part # 4628-03 Mfg # 14223002R2

Washer, Anti-friction

$20.09

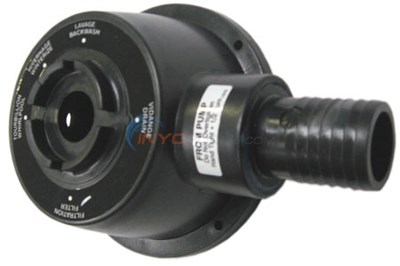

COVER, DV4 With BARB FITTING (39162102)

Part # 4632-05 Mfg # 39162102R

COVER, DV4 With BARB FITTING (39162102)

$90.44 IN STOCK

Qty:

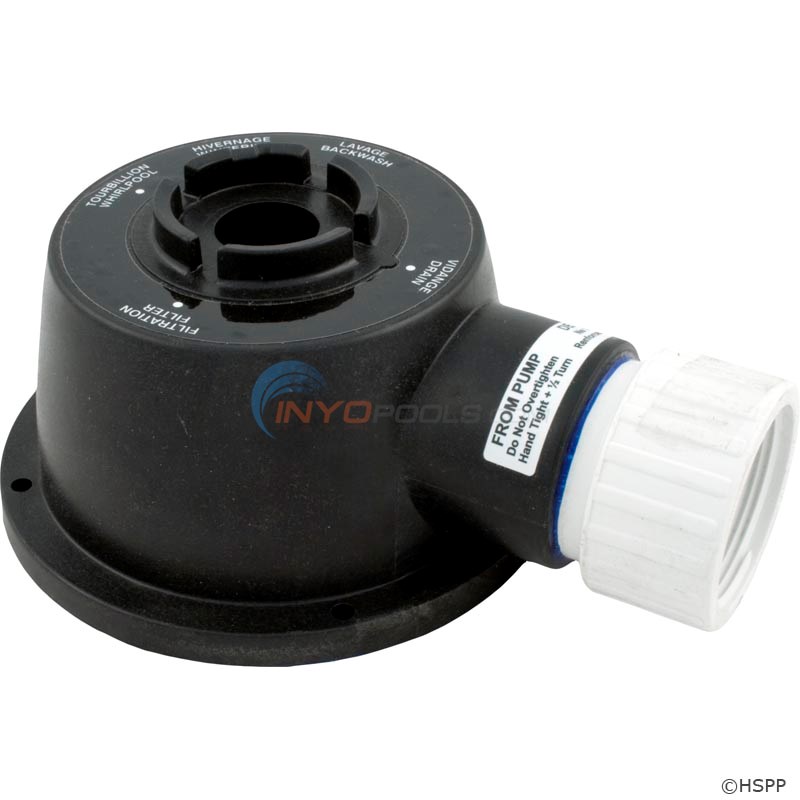

COVER, DV 4 With O BARB FITTING (39255005)

Part # 4632-05A Mfg # 39255005R

COVER, DV 4 With O BARB FITTING (39255005)

$71.34

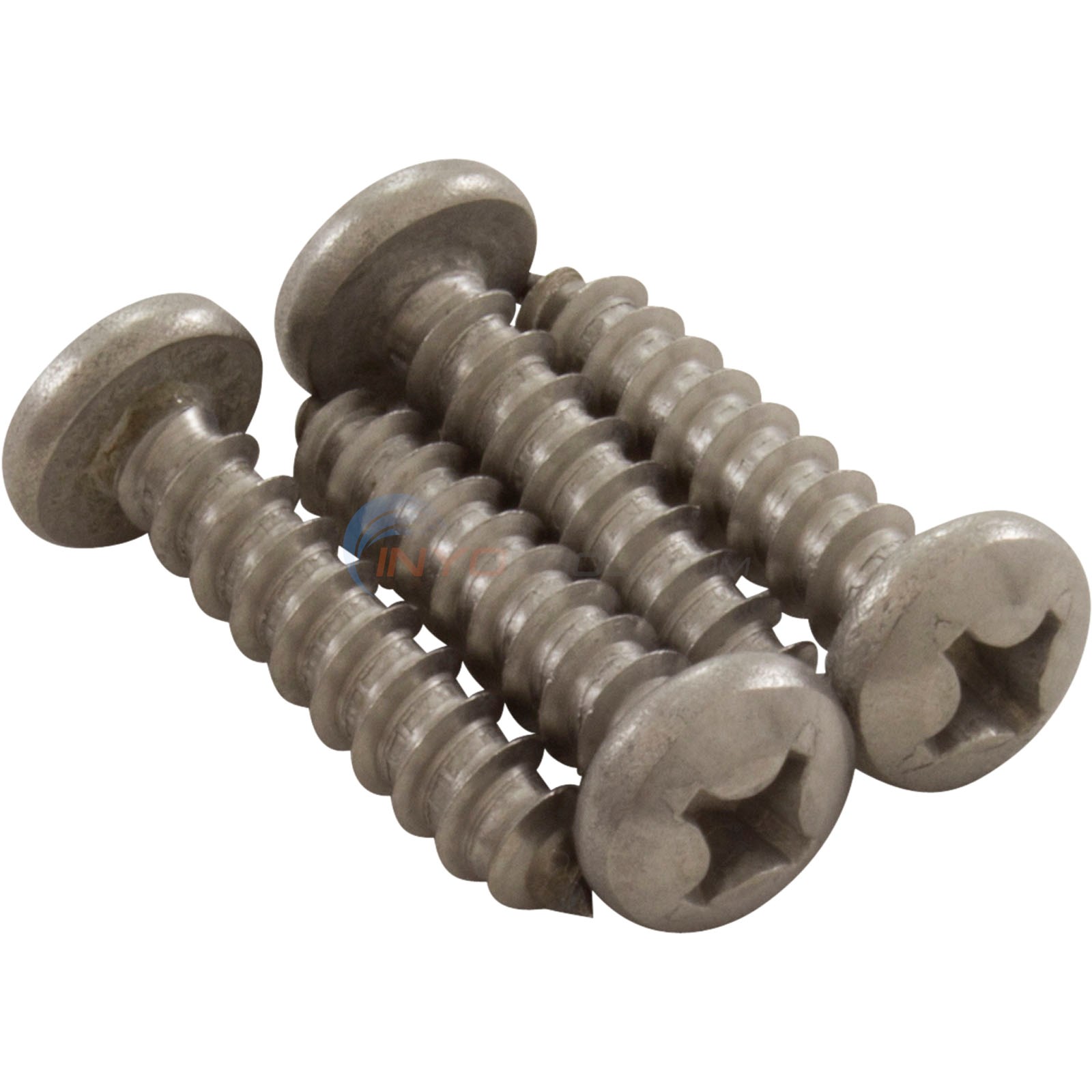

Screw, #12 X 1 (set Of 4)

Part # 4632-20 Mfg # 1184205R4

Screw, #12 X 1 (set Of 4)

$22.10 IN STOCK

Qty:

O-RING, KEY ASSY.

Part # 4628-10 Mfg # 214

O-RING, KEY ASSY.

$14.75 IN STOCK

Qty:

8

NLA WASHER REP W/4628-32

Mfg # 14-3833-01

NLA WASHER REP W/4628-32

NOT AVAILABLE

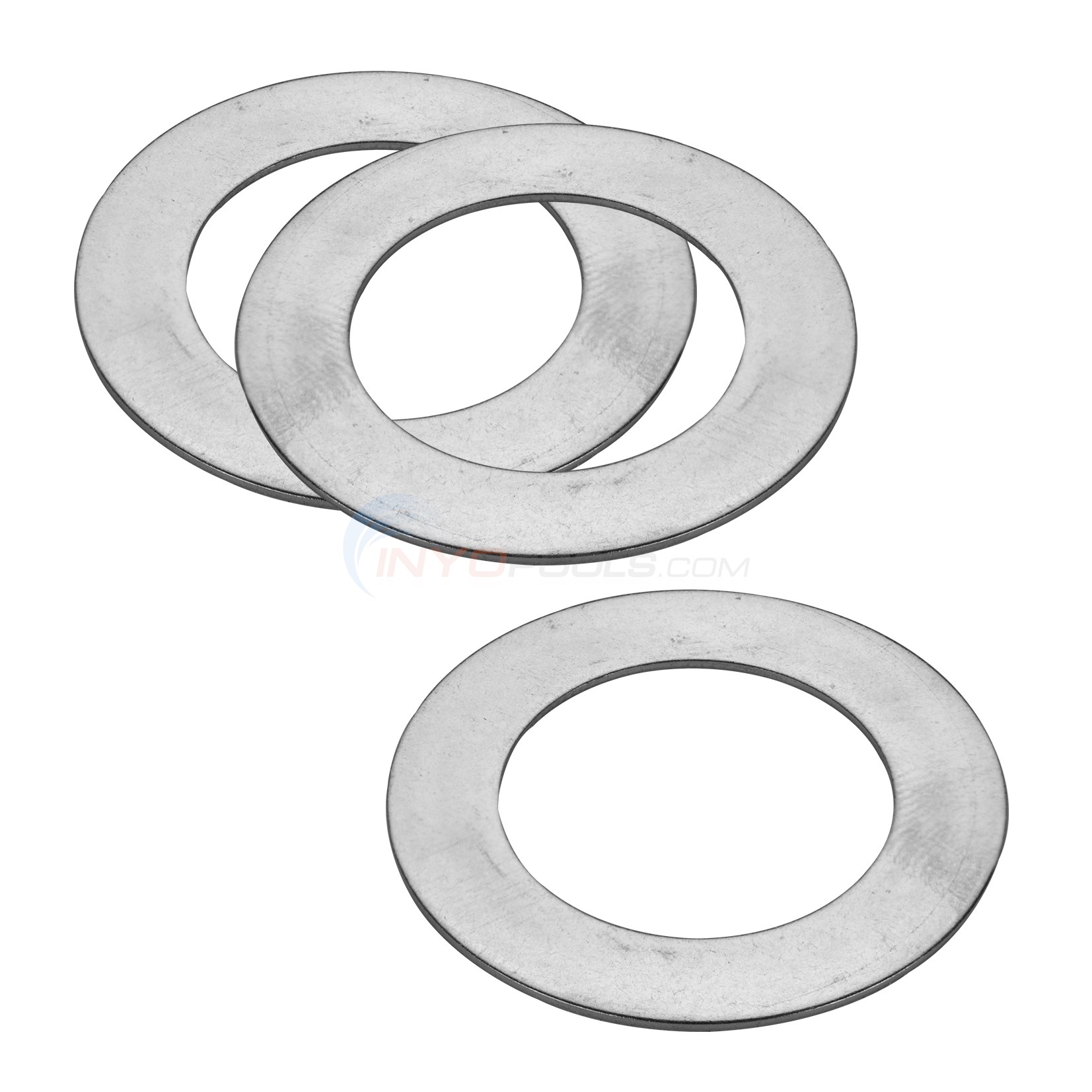

Wear Washer (set Of 3)

Part # 4628-32 Mfg # 14383301R3

Wear Washer (set Of 3)

$8.03 IN STOCK

Qty:

SPRING, COMPRESSION (16026205R000)

Part # 4628-12 Mfg # 16026205R

SPRING, COMPRESSION (16026205R000)

$18.08 IN STOCK

Qty:

DIVERTER, DV 4 (39252002R000)

Part # 4632-10 Mfg # 39252002R

DIVERTER, DV 4 (39252002R000)

$55.26 IN STOCK

Qty:

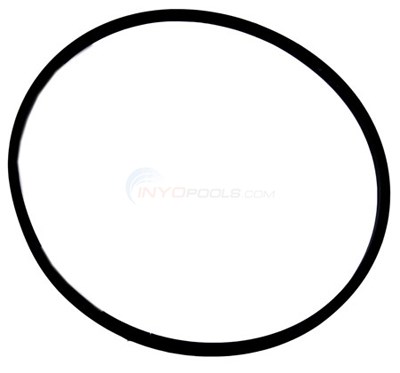

GASKET, 4 3/4" X 5" X 1/8" (47024856R000)

Part # 4632-11 Mfg # 47024856R

GASKET, 4 3/4" X 5" X 1/8" (47024856R000)

$45.21

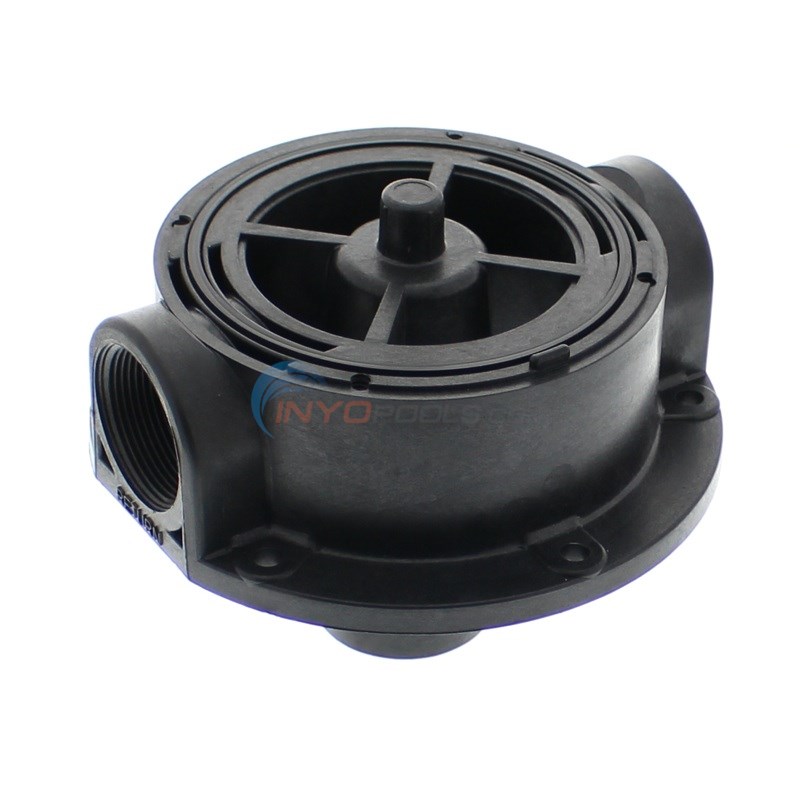

BODY, DV 4 (39069638R000)

Part # 4632-12 Mfg # 39069638R

BODY, DV 4 (39069638R000)

$106.52 IN STOCK

Qty:

POLY ADAPTOR, 1-1/2"MPT X 1-1/2" BARB

Part # 7249-0 Mfg # 1436-015

POLY ADAPTOR, 1-1/2"MPT X 1-1/2" BARB

$10.41 IN STOCK

Qty:
