Hayward Ecostar C HCP3400 Series Parts

Hayward Ecostar C HCP3400 Series
HCP3400VSP, HCP3400VSPVR

Hayward Ecostar C HCP3400 Series Diagram

Click to zoom in

Diagram #	Part Title
1	Union Connector Kit
2	Union Gasket
3	Strainer Housing With Plugs
4	Strainer Cover Kit
5	Strainer Cover O-ring
6	Pump Basket
7	Diffuser Screw, Single
8	Oring, Union & Diffuser
9	Diffuser
10	Impeller Screw
11	Impeller Ring
12	2 Hp Impeller With Screw
13	Shaft Seal
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
14	Housing O-ring
15	Seal Plate
16	Housing Insert & Seal Plate Spacer Kit
17	Housing Bolt
18	Motor Bolt (spx3200z5)
19	Drain Plug With Gasket
20	Motor Support Bracket
21	Short Riser Base
22	Adapter-Motor Support
23	Motor Assembly
24	Motor Fan Shroud
25	DRIVE-ECOSTAR C
26	Motor Drive Display Cover, Black
27	Motor Drive Wiring Cover
28	Digital Control Interface Assembly
*	Wall Mounting Kit EcoStar

View Parts List

Diagram #	Part Title
1	Union Connector Kit
2	Union Gasket
3	Strainer Housing With Plugs
4	Strainer Cover Kit
5	Strainer Cover O-ring
6	Pump Basket
7	Diffuser Screw, Single
8	Oring, Union & Diffuser
9	Diffuser
10	Impeller Screw
11	Impeller Ring
12	2 Hp Impeller With Screw
13	Shaft Seal
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
14	Housing O-ring
15	Seal Plate
16	Housing Insert & Seal Plate Spacer Kit
17	Housing Bolt
18	Motor Bolt (spx3200z5)
19	Drain Plug With Gasket
20	Motor Support Bracket
21	Short Riser Base
22	Adapter-Motor Support
23	Motor Assembly
24	Motor Fan Shroud
25	DRIVE-ECOSTAR C
26	Motor Drive Display Cover, Black
27	Motor Drive Wiring Cover
28	Digital Control Interface Assembly
*	Wall Mounting Kit EcoStar

Available Parts:

Union Connector Kit

Part # 5112-200 Mfg # SPX3200UNKIT

Union Connector Kit

$59.28 IN STOCK

Qty:

Union Gasket

Part # 5112-201 Mfg # SPX3200UG

Union Gasket

$20.51 IN STOCK

Qty:

Strainer Housing With Plugs

Part # 5112-202 Mfg # SPX3200A

Strainer Housing With Plugs

$326.61 IN STOCK

Qty:

Strainer Cover Kit

Part # 5112-203 Mfg # SPX3200DLS

Strainer Cover Kit

$90.44 IN STOCK

Qty:

Strainer Cover Kit For Biquanide Sanitizer

Part # 5112-204 Mfg # SPX3200DLSB

Strainer Cover Kit For Biquanide Sanitizer

$140.69

Strainer Cover O-ring

Part # 5112-205 Mfg # SPX3200S

Strainer Cover O-ring

$6.35 IN STOCK

Qty:

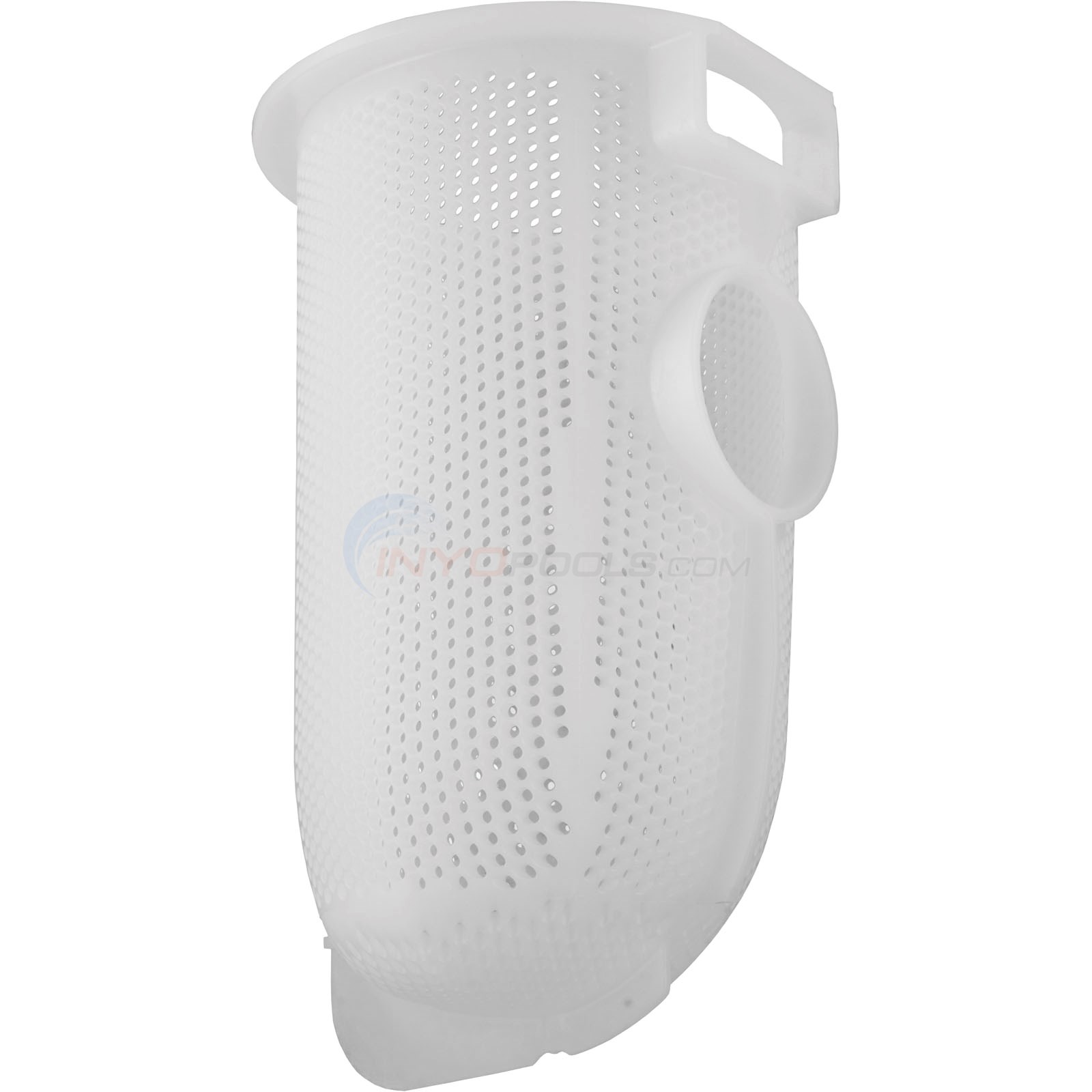

Pump Basket

Part # 5112-206 Mfg # SPX3200M

Pump Basket

$25.38 IN STOCK

Qty:

Diffuser Screw, Single

Part # 5112-207 Mfg # SPX3200Z8

Diffuser Screw, Single

$21.09 IN STOCK

Qty:

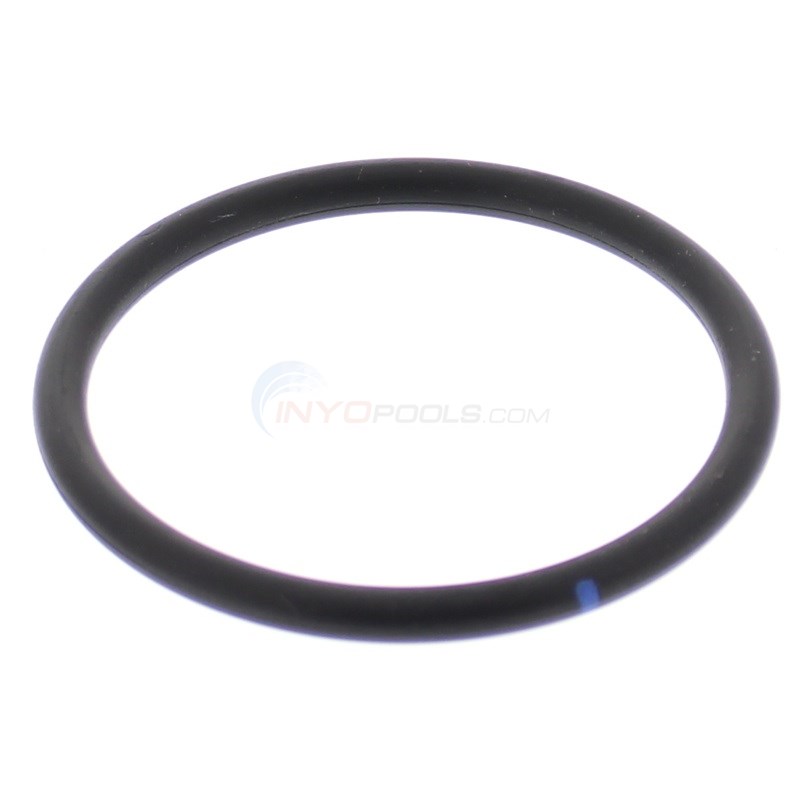

Oring, Union & Diffuser

Part # 5112-35 Mfg # SPX4000Z1

Oring, Union & Diffuser

$6.04 IN STOCK

Qty:

Diffuser

Part # 5112-208 Mfg # SPX3200B3

Diffuser

$57.27 IN STOCK

Qty:

Impeller Screw

Part # 5112-209 Mfg # SPX3200Z1

Impeller Screw

$13.84 IN STOCK

Qty:

Impeller Ring

Part # 5110-23A Mfg # SPX3021R

Impeller Ring

$10.08 IN STOCK

Qty:

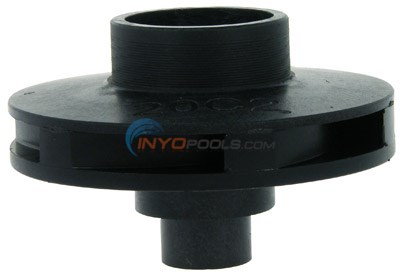

2 Hp Impeller With Screw

Part # 5112-213 Mfg # SPX3220C

2 Hp Impeller With Screw

$77.44 IN STOCK

Qty:

Shaft Seal

Part # 5112-216 Mfg # SPX3200SA

Shaft Seal

$31.14 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$5.01

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

Part # LUBE-10ML

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

$30.14 IN STOCK

Qty:

Housing O-ring

Part # 5112-217 Mfg # SPX3200T

Housing O-ring

$17.07 IN STOCK

Qty:

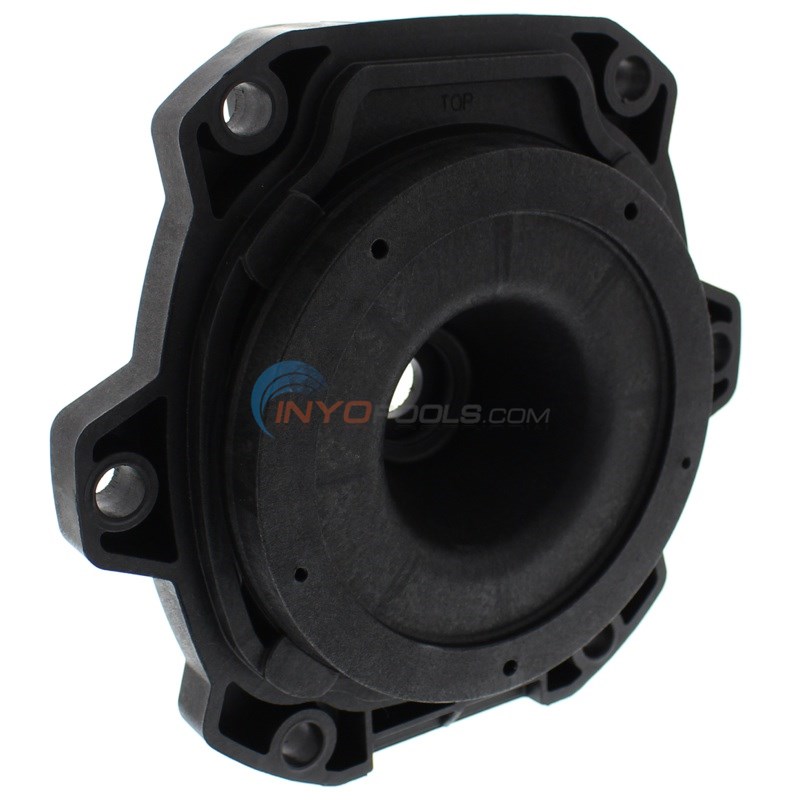

Seal Plate

Part # 5112-218 Mfg # SPX3200E

Seal Plate

$70.34 IN STOCK

Qty:

Housing Insert & Seal Plate Spacer Kit

Part # 5112-219 Mfg # SPX3200Z211

Housing Insert & Seal Plate Spacer Kit

$40.67 IN STOCK

Qty:

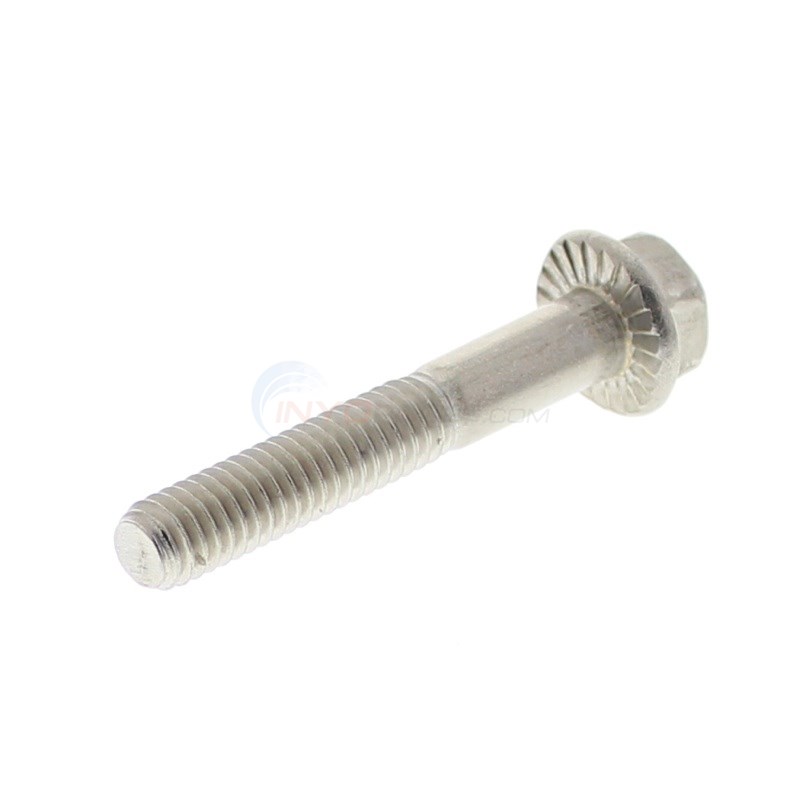

Housing Bolt

Part # 5112-220 Mfg # SPX3200Z3

Housing Bolt

$20.99 IN STOCK

Qty:

Motor Bolt (spx3200z5)

Part # 5112-221 Mfg # SPX3200Z5PAK4

Motor Bolt (spx3200z5)

$25.11 IN STOCK

Qty:

Drain Plug With Gasket

Part # 5112-008 Mfg # SPX4000FG

Drain Plug With Gasket

$10.04 IN STOCK

Qty:

Motor Support Bracket

Part # 5112-222 Mfg # SPX3200GA

Motor Support Bracket

$67.61 IN STOCK

Qty:

Short Riser Base

Part # 5112-223 Mfg # SPX3200WF

Short Riser Base

$64.53 IN STOCK

Qty:

Adapter-Motor Support

Part # SPX3200Q

Adapter-Motor Support

$36.17

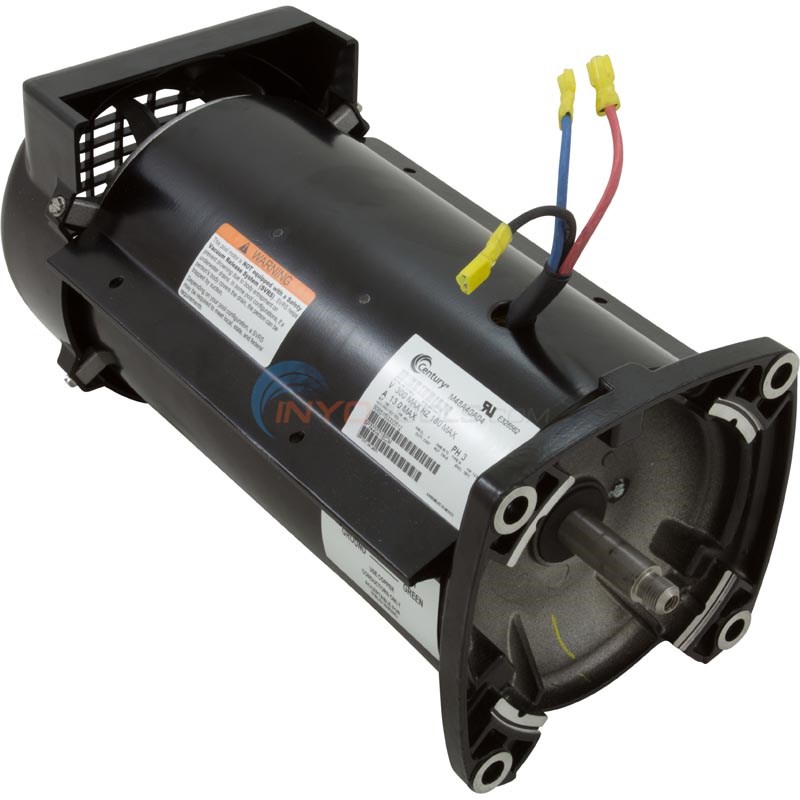

Motor Assembly

Part # SPX3400Z1ECM Mfg # SPX3400Z1ECM

Motor Assembly

$640.17 IN STOCK

Qty:

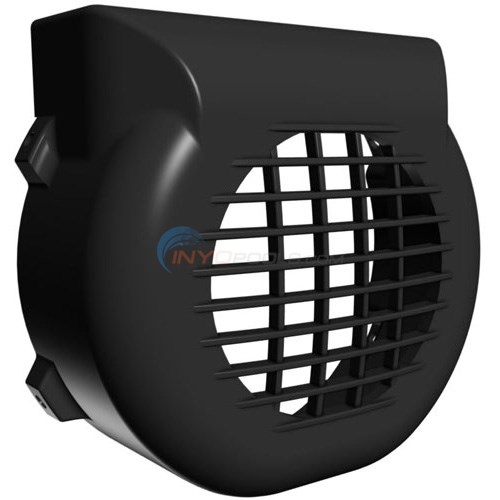

Motor Fan Shroud

Part # SPX3400FAN

Motor Fan Shroud

$41.19 IN STOCK

Qty:

DRIVE-ECOSTAR C

Part # HCXP3400DR

DRIVE-ECOSTAR C

$1495.43

DRIVE-ECOSTAR C, VACUUM RELEASE

Part # HCXP3400DRVR

DRIVE-ECOSTAR C, VACUUM RELEASE

$1743.66

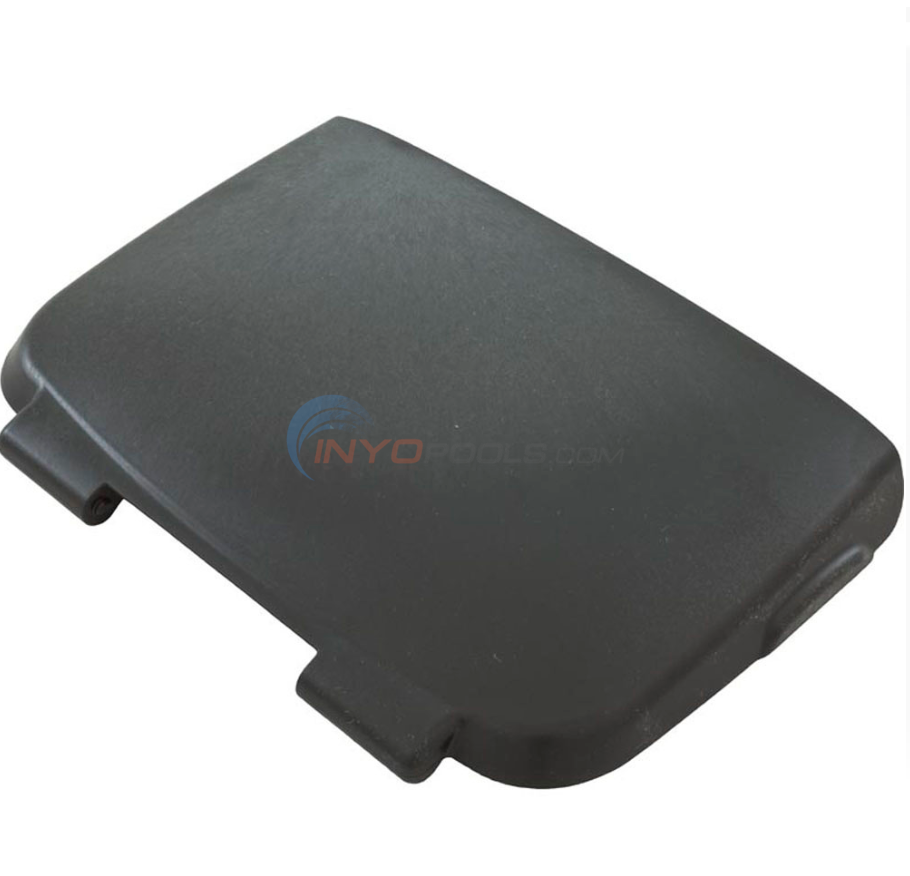

Motor Drive Display Cover, Black

Part # SPX3400DR4

Motor Drive Display Cover, Black

$64.31 IN STOCK

Qty:

Motor Drive Display Cover, Clear

Part # HCXP3400DR4C

Motor Drive Display Cover, Clear

$111.54

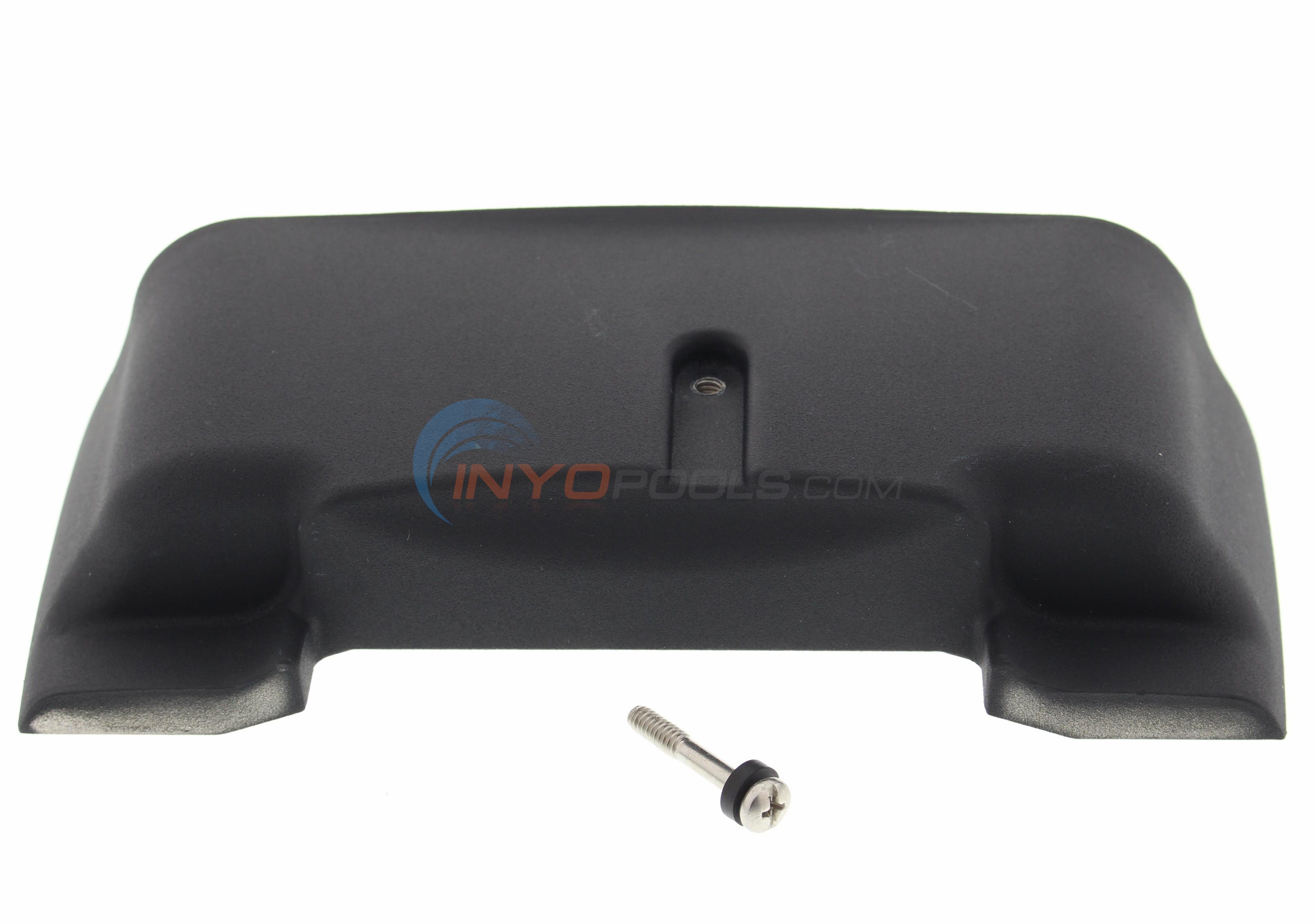

Motor Drive Wiring Cover

Part # SPX3400DR2

Motor Drive Wiring Cover

$126.62

Digital Control Interface Assembly

Part # HCXP3400LCD

Digital Control Interface Assembly

$531.63

Wall Mounting Kit EcoStar

Part # SPX3400DRKIT

Wall Mounting Kit EcoStar

$153.75 IN STOCK

Qty:

* Not Shown
