Hayward GM-152, 152HV Sand Filter Parts

ABOVE GROUND SAND FILTER SERIES

Hayward GM-152, 152HV Sand Filter Diagram

Click to zoom in

Diagram #	Part Title
1A	Vari-Flo Valve 1.5 Top Mount for Sand
*	Pureline Replacement Upper Handle Assembly Compatible with Hayward SP0714T Valve - PL0734
2	Bottom Mount Pressure Gauge 0-60 1/4" NPT
3A	SIGHT GLASS With GASKET
5	O-RING, ID 6-3/4", OD 7-1/8"
7	CLAMP, FLANGE
8	OBSOLETE CAP, PROTECTION
9	STAND PIPE
10	OBSOLETE FILTER TANK, GM-152
11	STANDPIPE BUSHING
12	UNDERDRAIN (PART OF TANK ASS’Y)
13	TANK DRAIN PLUG WITH O-RING
*	O-RING, DRAIN PLUG
21	LATERAL ASSEMBLY With CENTER PIPE
22	LATERAL OLD THREADED STYLE
*	OBSOLETE LATERAL PIVOT

View Parts List

Diagram #	Part Title
1A	Vari-Flo Valve 1.5 Top Mount for Sand
*	Pureline Replacement Upper Handle Assembly Compatible with Hayward SP0714T Valve - PL0734
2	Bottom Mount Pressure Gauge 0-60 1/4" NPT
3A	SIGHT GLASS With GASKET
5	O-RING, ID 6-3/4", OD 7-1/8"
7	CLAMP, FLANGE
8	OBSOLETE CAP, PROTECTION
9	STAND PIPE
10	OBSOLETE FILTER TANK, GM-152
11	STANDPIPE BUSHING
12	UNDERDRAIN (PART OF TANK ASS’Y)
13	TANK DRAIN PLUG WITH O-RING
*	O-RING, DRAIN PLUG
21	LATERAL ASSEMBLY With CENTER PIPE
22	LATERAL OLD THREADED STYLE
*	OBSOLETE LATERAL PIVOT

Available Parts:

Vari-Flo Valve 1.5 Top Mount for Sand

Part # SP0714T

Vari-Flo Valve 1.5 Top Mount for Sand

$164.52 IN STOCK

Qty:

Top Mount Valve for Sand 1.5", Replaces SP0714T

Part # PL0714

Top Mount Valve for Sand 1.5", Replaces SP0714T

$99.00 IN STOCK

Qty:

Pureline Replacement Upper Handle Assembly Compatible with Hayward SP0714T Valve - PL0734

Part # 4703-20 Mfg # PL0734

Pureline Replacement Upper Handle Assembly Compatible with Hayward SP0714T Valve - PL0734

$60.77 IN STOCK

Qty:

Bottom Mount Pressure Gauge 0-60 1/4" NPT

Part # 4726-0 Mfg # 101D-204D

Bottom Mount Pressure Gauge 0-60 1/4" NPT

$15.83 IN STOCK

Qty:

SIGHT GLASS With GASKET

Part # 4700-12 Mfg # SPX0710MA

SIGHT GLASS With GASKET

$10.65 IN STOCK

Qty:

3B

OBSOLETE SIGHT GLASS ASSY

Mfg # GMX600R

OBSOLETE SIGHT GLASS ASSY

NOT AVAILABLE

O-RING, ID 6-3/4", OD 7-1/8"

Part # 4822-04 Mfg # 364

O-RING, ID 6-3/4", OD 7-1/8"

$11.48 IN STOCK

Qty:

CLAMP, FLANGE

Part # 4802-03B Mfg # GMX600N

CLAMP, FLANGE

$69.17 IN STOCK

Qty:

8

OBSOLETE CAP, PROTECTION

Mfg # GMX152Z1

OBSOLETE CAP, PROTECTION

NOT AVAILABLE

STAND PIPE

Part # 4802-39 Mfg # GMX152F

STAND PIPE

$69.29

10

OBSOLETE FILTER TANK, GM-152

OBSOLETE FILTER TANK, GM-152

NOT AVAILABLE

10

OBSOLETE FILTER TANK, GM-152HV

OBSOLETE FILTER TANK, GM-152HV

NOT AVAILABLE

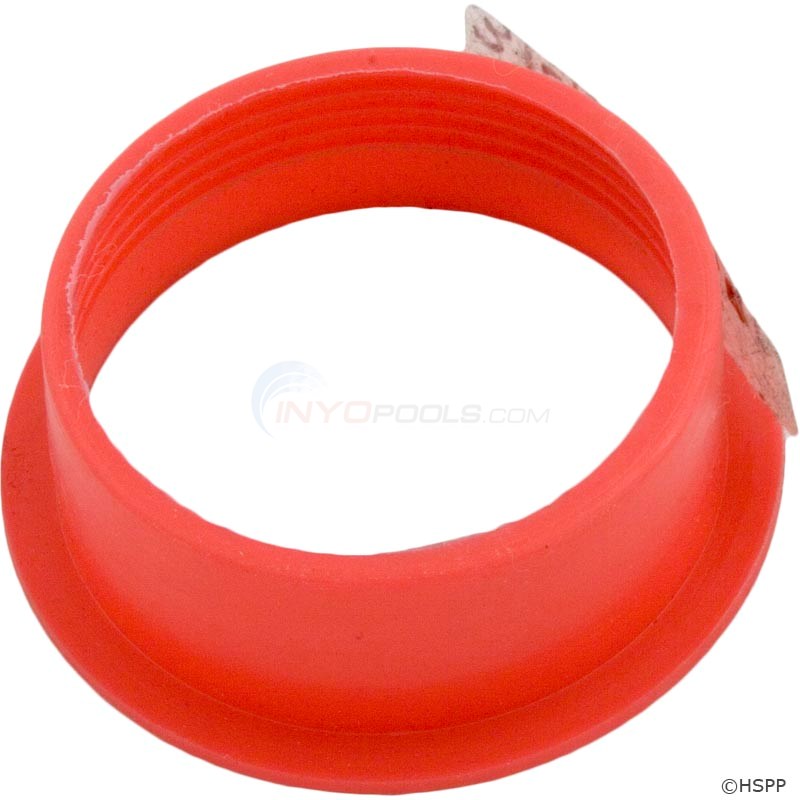

STANDPIPE BUSHING

Part # 4802-40 Mfg # GMX152H

STANDPIPE BUSHING

$21.31

12

UNDERDRAIN (PART OF TANK ASS’Y)

UNDERDRAIN (PART OF TANK ASS’Y)

NOT AVAILABLE

TANK DRAIN PLUG WITH O-RING

Part # 4802-111 Mfg # GMX152Z4A

TANK DRAIN PLUG WITH O-RING

$22.37 IN STOCK

Qty:

O-RING, DRAIN PLUG

Part # 4662-09 Mfg # 121

O-RING, DRAIN PLUG

$16.68 IN STOCK

Qty:

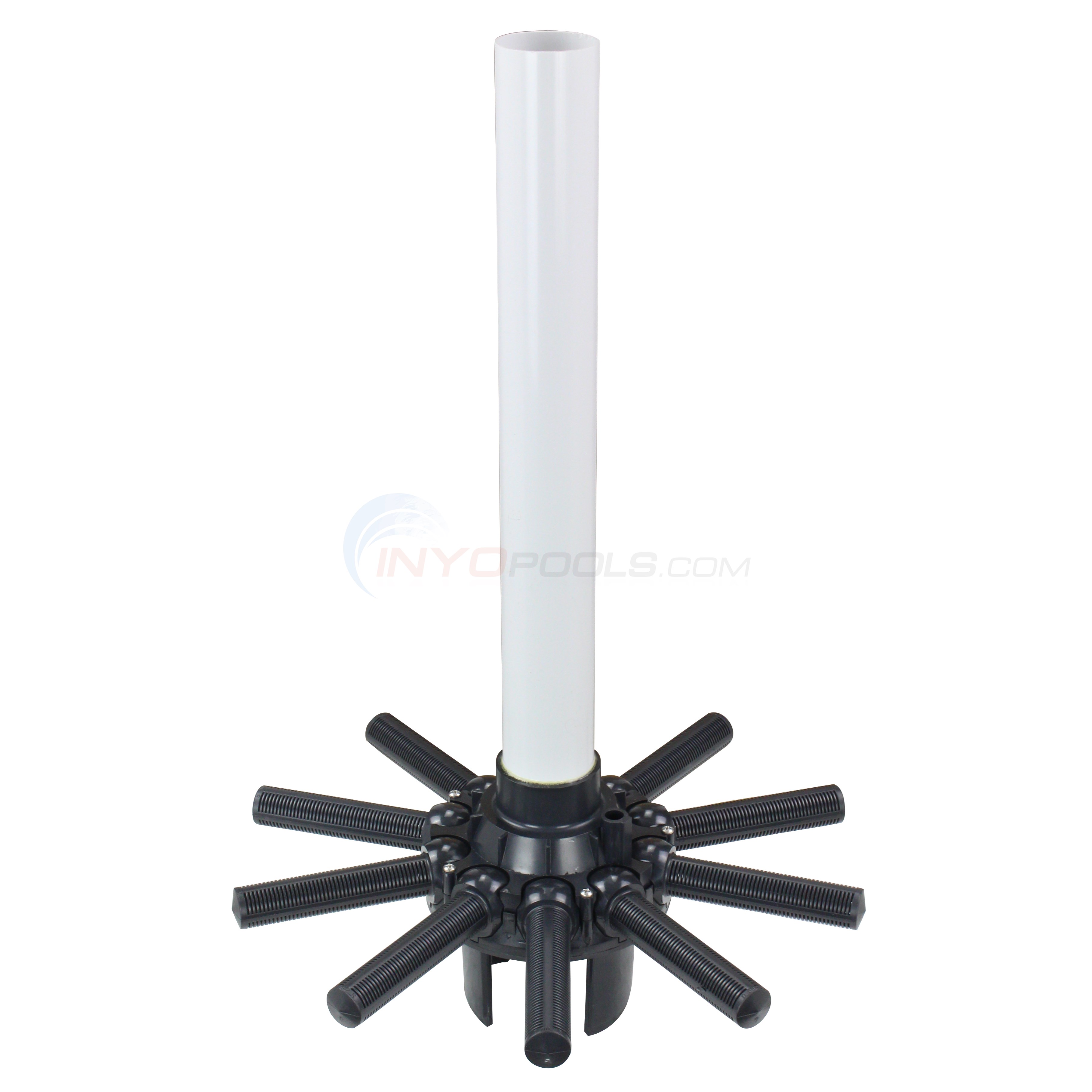

LATERAL ASSEMBLY With CENTER PIPE

Part # 4802-13 Mfg # GMX152DA

LATERAL ASSEMBLY With CENTER PIPE

$156.71 IN STOCK

Qty:

LATERAL OLD THREADED STYLE

Part # 4800-15 Mfg # SX200Q

LATERAL OLD THREADED STYLE

$7.45 IN STOCK

Qty:

LATERAL NEW PIVOT STYLE

Part # 4800-15A Mfg # SX240D

LATERAL NEW PIVOT STYLE

$10.65 IN STOCK

Qty:

*

OBSOLETE LATERAL PIVOT

Mfg # SX202P

OBSOLETE LATERAL PIVOT

NOT AVAILABLE

* NOT SHOWN
