Hayward MaxFlo VS 500 Omni Pump - HL2350020VSP Parts

Hayward MaxFlo VS 500 Omni Pump - HL2350020VSP

Hayward MaxFlo VS 500 Omni Pump - HL2350020VSP Diagram

Click to zoom in

Diagram #	Part Title
1a	Strainer Cover Kit
2	Strainer Cover O-ring
3	Strainer Basket
4	Pump Strainer Housing with Drain Plugs
5	Drain Plug w/ O-ring
6	Hardware Pack (4 Housing Bolts, Seal Plate, Spacers & Square Nuts)
7	Diffuser Screw (3 Pack)
8	Diffuser O-ring
9	Diffuser
10	Impeller
11	Housing O-ring
12	Shaft Seal Assembly OEM - Viton
13	Seal Plate
14	Motor Bolt Kit (4 Pack)
15	Motor Support w/ Base Mount Screws
16	Motor Support Base Screws
17	Union Connector Kit
18	Motor Drive Display Cover
19	Sun Cover
20	LCD Display
21	Case
22	RS485 Relay
23	JBox
24	OmniHub PCB
25	Riser Base for Sta-Rite / Dyna-Pro
*	Digital Control Interface Assembly
*	Power End Assembly

View Parts List

Diagram #	Part Title
1a	Strainer Cover Kit
2	Strainer Cover O-ring
3	Strainer Basket
4	Pump Strainer Housing with Drain Plugs
5	Drain Plug w/ O-ring
6	Hardware Pack (4 Housing Bolts, Seal Plate, Spacers & Square Nuts)
7	Diffuser Screw (3 Pack)
8	Diffuser O-ring
9	Diffuser
10	Impeller
11	Housing O-ring
12	Shaft Seal Assembly OEM - Viton
13	Seal Plate
14	Motor Bolt Kit (4 Pack)
15	Motor Support w/ Base Mount Screws
16	Motor Support Base Screws
17	Union Connector Kit
18	Motor Drive Display Cover
19	Sun Cover
20	LCD Display
21	Case
22	RS485 Relay
23	JBox
24	OmniHub PCB
25	Riser Base for Sta-Rite / Dyna-Pro
*	Digital Control Interface Assembly
*	Power End Assembly

Available Parts:

Strainer Cover Kit

Part # SPX2300DLS

Strainer Cover Kit

$89.78 IN STOCK

Qty:

Strainer Cover Kit - Biguanide

Part # SPX2300DLSB

Strainer Cover Kit - Biguanide

$142.70

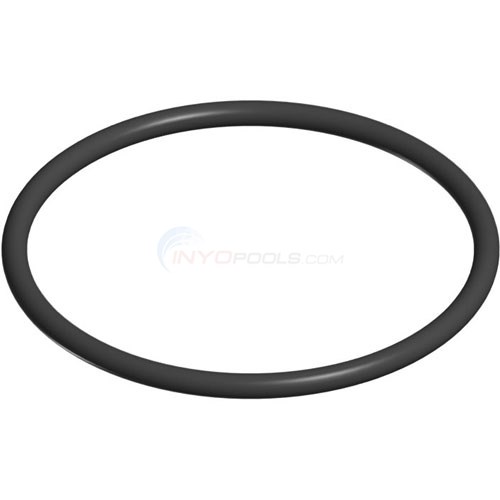

Strainer Cover O-ring

Part # SPX2300Z4

Strainer Cover O-ring

$20.09 IN STOCK

Qty:

Strainer Basket

Part # SPX2300M

Strainer Basket

$23.10 IN STOCK

Qty:

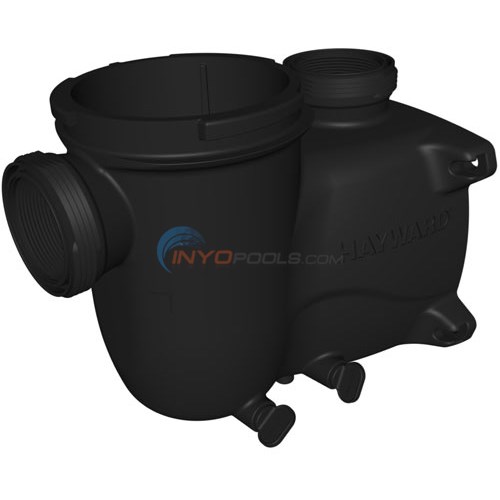

Pump Strainer Housing with Drain Plugs

Part # SPX2300AA

Pump Strainer Housing with Drain Plugs

$386.90 IN STOCK

Qty:

Drain Plug w/ O-ring

Part # 5112-008 Mfg # SPX4000FG

Drain Plug w/ O-ring

$10.04 IN STOCK

Qty:

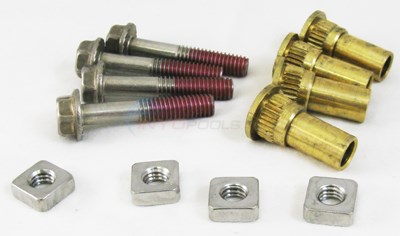

Hardware Pack (4 Housing Bolts, Seal Plate, Spacers & Square Nuts)

Part # 5110-80 Mfg # SPX2700ZPAK

Hardware Pack (4 Housing Bolts, Seal Plate, Spacers & Square Nuts)

$65.60

Diffuser Screw (3 Pack)

Part # SPX2300Z3PAK3 Mfg # SPX2300Z3PAK3

Diffuser Screw (3 Pack)

$19.08 IN STOCK

Qty:

Diffuser O-ring

Part # 4811-46 Mfg # SX220Z2

Diffuser O-ring

$16.07 IN STOCK

Qty:

Diffuser

Part # SPX2300B

Diffuser

$62.20 IN STOCK

Qty:

Impeller

Part # SPX2300CVS Mfg # SPX2300CVS

Impeller

$71.71 IN STOCK

Qty:

Housing O-ring

Part # 4822-07 Mfg # GMX600F

Housing O-ring

$6.02 IN STOCK

Qty:

Shaft Seal Assembly OEM - Viton

Part # SPX2700SAV Mfg # SPX2700SAV

Shaft Seal Assembly OEM - Viton

$43.04 IN STOCK

Qty:

Seal Plate

Part # SPX2300E

Seal Plate

$81.65 IN STOCK

Qty:

Motor Bolt Kit (4 Pack)

Part # SPX3200Z5PAK4 Mfg # SPX3200Z5PAK4

Motor Bolt Kit (4 Pack)

$25.11 IN STOCK

Qty:

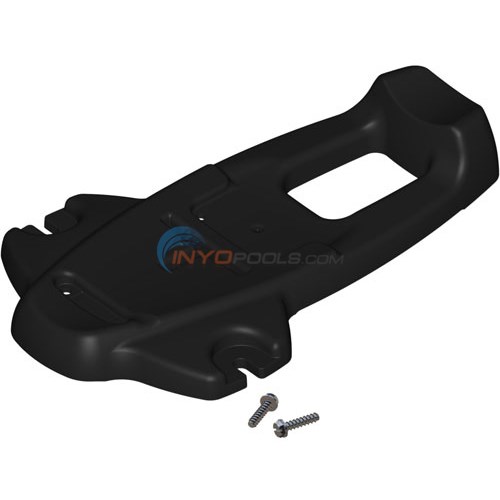

Motor Support w/ Base Mount Screws

Part # SPX2300G

Motor Support w/ Base Mount Screws

$93.45

Motor Support Base Screws

Part # 5112-015 Mfg # SPX1600Z52

Motor Support Base Screws

$20.99 IN STOCK

Qty:

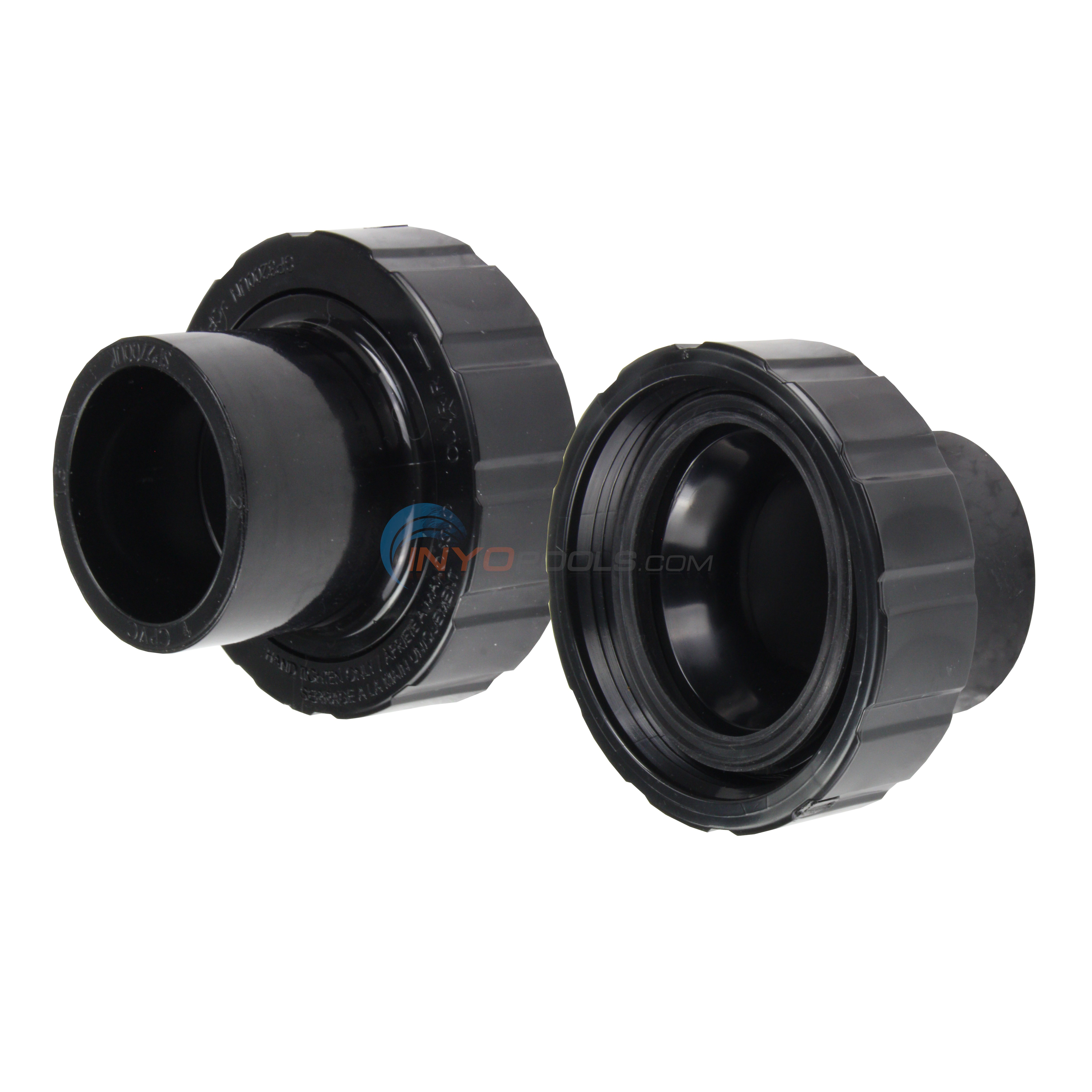

Union Connector Kit

Part # SPX2700UNKIT

Union Connector Kit

$76.91 IN STOCK

Qty:

Motor Drive Display Cover

Part # SPX3400DR4

Motor Drive Display Cover

$64.31 IN STOCK

Qty:

Sun Cover

Part # HLXDCOVER Mfg # HLXDCOVER

Sun Cover

$55.26

LCD Display

Part # HLXDLCD Mfg # HLXDLCD

LCD Display

$210.69 IN STOCK

Qty:

Case

Part # HLXDSPCACE Mfg # HLXDSPCASE

Case

$70.34

RS485 Relay

Part # HLX485RELAY Mfg # HLX485RELAY

RS485 Relay

$303.50

JBox

Part # HLXJBOX Mfg # HLXJBOX

JBox

$58.28

OmniHub PCB

Part # HLXHIOPCB Mfg # HLXHIOPCB

OmniHub PCB

$261.61 IN STOCK

Qty:

Riser Base for Sta-Rite / Dyna-Pro

Part # SPX2300GR

Riser Base for Sta-Rite / Dyna-Pro

$93.45

Digital Control Interface Assembly

Part # SPX3200LCD Mfg # SPX3200LCD

Digital Control Interface Assembly

$397.97 IN STOCK

Qty:

Wall Mounting Kit

Part # SPX3400DRKIT

Wall Mounting Kit

$153.75 IN STOCK

Qty:

Omni RS485 Smart Relay

Part # HLH485RELAY

Omni RS485 Smart Relay

$401.99 IN STOCK

Qty:

RS485 100' Extension

Part # HLX485100 Mfg # HLX485100

RS485 100' Extension

$143.70

RS485 200' Extension

Part # HLX485200 Mfg # HLX485200

RS485 200' Extension

$341.69

OmniHub Hardware (5 Pack)

Part # HLXHW5PK Mfg # HLXHW5PK

OmniHub Hardware (5 Pack)

$66.32

Omni 6' Whip

Part # HLXWHIP6 Mfg # HLXWHIP6

Omni 6' Whip

$79.38

Relay Label

Part # HLXRLYLABL Mfg # HLXRLYLABL

Relay Label

$65.31

Power End Assembly

Part # SPX2303Z1VSPE

Power End Assembly

$1089.41

Century (A.O. Smith) V-Green EVO 1.65 HP Up Rate VS Motor, Square Flange 48Y Frame, Variable Speed

Part # EVQ165 Mfg # EVQ165

Century (A.O. Smith) V-Green EVO 1.65 HP Up Rate VS Motor, Square Flange 48Y Frame, Variable Speed

$600.99 IN STOCK

Qty:
