J4000 12' Round 52" Wall (Resin Top Rail, Resin Upright) Parts

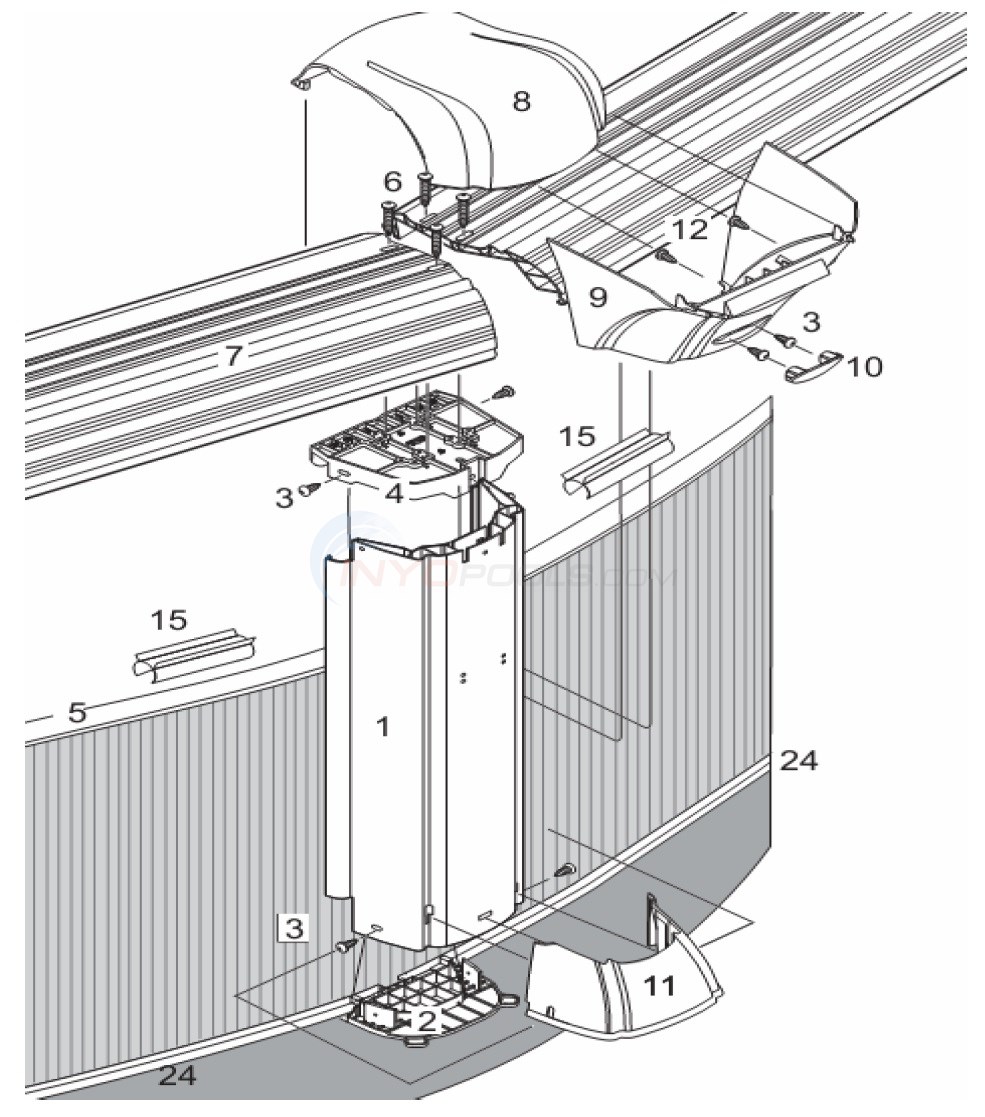

J4000 12' Round 52" Wall (Resin Top Rail, Resin Upright) Diagram

Click to zoom in

Diagram #	Part Title
1	Upright 51-1/2" J4000 (single)
2	Bottom plate J4000 (single)
3	Hardware
4	Top Plate Resin (Single)
5	12' Slotted Tube (Single) For Atlantic Pools
6	Hardware pack fo resin lop ledge
7	Top Ledge curve 45-5/8" J4000 (single)
8	Ledge cover - upper J4000 (single)
9	Ledge Cover - Lower J4000 (Single)
10	Plugs for ledge cover (pack of 6)
11	Foot cover(incl washers key #6) J4000 (Single)
12	Hardware for ledge cover (J4000)
15	Resin rail support (6-pack) J4000
24	Bottom rail 42-5/8" J4000 (Single)
*	6" slotted tube (Single)
