Jacuzzi Sandstorm Sand Filter Parts

MODELS TM-26 (26”), TM-31 (31”) & TM-36 (36”)

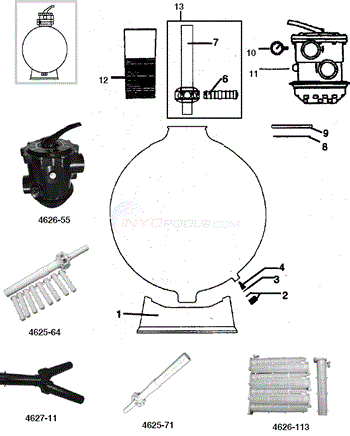

Jacuzzi Sandstorm Sand Filter Diagram

Click to zoom in

Diagram #	Part Title
1	OBSOLETE FILTER BASE, TM-31
2	CAP, DRAIN WITH GASKET (85826300R000)
3	RETAINER, DRAIN NOZZLE (14425409R000)
4	NOZZLE, DRAIN (85853300R000)
6	L250 LATERAL KIT - SNAP FIT (set of 8 EA) (85531304K)
7	STANDPIPE / MANIFOLD TM26 AFTER 6/03 (42-3888-01)
8	O-RING, SANDSTORM (47617204R000)
9	NLA/ REPLACE WITH 4626-130
10	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
11	TOPMOUNT VALVE KIT, 2" (39000609)
12	DIVERTER BASKET (16107708R000)
13	UNDERDRAIN ASS'Y TM26 FITS ALL DATE CODES

View Parts List

Diagram #	Part Title
1	OBSOLETE FILTER BASE, TM-31
2	CAP, DRAIN WITH GASKET (85826300R000)
3	RETAINER, DRAIN NOZZLE (14425409R000)
4	NOZZLE, DRAIN (85853300R000)
6	L250 LATERAL KIT - SNAP FIT (set of 8 EA) (85531304K)
7	STANDPIPE / MANIFOLD TM26 AFTER 6/03 (42-3888-01)
8	O-RING, SANDSTORM (47617204R000)
9	NLA/ REPLACE WITH 4626-130
10	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
11	TOPMOUNT VALVE KIT, 2" (39000609)
12	DIVERTER BASKET (16107708R000)
13	UNDERDRAIN ASS'Y TM26 FITS ALL DATE CODES

Available Parts:

1

OBSOLETE FILTER BASE, TM-31

Mfg # 12-1142-03-R000

OBSOLETE FILTER BASE, TM-31

NOT AVAILABLE

1

OBSOLETE FILTER BASE, TM-26 & TM-36

Mfg # 12-1146-09-R000

OBSOLETE FILTER BASE, TM-26 & TM-36

NOT AVAILABLE

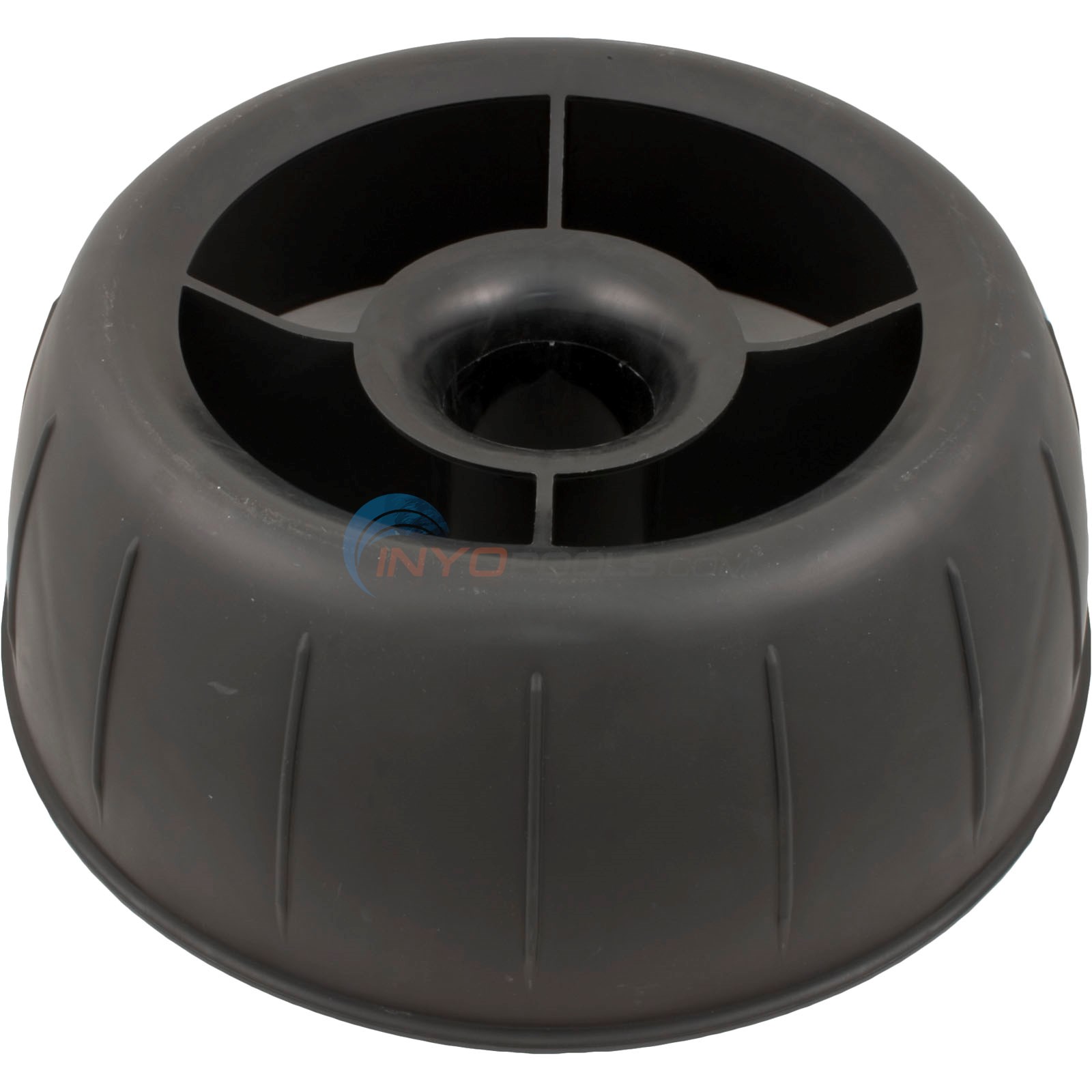

FILTER BASE TM26, 31 & 36 AFTER 3/03 (12-1161-09-R000)

Part # 4625-60 Mfg # 12116109R

FILTER BASE TM26, 31 & 36 AFTER 3/03 (12-1161-09-R000)

$125.99 IN STOCK

Qty:

CAP, DRAIN WITH GASKET (85826300R000)

Part # 4626-16 Mfg # 85826300R

CAP, DRAIN WITH GASKET (85826300R000)

$10.39 IN STOCK

Qty:

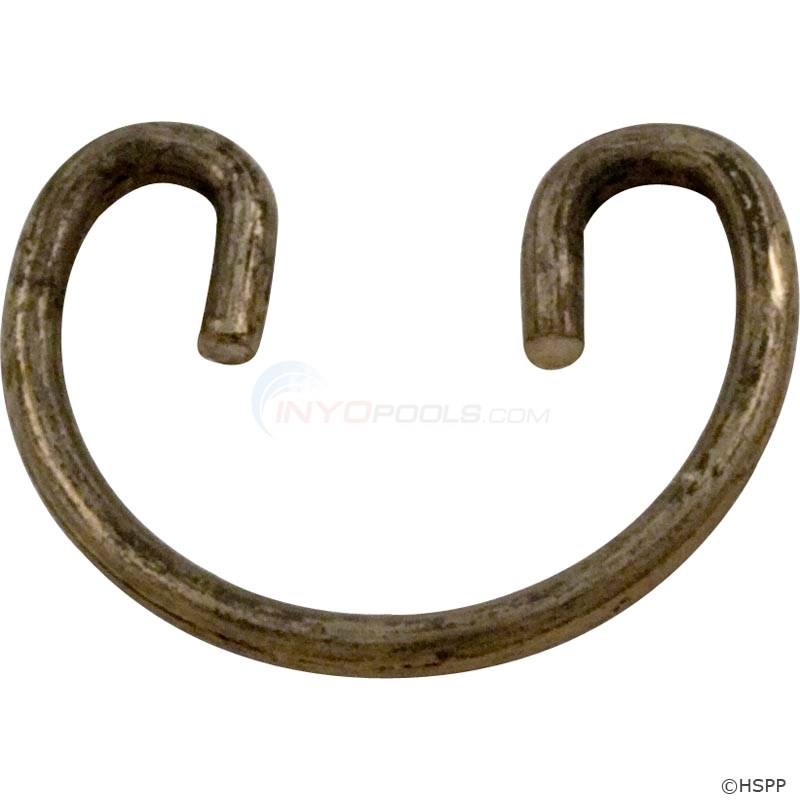

RETAINER, DRAIN NOZZLE (14425409R000)

Part # 4626-14 Mfg # 14255202

RETAINER, DRAIN NOZZLE (14425409R000)

$20.45 IN STOCK

Qty:

NOZZLE, DRAIN (85853300R000)

Part # 4626-13 Mfg # 85853300R

NOZZLE, DRAIN (85853300R000)

$12.23 IN STOCK

Qty:

L250 LATERAL KIT - SNAP FIT (set of 8 EA) (85531304K)

Part # 4626-113 Mfg # 85531304R8

L250 LATERAL KIT - SNAP FIT (set of 8 EA) (85531304K)

$80.69 IN STOCK

Qty:

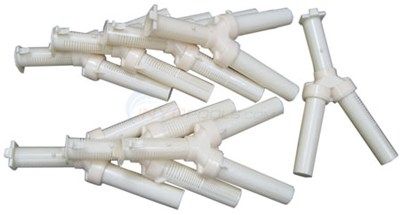

LATERAL KIT TM31 (8) AFTER 6/03 (42-3892-05)

Part # 4625-68 Mfg # 42389205R8

LATERAL KIT TM31 (8) AFTER 6/03 (42-3892-05)

$276.99

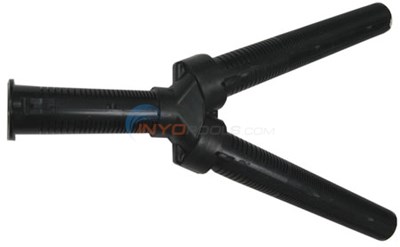

LATERAL KIT TM36 (8) AFTER 6/03 (42-3893-04-R00)

Part # 4625-69 Mfg # 42389304R8

LATERAL KIT TM36 (8) AFTER 6/03 (42-3893-04-R00)

$128.99

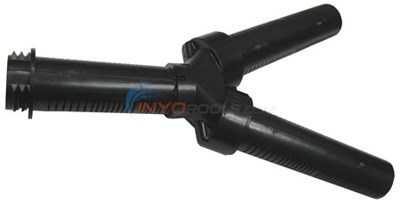

LATERALS With "Y" ADAPTER (8 REQ) ST 27 (42297804R8)

Part # 4627-11 Mfg # 42297804R

LATERALS With "Y" ADAPTER (8 REQ) ST 27 (42297804R8)

$89.99

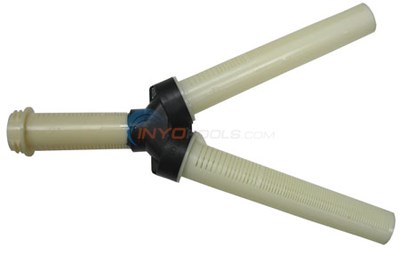

LATERAL With "Y" ADAPTER ST 33 (SINGLE) (42297903R000)

Part # 4627-11A Mfg # 42297903R

LATERAL With "Y" ADAPTER ST 33 (SINGLE) (42297903R000)

$249.99

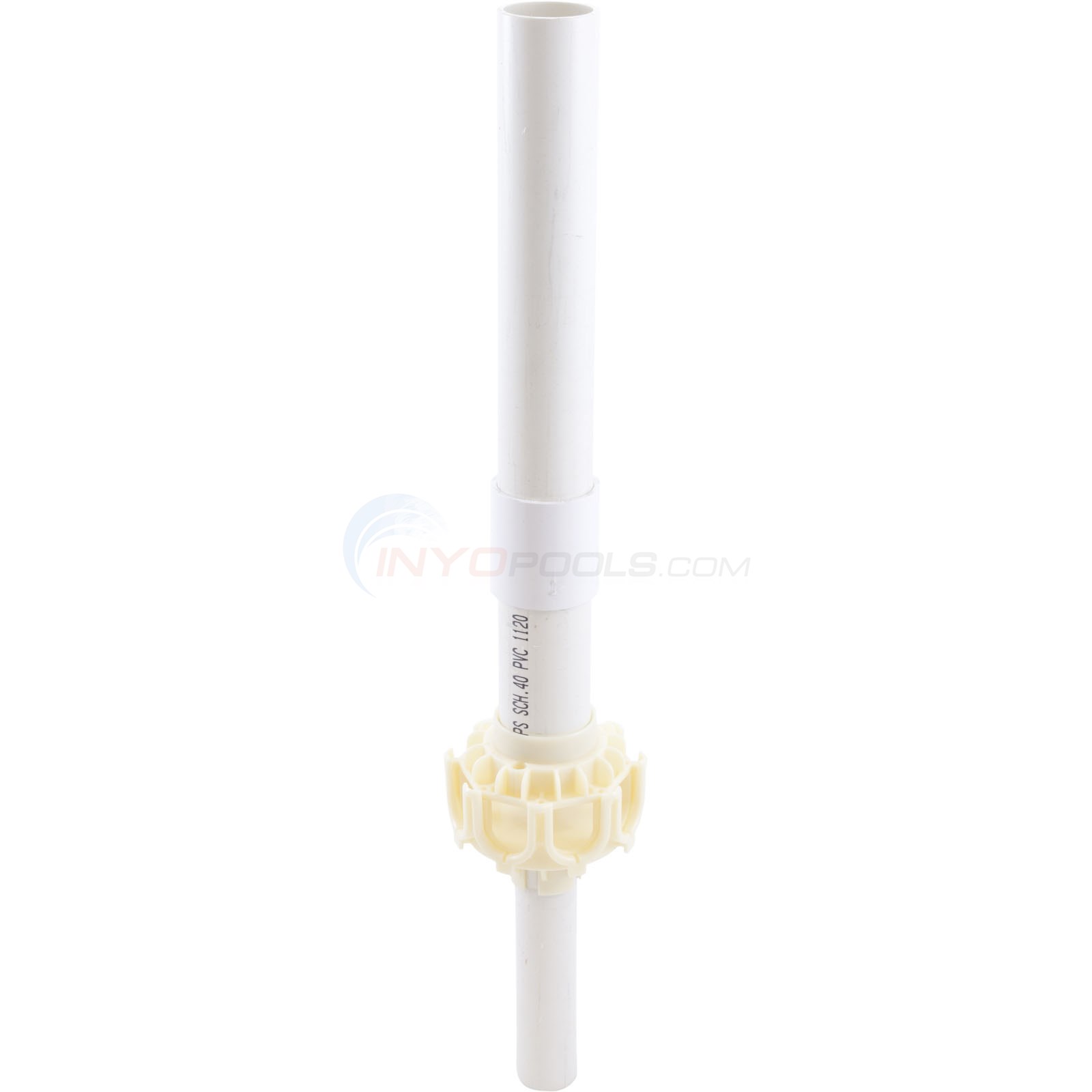

STANDPIPE / MANIFOLD TM26 AFTER 6/03 (42-3888-01)

Part # 4625-70 Mfg # 42388801R

STANDPIPE / MANIFOLD TM26 AFTER 6/03 (42-3888-01)

$75.99 IN STOCK

Qty:

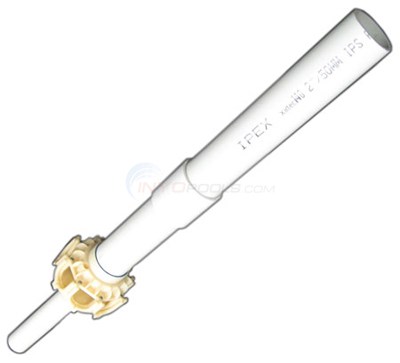

STANDPIPE / MANIFOLD TM31 AFTER 6/03 (42-3889-08)

Part # 4625-71 Mfg # 42388908R

STANDPIPE / MANIFOLD TM31 AFTER 6/03 (42-3889-08)

$78.99 IN STOCK

Qty:

STANDPIPE / MANIFOLD TM36 AFTER 6/03 (42-3890-07)

Part # 4625-72 Mfg # 42389007R

STANDPIPE / MANIFOLD TM36 AFTER 6/03 (42-3890-07)

$97.99

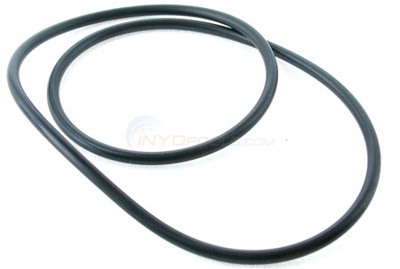

O-RING, SANDSTORM (47617204R000)

Part # 4626-53 Mfg # 47617204R

O-RING, SANDSTORM (47617204R000)

$13.15 IN STOCK

Qty:

O-RING, ID 6-3/4", OD 7-1/8"

Part # 4822-04 Mfg # 364

O-RING, ID 6-3/4", OD 7-1/8"

$10.78 IN STOCK

Qty:

NLA/ REPLACE WITH 4626-130

Part # 4626-54 Mfg # 85813902R

NLA/ REPLACE WITH 4626-130

$88.99 IN STOCK

Qty:

2 PIECE CLAMP ASSEMBLY

Part # 4626-130 Mfg # 85813903

2 PIECE CLAMP ASSEMBLY

$49.99 IN STOCK

Qty:

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$9.99 IN STOCK

Qty:

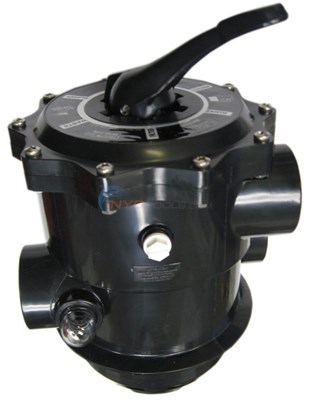

TOPMOUNT VALVE KIT, 2" (39000609)

Part # 4626-55 Mfg # 39000609R

TOPMOUNT VALVE KIT, 2" (39000609)

$353.99

Top Mount Valve for Hayward & Jacuzzi 2" Sand Filters - TM-22-H8

Part # 4710-40 Mfg # TM-22-H8

Top Mount Valve for Hayward & Jacuzzi 2" Sand Filters - TM-22-H8

$202.66 IN STOCK

Qty:

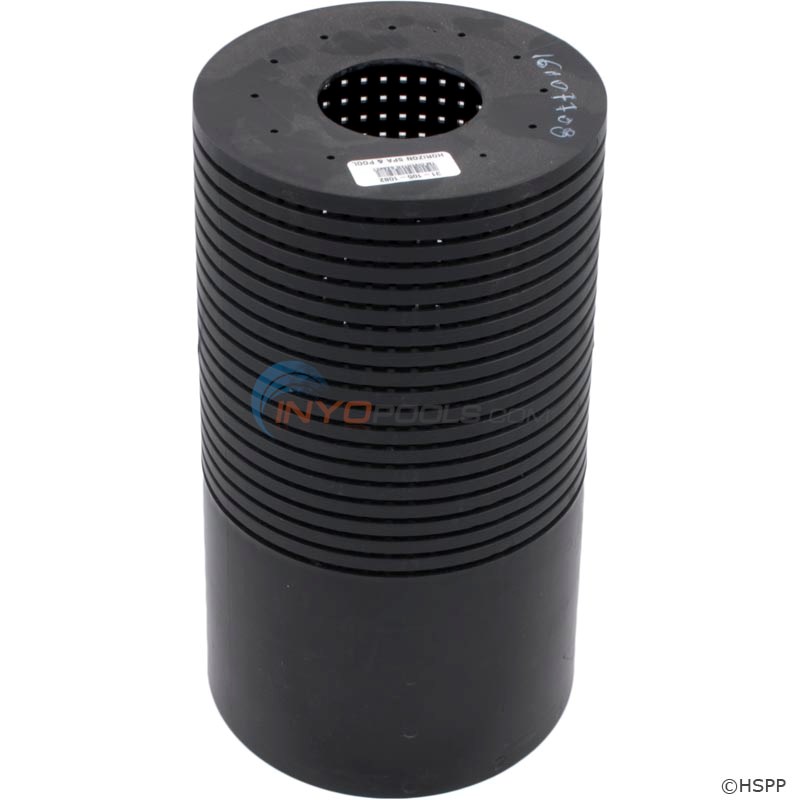

DIVERTER BASKET (16107708R000)

Part # 4625-44 Mfg # 16107708R

DIVERTER BASKET (16107708R000)

$60.99 IN STOCK

Qty:

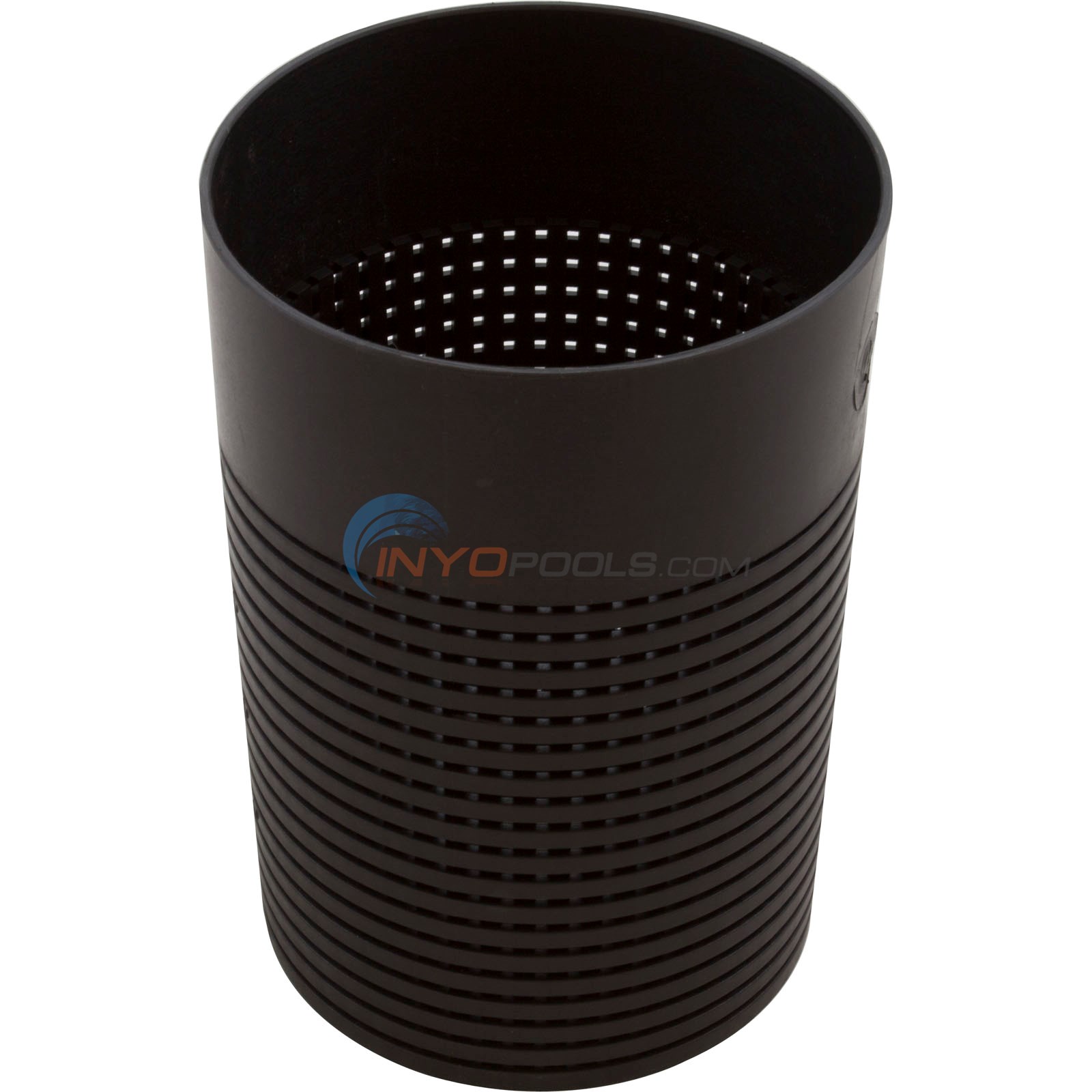

DIVERTER BASKET, TM36 (16-1077-07-R000)

Part # 4625-62 Mfg # 16107707R

DIVERTER BASKET, TM36 (16-1077-07-R000)

$67.99 IN STOCK

Qty:

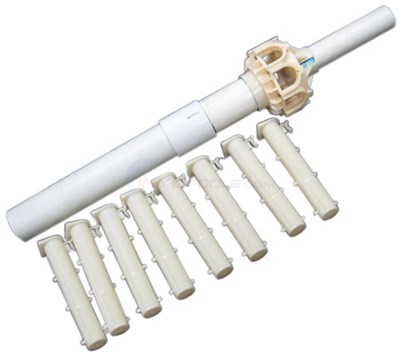

UNDERDRAIN ASS'Y TM26 FITS ALL DATE CODES

Part # 4625-64 Mfg # 42389400K

UNDERDRAIN ASS'Y TM26 FITS ALL DATE CODES

$189.99 IN STOCK

Qty:

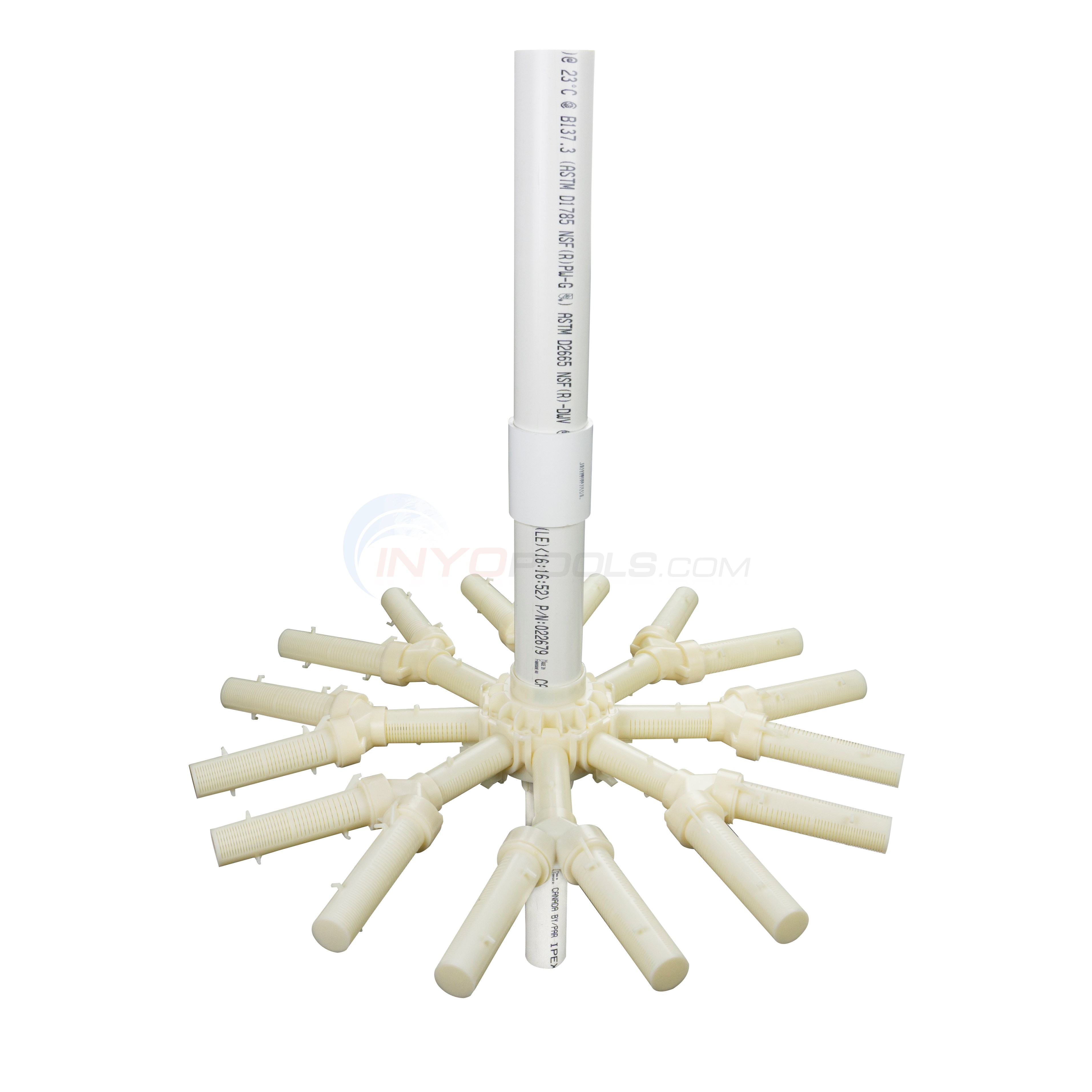

UNDERDRAIN ASS'Y TM31 FITS ALL DATE CODES

Part # 4625-65 Mfg # 42389410K

UNDERDRAIN ASS'Y TM31 FITS ALL DATE CODES

$192.99 IN STOCK

Qty:

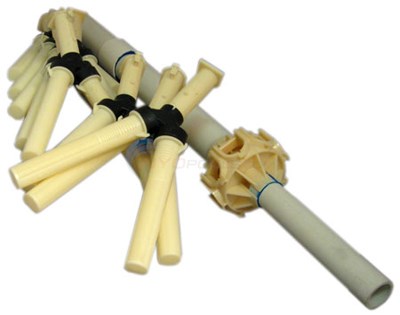

UNDERDRAIN ASS'Y TM36 FITS ALL DATE CODES

Part # 4625-66 Mfg # 42389420K

UNDERDRAIN ASS'Y TM36 FITS ALL DATE CODES

$249.99 IN STOCK

Qty:
