Jandy ePump Variable Speed Pump (2008-Present) Parts

Jandy ePump Variable Speed Pump JEP1.5, JEP2.0, VSSHP220AUT, VSSHP270AUT

Jandy ePump Variable Speed Pump (2008-Present) Diagram

Click to zoom in

Diagram #	Part Title
1	Motor w/ Drive, ePump Series (Gen II)
1A	Variable Frequency Drive Kit (Gen II)
2	Backplate Kit
3	Impeller w/Screw, Backplate O-Ring
4	Diffuser w/ O-ring and Hardware
4A	Diffuser O-ring
5	Shaft Seal
6	Pump Body
7	Motor Mounting Foot Assembly
8	Lock Ring Assembly
9	Pump Basket
10	Drain Plug (Set of 2)
11	Pump Union Kit, 2" x 2-1/2"
12	Lid Seal & Lid O-ring
13	Blue Pressure O-ring
14	Backplate O-Ring
15	Tailpiece O-ring (Set of 2)
16	Diffuser/Impeller Hardware
17	Backplate Hardware (Set of 8)
18	Motor Hardware (Set of 4)
19	Motor Mounting Screws (Set of 2)
21	Fan Cover w/ Hardware, JEP Series (Gen II)
22	Speed Drive Connector 4 Pin (Gen II)
23	Cord Grip
24	Self Sealing Screw w/ O-ring
25	RS485 Cable
26	Electric Box Screw
27	Cover w/ Hardware (GEN I)
28	Fan Cover Kit (GEN I)
29	Hardware Kit
30	4 Pin Speed Drive Connector
*	User Interface, Remote Mounting Kit

View Parts List

Diagram #	Part Title
1	Motor w/ Drive, ePump Series (Gen II)
1A	Variable Frequency Drive Kit (Gen II)
2	Backplate Kit
3	Impeller w/Screw, Backplate O-Ring
4	Diffuser w/ O-ring and Hardware
4A	Diffuser O-ring
5	Shaft Seal
6	Pump Body
7	Motor Mounting Foot Assembly
8	Lock Ring Assembly
9	Pump Basket
10	Drain Plug (Set of 2)
11	Pump Union Kit, 2" x 2-1/2"
12	Lid Seal & Lid O-ring
13	Blue Pressure O-ring
14	Backplate O-Ring
15	Tailpiece O-ring (Set of 2)
16	Diffuser/Impeller Hardware
17	Backplate Hardware (Set of 8)
18	Motor Hardware (Set of 4)
19	Motor Mounting Screws (Set of 2)
21	Fan Cover w/ Hardware, JEP Series (Gen II)
22	Speed Drive Connector 4 Pin (Gen II)
23	Cord Grip
24	Self Sealing Screw w/ O-ring
25	RS485 Cable
26	Electric Box Screw
27	Cover w/ Hardware (GEN I)
28	Fan Cover Kit (GEN I)
29	Hardware Kit
30	4 Pin Speed Drive Connector
*	User Interface, Remote Mounting Kit

Available Parts:

Motor w/ Drive, ePump Series (Gen II)

Part # R0562201 Mfg # R0562201

Motor w/ Drive, ePump Series (Gen II)

$1891.15

HP 2.7

HP 2.7

Motor w/ Drive, ePump Series (Gen II)

Part # R0562202 Mfg # R0562202

Motor w/ Drive, ePump Series (Gen II)

$1882.31

HP 2.2

HP 2.2

1

Motor w/ Drive, ePump Series (Gen I) - Replace With <a class="productlink" href="http://www.inyopools.com/Products/02601352080668.htm">R0562201</a>

Mfg # R0474403

Motor w/ Drive, ePump Series (Gen I) - Replace With R0562201

NOT AVAILABLE

HP 2.0

HP 2.0

1

Motor w/ Drive, ePump Series (Gen I) - Replace With <a class="productlink" href="http://www.inyopools.com/Products/026115581075628.htm">R0474402</a>

Mfg # R0474402

Motor w/ Drive, ePump Series (Gen I) - Replace With R0474402

NOT AVAILABLE

HP 1.5

HP 1.5

Variable Frequency Drive Kit (Gen II)

Part # R0688600 Mfg # R0688600

Variable Frequency Drive Kit (Gen II)

$1008.00

HP 2.7

HP 2.7

Backplate Kit

Part # 5020-140 Mfg # R0445200

Backplate Kit

$185.91 IN STOCK

Qty:

Impeller w/Screw, Backplate O-Ring

Part # R0807200 Mfg # R0807200

Impeller w/Screw, Backplate O-Ring

$64.31 IN STOCK

HP 2.7

HP 2.7

Qty:

Impeller w/Screw, Backplate O-Ring

Part # R0807201 Mfg # R0807201

Impeller w/Screw, Backplate O-Ring

$68.61 IN STOCK

HP 2.2

HP 2.2

Qty:

Diffuser w/ O-ring and Hardware

Part # 5020-106 Mfg # R0445400

Diffuser w/ O-ring and Hardware

$75.36 IN STOCK

Qty:

Diffuser O-ring

Part # R0622000 Mfg # R0622000

Diffuser O-ring

$9.03 IN STOCK

Qty:

Shaft Seal

Part # 5020-087 Mfg # R0479400

Shaft Seal

$29.18 IN STOCK

Qty:

Generic Pump Shaft Seal, Extra Heavy Duty for Saltwater Pools

Part # 5250-250 Mfg # PS-4280

Generic Pump Shaft Seal, Extra Heavy Duty for Saltwater Pools

$22.91 IN STOCK

Qty:

Pump Body

Part # 5020-130 Mfg # R0445601

Pump Body

$333.65 IN STOCK

Qty:

Motor Mounting Foot Assembly

Part # 5020-108 Mfg # R0445700

Motor Mounting Foot Assembly

$62.03

Lock Ring Assembly

Part # 5020-131 Mfg # R0445800

Lock Ring Assembly

$93.14 IN STOCK

Qty:

Pump Basket

Part # 5020-132 Mfg # R0445900

Pump Basket

$36.60 IN STOCK

Qty:

Drain Plug (Set of 2)

Part # 5020-111 Mfg # R0446000

Drain Plug (Set of 2)

$17.13 IN STOCK

Qty:

Pump Union Kit, 2" x 2-1/2"

Part # 5020-133 Mfg # R0446101

Pump Union Kit, 2" x 2-1/2"

$56.27 IN STOCK

Qty:

Lid Seal & Lid O-ring

Part # 5020-135 Mfg # R0446200

Lid Seal & Lid O-ring

$37.89 IN STOCK

Qty:

Blue Pressure O-ring

Part # 5020-120 Mfg # R0479000

Blue Pressure O-ring

$25.22 IN STOCK

Qty:

Backplate O-Ring

Part # 5020-136 Mfg # R0446300

Backplate O-Ring

$18.08 IN STOCK

Qty:

Tailpiece O-ring (Set of 2)

Part # 5020-137 Mfg # R0446400

Tailpiece O-ring (Set of 2)

$22.33 IN STOCK

Qty:

Diffuser/Impeller Hardware

Part # 5020-116 Mfg # R0446500

Diffuser/Impeller Hardware

$40.19 IN STOCK

Qty:

Backplate Hardware (Set of 8)

Part # 5020-117 Mfg # R0446600

Backplate Hardware (Set of 8)

$66.32

Motor Hardware (Set of 4)

Part # 5020-118 Mfg # R0446700

Motor Hardware (Set of 4)

$58.38 IN STOCK

Qty:

Motor Mounting Screws (Set of 2)

Part # 5020-119 Mfg # R0446800

Motor Mounting Screws (Set of 2)

$24.11

Fan Cover w/ Hardware, JEP Series (Gen II)

Part # R0562400 Mfg # R0562400

Fan Cover w/ Hardware, JEP Series (Gen II)

$63.30 IN STOCK

Qty:

22

Speed Drive Connector 4 Pin (Gen II)

Part # 6609+ Mfg # 6609+

Speed Drive Connector 4 Pin (Gen II)

NOT AVAILABLE

Cord Grip

Part # R0501100 Mfg # R0501100

Cord Grip

$35.16 IN STOCK

Qty:

Self Sealing Screw w/ O-ring

Part # R0515400 Mfg # R0515400

Self Sealing Screw w/ O-ring

$16.13 IN STOCK

Qty:

25

RS485 Cable

Part # R0535100 Mfg # R0535100

RS485 Cable

NOT AVAILABLE

Electric Box Screw

Part # R0562600 Mfg # R0562600

Electric Box Screw

$30.14 IN STOCK

Qty:

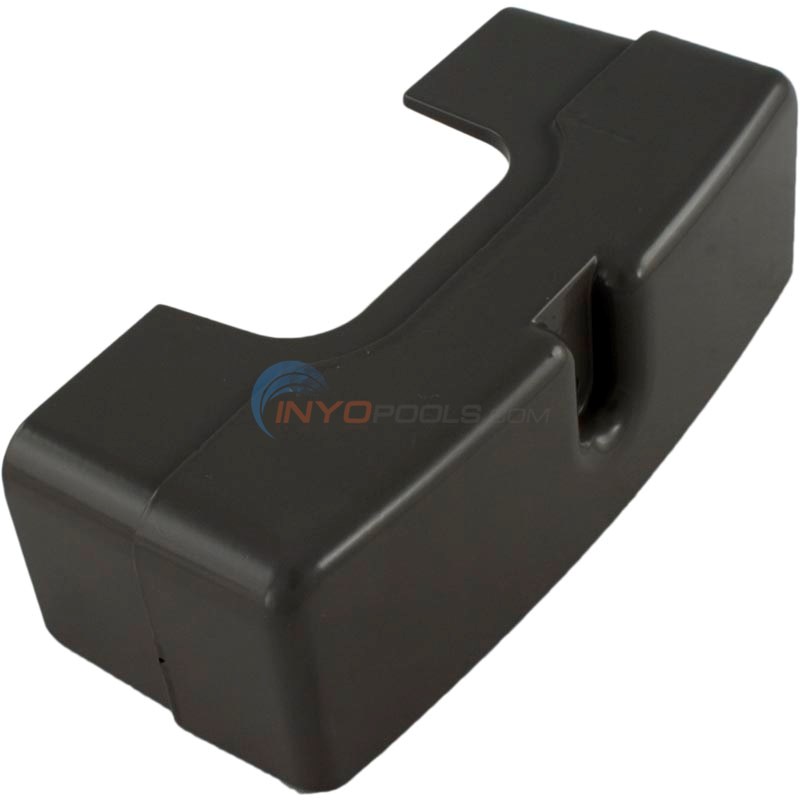

Cover w/ Hardware (GEN I)

Part # R0475000 Mfg # R0475000

Cover w/ Hardware (GEN I)

$171.84

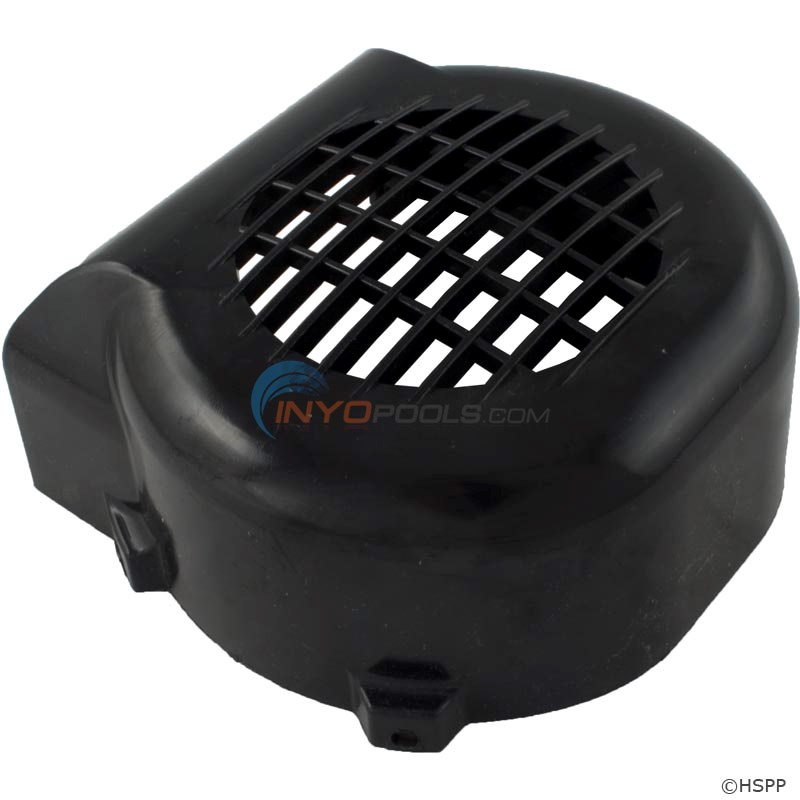

Fan Cover Kit (GEN I)

Part # 35-295-1137 Mfg # R0474800

Fan Cover Kit (GEN I)

$103.50

Hardware Kit

Part # R0475100 Mfg # R0475100

Hardware Kit

$27.12

4 Pin Speed Drive Connector

Part # R0660900 Mfg # R0660900

4 Pin Speed Drive Connector

$59.28

*

User Interface, Remote Mounting Kit

Part # R03009601 Mfg # R03009601

User Interface, Remote Mounting Kit

NOT AVAILABLE

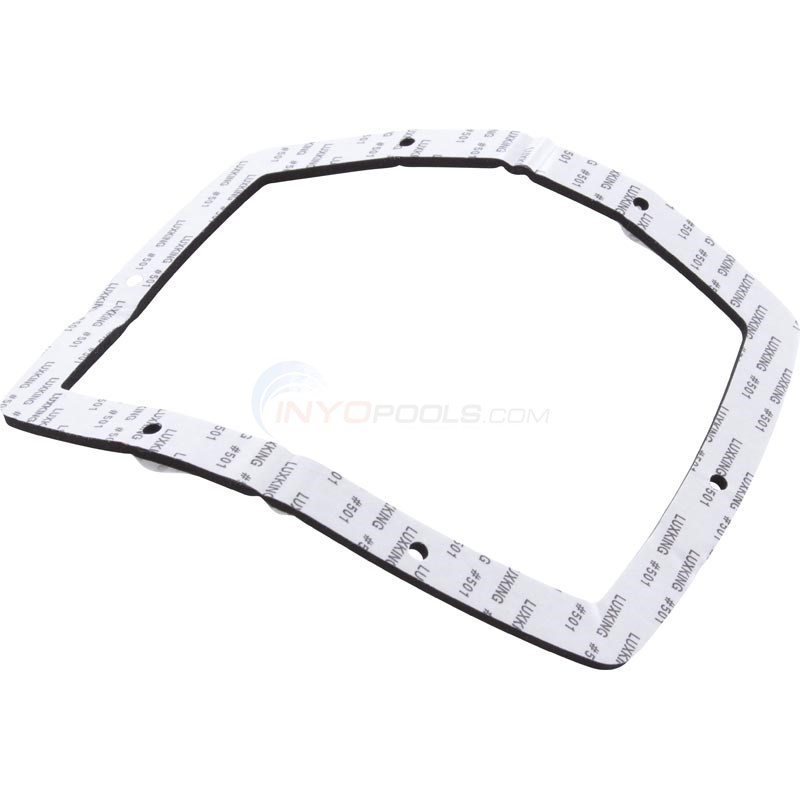

User Interface Gasket

Part # R0472300 Mfg # R0472300

User Interface Gasket

$27.12 IN STOCK

Qty:

*NOT SHOWN
