Pentair Amerlite Pool Light Parts

PENTAIR AMERLITE 7845XXXXX, 7885XXXXX, 7895XXXXX SERIES
PREVIOUSLY SOLD UNDER AMERICAN PRODUCTS

Pentair Amerlite Pool Light Diagram

Click to zoom in

Diagram #	Part Title
3	No Longer Available Ring Replace With 3525-15 & 3525-16
18	WASHER, GUM (AM982085)
1	LENS COVER, COLORED (SET OF 3)
2	Lens, Clear
2	Lens, Medium Blue
3	Face Ring Assembly S.S. - 79110600
4	SCREW, LOCKING With GUM WASHER
6	FACE RING, LARGE PLASTIC, WHITE
7	Standard Lens Gasket (79101600) Generic
9	300W Flood R-40 6.38" MOL (5.0" Dia.) 12-Volt
9	Pureline LED Pool Light Bulb Color Changing 12V 35W - PL5888
10	CLIP, BRASS RETAINER
11	SCREW, RETAINER CLIP
13	WASHER
14	WIRE, UNITENSION
15	RING, FACE ASSEMBLY S.S.
16*	CLAMP, UNITENSION WIRE ASSY.
17	NUT, BRASS
19	BOLT

View Parts List

Diagram #	Part Title
3	No Longer Available Ring Replace With 3525-15 & 3525-16
18	WASHER, GUM (AM982085)
1	LENS COVER, COLORED (SET OF 3)
2	Lens, Clear
2	Lens, Medium Blue
3	Face Ring Assembly S.S. - 79110600
4	SCREW, LOCKING With GUM WASHER
6	FACE RING, LARGE PLASTIC, WHITE
7	Standard Lens Gasket (79101600) Generic
9	300W Flood R-40 6.38" MOL (5.0" Dia.) 12-Volt
9	Pureline LED Pool Light Bulb Color Changing 12V 35W - PL5888
10	CLIP, BRASS RETAINER
11	SCREW, RETAINER CLIP
13	WASHER
14	WIRE, UNITENSION
15	RING, FACE ASSEMBLY S.S.
16*	CLAMP, UNITENSION WIRE ASSY.
17	NUT, BRASS
19	BOLT

Available Parts:

3

No Longer Available Ring Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352024828.htm">3525-15</a> & <a class="productlink" href="http://www.inyopools.com/Products/07501352014510.htm">3525-16</a>

Mfg # NOT AVAILABLE

No Longer Available Ring Replace With 3525-15 & 3525-16

NOT AVAILABLE

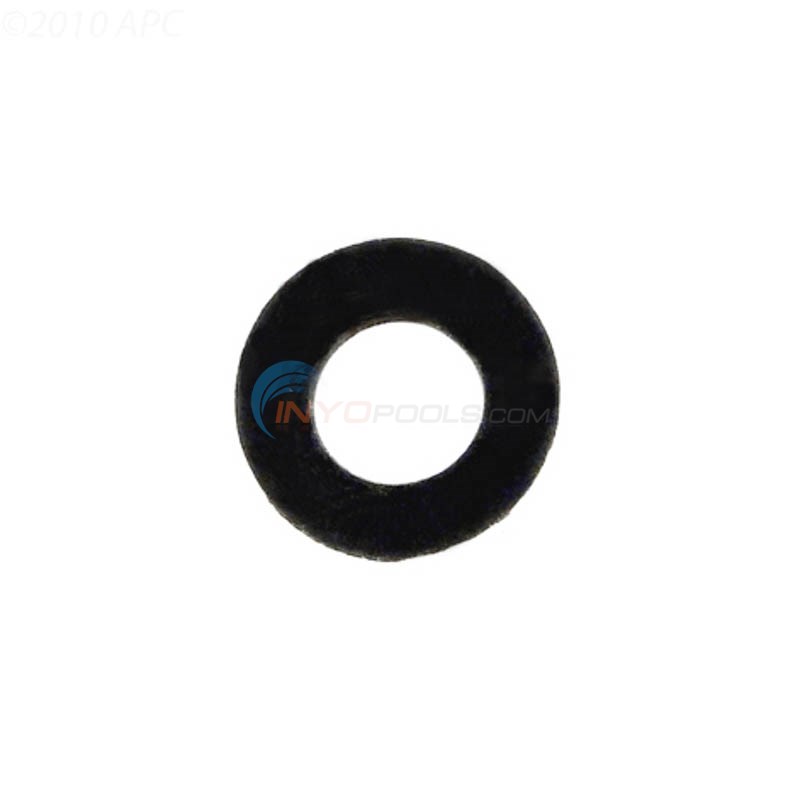

WASHER, GUM (AM982085)

Part # 3525-18 Mfg # 98208500

WASHER, GUM (AM982085)

$11.15 IN STOCK

Qty:

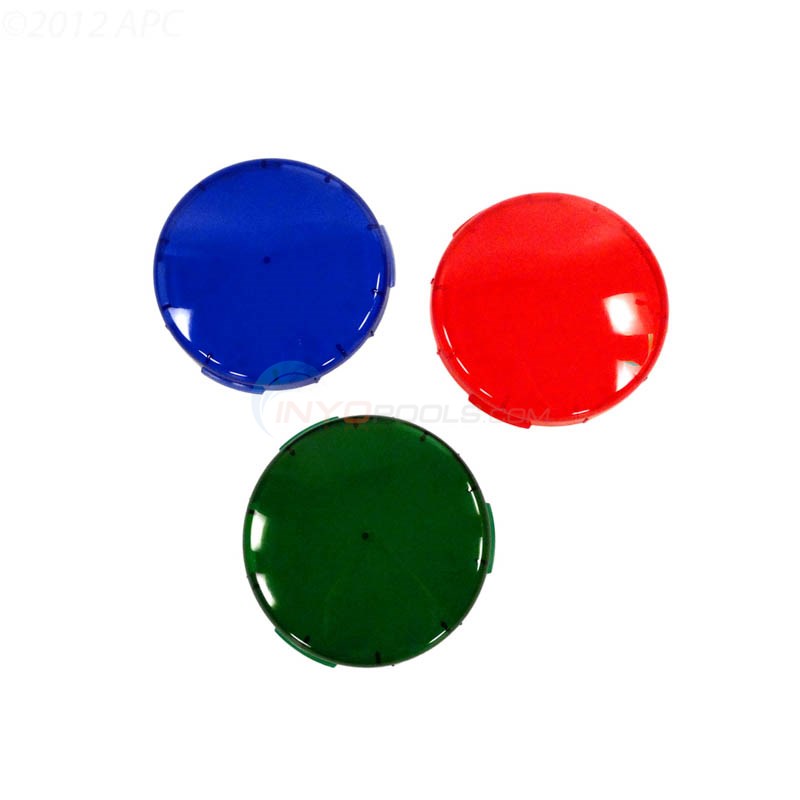

LENS COVER, COLORED (SET OF 3)

Part # 3591-0 Mfg # 78900100

LENS COVER, COLORED (SET OF 3)

$82.99 IN STOCK

Qty:

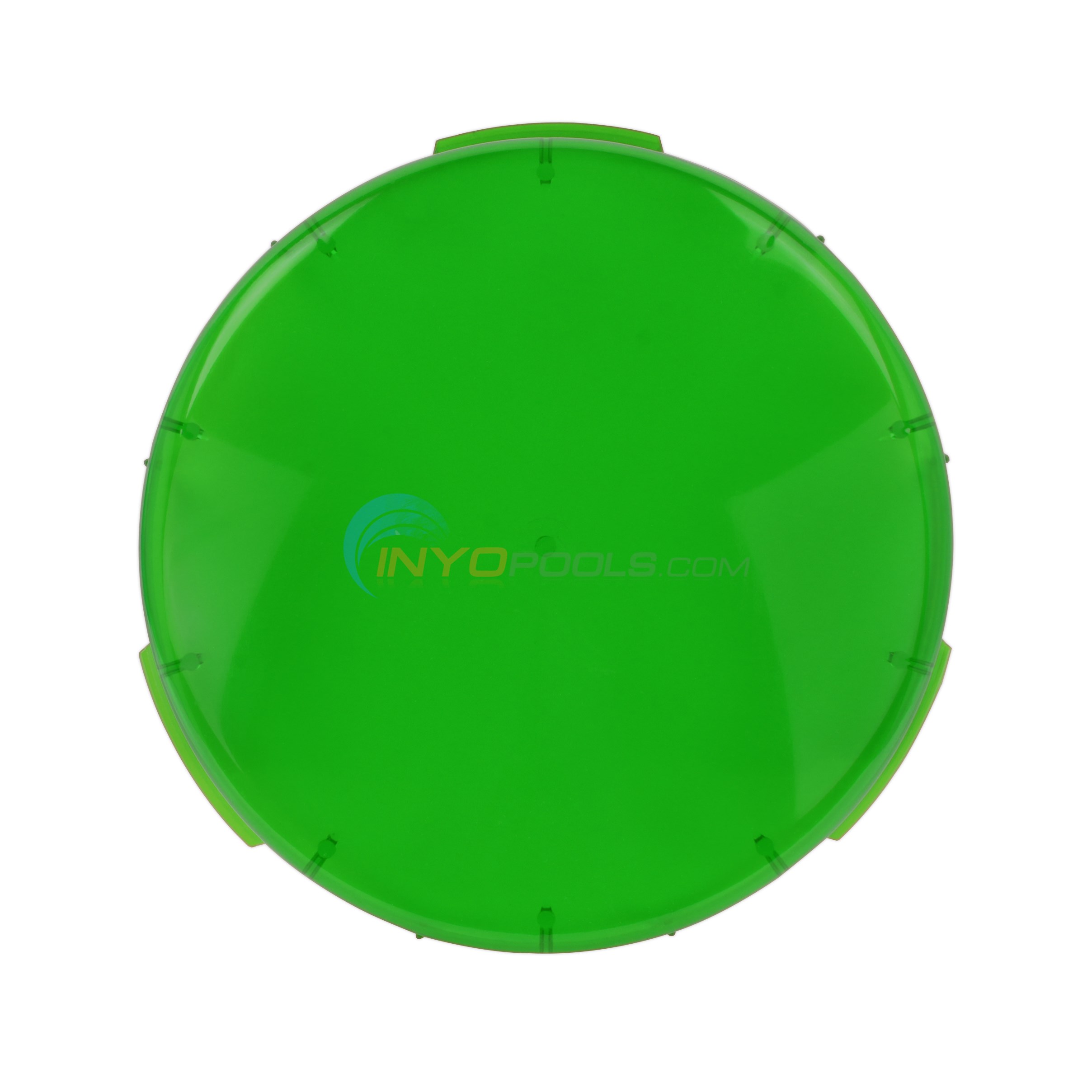

LENS COVER, KWIK-CHANGE (GREEN)

Part # 3591-01 Mfg # 78900700

LENS COVER, KWIK-CHANGE (GREEN)

$25.99 IN STOCK

Qty:

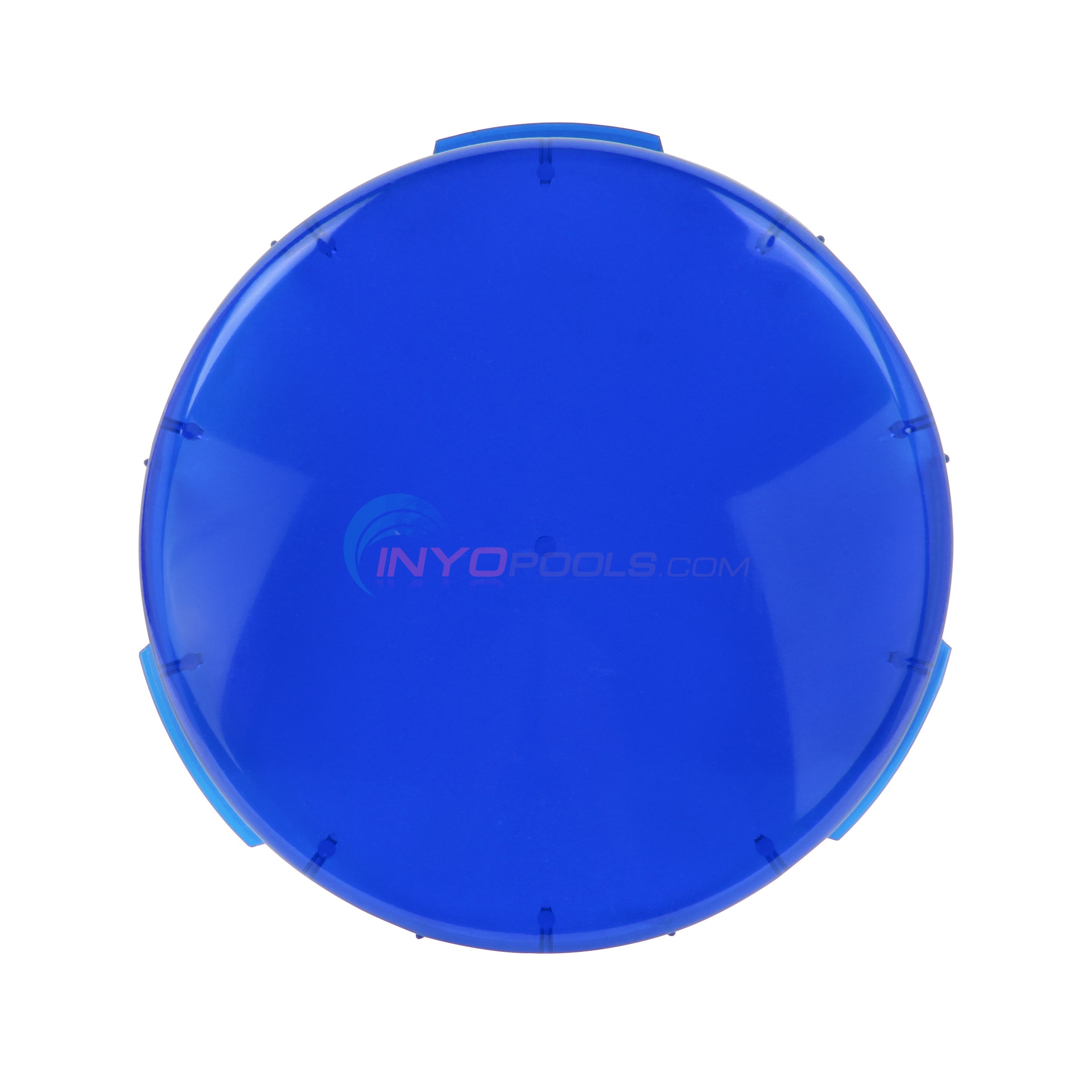

LENS COVER, KWIK-CHANGE (BLUE)

Part # 3591-02 Mfg # 78900800

LENS COVER, KWIK-CHANGE (BLUE)

$19.99 IN STOCK

Qty:

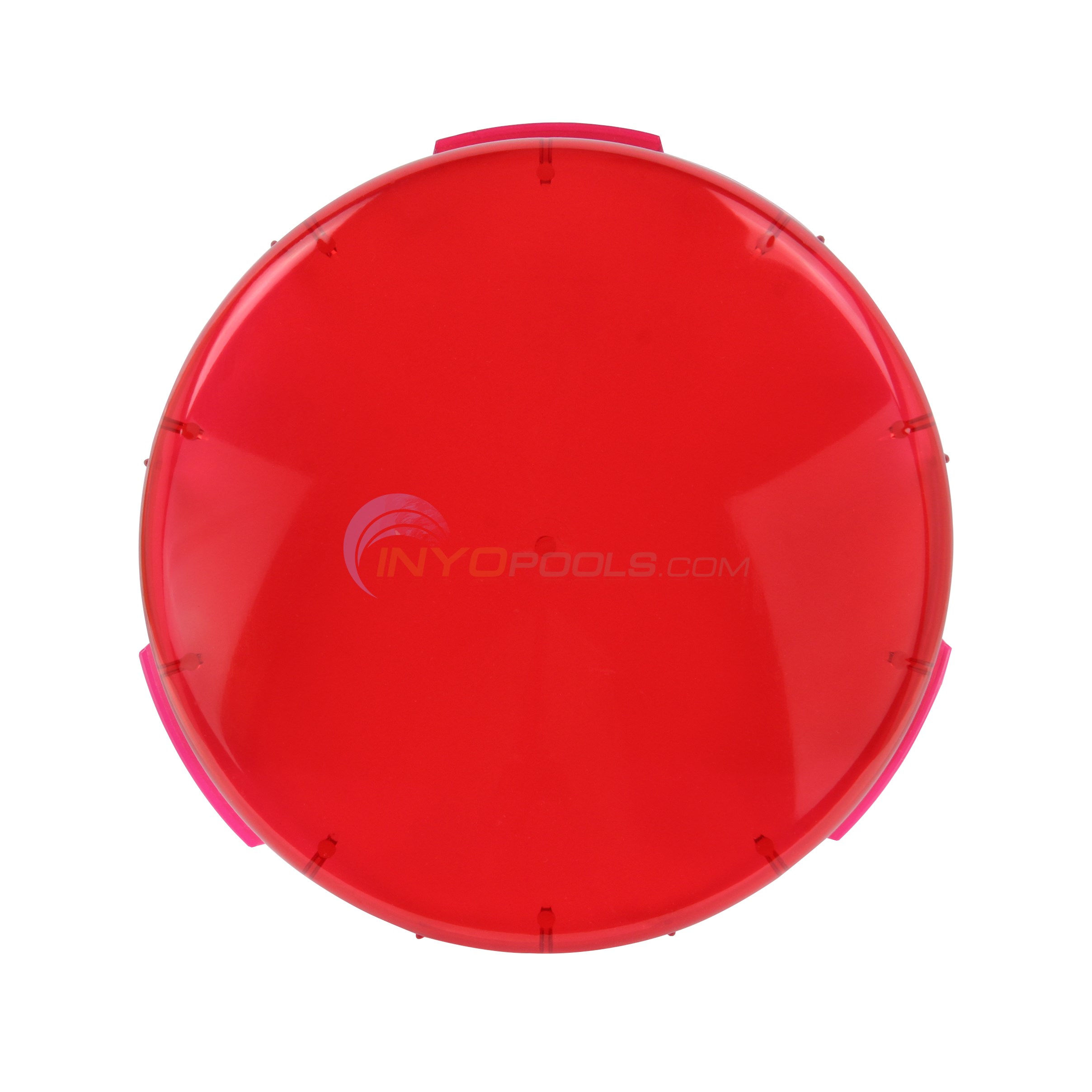

LENS COVER, KWIK-CHANGE (RED)

Part # 3591-03 Mfg # 78900900

LENS COVER, KWIK-CHANGE (RED)

$19.99 IN STOCK

Qty:

LENS COVER, KWIK-CHANGE (AMBER)

Part # 3591-04 Mfg # 78901000

LENS COVER, KWIK-CHANGE (AMBER)

$38.99

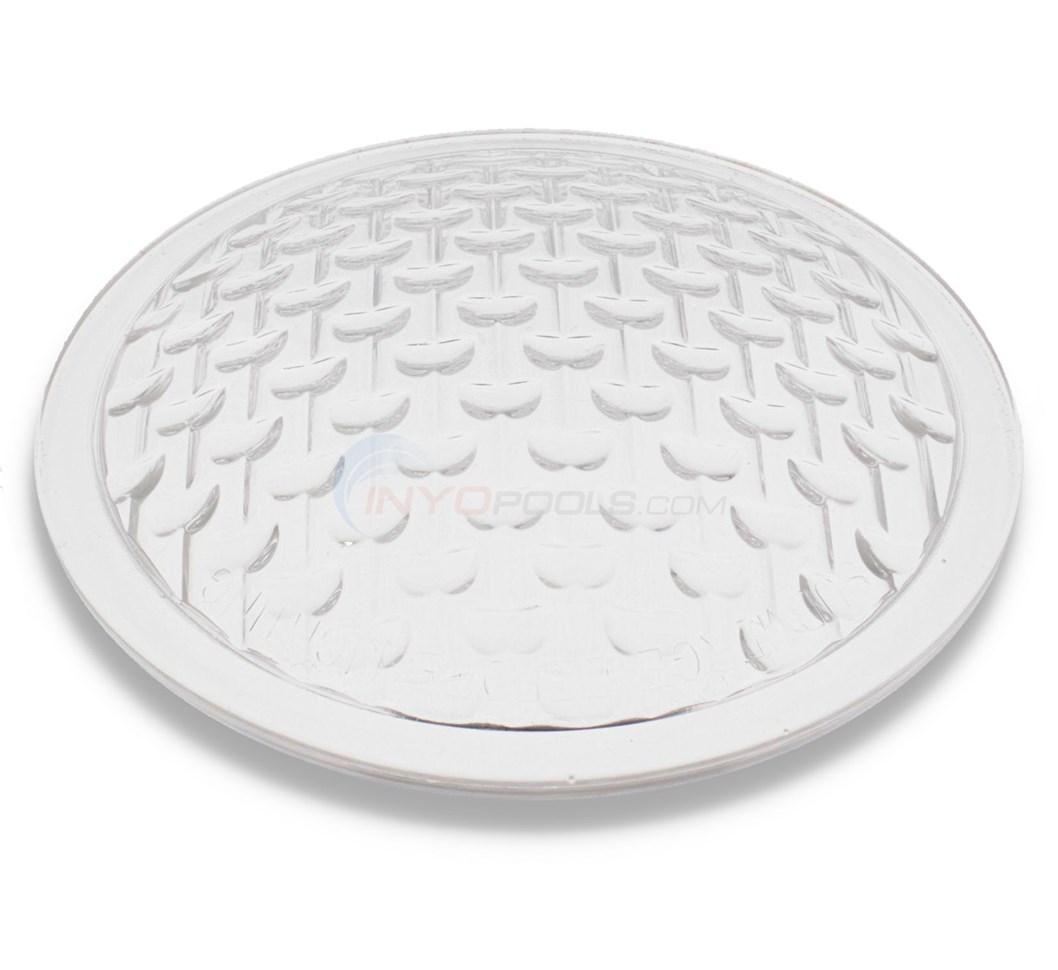

Lens, Clear

Part # 3525-01A Mfg # 79100100

Lens, Clear

$34.35 IN STOCK

Qty:

Lens, Medium Blue

Part # 3525-01B Mfg # 79100200

Lens, Medium Blue

$95.70 IN STOCK

Qty:

Face Ring Assembly S.S. - 79110600

Part # 3525-15 Mfg # 79110600

Face Ring Assembly S.S. - 79110600

$112.26 IN STOCK

Qty:

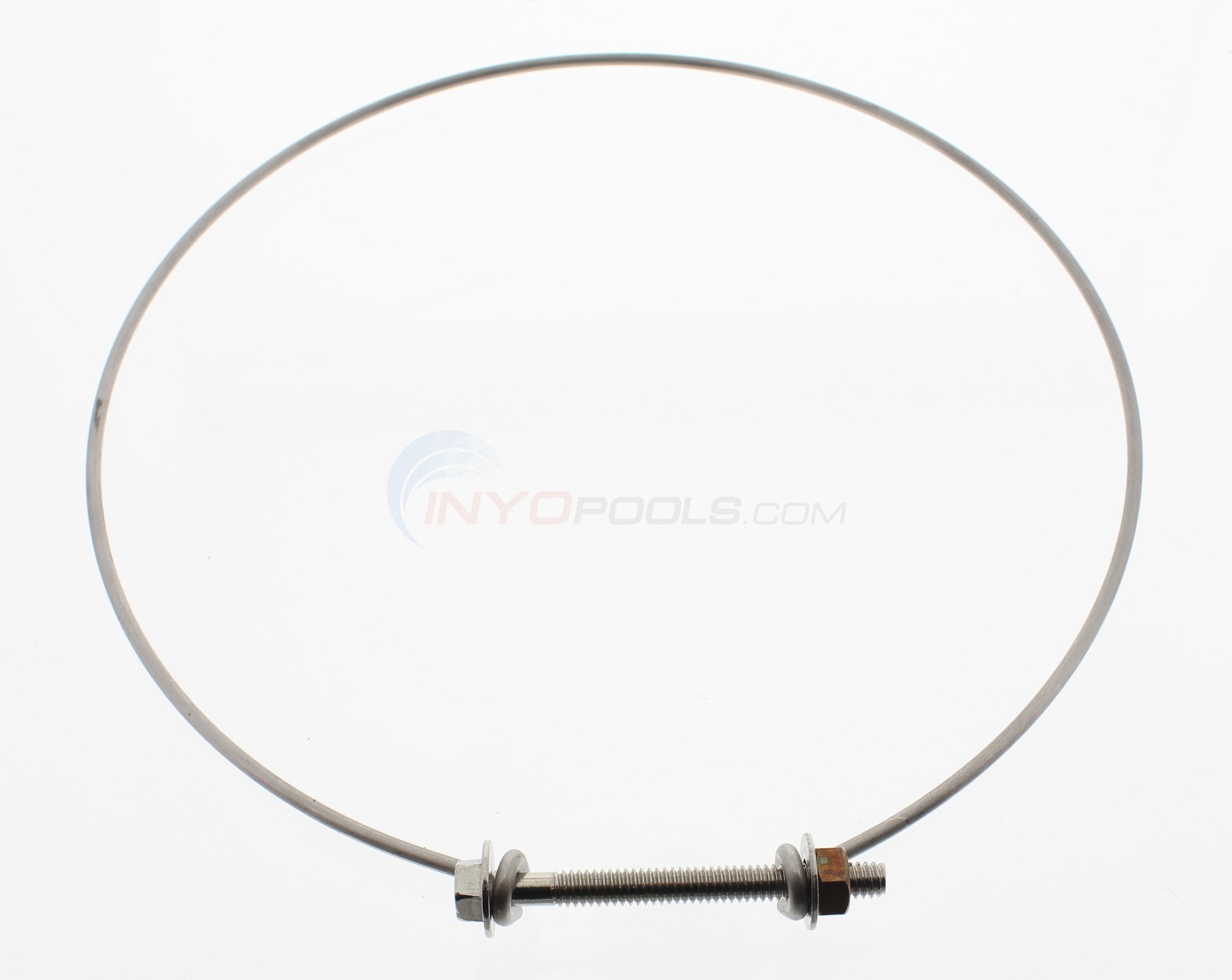

Unitension Wire Clamp Assembly - 79111000

Part # 3525-16 Mfg # 79111000

Unitension Wire Clamp Assembly - 79111000

$74.99 IN STOCK

Qty:

*

Replace with Face Ring Assembly S.S. - 79110600 and Unitension Wire Clamp Assembly - 79111000

Part # 79100500

Replace with Face Ring Assembly S.S. - 79110600 and Unitension Wire Clamp Assembly - 79111000

NOT AVAILABLE

SCREW, LOCKING With GUM WASHER

Part # 3525-03 Mfg # 79104800

SCREW, LOCKING With GUM WASHER

$11.44 IN STOCK

Qty:

SCREW, FOR SS FACE PLATE (619355)

Part # 3500-01A Mfg # 619355Z

SCREW, FOR SS FACE PLATE (619355)

$13.54 IN STOCK

Qty:

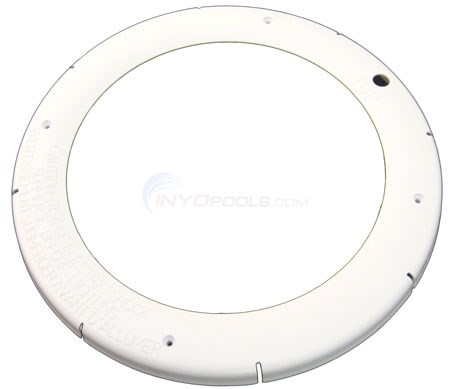

FACE RING, LARGE PLASTIC, WHITE

Part # 3525-31 Mfg # 79212100

FACE RING, LARGE PLASTIC, WHITE

$35.99

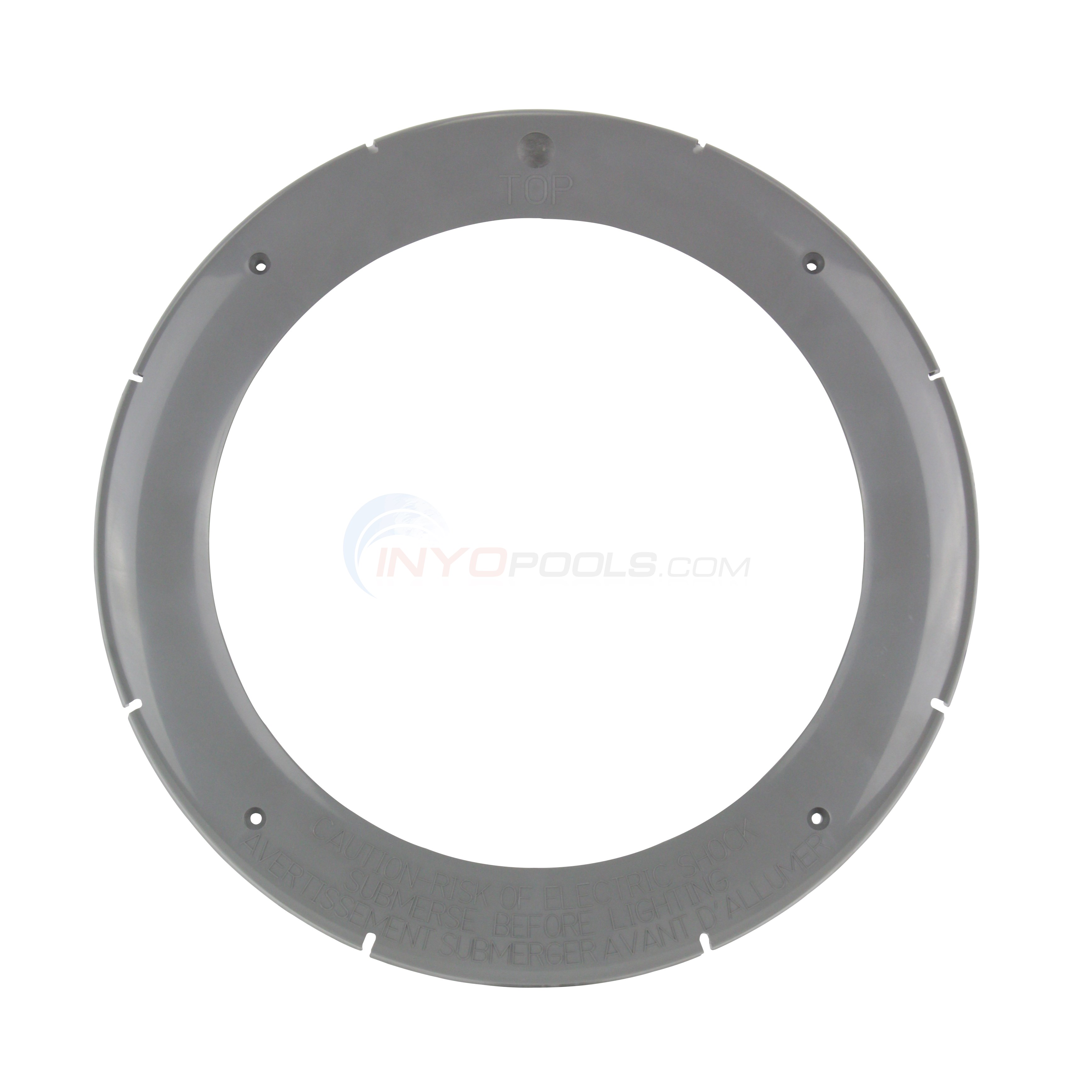

FACE RING, LARGE PLASTIC, GRAY

Part # 3525-32 Mfg # 79212165

FACE RING, LARGE PLASTIC, GRAY

$31.99 IN STOCK

Qty:

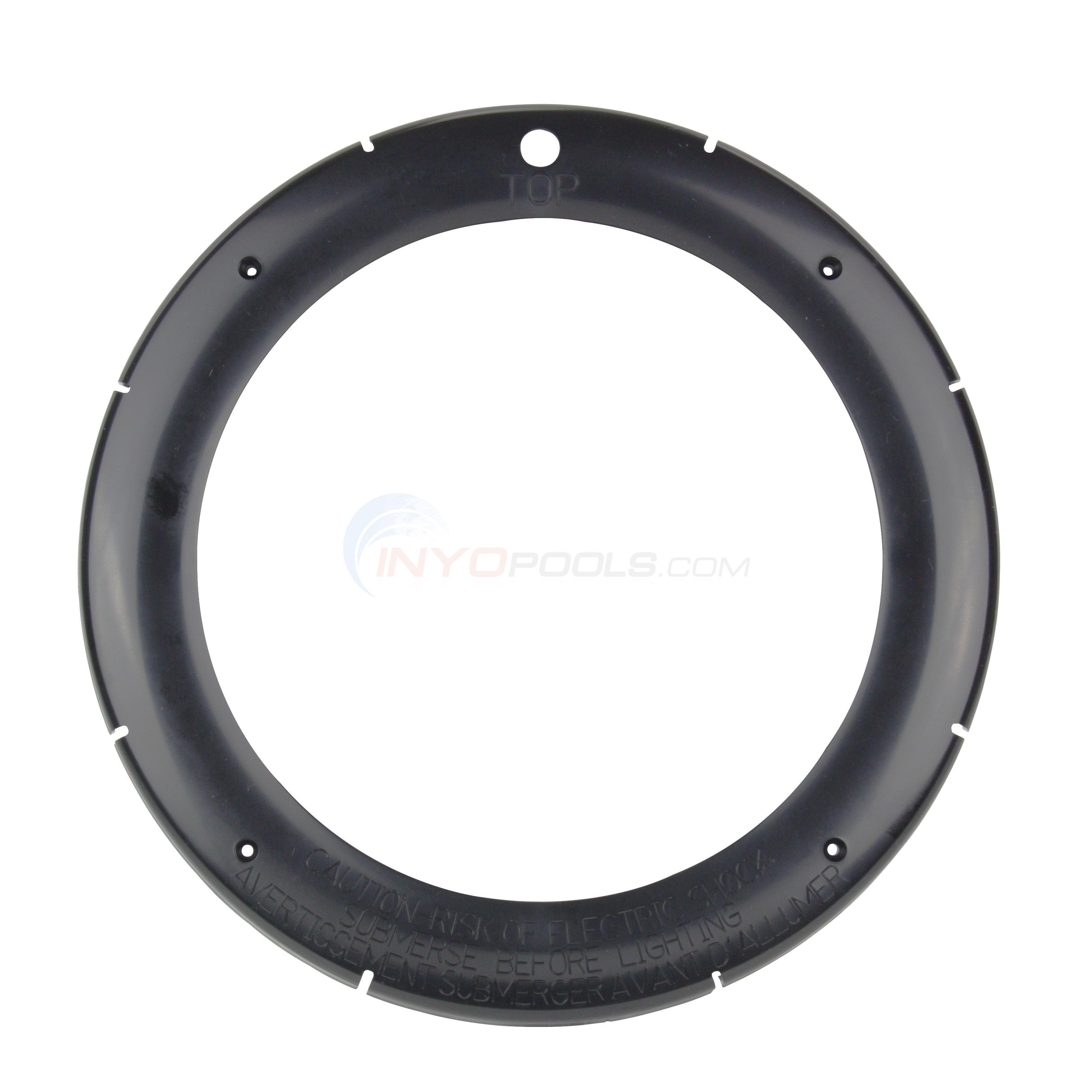

FACE RING, LARGE PLASTIC, BLACK

Part # 3525-33 Mfg # 79212111

FACE RING, LARGE PLASTIC, BLACK

$29.99 IN STOCK

Qty:

Standard Lens Gasket (79101600) Generic

Part # 3525-07 Mfg # O-170

Standard Lens Gasket (79101600) Generic

$15.99 IN STOCK

Qty:

Guardian Silicone Lens Extra Heavy Duty Gasket

Part # LPL-G-P

Guardian Silicone Lens Extra Heavy Duty Gasket

$49.19 IN STOCK

Qty:

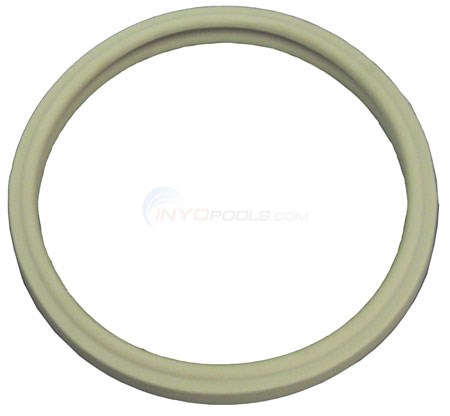

Amerlite Lens Gasket 8-3/8" - 79101600 OEM

Part # 79101600 Mfg # 79101600

Amerlite Lens Gasket 8-3/8" - 79101600 OEM

$49.99 IN STOCK

Qty:

300W Flood R-40 6.38" MOL (5.0" Dia.) 12-Volt

Part # NA700

300W Flood R-40 6.38" MOL (5.0" Dia.) 12-Volt

$25.99 IN STOCK

Qty:

BULB, 12V 100W FLOOD

Part # 3520-01 Mfg # BR30CL100/12V

BULB, 12V 100W FLOOD

$70.67

400W Flood R-40 6.75" MOL (5.0" Dia.) 120-Volt

Part # NA704

400W Flood R-40 6.75" MOL (5.0" Dia.) 120-Volt

$26.99 IN STOCK

Qty:

500W Flood R-40 6.56" MOL (5.0" Dia.) 120-Volt

Part # NA706

500W Flood R-40 6.56" MOL (5.0" Dia.) 120-Volt

$36.99 IN STOCK

Qty:

300W Flood R-40 6.56" MOL (5.0" Dia.) 130-Volt

Part # NA702

300W Flood R-40 6.56" MOL (5.0" Dia.) 130-Volt

$37.99

Pureline LED Pool Light Bulb Color Changing 12V 35W - PL5888

Part # PL5888

Pureline LED Pool Light Bulb Color Changing 12V 35W - PL5888

$74.00 IN STOCK

Volts 12 Watts 35

Volts 12 Watts 35

Qty:

Pureline LED Pool Light Bulb Color Changing 120V 35W - PL5889

Part # PL5889

Pureline LED Pool Light Bulb Color Changing 120V 35W - PL5889

$74.00 IN STOCK

Volts 120 Watts 35

Volts 120 Watts 35

Qty:

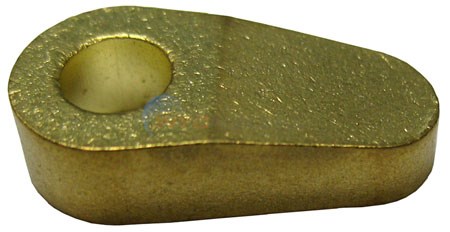

CLIP, BRASS RETAINER

Part # 3525-10 Mfg # 79105100

CLIP, BRASS RETAINER

$11.99

SCREW, RETAINER CLIP

Part # 3525-11 Mfg # SAMPLE S-14

SCREW, RETAINER CLIP

$15.99 IN STOCK

Qty:

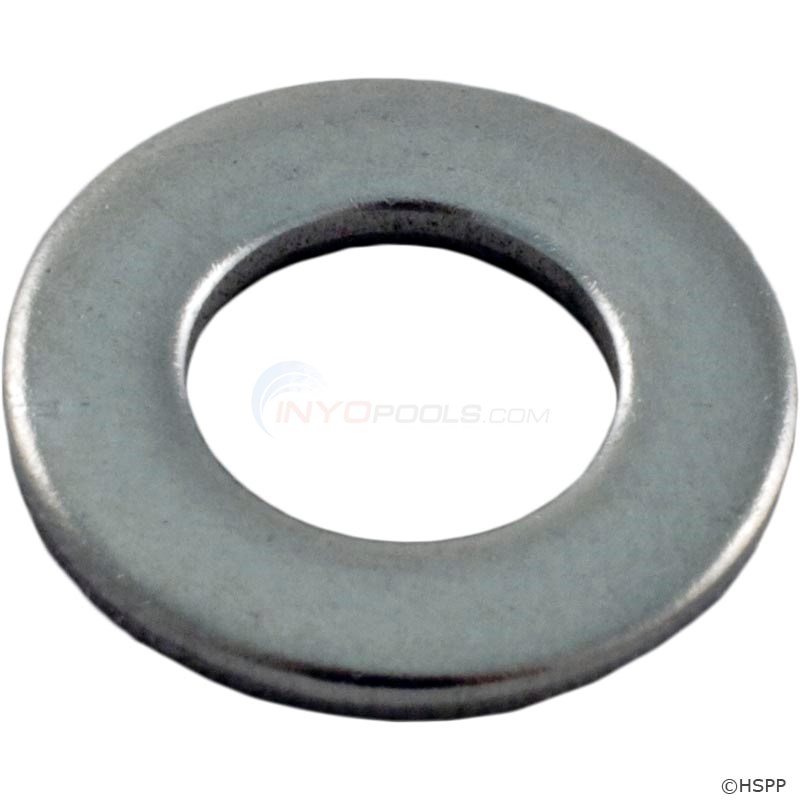

WASHER

Part # 9250-12 Mfg # 51008500

WASHER

$17.74 IN STOCK

Qty:

WIRE, UNITENSION

Part # 3525-14 Mfg # 79110400

WIRE, UNITENSION

$36.99 IN STOCK

Qty:

RING, FACE ASSEMBLY S.S.

Part # 3525-15 Mfg # 79110600

RING, FACE ASSEMBLY S.S.

$112.26 IN STOCK

Qty:

CLAMP, UNITENSION WIRE ASSY.

Part # 3525-16 Mfg # 79111000

CLAMP, UNITENSION WIRE ASSY.

$74.99 IN STOCK

Qty:

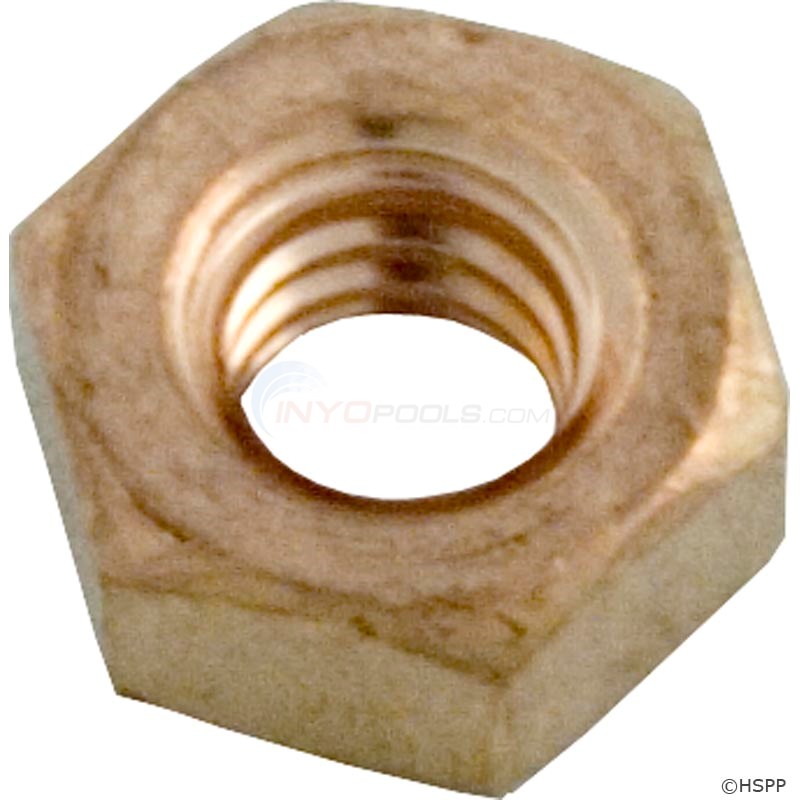

NUT, BRASS

Part # 9250-11 Mfg # 98216100

NUT, BRASS

$14.59 IN STOCK

Qty:

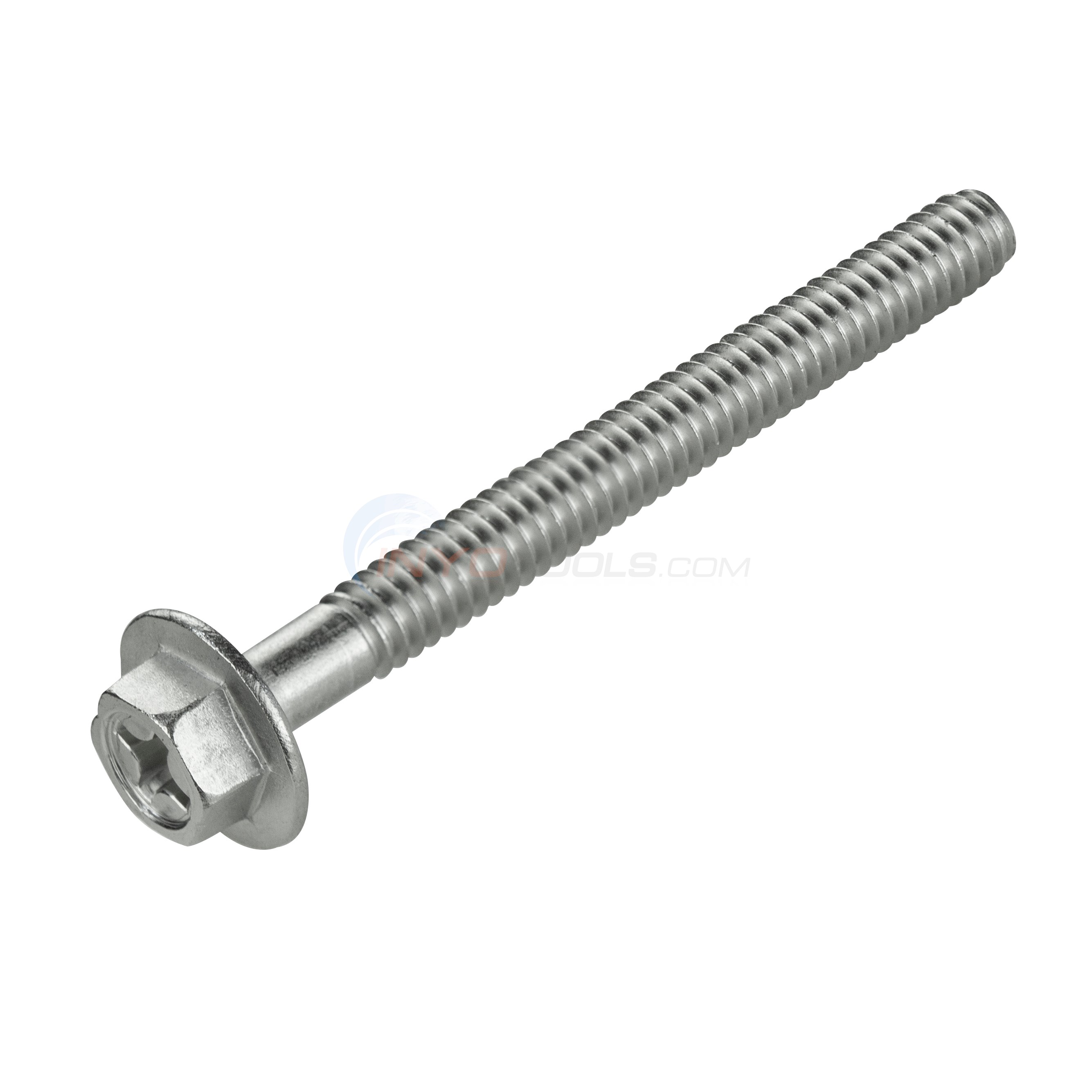

BOLT

Part # 3525-19 Mfg # 79112000

BOLT

$14.59 IN STOCK

Qty:

*INCLUDES 13,14,17,18 & 19
