Pentair Dorado Automatic Suction-Side Pool Cleaner Parts

* = Not Shown

Pentair Dorado Automatic Suction-Side Pool Cleaner Diagram

Click to zoom in

Diagram #	Part Title
1	Swivel Assembly

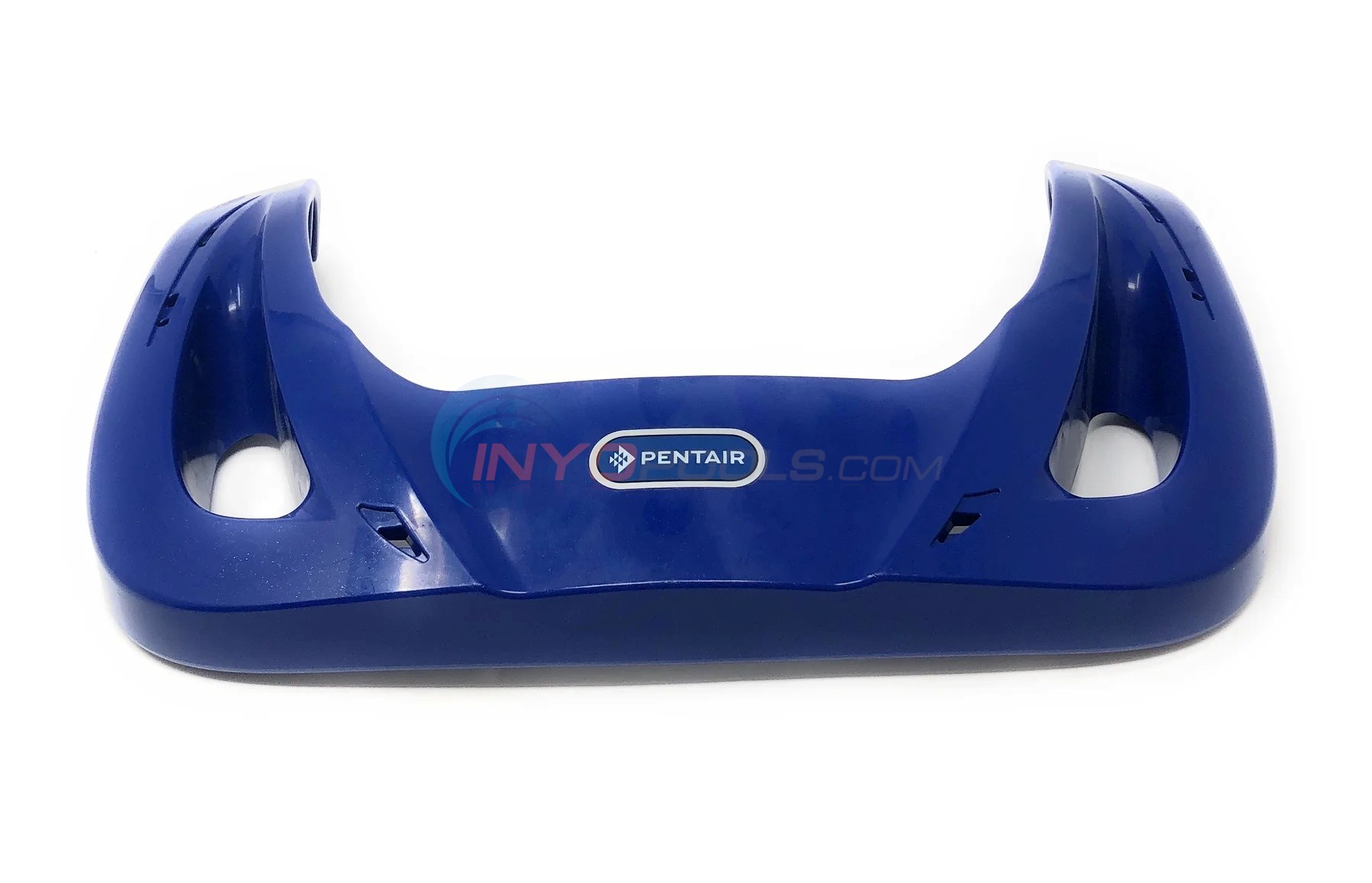

2	Pentair Dorado Bumper

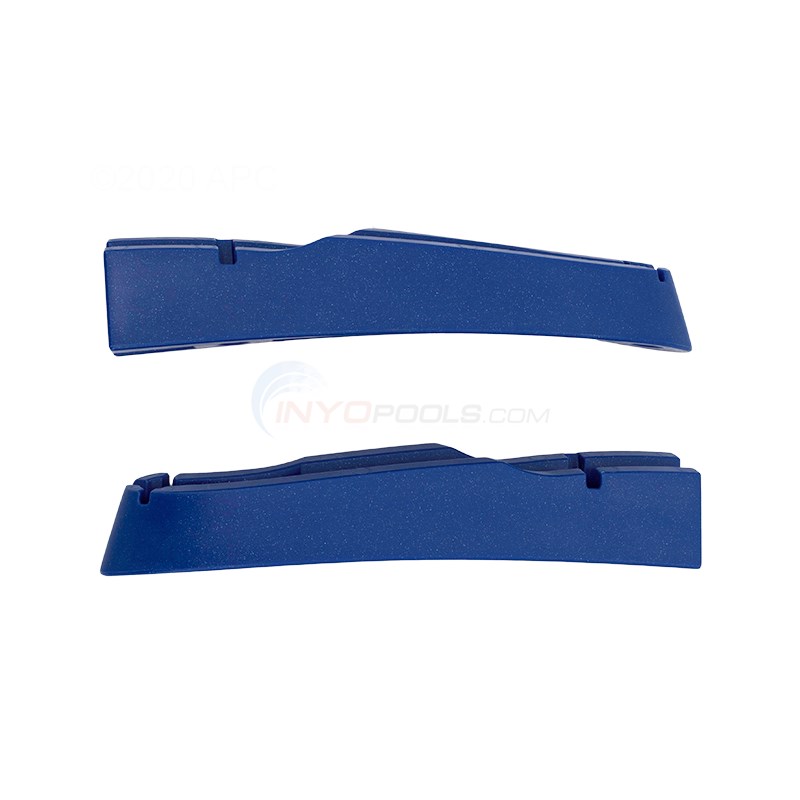

2a	Pentair Dorado Bumper Insert Kit with Screws

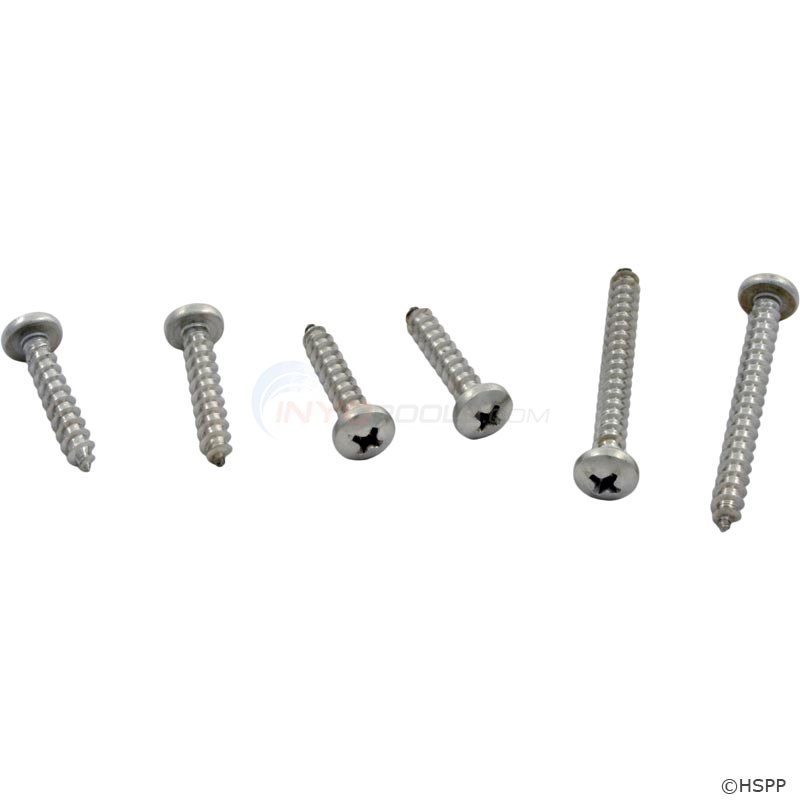

3	Screw Kit (4 Short, 2 Long)
4	Pentair Dorado Shroud
5	Brush Ring
6	Oscillator Chamber Cap
7	Cam Kit (2 & 3 Leg Cams)
8	Idler Gear Kit (3 Gears)

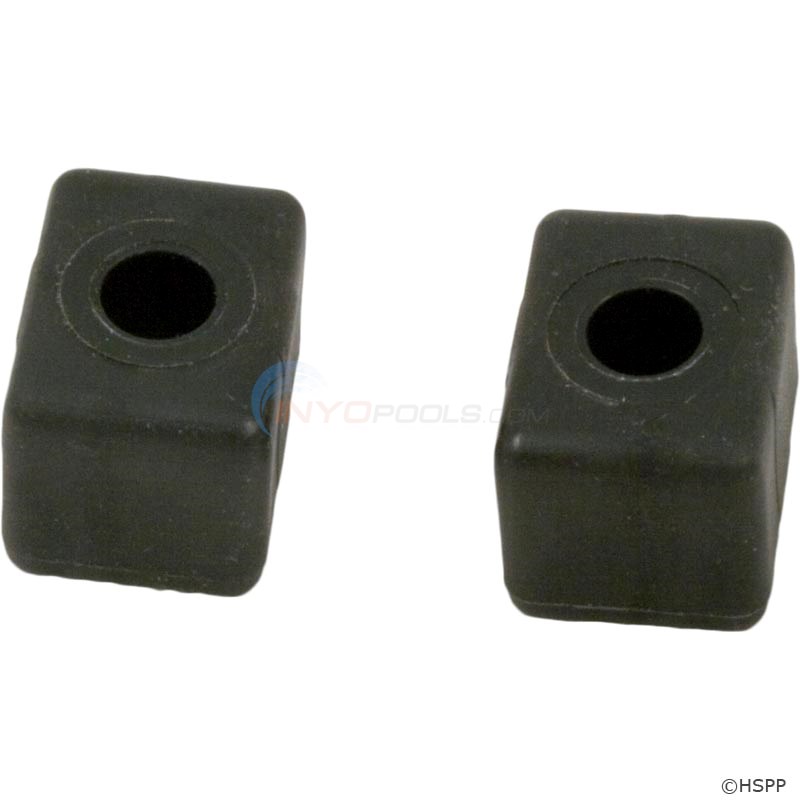

9	Block Kit (2 Blocks)
10	Gear Shaft, Long

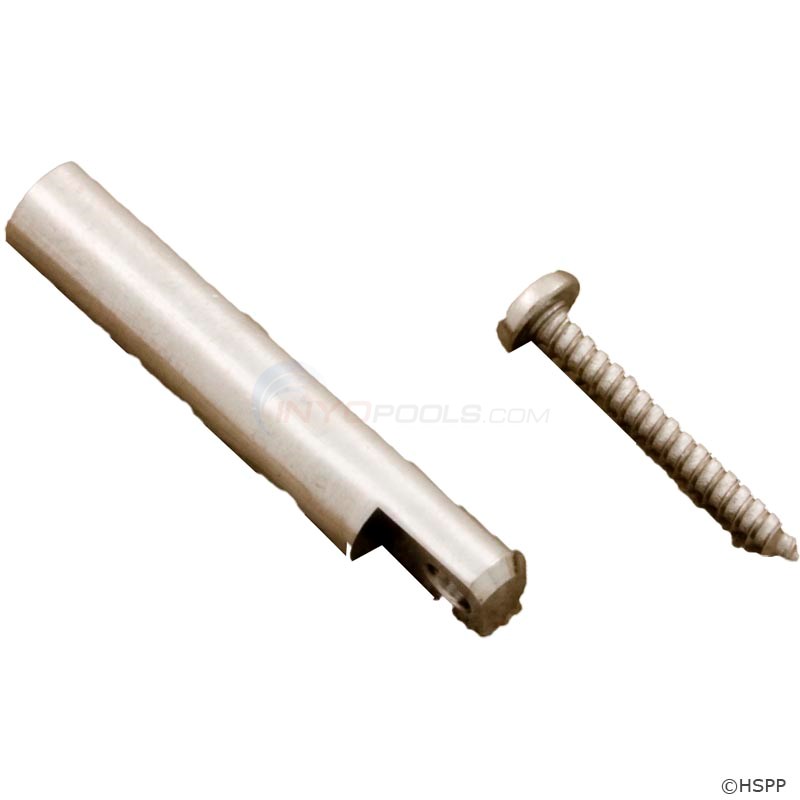

11a	Gear Shaft, Short (Includes Set Screw)
11	#4 Selp-Tapping Set Screw (Not Sold Separately - see 11a)

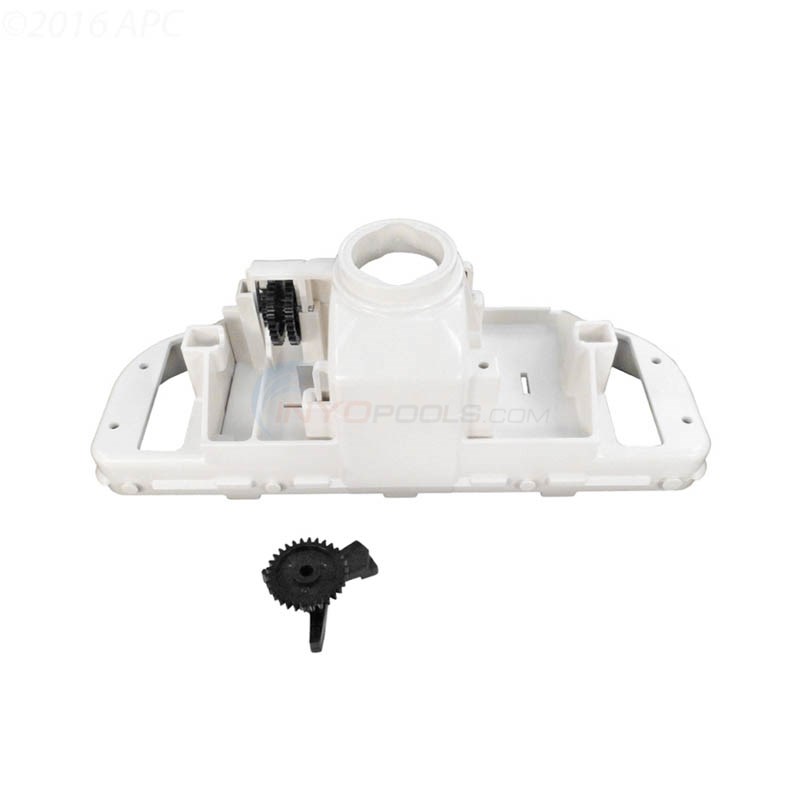

12	Pentair Dorado Lower Body Chassis
13	Lift Brush

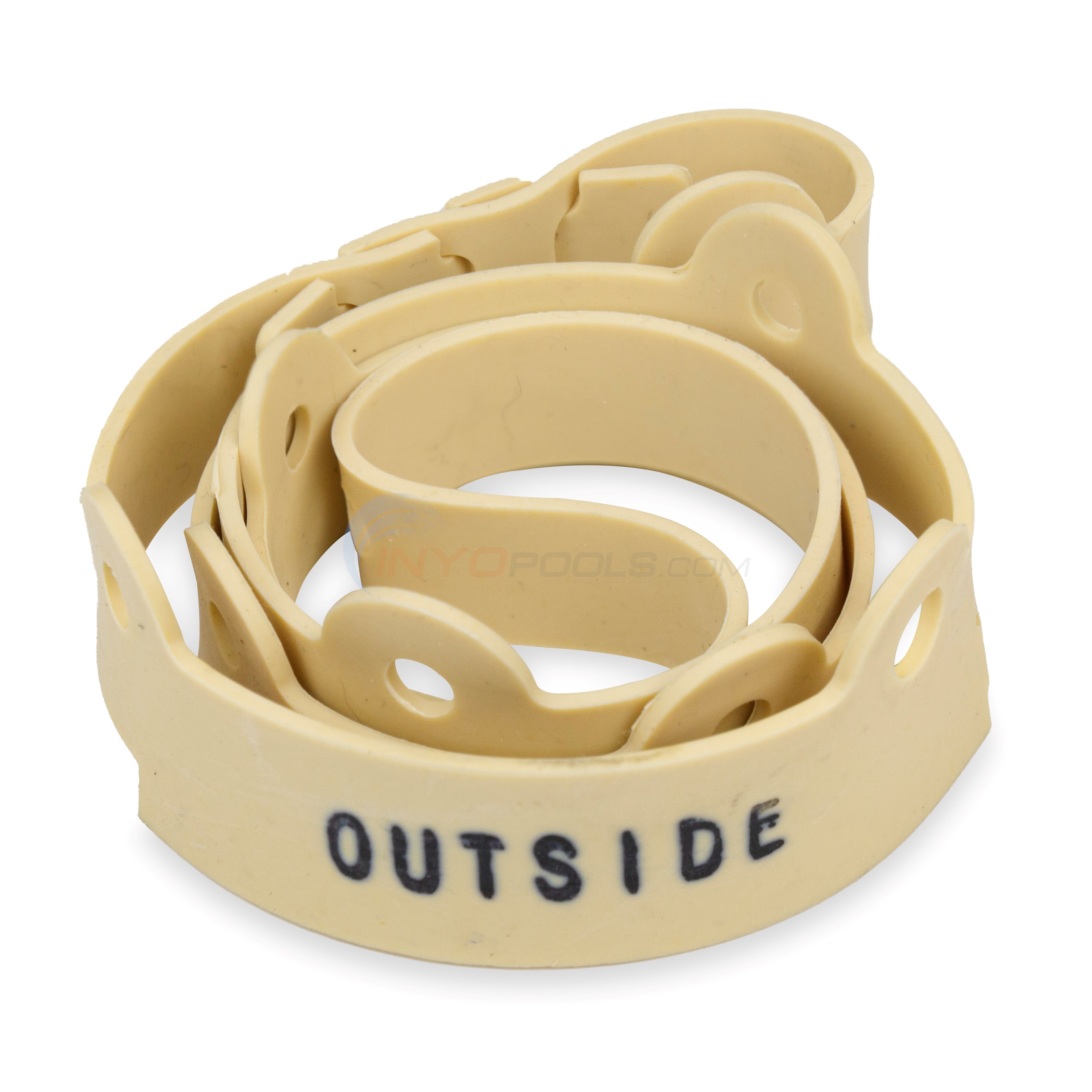

14	Pentair Vacuum Skirt Replacement

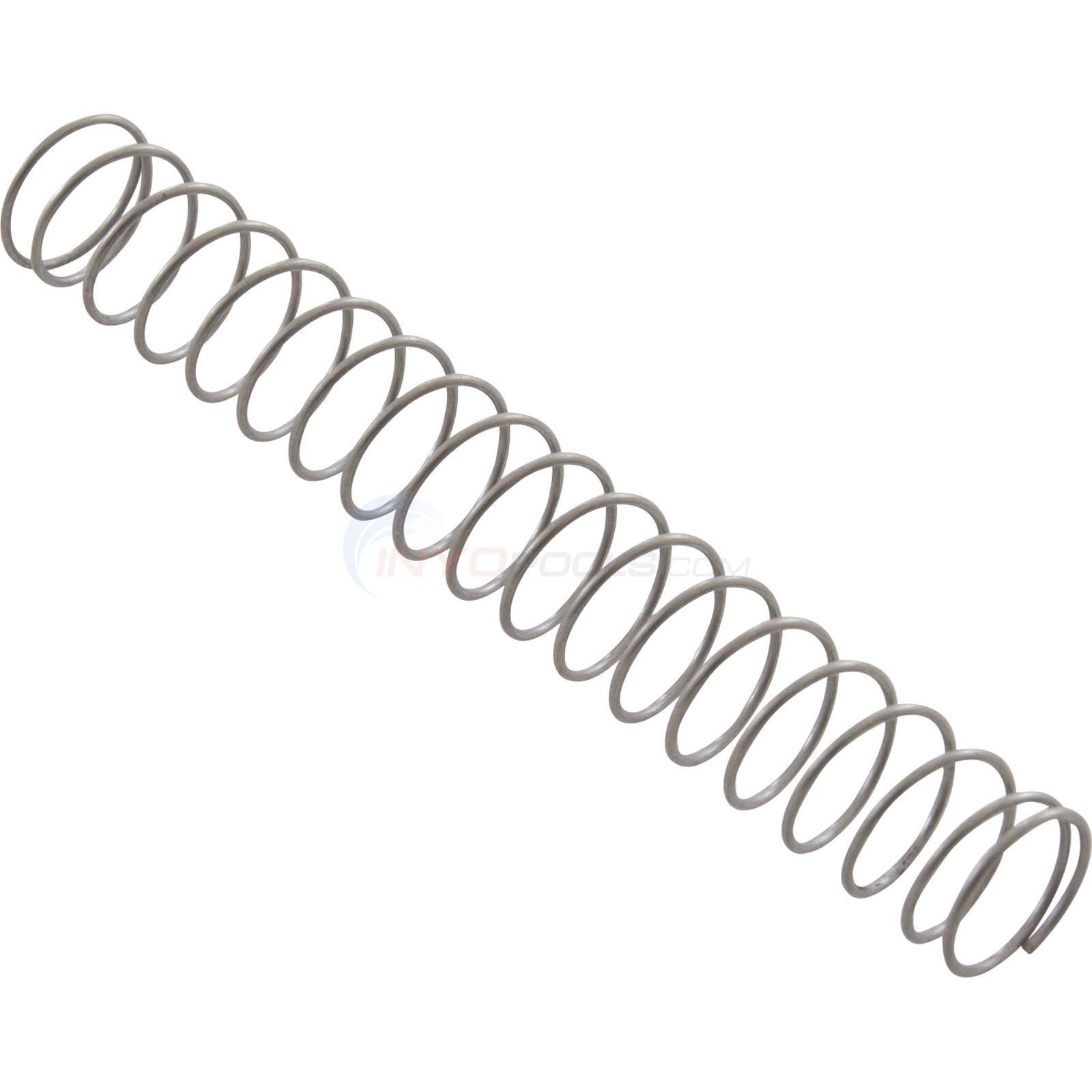

15	Lift Brush Spring
16	Ratchet Tab
17	Oscillator Seal Kit (2 Seals)
18	Oscillator Assembly Kit with Seals
19	Center Brush Kit (Set of 2)
*	Hose Kit
*	Vacuum Regulator
*	Vacuum Regulator Cap
*	Reducer Cone

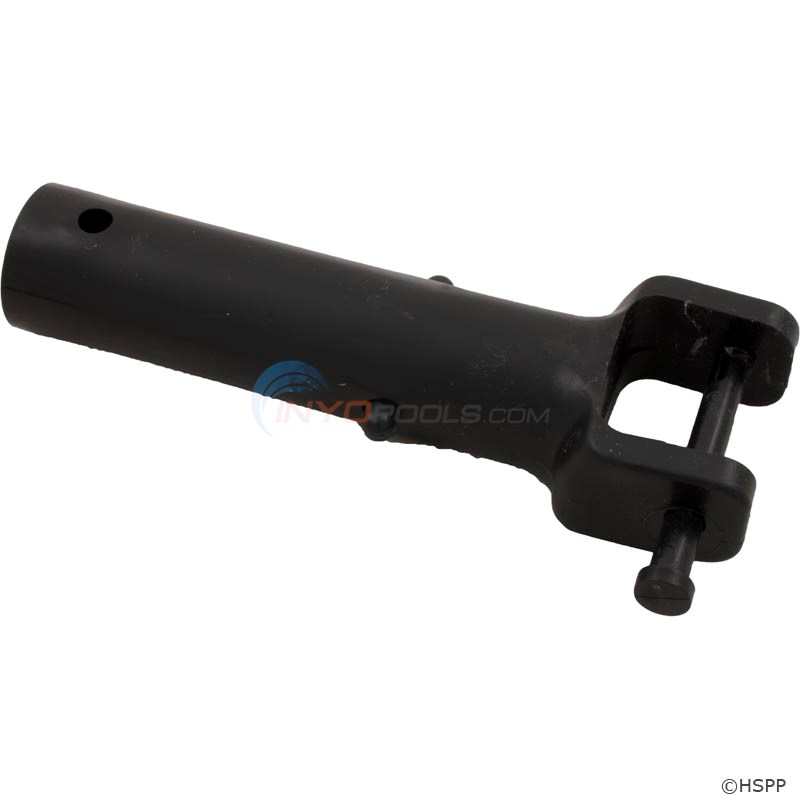

*	Unidapt Handle

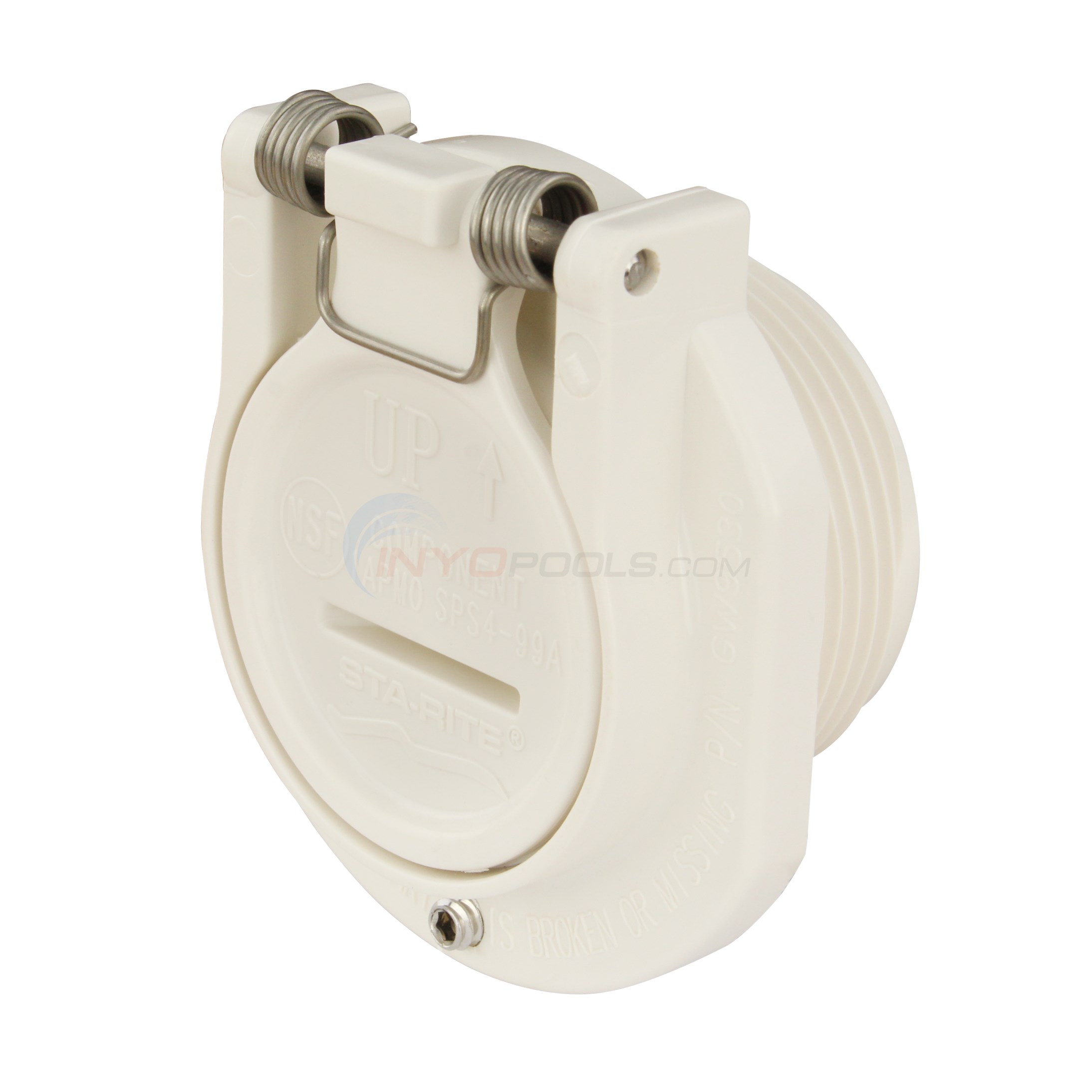

*	Vac Port Fitting
*	Flow Gauge

View Parts List

Diagram #	Part Title
1	Swivel Assembly
2	Pentair Dorado Bumper
2a	Pentair Dorado Bumper Insert Kit with Screws
3	Screw Kit (4 Short, 2 Long)
4	Pentair Dorado Shroud

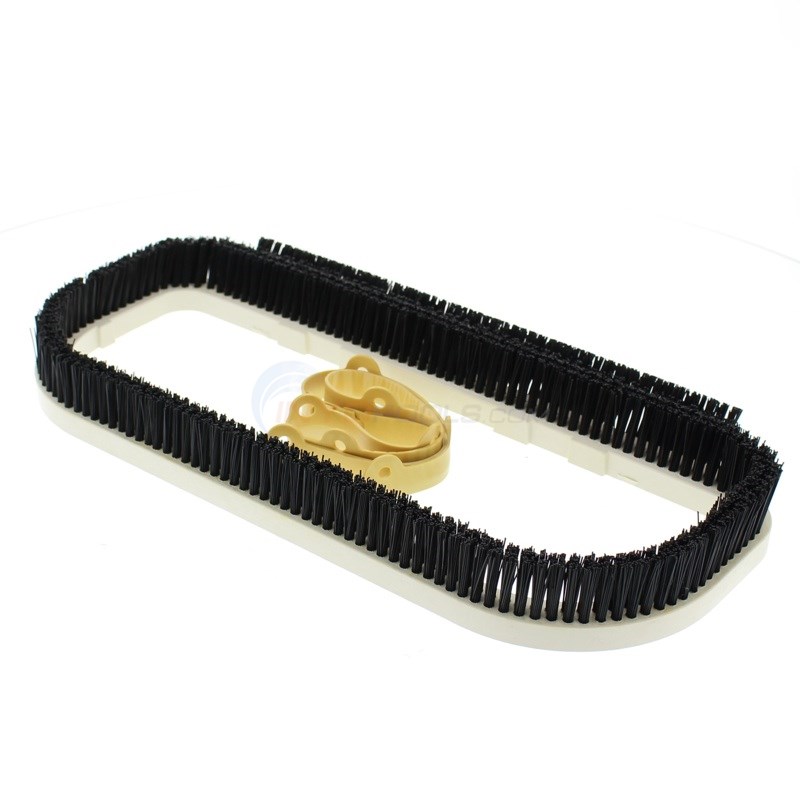

5	Brush Ring
6	Oscillator Chamber Cap
7	Cam Kit (2 & 3 Leg Cams)
8	Idler Gear Kit (3 Gears)
9	Block Kit (2 Blocks)

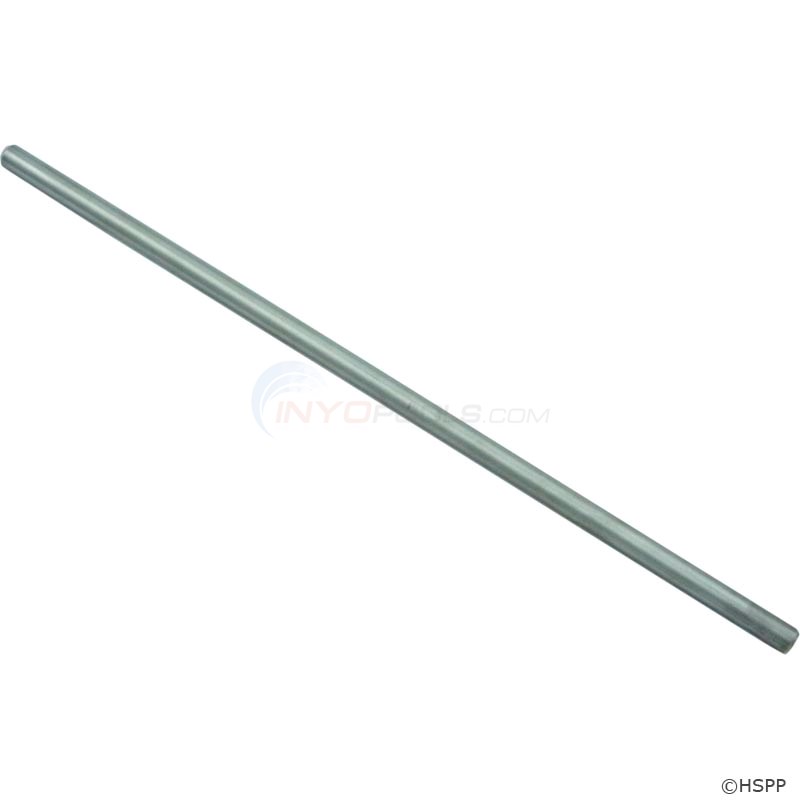

10	Gear Shaft, Long
11a	Gear Shaft, Short (Includes Set Screw)
11	#4 Selp-Tapping Set Screw (Not Sold Separately - see 11a)
12	Pentair Dorado Lower Body Chassis

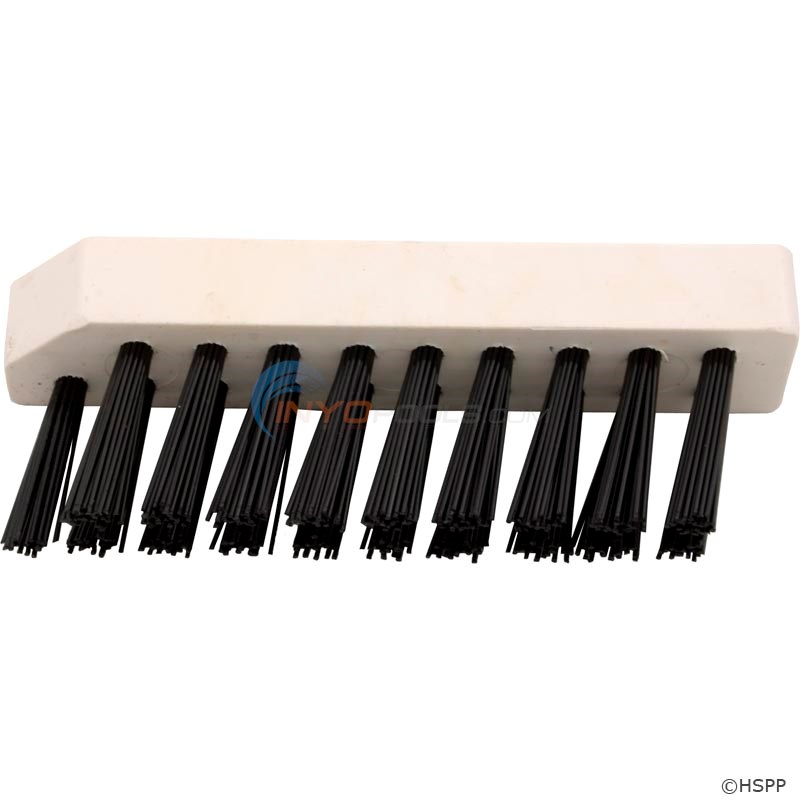

13	Lift Brush
14	Pentair Vacuum Skirt Replacement
15	Lift Brush Spring

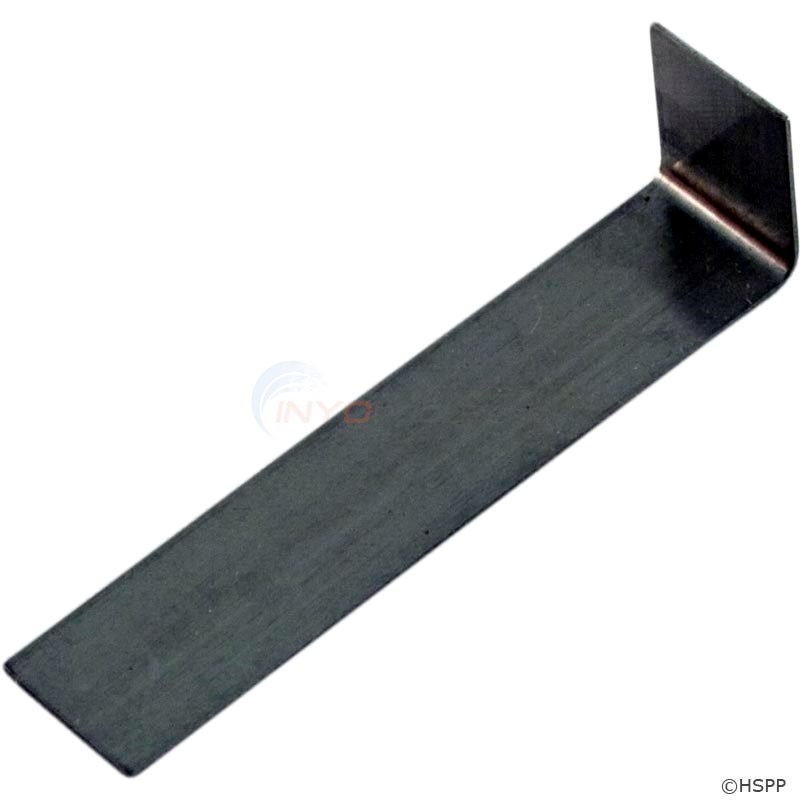

16	Ratchet Tab
