Pentair - Pac Fab Dynamite Parts

JETTED TUB PUMP

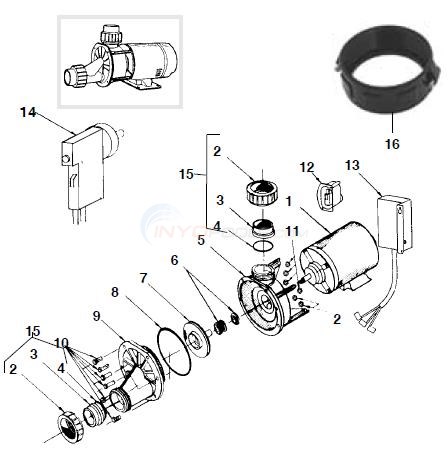

Pentair - Pac Fab Dynamite Diagram

Click to zoom in

Diagram #	Part Title
1	1/2 HP 115V Thru Bolt Motor
2	No Longer Available NUT Replace With 4600-2256
3	ADAPTER, 1 1/2" QUICK CONNECT
4	O-RING, ADAPTER (5056-11--)
5	HOUSING
6	PENTAIR SHAFT SEAL OEM
7	IMPELLER, 1/2 HP
8	O-RING, LID
9	PLATE-FRONT, SELF DRAINING
10	SCREW SS HEX WASHER HEAD
11	NUT, SS HEX
12	OBSOLETE SWITCH KIT, PUMPS
13	OBSOLETE TIMER
14	OBSOLETE SWITCH KIT
15	UNION KIT
16	NUT, UNION SPLIT 1 1/2 (USE WITH PVC) (700410)

View Parts List

Diagram #	Part Title
1	1/2 HP 115V Thru Bolt Motor
2	No Longer Available NUT Replace With 4600-2256
3	ADAPTER, 1 1/2" QUICK CONNECT
4	O-RING, ADAPTER (5056-11--)
5	HOUSING
6	PENTAIR SHAFT SEAL OEM
7	IMPELLER, 1/2 HP
8	O-RING, LID
9	PLATE-FRONT, SELF DRAINING
10	SCREW SS HEX WASHER HEAD
11	NUT, SS HEX
12	OBSOLETE SWITCH KIT, PUMPS
13	OBSOLETE TIMER
14	OBSOLETE SWITCH KIT
15	UNION KIT
16	NUT, UNION SPLIT 1 1/2 (USE WITH PVC) (700410)

Available Parts:

1/2 HP 115V Thru Bolt Motor

Part # BN23 Mfg # BN23V1

1/2 HP 115V Thru Bolt Motor

$217.31 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 7.2 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 7.2 Frame 48Y

Qty:

3/4 HP 115V Thru Bolt Motor

Part # BN24 Mfg # BN24V1

3/4 HP 115V Thru Bolt Motor

$177.83 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 9.8 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 9.8 Frame 48Y

Qty:

1 H.P 115V Thru Bolt Motor

Part # BN25 Mfg # BN25V1

1 H.P 115V Thru Bolt Motor

$188.93 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 12.0 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 12.0 Frame 48Y

Qty:

3/4 HP 2 Speed 115V Thru Bolt Motor

Part # BN36 Mfg # BN36

3/4 HP 2 Speed 115V Thru Bolt Motor

$209.03 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 8.8/2.6 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 8.8/2.6 Frame 48Y

Qty:

1 HP 2 Speed 115V Thru-Bolt Motor

Part # BN37 Mfg # BN37V1

1 HP 2 Speed 115V Thru-Bolt Motor

$259.32 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 11.0/2.9 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 11.0/2.9 Frame 48Y

Qty:

1 HP 2 Speed 115V Low Amps Thru Bolt Motor

Part # BN38 Mfg # BN37V1

1 HP 2 Speed 115V Low Amps Thru Bolt Motor

$262.00 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 10.3/3.1 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 10.3/3.1 Frame 48Y

Qty:

2

No Longer Available NUT Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352022577.htm">4600-2256</a>

Mfg # 35-2206

No Longer Available NUT Replace With 4600-2256

NOT AVAILABLE

ADAPTER, 1 1/2" QUICK CONNECT

Part # 5004-19 Mfg # 352257

ADAPTER, 1 1/2" QUICK CONNECT

$15.72 IN STOCK

Qty:

O-RING, ADAPTER (5056-11--)

Part # 5004-21 Mfg # 354571

O-RING, ADAPTER (5056-11--)

$12.28 IN STOCK

Qty:

HOUSING

Part # 5006-05A Mfg # 352241

HOUSING

$137.67

5*

OBSOLETE HOUSING

Mfg # 35-2204

OBSOLETE HOUSING

NOT AVAILABLE

PENTAIR SHAFT SEAL OEM

Part # 354545S

PENTAIR SHAFT SEAL OEM

$38.18 IN STOCK

Qty:

GENERIC SHAFT SEAL

Part # 5250-104 Mfg # PSR-200

GENERIC SHAFT SEAL

$7.53 IN STOCK

Qty:

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

Part # 5250-210 Mfg # PS-3867

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

$17.07 IN STOCK

Qty:

IMPELLER, 1/2 HP

Part # 5004-06 Mfg # 353002

IMPELLER, 1/2 HP

$50.24 IN STOCK

Qty:

IMPELLER, 3/4, 1, & 1 1/2 HP

Part # 5006-07A Mfg # 355122

IMPELLER, 3/4, 1, & 1 1/2 HP

$41.04 IN STOCK

Qty:

IMPELLER, 1 & 1 1/2HP

Part # 5006-07 Mfg # 353066

IMPELLER, 1 & 1 1/2HP

$71.34 IN STOCK

Qty:

O-RING, LID

Part # 5004-13 Mfg # 353

O-RING, LID

$12.79 IN STOCK

Qty:

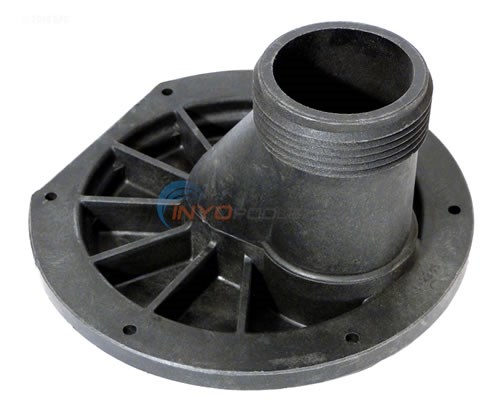

PLATE-FRONT, SELF DRAINING

Part # 5006-09A Mfg # 352236

PLATE-FRONT, SELF DRAINING

$96.47

9*

OBSOLETE FRONT-PLATE, 4 HOLE

Mfg # 35-2201

OBSOLETE FRONT-PLATE, 4 HOLE

NOT AVAILABLE

SCREW SS HEX WASHER HEAD

Part # 5002-12 Mfg # 355334

SCREW SS HEX WASHER HEAD

$5.65 IN STOCK

Qty:

SCREW

Part # 5120-10 Mfg # 99730050

SCREW

$11.04 IN STOCK

Qty:

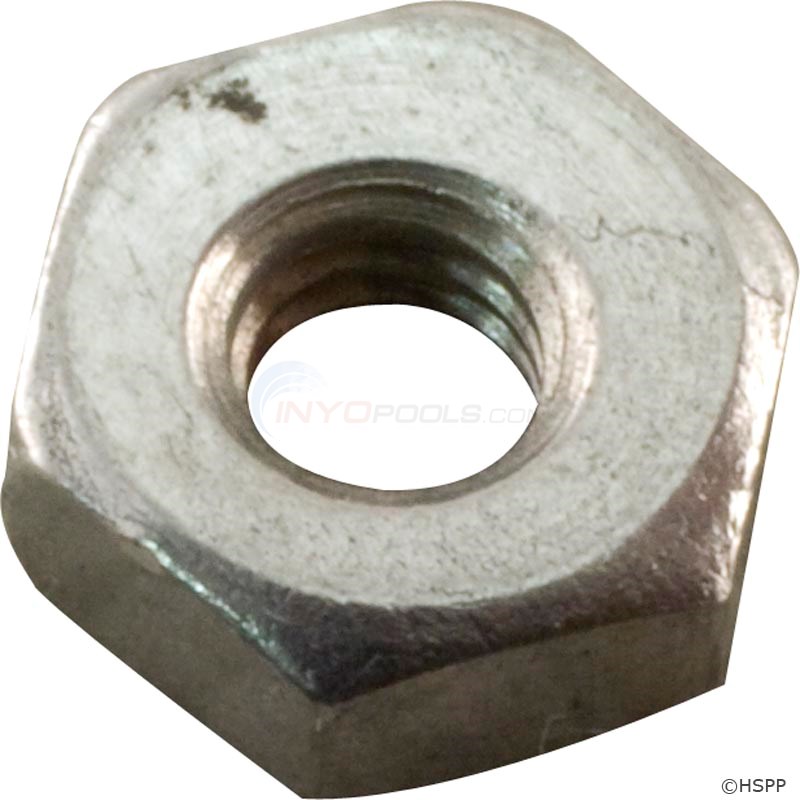

NUT, SS HEX

Part # 5006-11 Mfg # 619312

NUT, SS HEX

$11.04 IN STOCK

Qty:

12

OBSOLETE SWITCH KIT, PUMPS

Mfg # 35-5660

OBSOLETE SWITCH KIT, PUMPS

NOT AVAILABLE

13

OBSOLETE TIMER

Mfg # 35-6478

OBSOLETE TIMER

NOT AVAILABLE

14

OBSOLETE SWITCH KIT

Mfg # 35-5659

OBSOLETE SWITCH KIT

NOT AVAILABLE

UNION KIT

Part # 5006-15 Mfg # 352210

UNION KIT

$49.77 IN STOCK

Qty:

NUT, UNION SPLIT 1 1/2 (USE WITH PVC) (700410)

Part # 9170-17B Mfg # 25300-000-070

NUT, UNION SPLIT 1 1/2 (USE WITH PVC) (700410)

$12.05 IN STOCK

Qty:

* PUMPS MANUFACTURED PRI0R TO ’90 HAD 4 HOLE PATTERN FOR THE FRONT PLATE AND SEAL HOUSING. IF 4 HOLE FRONT PLATE OR SEAL HOUSING IS BAD, IT MUST BE REPLACED WITH 6 HOLE FRONT PLATE,
