$188.93

Qty:

By Magnetek


Details

Top

Part # BN25

Warranty 1 Year

Manufacturer Code BN25V1

Dimensions 12" L x 6.5" W x 6.5" D

Alternate Part #'s 0-177894-04, 0-177961-03, 0-177961-23, 10-177894-24, 1510Z-1-EC, 1510Z-1-EKC, 1510Z-1-ESC, 1510Z-1-EXSC, 1510Z-1-XEC, 159862, 159964, 16436, 164950, 165369, 165846, 168507, 168970, 173315, 176505, 177386, 177614, 177748, 177769, 177894, 177955, 178872, 182520, 182718, 182746, 182833, 184395, 184878, 186884, 187872, 193262, 193868, 3179P410, 35-6472, 356495, 406578, 5KC33NN2896X, 7-159862-22, 7-159862-23, 7-159862-25, 7-159964-22, 7-159964-24, 7-165369-20, 7-168970-20, 7-177614-20, 7-177614-21, 7-177760-20, 7-177760-21, 7-177760-22, 7-177760-23, 7-177760-32, 7-177894-21, 7-177894-22, 7-177894-24, 7-177894-40, 7-177961-20, 7-177961-23, 7-177961-40, 7-177961-48, 7-182718-22, 7-182718-23, 7-187872-20, 7-187872-21, 7-193262-26, 7-193670-24, 7-193868-24, 8-177614-40, 9-159862-23, 9-159862-24, 9-159862-28, 9-168970-20, 9-168970-21, agl10fl1, B025, B029, BN025, BN25SS, BN25V1, C1454, C1901, CBT2102, H640, H667, H910, K55JXPSZ-1646, S48A84A04, S48AA11A01, S48AA11A79, S48AB86A03, S48B74A03, S48B89B95, S48L2A16, S48L2A26, S48L2A26A1, S48L2A26A2, S48L2A28, S48L2A29, S48L2A38, S48L2A41, S48L2A41A1, S48L2A41A2, S48L2A6, S48L2A6A1, S48L2A6A2, S48L2A6A3, S48L2A6A4, S48L2A6A7, S48L2A6A8, S48L2A8, S48L2A8A2, S48L2A8A3, S48L2A8A4, S48L2A9, S55CXNPH-7241, SP1510-Z-XBC, SP1510Z1TXE, SP1510Z1XEW, SP1510Z1XT, SP1510Z1XTBK, SPX1510Z1XE, 35-126-1010, CRMBN25V1

Product Description

Century 1.0 HP Thru-Bolt 48Y Motor - BN25V1 **NOTE THIS MOTOR IS SHIPPED LESS ON/OFF SWITCH. YOU MAY PURCHASE THE ON/OFF SWITCH SEPARATELY BY ORDERING PART # 18374501.**

Application: Above Ground Pools & Spas Replaces: Sta-Rite, Hayward, American Products, Hydra Bath, Pac Fab, Jacuzzi, Doughboy, Etc... Features: All copper windins, Auto protector, Open drip proof, Stainless steel threaded shaft, Thru-Bolt pump mount, "1081" design, 60 HZ , 115V, HP = 1.0, Full load Amps = 11.8, Frame 48Y, Threaded Shaft

Commonly Used On

  • Pentair Dynamo 340197 (DYNII-N1-1)

Note: NOT California or New York Title 20 Compliant.

Compliant Options: None, replace the whole pump with a Compliant Variable Speed

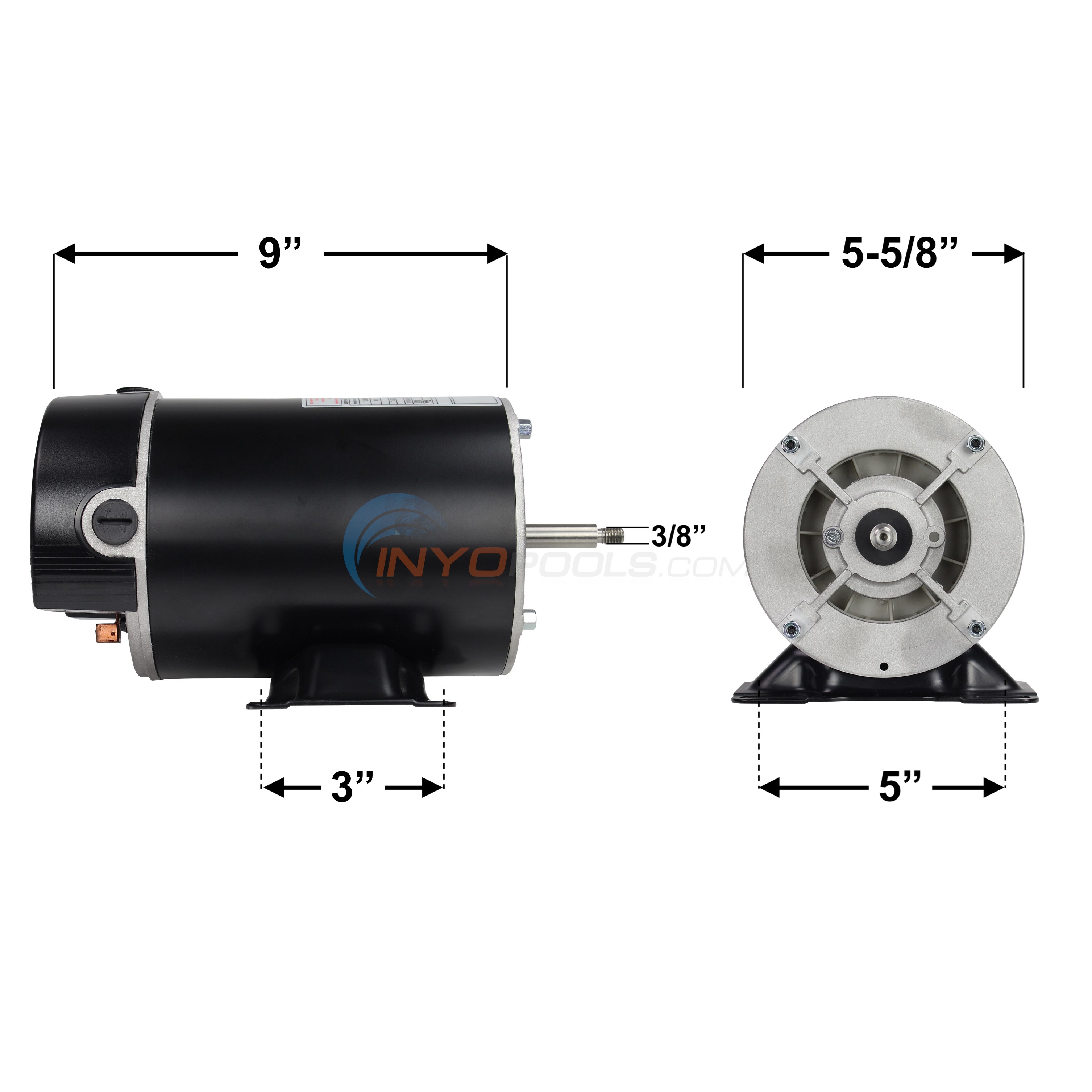

Motor Dimensions Motor Dimensions

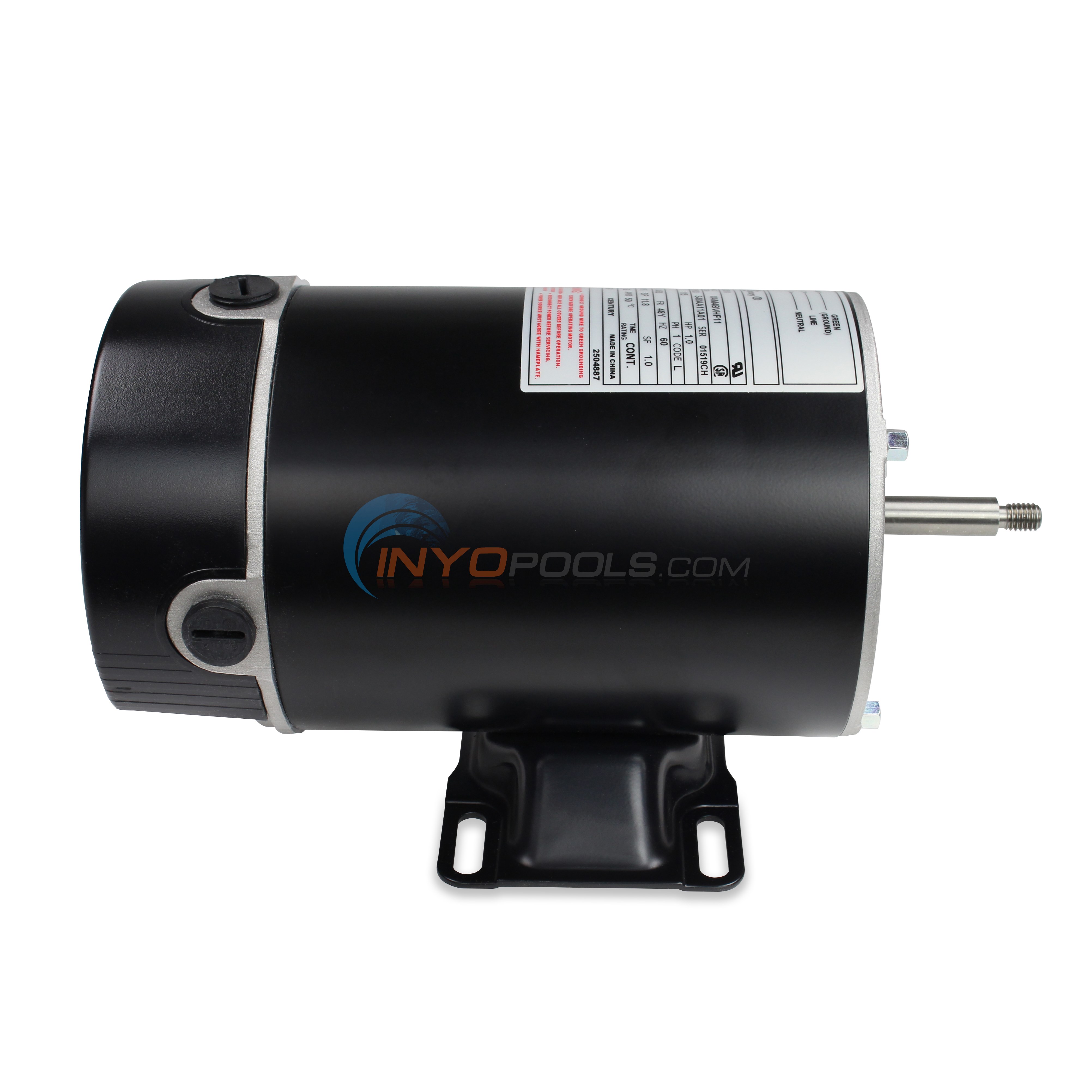

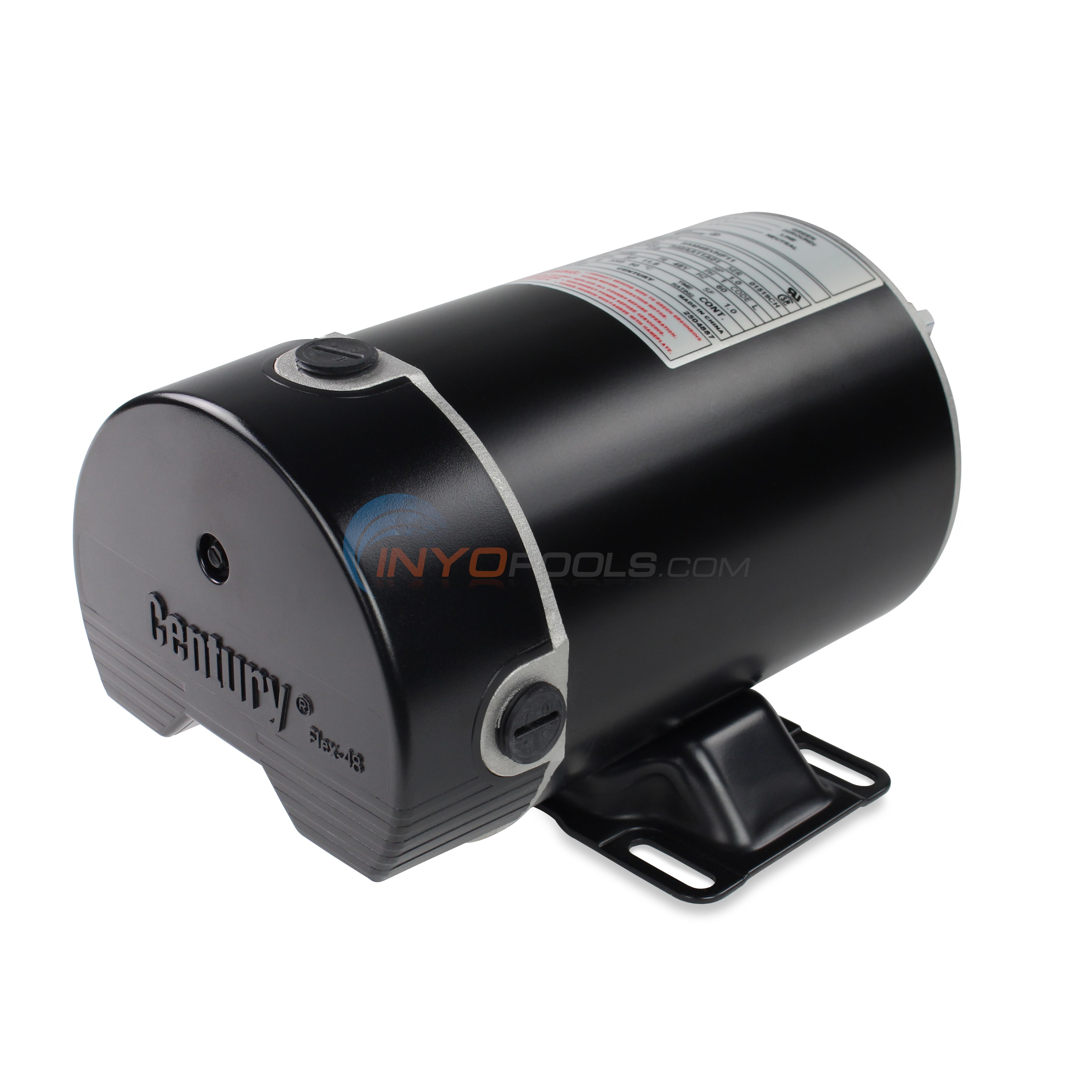

Motor Image Motor Image

Product Specifications

Motor Name:
1 HP BN25 & BN25SS Replacement Pool Motor
HP:
1 HP
Speed:
Single
RPM:
3450 RPM
Volts:
115 V
Amps:
12 amp
Service Factor:
1
Total HP:
1 HP
Frame:
48Y
Stock #:
BN25.BN25SS or BN25V1
Shaft:
Threaded
Overload Protector:
Auto
Dimension Letter:
C
Dimensions:
11.58 in.
Commonly Used On:
Sta-Rite, Hayward, American Products, Hydra Bath, Pac Fab, Jacuzzi, Doughboy
Flange:
Thru Bolt
Top

?     Asked on 1/11/2012by Guest

What is Service Factor?
 Reply

A  Answered on 1/11/2012 by InyoPools Product Specialist Patrick P.

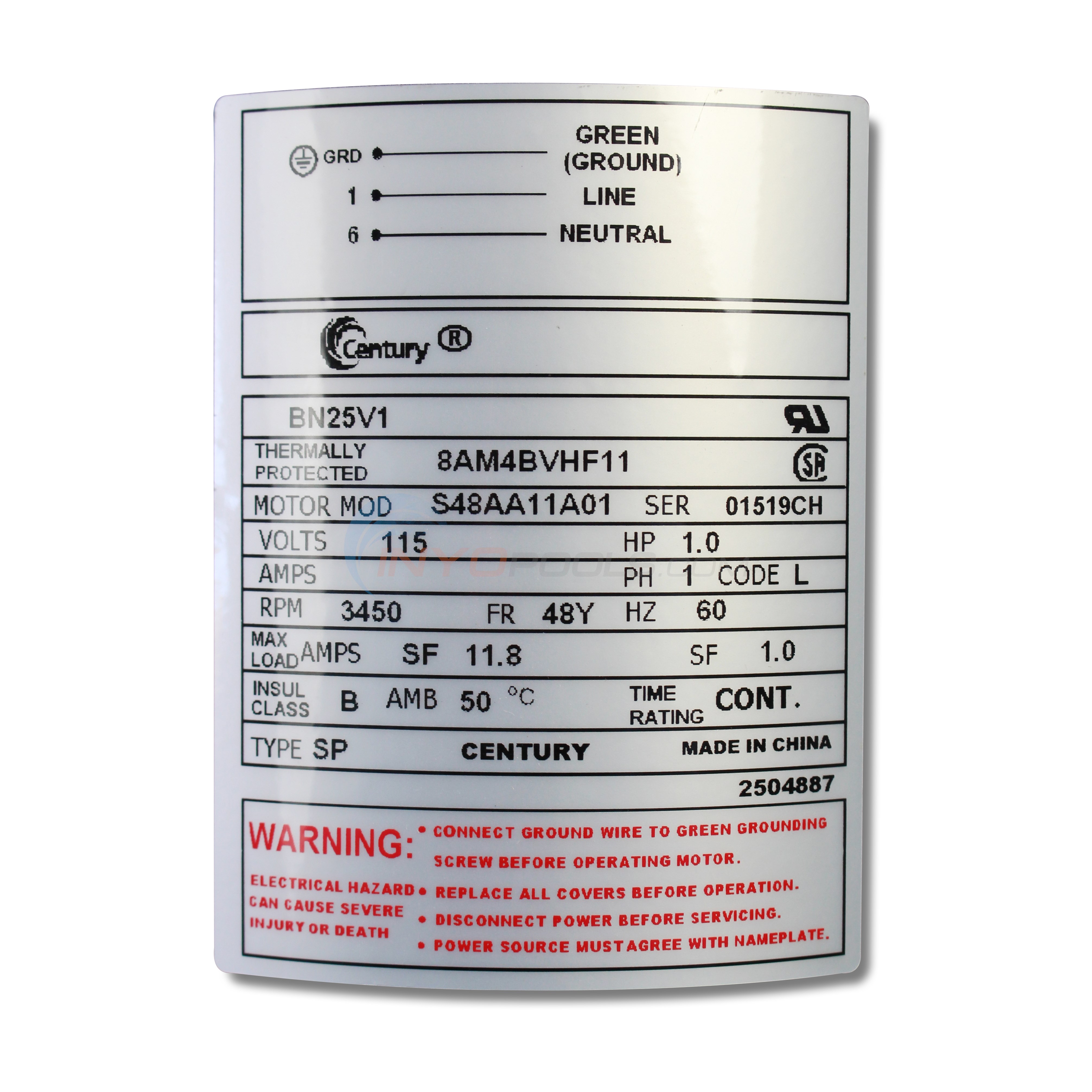

Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
 Reply


?     Asked on 1/12/2012by Guest

Why do I need to purchase a new shaft seal?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.
 Reply


?     Asked on 1/12/2012by Guest

Why should I purchase a Tune Up Kit?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.
 Reply


?     Asked on 1/18/2012by Guest

I'm trying to find a replacement motor for my pool pump but my model number doesn't match what you have listed as the model number. My model number begins with a C48 and yours begins with an SP. Please help.
 Reply

A  Answered on 1/18/2012 by InyoPools Product Specialist Patrick P.

What we have listed on our chart pages is the pump model number. The model number you have will just identify the motor. If you look on the plastic housing on the pump there should be a sticker which will have the pump model number. You can usually find this by the discharge port on the pump. Once you locate it you can choose the correct replacement motor. Be certain to change the shaft seal and gaskets as needed. You can use our >How to guide if you need help.
 Reply


?     Asked on 8/6/2012by Guest

Does this motor come with a cord? If not, do you supply the correct cord?
 Reply

A  Answered on 8/6/2012 by InyoPools Product Specialist Patrick P.

The Magnatek BN25 does not come with a cord. For a 115 volt application, if you need a twist lock cord, you can find it here: http://www.inyopools.com/Products/07501352011327.htm or a standard 3 prong cord here: http://www.inyopools.com/Products/07501352015032.htm
 Reply


Top
Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Nut Drivers, Socket Set

1     1

GFCI was tripping, Motor burned up.

Written on 8/21/2019 by Guest

I closed the valves, disconnected motor and impeller assembly from filter (one union connection), propped filter on angle to keep water from coming out of the union connection while repair was being made. Took motor/impeller assembly inside (in the AC) and replaced motor along with seals and "O" rings, reconnected motor/impeller to filter, plugged it in and turned it on.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Nut Drivers, Pliers, Wrench Set

Pump motor noisey and leaking water at shaft

Written on 6/23/2018 by Guest

Ordered new motor and shaft seal, got it very fast (2 days) and repaired pool filter. Back up and running ASAP! Thanks

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Wrench Set

1     0

Motor died

Written on 6/13/2018 by Guest

Called INYO pools, gave product number, motor arrived in two days, unscrewed the bolts, pulled out the older motor, attached the power cord, reattached the impeller, screwed it into place, turned it on. All good to go!
