Rainbow Bromine Feeder Parts

Model 322 Inline Brominator

Click to zoom in

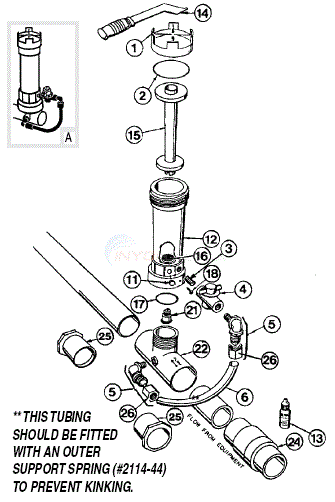

Diagram #	Part Title
12	ORDER COMPLETE UNIT #2096-0
A	CHLORINATOR, RAINBOW 322
1	CHLORINATOR CAP - WHITE
2	O-RING, CAP
3	NIPPLE, 1/2" MPT
4	VALVE,CONTROL 1/2"FPT
5	FITTING, 1/2" 90 DEGREE NPT X TUBE
6**	TUBING,CHLORINATOR 1/2" PER FT

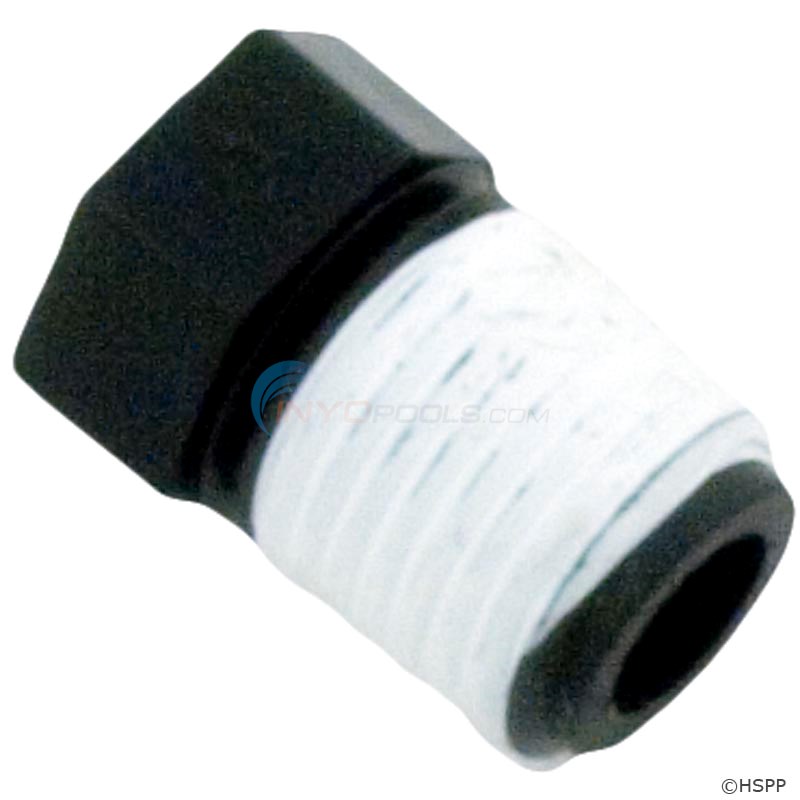

11	RA PLUG 1/4 2007
13	LUBRICANT, SILICONE (R172036)
14	WRENCH, CAP

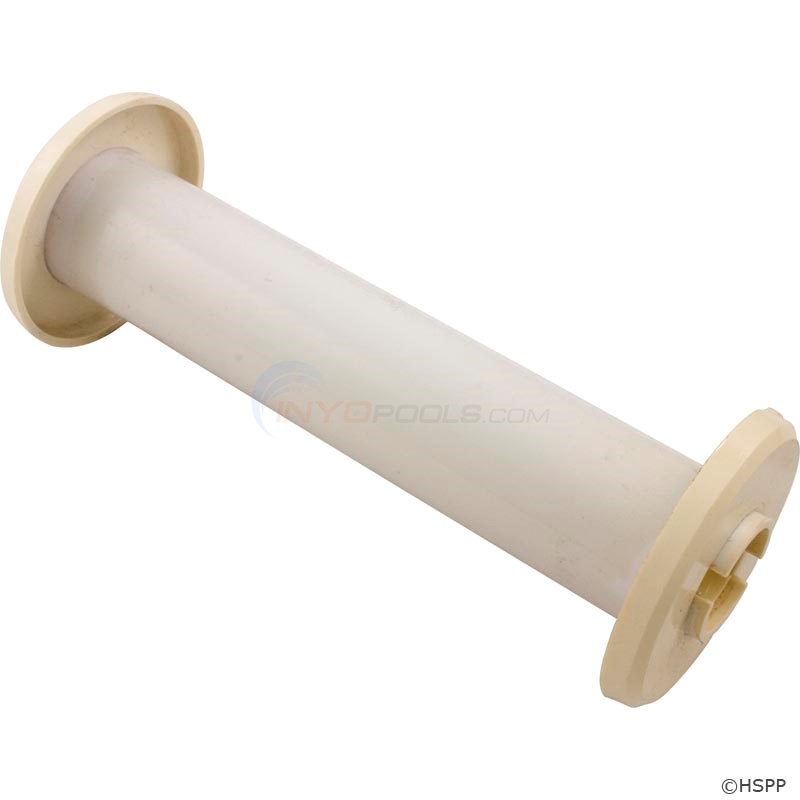

15	CHAMBER, CHEMICAL #322
16	SCREEN
17	O-RING, BOTTOM-INLINE

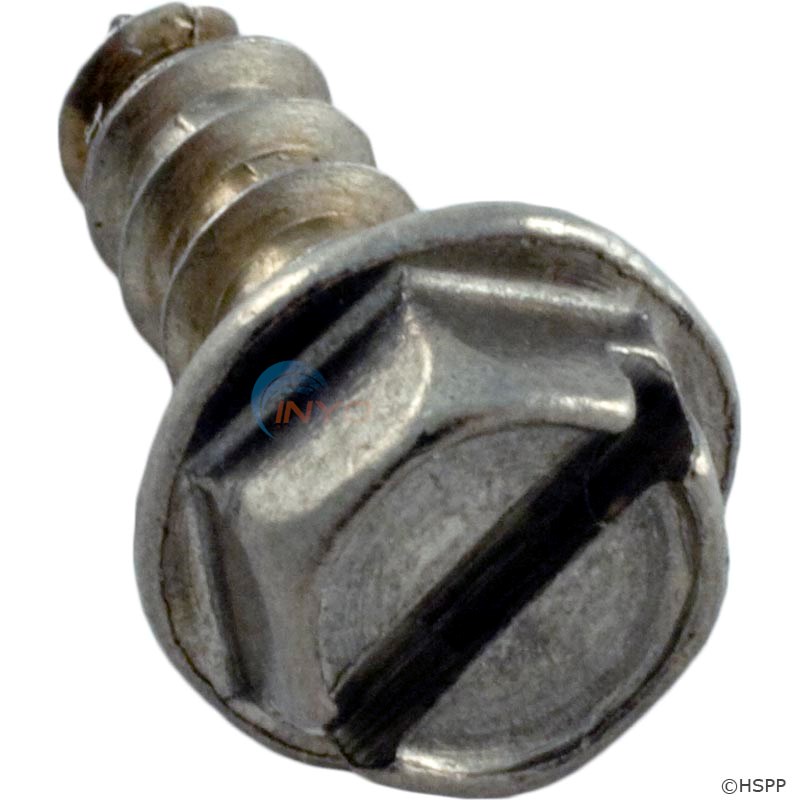

18	SCREW,LOCK 320(CURRENT) & 322
21	VALVE,CHECK WITH RESTRICTOR

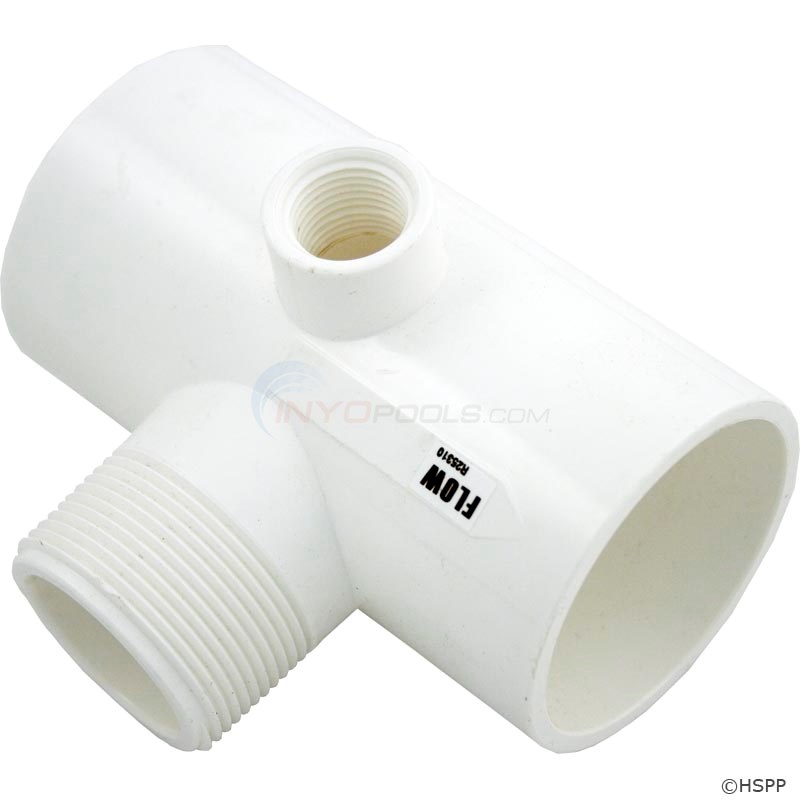

22	TEE, DIVERTER 1 1/2"NPTX2" SXS
24	VALVE,CHECK 1 1/2IN-2IN
25	BUSHING, REDUCING 2 X 1 1/2" SXS
26	NUT, COMPRESSION 1/2IN

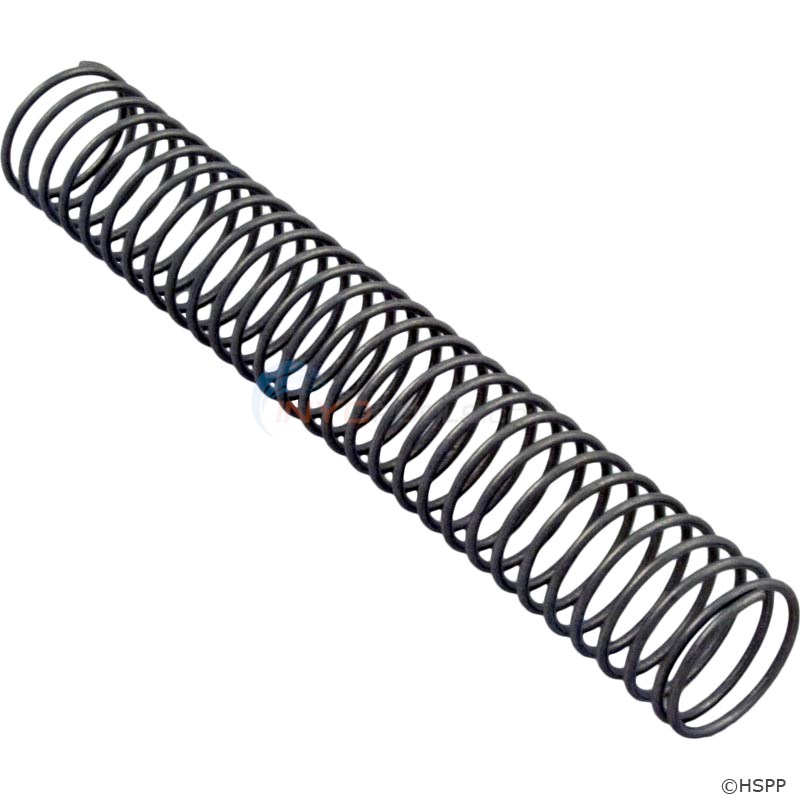

*	SPRING, TUBE SUPPORT

View Parts List

Diagram #	Part Title
12	ORDER COMPLETE UNIT #2096-0
A	CHLORINATOR, RAINBOW 322
1	CHLORINATOR CAP - WHITE
2	O-RING, CAP
3	NIPPLE, 1/2" MPT
4	VALVE,CONTROL 1/2"FPT
5	FITTING, 1/2" 90 DEGREE NPT X TUBE
6**	TUBING,CHLORINATOR 1/2" PER FT
11	RA PLUG 1/4 2007
13	LUBRICANT, SILICONE (R172036)
14	WRENCH, CAP
15	CHAMBER, CHEMICAL #322
16	SCREEN
17	O-RING, BOTTOM-INLINE
18	SCREW,LOCK 320(CURRENT) & 322
21	VALVE,CHECK WITH RESTRICTOR
22	TEE, DIVERTER 1 1/2"NPTX2" SXS
24	VALVE,CHECK 1 1/2IN-2IN
25	BUSHING, REDUCING 2 X 1 1/2" SXS
26	NUT, COMPRESSION 1/2IN
*	SPRING, TUBE SUPPORT

Available Parts:

ORDER COMPLETE UNIT #2096-0

NOT AVAILABLE

Part # 2096-0 Mfg # R171100

CHLORINATOR, RAINBOW 322

$183.21 IN STOCK

Qty:
