Premier 456 B/N Series Pump Parts

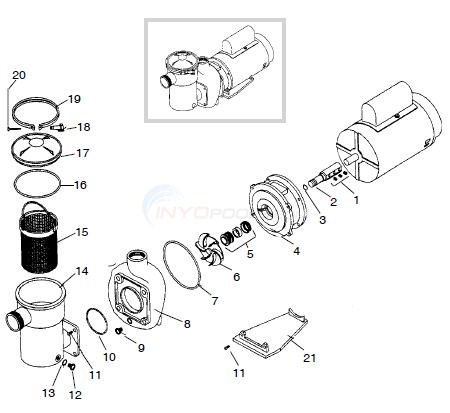

Premier 456 B/N Series Pump Diagram

Click to zoom in

Diagram #	Part Title
1	SCREW, EXTENDED SHAFT (EACH)
2	EXTENSION SHAFT, BRONZE (150)
3	O-RING OD 11/16"
4	OBSOLETE ADAPTER 450 NORYL
5	SEAL, PUMP 1000 (PSR 1000)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
6	IMPELLER, BRONZE 1/2 HP
7	O-RING
8	VOLUTE With LARGE FLANGE (33-819)
9	No Longer Available DRAIN PLUG Replace With 6740-0
10	O-RING (229) (355330)
11	SCREW, CAP 5/16-18 X 3/4IN
12	PLUG,DRAIN (33-717)
13	No Longer Available O-RING ½” Replace With 3262-08
14	TRAP BODY PREMIER 6
15	No Longer Available BASKET 6" PVC Replace With 5400-B034
16	No Longer Available O-RING Replace With 5050-14A
17	COVER, POT 6" LEXAN (33-488)
18	OBSOLETE TEE HANDLE PVC
19	OBSOLETE CLAMP RING ASSY
20	OBSOLETE TEE BOLT ¼-20 X 3½"
21	BASE, PLASTIC
*	UNION, PUMP, 2" NUT X 2" SLIP (400-5570)

View Parts List

Diagram #	Part Title
1	SCREW, EXTENDED SHAFT (EACH)
2	EXTENSION SHAFT, BRONZE (150)
3	O-RING OD 11/16"
4	OBSOLETE ADAPTER 450 NORYL
5	SEAL, PUMP 1000 (PSR 1000)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
6	IMPELLER, BRONZE 1/2 HP
7	O-RING
8	VOLUTE With LARGE FLANGE (33-819)
9	No Longer Available DRAIN PLUG Replace With 6740-0
10	O-RING (229) (355330)
11	SCREW, CAP 5/16-18 X 3/4IN
12	PLUG,DRAIN (33-717)
13	No Longer Available O-RING ½” Replace With 3262-08
14	TRAP BODY PREMIER 6
15	No Longer Available BASKET 6" PVC Replace With 5400-B034
16	No Longer Available O-RING Replace With 5050-14A
17	COVER, POT 6" LEXAN (33-488)
18	OBSOLETE TEE HANDLE PVC
19	OBSOLETE CLAMP RING ASSY
20	OBSOLETE TEE BOLT ¼-20 X 3½"
21	BASE, PLASTIC
*	UNION, PUMP, 2" NUT X 2" SLIP (400-5570)

Available Parts:

SCREW, EXTENDED SHAFT (EACH)

Part # 5050-03 Mfg # 99730000

SCREW, EXTENDED SHAFT (EACH)

$8.94 IN STOCK

Qty:

EXTENSION SHAFT, BRONZE (150)

Part # 5050-04 Mfg # 151

EXTENSION SHAFT, BRONZE (150)

$159.29 IN STOCK

Qty:

O-RING OD 11/16"

Part # 3262-08 Mfg # 112

O-RING OD 11/16"

$3.18 IN STOCK

Qty:

4

OBSOLETE ADAPTER 450 NORYL

Mfg # 31-211

OBSOLETE ADAPTER 450 NORYL

NOT AVAILABLE

SEAL, PUMP 1000 (PSR 1000)

Part # 5250-106 Mfg # PS-1000

SEAL, PUMP 1000 (PSR 1000)

$7.99 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$5.31 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

Part # LUBE-10ML

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

$31.97 IN STOCK

Qty:

IMPELLER, BRONZE 1/2 HP

Part # 5050-06B Mfg # V40-453

IMPELLER, BRONZE 1/2 HP

$166.31

IMPELLER, BRONZE 3/4 HP

Part # 5050-06C Mfg # V40-454

IMPELLER, BRONZE 3/4 HP

$163.11 IN STOCK

Qty:

IMPELLER, BRONZE 1 HP

Part # 5050-06D Mfg # V40-455

IMPELLER, BRONZE 1 HP

$162.05 IN STOCK

Qty:

IMPELLER, BRONZE 1 1/2 HP

Part # 5050-06E Mfg # V40-456

IMPELLER, BRONZE 1 1/2 HP

$159.30 IN STOCK

Qty:

IMPELLER, BRONZE 2 HP

Part # 5050-06F Mfg # V40-457

IMPELLER, BRONZE 2 HP

$168.45 IN STOCK

Qty:

O-RING

Part # 4654-19 Mfg # 159

O-RING

$12.78 IN STOCK

Qty:

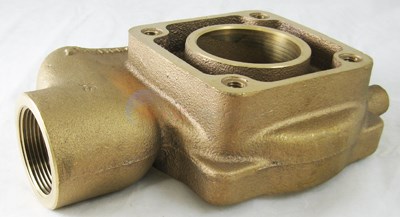

VOLUTE With LARGE FLANGE (33-819)

Part # 5080-01 Mfg # V31-458

VOLUTE With LARGE FLANGE (33-819)

$363.56

9

No Longer Available DRAIN PLUG Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352023826.htm">6740-0</a>

Mfg # 31-721

No Longer Available DRAIN PLUG Replace With 6740-0

NOT AVAILABLE

O-RING (229) (355330)

Part # 5002-21

O-RING (229) (355330)

$10.45 IN STOCK

Qty:

SCREW, CAP 5/16-18 X 3/4IN

Part # 6914-0 Mfg # 073725

SCREW, CAP 5/16-18 X 3/4IN

$9.58 IN STOCK

Qty:

PLUG,DRAIN (33-717)

Part # 9172-10 Mfg # 760-1201B

PLUG,DRAIN (33-717)

$15.98 IN STOCK

Qty:

13

No Longer Available O-RING ½” Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352022920.htm">3262-08</a>

Mfg # 29-113

No Longer Available O-RING ½” Replace With 3262-08

NOT AVAILABLE

TRAP BODY PREMIER 6

Part # 5080-03 Mfg # 33-737

TRAP BODY PREMIER 6

$189.78

15

No Longer Available BASKET 6" PVC Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352012815.htm">5400-B034</a>

Mfg # 33-222

No Longer Available BASKET 6" PVC Replace With 5400-B034

NOT AVAILABLE

16

No Longer Available O-RING Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352023114.htm">5050-14A</a>

Mfg # 33-489

No Longer Available O-RING Replace With 5050-14A

NOT AVAILABLE

COVER, POT 6" LEXAN (33-488)

Part # 5080-14D

COVER, POT 6" LEXAN (33-488)

$35.16

18

OBSOLETE TEE HANDLE PVC

Mfg # 27-494

OBSOLETE TEE HANDLE PVC

NOT AVAILABLE

19

OBSOLETE CLAMP RING ASSY

Mfg # 33-104

OBSOLETE CLAMP RING ASSY

NOT AVAILABLE

OBSOLETE TEE BOLT ¼-20 X 3½"

Part # 5080-14D

OBSOLETE TEE BOLT ¼-20 X 3½"

$35.16

BASE, PLASTIC

Part # 5080-09A Mfg # V40-467

BASE, PLASTIC

$120.47 IN STOCK

Qty:

UNION, PUMP, 2" NUT X 2" SLIP (400-5570)

Part # 9175-03 Mfg # 400-5570B

UNION, PUMP, 2" NUT X 2" SLIP (400-5570)

$8.52 IN STOCK

Qty:

NUT, UNION COMPRESSION 2IN

Part # 5081-20 Mfg # 415-5000

NUT, UNION COMPRESSION 2IN

$18.11 IN STOCK

Qty:

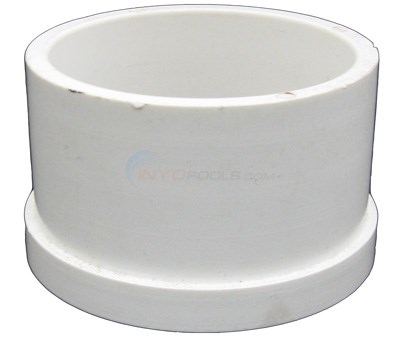

TAILPIECE, UNION 2IN

Part # 5081-19 Mfg # 417-5120

TAILPIECE, UNION 2IN

$13.84 IN STOCK

Qty:

O-RING (229) (355330)

Part # 5002-21

O-RING (229) (355330)

$10.45 IN STOCK

Qty:

MOTORS - 56C KEYED

Part # VARIOUS

MOTORS - 56C KEYED

NOT AVAILABLE

* NOT SHOWN
