Sta-Rite D Series Parts

MODELS DMH, DMJ, DHH AND DHJ

DMH = 3 HP MED. HEAD
DMJ = 5 HP MED. HEAD
DHH = 3 HP HIGH HEAD
DHJ = 5 HP HIGH HEAD

Sta-Rite D Series Diagram

Click to zoom in

Diagram #	Part Title
1	MOTOR, 3HP, 1 PHASE, MED.HEAD
*	Protective Pool Motor Cover
2A	SLEEVE
2B	O-RING SHAFT
3	KEY, SQUARE
4	SLINGER, WATER
5	SCREW, MOTOR CAP (3/8-16X 7/8 SS)
6	ADAPTER
7	GASKET, ADAPTER (GENERIC) (G-67)
8	LOCK WASHER
9	SCREW, MOTOR CAP (3/8-16X 7/8 SS)
10	SEAL, SHAFT
10	Seal Assembly - Ps-185 (ps-185)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
11	GASKET, SEAL
12	IMPELLER, 3HP
13	DIFFUSER, VOLUTE
14	RING, WEAR FOR 3 HP
15	GASKET
16	WASHER
17	GASKET
18	SCREW, CAP 3/8-16 X 3-4" (SAMPLE S-5)
19	RING, DIFFUSER
20	BODY, PUMP FOR 3 & 5 HP HI HD
21	SCREW, CAP 5/16-18 X 3/4IN
22	H-Series 1/4" NPT Brass Plug
23	DRAIN COCK, 1/4" NPT (09432-04)
*	Pentair PKG 73 Suction Flange D-Series

View Parts List

Diagram #	Part Title
1	MOTOR, 3HP, 1 PHASE, MED.HEAD
*	Protective Pool Motor Cover
2A	SLEEVE
2B	O-RING SHAFT
3	KEY, SQUARE
4	SLINGER, WATER
5	SCREW, MOTOR CAP (3/8-16X 7/8 SS)
6	ADAPTER
7	GASKET, ADAPTER (GENERIC) (G-67)
8	LOCK WASHER
9	SCREW, MOTOR CAP (3/8-16X 7/8 SS)
10	SEAL, SHAFT
10	Seal Assembly - Ps-185 (ps-185)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
11	GASKET, SEAL
12	IMPELLER, 3HP
13	DIFFUSER, VOLUTE
14	RING, WEAR FOR 3 HP
15	GASKET
16	WASHER
17	GASKET
18	SCREW, CAP 3/8-16 X 3-4" (SAMPLE S-5)
19	RING, DIFFUSER
20	BODY, PUMP FOR 3 & 5 HP HI HD
21	SCREW, CAP 5/16-18 X 3/4IN
22	H-Series 1/4" NPT Brass Plug
23	DRAIN COCK, 1/4" NPT (09432-04)
*	Pentair PKG 73 Suction Flange D-Series

Available Parts:

MOTOR, 3HP, 1 PHASE, MED.HEAD

Part # 5058-01A Mfg # P130

MOTOR, 3HP, 1 PHASE, MED.HEAD

$708.51

MOTOR, 3HP, 3 PHASE, MED.HEAD

Part # 5058-01C Mfg # E177

MOTOR, 3HP, 3 PHASE, MED.HEAD

$392.94

MOTOR, 3 H.P., 200V, 1 PHASE

Part # 5058-29 Mfg # C218-191

MOTOR, 3 H.P., 200V, 1 PHASE

$1020.06

MOTOR, 3 H.P., 200V, 3 PHASE (C218178)

Part # 5058-30 Mfg # C218-178

MOTOR, 3 H.P., 200V, 3 PHASE (C218178)

$683.39

MOTOR, 5HP, 1 PHASE, MED.HEAD (P231)

Part # 5058-01B Mfg # P231M2

MOTOR, 5HP, 1 PHASE, MED.HEAD (P231)

$1325.63 IN STOCK

Qty:

"MOTOR, 5HP, 3 PHASE, MED. HD"

Part # 5058-01D Mfg # E296

"MOTOR, 5HP, 3 PHASE, MED. HD"

$447.21

MOTOR, 5 H.P., 200V, 1 PHASE (C218192)

Part # 5058-32 Mfg # C218-192

MOTOR, 5 H.P., 200V, 1 PHASE (C218192)

$979.86

MOTOR, 5 H.P., 200V, 3 PHASE (C218181)

Part # 5058-31 Mfg # C218-181

MOTOR, 5 H.P., 200V, 3 PHASE (C218181)

$611.03

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$35.89 IN STOCK

Qty:

SLEEVE

Part # 5058-02 Mfg # C23-58

SLEEVE

$160.29 IN STOCK

Qty:

O-RING SHAFT

Part # 5058-02A Mfg # 021

O-RING SHAFT

$12.65 IN STOCK

Qty:

KEY, SQUARE

Part # 5058-03 Mfg # U65-42A

KEY, SQUARE

$30.14 IN STOCK

Qty:

SLINGER, WATER

Part # 5058-04 Mfg # C69-15

SLINGER, WATER

$16.59 IN STOCK

Qty:

SCREW, MOTOR CAP (3/8-16X 7/8 SS)

Part # 5110-16 Mfg # SAMPLE S-22

SCREW, MOTOR CAP (3/8-16X 7/8 SS)

$4.01 IN STOCK

Qty:

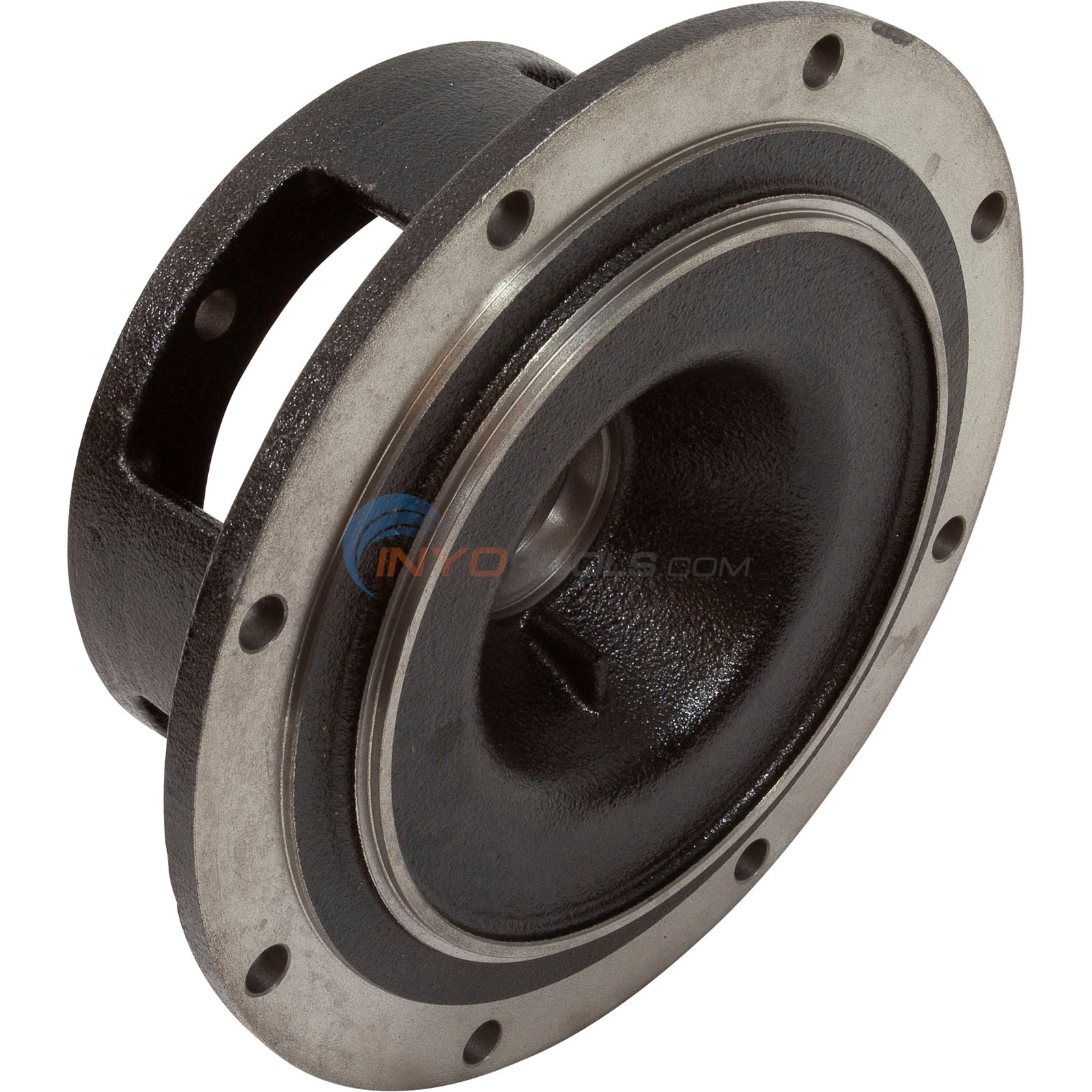

ADAPTER

Part # 5058-06 Mfg # C2-66

ADAPTER

$270.03 IN STOCK

Qty:

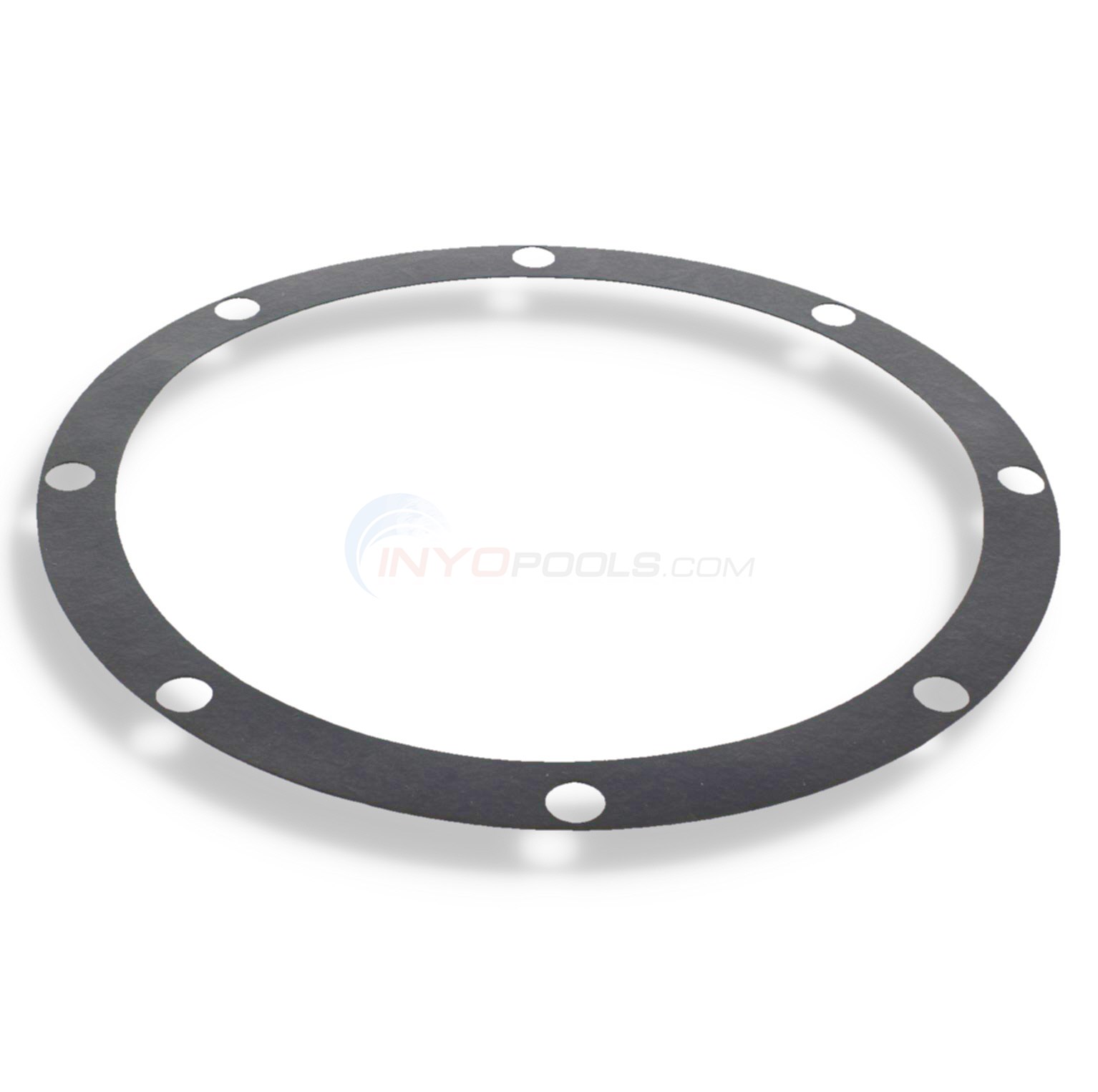

GASKET, ADAPTER (GENERIC) (G-67)

Part # 5058-07 Mfg # C20-46

GASKET, ADAPTER (GENERIC) (G-67)

$23.21 IN STOCK

Qty:

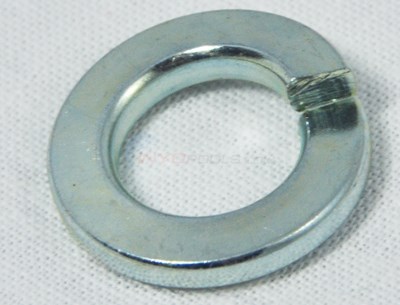

LOCK WASHER

Part # 5058-08 Mfg # U43-12ZP

LOCK WASHER

$11.04

SCREW, MOTOR CAP (3/8-16X 7/8 SS)

Part # 5110-16 Mfg # SAMPLE S-22

SCREW, MOTOR CAP (3/8-16X 7/8 SS)

$4.01 IN STOCK

Qty:

SEAL, SHAFT

Part # 5058-10 Mfg # U109-433SS

SEAL, SHAFT

$145.02 IN STOCK

Qty:

Seal Assembly - Ps-185 (ps-185)

Part # 5250-185 Mfg # AS-185

Seal Assembly - Ps-185 (ps-185)

$76.37 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$5.01

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

Part # LUBE-10ML

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

$30.14 IN STOCK

Qty:

GASKET, SEAL

Part # 5058-11 Mfg # C20-101

GASKET, SEAL

$13.71 IN STOCK

Qty:

IMPELLER, 3HP

Part # 5058-12 Mfg # C5-246

IMPELLER, 3HP

$608.01 IN STOCK

Qty:

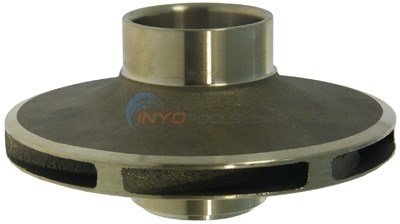

IMPELLER, 5HP

Part # 5058-12A Mfg # C5-247

IMPELLER, 5HP

$662.28 IN STOCK

Qty:

IMPELLER, 3HP, HI-HEAD (C105-208)

Part # 5058-12B Mfg # C5-248

IMPELLER, 3HP, HI-HEAD (C105-208)

$624.09 IN STOCK

Qty:

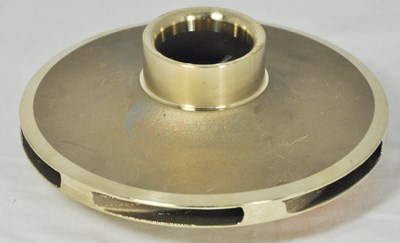

IMPELLER, 5 HP , HI-HEAD

Part # 5058-12C Mfg # C5-249

IMPELLER, 5 HP , HI-HEAD

$623.71 IN STOCK

Qty:

DIFFUSER, VOLUTE

Part # 5058-13 Mfg # C101-126

DIFFUSER, VOLUTE

$188.93

DIFFUSER, VOLUTE FOR 5 HP

Part # 5058-13A Mfg # C101-126B

DIFFUSER, VOLUTE FOR 5 HP

$207.02 IN STOCK

Qty:

DIFFUSER, With WEAR RING

Part # 5058-09A Mfg # C101-132

DIFFUSER, With WEAR RING

$207.02 IN STOCK

Qty:

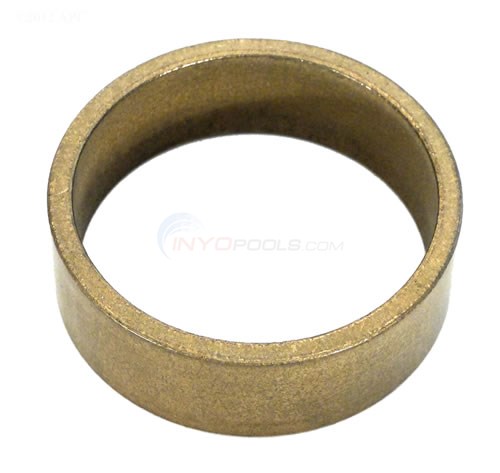

RING, WEAR FOR 3 HP

Part # 5058-14 Mfg # J23-5

RING, WEAR FOR 3 HP

$59.81 IN STOCK

Qty:

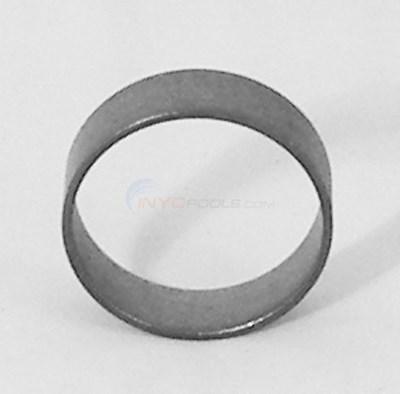

RING, WEAR FOR 5 HP

Part # 5058-14A Mfg # C23-14

RING, WEAR FOR 5 HP

$58.38 IN STOCK

Qty:

GASKET

Part # 5058-15 Mfg # C20-100

GASKET

$15.72 IN STOCK

Qty:

WASHER

Part # 5058-16 Mfg # C43-45SS

WASHER

$13.28 IN STOCK

Qty:

GASKET

Part # 5058-17 Mfg # C43-46

GASKET

$22.05 IN STOCK

Qty:

SCREW, CAP 3/8-16 X 3-4" (SAMPLE S-5)

Part # 6916-0 Mfg # U3072SS

SCREW, CAP 3/8-16 X 3-4" (SAMPLE S-5)

$10.04 IN STOCK

Qty:

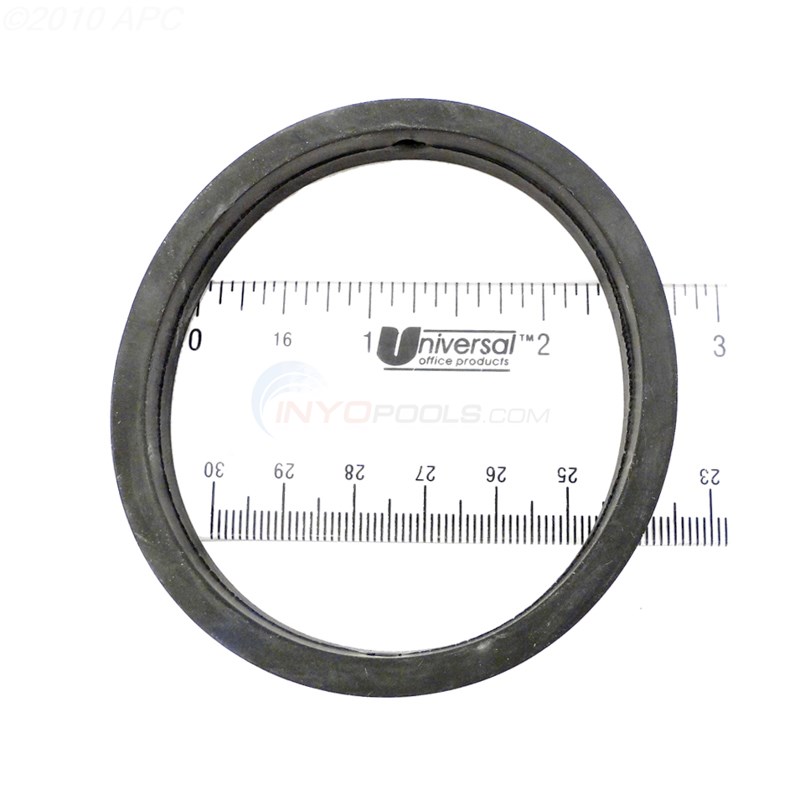

RING, DIFFUSER

Part # 5058-19 Mfg # C21-2

RING, DIFFUSER

$22.85 IN STOCK

Qty:

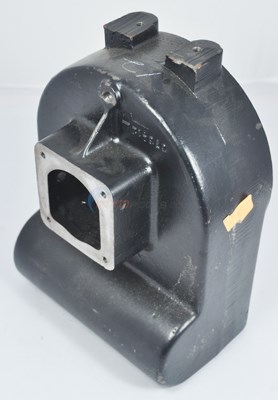

BODY, PUMP FOR 3 & 5 HP HI HD

Part # 5058-20 Mfg # C76-12

BODY, PUMP FOR 3 & 5 HP HI HD

$669.32 IN STOCK

Qty:

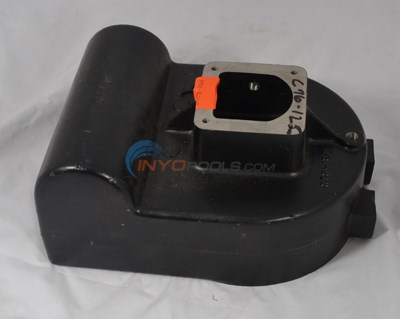

BODY, PUMP FOR 5 HP

Part # 5058-20A Mfg # C76-12C

BODY, PUMP FOR 5 HP

$728.61

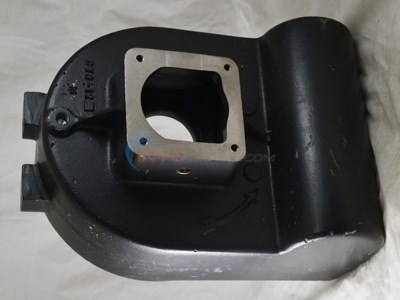

BODY, PUMP FOR 3 HP HI-HEAD

Part # 5058-20B Mfg # C76-12B

BODY, PUMP FOR 3 HP HI-HEAD

$695.45

SCREW, CAP 5/16-18 X 3/4IN

Part # 6914-0 Mfg # 073725

SCREW, CAP 5/16-18 X 3/4IN

$9.03 IN STOCK

Qty:

H-Series 1/4" NPT Brass Plug

Part # 6740-0 Mfg # 06121-04

H-Series 1/4" NPT Brass Plug

$17.07 IN STOCK

Qty:

DRAIN COCK, 1/4" NPT (09432-04)

Part # 5054-10 Mfg # U212-68T

DRAIN COCK, 1/4" NPT (09432-04)

$10.04 IN STOCK

Qty:

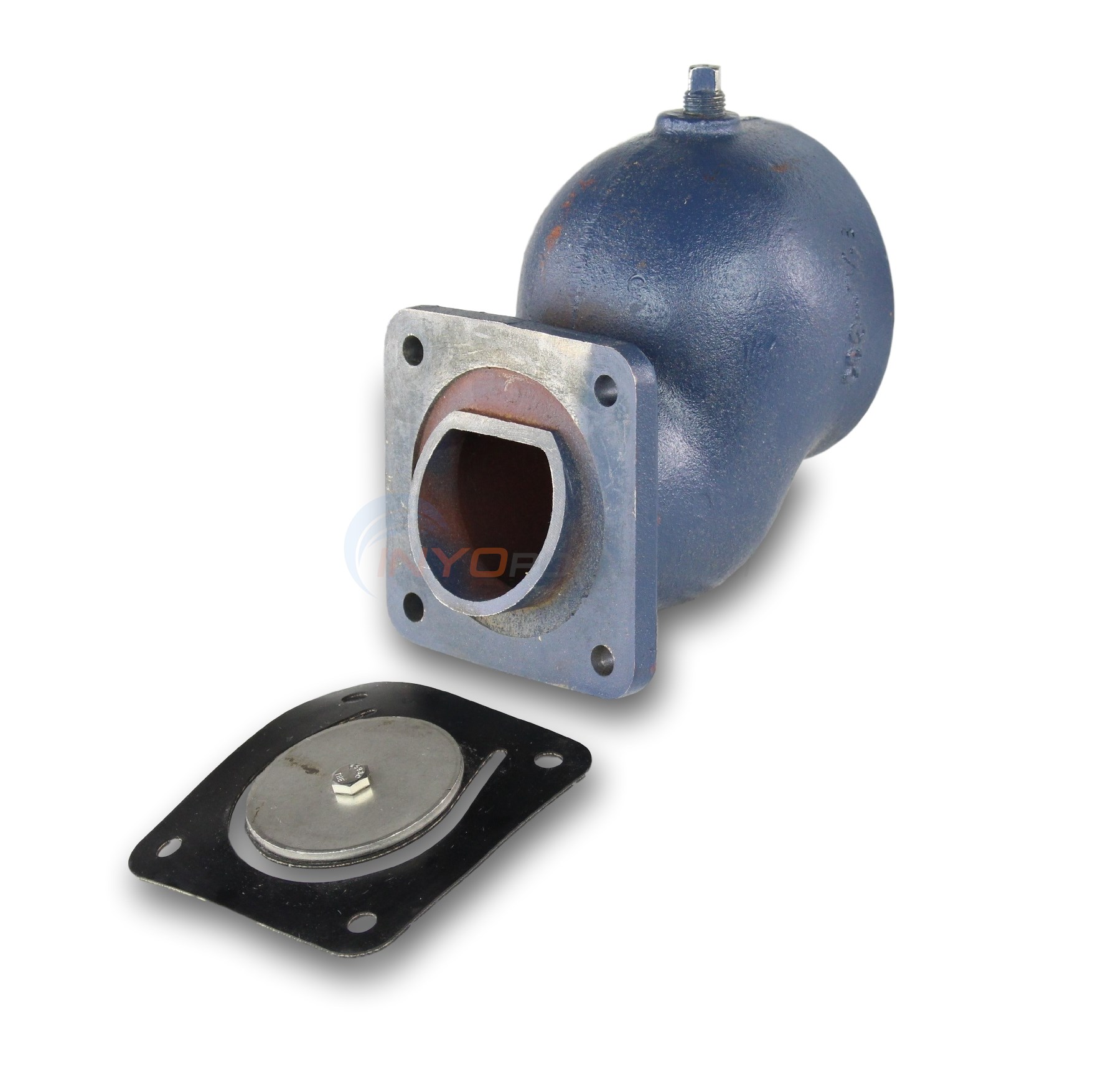

Pentair PKG 73 Suction Flange D-Series

Part # PKG73

Pentair PKG 73 Suction Flange D-Series

$124.61

*NOT SHOWN
A “3” IN THE COMPLETE MODEL NUMBER INDICATES A 3 PHASE MOTOR
A “2” INDICATES A 200 VOLT MOTOR
