Sta-Rite Plastic Slide Valve WC212, WC134 Parts

STA-RITE PLASTIC SLIDE VALVE

WC212 - 134 - TWO POSITION VALVE

FOR SAND & D.E. FILTERS

Sta-Rite Plastic Slide Valve WC212, WC134 Diagram

Click to zoom in

Diagram #	Part Title
A	COMPLETE - Slide Valve 2 Union Connection
1	LEVER HANDLE (14930-0031) INCLUDES KEY 1A, 3 OF KEY 1B, 2 OF KEY 1C
1A	HANDLE, SEE KEY #1

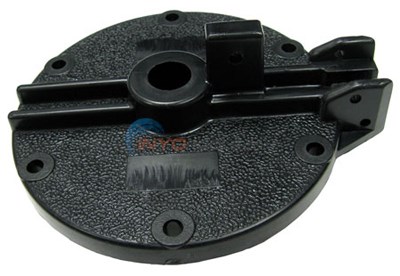

2	INDEX PLATE FOR 14936 VALVE (14930-0032) INCLUDES KEY 2A, 2 OF KEY 1B, KEY 2B
2A	INDEX PLATE, SEE KEY #2
2B	O-RING
3	PISTON ASSEMBLY FOR 14936 VALVE (14930-0033) INCLUDES KEY 3B, 2 OF KEY 3A, AND O-RING

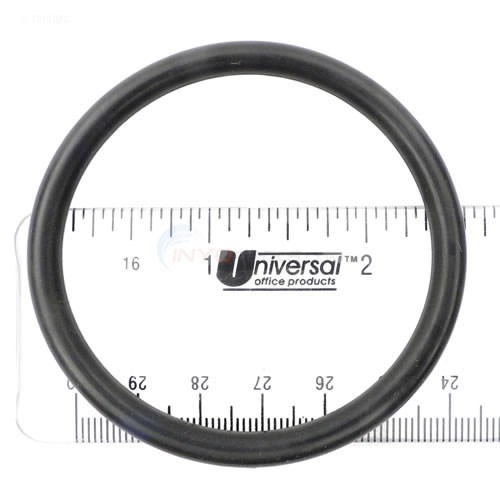

3A	O-RING, PISTON VALVE
3B	MOLDED PISTON ASSEMBLY, SEE KEY #3
4	O-RING, ADAPTER
5	COLLAR, UNION (NUT) (U11-200P)
6	ADAPTER, FPT 2IN
7	BODY ASSEMBLY - NOT AVAILABLE SEPARATELY, ORDER COMPLETE VALVE
*	O-RING

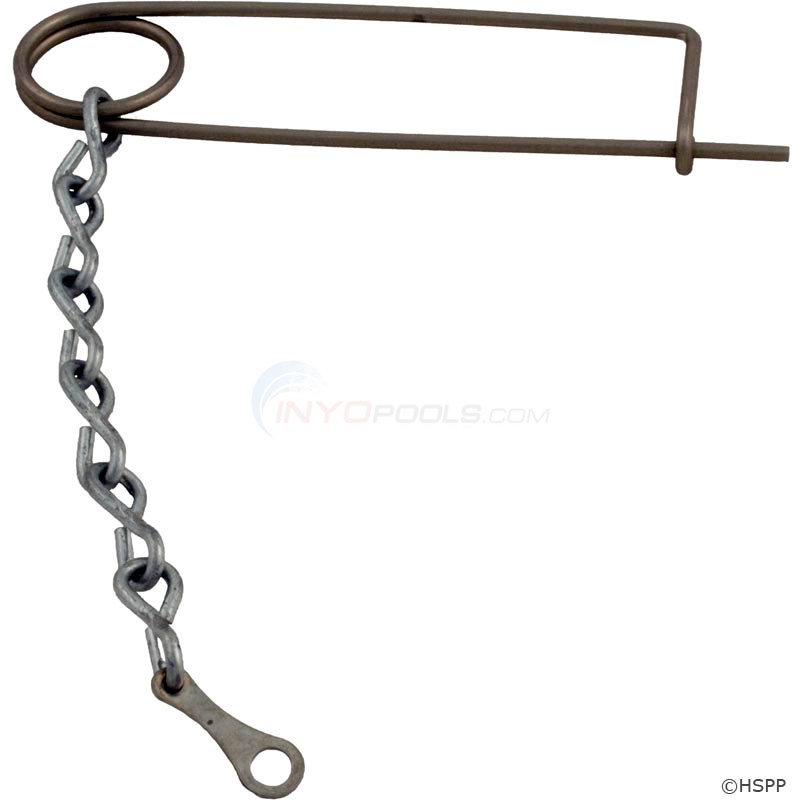

8	LOCK PIN FOR UNITROL VALVE

View Parts List

Diagram #	Part Title
A	COMPLETE - Slide Valve 2 Union Connection
1	LEVER HANDLE (14930-0031) INCLUDES KEY 1A, 3 OF KEY 1B, 2 OF KEY 1C
1A	HANDLE, SEE KEY #1
2	INDEX PLATE FOR 14936 VALVE (14930-0032) INCLUDES KEY 2A, 2 OF KEY 1B, KEY 2B
2A	INDEX PLATE, SEE KEY #2
2B	O-RING
3	PISTON ASSEMBLY FOR 14936 VALVE (14930-0033) INCLUDES KEY 3B, 2 OF KEY 3A, AND O-RING
3A	O-RING, PISTON VALVE
3B	MOLDED PISTON ASSEMBLY, SEE KEY #3
4	O-RING, ADAPTER
5	COLLAR, UNION (NUT) (U11-200P)
6	ADAPTER, FPT 2IN
7	BODY ASSEMBLY - NOT AVAILABLE SEPARATELY, ORDER COMPLETE VALVE
*	O-RING
8	LOCK PIN FOR UNITROL VALVE
