Teledyne Laars Series 1 Electronic (EPC & EPS) Parts

Diagram #	Part Title
1	PILOT BURNER, EPS EPC NAT.
2	TUBING, PILOT WITH FITTINGS
3	FLAME SENSOR, R.S. S-1, PROP.
4	CERAMIC INSULATOR ASSY.EPS,EPC,LITE
6	BURNER TRAY WELDMENT, 125 LLD
7	GAS VALVE, EPS,EPC,ESC,NAT.
8	ORIFICE, GAS NATURAL - LAARS
9	BURNER, With PILOT BRACKET ALL XE (10457200)
10	BURNER, MAIN - ALL XE
12	TEMP. CONTROL ASSY., EPS
14	No Longer Available WIRE HARNESS (EPS, EPCII) Replace With 6200-450
15	THERMISTER, TEMPERATURE SENSOR
16	HIGH VOLTAGE LEAD ASSY. ESC
17	THERMOSTAT,MECHANICAL F/EG,EPG,ESG & LLG
18	SWITCH, ON/OFF EPC, EPM, EPG
19	OBSOLETE TEMP PLATE (EPC)
21	KNOB, THERMOSTAT
24	CASTING, TEMP. CONTROL BEZEL
26	TEMP-LOK DISK, SERIES II
28	PRESSURE SWITCH, ESG (2 PSI) (OEM)
29	TUBE, SYPHON LOOP ASSY
30	HIGH LIMIT ASSY
31	DISC, HI-LIMIT SWITCH 135 F
32	DISC, HI-LIMIT 150 F
33	CLIP, HI-LIMIT SWITCH RETAINER
34	S-989 RUBBER RETAINER
35	OBSOLETE SWITCH COVER
36	FUSIBLE LINK
37	BRACKET, FUSIBLE LINK
38	TRANSFORMER, 115-220V/24V-ALL ELECTRIC
41	IN LINE FUSE ASSY.,EPC,EPS,ESC,LLD
42	CONTROL, IGNITION KIT
43	WIRE HARNESS
44	No Longer Available HIGH VOLTAGE LEAD Replace With 6203-007
58	HEADER, FRONT 1.5 IN - ALL XE
59	HEADER, REAR - ALL XE
60	HEADER BOLT SET (R0057000)
61	HEADER BOLT 2.5 INCH
62	WASHER, HEADER
63	NUT, HEADER
64	GASKET, HEADER - SET OF 18
65	KIT, FLANGE - COMPLETE 1 1/2"
66	FLANGE, 1 1/2" - ALL MODELS
67	GASKET, HEATER FLANGE
68	OBSOLETE FLANGE SLEEVE, 1-1/2”
69	SCREW, HOUSING CAP 3/8-16 X 2
70	FLANGE KIT, 2" 2 PER KIT
71	FLANGE, 2 INCH - EACH
72	GASKET, FLANGE 2" (SINGLE)
73	SLEEVE FOR 2" FLANGE (6270-05A)
74	SCREW, HOUSING CAP 3/8-16 X 2
75	GASKET, FLANGE 2 X 1 1/2IN
79	PLUG, FOR REDUNDANT HI-LIMIT (6740-0)
81	PLUG, 3/4IN (6220-07)
82	ROD ASSY. With DISK (NO SPRING)
83	ROD, FLOW CONTROL
84	DISC, BY-PASS
85	No Longer Available BY PASS CAP Replace With 6200-101

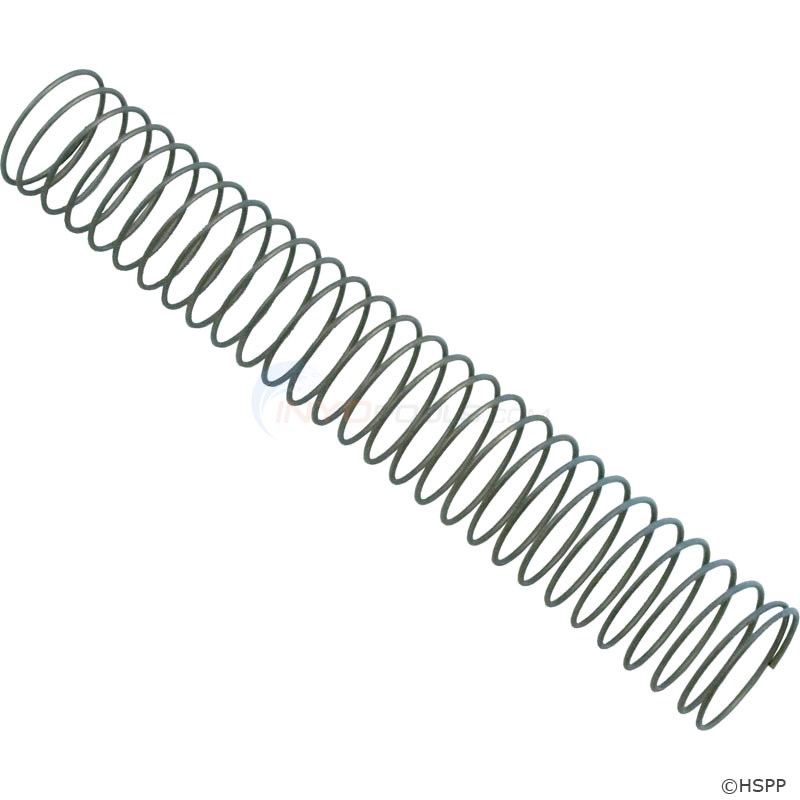

86	SPRING, BY-PASS (WHITE)
87	BY PASS GASKET

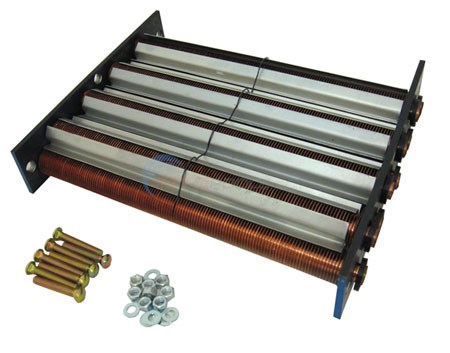

88	EXCHANGER, HEAT-XE-125

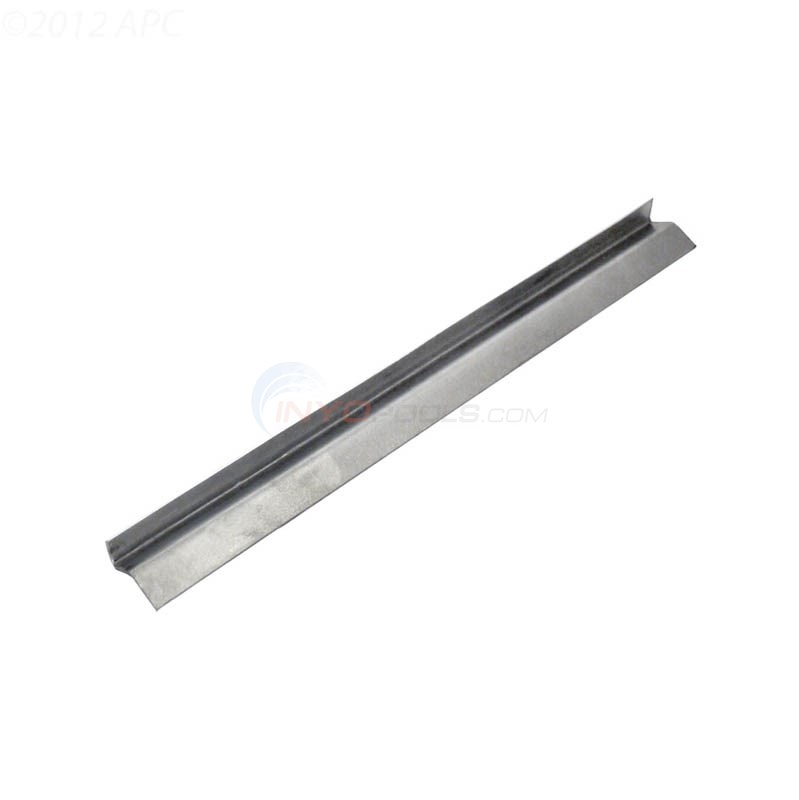

89	OBSOLETE EXCHANGER BAFFLE

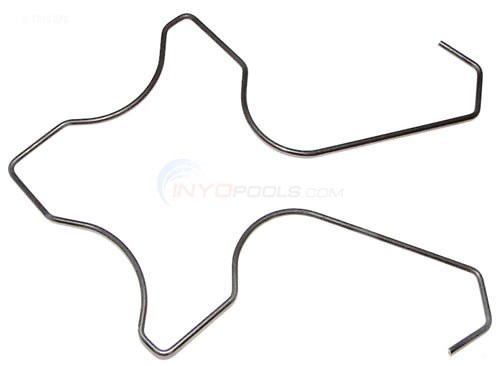

90	CLIP, BAFFLE RETAINER
*	HARNESS,WIRE

Diagram #	Part Title
1	PILOT BURNER, EPS EPC NAT.
2	TUBING, PILOT WITH FITTINGS
3	FLAME SENSOR, R.S. S-1, PROP.
4	CERAMIC INSULATOR ASSY.EPS,EPC,LITE
6	BURNER TRAY WELDMENT, 125 LLD
7	GAS VALVE, EPS,EPC,ESC,NAT.
8	ORIFICE, GAS NATURAL - LAARS
9	BURNER, With PILOT BRACKET ALL XE (10457200)
10	BURNER, MAIN - ALL XE
12	TEMP. CONTROL ASSY., EPS
14	No Longer Available WIRE HARNESS (EPS, EPCII) Replace With 6200-450
15	THERMISTER, TEMPERATURE SENSOR
16	HIGH VOLTAGE LEAD ASSY. ESC
17	THERMOSTAT,MECHANICAL F/EG,EPG,ESG & LLG
18	SWITCH, ON/OFF EPC, EPM, EPG
19	OBSOLETE TEMP PLATE (EPC)
21	KNOB, THERMOSTAT
24	CASTING, TEMP. CONTROL BEZEL
26	TEMP-LOK DISK, SERIES II
28	PRESSURE SWITCH, ESG (2 PSI) (OEM)
29	TUBE, SYPHON LOOP ASSY
30	HIGH LIMIT ASSY
31	DISC, HI-LIMIT SWITCH 135 F
32	DISC, HI-LIMIT 150 F
33	CLIP, HI-LIMIT SWITCH RETAINER
34	S-989 RUBBER RETAINER
35	OBSOLETE SWITCH COVER
36	FUSIBLE LINK
37	BRACKET, FUSIBLE LINK
38	TRANSFORMER, 115-220V/24V-ALL ELECTRIC
41	IN LINE FUSE ASSY.,EPC,EPS,ESC,LLD
42	CONTROL, IGNITION KIT
43	WIRE HARNESS
44	No Longer Available HIGH VOLTAGE LEAD Replace With 6203-007
58	HEADER, FRONT 1.5 IN - ALL XE
59	HEADER, REAR - ALL XE
60	HEADER BOLT SET (R0057000)
61	HEADER BOLT 2.5 INCH
62	WASHER, HEADER
63	NUT, HEADER
64	GASKET, HEADER - SET OF 18
65	KIT, FLANGE - COMPLETE 1 1/2"
66	FLANGE, 1 1/2" - ALL MODELS
67	GASKET, HEATER FLANGE
68	OBSOLETE FLANGE SLEEVE, 1-1/2”
69	SCREW, HOUSING CAP 3/8-16 X 2
70	FLANGE KIT, 2" 2 PER KIT
71	FLANGE, 2 INCH - EACH
72	GASKET, FLANGE 2" (SINGLE)
73	SLEEVE FOR 2" FLANGE (6270-05A)
74	SCREW, HOUSING CAP 3/8-16 X 2
75	GASKET, FLANGE 2 X 1 1/2IN
79	PLUG, FOR REDUNDANT HI-LIMIT (6740-0)
81	PLUG, 3/4IN (6220-07)
82	ROD ASSY. With DISK (NO SPRING)
83	ROD, FLOW CONTROL
84	DISC, BY-PASS
85	No Longer Available BY PASS CAP Replace With 6200-101
86	SPRING, BY-PASS (WHITE)

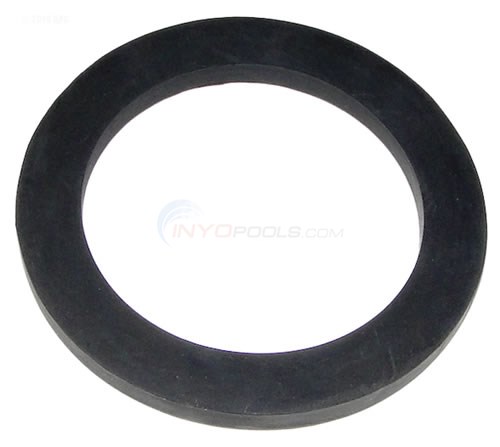

87	BY PASS GASKET
88	EXCHANGER, HEAT-XE-125
89	OBSOLETE EXCHANGER BAFFLE
90	CLIP, BAFFLE RETAINER
*	HARNESS,WIRE

Available Parts:

Part # 6203-010B Mfg # R0061600

PILOT BURNER, EPS EPC NAT.

$103.25 IN STOCK

Qty:

ADD TO CART

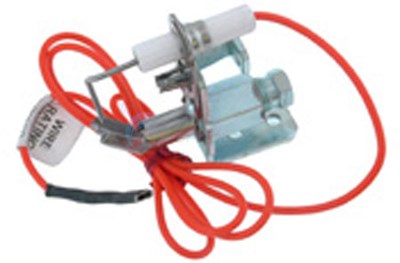

Part # 6203-010C Mfg # W0038300

PILOT BURNER, EPC-LP PROP.

$115.93

VIEW DETAILS

Part # 6200-114A Mfg # R0037000

TUBING, PILOT WITH FITTINGS

$55.89 IN STOCK

Qty:

ADD TO CART

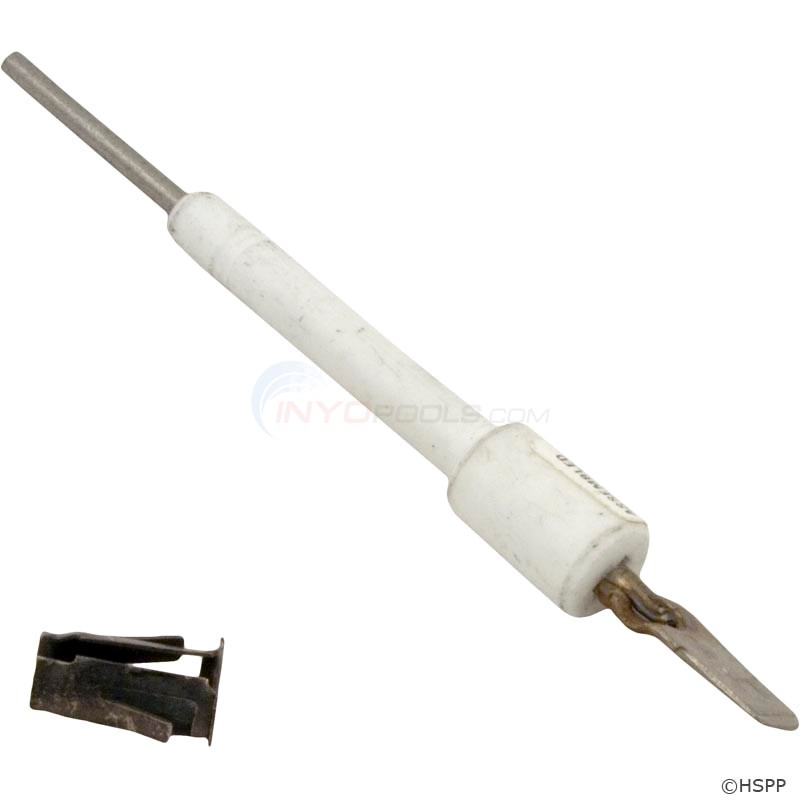

Part # 6203-019 Mfg # W0037500

FLAME SENSOR, R.S. S-1, PROP.

$89.01

VIEW DETAILS

Part # 6203-014A Mfg # R0011600

CERAMIC INSULATOR ASSY.EPS,EPC,LITE

$91.59 IN STOCK

Qty:

ADD TO CART

Part # 6200-21E Mfg # R0317001

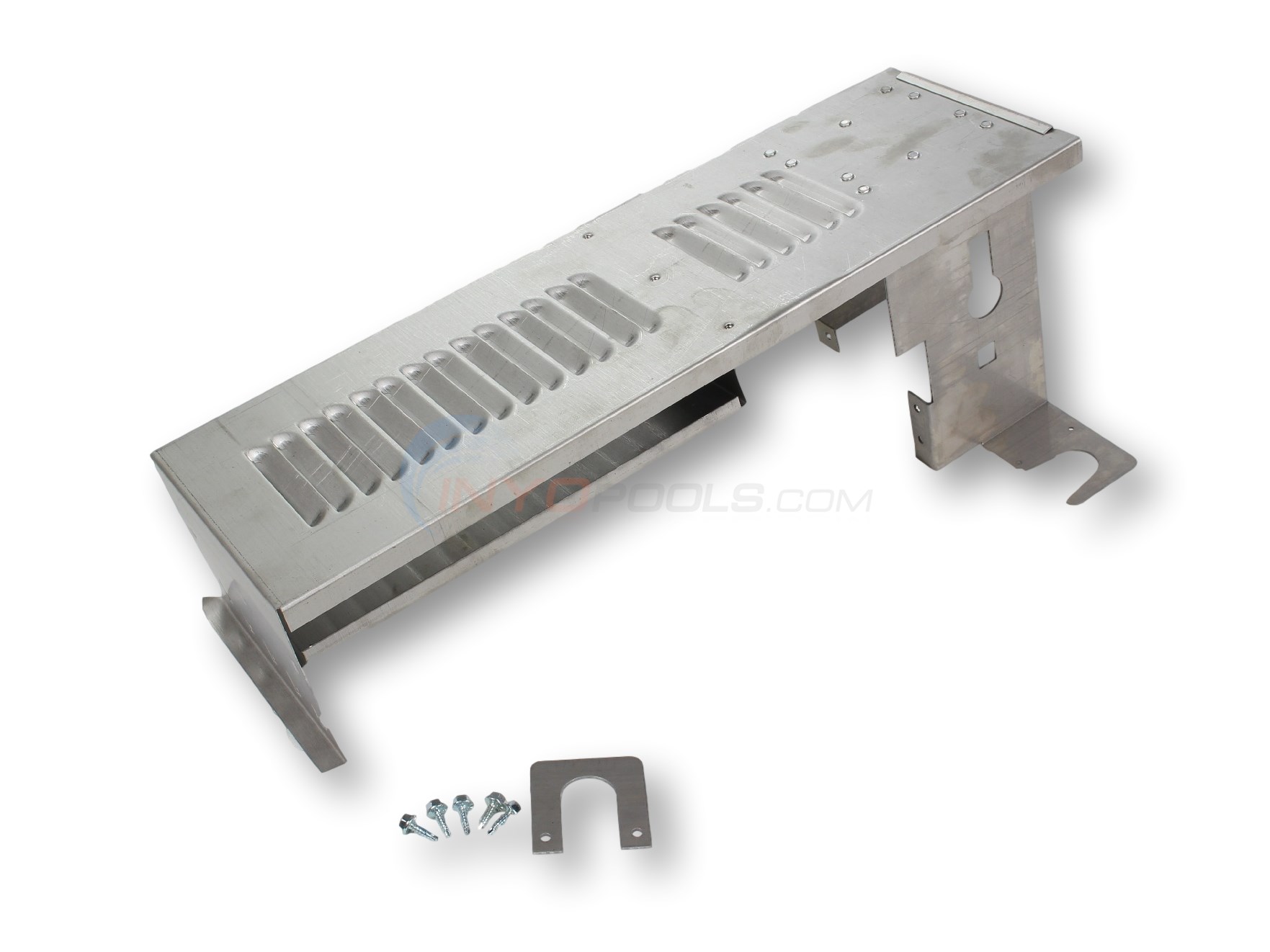

BURNER TRAY WELDMENT, 125 LLD

$258.78

VIEW DETAILS

Part # 6200-21A Mfg # R0317002

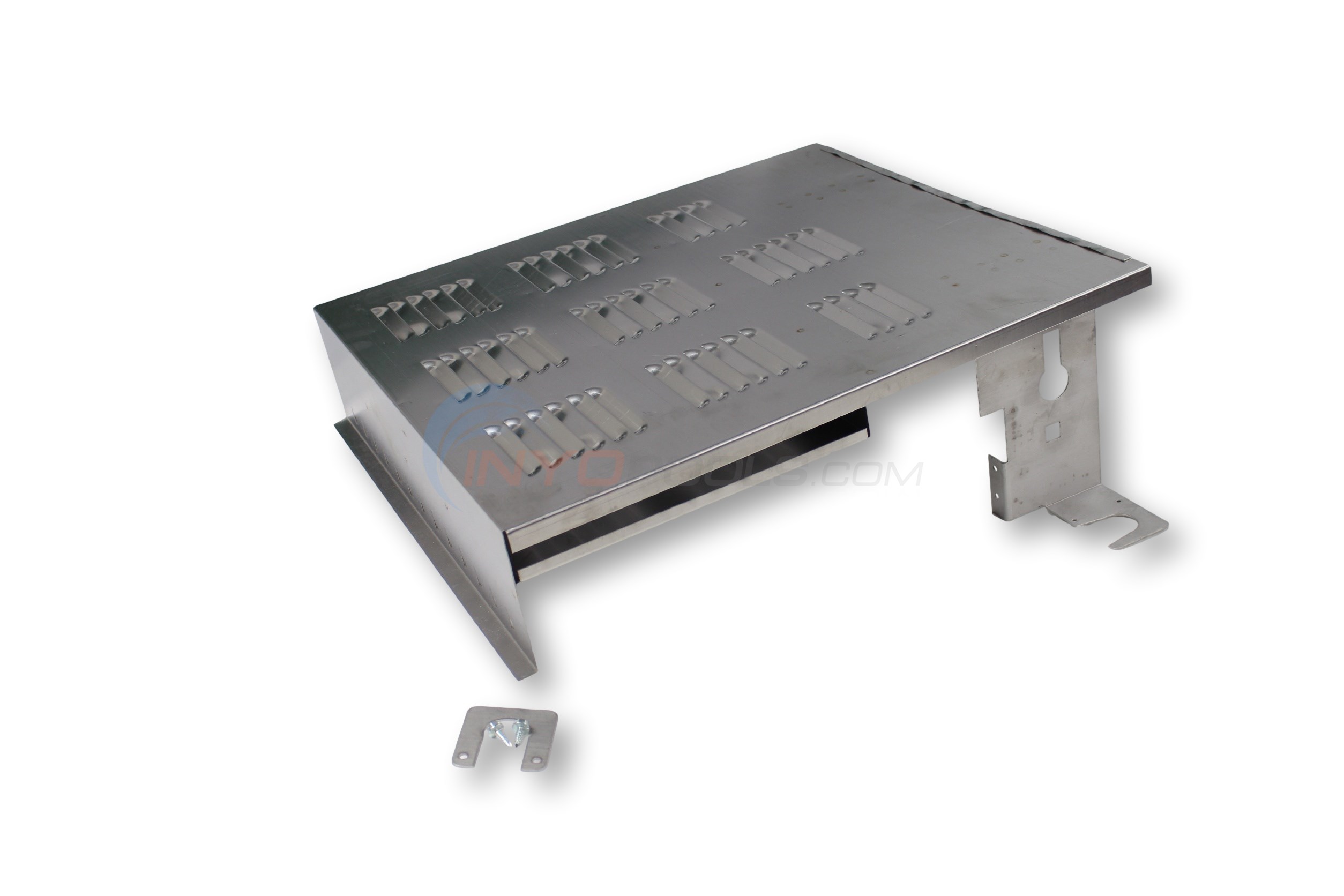

BURNER TRAY WELDMENT, 175

$262.92

VIEW DETAILS

Part # 6200-21B Mfg # R0317003

BURNER TRAY WELDMENT, 250

$260.85

VIEW DETAILS

Part # 6200-21C Mfg # R0317004

BURNER TRAY WELDMONT, 325

$258.78 IN STOCK

Qty:

ADD TO CART

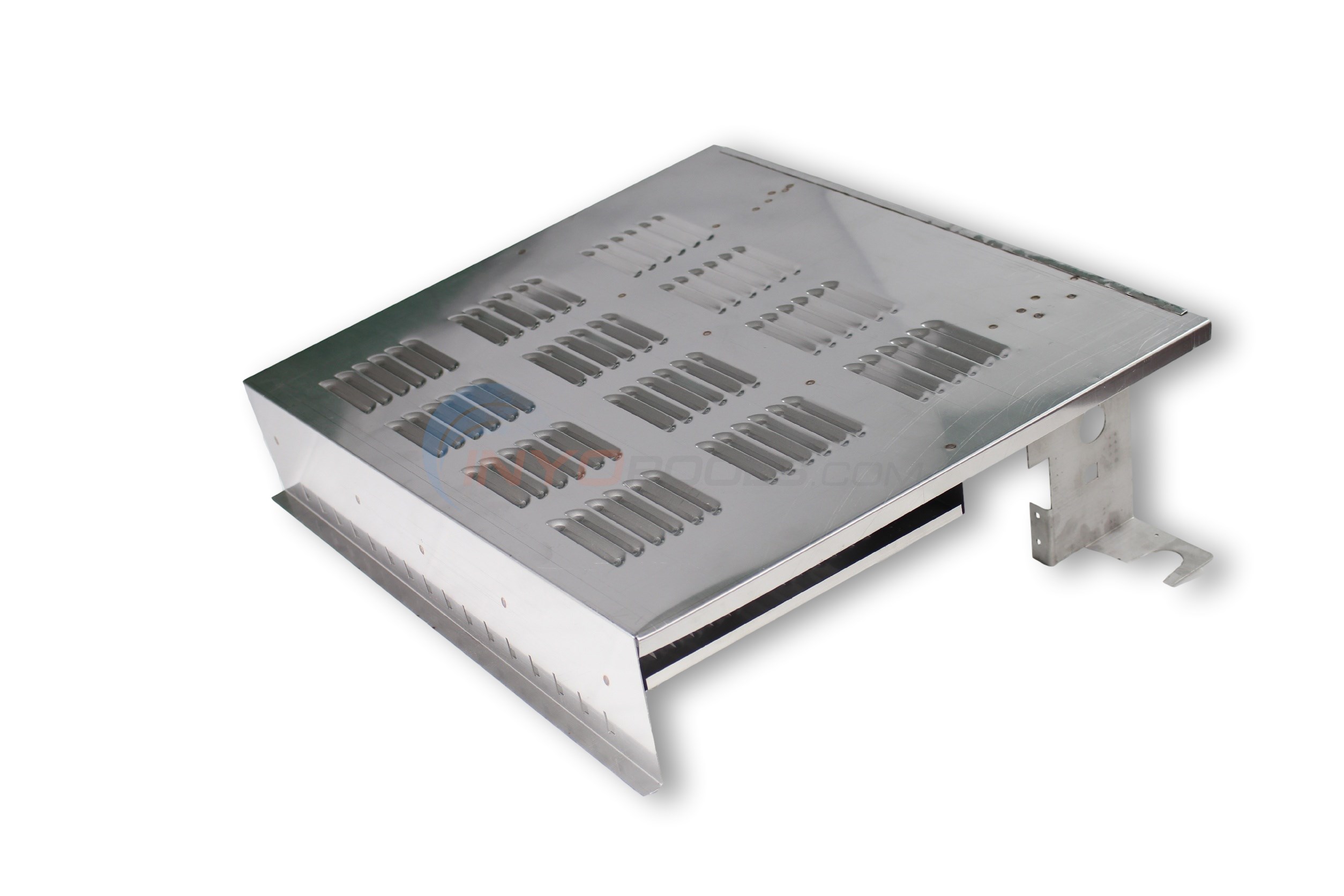

Part # 6200-21D Mfg # R0317005

BURNER TRAY WELDMENT, 400

$258.78 IN STOCK

Qty:

ADD TO CART

Part # 6200-132D Mfg # R0039200

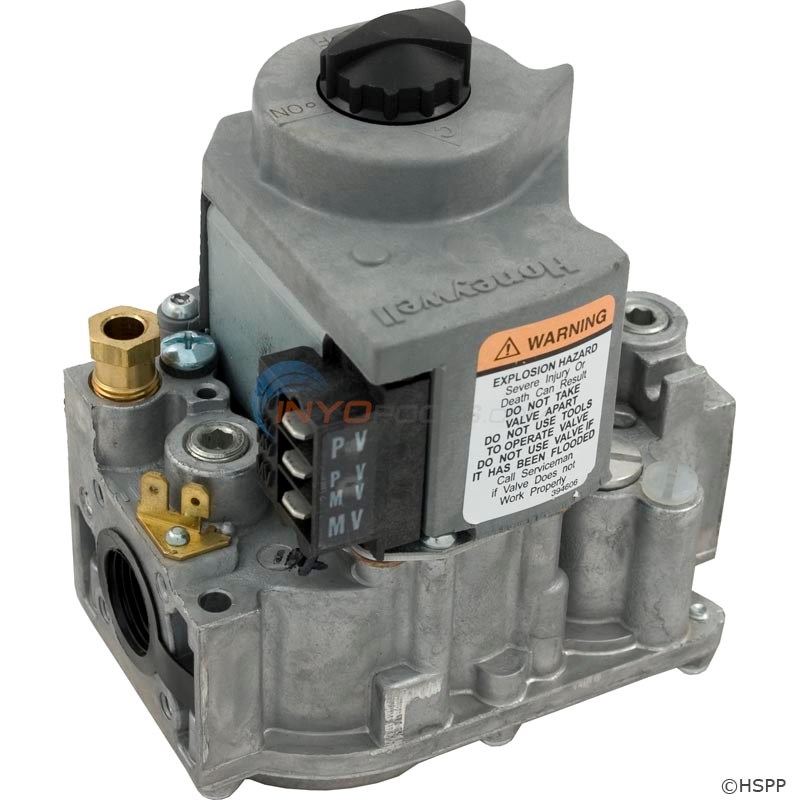

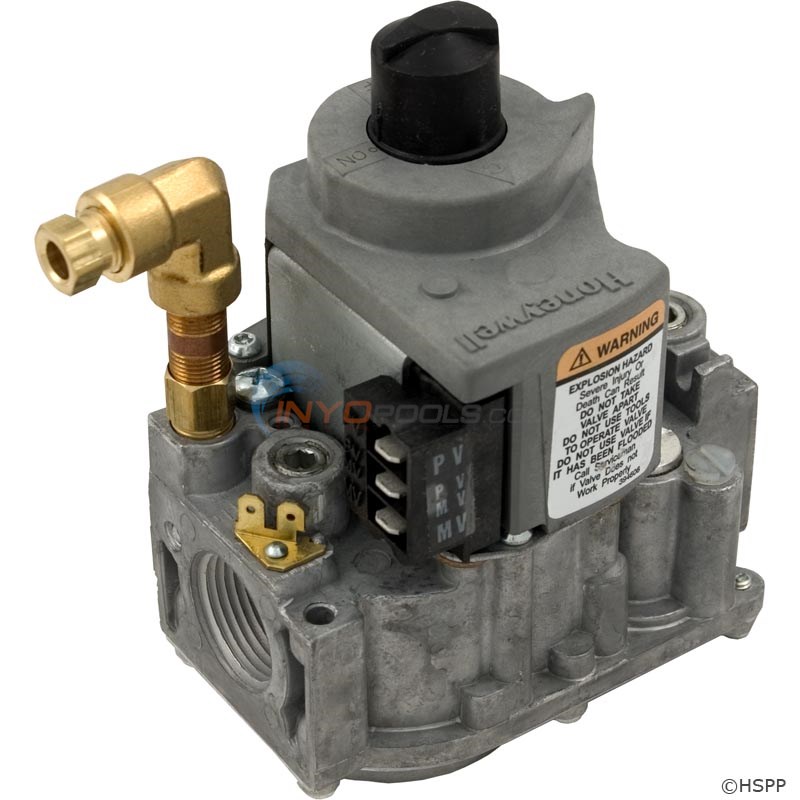

GAS VALVE, EPS,EPC,ESC,NAT.

$406.80

VIEW DETAILS

Part # 6200-132E Mfg # R0038400

GAS VALVE,EPS,EPC,ESC, NAT.

$366.43

VIEW DETAILS

Part # 6200-132I Mfg # R0028200

GAS VALVE EPC (ALL) PROP.

$453.39

VIEW DETAILS

Part # 6200-134 Mfg # L0032200

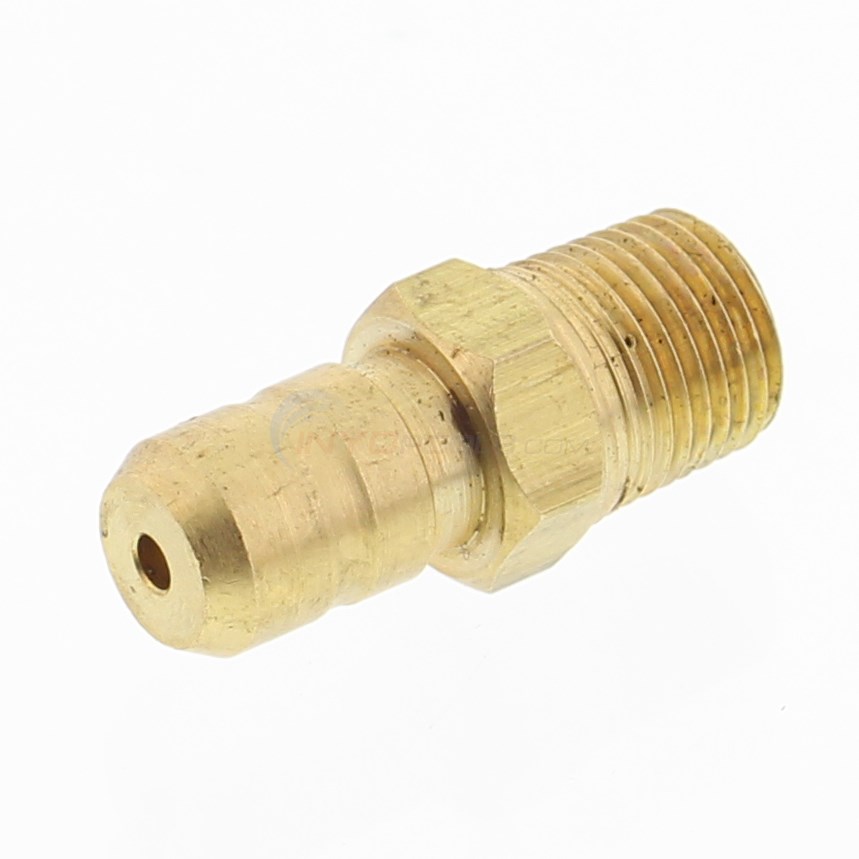

ORIFICE, GAS NATURAL - LAARS

$11.37 IN STOCK

Qty:

ADD TO CART

Part # 6200-136 Mfg # L0032900

ORIFICE, GAS PROPANE - LAARS

$15.51 IN STOCK

Qty:

ADD TO CART

Part # 6200-139 Mfg # R0449600

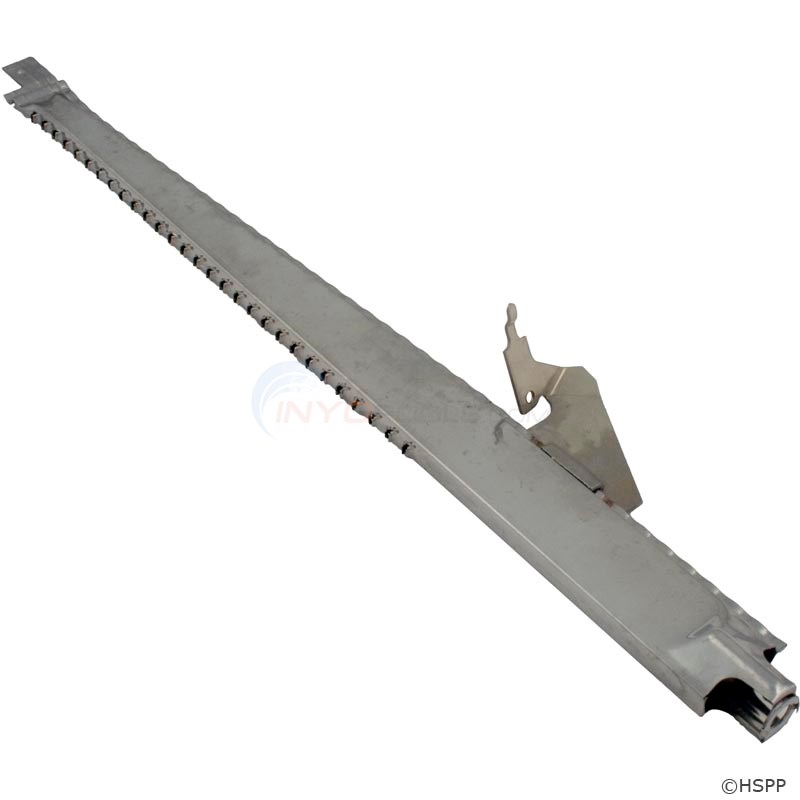

BURNER, With PILOT BRACKET ALL XE (10457200)

$70.38

VIEW DETAILS

Part # 6200-141 Mfg # L0052300

BURNER, MAIN - ALL XE

$63.13

VIEW DETAILS

Part # 6203-071B Mfg # R0011700

TEMP. CONTROL ASSY., EPS

$530.03 IN STOCK

Qty:

ADD TO CART

No Longer Available WIRE HARNESS (EPS, EPCII) Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352018753.htm">6200-450</a>

Mfg # R0058000

No Longer Available WIRE HARNESS (EPS, EPCII) Replace With 6200-450

NOT AVAILABLE

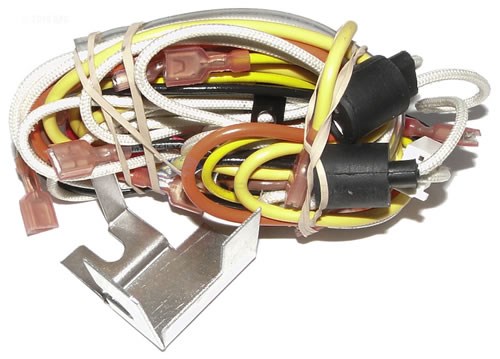

Part # 6200-450 Mfg # R0058100

HARNESS,WIRE

$98.32

VIEW DETAILS

Part # 6203-061 Mfg # R0011800

THERMISTER, TEMPERATURE SENSOR

$161.47 IN STOCK

Qty:

ADD TO CART

Part # 6203-007 Mfg # R0099000

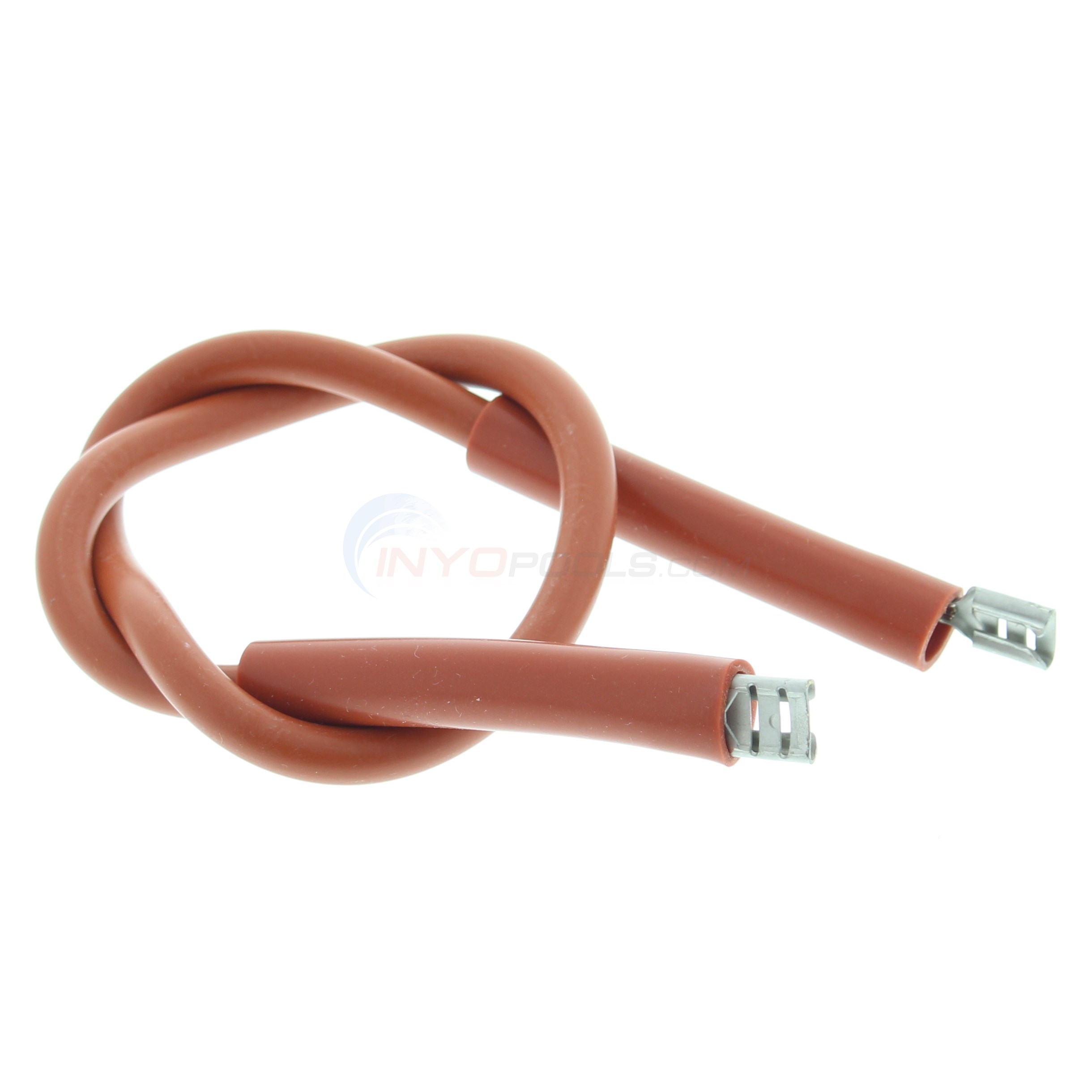

HIGH VOLTAGE LEAD ASSY. ESC

$67.27 IN STOCK

Qty:

ADD TO CART

Part # 6200-163 Mfg # R0318800

THERMOSTAT,MECHANICAL F/EG,EPG,ESG & LLG

$266.54 IN STOCK

Qty:

ADD TO CART

Part # 6203-082 Mfg # R0094100

SWITCH, ON/OFF EPC, EPM, EPG

$66.24 IN STOCK

Qty:

ADD TO CART

Mfg # 10456300

OBSOLETE TEMP PLATE (EPC)

NOT AVAILABLE

Part # 6203-072 Mfg # R0010700

KNOB, THERMOSTAT

$25.98 IN STOCK

Qty:

ADD TO CART

Part # 6203-076 Mfg # S0069800

CASTING, TEMP. CONTROL BEZEL

$76.59 IN STOCK

Qty:

ADD TO CART

Part # 6203-073 Mfg # 10583100

TEMP-LOK DISK, SERIES II

$17.58

VIEW DETAILS

Part # 6203-022A Mfg # R0013200

PRESSURE SWITCH, ESG (2 PSI) (OEM)

$114.29 IN STOCK

Qty:

ADD TO CART

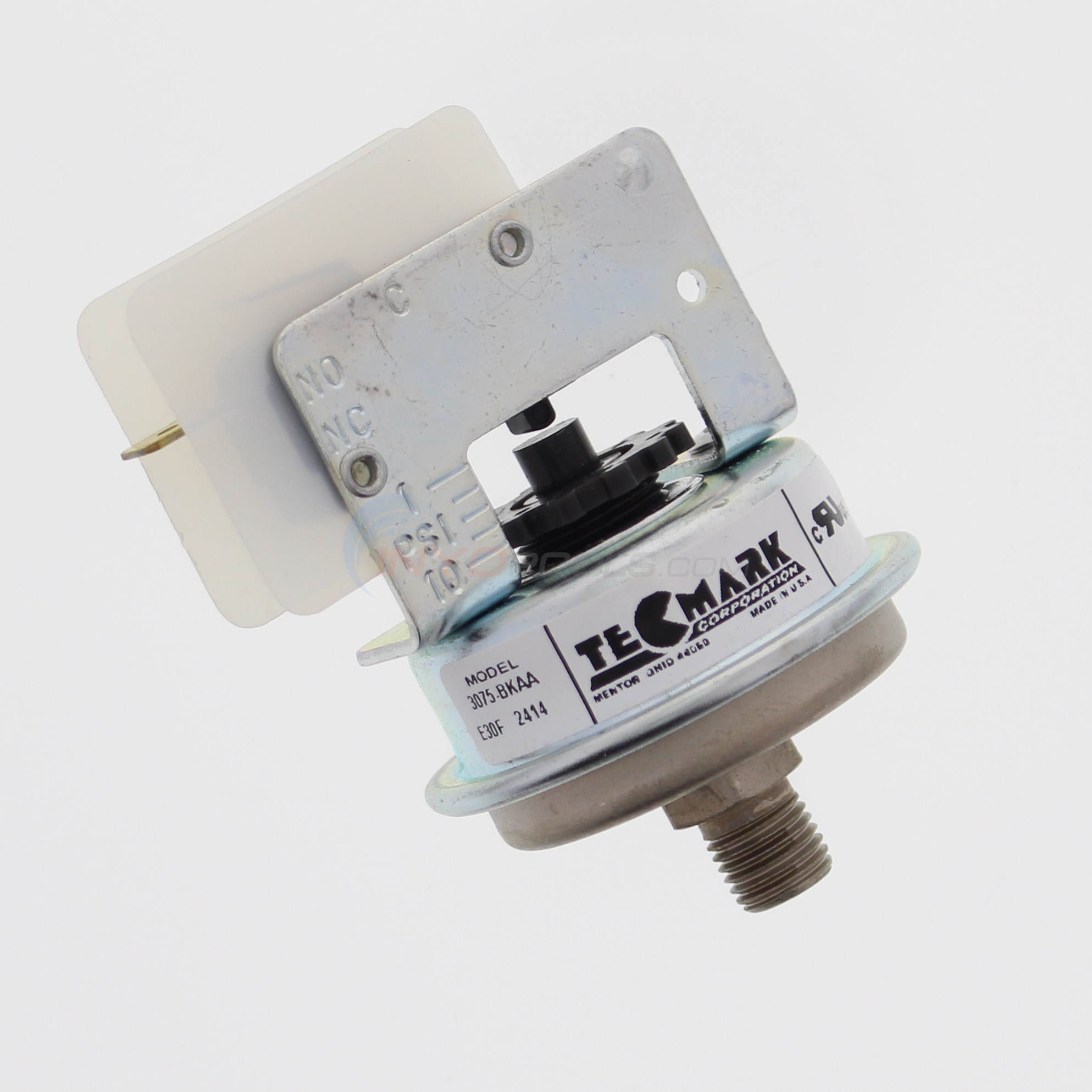

Part # 6203-022C Mfg # R0015500

PRESSURE SWITCH, SPECIAL(1-10 PSI)

$163.54 IN STOCK

Qty:

ADD TO CART

Part # 6200-171 Mfg # R0057800

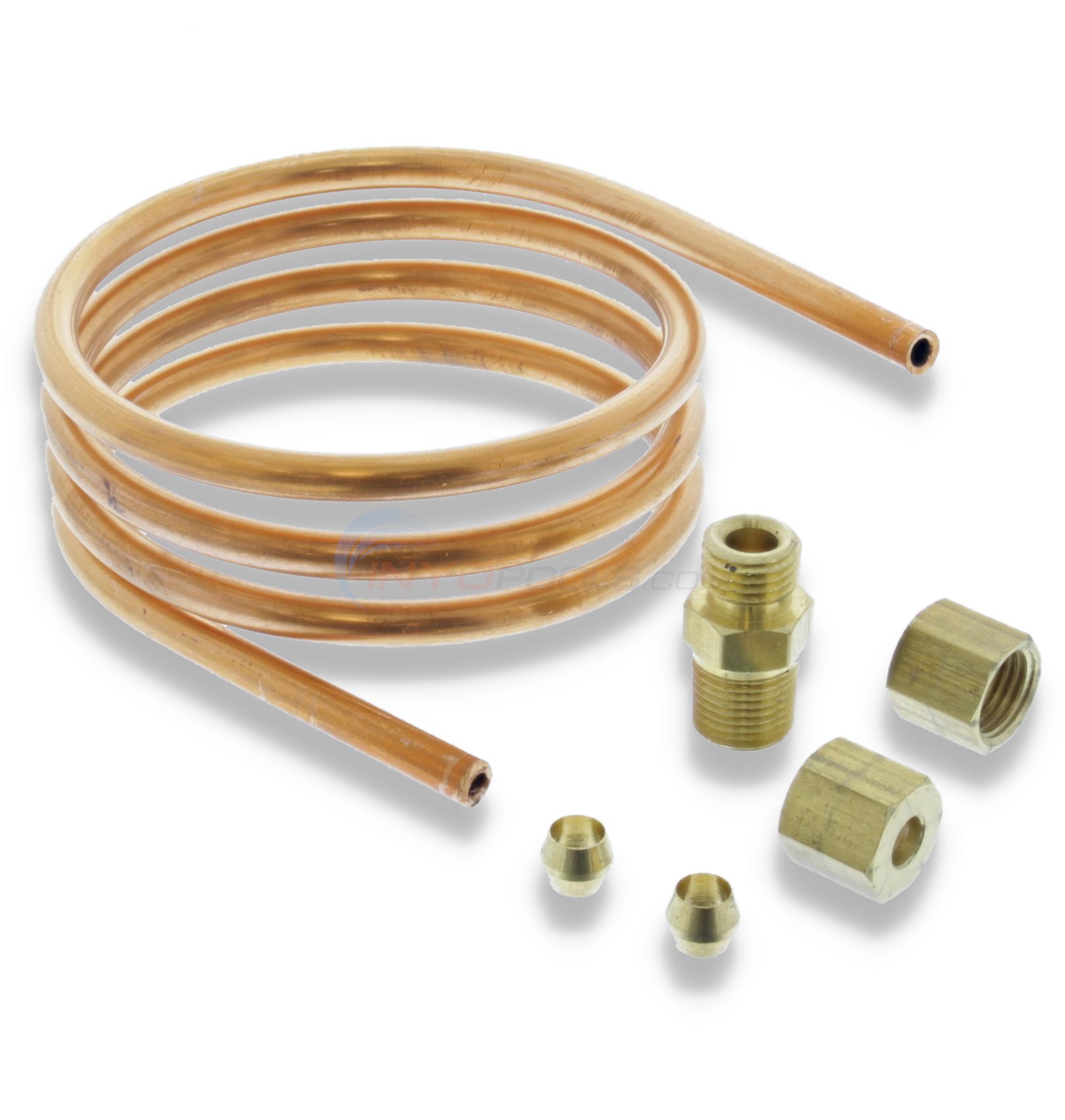

TUBE, SYPHON LOOP ASSY

$138.70 IN STOCK

Qty:

ADD TO CART

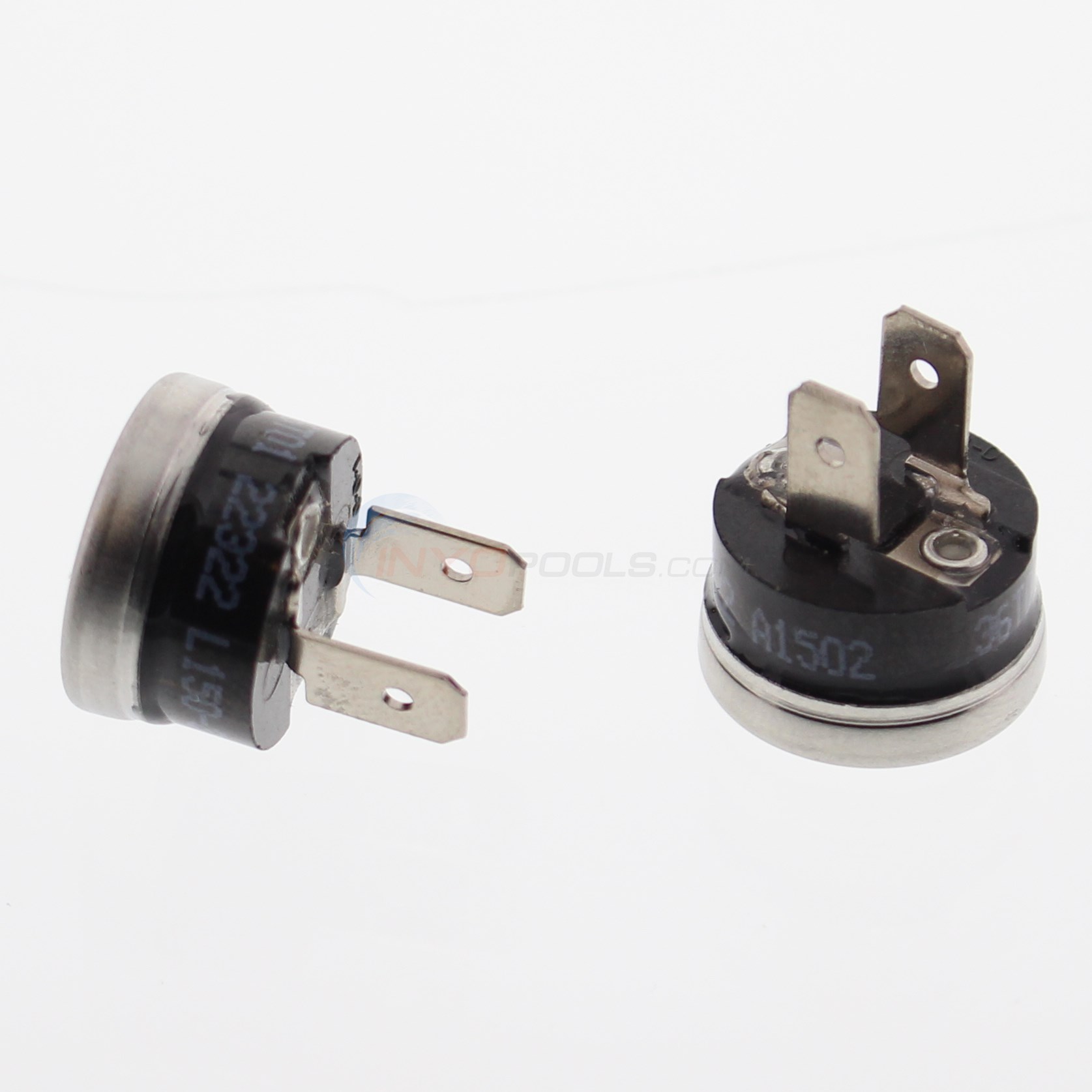

Part # 6203-150 Mfg # R0023200

HIGH LIMIT ASSY

$123.22 IN STOCK

Qty:

ADD TO CART

Part # 6203-064A Mfg # R0022700

DISC, HI-LIMIT SWITCH 135 F

$70.88 IN STOCK

Qty:

ADD TO CART

Part # 6203-064 Mfg # R0023000

DISC, HI-LIMIT 150 F

$58.99 IN STOCK

Qty:

ADD TO CART

Part # 6200-155 Mfg # 10728500

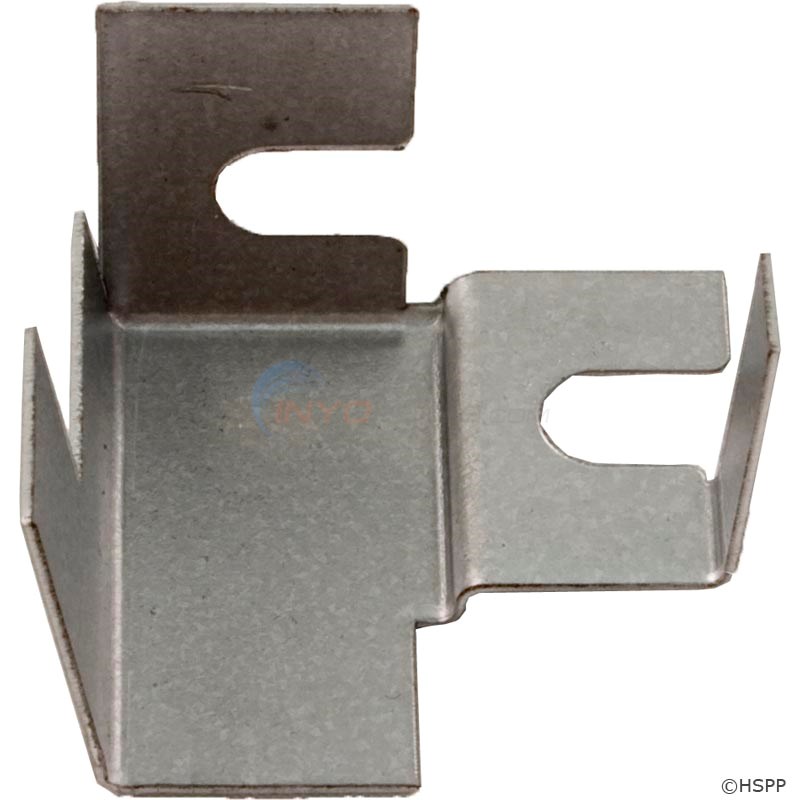

CLIP, HI-LIMIT SWITCH RETAINER

$21.72

VIEW DETAILS

Part # 6203-100 Mfg # S0098900

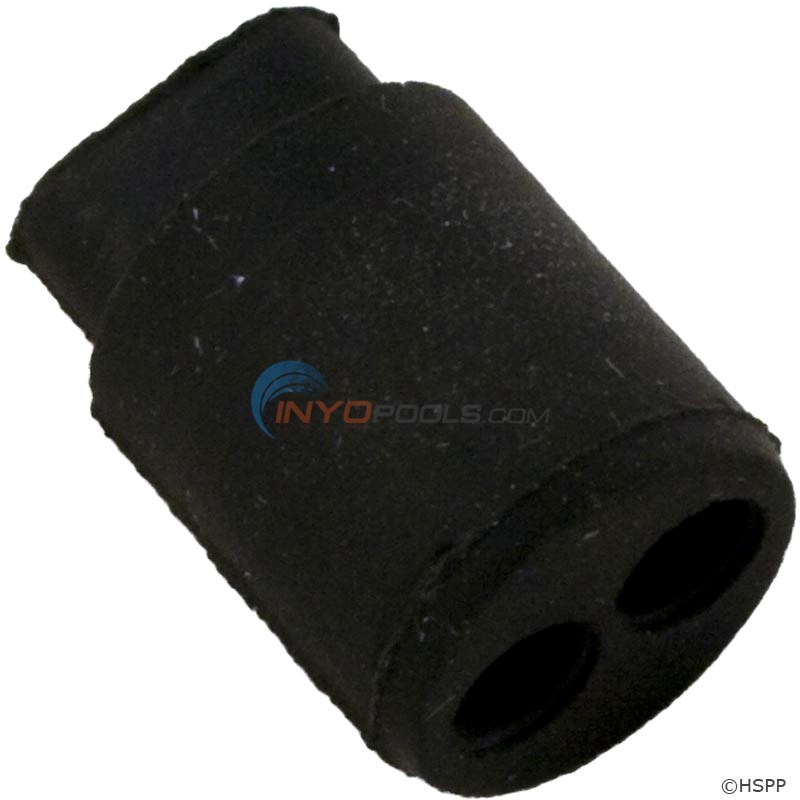

S-989 RUBBER RETAINER

$22.76

VIEW DETAILS

Mfg # 10418300

OBSOLETE SWITCH COVER

NOT AVAILABLE

Part # 6200-173 Mfg # R0012200

FUSIBLE LINK

$13.44 IN STOCK

Qty:

ADD TO CART

Part # 6203-021 Mfg # 10479900

BRACKET, FUSIBLE LINK

$11.37

VIEW DETAILS

Part # 6203-027 Mfg # R0061100

TRANSFORMER, 115-220V/24V-ALL ELECTRIC

$124.48 IN STOCK

Qty:

ADD TO CART

Part # 6203-031 Mfg # 10480000

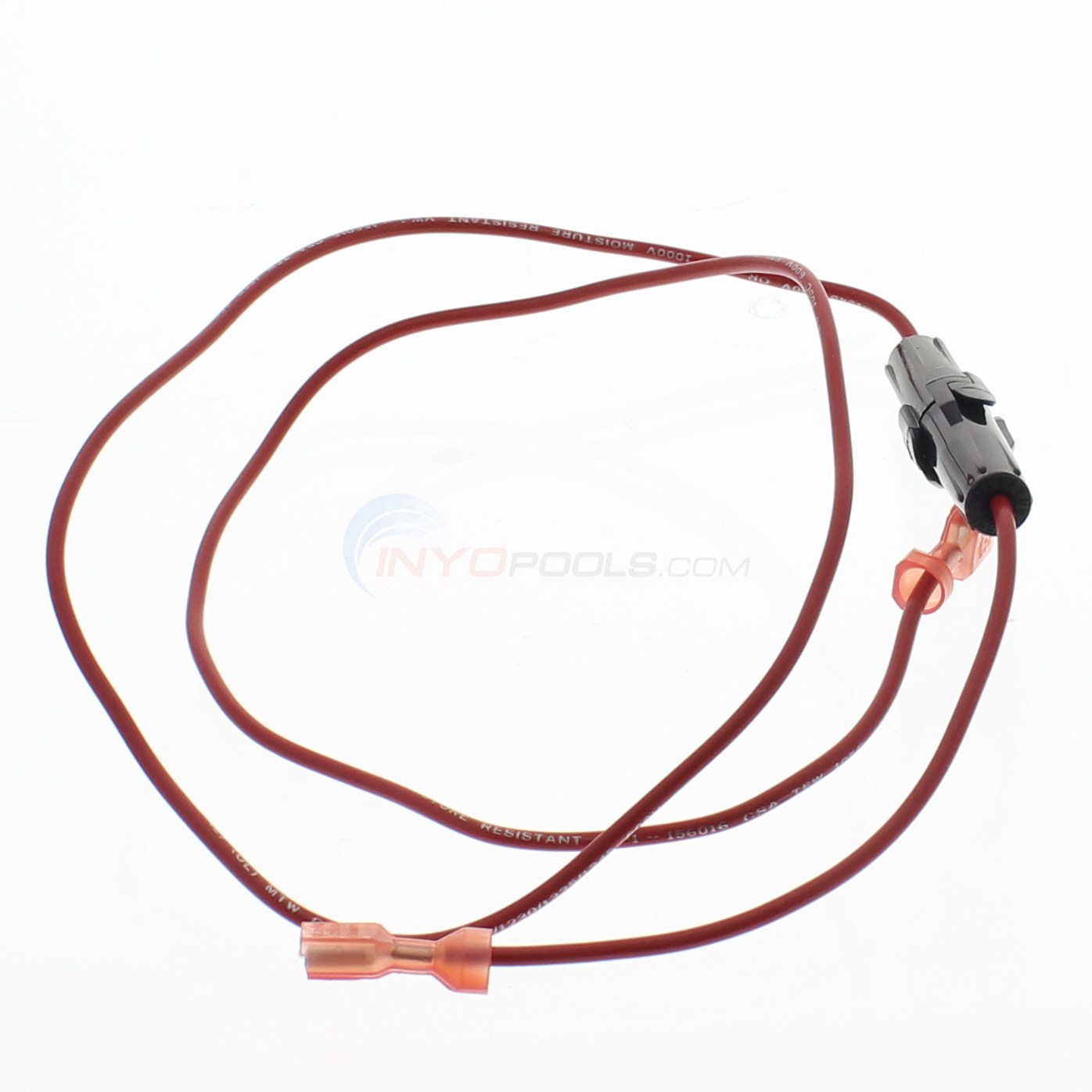

IN LINE FUSE ASSY.,EPC,EPS,ESC,LLD

$13.44 IN STOCK

Qty:

ADD TO CART

Part # 6200-37A Mfg # R0011900

CONTROL, IGNITION KIT

$362.29

VIEW DETAILS

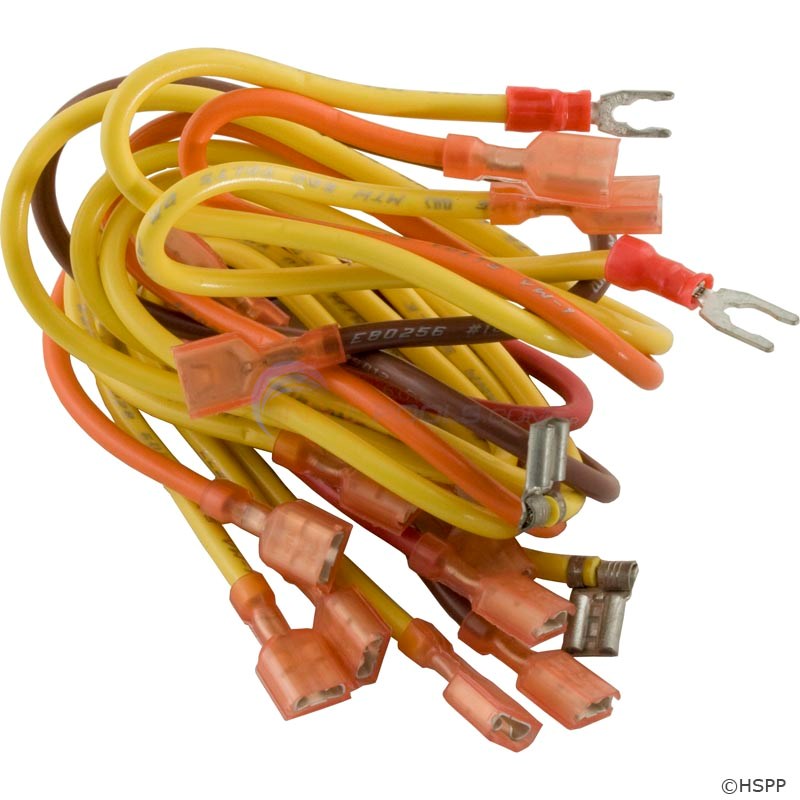

Part # 6203-026 Mfg # R0059800

WIRE HARNESS

$85.90

VIEW DETAILS

No Longer Available HIGH VOLTAGE LEAD Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352019048.htm">6203-007</a>

Mfg # 10449513

No Longer Available HIGH VOLTAGE LEAD Replace With 6203-007

NOT AVAILABLE

Part # 6203-007C Mfg # R0012100

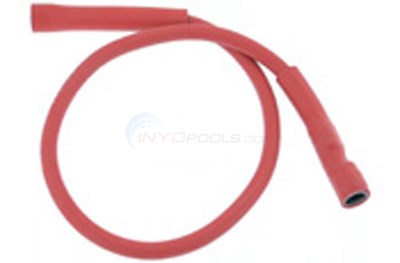

HIGH VOLTAGE LEAD ASSY. EPC-LP

$70.38

VIEW DETAILS

Part # 6203-007 Mfg # R0099000

HIGH VOLTAGE LEAD ASSY. ESC

$67.27 IN STOCK

Qty:

ADD TO CART

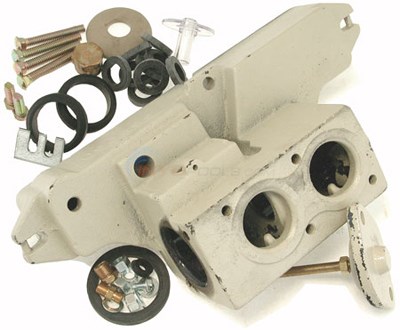

Part # 6200-211 Mfg # R0058400

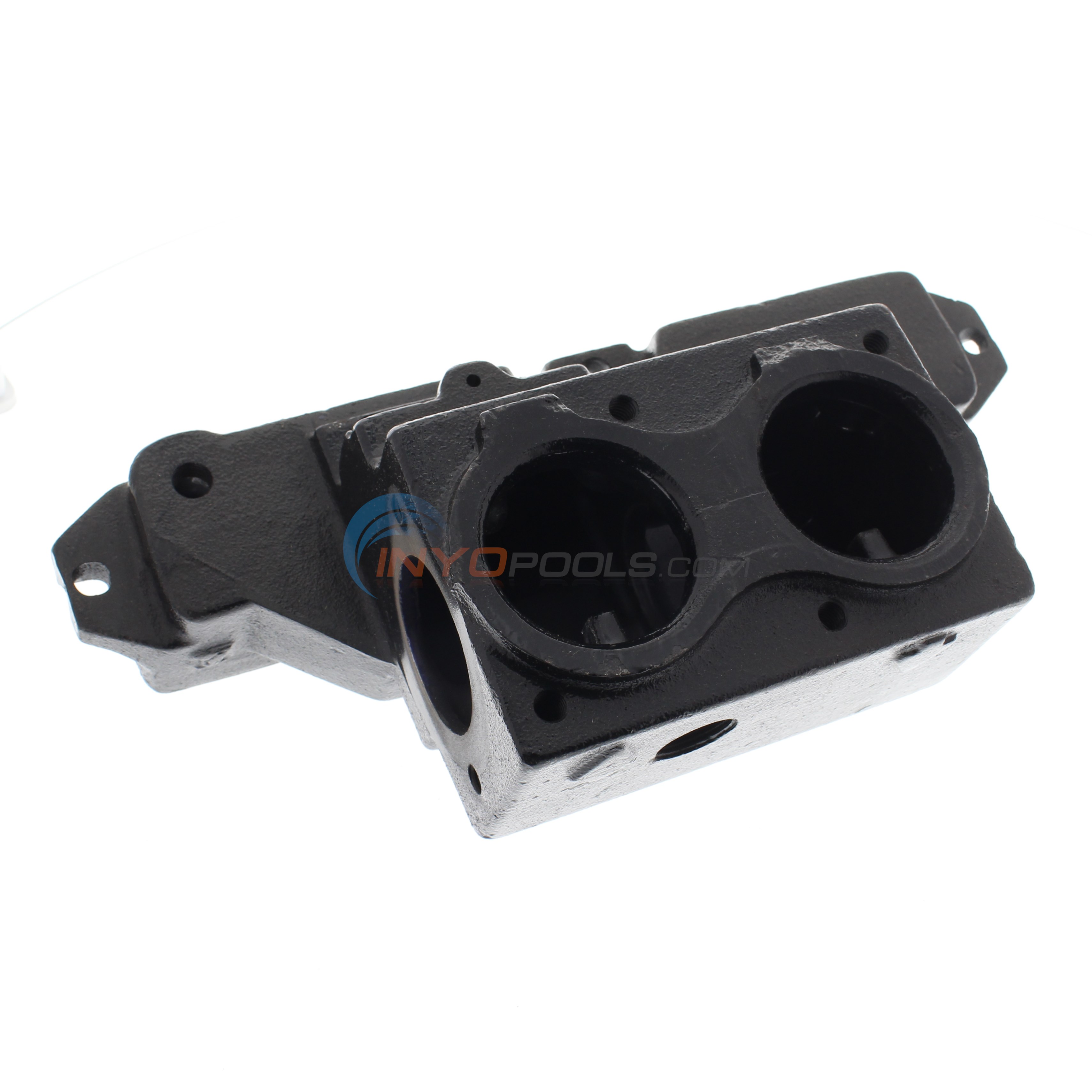

HEADER, FRONT 1.5 IN - ALL XE

$472.02

VIEW DETAILS

Part # 6200-211C Mfg # R0056400

HEADER, FRONT 2 IN - ALL XE

$579.17

VIEW DETAILS

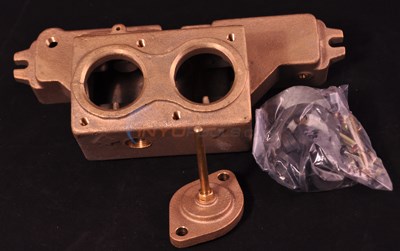

Part # 6203-043A Mfg # R0016800

HEADER,INLET/OUTLET 2" BRONZE

$974.85

VIEW DETAILS

Part # 6200-213 Mfg # R0058300

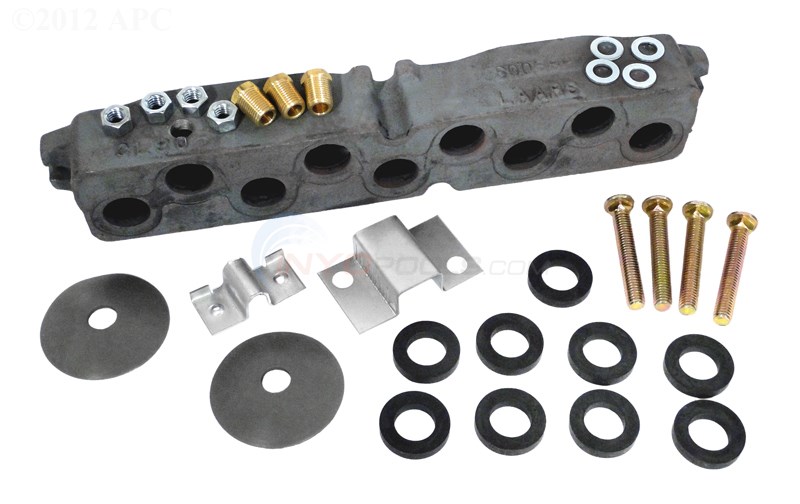

HEADER, REAR - ALL XE

$315.71

VIEW DETAILS

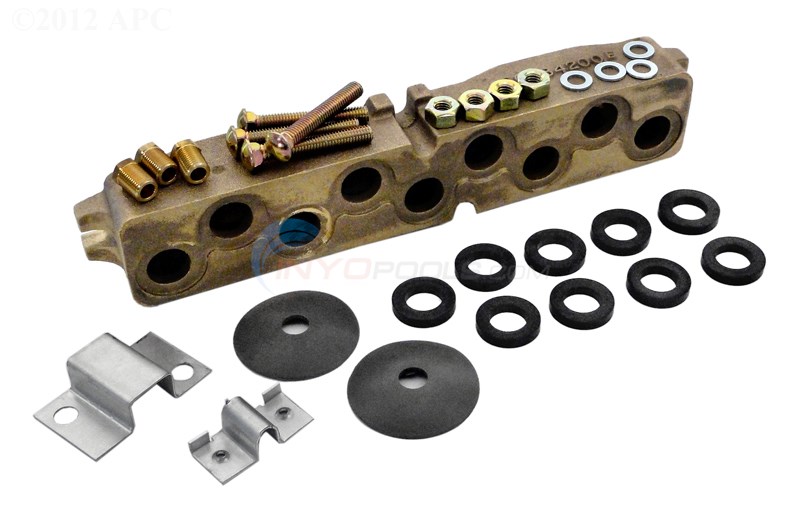

Part # 6203-044 Mfg # R0054600

HEADER, RETURN - ALL (BRONZE)

$498.93

VIEW DETAILS

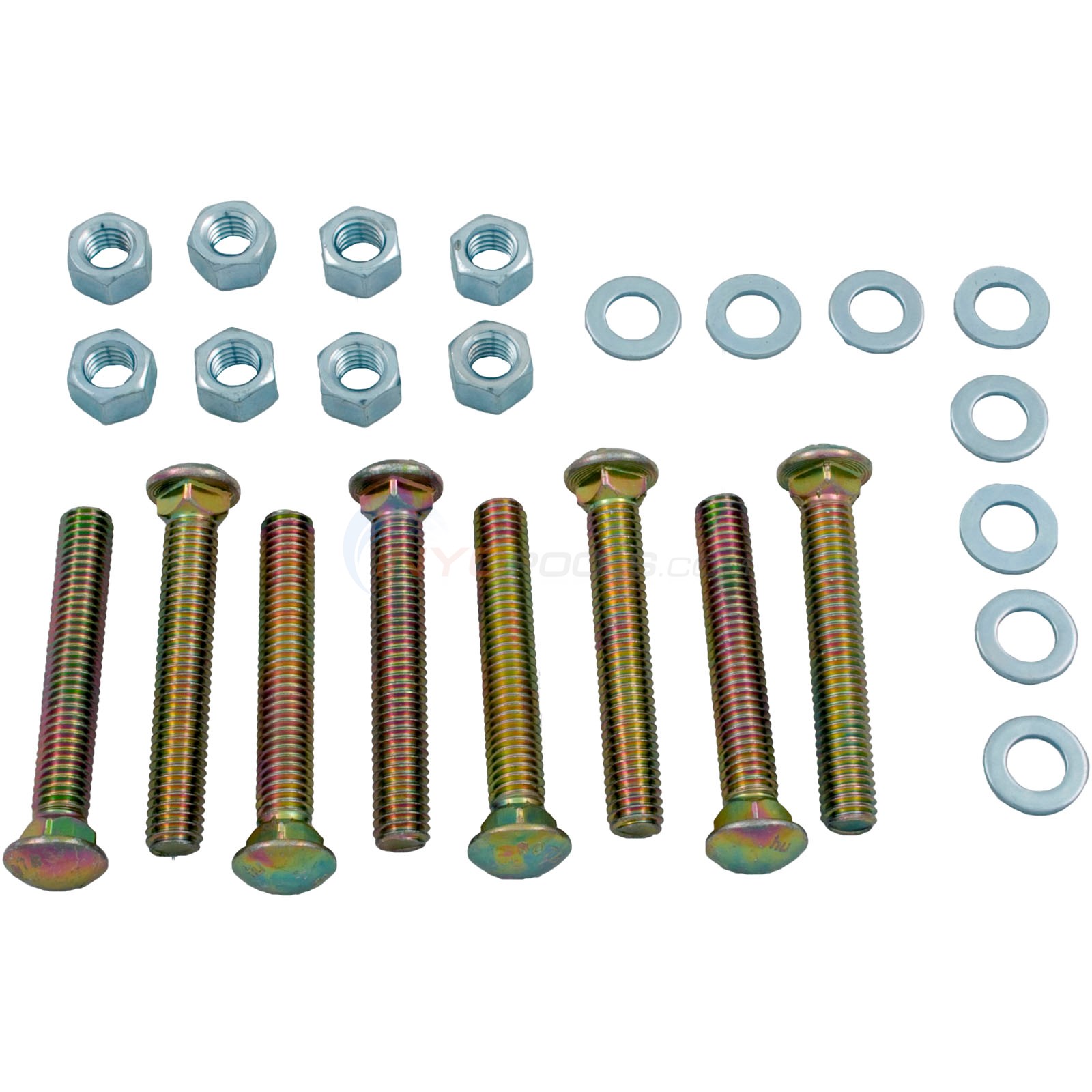

Part # 6203-012A Mfg # R005700

HEADER BOLT SET (R0057000)

$70.38 IN STOCK

Qty:

ADD TO CART

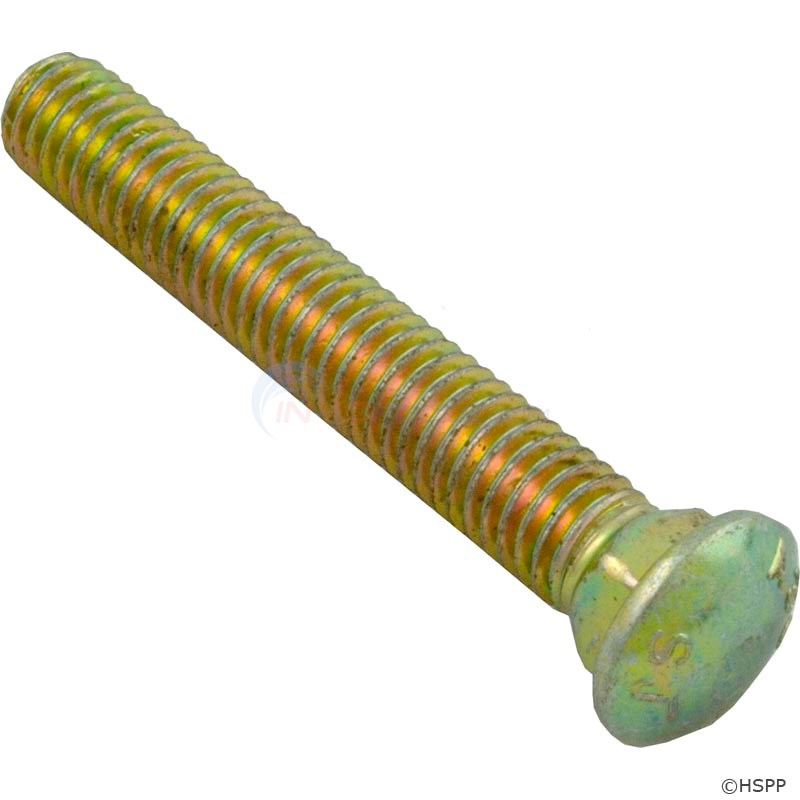

Part # 6200-213B Mfg # F0046100

HEADER BOLT 2.5 INCH

$11.37

VIEW DETAILS

Part # 6200-260 Mfg # F0011100

WASHER, HEADER

$11.37 IN STOCK

Qty:

ADD TO CART

Part # 6200-262 Mfg # F0003100

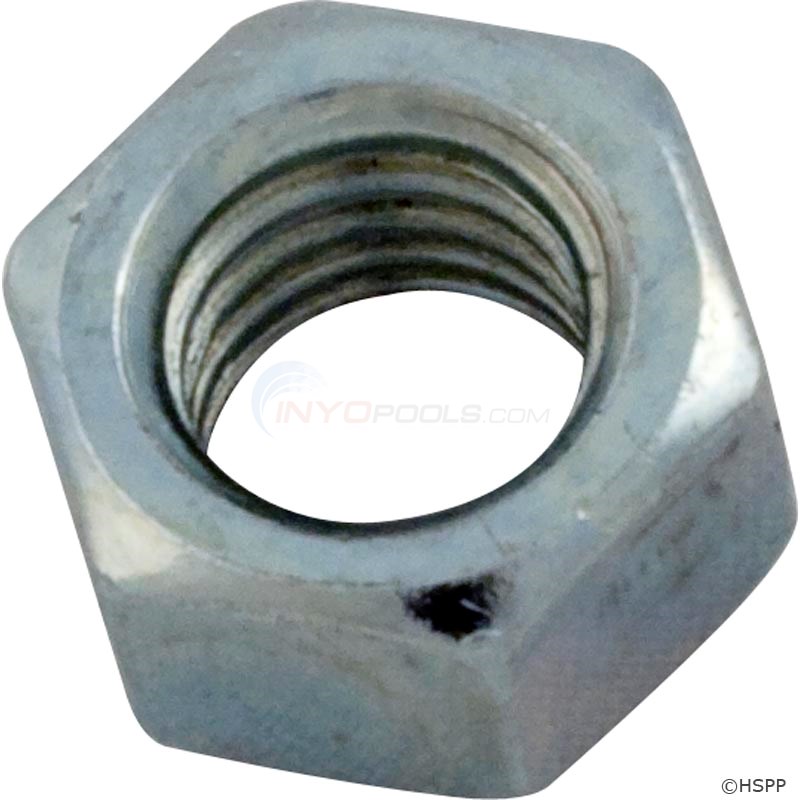

NUT, HEADER

$11.37 IN STOCK

Qty:

ADD TO CART

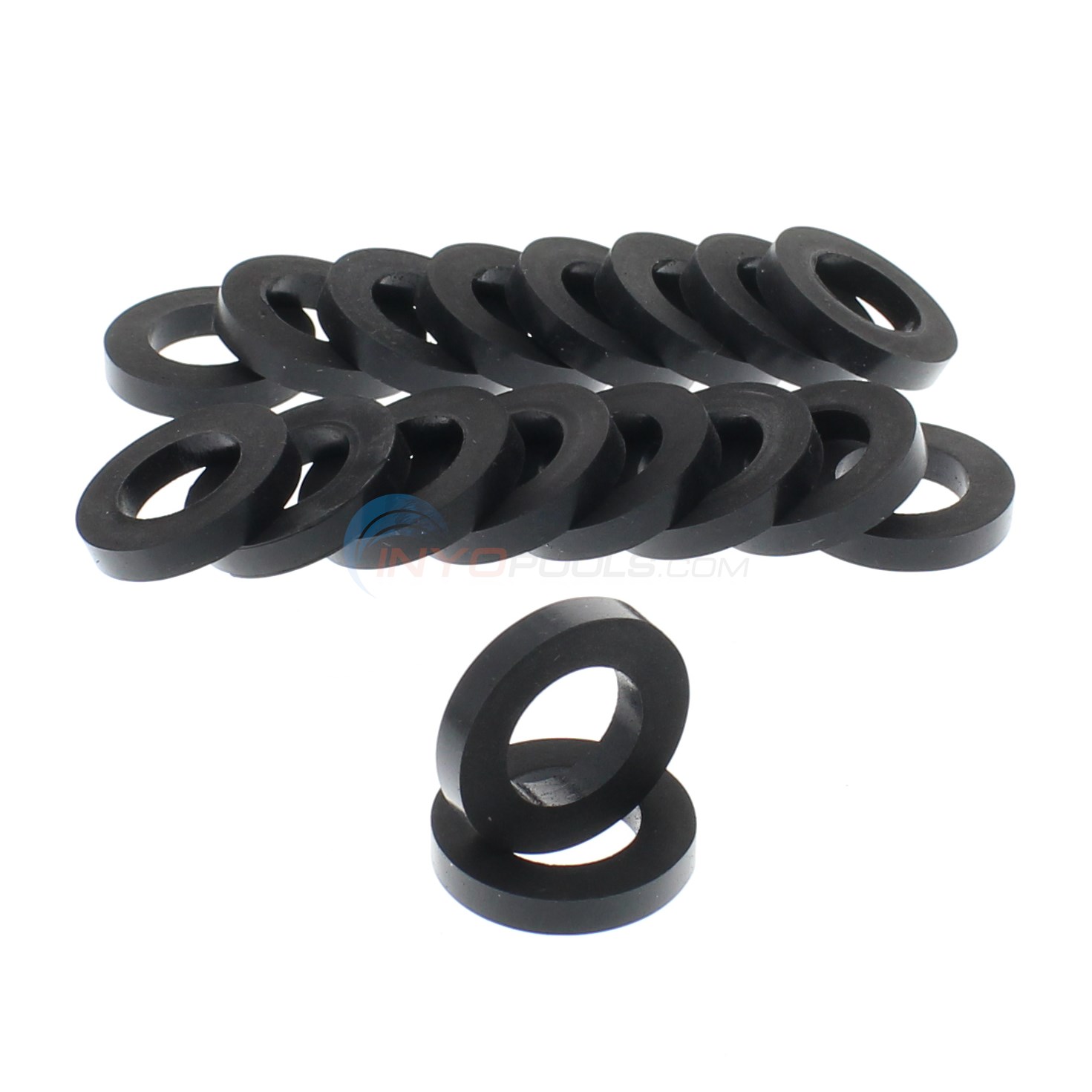

Part # 6200-2161 Mfg # R0050800

GASKET, HEADER - SET OF 18

$85.90 IN STOCK

Qty:

ADD TO CART

Part # 6200-222 Mfg # R0031900

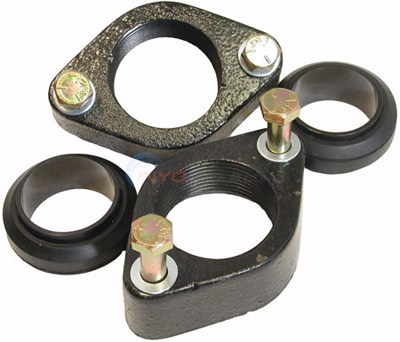

KIT, FLANGE - COMPLETE 1 1/2"

$214.26

VIEW DETAILS

Part # 6203-045 Mfg # S0053300

FLANGE, 1 1/2" - ALL MODELS

$255.67

VIEW DETAILS

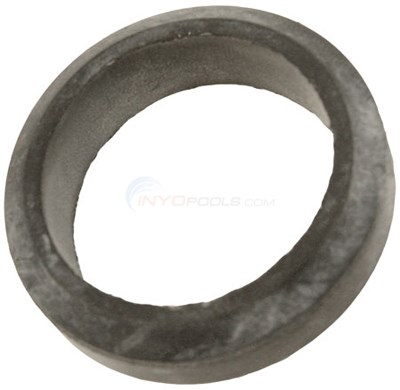

Part # 6201-18 Mfg # L-S-531

GASKET, HEATER FLANGE

$10.58 IN STOCK

Qty:

ADD TO CART

Mfg # S0028000

OBSOLETE FLANGE SLEEVE, 1-1/2”

NOT AVAILABLE

Part # 5110-15 Mfg # 37C200HCS1

SCREW, HOUSING CAP 3/8-16 X 2

$5.14

VIEW DETAILS

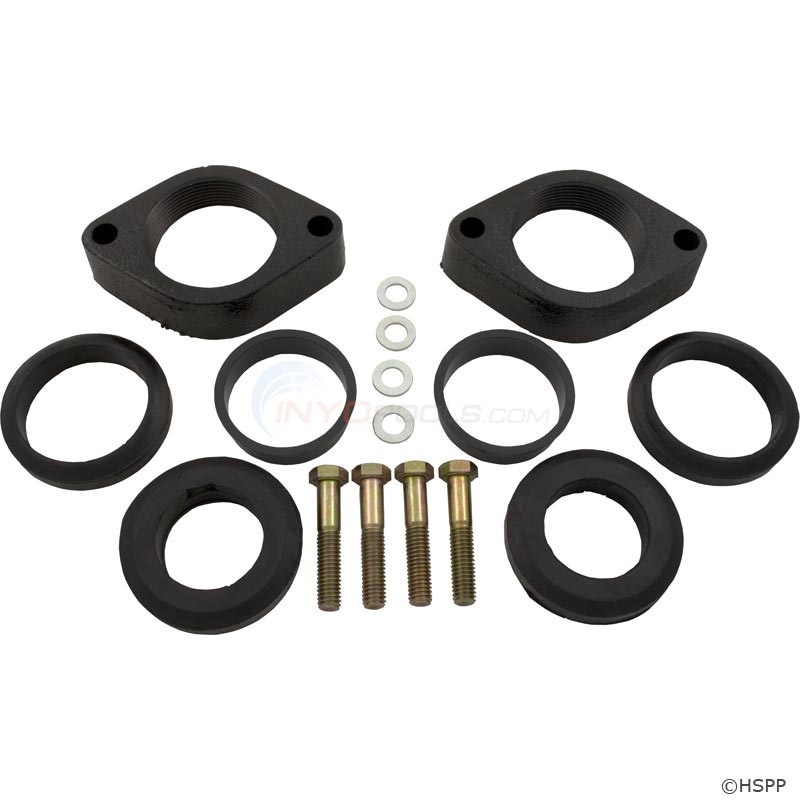

Part # 6200-223A Mfg # R0055000

FLANGE KIT, 2" 2 PER KIT

$262.60 IN STOCK

Qty:

ADD TO CART

Part # 6200-223 Mfg # 10573500

FLANGE, 2 INCH - EACH

$87.04 IN STOCK

Qty:

ADD TO CART

Part # 6201-18B Mfg # S0078000

GASKET, FLANGE 2" (SINGLE)

$41.51 IN STOCK

Qty:

ADD TO CART

Part # 6200-220A Mfg # S0078200

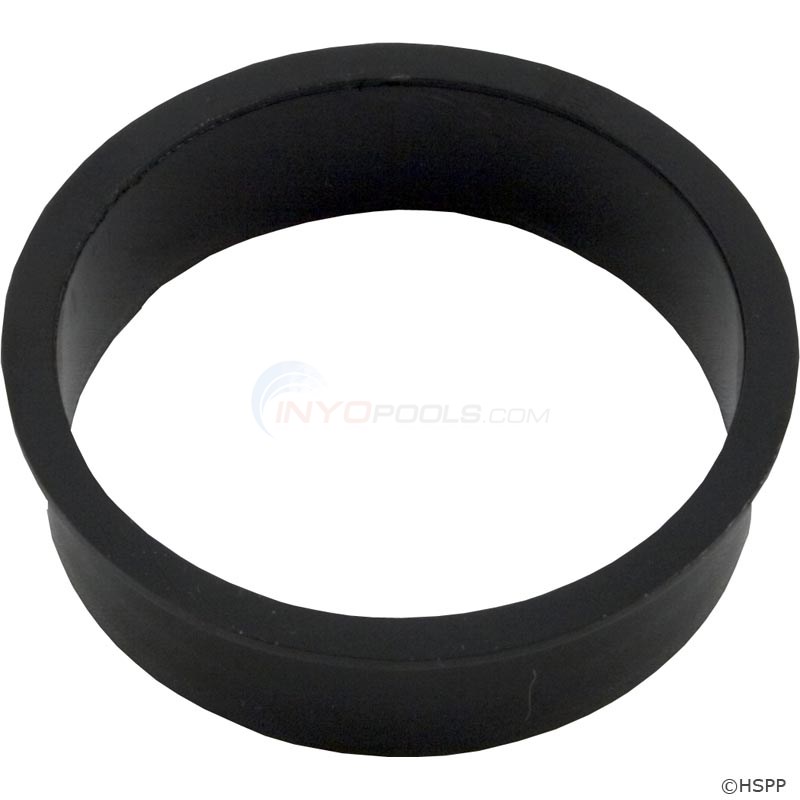

SLEEVE FOR 2" FLANGE (6270-05A)

$15.49 IN STOCK

Qty:

ADD TO CART

Part # 5110-15 Mfg # 37C200HCS1

SCREW, HOUSING CAP 3/8-16 X 2

$5.14

VIEW DETAILS

Part # 6201-18A Mfg # S0078100

GASKET, FLANGE 2 X 1 1/2IN

$34.67 IN STOCK

Qty:

ADD TO CART

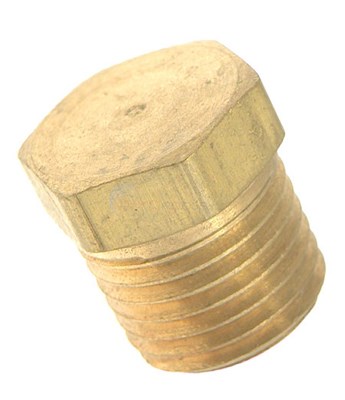

Part # 6203-066 Mfg # P0026800

PLUG, FOR REDUNDANT HI-LIMIT (6740-0)

$17.58 IN STOCK

Qty:

ADD TO CART

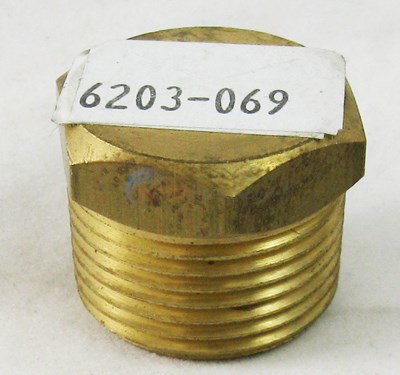

Part # 6203-069 Mfg # P0027000

PLUG, 3/4IN (6220-07)

$34.14

VIEW DETAILS

Part # 6203-054 Mfg # R0013100

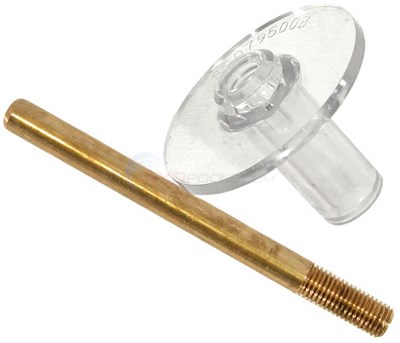

ROD ASSY. With DISK (NO SPRING)

$41.40 IN STOCK

Qty:

ADD TO CART

Part # 6203-052 Mfg # S0079800

ROD, FLOW CONTROL

$41.40

VIEW DETAILS

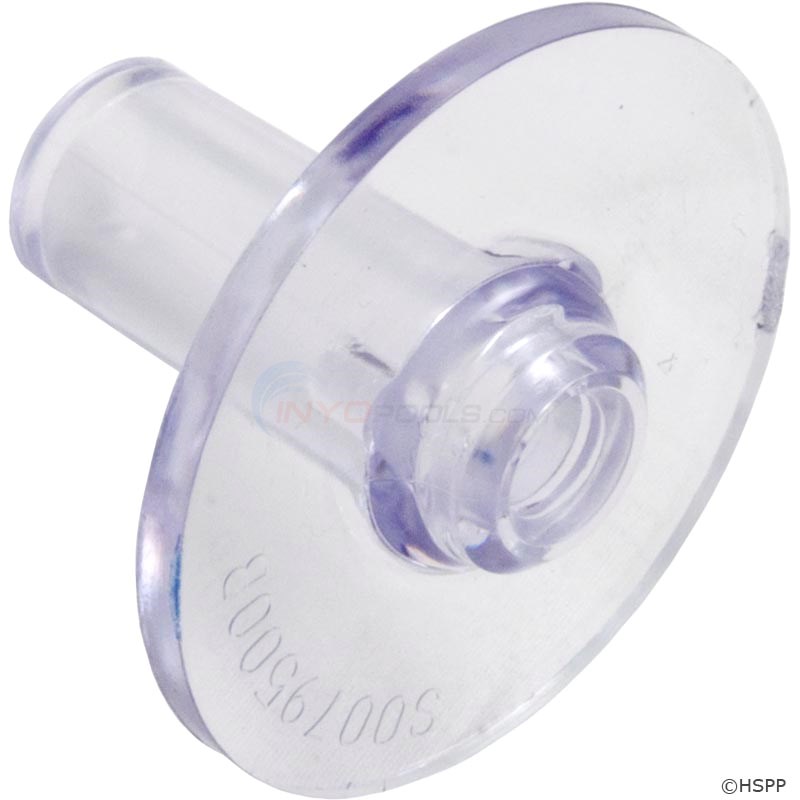

Part # 6200-259 Mfg # R0011500

DISC, BY-PASS

$14.02 IN STOCK

Qty:

ADD TO CART

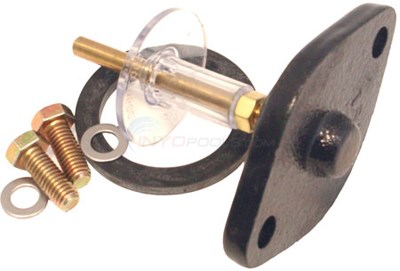

No Longer Available BY PASS CAP Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352013832.htm">6200-101</a>

Mfg # S0069100

No Longer Available BY PASS CAP Replace With 6200-101

NOT AVAILABLE

Part # 6200-234 Mfg # S0061400

SPRING, BY-PASS (WHITE)

$34.14

VIEW DETAILS

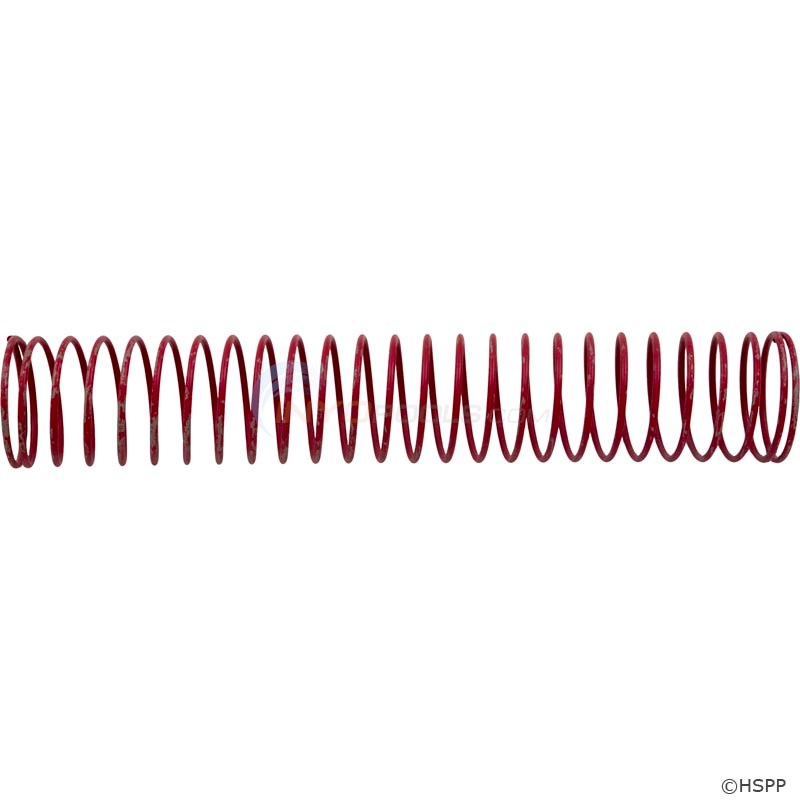

Part # 6200-242 Mfg # S0061300

SPRING, BY-PASS (RED)

$40.36

VIEW DETAILS

Part # 6200-246 Mfg # S0061200

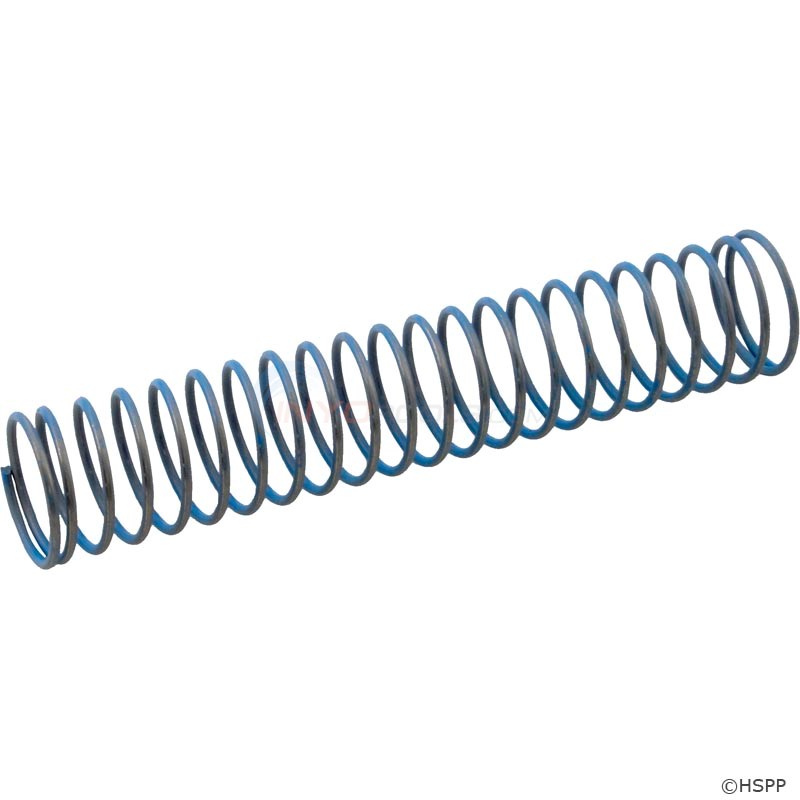

SPRING, BY-PASS (BLUE)

$40.36

VIEW DETAILS

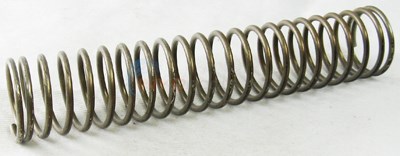

Part # 6200-252 Mfg # S0061100

SPRING, BY-PASS (BROWN)

$34.14

VIEW DETAILS

Part # 6200-256 Mfg # S0061000

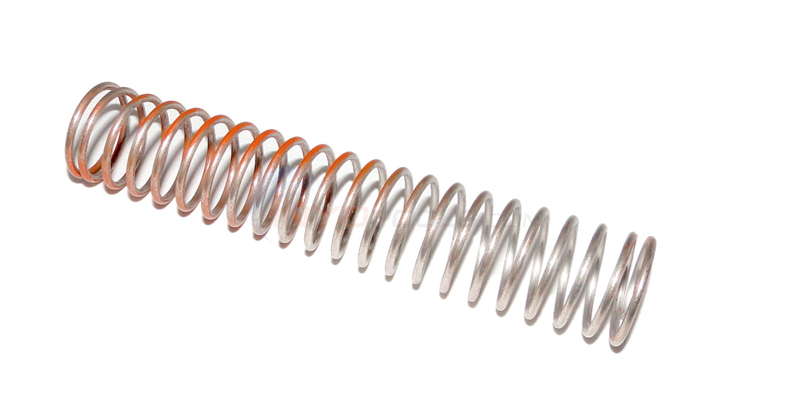

SPRING, BY-PASS (ORANGE)

$31.04 IN STOCK

Qty:

ADD TO CART

Part # 6203-053 Mfg # S0079900
