Waterway Econo-Flo VSA 165 Variable Speed Pump Parts

Waterway Econo-Flo VSA 165 Variable Speed Pump Diagram

Click to zoom in

Diagram #	Part Title
1	Motor 1.65 HP Variable Speed
2	Neoprene Motor Support Strip
3	Motor Support Base
4	Volute Faceplate
5	Faceplate Gasket
6	Ceramic Impeller Seal - Viton
7	Impeller Assembly
8	Diffuser Assembly
9	Diffuser O-ring
10	Diffuser Plate
11	Lid, 6" Trap
13	Trap Lid O-Ring 6"
14	Pump Housing, Mini SVL
15	O-Ring, Pump Drain Plug
16	Quarter Slot Plug 3/8"
17	Basket Assembly
18	Bolt, 16-3/8 x 7/8"
20	Bolt, 3/8"-16 x 1 1/4"
21	Flat Washer, 3/8"
22	Screw #4-40 x 1-1/4"
23	Washer, Impeller
24	Screw Phil. Pan Head Left Hand 1/4-20 x 1"
25	Handle

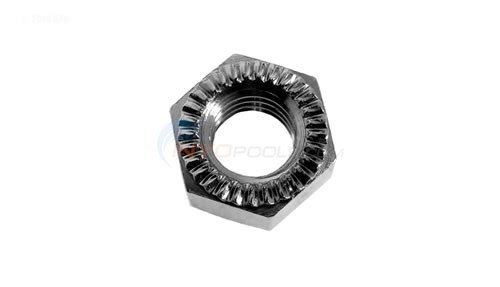

26	Hex Nut 3/8-16 Fin Serrated

View Parts List

Diagram #	Part Title
1	Motor 1.65 HP Variable Speed
2	Neoprene Motor Support Strip
3	Motor Support Base
4	Volute Faceplate
5	Faceplate Gasket
6	Ceramic Impeller Seal - Viton
7	Impeller Assembly
8	Diffuser Assembly
9	Diffuser O-ring
10	Diffuser Plate
11	Lid, 6" Trap
13	Trap Lid O-Ring 6"
14	Pump Housing, Mini SVL
15	O-Ring, Pump Drain Plug
16	Quarter Slot Plug 3/8"
17	Basket Assembly
18	Bolt, 16-3/8 x 7/8"
20	Bolt, 3/8"-16 x 1 1/4"
21	Flat Washer, 3/8"
22	Screw #4-40 x 1-1/4"
23	Washer, Impeller
24	Screw Phil. Pan Head Left Hand 1/4-20 x 1"
25	Handle
26	Hex Nut 3/8-16 Fin Serrated

Available Parts:

Part # ECM16SQU Mfg # ECM16SQU

Motor 1.65 HP Variable Speed

$621.08 IN STOCK

Service Factor 1.00 Voltage 208 - 230 Max Amps 10.0 - 10.5 Frame 48Y

Qty:

Waterway Econo-Flo VSA 165 Variable Speed Pump Parts

View Parts List

Available Parts:

Handle
