By Waterway

Details

Top

Part # 5033-006

Manufacturer Code 311-1450

Dimensions 10" L x 9.75" W x 2.5" D

Alternate Part #'s 311-1450, 3111450, 35-270-2126, WW3111450B, WWP3111450

Product Description

Seal Plate - 311-1450 Color Black

Alternate Color Gray- Part # 311-1450GI



Top
Ask A Question

?     Asked on 7/3/2016by jim

my 56 fame faceplate has 8 bolt holes. your photo shows only 6. is there another pump with the 8 hole faceplate?
 Reply

A  Answered on 7/7/2016 by InyoPools Product Specialist Lennox H.

Jim, If you can provide the model of the pump housing or the part number off of the plate we can locate the correct plate you will need.
 Reply


?     Asked on 2/23/2019by Inyo Visitor

What is the distance between the inner (square) bolt holes?
 Reply

A  Answered on 2/24/2019 by InyoPools Product Specialist Lennox H.

Hi. The distance is 7-1/8 inches.
 Reply


?     Asked on 4/11/2020by Carmine

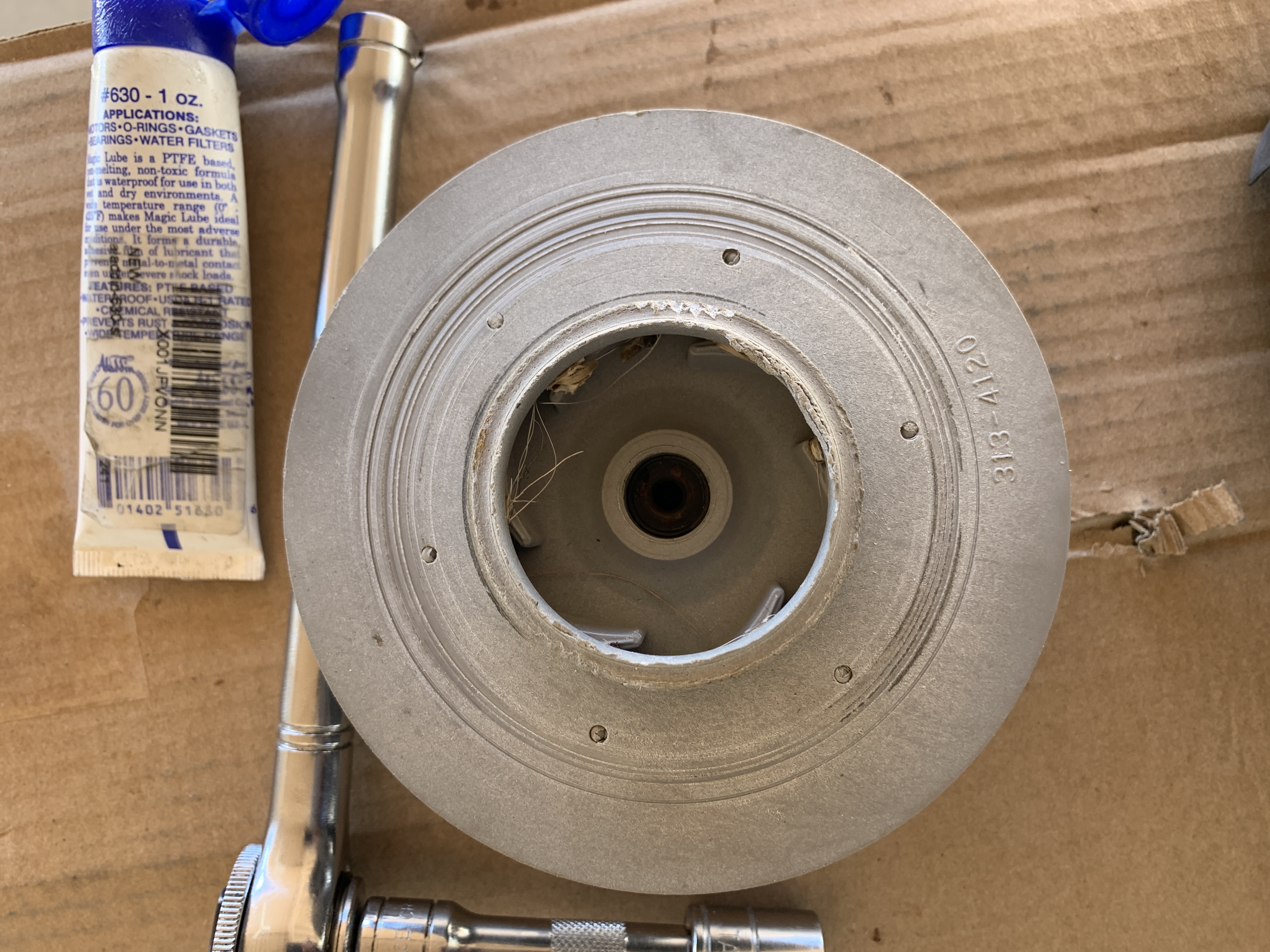

Do you carry the impeller and other pump parts for this face plate 313-4100 313-4120

 Reply

A  Answered on 11/18/2020 by InyoPools Product Specialist Megan C.

The 313-4100 is the old number for the diffuser used with the Waterway Champion, the 310-7470 is the current Champion Diffuser. All other parts to the Waterway Champion 56-Frame Pump can be viewed and ordered here http://www.inyopools.com/parts_waterway_champion_56_frame_pump.aspx The impellers are located on that page based on the HP rating of the pump. The Pump Shaft Seal 5/8" - PS-1000 or Heavy Duty (Saltwater Pools) - PS-3865 for salt pools will need to be replaced when replacing the impeller. A thin layer of Clear Silicone RTV 3 Oz. (66br) - 80050 will be applied to the inside whole of the Seal Plate - 311-1450 to create the bond between the plastic and metal back of the shaft seal.
 Reply


?     Asked on 8/12/2020by Ron

I have a whisperflo seal plate with the number 311-1450. I need an impeller for this. What impeller would fit this?
 Reply

A  Answered on 10/29/2020 by InyoPools Product Specialist Hector F.

Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
 Reply


?     Asked on 11/18/2022by Philip Goodman

Does this seal plate fit the waterway SMF-115?
 Reply

A  Answered on 11/22/2022 by InyoPools Product Specialist Hector F.

Hello Phillip, yes this is the correct seal plate for the Waterway SMF series pool pumps. You may want to replace the seal plate gasket and shaft seal  as well. Those part numbers are 5033-007 and 5250-106.
 Reply
