Waterway Power Defender 270 Variable Speed Pump Parts

Waterway Power Defender 270 Variable Speed Pump - PD-VSC270

Waterway Power Defender 270 Variable Speed Pump Diagram

Click to zoom in

Diagram #	Part Title
1	Motor, 56 Frame Variable Spd 230V
2	Bolt 16-3/8 x 7/8"
3	Motor Support
4	Motor Base
5	Screw Slot Hex Washer 1/4" x 1-1/4"
6	Washer 3/8" Flat
7	Handle
8	Face Plate
9	Face Plate Gasket
10	Pump Shaft Seal
11	Washer, Impeller
12	Screw Phil. Pan Head Left Hand 1/4-20 x 1"
13	Diffuser Assembly
14	Screw #4-40 x 1-1/4"
15	Diffuser O-ring
16	Diffuser Plate
17	Quarter Slot 3/8" Plug
18	Drain Plug O-Ring
20	Basket Assembly
21	Lid & Nut & O-ring - 6" Trap
21a	Trap Lid O-Ring 6"
26	Impeller
27	Pump Housing - 2" x 2" NPT
28	Washer 3/8", Split Lock
30	Bolt, 3/8"-16 x 2"
1	Self Aligning 2" Union Nut

View Parts List

Diagram #	Part Title
1	Motor, 56 Frame Variable Spd 230V
2	Bolt 16-3/8 x 7/8"
3	Motor Support
4	Motor Base
5	Screw Slot Hex Washer 1/4" x 1-1/4"
6	Washer 3/8" Flat
7	Handle
8	Face Plate
9	Face Plate Gasket
10	Pump Shaft Seal
11	Washer, Impeller
12	Screw Phil. Pan Head Left Hand 1/4-20 x 1"
13	Diffuser Assembly
14	Screw #4-40 x 1-1/4"
15	Diffuser O-ring
16	Diffuser Plate
17	Quarter Slot 3/8" Plug
18	Drain Plug O-Ring
20	Basket Assembly
21	Lid & Nut & O-ring - 6" Trap
21a	Trap Lid O-Ring 6"
26	Impeller
27	Pump Housing - 2" x 2" NPT
28	Washer 3/8", Split Lock
30	Bolt, 3/8"-16 x 2"
1	Self Aligning 2" Union Nut

Available Parts:

Motor, 56 Frame Variable Spd 230V

Part # ECM27SQU Mfg # ECM27SQU

Motor, 56 Frame Variable Spd 230V

$962.68

Bolt 16-3/8 x 7/8"

Part # 35-270-2144 Mfg # 819-0035B

Bolt 16-3/8 x 7/8"

$13.84

3

Motor Support

Part # 672-1350B Mfg # 672-1350B

Motor Support

NOT AVAILABLE

Motor Base

Part # 5033-008 Mfg # 319-1500B

Motor Base

$83.15 IN STOCK

Qty:

Screw Slot Hex Washer 1/4" x 1-1/4"

Part # 5033-009 Mfg # 819-0013B

Screw Slot Hex Washer 1/4" x 1-1/4"

$11.71 IN STOCK

Qty:

Washer 3/8" Flat

Part # 5033-012 Mfg # 820-0017

Washer 3/8" Flat

$10.90 IN STOCK

Qty:

7

Handle

Part # 319-1700B Mfg # 319-1700B

Handle

NOT AVAILABLE

Face Plate

Part # 5033-006 Mfg # 311-1450

Face Plate

$120.00

Face Plate Gasket

Part # 5033-007 Mfg # 806-1400

Face Plate Gasket

$22.27 IN STOCK

Qty:

Pump Shaft Seal

Part # 5250-106 Mfg # PS-1000

Pump Shaft Seal

$7.99 IN STOCK

Qty:

Pump Shaft Seal - Viton

Part # 5250-225 Mfg # PS-3865

Pump Shaft Seal - Viton

$17.05 IN STOCK

Qty:

Washer, Impeller

Part # 5033-011 Mfg # 711-4300B

Washer, Impeller

$14.69 IN STOCK

Qty:

Screw Phil. Pan Head Left Hand 1/4-20 x 1"

Part # 5032-61 Mfg # 819-4360

Screw Phil. Pan Head Left Hand 1/4-20 x 1"

$16.78 IN STOCK

Qty:

Diffuser Assembly

Part # 5033-004 Mfg # 310-7470

Diffuser Assembly

$106.50 IN STOCK

Qty:

Screw #4-40 x 1-1/4"

Part # 5032-52 Mfg # 819-0018B

Screw #4-40 x 1-1/4"

$13.03 IN STOCK

Qty:

Diffuser O-ring

Part # 5032-51 Mfg # 805-0238

Diffuser O-ring

$10.12 IN STOCK

Qty:

Diffuser Plate

Part # 5033-003 Mfg # 319-1420

Diffuser Plate

$68.23 IN STOCK

Qty:

Quarter Slot 3/8" Plug

Part # 5039-001 Mfg # 715-1201B

Quarter Slot 3/8" Plug

$14.91 IN STOCK

Qty:

Drain Plug O-Ring

Part # 805-0014 Mfg # 805-0014

Drain Plug O-Ring

$9.03 IN STOCK

Qty:

Basket Assembly

Part # 5033-014 Mfg # 319-1430B

Basket Assembly

$33.58 IN STOCK

Qty:

Lid & Nut & O-ring - 6" Trap

Part # 5019-22 Mfg # 319-4100B

Lid & Nut & O-ring - 6" Trap

$37.30 IN STOCK

Qty:

Trap Lid O-Ring 6"

Part # 35-270-1312 Mfg # 805-0436B

Trap Lid O-Ring 6"

$12.48 IN STOCK

Qty:

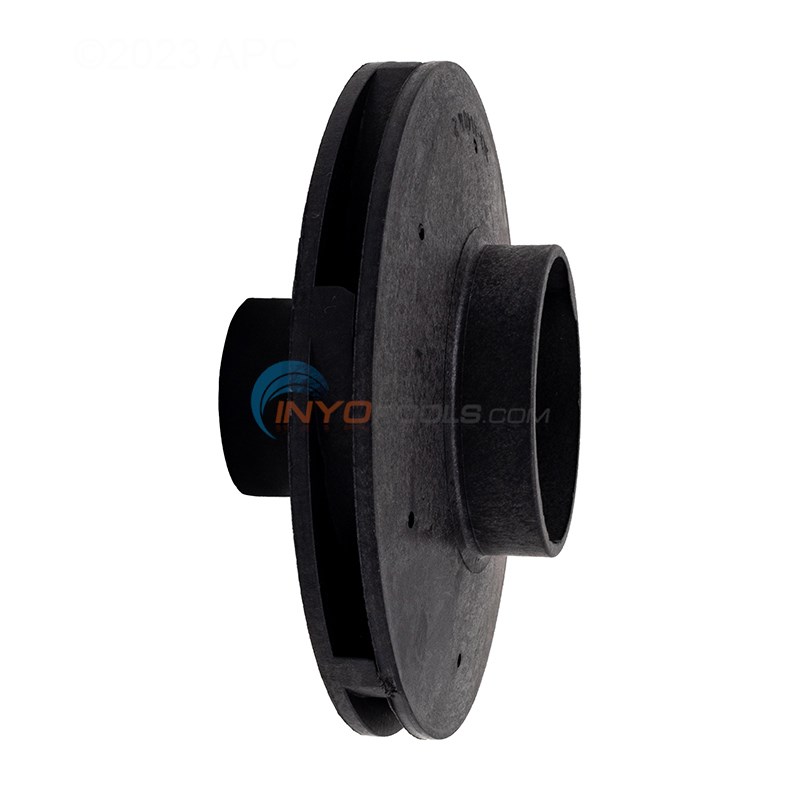

Impeller

Part # 310-7430B Mfg # 310-7430B

Impeller

$70.88 IN STOCK

Qty:

27

Pump Housing - 2" x 2" NPT

Part # 319-1630 Mfg # 319-1630

Pump Housing - 2" x 2" NPT

NOT AVAILABLE

Washer 3/8", Split Lock

Part # 5033-012 Mfg # 820-0017

Washer 3/8", Split Lock

$10.90 IN STOCK

Qty:

Bolt, 3/8"-16 x 2"

Part # 4742-35 Mfg # 819-0016

Bolt, 3/8"-16 x 2"

$12.78 IN STOCK

Qty:

1

Self Aligning 2" Union Nut

Part # 415-4061B Mfg # 415-4061B

Self Aligning 2" Union Nut

NOT AVAILABLE

Tailpiece 2" S. Self-Aligning Union

Part # 417-2111B

Tailpiece 2" S. Self-Aligning Union

$45.21

Valve Adapter O-ring

Part # 4600-4494 Mfg # O-83

Valve Adapter O-ring

$6.73 IN STOCK

Qty:

4

Tailpiece 2" MPT, Self-Aligning Union

Part # 417-2121-CPVCB Mfg # 417-2121-CPVCB

Tailpiece 2" MPT, Self-Aligning Union

NOT AVAILABLE
