By Century Motors


Details

Top

Part # B975T

Warranty 1 Year

Alternate Part #'s 177060T, B2975T, AOSB2975T

Product Description

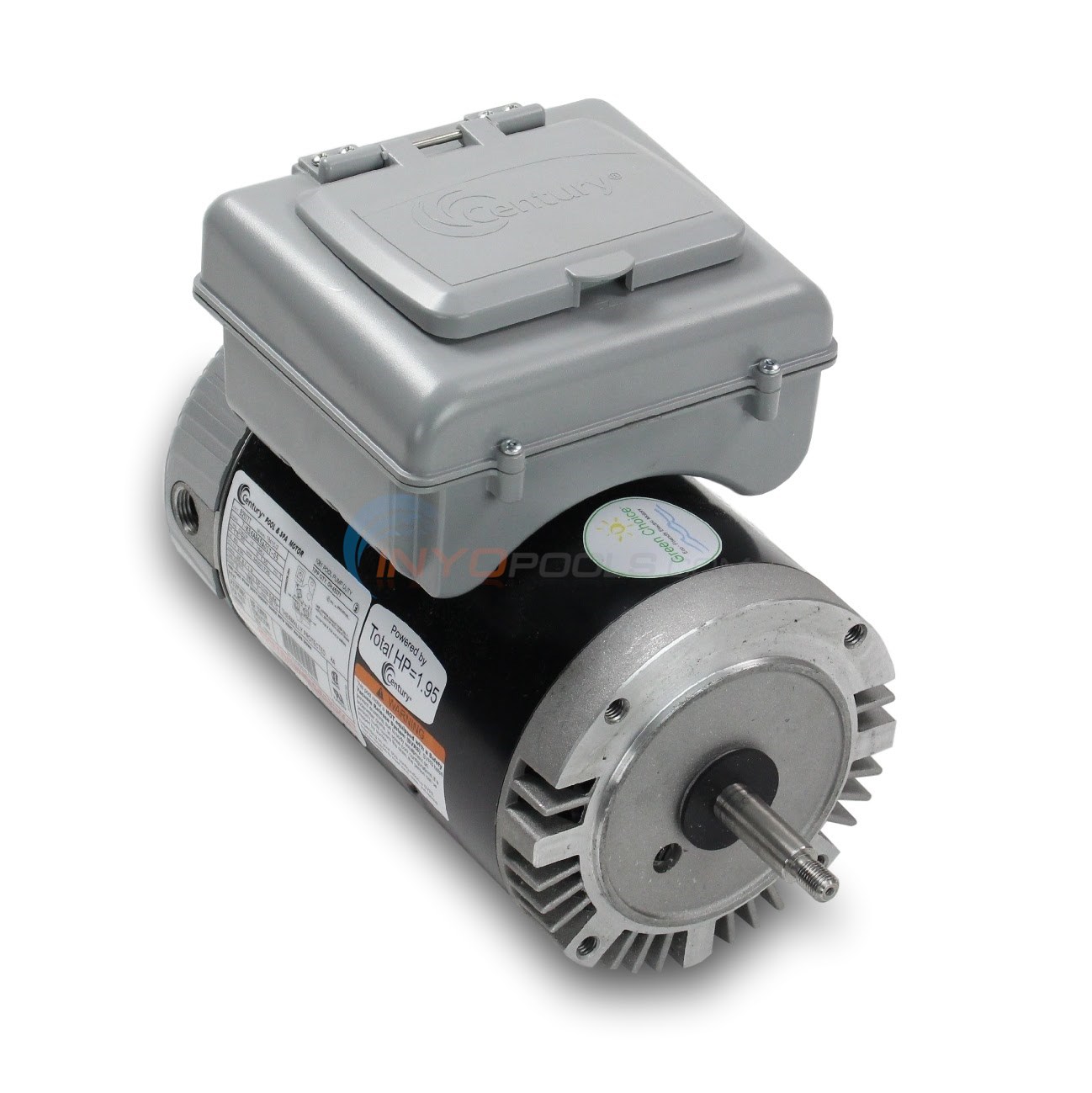

Premium-Efficiency 2-Speed Pool Motor with Integrated Timer

A. O. Smith’s new 2Green two-speed premium efficiency replacement pump motor with integrated timer packs tremendous value into an easy to- nstall package. Energy efficiency continues to drive the needs of the pool market, from legislation to increased awareness of energy costs and environmental impact. And thanks to the 2Green’s energy efficient high and low speed windings paired with an onboard timer interface, energy consumption can be reduced by as much as 58% over single speed motors. The all-in-one integrated motor and timer means less work for an installer and maximum energy savings for pool and spa owners. A. O. Smith’s 2Green is Title 20 compliant** and best of all, there is no additional wiring required for new construction or retrofit installations!

*California’s Title 20 legislation states that pumps > 1HP (total) must be 2-speed or variable speed, and must have a control to default to low-speed (i.e. timer)

Features Benefits
All-in-one design with integrated motor and timer as one unit No additional wiring required! – other aftermarket
timers require external leads and can be wired
incorrectly
Rain-proof timer enclosure Other aftermarket timers require a secondary enclosure
for outdoor use of the electronics
On-screen motor status updates Unique feature that provides user feedback (if the shaft
is locked for instance) which can reduce motor failures;
shows the mode (high, low, off) and time remaining
Built-in battery backup protects
programming for 7 full years
No need to replace battery (unlike other timers) or
reset time/settings during a power outage or off-season
Integrated LCD backlight and
adjustable contrast
Ensures the display can easily be viewed in dark, shady, or direct sunlight conditions
Intuitive step-by-step screen instructions Step-by-step instructions make initial setup and any
future programming changes simple
Manual override User can instantly change motor parameters for cleaning or maintenance without adjusting permanent settings

Product Specifications

Commonly Used On:
Hayward Super Pump, Super II Pump & Max-Flo Pumps
HP:
1.0/.12 HP
Speed:
2 Speed
RPM:
3450/1750 RPM
Amps:
6.3/2.3 amp
Service Factor:
1.40
Total HP:
1.40 HP
Frame:
56J
Stock #:
B2975T
Shaft:
Threaded
Volts:
230 V
Flange:
Round
Timer:
Digital
Notes:
California Title 20 Compliant
Top

?     Asked on 4/24/2013by Guest

Can the timer on the motor be removed to mount on a wall?
 Reply

A  Answered on 4/24/2013 by InyoPools Product Specialist Patrick P.

Unfortunately the timer control on the motor is permanently attached to the motor and can not be removed.
 Reply


?     Asked on 3/21/2015by JOE

WHAT IS THE WARRANTY? IF NEEDED WHO SERVICES THE PUMP IF IT FAILS? HOW LONG DOES IT TAKE TO RECOUP THE EXTRA MONEY SPENT ON THIS PUMP.
 Reply

A  Answered on 3/23/2015 by InyoPools Product Specialist Robert M.

Joe - The warranty is one year. If the motor fails within the first year because of manufacturer defects, we will replace the motor. You can take the motor to an electrical repair shop if it is outside of one year.  The time it takes to recoup the money depends on your kwh cost. This guide will help you calculate the cost to run the motor.
 Reply


?     Asked on 5/27/2015by Del

I have a Hayward super pump 1.5 HP single speed. Would like to replace the motor only, no timer, with the same super pump, but with a 2 speed. Will this fit my current pump housing? Any special wiring modification? Special 220 power cord? I have separate 110 & 220 outlets by my pump. Current pump is plugged to 220. Thanks.
 Reply

A  Answered on 5/27/2015 by InyoPools Product Specialist Patrick P.

Hi Del, I would suggest the 1 HP Full Rate Dual Speed Motor W/ Digital Timer the reason I suggest the 1 HP and not the 1-1/2 HP is because... the Hayward Super Pump uses a 1-1/2 HP uprated motor which would be identical to a 1 HP full rate motor.  The dual speed motor referenced above will fit your current housing and you should be able to use your current 220V plug. When replacing your motor I would suggest a Hayward Super Pump Tune Up Kit. This motor would not need a special timer as it has has a built in digital timer right on the motor.
 Reply


?     Asked on 5/27/2015by Marcos

Hello, I have the common 1 HP Hayward Super Pump, which has been making a high pitch noise for the past few years. This year it was seized up and I had to take it apart. Inside the pump housing a found a colony of ants (and uncles) that had to be evicted. I unfroze the shaft with a state-of-the-art water pump pliers, and it is working, but its still noisy. I wish to upgrade to a more efficient pump. Will this pump fit my current setup? Thank you.
 Reply

A  Answered on 5/27/2015 by InyoPools Product Specialist Patrick P.

Hi Marcos yes this dual speed motor would be a great energy-efficient upgrade to your current motor. I would also suggest a Hayward Tune Up Kit when you do this motor replacement.
 Reply


?     Asked on 5/28/2015by Jenna

Is this motor for an inground pool & can it be hardwired? If not, do you have a similar one available for an inground pool. Thank you.
 Reply

A  Answered on 5/28/2015 by InyoPools Product Specialist Patrick P.

Hi Jenna, this motor is designed for an inground pool and can be hard wired.
 Reply
