Jandy Stealth Original JHP & JHPU Series Pump (2002-2008) Parts

Replacement Parts for Jandy Stealth Pump Models JHP1.0, JHP1.5, JHP2.0, JHP3.0, JHPU1.0, JHPU1.5, JHPU2.0, JHPU2.5, JHPU2.0-2, & JHPU2.5-2

CLICK HERE FOR Jandy Stealth SHPF & SHPM Series Pump (2008-Current)

Jandy Stealth Original JHP & JHPU Series Pump (2002-2008) Diagram

Click to zoom in

Diagram #	Part Title
**	Tune Up Kit Jandy JHP + JHPU Pump Series
1	V-Green EVO 1.3 HP Round Flange 56J Variable Speed Motor - EVC130
1	US/Nidec Neptune Variable Speed Motor 2.70 THP Round Flange 230V 48Y NPTT270
1	MOTOR 56J THRD FULL RATE .5 HP
1	3/4 HP Full Rate Two Speed Motor W/ Timer - Round Flange (B973T, B2973T)
***	Protective Pool Motor Cover
2	MOUNTING BRACKET
3	IMPELLER, 3/4 HP FULL, 1 HP UPRATED
*	Impeller Screw w/ O-Ring
4	DIFFUSER 3/4 - 2.5 HP
5	JANDY SHAFT SEAL OEM
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
6	PUMP BODY, HH PLUS
7	MOUNTING FOOT ASSEMBLY
8	POT LID WITH COLLAR
9	BASKET, JHP STEALTH PUMP
10	BODY GASKET (R0555900)
11	DIFFUSER O-RING (R00558701)
12	LID O-RING
13	DIFFUSER HARDWARE
14	DRAIN PLUG, (SET OF 2) (R00559500)
15	HARDWARE, FOOT MOUNTING
16	BRACKET MOUNTING HARDWARE (SET OF 6)
17	HARDWARE, MOTOR MOUNTING
18	Half Union, 2" SLIP, 2.5" SPG - (Single) for .75-2.0HP Pumps
19	UNION O-RING (R0339600)
20	CONE WITH O-RING

View Parts List

Diagram #	Part Title
**	Tune Up Kit Jandy JHP + JHPU Pump Series
1	V-Green EVO 1.3 HP Round Flange 56J Variable Speed Motor - EVC130
1	US/Nidec Neptune Variable Speed Motor 2.70 THP Round Flange 230V 48Y NPTT270
1	MOTOR 56J THRD FULL RATE .5 HP
1	3/4 HP Full Rate Two Speed Motor W/ Timer - Round Flange (B973T, B2973T)
***	Protective Pool Motor Cover
2	MOUNTING BRACKET
3	IMPELLER, 3/4 HP FULL, 1 HP UPRATED
*	Impeller Screw w/ O-Ring
4	DIFFUSER 3/4 - 2.5 HP
5	JANDY SHAFT SEAL OEM
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
6	PUMP BODY, HH PLUS
7	MOUNTING FOOT ASSEMBLY
8	POT LID WITH COLLAR
9	BASKET, JHP STEALTH PUMP
10	BODY GASKET (R0555900)
11	DIFFUSER O-RING (R00558701)
12	LID O-RING
13	DIFFUSER HARDWARE
14	DRAIN PLUG, (SET OF 2) (R00559500)
15	HARDWARE, FOOT MOUNTING
16	BRACKET MOUNTING HARDWARE (SET OF 6)
17	HARDWARE, MOTOR MOUNTING
18	Half Union, 2" SLIP, 2.5" SPG - (Single) for .75-2.0HP Pumps
19	UNION O-RING (R0339600)
20	CONE WITH O-RING

Available Parts:

Tune Up Kit Jandy JHP + JHPU Pump Series

Part # GOKIT77 Mfg # GOKIT77

Tune Up Kit Jandy JHP + JHPU Pump Series

$35.16 IN STOCK

Qty:

V-Green EVO 1.3 HP Round Flange 56J Variable Speed Motor - EVC130

Part # EVC130

V-Green EVO 1.3 HP Round Flange 56J Variable Speed Motor - EVC130

$504.00 IN STOCK

Service Factor 1.0 Voltage 115/230 Frame 56J

Service Factor 1.0 Voltage 115/230 Frame 56J

Qty:

V-Green EVO 1.65 HP Round Flange 56J Variable Speed Motor - EVC165

Part # EVC165 Mfg # EVC165

V-Green EVO 1.65 HP Round Flange 56J Variable Speed Motor - EVC165

$581.00 IN STOCK

Service Factor 1.0 Voltage 115/230 Frame 56J

Service Factor 1.0 Voltage 115/230 Frame 56J

Qty:

V-Green EVO 2.25 HP Round Flange 56J Variable Speed Motor - EVC225

Part # EVC225 Mfg # EVC225

V-Green EVO 2.25 HP Round Flange 56J Variable Speed Motor - EVC225

$583.00 IN STOCK

Service Factor 1.0 Voltage 115/230 Frame 56J

Service Factor 1.0 Voltage 115/230 Frame 56J

Qty:

US/Nidec Neptune Variable Speed Motor 2.70 THP Round Flange 230V 48Y NPTT270

Part # NPTT270 Mfg # NPTT270

US/Nidec Neptune Variable Speed Motor 2.70 THP Round Flange 230V 48Y NPTT270

$729.00 IN STOCK

Qty:

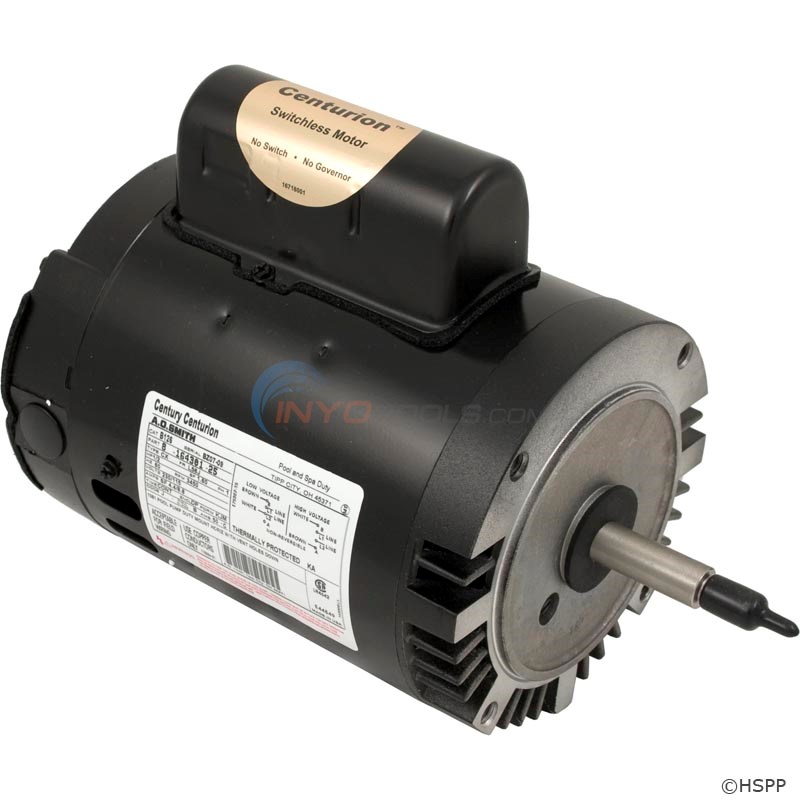

MOTOR 56J THRD FULL RATE .5 HP

Part # 5220X Mfg # B126

MOTOR 56J THRD FULL RATE .5 HP

$269.31 IN STOCK

Service Factor 1.6 Voltage 115/230 Max Amps 8.8 / 4.4 Frame 56J

Service Factor 1.6 Voltage 115/230 Max Amps 8.8 / 4.4 Frame 56J

Qty:

MOTOR 56J THRD FULL RATE .75 HP

Part # 5221X Mfg # B127

MOTOR 56J THRD FULL RATE .75 HP

$245.00 IN STOCK

Service Factor 1.5 Voltage 115/230 Max Amps 12.0 / 6.0 Frame 56J

Service Factor 1.5 Voltage 115/230 Max Amps 12.0 / 6.0 Frame 56J

Qty:

MOTOR 56J THRD FULL RATE 1HP

Part # 5222X Mfg # B128

MOTOR 56J THRD FULL RATE 1HP

$248.00 IN STOCK

Service Factor 1.4 Voltage 115/230 Max Amps 14.4 / 7.2 Frame 56J

Service Factor 1.4 Voltage 115/230 Max Amps 14.4 / 7.2 Frame 56J

Qty:

MOTOR 56J THRD FULL RATE 1.5 HP

Part # 5223X Mfg # B129

MOTOR 56J THRD FULL RATE 1.5 HP

$359.00 IN STOCK

Service Factor 1.3 Voltage 115/230 Max Amps 18.4 / 9.2 Frame 56J

Service Factor 1.3 Voltage 115/230 Max Amps 18.4 / 9.2 Frame 56J

Qty:

MOTOR 56J THRD FULL RATE 2 HP

Part # B836 Mfg # B836

MOTOR 56J THRD FULL RATE 2 HP

$441.62 IN STOCK

Service Factor 1.2 Voltage 115/230 Max Amps 21.6 / 10.8 Frame 56J

Service Factor 1.2 Voltage 115/230 Max Amps 21.6 / 10.8 Frame 56J

Qty:

MOTOR 56J THRD FULL RATE 2HP

Part # 5224X Mfg # B130

MOTOR 56J THRD FULL RATE 2HP

$385.89 IN STOCK

Service Factor 1.2 Voltage 230 Max Amps 10.5 Frame 56J

Service Factor 1.2 Voltage 230 Max Amps 10.5 Frame 56J

Qty:

MOTOR, 56J THRD FULL RATE 3HP

Part # 5225X Mfg # B131

MOTOR, 56J THRD FULL RATE 3HP

$543.00 IN STOCK

Service Factor 1.15 Voltage 230 Max Amps 14.1 Frame 56J

Service Factor 1.15 Voltage 230 Max Amps 14.1 Frame 56J

Qty:

MOTOR 56J THRD UP RATE .75HP

Part # 5210X Mfg # B227SE

MOTOR 56J THRD UP RATE .75HP

$239.00 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 8.8 / 4.4 Frame 56J

Service Factor 1.0 Voltage 115/230 Max Amps 8.8 / 4.4 Frame 56J

Qty:

MOTOR 56J THRD UP RATE 1 HP

Part # 5211X Mfg # B228SE

MOTOR 56J THRD UP RATE 1 HP

$249.00 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 6.0 / 12.0 Frame 56J

Service Factor 1.0 Voltage 115/230 Max Amps 6.0 / 12.0 Frame 56J

Qty:

Century 1.5 HP Round Flange 56J Up Rate Motor - B229SE

Part # 5212X Mfg # B229SE

Century 1.5 HP Round Flange 56J Up Rate Motor - B229SE

$264.00 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 14.4 / 7.2 Frame 56J

Service Factor 1.0 Voltage 115/230 Max Amps 14.4 / 7.2 Frame 56J

Qty:

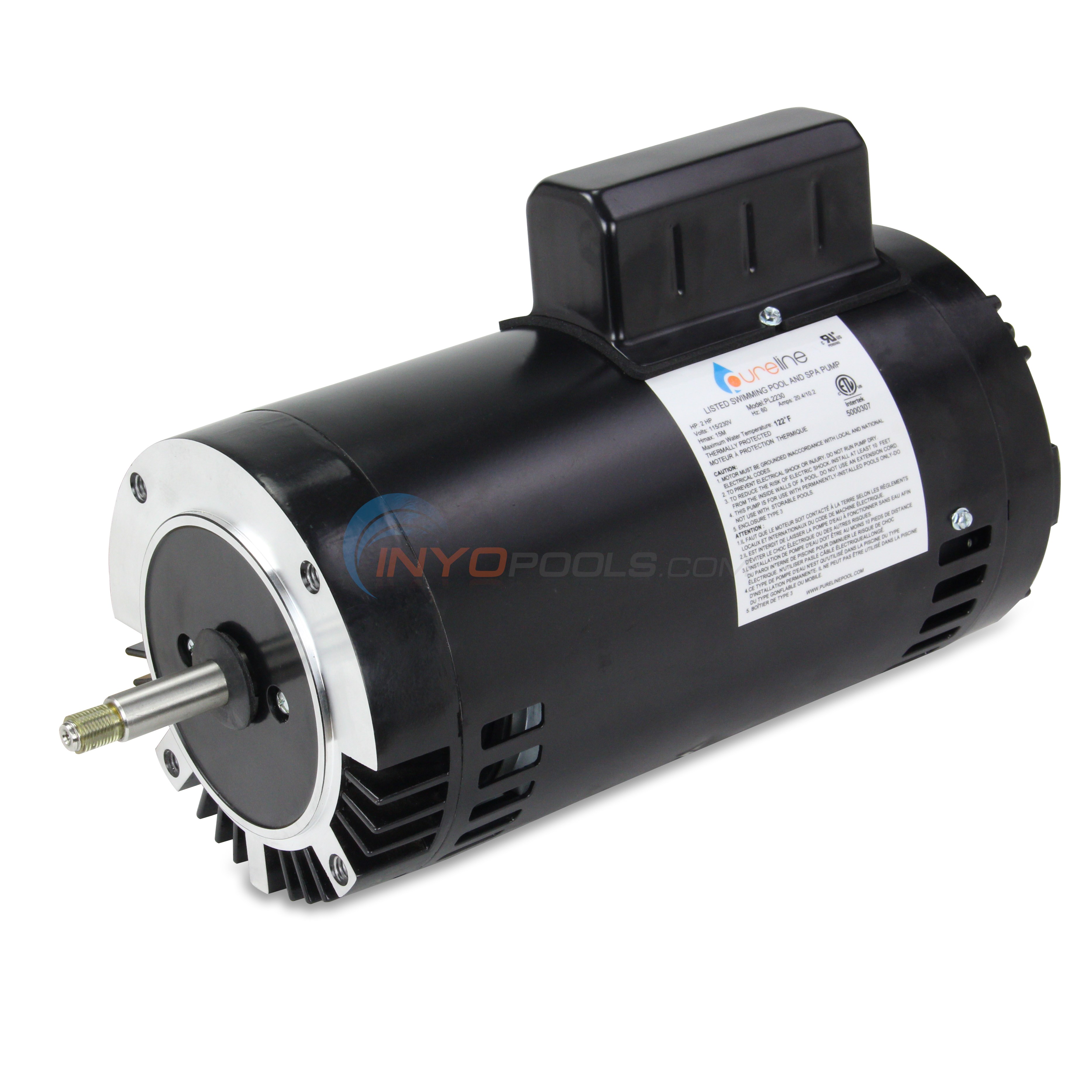

2 HP Pool Motor Round Flange 56J Up-Rate

Part # PL2230 Mfg # PL2230

2 HP Pool Motor Round Flange 56J Up-Rate

$227.12

Service Factor 2.0 Voltage 230/115 Max Amps 9.2/18.4 Frame 56J

Service Factor 2.0 Voltage 230/115 Max Amps 9.2/18.4 Frame 56J

Motor 56j Thrd Up 2.5 Hp (b231se, c1149)

Part # 5214X Mfg # B231SE

Motor 56j Thrd Up 2.5 Hp (b231se, c1149)

$400.00 IN STOCK

Service Factor 2.5 Voltage 230 Max Amps 10.5 Frame 56J

Service Factor 2.5 Voltage 230 Max Amps 10.5 Frame 56J

Qty:

3/4 HP Full Rate Two Speed Motor W/ Timer - Round Flange (B973T, B2973T)

Part # B973T Mfg # B2973T

3/4 HP Full Rate Two Speed Motor W/ Timer - Round Flange (B973T, B2973T)

$400.98

Service Factor 1.5 Voltage 115 Max Amps 11.2/5.0 Frame 56J

Service Factor 1.5 Voltage 115 Max Amps 11.2/5.0 Frame 56J

1 HP Full Rate Two Speed Motor W/ Timer - Round Flange (B975T,B2975T)

Part # B975T Mfg # B975T

1 HP Full Rate Two Speed Motor W/ Timer - Round Flange (B975T,B2975T)

$466.31

Service Factor 1.4 Voltage 230 Max Amps 6.3/2.3 Frame 56J

Service Factor 1.4 Voltage 230 Max Amps 6.3/2.3 Frame 56J

1.5 HP Full Rate Two Speed Motor W/ Timer - Round Flange (B977T, B2977T)

Part # B977T

1.5 HP Full Rate Two Speed Motor W/ Timer - Round Flange (B977T, B2977T)

$468.32

Service Factor 1.3 Voltage 230 Max Amps 8.9/3.1 Frame 56J

Service Factor 1.3 Voltage 230 Max Amps 8.9/3.1 Frame 56J

2 HP Full Rate Two Speed Motor W/ Timer - Round Flange (B979T,B2979T)

Part # B979T

2 HP Full Rate Two Speed Motor W/ Timer - Round Flange (B979T,B2979T)

$554.75

Service Factor 1.2 Voltage 230 Max Amps 10.6/3.2 Frame 56J

Service Factor 1.2 Voltage 230 Max Amps 10.6/3.2 Frame 56J

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$38.08 IN STOCK

Qty:

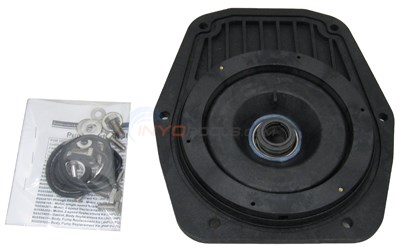

MOUNTING BRACKET

Part # 5020-063 Mfg # R0556000

MOUNTING BRACKET

$244.60

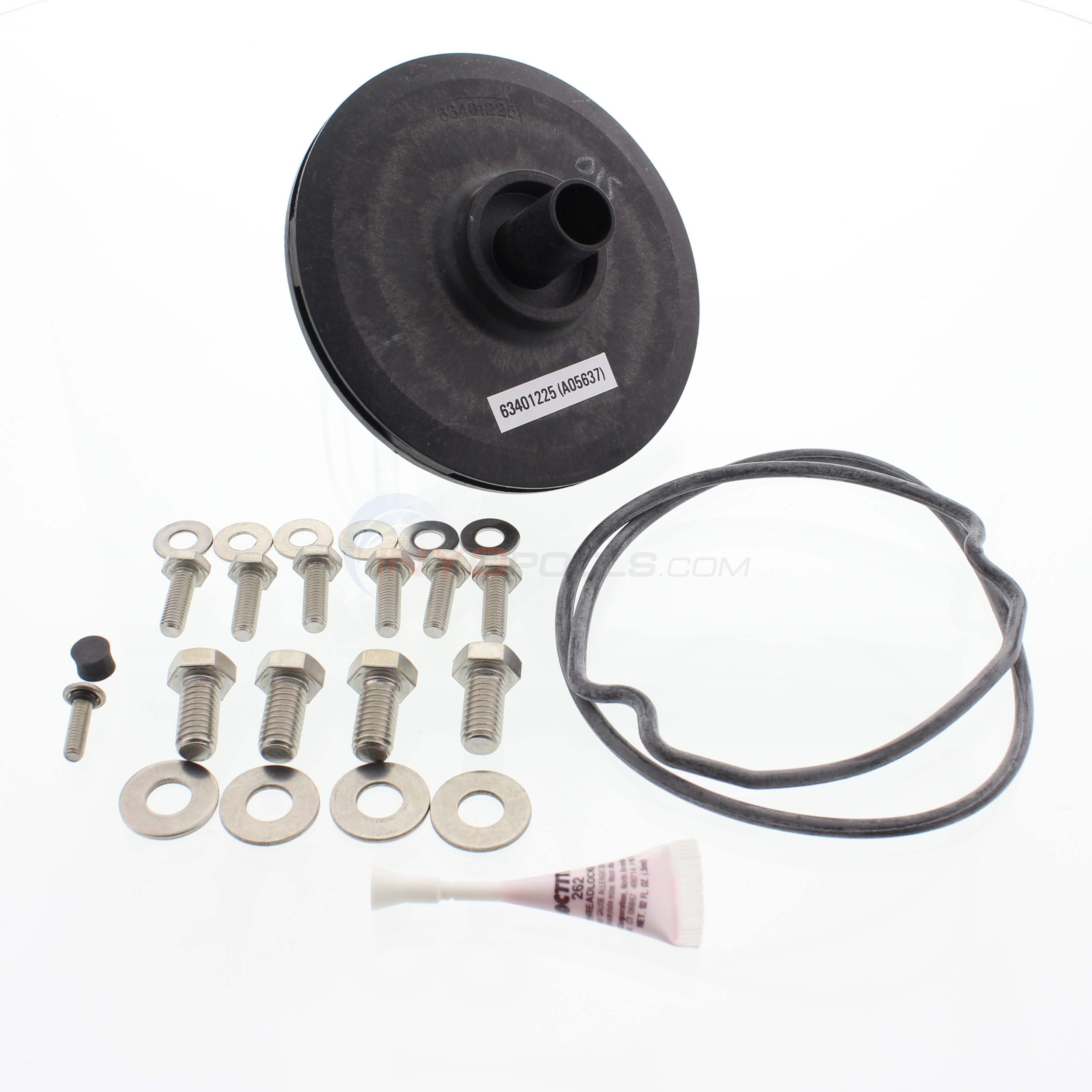

IMPELLER, 3/4 HP FULL, 1 HP UPRATED

Part # 5020-057 Mfg # R0555801

IMPELLER, 3/4 HP FULL, 1 HP UPRATED

$111.94

Models JHPU1.0

Models JHPU1.0

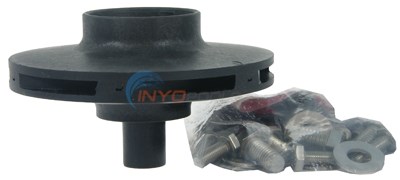

IMPELLER, 1 HP FULL, 1-1/2 HP UPRATED

Part # 5020-058 Mfg # R0555802

IMPELLER, 1 HP FULL, 1-1/2 HP UPRATED

$122.60

Models JHP1.0 & JHPU1.5

Models JHP1.0 & JHPU1.5

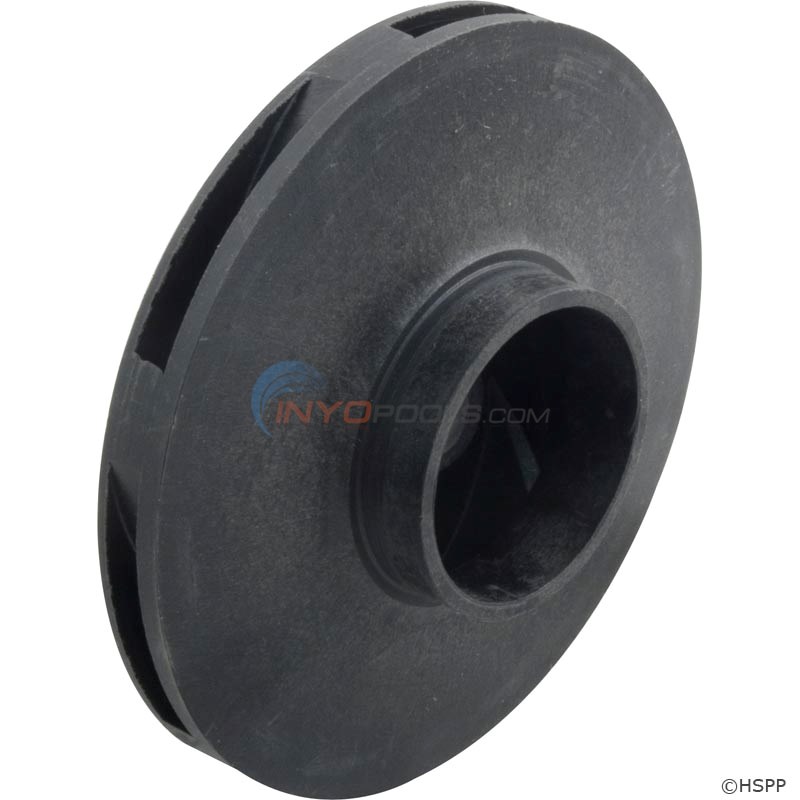

IMPELLER, 1-1/2 FULL, 2 HP UPRATED

Part # 5020-059 Mfg # R0555803

IMPELLER, 1-1/2 FULL, 2 HP UPRATED

$118.34

Models JHP1.5 & JHPU2.0

Models JHP1.5 & JHPU2.0

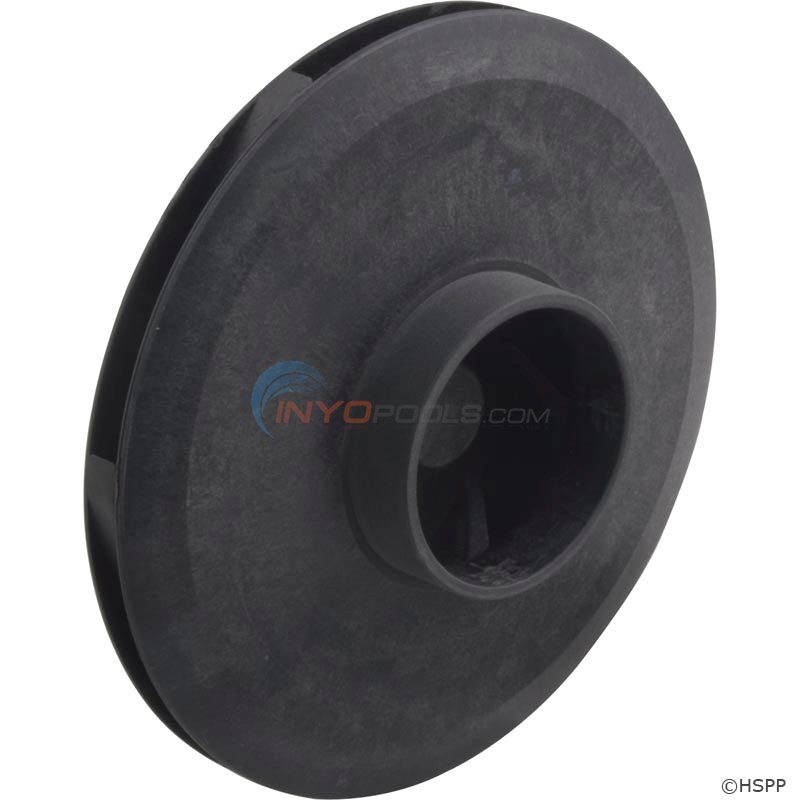

IMPELLER, 2 HP FULL, 2-1/2 HP UPRATE (R0555804)

Part # 5020-060 Mfg # 63401525

IMPELLER, 2 HP FULL, 2-1/2 HP UPRATE (R0555804)

$53.30 IN STOCK

Models JHP2.0 & JHPU2.5

Models JHP2.0 & JHPU2.5

Qty:

3

IMPELLER, 3 HP (R0555805)

Mfg # R0555805

IMPELLER, 3 HP (R0555805)

NOT AVAILABLE

Models JHP3.0

Models JHP3.0

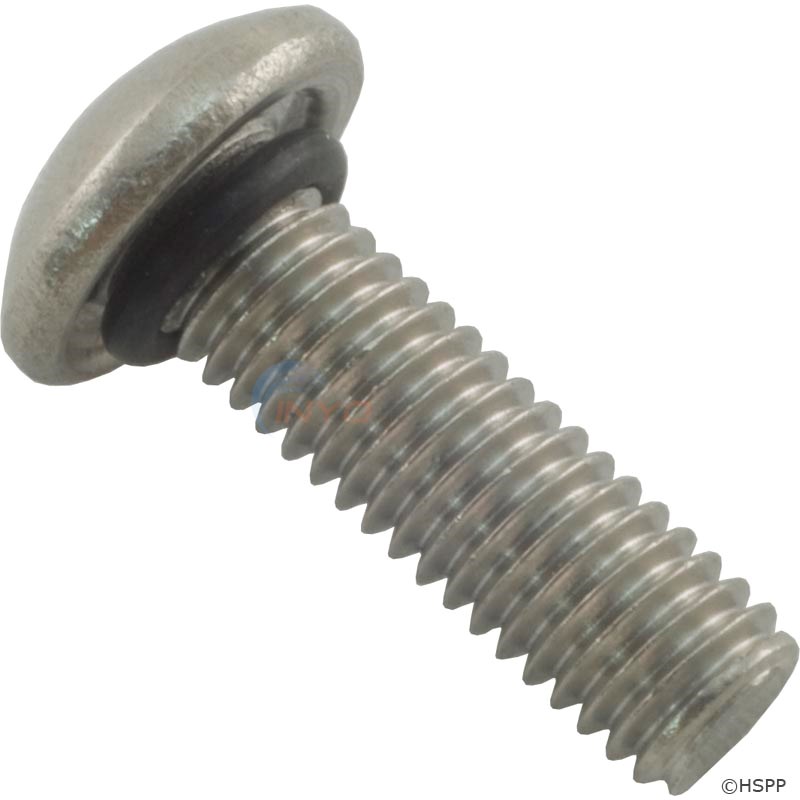

Impeller Screw w/ O-Ring

Part # 35-295-1103 Mfg # R0398800

Impeller Screw w/ O-Ring

$44.77

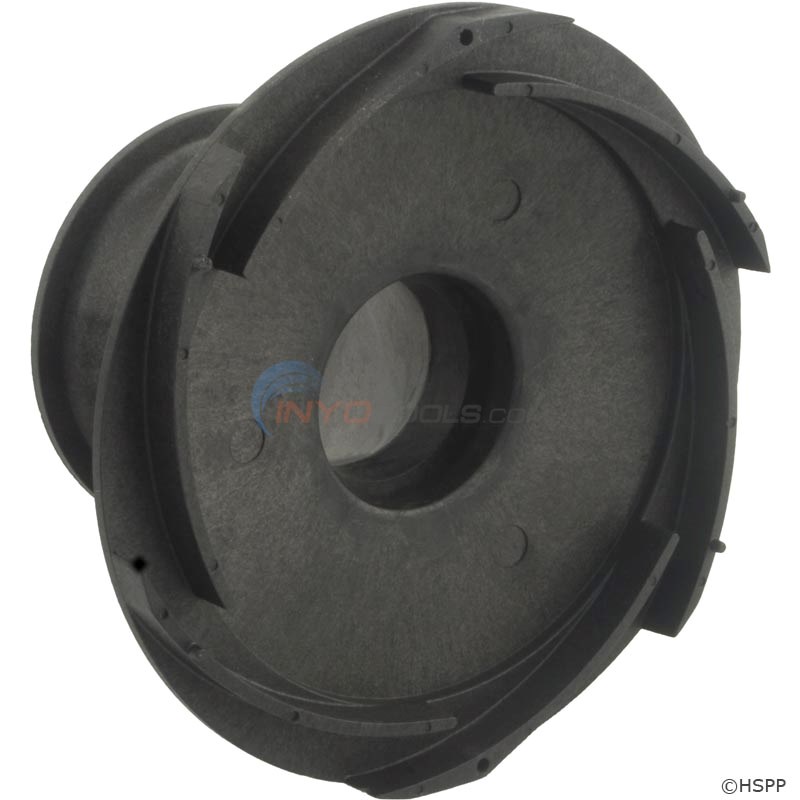

DIFFUSER 3/4 - 2.5 HP

Part # 5020-055 Mfg # R0555701

DIFFUSER 3/4 - 2.5 HP

$76.86

DIFFUSER, 3 HP

Part # 5020-073 Mfg # R0555705

DIFFUSER, 3 HP

$114.07

JANDY SHAFT SEAL OEM

Part # 5020-009 Mfg # R0338200

JANDY SHAFT SEAL OEM

$22.84 IN STOCK

Qty:

GENERIC SHAFT SEAL

Part # 35-423-1080 Mfg # PS-601

GENERIC SHAFT SEAL

$19.41 IN STOCK

Qty:

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

Part # 5250-240 Mfg # PS-3986

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

$25.40 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$5.31 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

Part # LUBE-10ML

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

$31.97 IN STOCK

Qty:

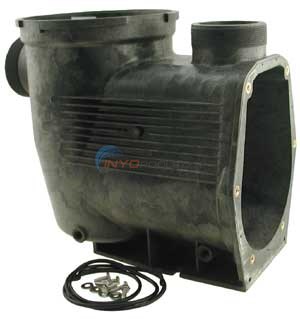

PUMP BODY, HH PLUS

Part # 5020-054 Mfg # R0555600

PUMP BODY, HH PLUS

$381.69

MOUNTING FOOT ASSEMBLY

Part # 5020-067 Mfg # R0559200

MOUNTING FOOT ASSEMBLY

$95.94

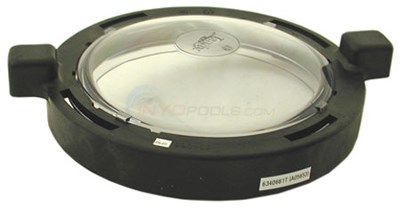

POT LID WITH COLLAR

Part # 5020-074 Mfg # R0555300

POT LID WITH COLLAR

$137.67

BASKET, JHP STEALTH PUMP

Part # 5020-053 Mfg # R0555500

BASKET, JHP STEALTH PUMP

$62.94

BODY GASKET (R0555900)

Part # 5020-062 Mfg # G-413

BODY GASKET (R0555900)

$20.03 IN STOCK

Qty:

Jandy OEM Gasket, Body JHP Series

Part # R0555900 Mfg # 634070

Jandy OEM Gasket, Body JHP Series

$56.37 IN STOCK

Qty:

DIFFUSER O-RING (R00558701)

Part # 5020-065 Mfg # R0558701

DIFFUSER O-RING (R00558701)

$7.36 IN STOCK

Qty:

DIFFUSER O-RING, 3 HP (R0058705)

Part # 5020-066

DIFFUSER O-RING, 3 HP (R0058705)

$60.76

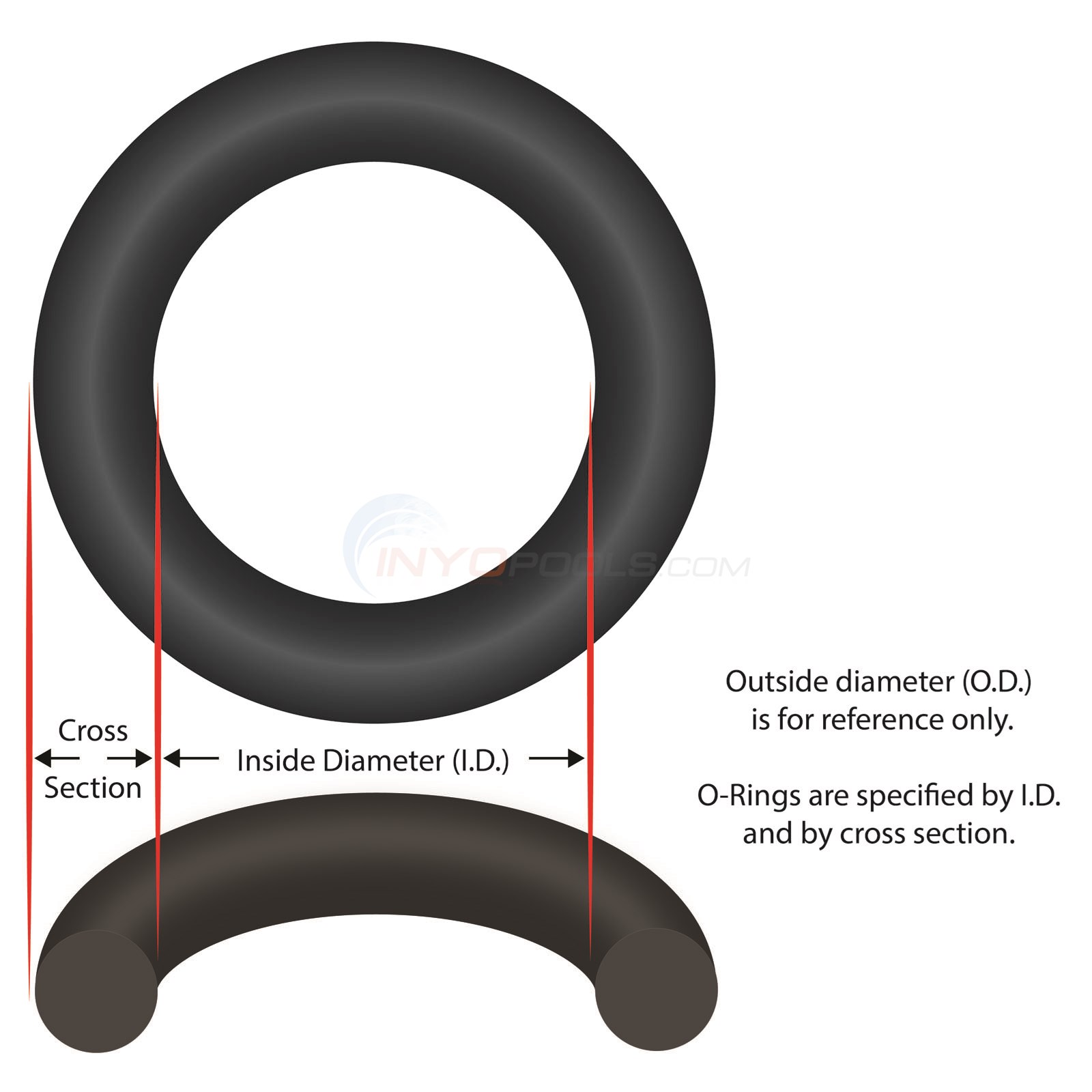

LID O-RING

Part # 5020-052 Mfg # R0555400

LID O-RING

$37.47 IN STOCK

Qty:

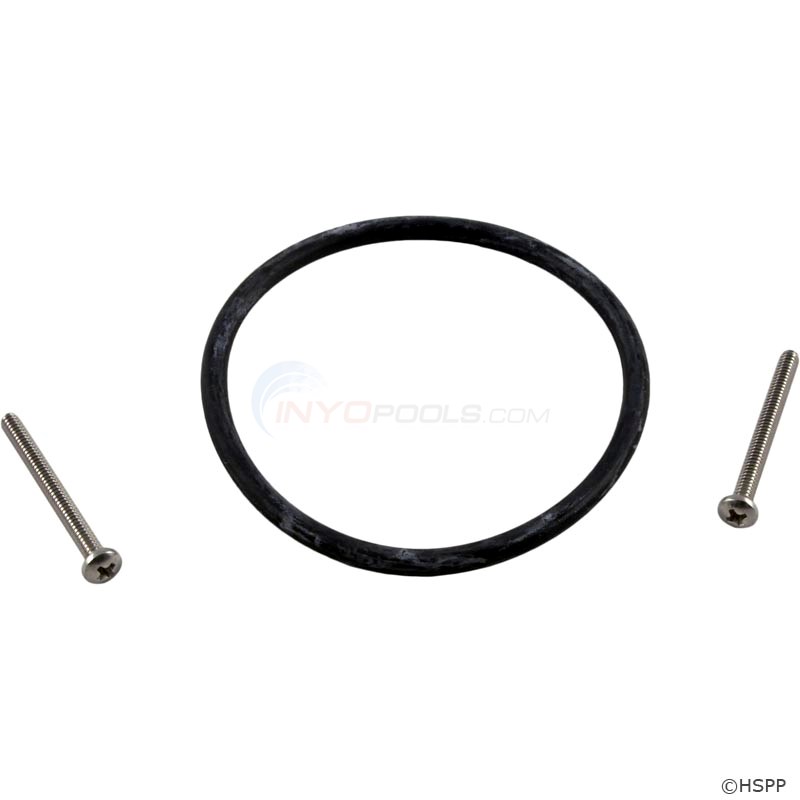

DIFFUSER HARDWARE

Part # 5020-050 Mfg # R0555201

DIFFUSER HARDWARE

$44.77

DRAIN PLUG, (SET OF 2) (R00559500)

Part # 5020-070 Mfg # R0559500

DRAIN PLUG, (SET OF 2) (R00559500)

$38.06

HARDWARE, FOOT MOUNTING

Part # 5020-021 Mfg # R0339200

HARDWARE, FOOT MOUNTING

$40.51

BRACKET MOUNTING HARDWARE (SET OF 6)

Part # 5020-020 Mfg # R0339100

BRACKET MOUNTING HARDWARE (SET OF 6)

$72.49

HARDWARE, MOTOR MOUNTING

Part # 5020-023 Mfg # R0339400

HARDWARE, MOTOR MOUNTING

$60.76

Half Union, 2" SLIP, 2.5" SPG - (Single) for .75-2.0HP Pumps

Part # 5020-064 Mfg # 63406550BLK

Half Union, 2" SLIP, 2.5" SPG - (Single) for .75-2.0HP Pumps

$45.64 IN STOCK

HP .75-2.0

HP .75-2.0

Qty:

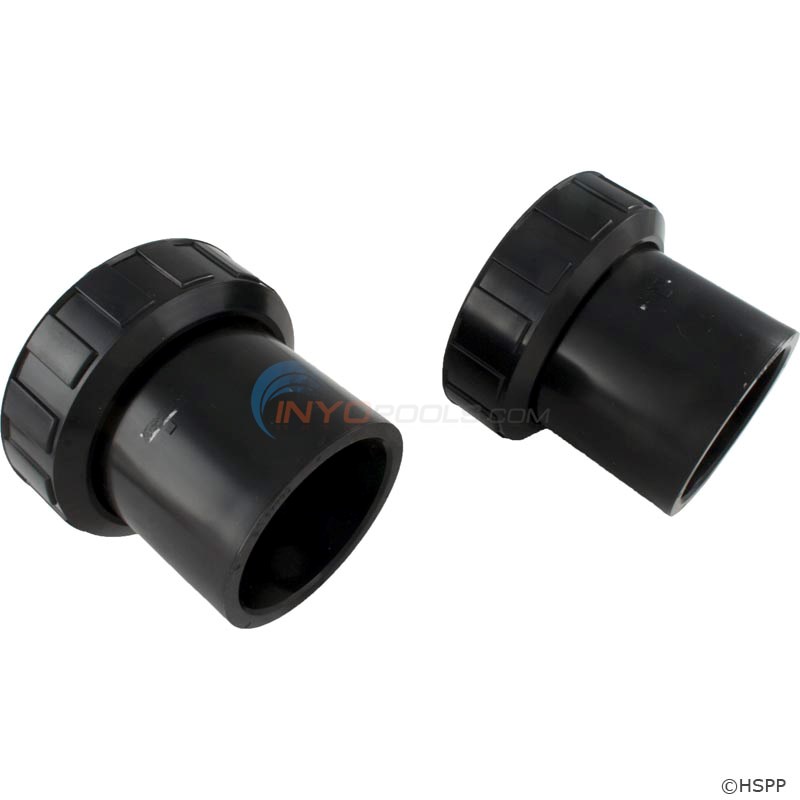

Pump Union, 2-1/2 - 3", (set Of 2) for 3HP Pumps

Part # 5020-071 Mfg # R0559900

Pump Union, 2-1/2 - 3", (set Of 2) for 3HP Pumps

$117.49

HP 3.0

HP 3.0

UNION O-RING (R0339600)

Part # 5020-025 Mfg # O-652

UNION O-RING (R0339600)

$13.57 IN STOCK

Qty:

CONE WITH O-RING

Part # 5020-069 Mfg # R0559400

CONE WITH O-RING

$79.95

*NOT SHOWN
** O-RING/GASKET REPAIR KIT
*** NOT SHOWN-This is the original version of the Jandy Stealth pump. See the SHPF & SHPM for the current Version.
