Part # UCT1152
Warranty 1 Year

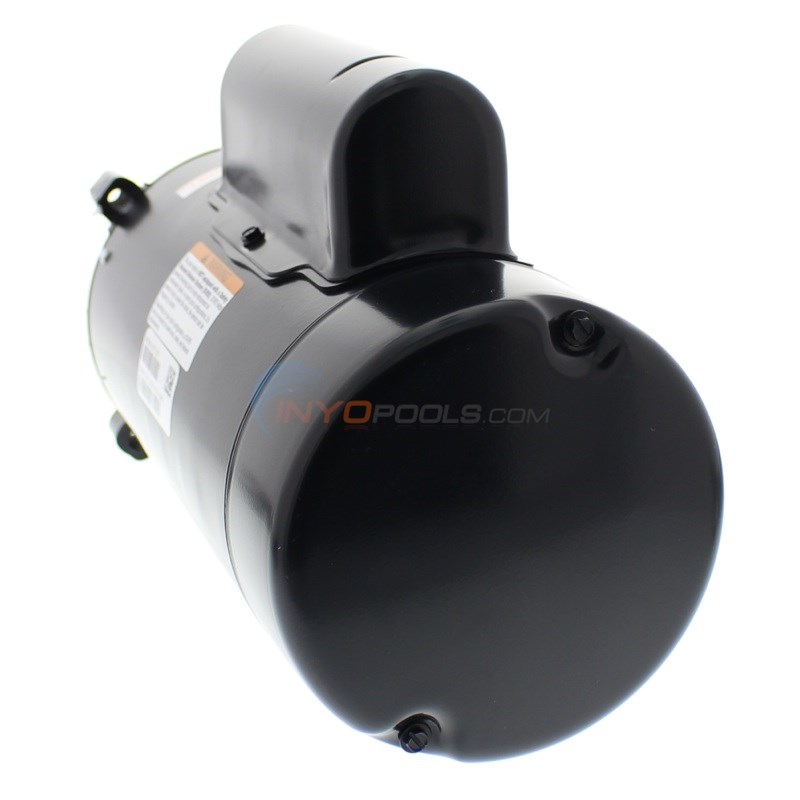

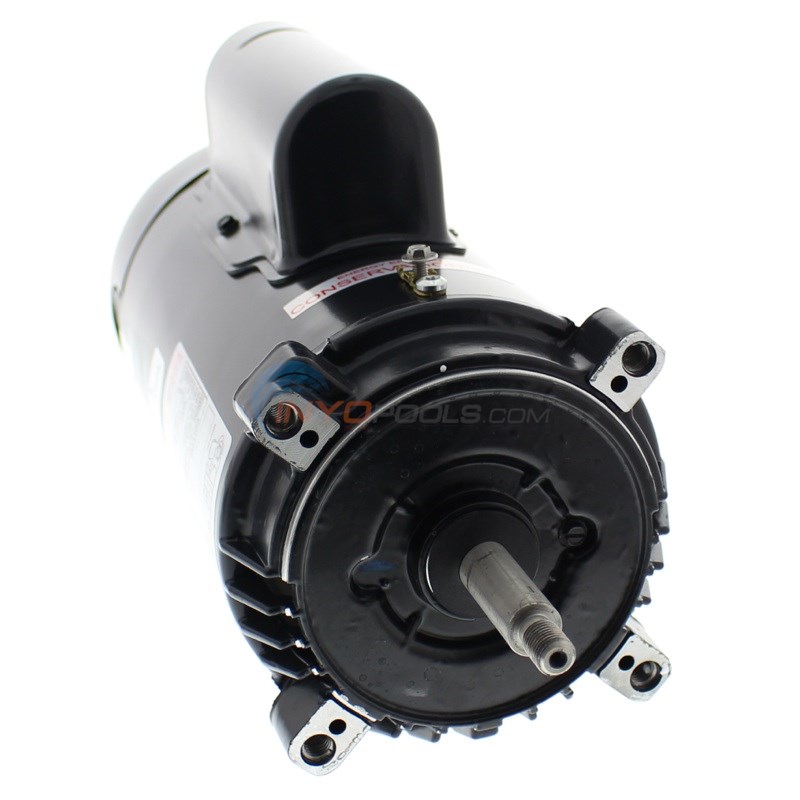

Replace your Pump Motor with an Energy Efficient model UCT1152. Our Energy Efficient UCT1152 replacement motor cost roughly 33% less to operate than the standard UST1152 replacement motor. In most states you will recoup the cost difference between the standard motor and Energy Efficient Motor within 4-6 months.
Voltage 115/230, Max Amps 115V = 14.6 230V = 7.3, Single Speed, Round Flange, RPM = 3450, Threaded Shaft, Frame = 56J Used on the following models: Hayward Max Flow, Hayward Super Pump, Hayward Super II, Hayward Northstar and Jacuzzi Magnum pumps.
Note: NOT California Title 20 Compliant.
California Title 20 Compliant Option:
Will the AO Smith UCT1152 cost less to run than the UST1152?
Reply
Yes, the UCT1152 will cost less to operate compared to the standard UST1152. Depending on how the motor is cared for, it should last several years. When replacing the motor, I would recommend buying a tune up kit based on your pump model and age.
Reply
Will this motor fit a Hayward Super pump model SP2610X15?
Reply
Yes, the UCT1152 will fit your pump. I would also recommend a GOKIT3: http://www.inyopools.com/Products/00500022000632.htm?Keywords=gokit3
Reply
I'm trying to find a replacement for my marathon pool pump model numbe 5KC39UN6086X would this fit if so what other parts would if any thanks for the help.
Reply
Hello Ray - The UCT1152 is not the correct replacement motor. Model USQ1152 would be the correct replacement. The seals would depend on the make and model of your pump. Our Pool Pump Parts Page has a list of most of the common pool pumps. The seals can be found on this page.
Reply
What's the right pump to replace the old one!! Model C48K2N143B1!
Reply
The direct replacement motor for your Model C48K2N143B1 is a UST1102 Motor if you wanted to go Energy Efficient then you could go with the UCT1102 Replacement Motor.
Reply
The Most Helpful Review
5 1
(4 out of 5 stars) Great Pump Motor
Reviewed By: OGrady from Medina, OH ()
Pros: Affordable and quiet motor
Cons: Wiring diagram not detailed
I had to look on YouTube for a video on how to remove/attach the impeller, but once I knew that, assembly was a breeze. If you are not experienced in wiring, I recommend hiring a professional or at least making sure you have taken a picture of exactly how your old motor was wired. This motor is quiet and efficient. I recommend it highly, and I saved a lot of money doing it myself.
Was this review helpful to you?
The Most Recent Reviews
(5 out of 5 stars) Perfect solution for my old Hayward Motor replacement.
Reviewed By: Inyo Customer ()
I replace my old Hayward pump with this unit. The old pump was over 10 years old and started to make terrible noises. Upon inspection it was toast and couldn't be fixed and needed to be replaced. This was the perfect unit as I needed the 1.5HP and even better that this one is more energy efficient. Don't forget to by the pump seal kit if you are just replacing the motor. You may as well do both and have everything working properly. I will likely buy another one of these to have as a backup.
Was this review helpful to you?
(5 out of 5 stars) Good after-purchase support from Inyo.
Reviewed By: Inyo Customer ()
Arrived quickly. I had looked at the videos on the Inyo site and am mechanically experienced. One of the videos talked about a common problem removing a piece from the old setup. I thought I had it but had only removed half of it, because I didn't want to force anything. Technical support worked perfectly, diagnosed the only possible causes, and got me going quickly. Now I have a quieter motor and a pump that works.
Was this review helpful to you?
(5 out of 5 stars) Works great!
Reviewed By: Inyo Customer ()
Works great!
Was this review helpful to you?
2 0
(2 out of 5 stars) Didn't last long for the money!
Reviewed By: Inyo Customer ()
This product was delivered quickly and easy to install but didn't last long for the money. I purchased this in February of 2018 and as of today 12/10/19 it is screaming loud. The Hayward that it replaced lasted 10 years so expected much more than just 20 months and just my luck the warranty is only for 12 months. I would not suggest this product!
Was this review helpful to you?
(4 out of 5 stars)
Reviewed By: Inyo Customer ()
Powerful pump, and I like that it's energy efficient since a pool pump usually runs 8-12 hrs. a day. Not as quiet as the original gold super pump.
Was this review helpful to you?
1 0
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
Pump was making loud noises .order new pump received it in 2 days swapped out less than an hour job very quiet very happy half the price of the pool company locally.
Was this review helpful to you?
1 0
(3 out of 5 stars) Okay...But
Reviewed By: Gil J. from Crystal River, FL ()
Pros: Quiet
Cons: wire terminal location and inferior screw terminals.
The pump was delivered in a couple of days which was great. The pump has 2 design flaws. First, the electrical connections are within a half inch or so of the conduit connection. This makes for unnecessary difficulty when connecting the wiring. The pump it replaced had its connects at least 2" from the conduit connection. Second, the wire attachment screws will strip the copper or brass plate threads with very little torque. I would recommend stranded supply wire to overcome both of these design flaws. With stranded wire you could use a solderless crimp connector rather than the screw terminals. Until I can change the feeder wiring, I had to use backer nuts on the screw terminals to securely attach the feeder wires.
Was this review helpful to you?
