?     Asked on 5/1/2013by Guest

Will the AO Smith UCT1152 cost less to run than the UST1152?
 Reply

A  Answered on 5/1/2013 by InyoPools Product Specialist Patrick P.

Yes, the UCT1152 will cost less to operate compared to the standard UST1152. Depending on how the motor is cared for, it should last several years. When replacing the motor, I would recommend buying a tune up kit based on your pump model and age.
 Reply


?     Asked on 9/10/2014by Guest

Will this motor fit a Hayward Super pump model SP2610X15?
 Reply

A  Answered on 9/10/2014 by InyoPools Product Specialist Patrick P.

Yes, the UCT1152 will fit your pump. I would also recommend a GOKIT3: http://www.inyopools.com/Products/00500022000632.htm?Keywords=gokit3
 Reply


?     Asked on 2/3/2015by ray

I'm trying to find a replacement for my marathon pool pump model numbe 5KC39UN6086X would this fit if so what other parts would if any thanks for the help.
 Reply

A  Answered on 2/4/2015 by InyoPools Product Specialist Robert M.

Hello Ray - The UCT1152 is not the correct replacement motor. Model USQ1152 would be the correct replacement. The seals would depend on the make and model of your pump. Our Pool Pump Parts Page has a list of most of the common pool pumps. The seals can be found on this page.
 Reply


?     Asked on 6/14/2015by john

Is this replacement motor Energy Star certified?
 Reply

A  Answered on 6/15/2015 by InyoPools Product Specialist Lennox H.

John, A.O. Smith High Efficiency 1.5 HP Round Flange Up Rate Motor (UCT1152) is not Energy Star certified, it rated by The Conservationist®
 Reply


?     Asked on 6/14/2015by Thomas

What's the right pump to replace the old one!! Model C48K2N143B1!
 Reply

A  Answered on 6/14/2015 by InyoPools Product Specialist Patrick P.

The direct replacement motor for your Model C48K2N143B1 is a UST1102 Motor if you wanted to go Energy Efficient then you could go with the UCT1102 Replacement Motor.
 Reply


?     Asked on 6/22/2015by Drew

can this unit replace 48L2N134? If not, can you recommend a compatible unit?
 Reply

A  Answered on 6/24/2015 by InyoPools Product Specialist Hector F.

If you are actually referring to a C48L2N134 then yes this is a replacement motor option for you.
 Reply


?     Asked on 6/23/2015by Paul

The motor on my Hayward Superpump (SP2610X15) is getting really noisy and I plan to replace it. The motor is an AO Smith Century Centurion (CAT B229SE, PART 0-184982-23. TYPE CX, FRAME Y56J, 1.5 HP) Will this UCT1152 the correct replacement? Thanks!
 Reply

A  Answered on 6/23/2015 by InyoPools Product Specialist Dennis R.

Hi Paul. The UCT1152 motor is the standard  Energy Efficient 1 1/2 HP replacement motor for the Hayward Super Pump. Your current B229SE motor is equivalent to the UCT1152.  Both will work. The B229SE is about 2 " longer and is currentrly about $40 less than the UCT1152. I would also recommend a GOKIT3: http://www.inyopools.com/Products/00500022000632.htm?Keywords=gokit3
 Reply


?     Asked on 7/3/2015by Inyo Visitor

how can I determine if original pump was wired 230 or 115? I am replacing a Hayward super pump with Energy efficient 1 1/5hp. It comes from you set on 230.
 Reply

A  Answered on 7/5/2015 by InyoPools Product Specialist Patrick P.

The easiest way would be to put a voltmeter on your supply to see what voltage is being supplied to the pump. Step 6 in our guide on How to Test Pool Pump Voltage explains how to do this.
 Reply


?     Asked on 7/20/2015by Inyo Visitor

I have an Emerson EB796 1.5hp frame 56j motor. what are my options for a replacement motor?
 Reply

A  Answered on 7/21/2015 by InyoPools Product Specialist Robert M.

Model B796 (5223A) is the correct replacement for the EB796.
 Reply


?     Asked on 8/5/2015by wayne

I have a UCT1152 I purchased from you in 2013. I need a new capacitor. Can you tell me which one to buy?
 Reply

A  Answered on 8/5/2015 by InyoPools Product Specialist Joe S.

Hello Wayne the Capacitor, Run Rd 20-370 (rd-20-370) PART#5270-07
 Reply


?     Asked on 8/15/2015by Inyo Visitor

I have a Marathon C1319 and with what can I replace that with?
 Reply

A  Answered on 8/16/2015 by InyoPools Product Specialist Hector F.

You can use either motor model 5212X or UST1152 as a direct replacement or this UCT1152 as a slightly more energy efficient model.
 Reply


?     Asked on 8/19/2015by Coop

I have a Hayward Super 1.5hp motor that I need to replace. Is the UCT1152 the proper replacement?
 Reply

A  Answered on 8/21/2015 by InyoPools Product Specialist Lennox H.

Hi Coop, The UCT1152 motor will be an energy efficient replacement that will work with your 1.5 hp Hayward Super Pump. I would also recommend getting the Hayward Super Pump Tune Up Kit (GOKIT2)
 Reply


?     Asked on 9/4/2015by rob

I have a AOSmith part# 7-193633-24 motor is this uct 1152 a proper replacement?
 Reply

A  Answered on 9/8/2015 by InyoPools Product Specialist Lennox H.

Hi Rob, The 1.5 HP Full Rated 56J Thrd Motor (B129) would be the correct replacement motor that will match p/n 7-193633-24.
 Reply


?     Asked on 10/19/2015by boon

I have 32000 gallons pool, Purex 2000 SMBW 2072, 40ft feet of head. I have been using Emerson B808, 2HP motor for 3 yrs. Now it broke. I want to replace the motor. Does this A.O. Smith High Efficiency 1.5 HP will be proper motor for replacement or what kind of motor should I use ?
 Reply

A  Answered on 10/20/2015 by InyoPools Product Specialist Lennox H.

Hi Boon, The A.O. Smith 2 HP EE 56C Motor (B808) motor would be the correct motor.
 Reply


?     Asked on 10/22/2015by Rich

I am looking for an energy star rated replacement pump for a Hayward SP-1610-z1-M. I found the energy efficient UCT1152. Are there any other options for a motor replacement?
 Reply

A  Answered on 10/23/2015 by InyoPools Product Specialist Lennox H.

Hi Rich, Replacement pool motors are not "Energy Star" rated because it's a replacement part. Only pump as a complete unit will have the "Energy Star" rating. The A.O. Smith High Efficiency 1.5 HP Round Flange Up Rate Motor (UCT1152) will be the energy efficient version to the UST1152 model.
 Reply


?     Asked on 1/5/2016by alan

I have a Hayward II super pump and need to replace the motor. I am looking at either the UST1152 or the UCT1152. Which, if either would be the better choice? Pump model is SP3015X20AZ Impeller is SP3016-c Thank you!
 Reply

A  Answered on 1/6/2016 by InyoPools Product Specialist Matt S.

Hello Alan,Your Hayward Super II SP3015X20AZ is a 2 HP pump, so neither of those motors would be a proper match. You will need to replace your motor with a UST1202 or the energy efficient 2 HP B230SE.
 Reply


?     Asked on 3/5/2016by Inyo Visitor

Will the original super pump impeller be okay to use with this up-rated motor?
 Reply

A  Answered on 3/7/2016 by InyoPools Product Specialist Lennox H.

Hi, You can use the original Super Pump impeller p/n SP2610C with this motor.
 Reply


?     Asked on 5/17/2016by Keith

I have a Hayward 1.5hp super pump motor (c48l2n134b1) that needs replacing. What is the difference between the ust1152 and uct1152. I understand the latter is energy efficient but is there a capacitor on top of the motor (as seen in pic) or is there another difference? Is tune up kit same for both? Pump model #is sp2610x15. Thanks for your help.
 Reply

A  Answered on 5/18/2016 by InyoPools Product Specialist Lennox H.

Hi Keith, The UCT1152 motor is an energy efficient replacement for the UST1152. The UCT1152 also has a capacitor on top. The Hayward Super Pump Tune Up Kit p/n GOKIT3 or GOKIT3SALT will work with the SP2610X15 pump.
 Reply


?     Asked on 5/26/2016by Inyo Visitor

I have a 1.5 HP for 32000 gallon pool. Skimmer flow is not as good as I would like. Would a 2 HP work better?
 Reply

A  Answered on 5/26/2016 by InyoPools Product Specialist Dennis R.

With your size pool, you could easily go to a larger pump. You might consider going to a variable speed pump like the PureLine Prime Variable Speed Pool Pump 2.7 HP.  This pump could give you an energy savings of up to 80% over single speed pumps.
 Reply


?     Asked on 5/27/2016by Genie

I have an ST1102.1HP with 1.5 SF for 1.5 THP. Will the1.5 HP UTC1152 be a proper energy efficient replacement.
 Reply

A  Answered on 5/28/2016 by InyoPools Product Specialist Patrick P.

Hi Genie, Yes you are correct you would want to go with the UCT1152 which matches your THP of 1.5. The UCT1152 is energy efficient meaning it draws less amps which will save you on your energy bill.
 Reply


?     Asked on 6/3/2016by Inyo Visitor

I have a k48l2n104, I wanted to know if this could be used as the replacement
 Reply

A  Answered on 6/9/2016 by InyoPools Product Specialist Lennox H.

Hi, The UCT1152 motor can replace the K48L2N104 motor, however, the CT1102 is the direct replacement and also uses less power to operate.
 Reply


?     Asked on 6/10/2016by Terry Hitt

what impeller do i need for new AO Smith 1.5 hp efficiancy up rate motor? Fits onto jacuzzi magnum force water pump housing
 Reply

A  Answered on 6/19/2016 by InyoPools Product Specialist Lennox H.

Hi Terry, The 05380209R000 or 05385406R000 impellers can be used with the Jacuzzi Magnum Force pump, you will have the measure your old impeller to confirm which one yo need.
 Reply


?     Asked on 7/31/2016by G

Need to replace an A.O. Smith Hayward Super Pump Self Priming Model C48L2N134B1 - SER8F04 HP 1 1/2. KW 1.10 Volts 115/230 RPM 3450 AMPS 18.6/9.3. It's about 12 years old and has finally failed. Which replacement pump can I purchase that will fit and work perfectly. High efficiency models are ok also. Thank you.
 Reply

A  Answered on 8/2/2016 by InyoPools Product Specialist Lennox H.

Hi G, This UCT1152 motor is the correct energy efficient single speed replacement motor for the Hayward Super Pump C48L2N134B1 motor. You will also need the Hayward Super Pump Tune Up Kit p/n GOKIT3 or GOKIT3SALT.
 Reply


?     Asked on 8/31/2016by John

I have a Super Pump SP2607X10 and would like to use a 1.5 HP motor instead of the standard 1HP. Would it be a direct replacement or is there any other parts that need to be changed?
 Reply

A  Answered on 8/31/2016 by InyoPools Product Specialist Scott W.

You would have to upgrade your impeller as well if you move up to a 1.5HP. You will also need to see if your filter is able to handle the increased flow rate.
 Reply


?     Asked on 9/29/2016by DONNA

my pump model number is a.o. smith Hayward, c48k2n143b1, I turn it on and it just make a humming sound, I need to replace this pump , what are the pumps numbers I can replace with.
 Reply

A  Answered on 9/30/2016 by InyoPools Product Specialist Alan M.

Hello Donna- The correct replacement motor is the A.O. Smith 1 HP Round Flange Up Rate Motor - UST1102.
 Reply


?     Asked on 10/2/2016by Randy

An impeller search leads me to this motor, which I think is the replacement for my current older motor. What I actually need is a new impeller. The part number on mine is SP 3016-C, which I think is a Hayward part number. Do you have that part or a replacement?
 Reply

A  Answered on 10/3/2016 by InyoPools Product Specialist Scott W.

Yes, the correct replacement impeller is part number 5110-10L which is a Hayward impeller.
 Reply


?     Asked on 10/14/2016by Jeff

Hi, I have a jandy jhp1.0 What motor do I need as a replacement?
 Reply

A  Answered on 10/14/2016 by InyoPools Product Specialist Scott W.

Do you happen to have the motor model number because it could be a couple different motors that say 1HP but the total horsepower on them are different. Need the model number from the motor to determine the correct one.
 Reply


?     Asked on 11/25/2016by Inyo Visitor

Do you need a tune up kit if your replacing the motor with an energy efficient motor?
 Reply

A  Answered on 11/28/2016 by InyoPools Product Specialist Lennox H.

Hi. We do recommend getting a tune up kit for your pump if it's available when replacing the motor.
 Reply


?     Asked on 12/23/2016by Doug

I have AO Smith K48M2PA104A2. Is this equivalent or do you have another?
 Reply

A  Answered on 12/23/2016 by InyoPools Product Specialist Hector F.

The motor equivalent would be the model SQ1152.
 Reply


?     Asked on 3/1/2017by Inyo Visitor

I have a Hayward Super II pool pump (model SP3010x15az) with an AO Smith 1.5hp motor (model C48L2N134B3). I need the p/n for a repl' AO Smith motor as well as the pump tune up kit. Thank you!
 Reply

A  Answered on 3/1/2017 by InyoPools Product Specialist Andy O.

Hello- The replacement motor for your SP3010x15az/ Motor # C48L2N1034B3 is the  A.O. Smith 1.5 HP Round Flange Up Rate Motor - UST1152 and it would use the Tune Up Kit Hayward Super II - GOKIT2.
 Reply


?     Asked on 3/7/2017by Inyo Visitor

I need a replacement motor for my Hayward super 2 but sticker is gone how do I find out what motor to use. could there be a number somewhere else on motor
 Reply

A  Answered on 3/7/2017 by InyoPools Product Specialist Stacey M.

Hello, You can always check for a pump model number which is normally located on the side of the basket housing, should say pump model number and pump serial number on a black label plate.
 Reply


?     Asked on 4/10/2017by Darrell N.

Please tell me what would be the direct replacement motor for a Hayward Super II, Motor model #K48M2N110, and do you carry it? Thank You!
 Reply

A  Answered on 4/10/2017 by InyoPools Product Specialist Scott W.

The replacement motor is part number ST1152 and the seal kit is GOKIT2.
 Reply


?     Asked on 5/16/2017by Doug

Motor number C48L2N134C1 1.5 hp what is the best motor for replacement
 Reply

A  Answered on 5/16/2017 by InyoPools Product Specialist Hector F.

This motor replacement would be part number UST1152.
 Reply


?     Asked on 6/3/2017by Pat Morgan

Have A O Smith 1.50 HP Century Centrum part # 7 184 982 23. What is the replacement motor part #
 Reply

A  Answered on 6/4/2017 by InyoPools Product Specialist Stacey M.

Hello, This matches with Motor 56j Thrd Up 1.5 Hp (b229se).
 Reply


?     Asked on 6/7/2017by Ak

I have a A.O. Smith motor. Model 3 C48L2N134B1. ( SF = 1.0, RPM = 3450, FR = 56J, PH = 1, HZ = 60, AMPS = 18.6/9.3, HP = 1.5, AMB = 50 C) which is failing. I was wondering if I can replace it with a "A.O. Smith 1.5 H.P Pool Motor Energy Efficient Round Flange"? Thanks, -Ak
 Reply

A  Answered on 6/8/2017 by InyoPools Product Specialist Patrick P.

Hi AK, Yes you can use the UCT1152 1.5 HP Energy Efficient Replacement Motor as a replacement to your C48L2N134B1 Motor.
 Reply


?     Asked on 6/9/2017by Jan

Is this motor interchangeable with a Sta-Rite 1 1/2 hp v115 Dual Jet Marquis Spa Motor
 Reply

A  Answered on 6/10/2017 by InyoPools Product Specialist Lennox H.

Hi, Jan. In order to confirm I will need the motor's MOD, PART, or CAT # or the Sta-Rite pump model #.
 Reply


?     Asked on 6/10/2017by Angela

I need to replace my motor C48L2N134B3 which is 1.5 HP with round flange up rate motor UST 1152, I want it to be energy efficient, can it be replaced with UCT1152 and what KIT do I need? Thanks!
 Reply

A  Answered on 6/11/2017 by InyoPools Product Specialist Hector F.

Yes, the UCT1152 is the energy efficient single speed replacement motor for you. As for the seal kit, we would need to know the model name or number of the front pump housing that the motor bolts to in order to cross-reference that. You can call in with that information or even send us a picture of it at upload@inyopools.com if you need assistance confirming the model.
 Reply


?     Asked on 6/10/2017by Gene

This for for the second side of my spa not the primary pump/motor. What can I do to determine if I need just a replacement motor or the full unit (motor and pump). Current motor is Magnetek Century E-Plus B750; frame N56C; 1.5 hp 3450 RPM; voltage 208-230/115.
 Reply

A  Answered on 6/11/2017 by InyoPools Product Specialist Patrick P.

Hi Gene, I normally suggest replacing the motor as typically there is not much that goes wrong with the pump housing. The SK1152 Motor is the replacement for your B750 motor.
 Reply


?     Asked on 6/20/2017by dee

I can't see most of the numbers on my motor, but I can hear that the bearings are shot. I am replacing a GE Commercial Motor Cat no 1319, 1081 pool pump motor, FR 56J. Are UST1152 and UCT1152 interchangeable?
 Reply

A  Answered on 6/21/2017 by InyoPools Product Specialist Patrick P.

Hi Dee, Yes either the UST1152 or UCT1152 are suitable replacements for the GE 1319 motor. The UST1152 would be the standard efficiency option and the UCT1152 is the Energy Efficient option.
 Reply


?     Asked on 6/28/2017by Robbie

Hi, I just ordered the UCT 1152 Motor and GoKit3Saltwater tune up kit. My pool is 36k gallon- I was wondering when the time comes- when this motor dies could I upgrade to a 2 h.p. motor?
 Reply

A  Answered on 6/28/2017 by InyoPools Product Specialist Patrick P.

You could upgrade to 2 HP but you would want check the GPM rating on your filter to make sure it could handle a 2 HP motor, you will also need to upgrade your impeller to 2 HP. Finally for a 2 HP pump you will want to make sure you have at least 2" plumbing.
 Reply


?     Asked on 7/30/2017by Kevin

Hello, I am in need od a new motor as my current is shot. The current model is an A.O. Smith K48M2N110 (1.5 hp) Energy Efficent model. I cannot read the type of pump as the model is faded off of the unit (10+ years old). What motor would be a like replacement? In addition are there any other parts / kits that I would need in addition to the new motor? Thanks for your help in advance
 Reply

A  Answered on 8/1/2017 by InyoPools Product Specialist Lennox H.

Hi, Kevin. The Century ST1152 Motor is the correct replacement for K48M2N110. You will need to also replace the pump seals and o-rings. We will need the pump housing model or name in order to locate the correct seal.
 Reply


?     Asked on 9/6/2017by Inyo Visitor

hello I need to replace my pool motor model k63cxfgw-5043 1.5 hp cat esu1152 thank you
 Reply

A  Answered on 9/8/2017 by InyoPools Product Specialist Lennox H.

Hi. The SN1152 motor is the direct replacement for model # K63CXFGW-5043.
 Reply


?     Asked on 9/12/2017by TB

We just purchased a home that has a 5000 gallon pool with a 56J CFace 2 HP Hayward pool pump. The motor just went out and I would like to know if a 1 1/2 HP could be used on such a small pool?
 Reply

A  Answered on 9/13/2017 by InyoPools Product Specialist Lennox H.

Hi, TB. You can replace your 2hp pump motor with a 1.5hp motor. However, you will need to replace the impeller, the seal and or the diffuser.
 Reply


?     Asked on 9/18/2017by Dezi

Hi I just want to confirm that this a direct fit for my motor & if so does it come with the gaskets I need or do you guys sell them? Model K48L2N104, Serial 8B07
 Reply

A  Answered on 9/19/2017 by InyoPools Product Specialist Lennox H.

Hi, Dezi. You can use this UCT1152 motor as a replacement, however, the CT1102 is the direct replacement for the K48L2N104 motor. I will need to know the model of the pump housing in order to locate the seals needed for your pump.
 Reply


?     Asked on 9/19/2017by Caroline

am looking to replace my current Hayward Super Pump Model C48L2N134B1, Is this the correct pump to replace this with? I addition are there any other parts/kits that I would need in addition to the new motor? Thanks
 Reply

A  Answered on 9/19/2017 by InyoPools Product Specialist Lennox H.

Hi, Caroline. This UCT1152 motor is the energy efficient replacement for the UST1152 standard motor. You will also need the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
 Reply


?     Asked on 10/4/2017by Felice Forlano

i am replacing my marathon electric 1081 pool pump. model is 5KCR49UN2088X. V115/230 rpm 3450 56j. It is mounted on a Hayward strainer. What is proper replacement motor ?
 Reply

A  Answered on 10/5/2017 by InyoPools Product Specialist Hector F.

The proper replacement motor would be the ST1152
 Reply


?     Asked on 11/5/2017by Neal

WOULD P/N UC1152 BE THE REPLACEMENT MOTOR FOR K48L2N104? EVERYTHING SEEMS THE SAME EXCEPT THE HP IS 1.5 NOT 1.0. AT THE HIGHER HP WOULD I NEED A NEW IMPELLER TOO.
 Reply

A  Answered on 11/6/2017 by InyoPools Product Specialist Lennox H.

Hi, Neal. This UCT1152 or the CT1102 motor can be used as a replacement for MOD # K48L2N104. You can reuse your current impeller if it's in good condition.
 Reply


?     Asked on 1/23/2018by Rusty Hamilton

I am replacing a UST 1152 motor. Mod # C48L2N134C1. Is this the replacement unit for it.
 Reply

A  Answered on 1/23/2018 by InyoPools Product Specialist Lennox H.

Hi, Rusty. This UCT1152 is the energy efficient replacement option. The UST1152 motor is the direct replacement.
 Reply


?     Asked on 2/11/2018by Warren

Hello, I have a Hayward Super Pump 1 1/2 HP Single Speed - SP2610X15. Would this be the energy saving replacement engine option?
 Reply

A  Answered on 2/12/2018 by InyoPools Product Specialist Lennox H.

Hi, Warren. This UCT1152 motor is an energy efficient replacement option for model # SP2610X15.
 Reply


?     Asked on 4/10/2018by Tonia M

Are the four bolt holes threaded?
 Reply

A  Answered on 4/11/2018 by InyoPools Product Specialist Lennox H.

Hi, Tonia M. Yes, the flange screw holes are threaded.
 Reply


?     Asked on 5/10/2018by Kelley

Replacing an older UST1102. I am trying to decide between this UCT1152 and the CT1102. Both will operate at similar hp and are a similar cost. Would there be a reason to pick one over the other. I will be replacing the impeller as well so replacement cost for that is not a factor.
 Reply

A  Answered on 5/10/2018 by InyoPools Product Specialist Hector F.

You really would not want to use either motor for they are stronger than your UST1102. The energy efficient version of your model motor would be the model UCT1102. Increasing the horse power is not always a good idea for the builder typically calculates the pump strength needed.
 Reply


?     Asked on 6/1/2018by Pat D.

Hello - What impeller will need to be used for a Hayward Superpump?
 Reply

A  Answered on 6/1/2018 by InyoPools Product Specialist Hector F.

The Super pump uses multiple different types of impellers. If you click here you can view them listed at key 10. Each horsepower motor will use a different impeller. If this is your motor then your impeller would be part number 5110-10DA
 Reply


?     Asked on 7/27/2018by Kenny

Replacing my Hayward super pump motor C48L2N134B1 (gold color, 1.5 hp) with your recommended UCT1152 energy efficient I purchased the GOKIT3SALT also,and would like to get the impeller as well in case there's a problem with it.But when i search for the proper impeller it says full rate and up rate hp.The UCT1152 states nothing about full rate and up rate hp.I just want the correct impeller so when its apart i can replace it and its ready to go and avoid returning it and waiting for another.
 Reply

A  Answered on 7/27/2018 by InyoPools Product Specialist Kevin G.

Hello, the correct impeller for your unit is the 5110-10DA
 Reply


?     Asked on 7/27/2018by gary

how long is the shaft sticking out . 2 3/4 ?
 Reply

A  Answered on 7/27/2018 by InyoPools Product Specialist Lennox H.

Hi, Gary. The shaft length is 2.5 inches.
 Reply


?     Asked on 9/17/2018by Dave

Replacing a Super Pump Model# c48K2N143B1. It's only 1 hp and wanted to know if this would fit as a replacement. Figure an extra .5 HP and energy efficient might be a better option if it fits of course
 Reply

A  Answered on 9/17/2018 by InyoPools Product Specialist Lennox H.

Hi, Dave. Yes, this UCT1152 motor will fit your Hayward Super Pump. You will also need the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
 Reply


?     Asked on 9/20/2018by Kenny K

I purchased the UCT1152 motor,the GOKIT3SALT, and the 5110-10DA Impeller for my Hayward super pump C48L2N134B1. I followed your video on changing the motor and seals,but when I screw on the Impeller only hand tight I feel resistance when i attempt to spin the motor shaft, it does not spin freely. it seems like the Impeller shaft seal and the ceramic seal are butt up against each other, rubbing against each other. Is this normal and the way it's supposed to be or am I doing something wrong.
 Reply

A  Answered on 9/20/2018 by InyoPools Product Specialist Lennox H.

Hi, Kenny K. Once the impeller has been installed, the motor shaft should also spin freely. Please provide pictures of how the shaft seal is installed.
 Reply


?     Asked on 1/24/2019by Scott A Altizer

Does this motor work with Hayward Super Pump. My motor, bad bearings included, is US Motors EB796, 1081, 1.5 hp. 56J frame, 1.3 sf.
 Reply

A  Answered on 1/30/2019 by InyoPools Product Specialist Joe S.

Based on the information of the motor provided EB796 the correct motor that will be used as a replacement would be the Motor 56j Thrd Full Ee 1.5hp (b796, c1101) PART # 5223A.
 Reply


?     Asked on 5/4/2019by Joe Pavlacka

I have a Hayward super pump that the motor is starting to go. The markings on the motor label are model C48L2N134B1 and SP1610Z1M (photo attached). It is 8 years old and was used 4 seasons on a chlorine tab fed system and the last 4 on a converted salt system. Will this EE pump fit and work with what I have? Will additional parts/components be necessary for a salt system pool?

 Reply

A  Answered on 5/4/2019 by InyoPools Product Specialist Lennox H.

Hi, Joe. This UCT1152 energy efficient motor along with the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT are the parts you will need to get your pump running again.
 Reply

  • Commented on 5/14/2019 by Product Owner

    Will the Pure Line PL2230 motor be a suitable replacement motor as well, even though it has 2HP?
     Reply

    • Commented on 5/14/2019 by InyoPools Product Specialist Patrick P.

      Joe, You could use the PureLine PL2230 Motor however to take advantage of the full 2 HP of power you would need to replace your impeller with this 2 HP Super Pump Impeller, otherwise you will be spending money to operate a 2 HP motor but only getting the output of a 1.5 HP since you have a 1.5 HP impeller.
       Reply


?     Asked on 6/11/2019by Tim

I have a magnum 1mag-u-s pump which has the motor attached with a lock ring. This motor looks like it has a large capacitor on the top the lock ring won't go over. Can the capacitor be temporarily removed and the lock ring slipped over it, or do I need to go with another motor?
 Reply

A  Answered on 6/11/2019 by InyoPools Product Specialist Patrick P.

HiTim, I'm showing that the magnum 1mag-u-s pump is a 1 HP pump and you will need this PL1102 1 HP Replacement Motor along with this Jacuzzi Magnum Seal Kit We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
 Reply


?     Asked on 7/9/2019by Chill

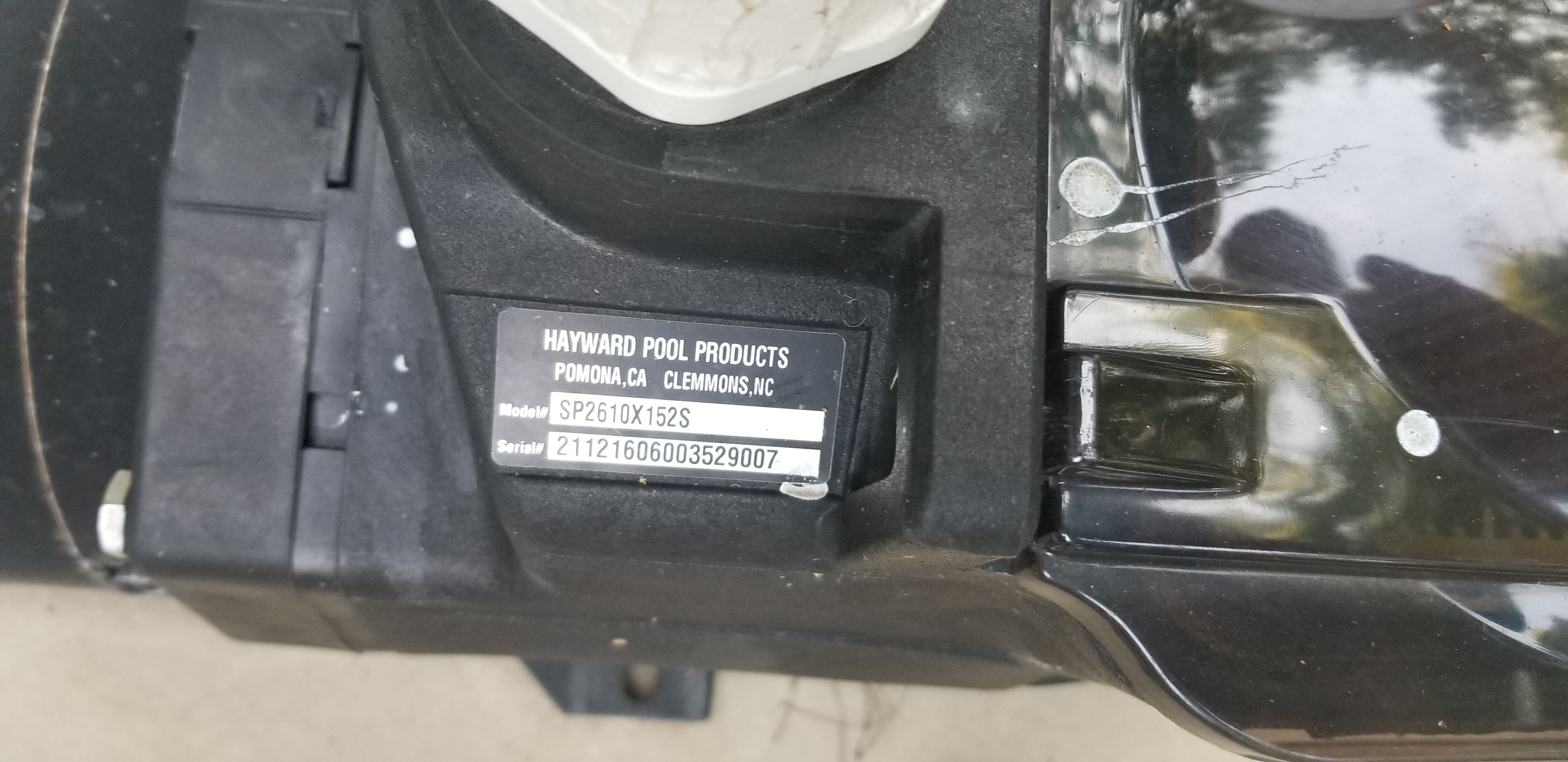

I have a Hayward SP2610X152S that is getting really loud. It currently has a 2 speed motor but we never run it on low speed, would this work as a replacement?

 Reply

A  Answered on 7/9/2019 by InyoPools Product Specialist Joe S.

Good day, yes if you have the SP2610X152S and wanted to go to a single speed you can go with A.O. Smith 1.5 HP Round Flange 56J Up Rate EE Motor - UCT1152 or you can go with Hayward 1.5 HP Round Flange 56J Dual Speed Up Rate Motor - SPX1610Z2M.
 Reply


?     Asked on 7/18/2019by tony

bearing replacement fore 1 1/2 hp pool motor
 Reply

A  Answered on 7/18/2019 by InyoPools Product Specialist Hector F.

We may carry the replacement bearings for your motor however, we will need the motor model, part or catalog number to cross-reference those for you.
 Reply


?     Asked on 7/19/2019by Bradley Industrial Textiles Inc.

what is the bearing size for Uct 1152 n K48L2N100QA2 Century 1 1/2 I nly see for Ust 1152
 Reply

A  Answered on 7/19/2019 by InyoPools Product Specialist Lennox H.

Hi, Bradley. The UCT1152 replacement bearings are P/N 6304 (Shaft End) and 62032RS (Opposite Shaft End).
 Reply


?     Asked on 8/4/2019by Nancy

We have an AO Smith Centurion Switchless Motor. Catagory B123, Part number O-2+5 00-24. Round flange. What would be the replacement model for that please?
 Reply

A  Answered on 8/5/2019 by InyoPools Product Specialist Matt S.

Hello - the direct replacement is the Motor 56C Keyed Full 1.5 Hp (B123)
 Reply


?     Asked on 9/13/2019by Tony

Is this pump a good replacement for my A.O. Smith Model #K48M2N110 56J is the Frame? The pump is 13 years old.
 Reply

A  Answered on 9/17/2019 by InyoPools Product Specialist Hector F.

Actually your single speed motor replacement is the model ST1152
 Reply


?     Asked on 11/5/2019by Chris Bopp

seal ?
 Reply

A  Answered on 11/6/2019 by InyoPools Product Specialist Lennox H.

Hi, Chris. We will need to know the make and model of the pump housing in order to locate the seals.
 Reply


?     Asked on 3/24/2020by Chad

I have a SP2610X15 Hayward Housing. What would be a good replacement motor?

 Reply

A  Answered on 3/24/2020 by InyoPools Product Specialist Patrick P.

For your 1.5 HP Hayward Super Pump SP2610X15 the correct replacement motor will be this UST1152 1.5 HP Single Speed Motor you will also need a Hayward Super Pump Seal Kit when you replace your motor. The second motor option is this 1.65 HP variable-speed motor which will save you roughly 70% on the operational cost of the motor so you will save a ton on your power bill with a variable speed motor. You may want to consider the Variable Speed Motor Option as the operational cost savings are so big. We put together this Article on How you Save Money with a Variable Speed Motor which you may find helpful.
 Reply


?     Asked on 4/8/2020by Inyo Visitor

Will the new version of this motor with two speeds fit on the housing that is there now from the old motor
 Reply

A  Answered on 4/8/2020 by InyoPools Product Specialist Lennox H.

Hi. The STS1072RV1 dual-speed motor will mount to your existing pump housing.
 Reply


?     Asked on 4/20/2020by Inyo Visitor

How efficient is the Century round flange 1.5 HP motoe
 Reply

A  Answered on 11/6/2020 by InyoPools Product Specialist Hector F.

Hello, this motor is more efficient than the standard UST1152 which draws approximately 18.6/9.3 amps while the UCT1152 draws approximately 14.6/7.3 amps.
 Reply


?     Asked on 4/22/2020by Daniel Edsall

I am looking to replace the motor for my old Hayward Super Pump. It is a salt water pool. Can you recommend what pump and parts I will need for the job?

 Reply

A  Answered on 4/22/2020 by InyoPools Product Specialist Patrick P.

Hi Daniel, Yes this UCT1152 is the correct replacement motor the motor included in your photo. You will also need a Hayward Super Pump Salt Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
 Reply


?     Asked on 5/25/2020by Rose

Where can I find a replacement cord for Hayward max-flow pump 1 1/2 -1/4 HP Motor mod. C48L2N130 230 volts 3450 RPM 8.5/2.5 amps Ser 6B81

 Reply

A  Answered on 10/22/2020 by InyoPools Product Specialist Hector F.

Hi Rose, these cords can be purchased at any local hardware store however most often they are hardwired to a pool timer then the timer is hard-wired to a breaker panel.
 Reply


?     Asked on 2/10/2021by Mike

SF means service factory on my new pump motor is 1.1 On my old was 1.5.What is it? IS BIGER NUMBER IS BETTER?
 Reply

A  Answered on 2/19/2021 by InyoPools Product Specialist Hector F.

Hello Mike, it is not necessarily better. Here is a guide we put together called "How To Understand True Pump Horsepower - Up Rated vs Full Rated" that better breaks down what this means.
 Reply


?     Asked on 5/11/2021by Richard Stalnaker

I have a UCT1152 Century pump on my Hayward pump, how long do these motors usually last? This is the 3rd pump in ten years, is that normal? Do I need a new seal kit and what is the part number?
 Reply

A  Answered on 5/11/2021 by InyoPools Product Specialist Robert M.

Most pool owners, on average, get about 5 years of life from the motor. Installing a heavy-duty seal will help protect the motor. The last time you ordered a motor you got the GOKIT3. The heavy-duty version of that kit is GOKIT3SALT.
 Reply


?     Asked on 6/30/2021by Francis Massey

I want to confirm that the UCT1152 can replace the motor for my Carvin Magnum Force 1.5HP pump. I believe based on this site that both the UST1152 and UCT1152 will work, but the UCT1152 is high efficiency.
 Reply

A  Answered on 6/30/2021 by InyoPools Product Specialist Craig C.

Hello Francis.  Both the UCT1152 and the UST1152 are compatible replacement motors for the Carvin Magnum Force 1.5 HP Pump.  The UCT1152 is an Up Rate Energy Efficient motor.  The UST1152 does not have that rating.
 Reply


?     Asked on 5/3/2022by robert cudd

does the motor come with a seal kit? for installation
 Reply

A  Answered on 5/3/2022 by InyoPools Product Specialist Craig C.

Hello Robert.  The Century Motors UCT1152 does not come with a seal kit.  Motor shaft seals, seal plate gaskets, diffuser o-rings, etc. are specific to the manufacturer/model of the pump and not the motor.  Please provide pump manufacturer/model information and a recommendation can be made.
 Reply


?     Asked on 8/21/2022by Alain G. Long

Hello I have a Hayward SP3010X15AZ - 1.5HP. What would be the correct replacement motor and gasket kit for this? Thanks Al
 Reply

A  Answered on 11/30/2022 by InyoPools Product Specialist Hector F.

Hello Alain, yes you can use this motor model UCT1152 as a replacement single speed motor for your Hayward Super II pump model SP3010X15AZ. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Please click here to view both the standard and saltwater pool tune up seal kits for the Hayward Super II pump series.
 Reply
