Part # 5063-08B
Manufacturer Code 05382106R
Dimensions 4" L x 4" W x 3" D

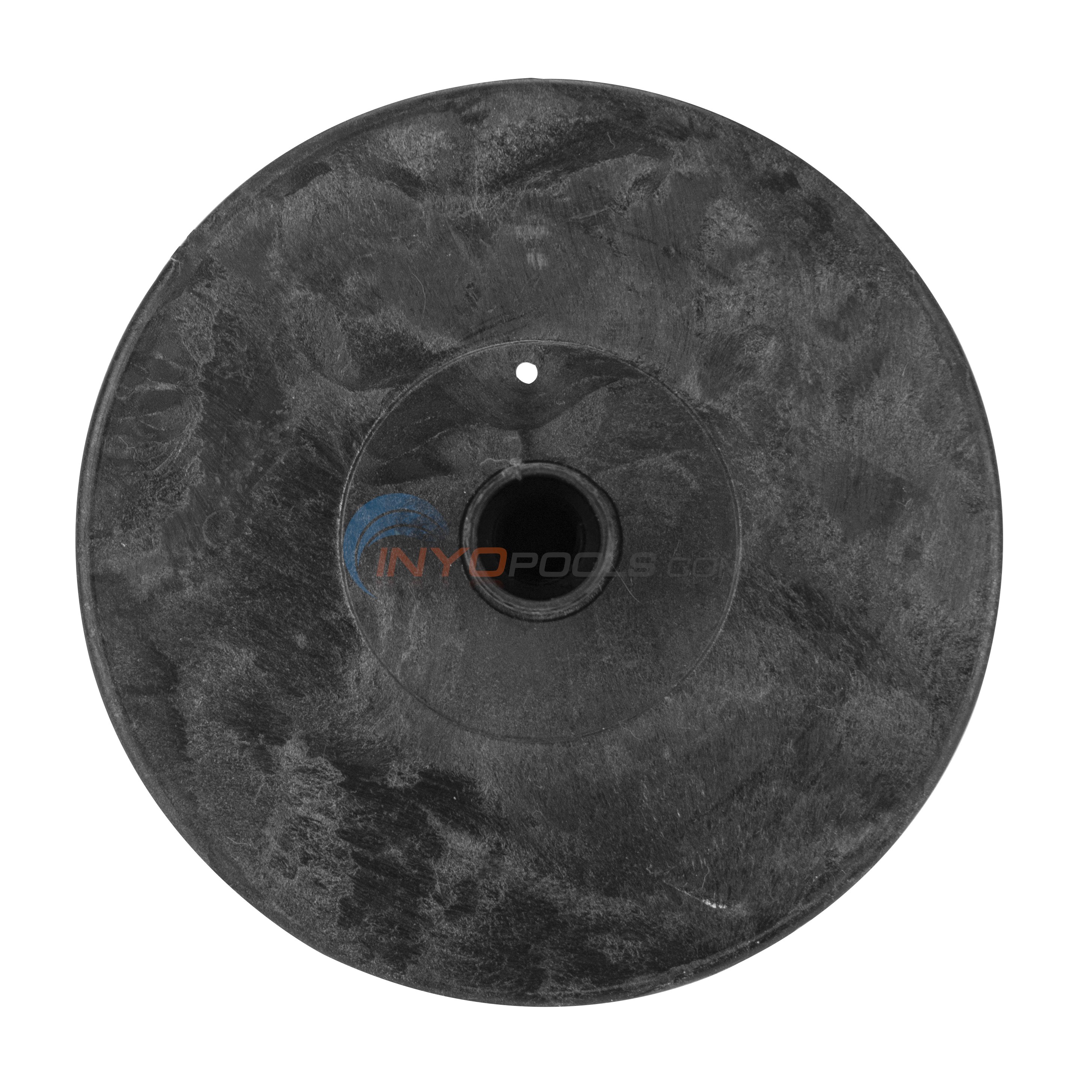

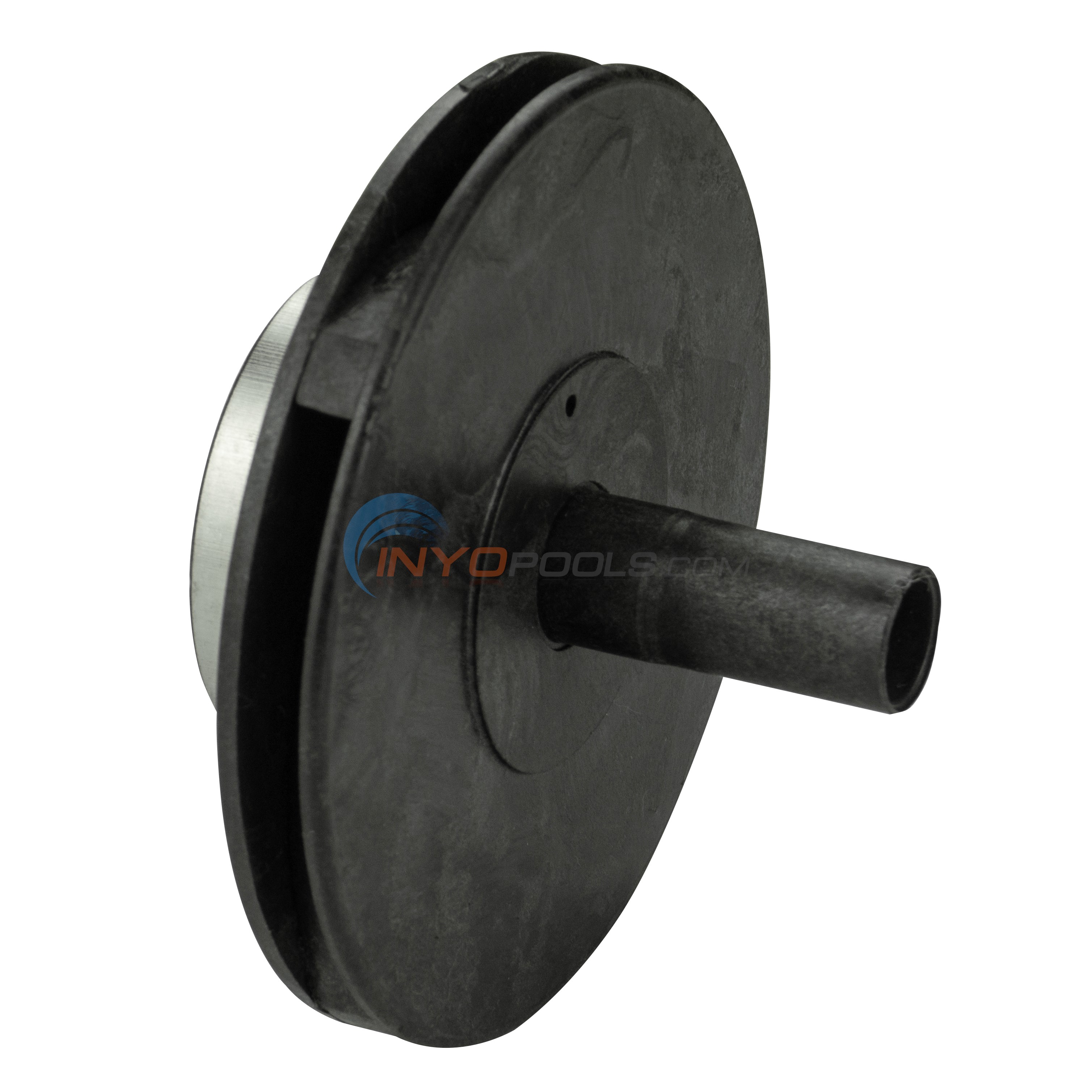

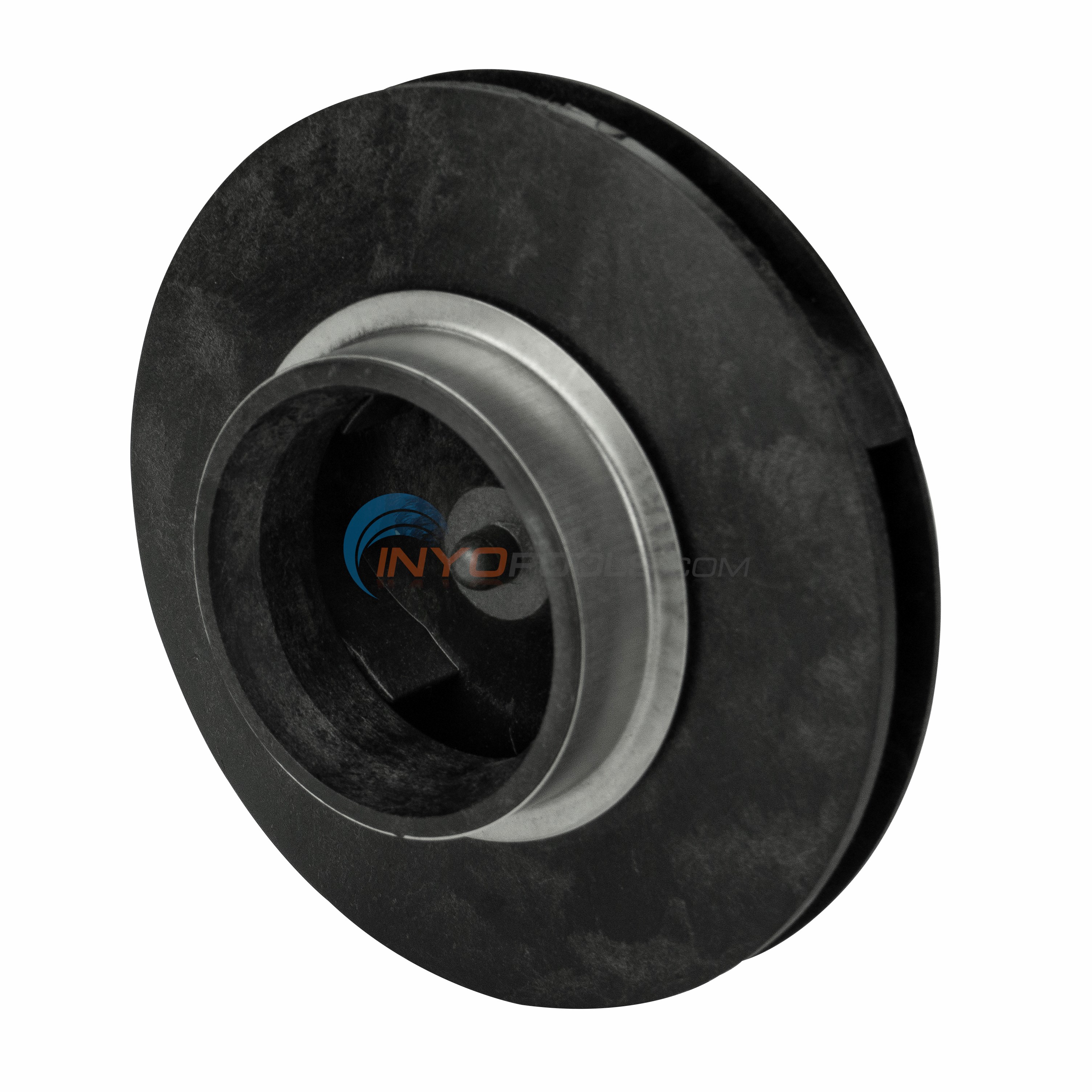

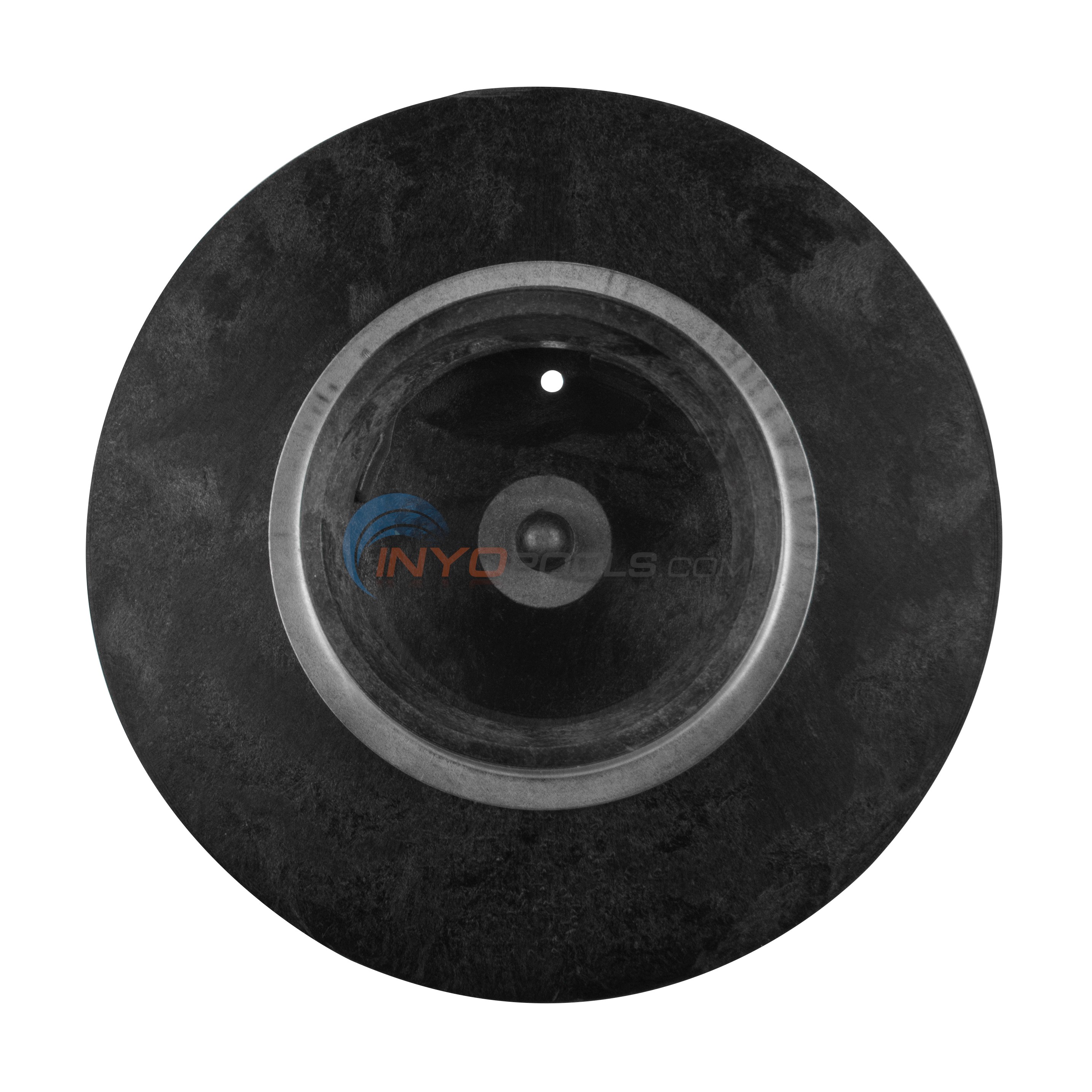

INYO # 5063-08B JACUZZI # 05-3821-06-R THIS IS A BLACK PLASTIC IMPELLER WITH A STAINLESS STEEL RING AROUND THE INLET
*******************************************

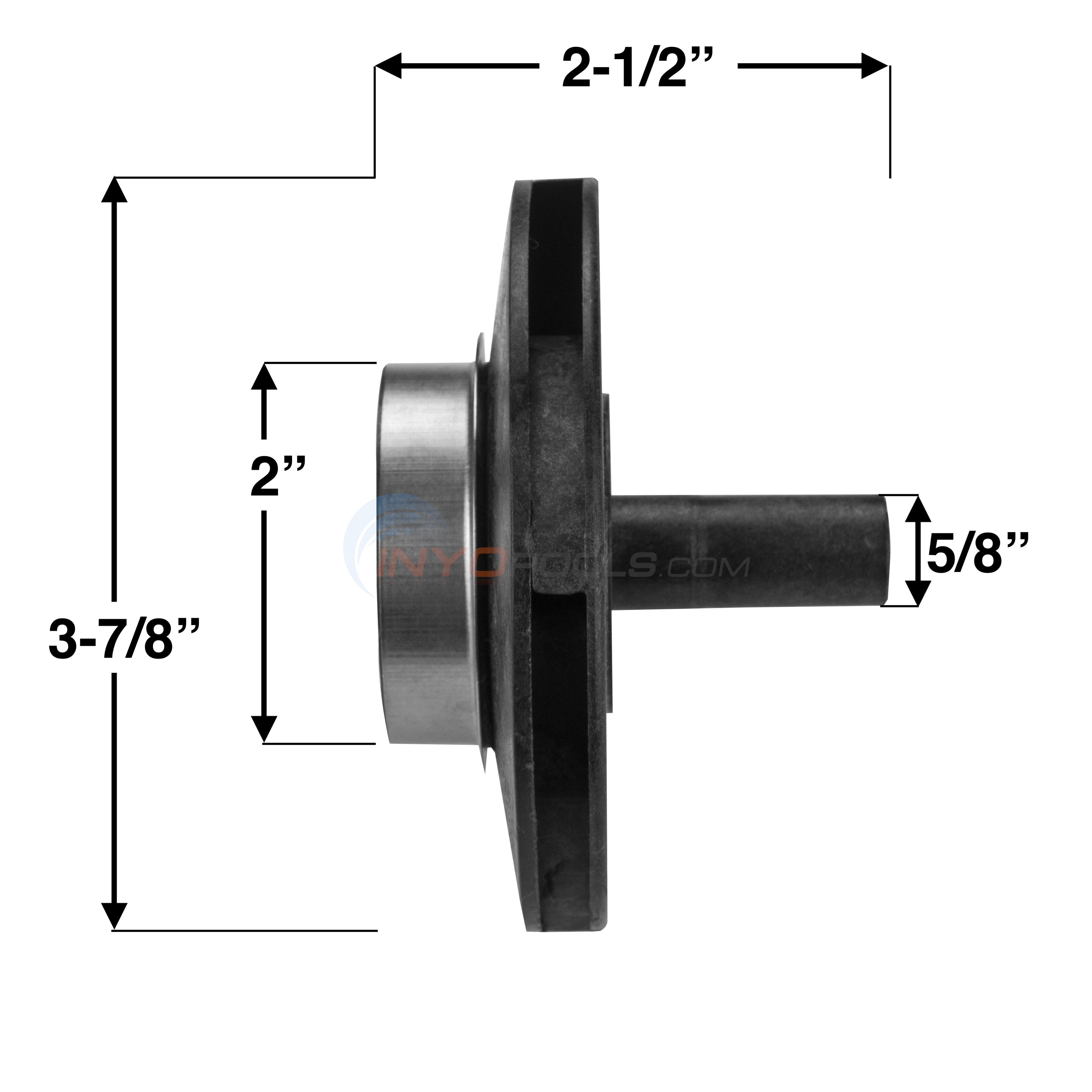

DIMENSIONS: OUTSIDE DIAMETER: 4" OUTSIDE THICKNESS AT EDGE: 7/16" OPENING THICKNESS AT EDGE: 1/4" INLET OUTSIDE DIAMETER: 2" (NOT INCLUDING SS RING) INLET INSIDE DIAMETER: 1-13/16" VANES: 4
I have a Jacuzzi LH Pump (S15LRT9-3-LH), but the motor is a 1.5 HP 2 speed Motor. I do not see that you have an Impeller listed for 1.5hp motors. Will this fit?
Thanks! Jim
Reply
Hi, Jim. Yes, this 1HP Impeller - 05382106R000 is the correct one for your model pump.
Reply
