Jacuzzi Vector Series- LVL Parts

LVL MODELS

Jacuzzi Vector Series- LVL Diagram

Click to zoom in

Diagram #	Part Title
1	NUT, STRAINER (42167809R000)
2	COVER, STRAINER (39075304R000)
3	O-RING, STRAINER COVER (352)
4	BASKET, STRAINER, OEM (16024002R000)
5A	STRAINER CASE ASSY With PLUG & O-RING LVL (03195724R000)
6	GASKET. VALVE COVER (SQ. RING) (47025853)
7	EYE SEAL (10146207R000)
8	IMPELLER, JACUZZI L-1/2 H.P. (05376009R000)
9	SEAL, SHAFT (10000206R000)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
10	BRACKET, SER. L. (EXCEPT LR25) (02138808R000)
11	OBSOLETE SCREW, 10-24x1.25
12	NUT, HEX SS (LRDV & LVL ONLY) (14423909R000)
13	PLUG, VENT With O-RING, PK OF 2
16	SUPPORT, LVL/LTVL (12110904R000)
17	OBSOLETE SUPPORT, LRC MOTOR
18	1/2 HP Thru Bolt Motor
***	Protective Pool Motor Cover

View Parts List

Diagram #	Part Title
1	NUT, STRAINER (42167809R000)
2	COVER, STRAINER (39075304R000)
3	O-RING, STRAINER COVER (352)
4	BASKET, STRAINER, OEM (16024002R000)
5A	STRAINER CASE ASSY With PLUG & O-RING LVL (03195724R000)
6	GASKET. VALVE COVER (SQ. RING) (47025853)
7	EYE SEAL (10146207R000)
8	IMPELLER, JACUZZI L-1/2 H.P. (05376009R000)
9	SEAL, SHAFT (10000206R000)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
10	BRACKET, SER. L. (EXCEPT LR25) (02138808R000)
11	OBSOLETE SCREW, 10-24x1.25
12	NUT, HEX SS (LRDV & LVL ONLY) (14423909R000)
13	PLUG, VENT With O-RING, PK OF 2
16	SUPPORT, LVL/LTVL (12110904R000)
17	OBSOLETE SUPPORT, LRC MOTOR
18	1/2 HP Thru Bolt Motor
***	Protective Pool Motor Cover

Available Parts:

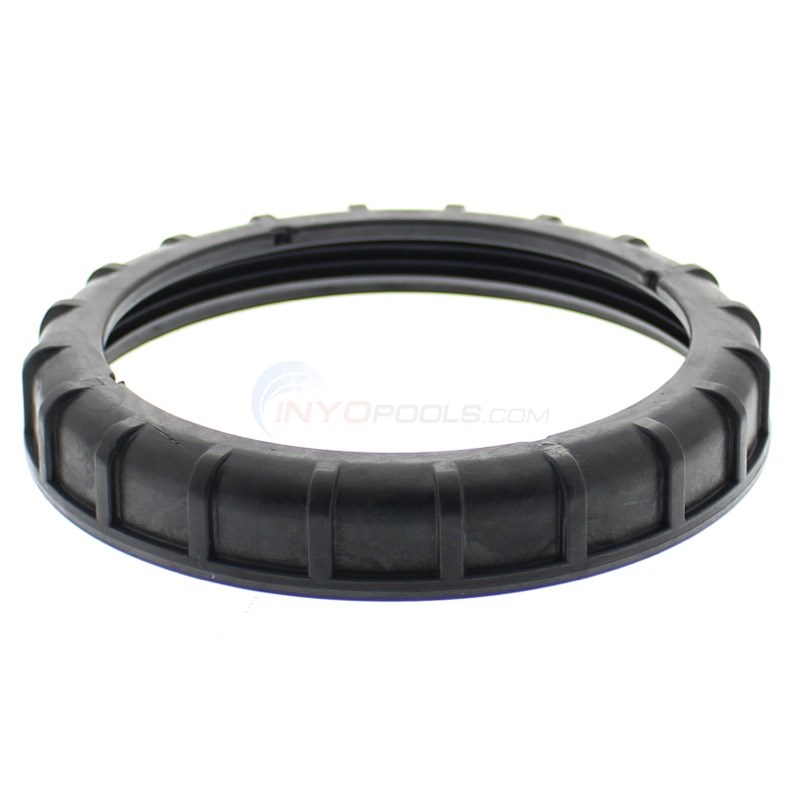

NUT, STRAINER (42167809R000)

Part # 5063-01 Mfg # 42167809R

NUT, STRAINER (42167809R000)

$45.30 IN STOCK

Qty:

COVER, STRAINER (39075304R000)

Part # 5063-02 Mfg # 39075304R

COVER, STRAINER (39075304R000)

$29.77 IN STOCK

Qty:

O-RING, STRAINER COVER (352)

Part # 5063-03 Mfg # 47035241

O-RING, STRAINER COVER (352)

$17.22 IN STOCK

Qty:

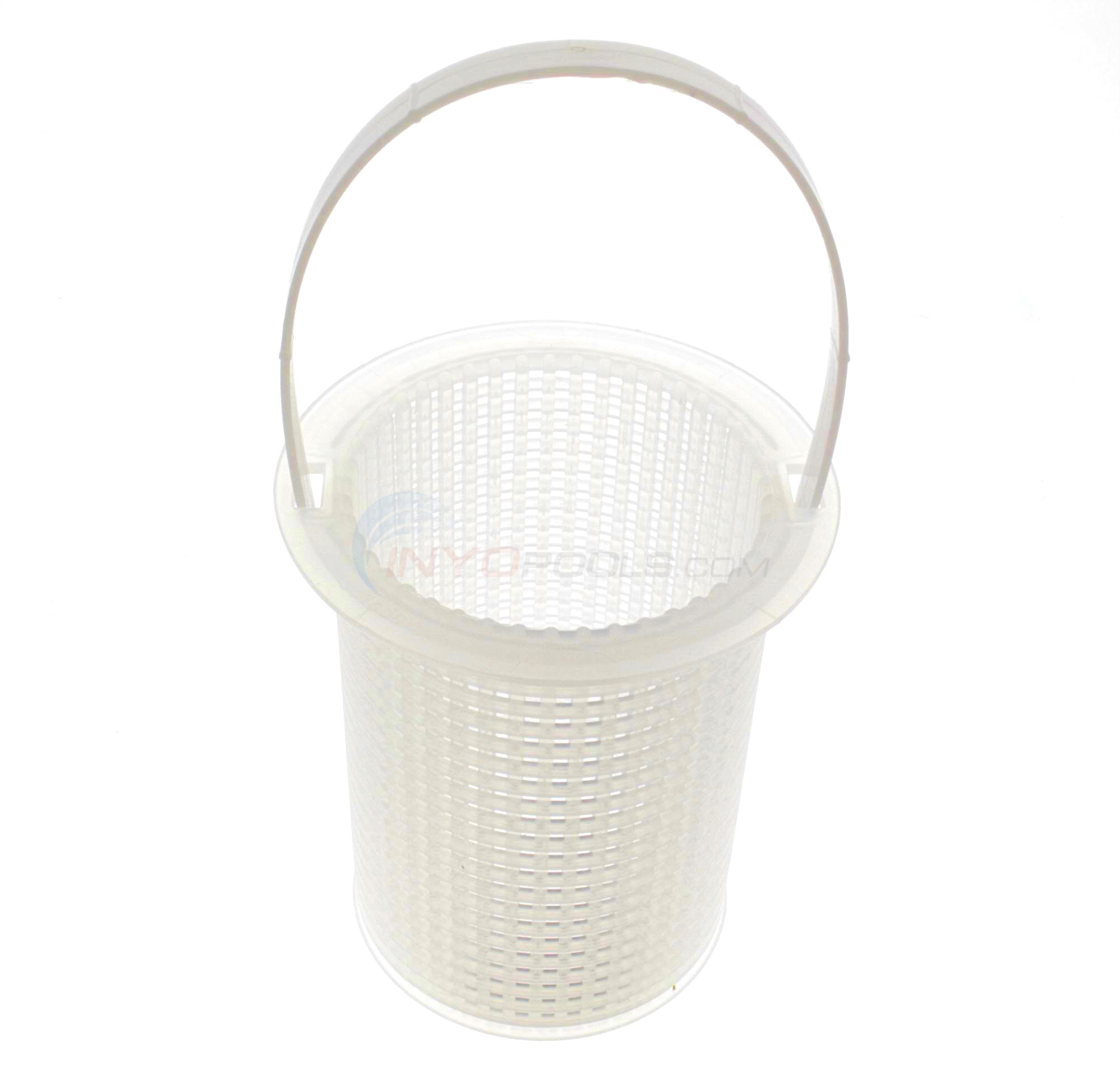

BASKET, STRAINER, OEM (16024002R000)

Part # 5067-30 Mfg # 16072902R

BASKET, STRAINER, OEM (16024002R000)

$13.03 IN STOCK

Qty:

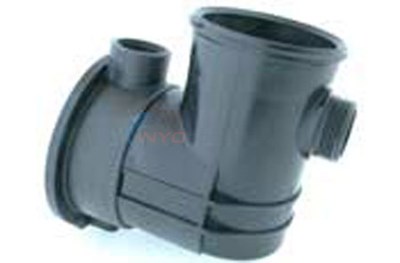

STRAINER CASE ASSY With PLUG & O-RING LVL (03195724R000)

Part # 5063-05B Mfg # 03195724R

STRAINER CASE ASSY With PLUG & O-RING LVL (03195724R000)

$130.42

STRAINER CASE ASSY 90 DEGREE DISCHARGE (16098501R000)

Part # 5063-05A Mfg # 16098501R

STRAINER CASE ASSY 90 DEGREE DISCHARGE (16098501R000)

$143.87

GASKET. VALVE COVER (SQ. RING) (47025853)

Part # 4628-14 Mfg # 47025853R

GASKET. VALVE COVER (SQ. RING) (47025853)

$14.02 IN STOCK

Qty:

EYE SEAL (10146207R000)

Part # 5062-17 Mfg # 10146207R

EYE SEAL (10146207R000)

$13.16 IN STOCK

Qty:

IMPELLER, JACUZZI L-1/2 H.P. (05376009R000)

Part # 5063-08 Mfg # 05376009R

IMPELLER, JACUZZI L-1/2 H.P. (05376009R000)

$39.33 IN STOCK

Qty:

IMPELLER, JACUZZI L-3/4 H.P. (05375902R000)

Part # 5063-08A Mfg # 05375902R

IMPELLER, JACUZZI L-3/4 H.P. (05375902R000)

$61.85 IN STOCK

Qty:

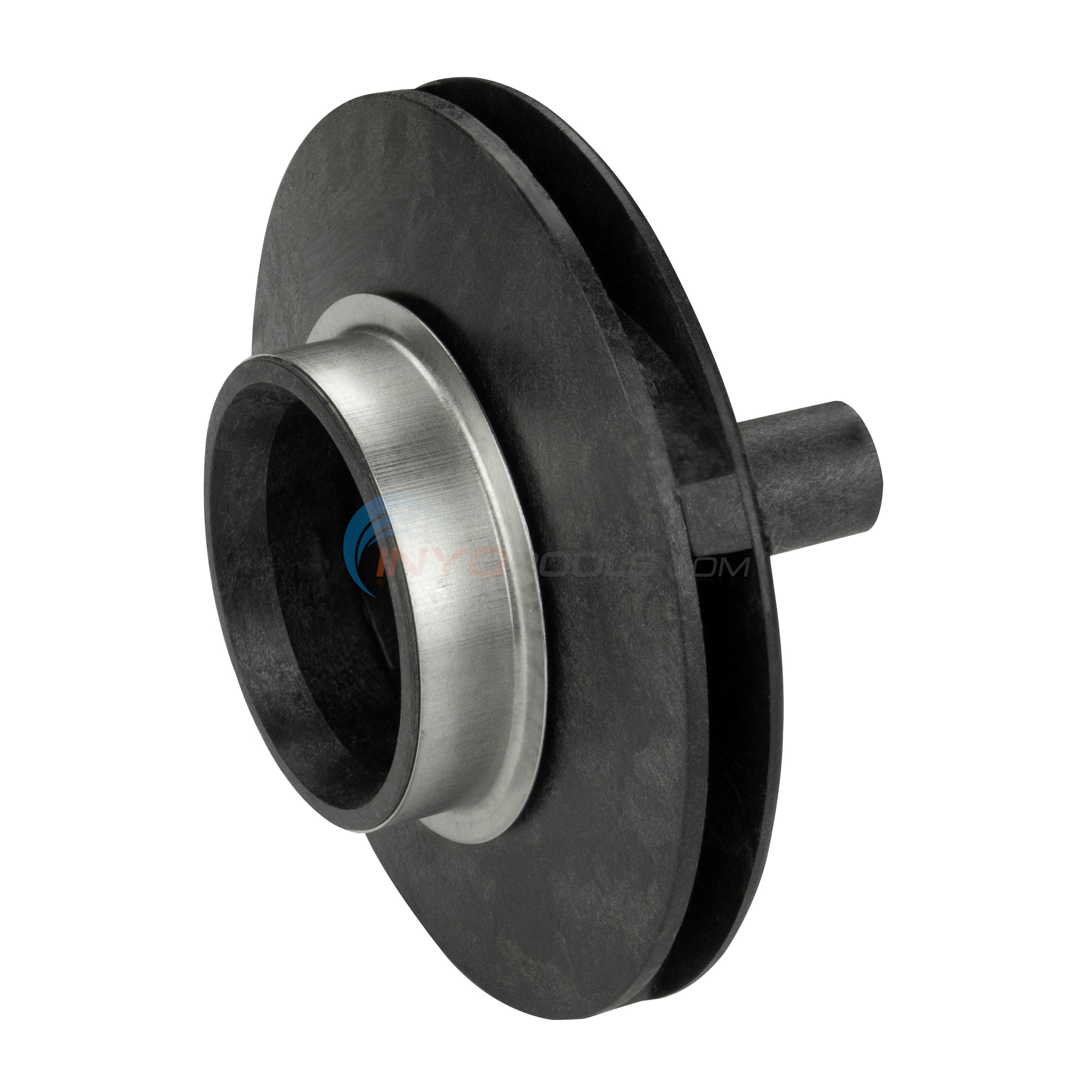

IMPELLER, JACUZZI L-1 H.P. (05382106R000)

Part # 5063-08B Mfg # 05382106R

IMPELLER, JACUZZI L-1 H.P. (05382106R000)

$34.14 IN STOCK

Qty:

IMPELLER, JACUZZI L-1 1/2 H.P. (05385307R000)

Part # 5063-08C Mfg # 05385307R

IMPELLER, JACUZZI L-1 1/2 H.P. (05385307R000)

$49.88 IN STOCK

Qty:

SEAL, SHAFT (10000206R000)

Part # 5063-09 Mfg # 10000206R

SEAL, SHAFT (10000206R000)

$18.19 IN STOCK

Qty:

GENERIC SHAFT SEAL (PS-200)

Part # 5250-104 Mfg # PSR-200

GENERIC SHAFT SEAL (PS-200)

$7.76 IN STOCK

Qty:

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

Part # 5250-210 Mfg # PS-3867

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

$17.58 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$5.16 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

Part # LUBE-10ML

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

$31.04 IN STOCK

Qty:

BRACKET, SER. L. (EXCEPT LR25) (02138808R000)

Part # 5063-10 Mfg # 02138808R

BRACKET, SER. L. (EXCEPT LR25) (02138808R000)

$72.66 IN STOCK

Qty:

11

OBSOLETE SCREW, 10-24x1.25

Mfg # 14-4238-00

OBSOLETE SCREW, 10-24x1.25

NOT AVAILABLE

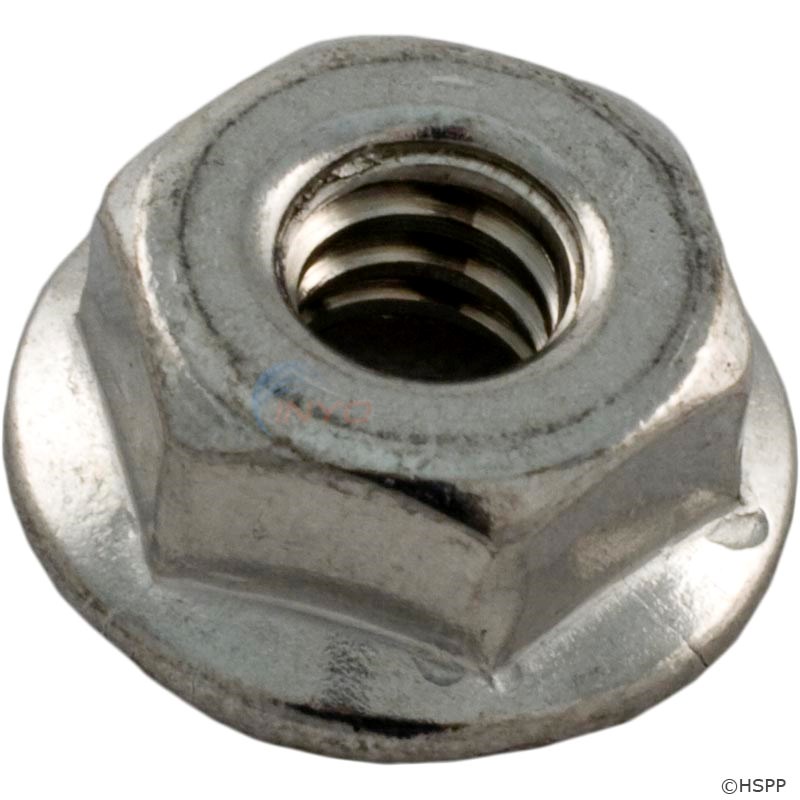

NUT, HEX SS (LRDV & LVL ONLY) (14423909R000)

Part # 5063-12A Mfg # 14423909R

NUT, HEX SS (LRDV & LVL ONLY) (14423909R000)

$25.86

PLUG, VENT With O-RING, PK OF 2

Part # 4665-07 Mfg # 31160906R2

PLUG, VENT With O-RING, PK OF 2

$7.60 IN STOCK

Qty:

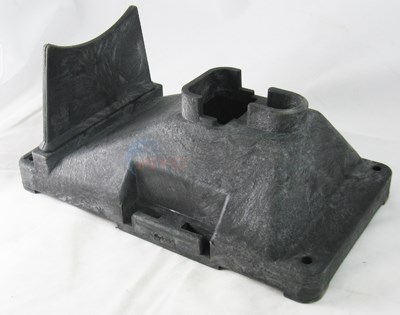

SUPPORT, LVL/LTVL (12110904R000)

Part # 5063-16 Mfg # 12110904R

SUPPORT, LVL/LTVL (12110904R000)

$121.10

17

OBSOLETE SUPPORT, LRC MOTOR

Mfg # 85-8743-00

OBSOLETE SUPPORT, LRC MOTOR

NOT AVAILABLE

1/2 HP Thru Bolt Motor

Part # BN23 Mfg # BN23V1

1/2 HP Thru Bolt Motor

$217.31 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 7.2 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 7.2 Frame 48Y

Qty:

3/4 HP Thru Bolt Motor

Part # BN24 Mfg # BN24V1

3/4 HP Thru Bolt Motor

$185.00 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 9.8 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 9.8 Frame 48Y

Qty:

1 H.P 115V Thru Bolt Motor

Part # BN25 Mfg # BN25V1

1 H.P 115V Thru Bolt Motor

$188.93 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 12.0 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 12.0 Frame 48Y

Qty:

1.5 H.P 115V / 230V Thru Bolt Motor

Part # BN35V1 Mfg # BN35V1

1.5 H.P 115V / 230V Thru Bolt Motor

$239.00 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 16.0/8.0 Frame 48Y

Service Factor 1.0 Voltage 115/230 Max Amps 16.0/8.0 Frame 48Y

Qty:

3/4 HP 2 Speed 115V Motor

Part # BN36 Mfg # BN36

3/4 HP 2 Speed 115V Motor

$218.00 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 8.8/2.6 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 8.8/2.6 Frame 48Y

Qty:

1 HP 2 Speed 115V Thru-Bolt Motor

Part # BN37 Mfg # BN37V1

1 HP 2 Speed 115V Thru-Bolt Motor

$259.32 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 11.0/2.9 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 11.0/2.9 Frame 48Y

Qty:

1 1/2 HP 2 Speed 115V Motor

Part # BN50 Mfg # BN50V1

1 1/2 HP 2 Speed 115V Motor

$295.00 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 16.4/4.4 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 16.4/4.4 Frame 48Y

Qty:

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$36.97 IN STOCK

Qty:

*NOT SHOWN
**DISCHARGE USES UNION CONNECTION. NO FEMALE THREADS ON DISCHARGE
*** NOT SHOWN
