$248.00

Qty:

By Century Motors


Details

Top

Part # 5222X

Warranty 1 Year

Manufacturer Code B128

Dimensions 12" L x 8.5" W x 6.5" D

Alternate Part #'s 10-164303-22, 10-164303-23, 101529, 110283, 1103017456, 1104365400, 1104365407, 130243, 133396, 141969, 142814, 14542, 150236, 152560, 152566, 152618, 152770, 158132, 158530, 158536, 158596, 159812, 1610Z-1-B4C, 1610Z-1-BC, 1610Z-1B4C, 164127, 164277, 164303, 16430300, 164361, 164521, 164565, 164583, 164809, 165112, 165217, 165385, 168098, 168710, 177019, 177025, 177073, 177460, 177483, 177500, 184948, 186854, 193632, 19993, 1D195, 1D200, 1K047, 35B1188, 5kcr39sn2818ax, 5KCR39SN2818X, 6K256, 7-164303-23, 7-193632-24, 8-150236-20, 8-158596-20, 8-164809-40, 8-168098-20, 8-168098-21, 8-177019-20, 8-177019-22, 8-177019-24, 90118571, A0564300, ASB128, B105, B1306, B726, C1100, C48L2N131A1, CT110, CT110C, EB128, EST1102, JD10FL1, JL1309A, k63cxerj-4776, MGT605099, P708, S88-173, SP-1610-Z1-B4C, SP-1610-Z1-BC, ST1102, 35-126-1419, AOSB128, CRMB128

Product Description

CENTURY THREADED SHAFT, 56J FRAME CATALOG # B128 PART # 10-164303-24 ..... HORSEPOWER LABEL HORSEPOWER: 1 SERVICE FACTOR: 1.40 EFFECTIVE HORSEPOWER: 1.40 ..... ELECTRICAL VOLTAGE: 115 OR 230 VOLTS, SINGLE PHASE AMP DRAW: 7.2/14.4 7.2 AMPS AT 230 VOLTS, 14.4 AMPS AT 115 VOLTS. ..... DEMINSIONS LENGTH: 9 1/2" SHAFT LENGTH: 2 1/2" DIAMETER: 6 1/2" MOUNTING HOLES: (4) 5 7/8"CENTER TO CENTER ..... CAPACITOR RUN CAPACITOR, 25MF, 370 VOLTS *CURRENT MODEL* MOUNTING ON TOP OF MOTOR (OPT# 5270-08) SHIPPING WEIGHT: 26.55 LBS

Note: NOT California or New York Title 20 Compliant.

Dual Speed Option: (Not Compliant)

California and New York Title 20 Complaint Option:

Motor Dimensions Motor Dimensions

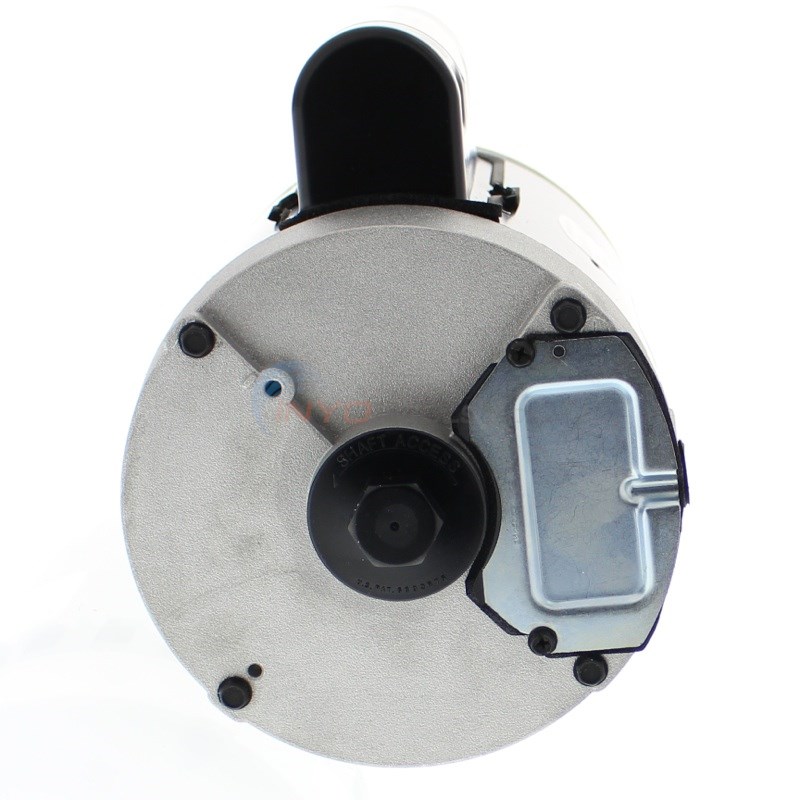

Motor Image Motor Image

Product Specifications

HP:
1 HP
Frame:
56J
Volts:
230/115 V
Speed:
Single
Amps:
7.2/14.4 amp
Service Factor:
1.4
Total HP:
1.4 HP
Manufacturer:
Century (A.O. Smith)
Shaft:
Threaded
Flange:
Round
RPM:
3450 RPM
Phase:
Single
Commonly Used On:
Jandy, Marlow
Top

?     Asked on 1/11/2012by Guest

What is Service Factor?
 Reply

A  Answered on 1/11/2012 by InyoPools Product Specialist Patrick P.

Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
 Reply


?     Asked on 1/12/2012by Guest

Why do I need to purchase a new shaft seal?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.
 Reply


?     Asked on 1/12/2012by Guest

Why should I purchase a Tune Up Kit?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.
 Reply


?     Asked on 1/19/2012by Guest

I'm trying to replace the motor on my pool pump but all these numbers and abbreviations on the motor label are really confusing me. What do they mean?
 Reply

A  Answered on 1/19/2012 by InyoPools Product Specialist Patrick P.

Replacing a pool pump motor is not as difficult as it seems. You can try looking here. If you need help figuring out what the information on your label means. If you are still having difficulty figuring it out you can call us at our toll free number or you can send us a photo of your motor label here.
 Reply


?     Asked on 10/21/2014by Raymond

I have a Century Centurion 1.0 HP Pump motor (AO Smith) with a part number of 193632-24, type CX, M56J, serial CA 12-13, rpm 3450 60 Hz 230/115 volts, SF 1.4, amps 7.2/14.4. Attaches to a Jandy pool pump, model # JHP1.0, Serial #106FB0520. Looking for a replacement motor! Please include replacement part # and pricing. Thanks!
 Reply

A  Answered on 10/21/2014 by InyoPools Product Specialist Robert M.

Hello Raymond - This motor is the direct replacement motor for the JHP1.0 and it matches all of your specifications. The Century model number is B128 and our part number is 5222X. The pricing for this number can be found at the top of this page.
 Reply
