By Hayward Pool Products


Details

Top

Part # 4707-0

Manufacturer Code SP07121

Dimensions 12" L x 7.5" W x 7.5" D

Alternate Part #'s HAY06217, SP07121, SP7121, SP712A13, 26-150-1720, HAYSP07121, HPPSP07121

Product Description

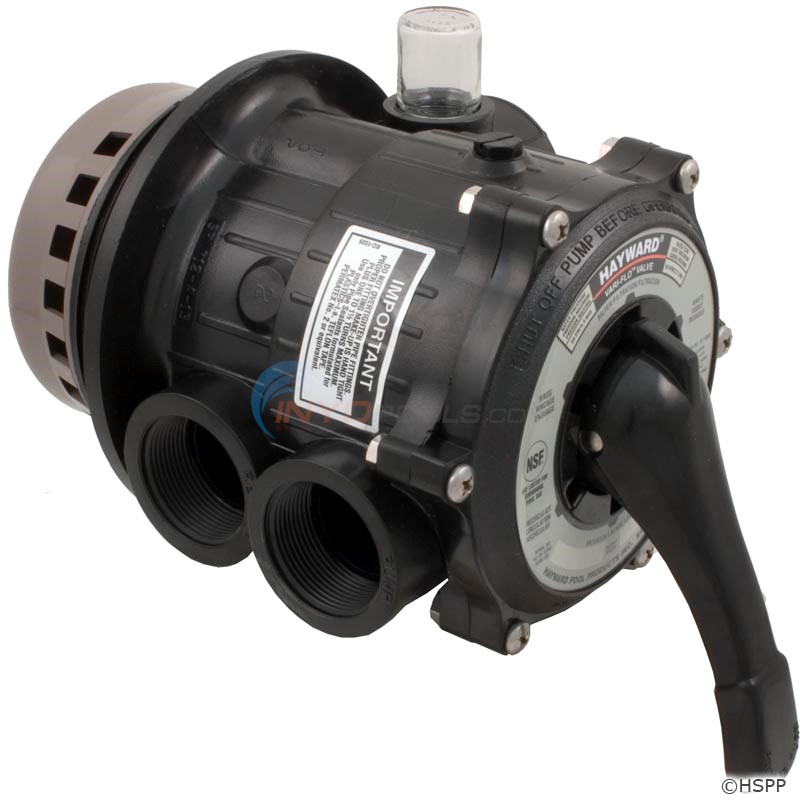

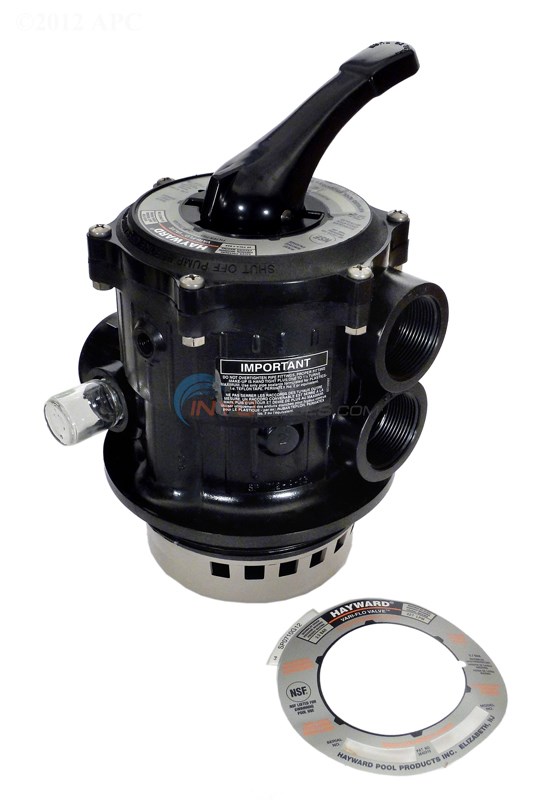

Top Mount Valve, Buttress 1-1/2" - SP07121

Top

?     Asked on 6/2/2016by Jerald Kilmartin

What tanks does this top mount valve fit?
 Reply

A  Answered on 6/2/2016 by InyoPools Product Specialist Alan M.

This top mount valve is listed to be compatiable with the following tanks: Baker Hydro II Top Mount Sand FilterHayward S-160T Filter, and Hayward Multiport Vari-Flow 1-1/2" SP-710X, SP-712, SP-711 1976-Current. There may be more available, but this is the least efficent way of identifying the tank style.
 Reply


?     Asked on 6/7/2018by Robert Buczek

how do i replace top mount valve on hayward s160t sand filter
 Reply

A  Answered on 6/7/2018 by InyoPools Product Specialist Lennox H.

Hi, Robert. You can reference our How to Replace a Hayward Multiport Valve guide for instructions. The SP0714T or PL0714 are the replacement for the S160T Sand Filter.
 Reply


?     Asked on 6/22/2018by Terrence Costello

Will this fit the baker2 hydro sand filter model HR-24.?The multivalve clamps on and is not threaded.
 Reply

A  Answered on 6/22/2018 by InyoPools Product Specialist Lennox H.

Hi, Terrence. You will need the TM-12-9BH valve, instead of this SP07121 valve.
 Reply


?     Asked on 5/16/2019by Inyo Visitor

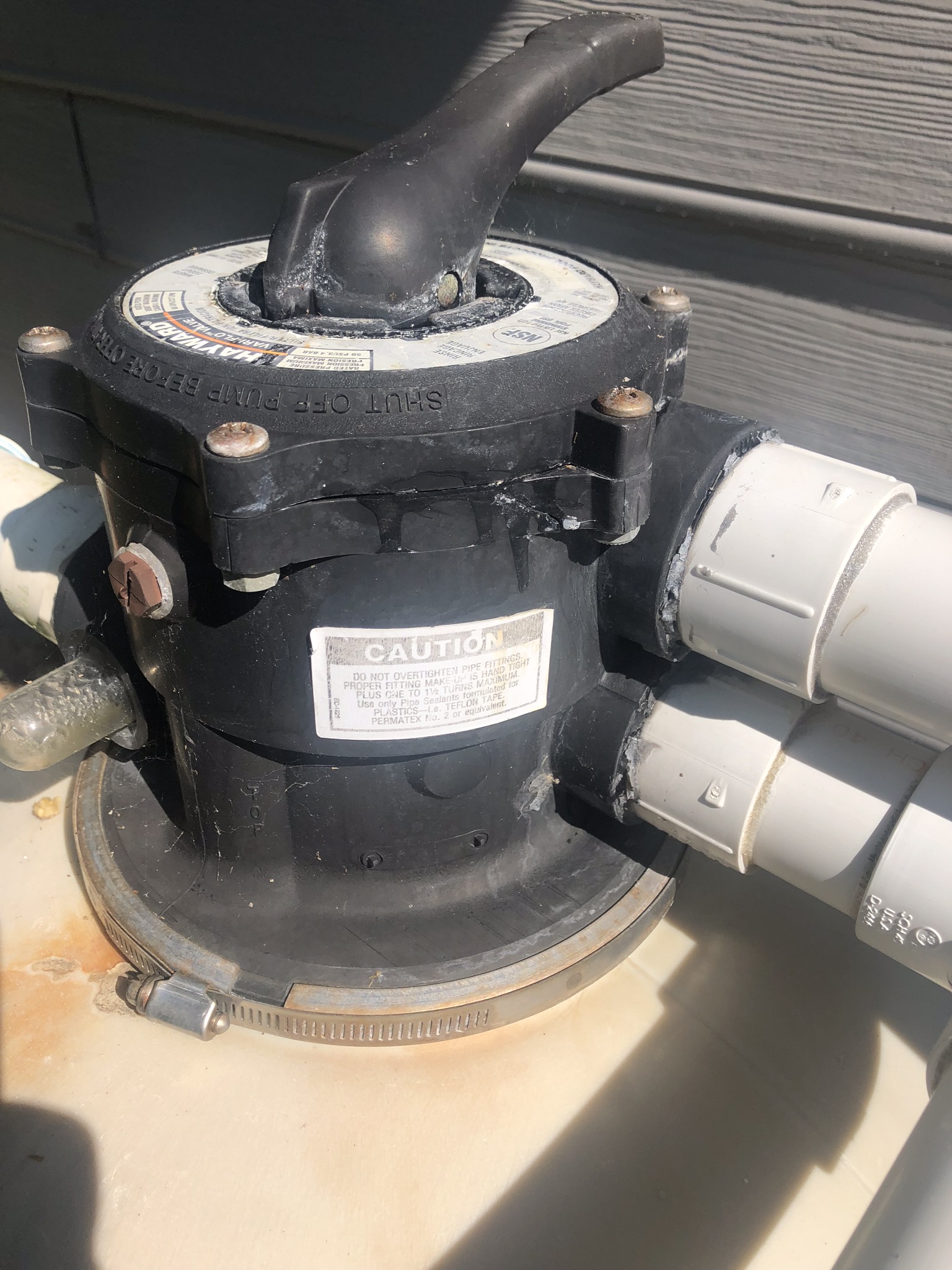

I’m looking to replace my Leaky Hayward variflo valve with something less expensive to use until I have to replace the entire system. I think it’s a sp07121. Can you recommend something that uses the same pipe configuration? Thanks

 Reply

A  Answered on 10/10/2019 by InyoPools Product Specialist Lennox H.

Hi. Based on the picture provided, your valve is a clamp style, not buttress. The replacement valve is P/N TM-12-H8.
 Reply


?     Asked on 7/15/2019by Charles R Richardson

Does the Hayward SP07121 Filter Head come with normal V Threads? The replacements I have been looking at all say Buttress Threads and my filter takes a normal V thread!
 Reply

A  Answered on 7/16/2019 by InyoPools Product Specialist Matt S.

The SP07121 is only available in the buttress thread, as it says in the title. if you need the V-Thread option, the choice is Top Mount Valve, "V" Threads Tagelus - SP07122
 Reply
