Alternate Part #'s 319-1380, 3191380, 35-270-1817, WW3191380B
Product Description

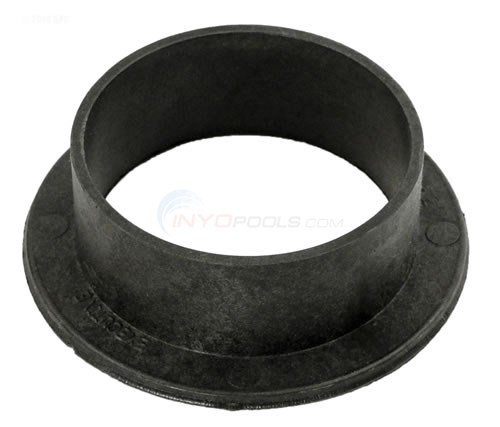

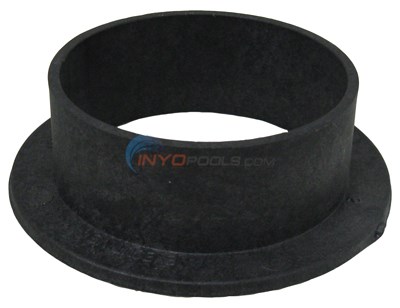

INYO # 5039-014 WATERWAY # 319-1380 GENERAL DESCRIPTION: EXECUTIVE PUMP CURRENT STYLE WEAR RING. THIS IS USED ON THE 3/4, 1, 1-1/2, 2, AND 3 HP PUMPS THIS FITS OVER THE INLET OF THE IMPELLER WITH THE LARGE SIDE FACING AWAY FROM THE IMPELLER MATERIAL: BLACK PLASTIC DIMENSIONS: SPECIAL NOTE: THE 5039-13 WEAR RING FOR THE 4 & 5 HP EXECUTIVE PUMPS HAS THE SAME DIAMETER DIMENSIONS BUT IS SHORTER FRONT TO BACK OUTSIDE DIAMETER: 3-3/8" (LARGE END) OUTSIDE DIAMETER: 2-9/16" (SMALL END) INSIDE DIAMETER: 2-3/8" FRONT TO BACK: 1-1/16" MARKINGS: 319-1380 EXECUTIVE 1,2,3 HP ARE MOLDED ON THE INSIDE LIP
