Waterway Executive 48 and 56-Frame Pump Parts

Some parts are specific to the motor frame (48Y or 56Y) size. Be sure to order the parts for your motor frame size.

Waterway Executive 48 and 56-Frame Pump Diagram

Click to zoom in

Diagram #	Part Title
*	TUNE UP KIT WATERWAY 48 FRAME
1	DRAIN PLUG (715-1020)
2	O-RING, BLEEDER ADAPTER
3	SCREW, 8/32 X 7/16
4	FACEPLATE, EXECUTIVE, 2 1/2"
5	Volute O-Ring
6	IMPELLER, 1 H.P. EXECUTIVE
7	SEAL, PUMP 1000 (PSR 1000)
8	VOLUTE, 56FR With INSERTS, EXECUTIVE
9	SLINGER
10A	UNION,PUMP 2" SLIP X 2-1/2" NUT
*	O-ring for 9175-04
11	UNION, PUMP, 2" NUT X 2" SLIP (400-5570)
*	WEAR RING 4 - 5 HP EXECUTIVE
*	1 H.P 115V Thru Bolt Motor
*	MOTOR, THRUBOLT, 56FR, 1 HP 230V

View Parts List

Diagram #	Part Title
*	TUNE UP KIT WATERWAY 48 FRAME
1	DRAIN PLUG (715-1020)
2	O-RING, BLEEDER ADAPTER
3	SCREW, 8/32 X 7/16
4	FACEPLATE, EXECUTIVE, 2 1/2"
5	Volute O-Ring
6	IMPELLER, 1 H.P. EXECUTIVE
7	SEAL, PUMP 1000 (PSR 1000)
8	VOLUTE, 56FR With INSERTS, EXECUTIVE
9	SLINGER
10A	UNION,PUMP 2" SLIP X 2-1/2" NUT
*	O-ring for 9175-04
11	UNION, PUMP, 2" NUT X 2" SLIP (400-5570)
*	WEAR RING 4 - 5 HP EXECUTIVE
*	1 H.P 115V Thru Bolt Motor
*	MOTOR, THRUBOLT, 56FR, 1 HP 230V

Available Parts:

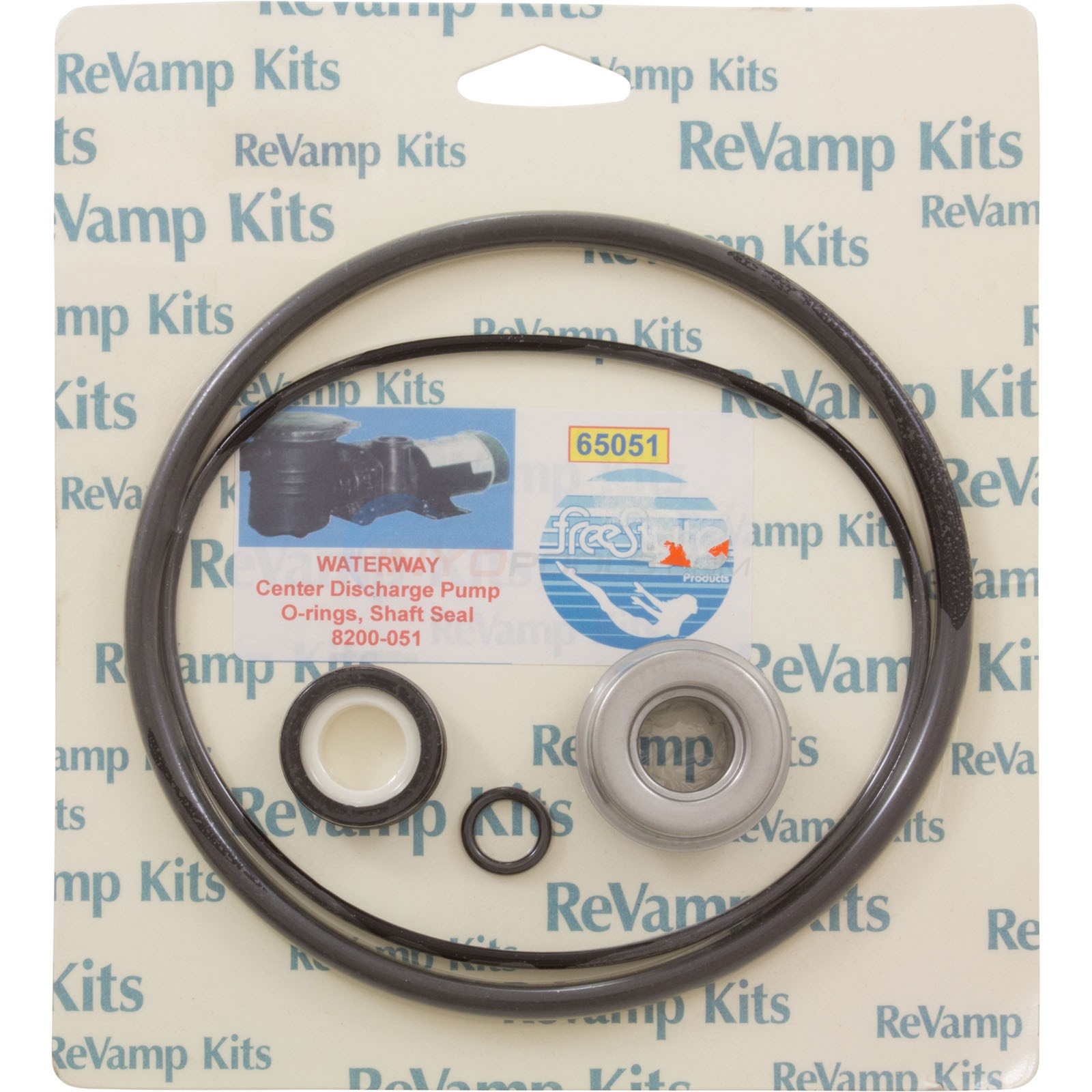

TUNE UP KIT WATERWAY 48 FRAME

Part # GOKIT51

TUNE UP KIT WATERWAY 48 FRAME

$38.29 IN STOCK

Qty:

DRAIN PLUG (715-1020)

Part # 5039-001 Mfg # 715-1201B

DRAIN PLUG (715-1020)

$14.48 IN STOCK

Qty:

O-RING, BLEEDER ADAPTER

Part # 4600-4661 Mfg # 111

O-RING, BLEEDER ADAPTER

$11.10 IN STOCK

Qty:

SCREW, 8/32 X 7/16

Part # 5039-002 Mfg # 819-0005

SCREW, 8/32 X 7/16

$3.09

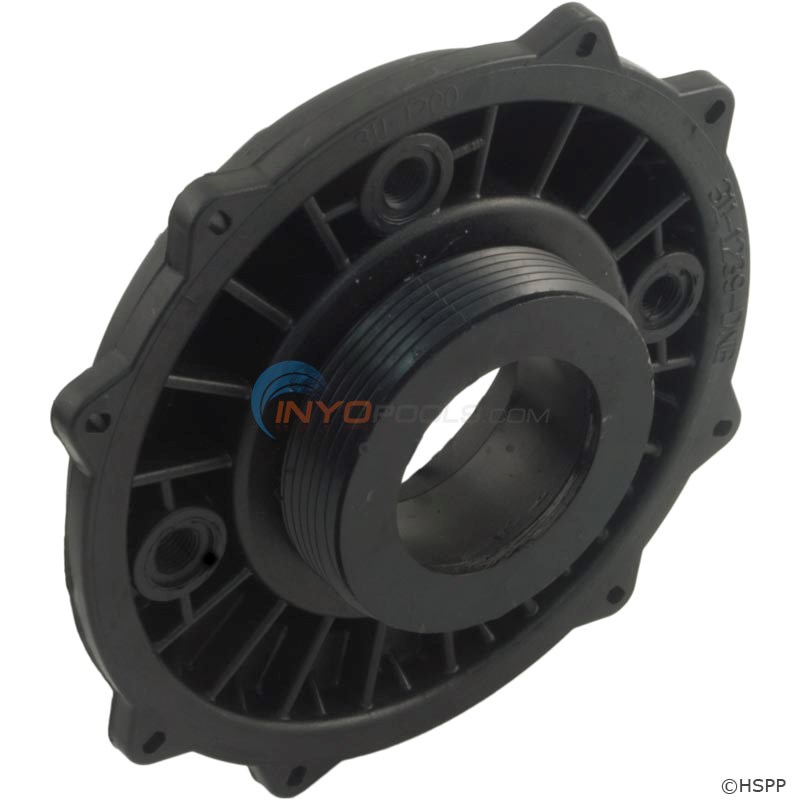

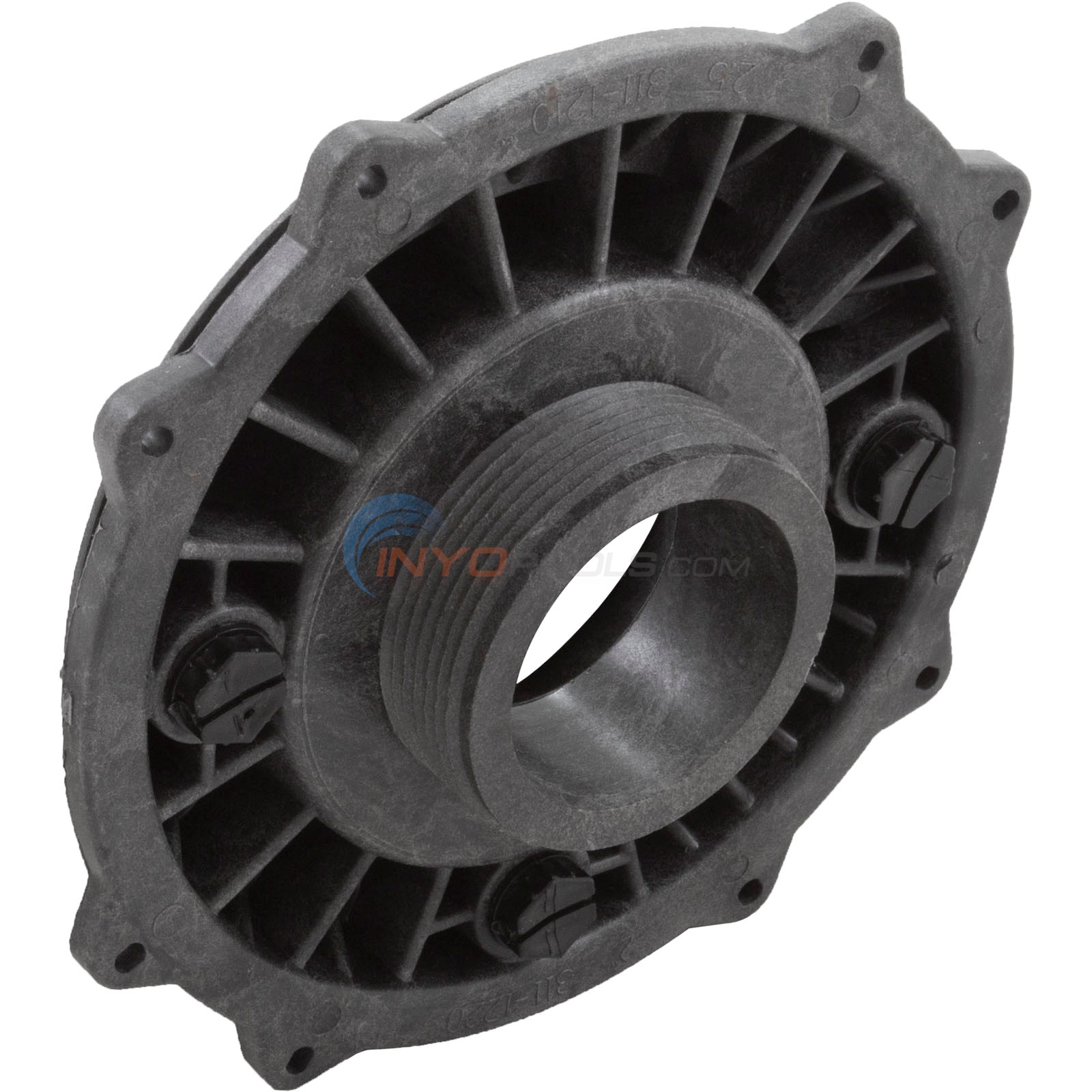

FACEPLATE, EXECUTIVE, 2 1/2"

Part # 5039-004 Mfg # 311-1210

FACEPLATE, EXECUTIVE, 2 1/2"

$63.30 IN STOCK

Qty:

EXECUTIVE FACEPLATE, 2"

Part # 5039-012 Mfg # 311-1220

EXECUTIVE FACEPLATE, 2"

$38.48 IN STOCK

Qty:

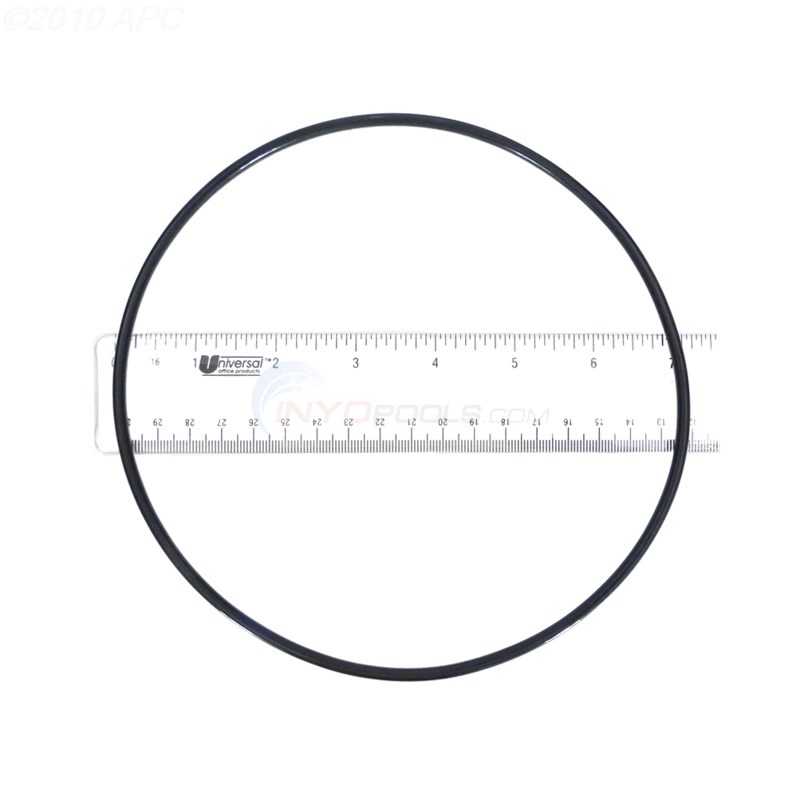

Volute O-Ring

Part # 4600-1151 Mfg # E-7-S2

Volute O-Ring

$6.53 IN STOCK

Qty:

IMPELLER, 1 H.P. EXECUTIVE

Part # 5039-006 Mfg # 310-4220

IMPELLER, 1 H.P. EXECUTIVE

$43.47 IN STOCK

Qty:

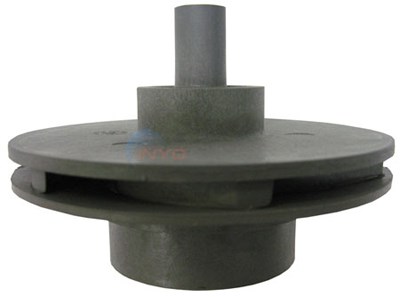

IMPELLER, 2 H.P. EXECUTIVE

Part # 5039-007 Mfg # 310-4210

IMPELLER, 2 H.P. EXECUTIVE

$43.47 IN STOCK

Qty:

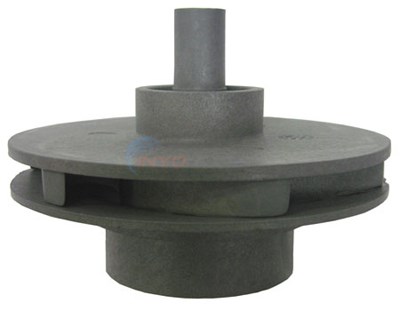

IMPELLER, 3 H.P. EXECUTIVE

Part # 5039-008 Mfg # 310-4200

IMPELLER, 3 H.P. EXECUTIVE

$48.75 IN STOCK

Qty:

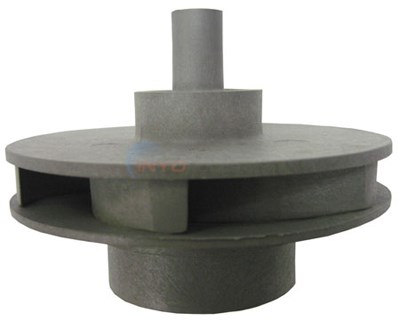

IMPELLER, 4 H.P. EXECUTIVE

Part # 5039-009 Mfg # 310-4190

IMPELLER, 4 H.P. EXECUTIVE

$28.63 IN STOCK

Qty:

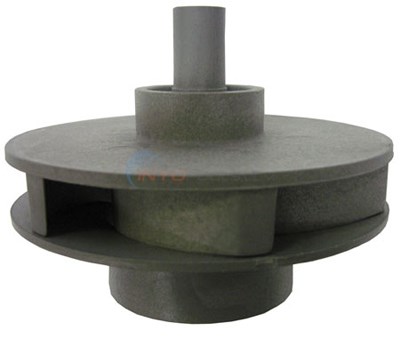

IMPELLER, 5 H.P. EXECUTIVE

Part # 5039-010 Mfg # 310-4180

IMPELLER, 5 H.P. EXECUTIVE

$84.87 IN STOCK

Qty:

SEAL, PUMP 1000 (PSR 1000)

Part # 5250-106 Mfg # PS-1000

SEAL, PUMP 1000 (PSR 1000)

$7.76 IN STOCK

Qty:

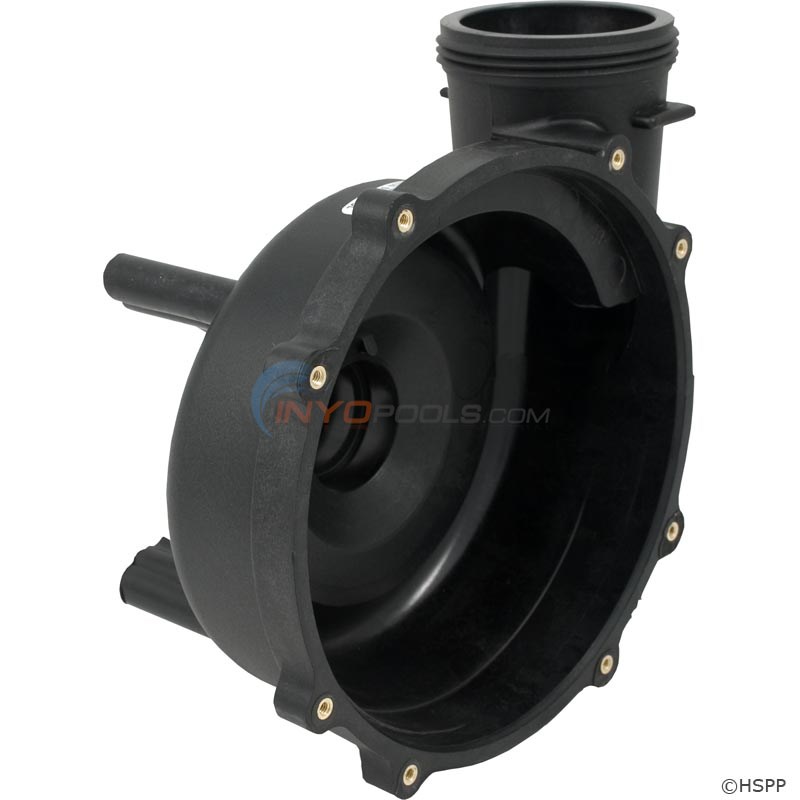

VOLUTE, 56FR With INSERTS, EXECUTIVE

Part # 5039-011 Mfg # 315-1220

VOLUTE, 56FR With INSERTS, EXECUTIVE

$64.40

EXECUTIVE VOLUTE, 48 FRAME

Part # 5039-024 Mfg # 315-1240

EXECUTIVE VOLUTE, 48 FRAME

$78.66

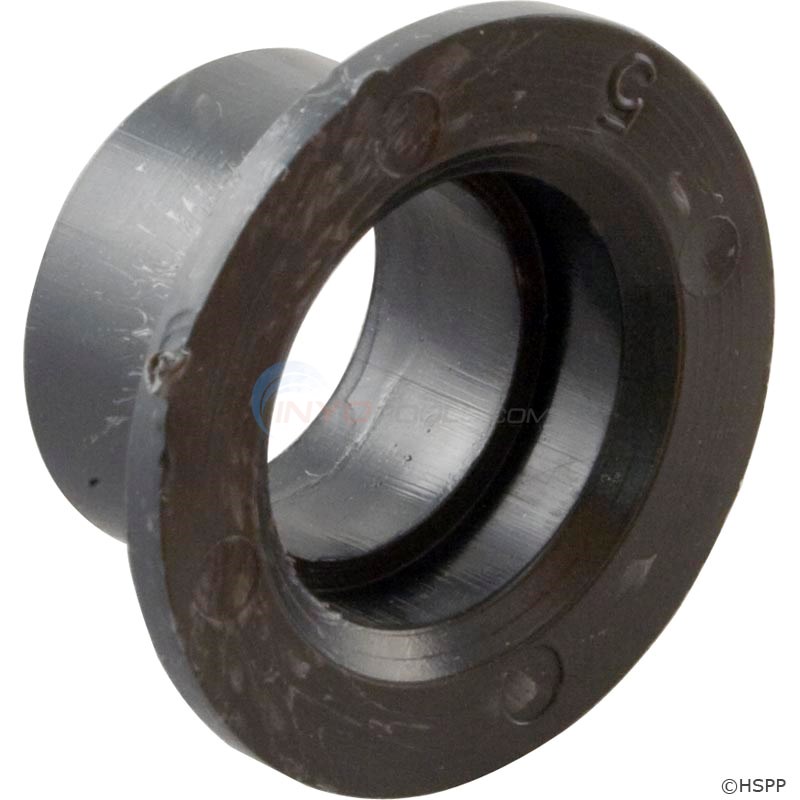

SLINGER

Part # 5030-12 Mfg # 313-1400

SLINGER

$10.58 IN STOCK

Qty:

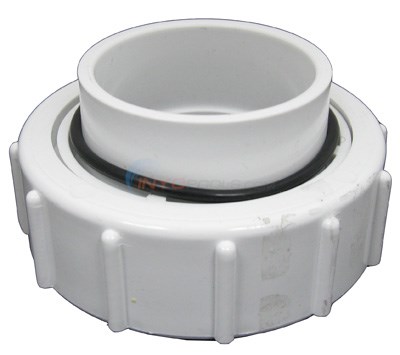

UNION,PUMP 2" SLIP X 2-1/2" NUT

Part # 9175-04 Mfg # 400-5990

UNION,PUMP 2" SLIP X 2-1/2" NUT

$29.23 IN STOCK

Qty:

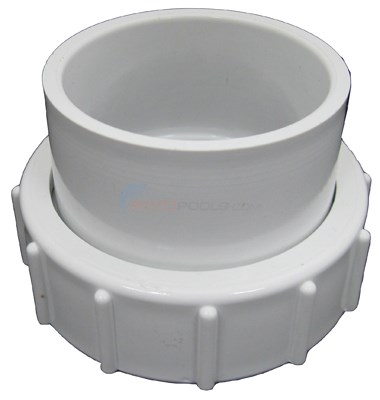

UNION,PUMP 2-1/2"SLIP X 2-1/2" NUT

Part # 9175-04A Mfg # 400-6010

UNION,PUMP 2-1/2"SLIP X 2-1/2" NUT

$9.38 IN STOCK

Qty:

O-ring for 9175-04

Part # 4800-23 Mfg # O-43

O-ring for 9175-04

$8.17 IN STOCK

Qty:

UNION, PUMP, 2" NUT X 2" SLIP (400-5570)

Part # 9175-03 Mfg # 400-5570B

UNION, PUMP, 2" NUT X 2" SLIP (400-5570)

$8.27 IN STOCK

Qty:

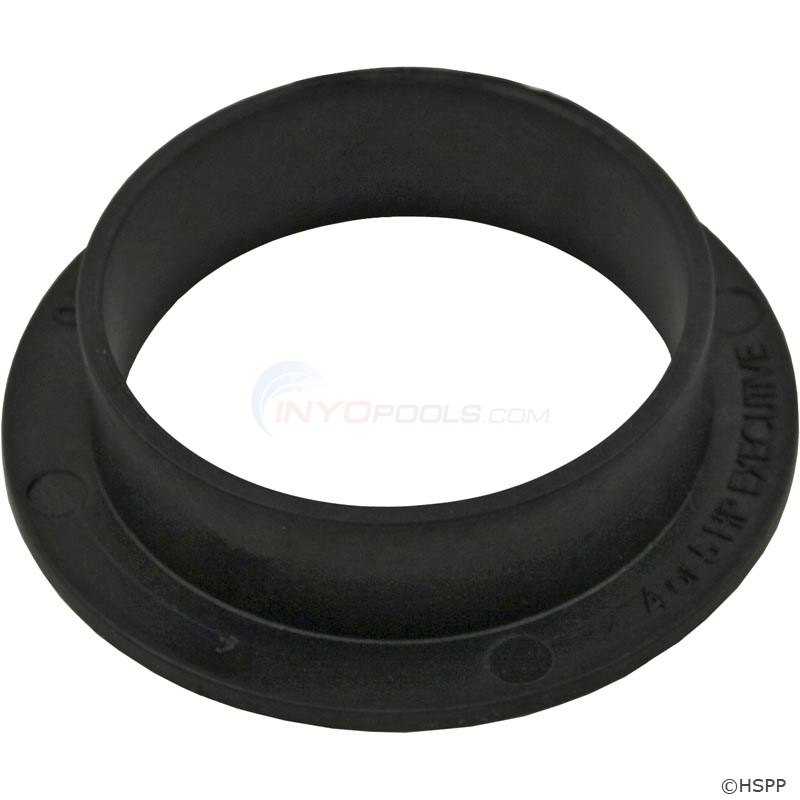

WEAR RING 4 - 5 HP EXECUTIVE

Part # 5039-13 Mfg # 319-1370

WEAR RING 4 - 5 HP EXECUTIVE

$20.69 IN STOCK

Qty:

WEAR RING 1 - 3 HP EXECUTIVE

Part # 5039-014 Mfg # 319-1380

WEAR RING 1 - 3 HP EXECUTIVE

$20.69 IN STOCK

Qty:

1 H.P 115V Thru Bolt Motor

Part # BN25 Mfg # BN25V1

1 H.P 115V Thru Bolt Motor

$188.93 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 12.0 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 12.0 Frame 48Y

Qty:

2 HP 230/115V Thru-Bolt Motor

Part # BN40SS Mfg # BN40SS

2 HP 230/115V Thru-Bolt Motor

$250.11 IN STOCK

Service Factor 1.0 Voltage 230/115V Max Amps 10.0/20.0 Frame 48Y

Service Factor 1.0 Voltage 230/115V Max Amps 10.0/20.0 Frame 48Y

Qty:

1 HP 2 Speed 115V Thru-Bolt Motor

Part # BN37 Mfg # BN37V1

1 HP 2 Speed 115V Thru-Bolt Motor

$259.32 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 11.0/2.9 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 11.0/2.9 Frame 48Y

Qty:

2 HP 2 Speed 230V Thru Bolt Motor

Part # BN51 Mfg # BN51

2 HP 2 Speed 230V Thru Bolt Motor

$331.64 IN STOCK

Service Factor 1.0 Voltage 230V Max Amps 10.5/2.6 Frame 48Y

Service Factor 1.0 Voltage 230V Max Amps 10.5/2.6 Frame 48Y

Qty:

1 HP 2 Speed 115V Low Amps Thru Bolt Motor

Part # BN38 Mfg # BN37V1

1 HP 2 Speed 115V Low Amps Thru Bolt Motor

$262.00 IN STOCK

Service Factor 1.0 Voltage 115V Max Amps 13.8/3.8 Frame 48Y

Service Factor 1.0 Voltage 115V Max Amps 13.8/3.8 Frame 48Y

Qty:

2 HP 2 Speed 230V Low Amps Thru Bolt Motor

Part # BN61 Mfg # BN61

2 HP 2 Speed 230V Low Amps Thru Bolt Motor

$340.32 IN STOCK

Service Factor 1.0 Voltage 230V Max Amps 8.5/2.8 Frame 48Y

Service Factor 1.0 Voltage 230V Max Amps 8.5/2.8 Frame 48Y

Qty:

3 HP 2 Speed 230V Low Amps Thru Bolt Motor

Part # BN62 Mfg # BN62

3 HP 2 Speed 230V Low Amps Thru Bolt Motor

$361.79 IN STOCK

Service Factor 1.0 Voltage 230V Max Amps 12.0/3.5 Frame 48Y

Service Factor 1.0 Voltage 230V Max Amps 12.0/3.5 Frame 48Y

Qty:

4 HP 2 Speed 230V Low Amps Thru Bolt Motor

Part # BN63 Mfg # BN63

4 HP 2 Speed 230V Low Amps Thru Bolt Motor

$392.94

Service Factor 1.0 Voltage 208-230V Max Amps 12.0/3.5 Frame 48Y

Service Factor 1.0 Voltage 208-230V Max Amps 12.0/3.5 Frame 48Y

*

MOTOR, THRUBOLT, 56FR, 1 HP 230V

Mfg # NOT AVAILABLE

MOTOR, THRUBOLT, 56FR, 1 HP 230V

NOT AVAILABLE

Service Factor - Voltage 230 Max Amps 6.4 Frame 56Y

Service Factor - Voltage 230 Max Amps 6.4 Frame 56Y

MOTOR, THRUBOLT, 56FR, 2 HP 230V

Part # 5291-01 Mfg # 372-0821

MOTOR, THRUBOLT, 56FR, 2 HP 230V

$298.47

Service Factor - Voltage 230 Max Amps 8.0 Frame 56Y

Service Factor - Voltage 230 Max Amps 8.0 Frame 56Y

*

MOTOR, THRUBOLT, 56FR, 3 HP 230V

Mfg # NOT AVAILABLE

MOTOR, THRUBOLT, 56FR, 3 HP 230V

NOT AVAILABLE

Service Factor - Voltage 230 Max Amps 10.0 Frame 56Y

Service Factor - Voltage 230 Max Amps 10.0 Frame 56Y

MOTOR, THRUBOLT, 56FR, 4 HP 230V

Part # 5293-0 Mfg # B237

MOTOR, THRUBOLT, 56FR, 4 HP 230V

$400.97 IN STOCK

Service Factor - Voltage 230 Max Amps 12.0 Frame 56Y

Service Factor - Voltage 230 Max Amps 12.0 Frame 56Y

Qty:

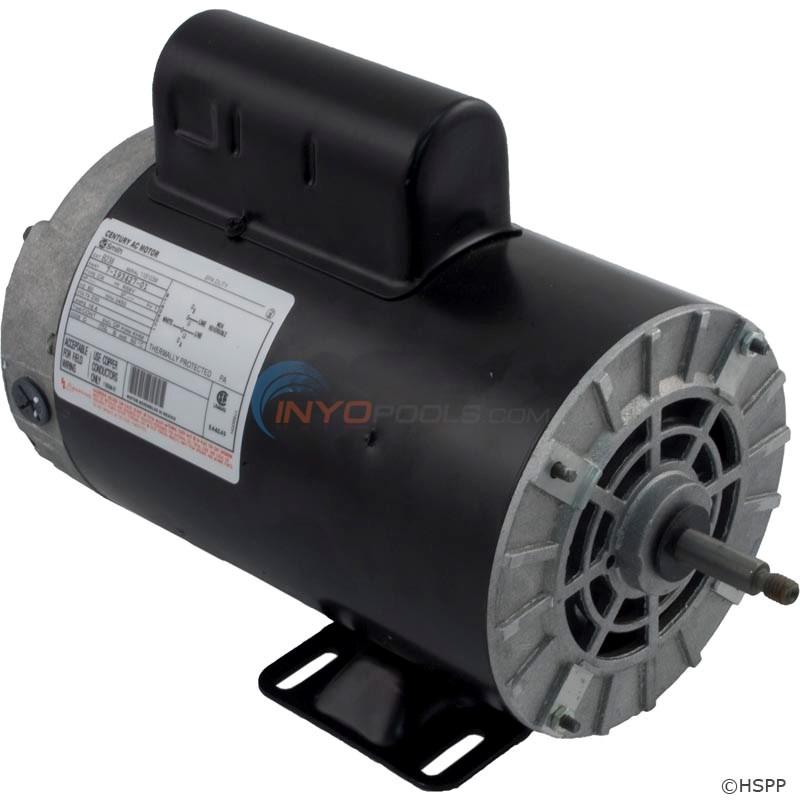

MOTOR, THRUBOLT, 56FR, 5 HP 230V

Part # 5294-0 Mfg # B238

MOTOR, THRUBOLT, 56FR, 5 HP 230V

$449.22

Service Factor - Voltage 230 Max Amps 16.4 Frame 56Y

Service Factor - Voltage 230 Max Amps 16.4 Frame 56Y

MOTOR, THRUBOLT, 56Y, 1 HP 230V, 2SPD (B232)

Part # 5295-0 Mfg # B2232

MOTOR, THRUBOLT, 56Y, 1 HP 230V, 2SPD (B232)

$320.58

Service Factor - Voltage 230 Max Amps 6.4/2.6 Frame 56Y

Service Factor - Voltage 230 Max Amps 6.4/2.6 Frame 56Y

MOTOR, THRUBOLT, 56FR, 2 HP 230V, 2SP (B233)

Part # 5296-0 Mfg # B2233

MOTOR, THRUBOLT, 56FR, 2 HP 230V, 2SP (B233)

$319.58 IN STOCK

Service Factor - Voltage 230 Max Amps 8.01/3.0 Frame 56Y

Service Factor - Voltage 230 Max Amps 8.01/3.0 Frame 56Y

Qty:

MOTOR, THRUBOLT, 56FR, 3 HP 230V, 2 SPD (B234)

Part # 5297-0 Mfg # B2234

MOTOR, THRUBOLT, 56FR, 3 HP 230V, 2 SPD (B234)

$406.99 IN STOCK

Service Factor - Voltage 230 Max Amps 10.01/3.5 Frame 56Y

Service Factor - Voltage 230 Max Amps 10.01/3.5 Frame 56Y

Qty:

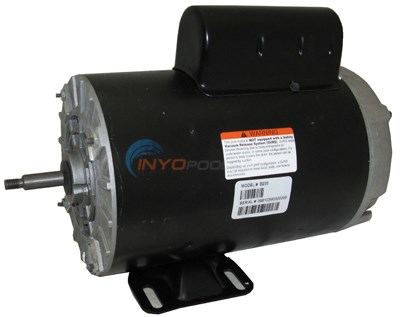

MOTOR, THRUBOLT, 56 FR, 4 HP 230V, 2SPD (B235)

Part # 5298-0 Mfg # B2235

MOTOR, THRUBOLT, 56 FR, 4 HP 230V, 2SPD (B235)

$404.73 IN STOCK

Service Factor - Voltage 230 Max Amps 12.01/4.4 Frame 56Y

Service Factor - Voltage 230 Max Amps 12.01/4.4 Frame 56Y

Qty:

MOTOR, THRUBOLT, 56FR, 5 HP 230V, 2SPD (B236)

Part # 5299-0 Mfg # B2236

MOTOR, THRUBOLT, 56FR, 5 HP 230V, 2SPD (B236)

$503.49

Service Factor - Voltage 230 Max Amps 16.4/4.8 Frame 56Y

Service Factor - Voltage 230 Max Amps 16.4/4.8 Frame 56Y

* NOT SHOWN
