Part # PL5814

Warranty 2 Year Warranty

Dimensions 6-5/8" x 5-1/4"

Product Description

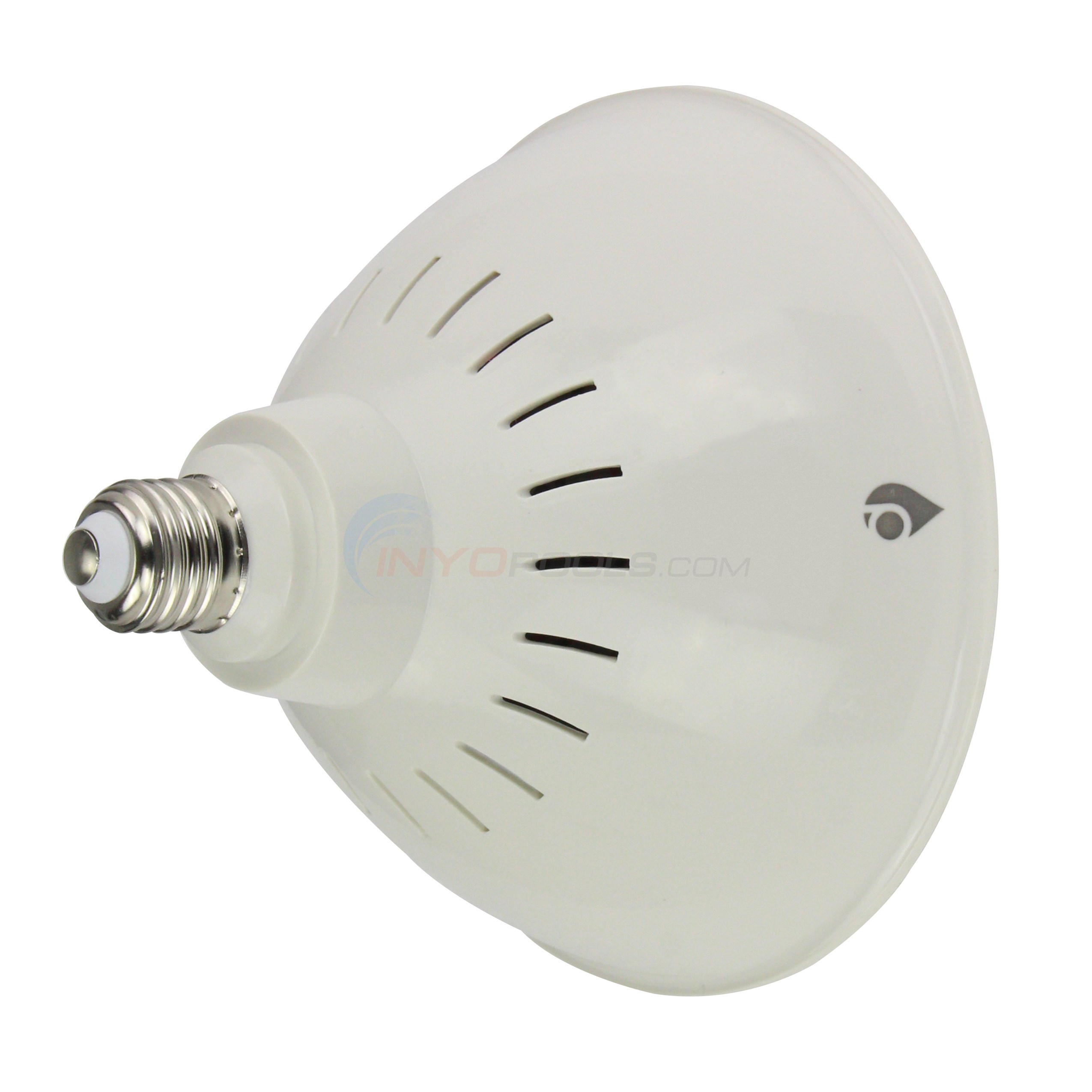

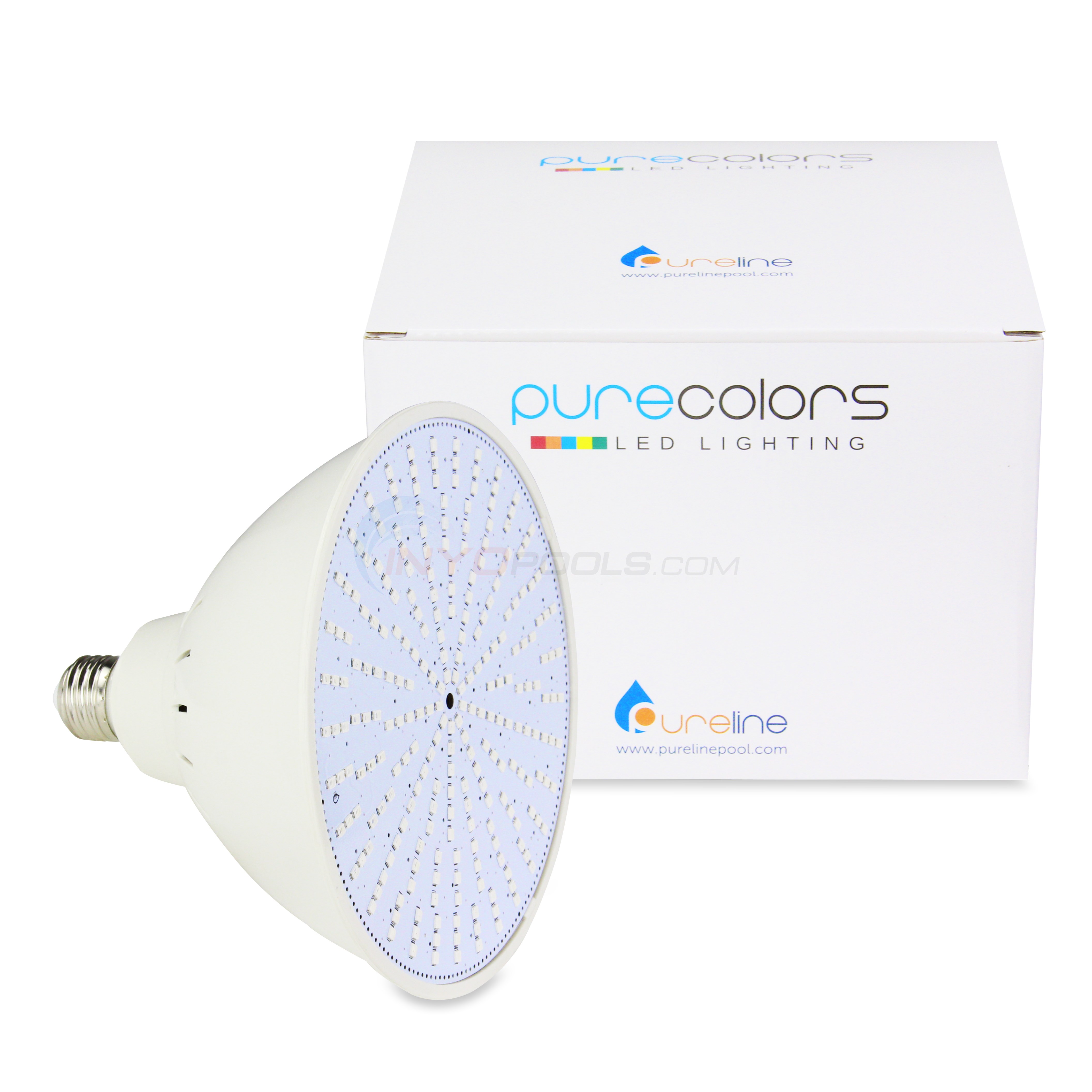

REPLACEMENT COLOR CHANGING LED POOL & SPA LIGHTS

PureColors replacement LED pool & spa bulbs offer seven solid colors, and nine light shows that can instantly transform your pool area into a color-rich paradise. The PureColors bulb uses an Edison screw in base, so they install easily into your existing fixture in just minutes. Plus, LED technology makes them the most energy efficient and longest lasting bulb on the market.

ADVANTAGES:

  • LED technology
  • 80% Operational Cost Savings
  • Standard screw in light base for quick & easy replacement
  • Synchronize multiple lights to operate in unison
  • 50,000 hours Lifespan
  • 2-year warranty

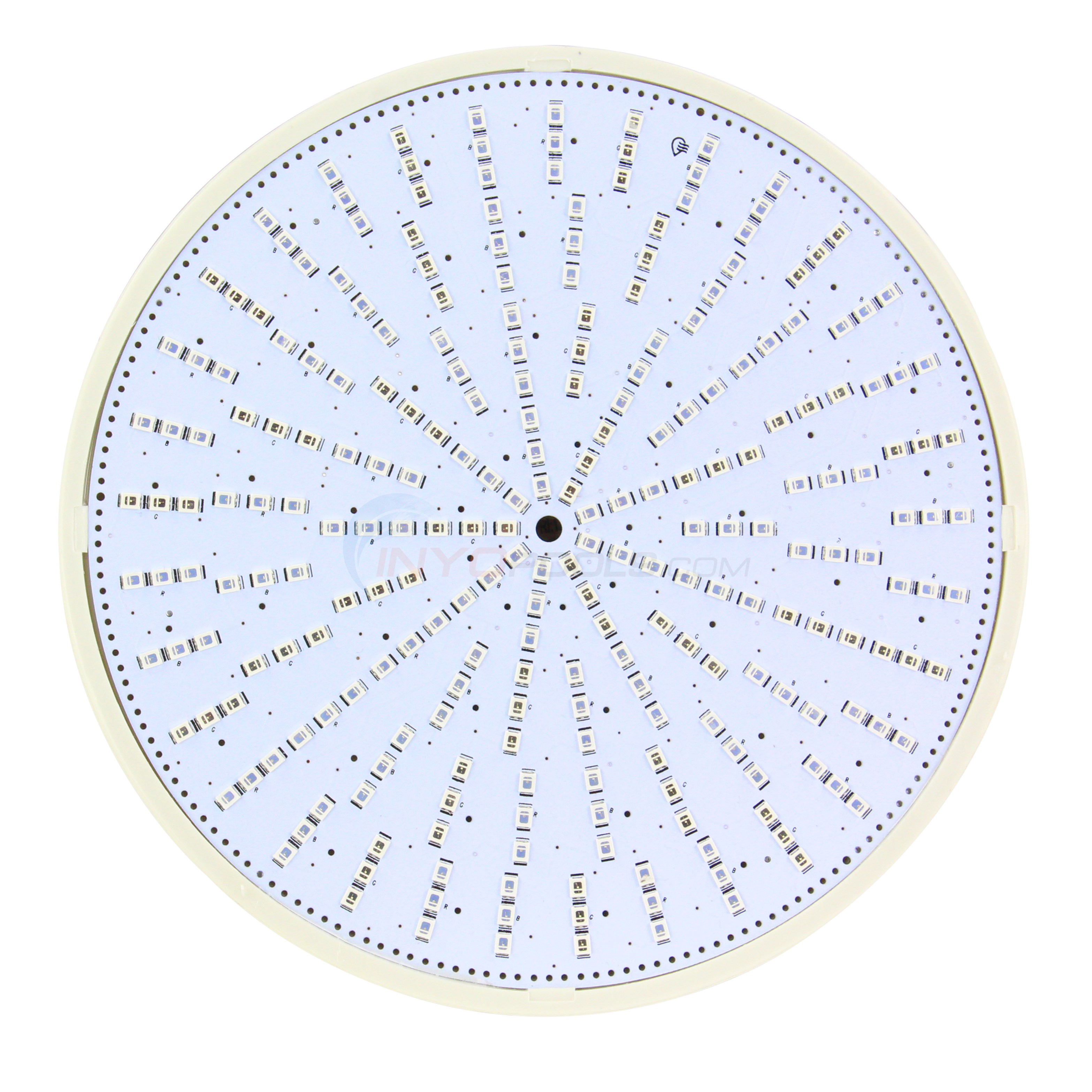

  • 252- LED's

COMPATIBILITY:

  • Hayward® Astrolite SP0580 Series
  • Hayward® DuraLite SP0570 Series
  • Pentair® Amerlite 784 Series
  • Note: Not compatible with Swimquip® Light Fixtures or Hayward® SP0540 series.

Disclaimer:

All manufacturers’ names, brand names, trademarks, images, symbols, descriptions, and part numbers are used herein for reference purposes only.

Product Specifications

Color:
Color Changing
Pool / Spa Type:
Pool
Volts:
120 V
Watts:
18 W
Controller:
Light Switch
Lumens:
White: 1,600 Colors: 600
Incandescent Equivalent:
200 Watt
Warranty:
2 yrs
Top

?     Asked on 4/6/2016by Inyo Visitor

Can the light be changed without draining the pool?
 Reply

A  Answered on 4/7/2016 by InyoPools Product Specialist Patrick P.

Yes you can replace the bulb in your pool light with this LED bulb without needing to drain your pool water. You will first need to turn off power to the pool light at your breaker then go to the pool light and remove the pilot screw which is located on the face ring of your light. Once the pilot screw is removed this will allow you to bring your entire light fixture up on to your pool deck where you can then replace the bulb. The replacing of the bulb is as simple as unscrewing the old bulb and screwing in the new bulb. I would also suggest replacing your lights lens gasket when replacing the bulb, the two most popular would be the Hayward Astrolite Lens Gasket and the Pentair Amerlite Lens Gasket. We also have a great Video on How to Replace a Swimming Pool Light Bulb which will walk you through the process.
 Reply


?     Asked on 4/7/2016by mark

is there a remote control to stop the changing colors or does it cycle the different colors constantly?
 Reply

A  Answered on 4/7/2016 by InyoPools Product Specialist Patrick P.

The light would be controlled through a standard light switch or your pool control system. Flipping your light switch on and off relatively quickly will cycle the light to the next color or next light show. There are 16 modes, 7 modes are fixed colors and 9 modes are rotating color shows.
 Reply


?     Asked on 4/7/2016by David

Can the light be stopped on one particular color? I tried downloading the owners manual and there seems to be a bad link
 Reply

A  Answered on 4/7/2016 by InyoPools Product Specialist Patrick P.

Yes the light can be stopped on a color there are 7 fixed colors white, red, green, blue, gold, cyan and violet. You would cycle to the fixed colors by flipping your pool light switch relatively quickly. In addition to the fixed colors there are 9 color shows..... Evening Sea (slow animation of blue and red), Evening rivers (slow animation of green and red), Riviera (slow animation of blue and green, Rainbow (slow animation of all colors), River of Colors (slow animation of all colors followed by Four Seasons), Disco (fast animation followed by Rainbow) and Party (Fast animation followed by River of Colors).
 Reply


?     Asked on 4/7/2016by Dane

What is the correct wattage for lighting equivelent to the existing 12V 300W bulb?
 Reply

A  Answered on 4/7/2016 by InyoPools Product Specialist Patrick P.

Hi Dane, I would suggest the 12V 35 Watt Pure Colors LED Pool Bulb as an equivalent  replacement to a 12V 300 Watt Bulb.
 Reply


?     Asked on 4/7/2016by Lew

I see you have an 18 W and a 35 W LED in the 120V series.. So that I pick the correct LED replacement. What is the equivalent wattage to the incandescent / halogen bulb that I'd be replacing? If this helps, my pool is an inground 16x32 gradient from 8 ft to 3 ft ..Thanks
 Reply

A  Answered on 4/7/2016 by InyoPools Product Specialist Patrick P.

Hi Lew, For a 16' x 32' pool I would suggest the 35 Watt 120V Pure Colors LED Pool Bulb. The 35 Watt bulb is comparable to a 300 - 400 Watt Incandescent bulb.
