Part # PL2602

Warranty 1 Year Warranty

Product Description

Click Here to View All Available Pool Pumps

PureLine Prime Pool Pump

Cut cost not quality with the PureLine Prime Pump

The PureLine Prime Pump is our newest, premiere pump that rivals top brands like Hayward®, Pentair®, Sta-Rite®, Jacuzzi®, and Waterway® for only 2/3 of the cost. The PureLine Prime is paired with the industry’s leading Century® motor meaning that this pump is sure to last for years. Equipped with extra large 2” plumbing ports results in higher flow rates and longer motor life. The PureLine Prime is a direct drop-in replacement for the popular Hayward® Super Pump. This means that there is no realigning of the plumbing, significantly reducing the time and energy it takes to swap out to a new pump. The Prime pump is fully stocked with quick disconnect unions ($40 Value) and backed by a one year warranty.



Specs:

  • Horse Power = 1.5
  • Voltage = 115/230
  • Port Size = 2"
  • Amps = 7.2 amps @ 230V, 14.4 amps @ 115V
  • Service Factor = 1.0

PureLine Prime Pump Application:

  • In-ground pools of all types and sizes
  • In-ground spas

PureLine Prime Pump Benefits:

  • Drop in Replacement for the Hayward® Super Pump

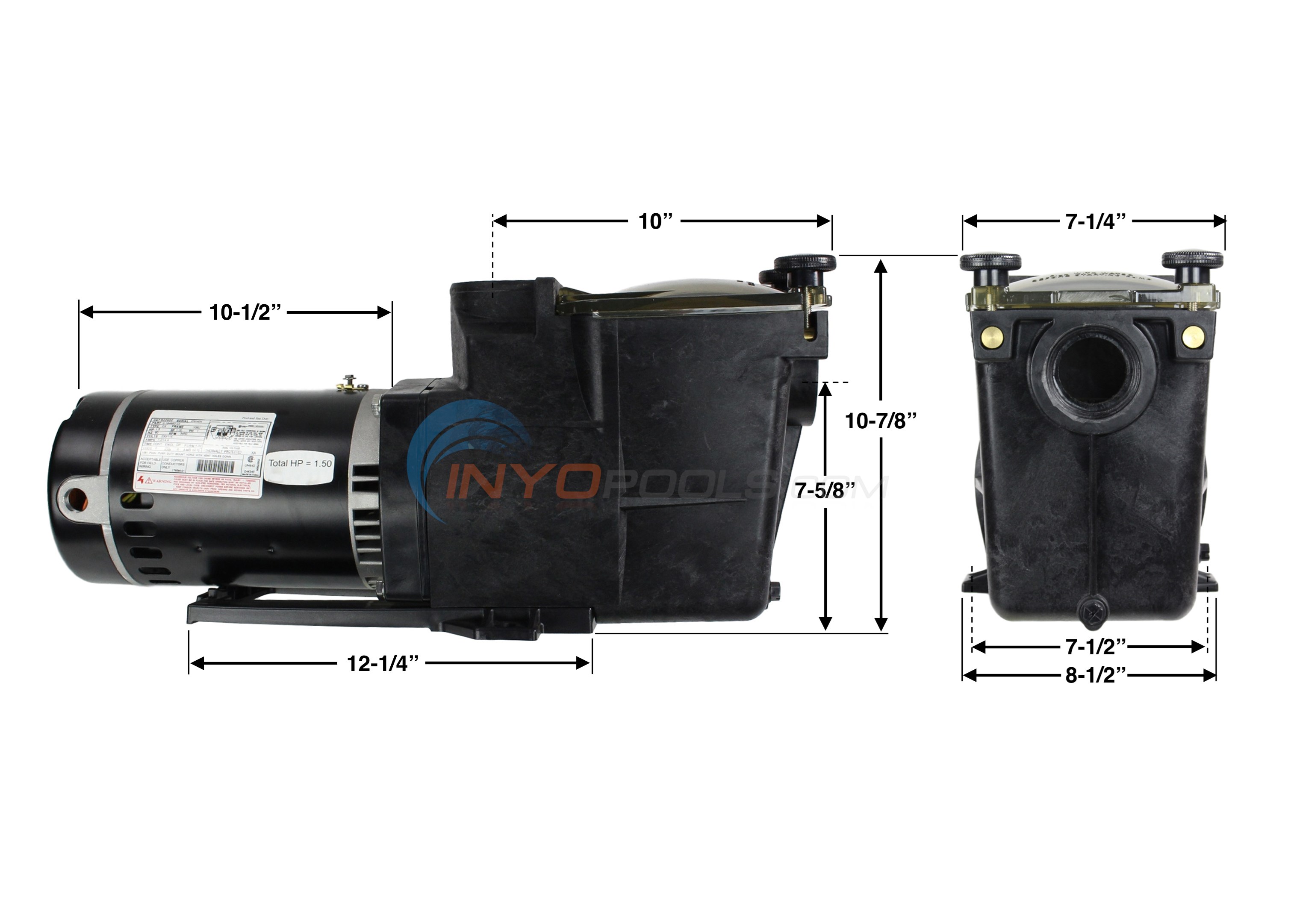

  • Same dimensions as the Hayward® Super Pump means no realigning of plumbing significantly reducing the time it takes to swap out your pump
  • Paired with a Century® Motor. The most reliable pool motor in the world.
  • Same quality as Hayward®, Pentair®, Sta-Rite®, Jandy® and Waterway®
  • Costs 30% Less than Hayward® Super Pump
  • Large 2” ports

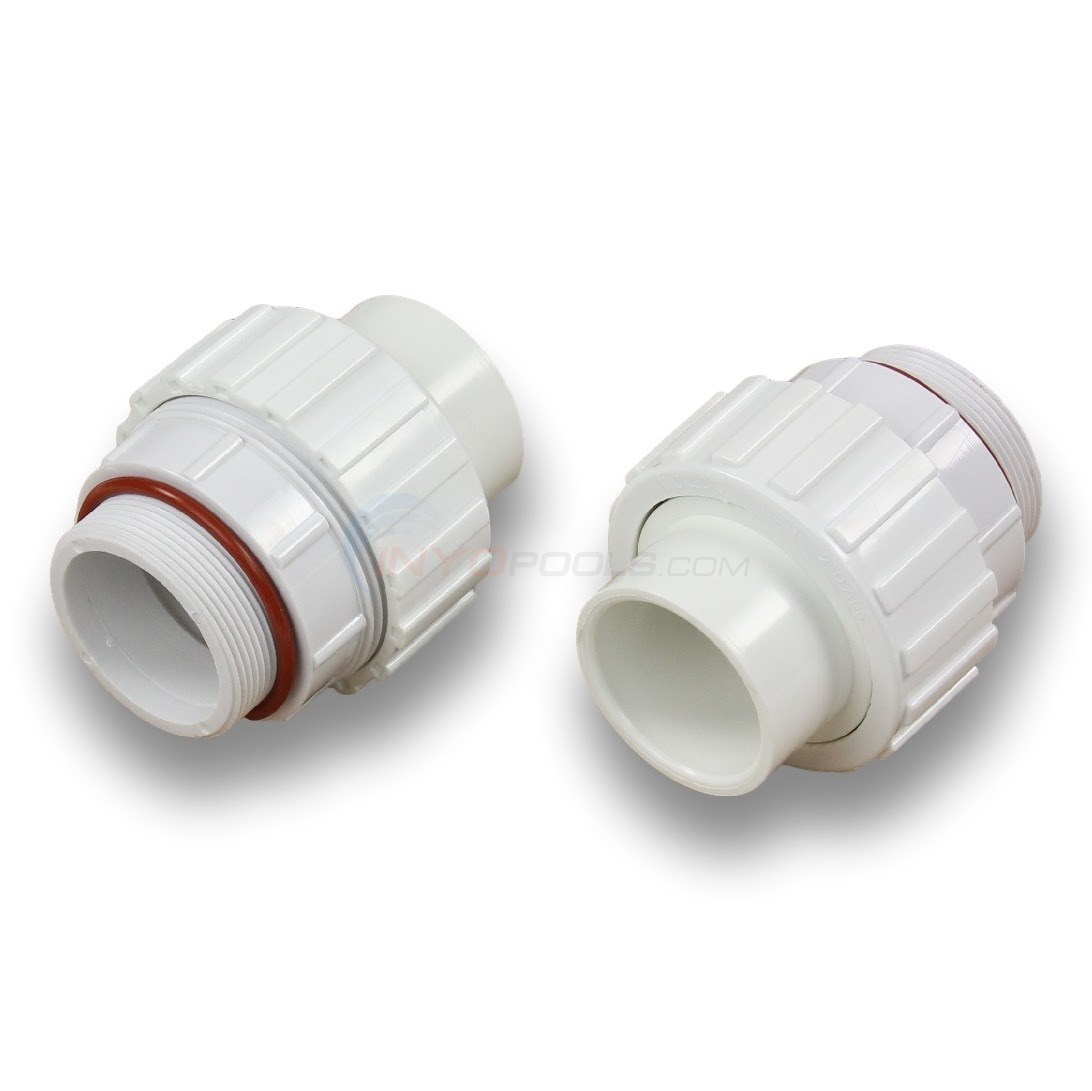

  • Quick Disconnect Unions included ($40 Value)
  • 1 year warranty
  • Self-priming (the pump can be placed up to 10' above water level)
  • Quick & Easy basket removal, with swing aside hand knobs
  • Clear Lexan® cover makes it easy to see when basket needs cleaning
  • Large capacity basket
  • Basket design ensures free flow of water
  • All components made of corrosion proof plastic
  • Heavy-duty, high performance motor for quieter, cooler operation
  • Easy access to all internal parts for servicing

Pump Curve



Disclaimer:

All manufacturers’ names, brand names, trademarks, images, symbols, descriptions, and part numbers are used herein for reference purposes only.

Product Specifications

HP:
1-1/2 HP
Speed:
Single
Volts:
115/230
Amps:
7.2 amps @ 230V, 14.4 amps @ 115V
Port Size:
2 in.
Union Connectors:
2 inch included
Service Factor:
1.0
Top

?     Asked on 2/28/2016by Gary

What size pump is recommended and how is it determined. What is the most energy efficient pump.
 Reply

A  Answered on 2/29/2016 by InyoPools Product Specialist Patrick P.

Hi Gary, Here is a great Guide with Video on How to Size a Pool Pump this should be all the info. you need to size the proper horse power. As far as energy efficiency goes the Pureline Variable Speed Pump will be the most energy efficient.
 Reply


?     Asked on 5/9/2016by Jackie

Is the connection threaded?
 Reply

A  Answered on 5/9/2016 by InyoPools Product Specialist Patrick P.

Hi Jackie, yes the PureLine Prime comes with a 2" female threaded connection (internal threads)
 Reply


?     Asked on 5/23/2016by Paul

is the PureLine full rated or up rated. Looking to replace a Whisperflo 1.5HP full rated energy efficient single speed Thank you
 Reply

A  Answered on 5/23/2016 by InyoPools Product Specialist Patrick P.

Hi Paul the Pureline Prime is up rated, we would suggest the 2 HP PureLine Prime Pump as a replacement for the Whisperflo 1.5HP full rated pump
 Reply


?     Asked on 7/16/2016by donna

wil this pump replace the whisper fl pentair wf-26. if there is one that will replace the whisper flo pool pump without any problem and cheaper please advise. our current pump is wf26 pentair whisperflo1.5 horsepower.
 Reply

A  Answered on 7/21/2016 by InyoPools Product Specialist Lennox H.

Hi Donna, This PureLine Prime 1.5 HP pump is not a compatible replacement for the Pentair WF-26 pump performance wise. The Prime pump is a medium head pump and the Whisperflo pump is a high head pump. You can read our "Which is Best: High Head or Medium Head Pumps?" for more details.
 Reply


?     Asked on 7/16/2016by donna

i have a whisperflo wf26 that needs to be replaced. It is pentair whisperflo model WF@^ 1.5 horsepower what if any pureline pool pump will be compatable with current pump, if any. thank-you the pentair is way too expensive.
 Reply

A  Answered on 7/22/2016 by InyoPools Product Specialist Lennox H.

Hi Donna, If you can provide us the following info from out How To: Size a Pool Pump guide we can find out if one of our Pureline Pumps will provide the flow needed to operate your pool.
 Reply


Top
Difficulty

Est. Repair Time

2 to 4 hrs

Tools Needed

Screwdriver, Pliers, Socket Set, Adjustable Wrench

3     0

Old Pump Failure The Day We Left For Vacation!!!

Written on 4/28/2021 by Guest

My wife and I were leaving for a 10 day vacation to Lake Tahoe. I went outside and checked the pool before we left. To my horror, our old pump was not running! I checked the circuit breaker, connections, timer box.....this pump was dead! We had to leave within the next 10 minutes, so there was no time to look into it further.

When we got to Lake Tahoe, I got online and ordered a new Purline Prime Pool Pump .5 HP from INYO Pools. I let then know we would be on vacation and returning at a given date.

The ordering was very smooth and the day AFTER we returned from vacation, the pump arrived!!! Yes!!! I removed it from the box and checked it out. Perfect condition and all parts / manuals were there!

I got all the necessary tools out to perform the old pump removal. I measured what lengths I needed for the new connections to the PureLine Pump. I cut the old PVC pipes and removed the old pump.

I lined up the new pump and PVC and did a "dry-fit" to make sure the lengths were good. Then I primed the connectors and glued the pieces together. You really have to pay close attention to the sequence of putting pipes together where existing pipes will meet the new. Watch plenty of videos on your favorite online channel.

This was my 1st time replacing a pump and working with PVC and I was really careful not to let the glue get too "hot" before making sure the connections were seated. If you wait too long, the glue starts drying and that can be a problem if you do not connect them in time. Luckily, only 1 joint that I was connecting started to bond and I had to really force it down fast. Just in time!

All in all the pump installation went great. DIY is easy if you plan it all out and are careful with the details. Read the pump manual, get acquainted with the parts and diagrams before you start.

This all happened 2.5 years ago and the PureLine pump has been performing perfectly.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

None

3     0

Pump went out

Written on 8/10/2020 by Guest

We replaced our pool pump with the Pureline 1.5 hp pool pump. The new pump lined up perfectly, nothing extra was needed. Once the pump was set and we turned it on everything went back to working as it should. With no problems. Thanks again Inyo Pools. I will definitely continue doing business with you.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver

3     0

Old pump needed replacement

Written on 10/9/2019 by Guest

Found that INYO was great on service , advice and recommendations. Pump is wonderful and powerful.
Quite easy to replace the old with this new one and I wanted a clear basket, easy to access
Unfortunately, I wanted to order two more and they were out of stock.
Fast delivery and no problems
Will be using them for all pool needs.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver

3     0

Thought our pump was broken

Written on 8/27/2019 by Guest

Our inground pool pump would not turn on. My husband was unable to get the pump apart. Our son came over to replace the pump and found a disconnected wire. He connected it and it worked...LOL... We decided to keep the new pump as our pump is about 6-7 years old, so we will be ready if it breaks.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Nut Drivers, Adjustable Wrench, Pipe Wrench

5     0

Old pump seized up. Replaced with new

Written on 5/28/2019 by Guest

Started looking for a direct replacement of my old pump. I contacted INYO Pools on chat and they advised they carried the PureLine Prime Pool Pump 1.5 HP as a direct replacement.

Ordered the pump. Super fast shipping. Pulled out all kinds of tools thinking I was in for a long haul. Start to finish maybe took 45 minutes to swap this pump for my old one.

Shut off the power in breaker box - the old pump and unscrewed the fittings to the inlet and outlet. Wired in the new pump (3 wires). Hooked the external ground to the casing. Screwed in the new fittings into my new pump. Left the female fittings on the old PVC to hook to my new fittings.

Primed the new pump. Turned it on. Shut it off due to small leak in new fitting. Tightened with a pipe wrench. Turned it back on and it works GREAT!! 45 minutes tops!!

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers, Wrench Set

7     0

Pool Pump Seized and Required Replacement

Written on 4/28/2019 by Guest

I went online to INYOpools.com and selected a replacement per their recommendation.

Upon delivery, I opened the box, read the instructions to determine a course of action and began disassembling the old pump. The old pump came apart easily and then I began prepping the area for the new pump. I measured and adjusted the inlet PVC and then the Outlet PVC and then began attaching the electrical wires. All in all, it was a simple task following the instructions. I primed the pump, the system came up and functioned as advertised.

Were these instructions helpful?


Difficulty

Est. Repair Time

More than 8 hrs

Tools Needed

Screwdriver, Pliers, Socket Set

4     0

Old Superpump was not capable of keeping water flowing through a filter,alge became a problem

Written on 7/24/2018 by Guest

Dug up old plumbing,upgraded to 2" PVC,isolated all lines from each other with ball valves,replaced pump and Multiport valve with 2" models.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Nut Drivers, Socket Set, Adjustable Wrench, Sand paper

9     0

Pump housing had a crack

Written on 11/22/2016 by GARY H.

Pump and motor were 15 years old when the pump housing got a large non repairable crack. Replaced pump and motor assembly. Arrived in 2 days and killed electrical power and removed wires. Cut PVC pipe and glued new fittings in place.....Total time less than 1 Hour.

Were these instructions helpful?
