Model # PL1615

Warranty 1-Year

Product Description

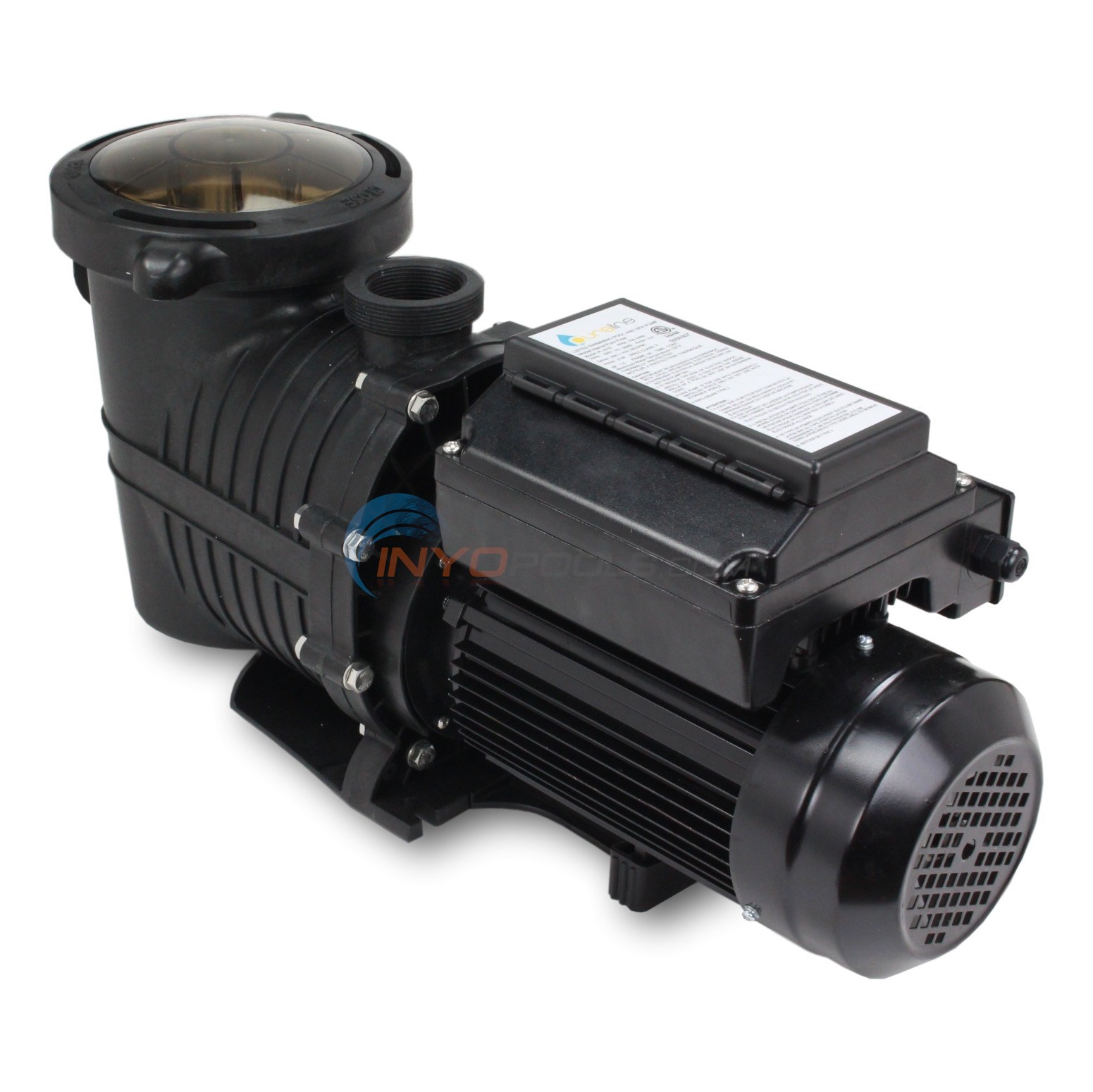

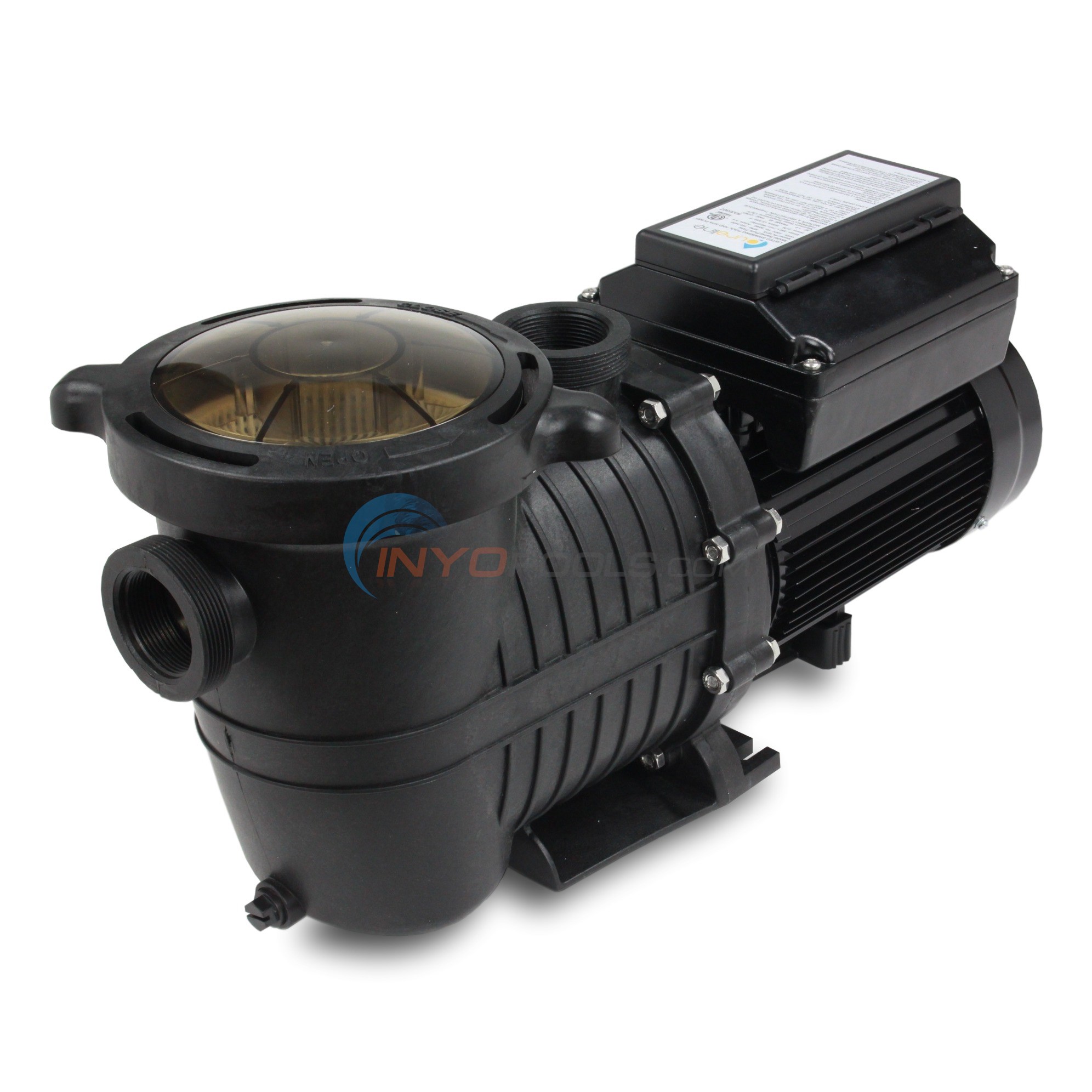

Maximize your savings with the new PureLine Pure Flow Variable Speed Pump.

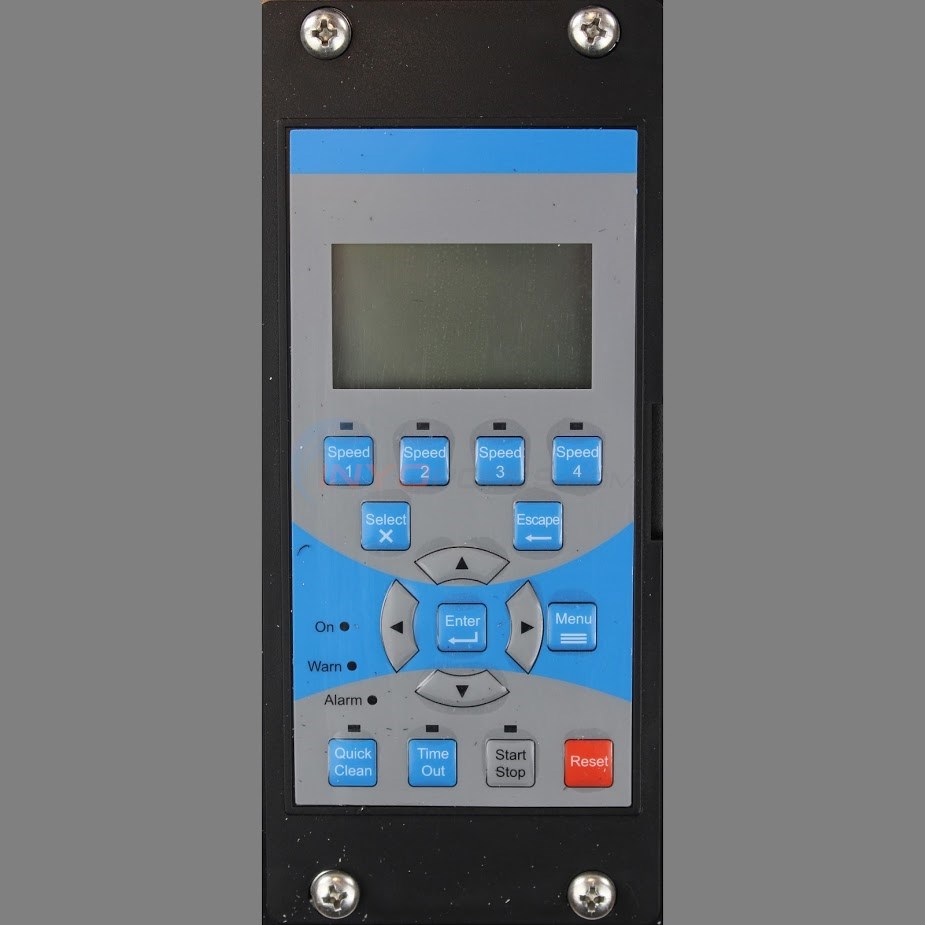

The PureLine Pure Flow Variable Speed Pump now offers a fully variable speed pump at an affordable price. The Pure Flow motor delivers premium energy efficiency and program flexibility with a digital controller mounted directly onto the pump. The Pure Flow Variable Speed Pump can save you up to 80% in energy costs over single-speed pumps.  It also has faster payback than the more expensive variable speed pumps because it is sized to match the performance of the most common medium head pumps.

Click here for 1.5" Quick Disconnect Unions for the Pure Flow Pump

Click here for 1.5" MIP, 2" Socket Long Union for the Pure Flow Pump

Click here for the Above Ground Pool Version of this Pump

Application

  • Swimming pools of all types and size (including in-floor cleaning systems, solar heating systems, water features or water garden)
  • In-ground spas or in-ground pool/spa combinations

Features

  • Self-priming (suction lift up to 6’ above water level)
  • Up to 80% energy savings over single speed pumps
  • Full Variable Speed (750-3450 RPMs)
  • Strainer basket cover removes easily for cleaning
  • Transparent strainer basket cover lets know when basket needs cleaning
  • All components molded of corrosion-proof reinforced thermoplastic for extra durability and long life
  • Drain plug for easy pump winterization
  • Mechanical seals are made from carborundum & graphite for long life and low noise
  • Motor shaft is stainless steel grade 304

Additional Information

  • Amp Draw: 5 amps @ 3450 RPMS, 1.4 amps @2350 RPMS, .45 amps @ 1500 amps, .15 amps @ 750 RPMS
  • Wire Size: 14 AWG wire for wire runs up to 25', 12 AWG wire for wire runs 25' and greater





Disclaimer:

All manufacturers’ names, brand names, trademarks, images, symbols, descriptions, and part numbers are used herein for reference purposes only.

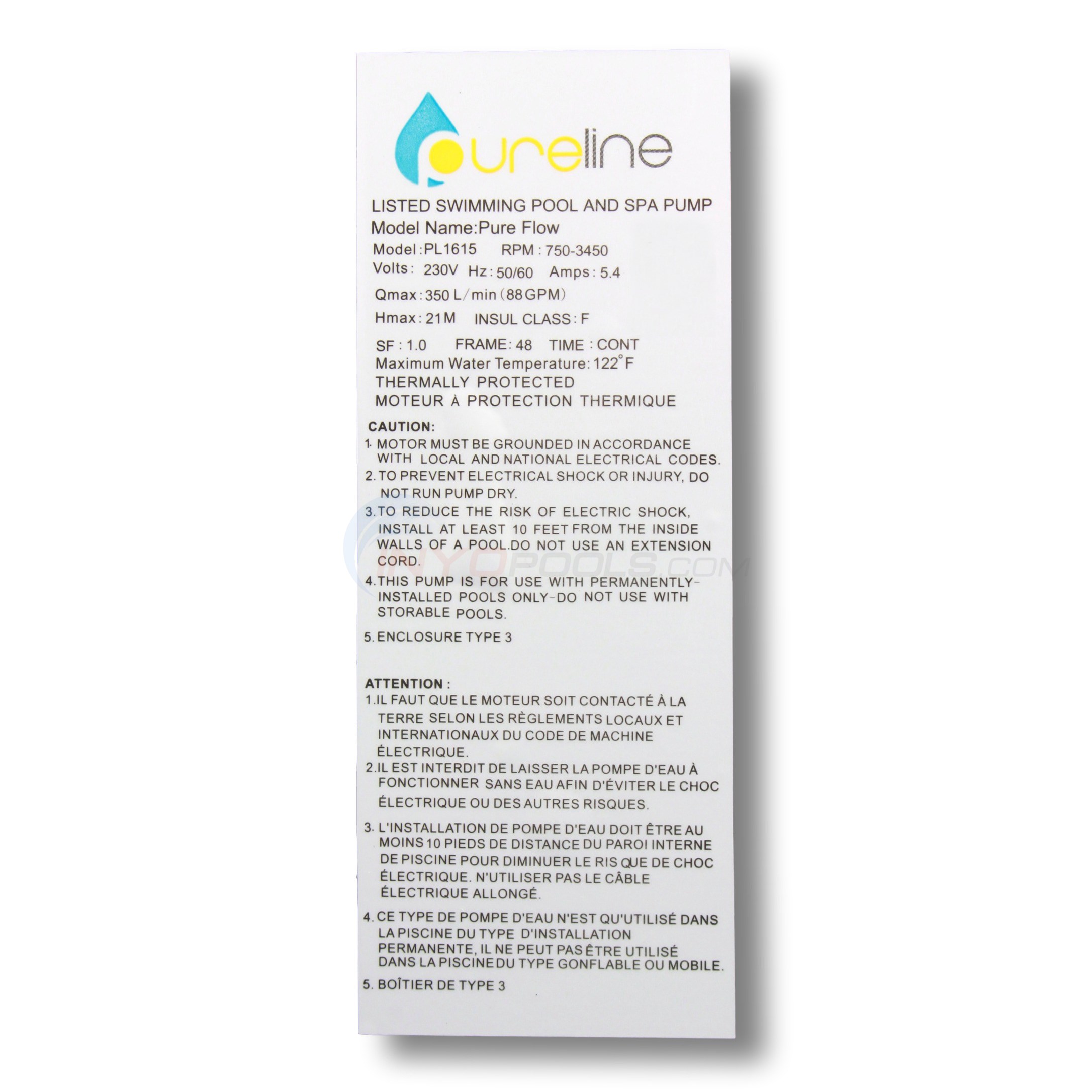

Product Specifications

HP:
1.5 HP
Port Size:
1 1/2 in.
Speed:
Variable
Volts:
230 V
Top

?     Asked on 5/27/2016by Walt

Is this pump Energy Star compliant? How about a 1HP model? Our power company offers rebates if it is.
 Reply

A  Answered on 5/27/2016 by InyoPools Product Specialist Patrick P.

Hi Walt, No this pump does not have the Energy Star Seal. I would Suggest The Raypak 1.65 HP Variable Speed Pump which is Energy Star Rated.
 Reply


?     Asked on 6/11/2016by Rique

Warranty is?
 Reply

A  Answered on 6/12/2016 by InyoPools Product Specialist Patrick P.

This pump has a 1 year warranty.
 Reply


?     Asked on 6/17/2016by chuck

Is there a quality difference between the Raypack and this pump, motor, or seals ? Im replacing a hayward single speed super pump 1hp. Will one be a better fit ?
 Reply

A  Answered on 6/17/2016 by InyoPools Product Specialist Scott W.

I would stick with the super pump personally. It's going to be a more durable pump. If you're trying to switch to a variable speed pump I would still stick with the super pump variable speed model.
 Reply


?     Asked on 7/14/2016by Tom J

I have a 1.5hp single speed motor that is probably over 5 years old and is probably reaching the end of its life expectancy. Why does a pool pump need a variable speed, the pumping conditions are constant, so what would cause the variation?
 Reply

A  Answered on 7/14/2016 by InyoPools Product Specialist Alan M.

Hello Tom and thank you for your question. We have an excellent How to Save Money Using a Variable Speed Motor guide on our website that should answer all of your questions.
 Reply


?     Asked on 7/14/2016by Nick Johnson

I'm trying to decide if this pump would make sense for recirculation in my 450 gallon Jacuzzi hot tub. i was using a very small 1/3 HP (I think) pump but I am not sure if at 450 rpm it might not still be too big and wste more energy than another 1/3HP ordinry pump would. Do you have any data on RPM versus GPM and watts?
 Reply

A  Answered on 7/21/2016 by InyoPools Product Specialist Lennox H.

Hi Nick, I would not recommend this pump to circulate the water in a 450 gallon hot tub, the Waterway Iron Might Circulation Pump is your best option for such an application.
 Reply


Top
Difficulty

Est. Repair Time

2 to 4 hrs

Tools Needed

None

0     1

Pump quit working after 5 months, no parts available, had to send it back.

Written on 11/12/2019 by Guest

Could not make repairs.

Were these instructions helpful?


Difficulty

Est. Repair Time

2 to 4 hrs

Tools Needed

Screwdriver, Pliers, Wrench Set

19     6

Current pump was using too much electricity

Written on 11/2/2018 by Guest

I ordered the 1.5 Hp variable speed pump to replace my single speed pool pump. I received the pump two days after I ordered it and the packaging was excellent. The only problem with installation (other than the replumbing) was that the 1/2” threaded female receptacle for the conduit attachment for the electrical hookup was defective (threads were incomplete). I ended up filing them out oversize so that I could attach my electrical watertight conduit to the pump.

This is a great pump. I measured electrical draw and GPH for various pump speeds. The head on my pump installation is 25 feet. At 750 rpm the pump uses 52 watts and pumps 4.7 GPM (282 GPH). At 1500 rpm the pump uses 86 watts and pumps 705 GPM. At 2250 rpm the pump uses 370 watts and pumps 1900 GPH. At 3450 rpm the pump uses 1000 watts (I couldn’t measure output because the flow is so high). As you can see, this pump saves tremendously at lower pump RPM. I am currently using the pump daily for 12 hours at 1500 RPM for about 1 kW per day or $5 per month!! This is an 80% savings over my previous pump. This pump saves so much that it will pay for itself in less than one year.
