?     Asked on 5/28/2015by James Arceneaux

I have a Hayward pro series sand filter model no s244s with a six position valve. The valve needs to be replaced or repaired . The label on the valve with the model # have wore off, not sure if this is the correct valve. Please advise
 Reply

A  Answered on 5/29/2015 by InyoPools Product Specialist Patrick P.

Hi James, You will need to take a look to see if the plumbing going into the valve is 1-1/2" or 2" there should be some digital writing on the white pvc pipe indicating your pipe size. The replacement valve for 1-1/2" pvc is part number SP0710X62. The valve for 2" pvc is SP0715X62.
 Reply


?     Asked on 6/10/2015by Greg

I have a triton tr60 sand filter with a hayward vari flow valve model 710. It seems to wear out prematurely the spider gasket and is hard to turn. I was thinking I should replace this assembly. Maybe the coil spring and other parts are worn to help facilitate this problem. Am I thinking right or do I not know how to put a simple looking gasket in correctly? PS We bought house in 1992 and it was here then..Also if needed , do I have the correct one in this diagram?
 Reply

A  Answered on 6/11/2015 by InyoPools Product Specialist Patrick P.

Hi Greg, I think you are on the exact path here with replacing the handle assembly. This would give you the complete new top half of the valve. You may want to also purchase the Hayward 710 Cover O-ring shown as Key #6 in the 710 Valve Parts Diagram as this o-ring is not included in the cover assembly. Based on the information you provided this would be the correct cover assembly for your valve.
 Reply


?     Asked on 7/22/2015by John

Please confirm that this kit assembly for the top half of this valve does include the Spider gasket.
 Reply

A  Answered on 7/22/2015 by InyoPools Product Specialist Hector F.

This assembly does not include the spider gasket.
 Reply


?     Asked on 8/2/2015by Yolanda

We have a Hayward multiparty valve model 710, 75 GPM, 50 psi. Is this the correct key, cover and handle assembly replacement?
 Reply

A  Answered on 8/5/2015 by InyoPools Product Specialist Lennox H.

Hi Yolanda, The Key,Cover, & Handle Assy. 1 1/2" Black (SPX0710XBA17) will be the correct the replacement assembly for your Hayward SP710 Valve.
 Reply


?     Asked on 8/12/2015by Inyo Visitor

Does this fit the s244s sand filter
 Reply

A  Answered on 8/14/2015 by InyoPools Product Specialist Lennox H.

Hi, The Key,cover, & Handle Assy. 1 1/2" Black (SPX0710XBA17) can be used on SP0710 and SP0712 Multiport valve which cam be used with the S244S Sand Filter.
 Reply


?     Asked on 4/16/2016by jim

i need to replace key cover/ handle assy do i need to purchase any other gaskets to install this part or is there any other components needed for this task
 Reply

A  Answered on 4/18/2016 by InyoPools Product Specialist Lennox H.

Hi Jim, The Cover O-ring (SPX0710XZ3) and the Valve Seat Gasket (SPX0710XD) are not included with the Key, Cover & Handle Assy, so I would recommend that you replace those also.
 Reply


?     Asked on 4/25/2016by Martin

Is this the whole valve assembly including the spring, washers and Teflon seals?
 Reply

A  Answered on 4/25/2016 by InyoPools Product Specialist Hector F.

Yes this valve assembly includes those small parts as well.
 Reply


?     Asked on 5/21/2016by Inyo Visitor

I needed this part for the DE filter, what's is that part number?
 Reply

A  Answered on 5/21/2016 by InyoPools Product Specialist Patrick P.

We would need for you to supply us the Model # and Manufacture of your filter, could you please post or email to us, thanks!
 Reply


?     Asked on 5/27/2016by Inyo Visitor

My valve is a SP 712. Is this the correct part and does it include everything in it?
 Reply

A  Answered on 5/28/2016 by InyoPools Product Specialist Patrick P.

This handle assembly does work on the SP712 valve and Includes Everything Shown in Box 20 on this Parts Diagram (note that the key #6 o-ring is not included)
 Reply


?     Asked on 6/1/2016by Lou

I have Hayward Valve : SPX0710XR50 Will Key, Cover, & Handle Assy Part No. 4700-X15 Mfg Code : SPX0710XBA17 Fit this valve??
 Reply

A  Answered on 6/10/2016 by InyoPools Product Specialist Lennox H.

Hi Lou, This Key, Cover & Handle Assy will fit the SP0710XR50 valve.
 Reply


?     Asked on 6/27/2016by Inyo Visitor

I need the number for the Hayward side mount head and handle only to replace my old one. The model I have is Hayward S210S sand pro series. Can you help me with this?
 Reply

A  Answered on 7/3/2016 by InyoPools Product Specialist Alex V.

Hello, Please provide the model number of the valve you need parts for.
 Reply


?     Asked on 6/29/2016by tracy

will this assembly fit the SP711 model and do you have the O-ring for this as well?
 Reply

A  Answered on 6/30/2016 by InyoPools Product Specialist Scott W.

Yes that's the top assembly for that valve.
 Reply


?     Asked on 3/2/2017by Jacobo Maceira

Hi, does it work with SP71 model? Thanks
 Reply

A  Answered on 3/2/2017 by InyoPools Product Specialist Alan M.

This assembly will work with the SP710, SP711, and the SP712 valve models.
 Reply


?     Asked on 4/23/2017by Inyo Visitor

will this fit model 710x50 valve
 Reply

A  Answered on 4/25/2017 by InyoPools Product Specialist Lennox H.

Hi. yes, this assembly will fit an SP0710X Series valve.
 Reply


?     Asked on 5/26/2017by MZZjemm

Will this handle work with a Hayward SP 710 FL ?
 Reply

A  Answered on 5/26/2017 by InyoPools Product Specialist Lennox H.

Hi, MZZjemm. Yes, this top assembly will fit all SP710 model valves.
 Reply


?     Asked on 5/28/2017by Mike - NJ

It is my understanding that this is a replacement part for the SP710XR50 but why does the sticker label appear in reverse ? In my current unit, Filtration is at 6pm but this model has it at 12pm ?
 Reply

A  Answered on 5/30/2017 by InyoPools Product Specialist Lennox H.

Hi, Mike. The filtration position is located at 12 O' clock on this assembly.
 Reply


?     Asked on 5/30/2017by Jure Picinic

Will this handle work with a Hayward SP710XR50
 Reply

A  Answered on 5/31/2017 by InyoPools Product Specialist Lennox H.

Hi, Jure. Yes, this cover assembly will fit the SP710XR50 valve.
 Reply


?     Asked on 5/31/2017by bob

will this valve fit a HAYWARD Vari-Flo Valve model sp 710x62
 Reply

A  Answered on 6/3/2017 by InyoPools Product Specialist Lennox H.

Hi, Bob. Yes, this Cover Assembly - SPX0710XBA17 will fit the Vari-Flo SP710X62 valve.
 Reply


?     Asked on 6/6/2017by Beth

How do I replace this? I broke the handle - SP-710X-F off the filter. Do I simply unscrew the 6 screws, take out the old, pop in the new and screw it back up? Seems too easy. Is there more to it? And do I need to also purchase the O ring? Because I have no idea what that's all about. My local pool store wants to replace the whole top piece of the filter including the pvc pipe outlets. Part cost alone is $120. Seems a lot for a broken off handle.
 Reply

A  Answered on 7/31/2017 by InyoPools Product Specialist Alex V.

Beth, To replace it, you would turn off the pump, release the pressure in the tank then unscrew the 6 screws and bolts that hold the key assembly in place. Once you have removed the old one, you will want to inspect the spider gasket and replace if it necessary. Installation would require lining up the tab (one screw hole has a flat side on the cover assy) then installing and tightening the screws and bolts.
 Reply


?     Asked on 8/4/2017by George

does include part number 6 "o" ring
 Reply

A  Answered on 8/4/2017 by InyoPools Product Specialist Alex V.

George, The cover o-ring does not come with the key cover assembly.
 Reply


?     Asked on 8/30/2017by Inyo Visitor

Hello, just purchased the spider seal for SP710XR50 because I have a leak coming from backwash hose, after replacing it, it is still leaking, do you think I need the Valve cover, if so will this fix the leak? thank you for your time and consideration
 Reply

A  Answered on 8/31/2017 by InyoPools Product Specialist Alex V.

it will depend on where it is leaking. When the new gasket was installed, was it installed groove side up?
 Reply


?     Asked on 6/28/2018by Maggs

I have a pacfab sp 710 26 that broke. Will this work to replace the broken one?
 Reply

A  Answered on 6/28/2018 by InyoPools Product Specialist Lennox H.

Hi, Maggs. Yes, this Key, Cover & Handle Assy - SPX0710XBA17 will work with the PacFab SP 710 26 valve.
 Reply


?     Asked on 9/22/2018by Bruce

In your measurement picture you measure 3" from center hole to center hole my Hayward sp710 measures 3.5" from center to center, why is this different and will it replace my Hayward sp710?
 Reply

A  Answered on 10/26/2018 by InyoPools Product Specialist Lennox H.

Hi, Bruce. I'm not sure why there is a difference. This assembly is compatible with the Hayward SP710 series valve.
 Reply

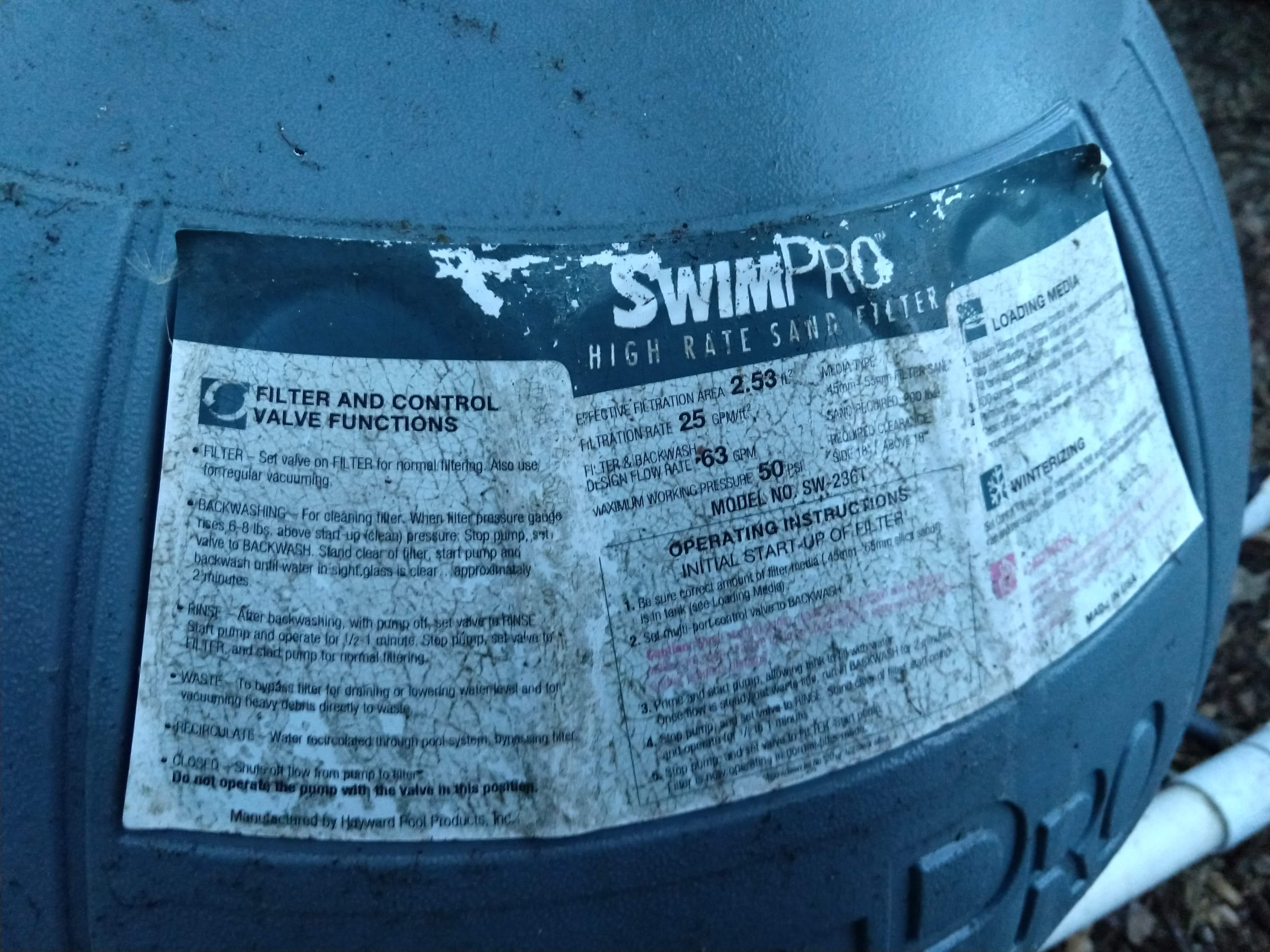

?     Asked on 5/14/2019by Aaron

Hello, I have an old SwimPro filter on my SwimPro sand filter, model # SP-711SW. The handle sheared off tonight while I was backflushing. Will this part fit my filter? Or do I need to buy the whole assembly? It is a 6-way valve, rated pressure of 50psi. Any info would be helpful as we are getting to swim season. Thanks.

 Reply

A  Answered on 5/14/2019 by InyoPools Product Specialist Steve M.

Aaron, yes. The Hayward Pool Products Key, cover, & Handle Assy. 1 1/2" Black (spx0710xba17), will fit your existing SP-711SW valve.
 Reply


?     Asked on 5/24/2019by Dennis

Ordered this item to replace my SP710XR50 Key cover and Handle Assy. The SPX model is set up with the flat screw tab at 9 o’clock and mine is at 3 o’clock. Another words this replacement would be 180 degrees or upside down. What’s the deal ? Can I stall this be installed 180 degrees opposite of the original? Haven’t done one before. Thanks

 Reply

A  Answered on 5/24/2019 by InyoPools Product Specialist Lennox H.

Hi, Dennis. Yes, you can install the replacement cover. The valve will work just fine.
 Reply


?     Asked on 5/27/2019by David

I have a model S-210T will this fit it?
 Reply

A  Answered on 5/27/2019 by InyoPools Product Specialist Patrick P.

Hi David, This is not the correct valve handle assembly for the Hayward S210T Filter you will need this S210T Replacement Upper Valve Assembly
 Reply


?     Asked on 5/29/2019by Patti Phillips

I have a sp715xr50 Hayward Key, Cover, and Handle Assembly that needs to be replaced because it's leaking on the top around the handle area. I replaced the "O" rings and gaskets, and it's still leaking. When I pull up the current part here online I get one that doesn't match, yours has 6 srews, mine has 10 . . Can you help me out PLEASE? Thanks Patti

 Reply

A  Answered on 7/17/2019 by InyoPools Product Specialist Hector F.

The key cover valve assembly for your model valve is the part number 4701-15B. The handle design may be different but is the current replacement.
 Reply


?     Asked on 6/6/2019by Michael

What is the spider gasket part #?
 Reply

A  Answered on 6/6/2019 by InyoPools Product Specialist Hector F.

There are two gaskets that this assembly can used based on the year range of the valve that you have. Valves manufactured from the year range 1976 to current use gasket part number 4700-10X and valves manufactured from the year range 1969-75 use gasket part number 4700-10.
 Reply


?     Asked on 7/6/2019by Vince Boland

I have a SM10-2 unit MPV What assemble do I use? I have seen all the emails and none of the numbers match.
 Reply

A  Answered on 7/6/2019 by InyoPools Product Specialist Lennox H.

Hi, Vince. The replacement for the SM10-2 valve is P/N 270068 (OEM) or E-50-S1 (Generic). Other replacement parts are listed on the Pentair - Praher 1 1/2" TM12 & SM10 Series Parts Diagram
 Reply


?     Asked on 7/7/2019by Inyo Visitor

I am looking for a replacement handle and spider gasket for the #SP750XR50. Can you give me the appropriate replacement part #s. Thank you,
 Reply

A  Answered on 7/17/2019 by InyoPools Product Specialist Hector F.

The replacement handle is part number 4702-01 and the gasket is part number 4701-10.
 Reply


?     Asked on 4/8/2020by robert shimazu

I have a SP710XR50 Multiport Filter valve that is leaking from the top of the valve. Will changing the Key, Cover. Handle assembly fix this leak? Also its leaking from the backwash and waste port. Would that be the spider gasket or the valve?
 Reply

A  Answered on 4/9/2020 by InyoPools Product Specialist Lennox H.

Hi, Robert. To repair your valve, you will need the following parts, (1) SPX0710XBA17, (2) SPX0710XZ3 and (3) SPX0710XD.
 Reply


?     Asked on 5/6/2020by rick summerville

will part # 4700-15 work in my sp-711-a-13 valve housing?
 Reply

A  Answered on 12/9/2020 by InyoPools Product Specialist Hector F.

Hi Rick, yes this cover assembly is compatible with the Hayward SP711 series Variflo multiport valve.
 Reply


?     Asked on 7/1/2020by Inyo Visitor

I have the SP0710XR50 Hayward Multi-Port Valve. Does the spider gasket have to be glued or can I use silicone lubricant?
 Reply

A  Answered on 11/20/2020 by InyoPools Product Specialist Hector F.

Hello, it is recommended to use clear RTV silicone or Loctite when installing a spider gasket. Here is a guide that we put together called "How to Replace a Spider Gasket on a Multiport Valve" that may assist.
 Reply


?     Asked on 8/4/2021by Nid15

My valve says SP0710X62FV and it is very hard to turn. Can you suggest the correct model of top with links to the rings?
 Reply

A  Answered on 8/4/2021 by InyoPools Product Specialist Craig C.

Hello Nid15.  The Customer Molded Products Handle Assembly 1 1/2" for Hayward SP0710XBA17 is a compatible replacement.   It is recommended that the Cover O-ring be replaced at the same time, part number 4700-051.    Cover O-ring - SPX0710XZ3
 Reply


?     Asked on 9/11/2021by Steve

I have a Hayward SP710 that leaks out of the shaft seal. I would like to replace this part but your measurements don’t match what mine are. i.e. the screw holes measured 3.25” center to center, yours are 3” according to your schematic. Help!

 Reply

A  Answered on 10/12/2021 by InyoPools Product Specialist Megan C.

I cannot read your label to verify the full valve model number, the SPX0710XBA17 installed with the Hayward Multiport Vari-Flow 1-1/2" SP-710X, SP-712, SP-711 1976-Current for the valves that are the black color.  You are welcome to reply back with a clear image of the valve label showing the P/N number on it and we will verify the correct key cover assembly.
 Reply


?     Asked on 12/7/2021by Jay

Hello I have a Hayward VARI-FLO valve SP0710G50M It is leaking around the stem atop the valve. I am unsure about what parts to order because my valve model does not show up in searches. Thanks in advance!
 Reply

A  Answered on 12/8/2021 by InyoPools Product Specialist Rich N.

Hi Jay, the Handle Assembly 1 1/2" for Hayward SP0710 Valves will work on all SP-710 (1969 - 1975), SP-710X, SP-711, SP-712 (1976 - present) and SP0710 series valves so it will be perfect for your valve.  Note that the valve cover o-ring is sold separately as well as the spider gasket and is not included in this assembly. Be sure to put some lubricant on the valve cover o-ring to help it seal and last a long time.
 Reply


?     Asked on 1/4/2022by William

Hello, will this work with my Jandy DV 7 pos 1-1/2 V Flng TRI assembly (39263105) tks.
 Reply

A  Answered on 1/4/2022 by InyoPools Product Specialist Rich N.

Hi William, this part will not work for your DVK-7C Valve.  You would need this DVK7 Complete Cover Kit - 39262605K which fits the clamp-on and the bolt-on versions of that valve.
 Reply


?     Asked on 5/31/2022by JOHN E. WOOD

Is this a drop and go installation? Is it a complete variflow valve or is it as described "handle assembly"? I'm not sure what I'm getting the picture or the description " handle assembly".
 Reply

A  Answered on 6/1/2022 by InyoPools Product Specialist Craig C.

Hello John.  The Handle Assembly 1 1/2" for Hayward SP0710 Valves - SPX0710XBA17 is a one-piece Key, Cover, and Handle Assembly that fits into the Vari-Flow Multiport Valve Body.  Attached please find the Hayward Multiport Vari-Flow 1-1/2" exploded parts diagram.  The SPX0710XBA17 exploded parts diagram is presented as part 20.  Complete Vari-Flow Valves are presented as part Keys A, B, and C.  Installation of the SPX0710XBA17 would require the removal of the 6 cover screws & nuts, lifting out the old handle assembly, replacing the valve seat gasket (part 12) and cover o-ring (part 6) - if necessary and installing the new Handle Assembly, secure with cover screws & nuts.
 Reply


?     Asked on 6/13/2022by Marcel J Govenor

would this replace Part # SP0714G11m
 Reply

A  Answered on 6/13/2022 by InyoPools Product Specialist Craig C.

Hello Marcel.   The part SP0714G11m cross-references to the Hayward Top Mount Multiport Valve SP0714T.   The Top Mount Valve Flange 1-1/2" FPT for Hayward Sand Filters - SP0714T is the complete valve.  The Pureline Replacement Upper Handle Assy. for Hayward SP0714T (SPX714BA) - 4703-20 is the compatible replacement Key, Cover and Handle Assembly for the Hayward SP0714T Multiport Valve.
 Reply


?     Asked on 9/5/2022by ED CAMPBELL

Will this work on a Haywood multiport valve, part # SP0714T
 Reply

A  Answered on 11/2/2022 by InyoPools Product Specialist Hector F.

Hi Ed, the top handle assembly part number for the Hayward VariFlo SP714T series multiport valve is 4703-20
 Reply


?     Asked on 1/4/2023by Robert Sutter

Does this part fit a SP0710G11M If not what part does?
 Reply

A  Answered on 1/5/2023 by InyoPools Product Specialist Hector F.

Hello Robert, yes this top handle assembly is correct for your valve model. I have also emailed you an estimate that you can convert to an order if you would like.
 Reply
