What is Service Factor?
Reply
Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
Reply
I have this motor, it just hums. I removed it and shaft spins freely. Could it be the capacitor ? And if so where can I get one.
Reply
Hi Jeff, It could be the capacitor, this motor uses the 25MFD 370Volt Run Capacitor (17586325).
Reply
I have a 7-193634-06 that I want to replace. You list the B130 here as a replacement for mine, however mine has an SF of 10.5 and you list 1.2 for B130. Will it still work?
Reply
If your part number on your motor is as you provided being the 7-193634-06 then this is the correct replacement motor. It looks the 10.5 number that you are referring to is actually the amps rating on the motor.
Reply
Is this a new or rebuilt motor?
Reply
The Motor 56j Thrd Full 2hp (b130) is new and comes with a 1 year manufacturer warranty.
Reply
I am buying the B-130 pump. Is there any seal kit or another part I need to purchase with the motor?
Reply
Hello Karl, to find your seal kit you need to send a picture of your wet end (where your basket is located) to us to determine what model you have. You can email photos to upload@inyopools.com
Reply
this pump can work my pool pump all part r same cat B130 serial 298103M TYPE- CX FR-X56J HP- 2 SF 1.20 PH1 HZ-60 RPM 3450 VOLTS 230 AMPS SF 10.5
Reply
Hello Martin, this 5224x motor 56j Thrd Full 2hp (b130) will work for the motor b130. Please make sure to let us know which type of pump you have (Jandy Stealth, waterco, etc) to replace your pump seal and orings.
Reply
I have one of these that just blew and I am wondering if I could replace it by a lower HP motor such as the B228SE since it is only feeding my waterfall through a dedicated CJ250 filter (125gpm). I only use it 5 minutes a day to cycle the water a bit so that algae does not settle and on occasion 2-4 hrs straight. Thanks.
Reply
I will need to know what the distance from your pump to the waterfall is in feet so I can calculate the flow rate to be able to confirm if you can decrease the horsepower on your pump.
Reply
I just purchased 5224X (B130) - Motor 56j Thrd Full 2hp (b130), could you please let me know the seal kit I need. Thank you!
Reply
The seal kit will be dependant on the model of the front pump housing that the motor bolts to. Please call in with that model name or number so we can cross reference that for you. If that information is not legible then you can email photos of that housing to upload@inyopools.com.
Reply
I bought this motor for my jandyjhp2.0, I'm wondering if you can tell me which shaft seal and whichhousing seal to get, my serial number is105fk1599 and I don't have a salt gerator or chlorine generator
Reply
I am replacing the bearings on motor Century Centurion (A.O.Smith) 7-193634-06 which is connected to a Jandy JHP 2.0 stealth pump. Which seal kit do I need?
Thx
Reply
Does this motor come with capacitor?
Reply
Hi, Cam. Yes, this motor comes with a 30MFD 370VAC Run Capacitor.
Reply
Which seal do I need for the 5bj (B130) motor to attach to a Hayward pump?
Reply
The seals and gaskets depend on the model name or number of the front pump housing that the motor is bolted to. You can provide us that information so we can check for you or if it is not legible then you can always email us an image of that pump housing to upload@inyopools.com so we can review it and advise.
Reply
Hi. I installed my Century Centurion model B130 up to my Jandy JPH2.0CP two years ago and it ran flawlessly until today. Now, it’s hot, and repeatedly cycles in its attempt to start; and has a loud hum when doing so. Do you think it’s the motor or could it possibly be the capacitor?
Reply
Hi, Tom. All those symptoms are indicators that the motor is bad. However, you can test the capacitor just to be sure. Steps are available in our How to Test a Pool Pump Capacitor blog.
Reply
My 8-159988-06 is really noisy but runs. Unknown model Hayward pump. What bearings and seal kit would I need? Thank you!
The rear end bearing is part number 5270-31 and the front end bearing is part number is 5270-36. The seal kit for a chlorine pool is the GOKIT1 and for a saltwater pool is the GOKIT1SALT. You have a Max Flo.
Reply
i am hoping to replace a 2hp motor attached to my jandy 2.0 stealth pump, approximately 15 years old. the old century centurion a.o. smith part # is 7-193634-06 pump spec photo attached. please advise if this will fit my application. thank you, mark
I have this motor installed on what I believe is a Hayward SP4000L. The motor's bearings are going bad and I'm preparing to replace them so I'll at least need a shaft seal... Do you have a seal kit available for this pump? Thanks!
Hi Marc, Thanks for the photo! You have a Hayward Northstar Pump and if your pump is from prior to 2003 then you will require this Hayward Northstar Shaft Seal Prior to 2003 and if your pump is from after 2003 then you will require this Hayward Northstar Shaft Seal After 2003. We also have the following Hayward Northstar Parts Schematics which you may find helpful for any other parts. Hayward Northstar Parts Schematic 1998 - 2007 and Hayward Northstar Parts Schematic After 2007
Reply
I plan on purchasing the same Centurion motor which has a Serial# 13413CH and part #159988-06, Horse Power 2.0, Frame X56J, SF 10.5, CAT is B130. I think this picture on your website is the one, but it has a Serial# 26413CH. Is this the same as mine? My flange is round, it has a 'hump' and it says 'Switchless Motor' on the top. I'd sure appreciate any information before I purchase it from your company. Thanks! Laura
Reply
Laura, yes, your part number 159988-06 came back as a direct match for the Century Motors A.O. Smith 2 HP Round Flange 56J Full Rate EE Motor - B130. The A.O. Smith 2 HP Round Flange 56J Full Rate EE Motor - B130, would be the correct replacement. The serial numbers are unique to the individual motors and vary on every motor, as long as the rest of the specifications match than you have found your replacement.
Reply
Hi,
I’m looking to replace this motor attached Hayward pump SP-3020X25. What kind of seal do I need? Will this require any other parts?
Thanks,
Alex
Your pump appears to be the old style Hayward Super II; the correct gasket kit is the GOKIT2 or the GOKIT2SALT.
Reply
I just purchased my home and the pools pumps for the sheer decent is not working. Will this replacement pump work? Do I need to buy anything other than the pump?
Do the this replacement motor have a computer board? I was advised against getting a Century replacement due to them having a faulty circuit board. Also other parts would you recommend me getting?
The B130 is a standard construction single speed motor. It does have a Terminal Board - SCN-513, but there is no printed circuit board that operates any of the functions of the motors.
Reply
Hello! I am needing to replace my Century Motor (159988-06), and basically everything that attaches to it (Impeller, mounting plate, gaskets, etc), but I"m having trouble finding a comprehensive list of the parts that I need to purchase. Can you help? Attached is a pic of my Hayward pump housing (SP4015X20NS), and the motor that I took out. I drew the arrow to show that I basically need everything forward from that arrow. Please help, it's driving me nuts trying to figure this out.
Hi there, I have the B130 (serial #26212J20200286) and now when the timer turns on, nothing happens, except for a humming noise coming from the motor. Took out the filter basket and there's no debris and the impeller spins freely. Do I need to replace the entire unit or is there a repair than can be done to save it? Thanks!
Reply
Hi Steve, This is most likely a bad capacitor. Here is the link to purchase the Run Capacitor for your B130 motor.
Reply
Our pool pump motor went out. The wiring to capacitor was actually fried and melted to capacitor! Is this the correct motor to replace what we have?
Hello Kim, Yes that would be correct Century Motors Century 2.0 HP Round Flange 56J Full Rate EE Motor - B130 is the correct replacement motor based on the picture.
Reply
Hi, can you tell me if this is the correct motor for my pool pump?
Thanks!
Kim, Yes this is the correct motor.
Reply
Thanks Alex. Is there a difference between this one and the USN1202? I’m thinking our original motor was the USN1202, and the crappy home warranty company replaced it with a rebuilt B130. I remember replacing the capacitor on the end of the motor (not on top) before the rebuilt motor was installed. The model number is worn off of the pool pump, so I can’t be sure of which one it is. I guess the question is does it matter which motor we use? Is one better than the other? Thanks, Kim
Hi Kim, Yes there is a difference between the B130 and USN1202 the B130 is going to be more powerful as it is a Full Rate Motor compared to the USN1202 being an up rated motor. We would suggest staying with the B130.
Reply
Could you tell me if this motor is the replacement to my current one? I've uploaded a photo. Thank you so much!
Yes, this is the correct single speed replacement motor for your motor model. Also, if you need the seals and gaskets as well we will need to know the model name and or number of the front pump wet end housing that the motor is attached to.
Reply
Hi I need to replace my pump, and I believe this is the right replacement motor. Can you please confirm? Also, I’m assuming I need a seal kit for the pump housing, but the model is no longer visible. Can you please point me in the right direction for the correct seal kit as well? Thank you!
Hi Adam Yes, this is the correct replacement motor for the motor included in your photo. You will also need a Hayward Super II Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Can you tell me which one is replacement motor for my pump? B130 or B2979
The B130 will be your direct single speed replacement motor however you can also use the B2979 as a dual speed option.
Reply
I lived in California, does it matter? B130 or B2979
Reply
Hi Rambler, Since you live in California you will need to go with the B2979 Motor and this Jandy JHP Seal Kit
Reply
I need to replace my pump motor (Century 2.0 HP Round Flange 56J Full Rate EE Motor - B130) is there anything else I should replace seens I have the pump off ??
Hello, this is the correct replacement motor for the motor included in your photo. You will also need a Hayward Super II seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I need to replace the shaft cover only to keep water and dirt out. What part do I need?
Reply
For us to suggest the proper seal kit or pump parts could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit or pump parts.
Reply
What is replacement for this motor in CA
Century 2.0 HP Round Flange 56J Full Rate EE Motor - B130 5224X
Reply
Hello Peter. The Century Motors 2.0 HP Dual Speed Full Rate Motor model B2979 is a compatible California Title 20 Complaint replacement option. Century 2.0 HP Round Flange 56J Dual Speed Full Rate Motor - B2979 The Century Motors V-Green 2.7 HP Variable Speed Motor model ECM27CU is a compatible California Title 20 Compliant replacement as well. V-Green 2.7 HP Round Flange 56J Variable Speed Motor - ECM27CU
Reply
I have a Jandy JHPU 2.0 motor on our pool. It has been installed at least 15 years and is quite noisy now, What replacement motor and parts do you recommend?
Reply
Hello Dwayne. The Century Motors 2.0 HP Up Rate Motor model B230SE is a compatible replacement motor for the Jandy Stealth model JHPU 2.0 HP. Century 2.0 HP Round Flange 56J Up Rate Motor - B230SE It is recommended that the motor shaft seal, seal plate gasket and diffuser o-ring be replaced concurrent with the new motor. The GOKIT77 contains the necessary parts to complete this project. GOKIT77
Reply
Is this motor a direct replacement for AO Smith 7-193634-06 for Jandy pool pump ?
Hello Jason, yes this is the correct replacement motor for your motor part number 193634. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" that should assist you with that.
Reply
I need to replace this pump, as you can see it is not threaded as most seem to be. Help me find the right one please.
Hello Jim, the correct replacement motor for your motor part number 159988 is the B130. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that help assist you with that as well.
Reply

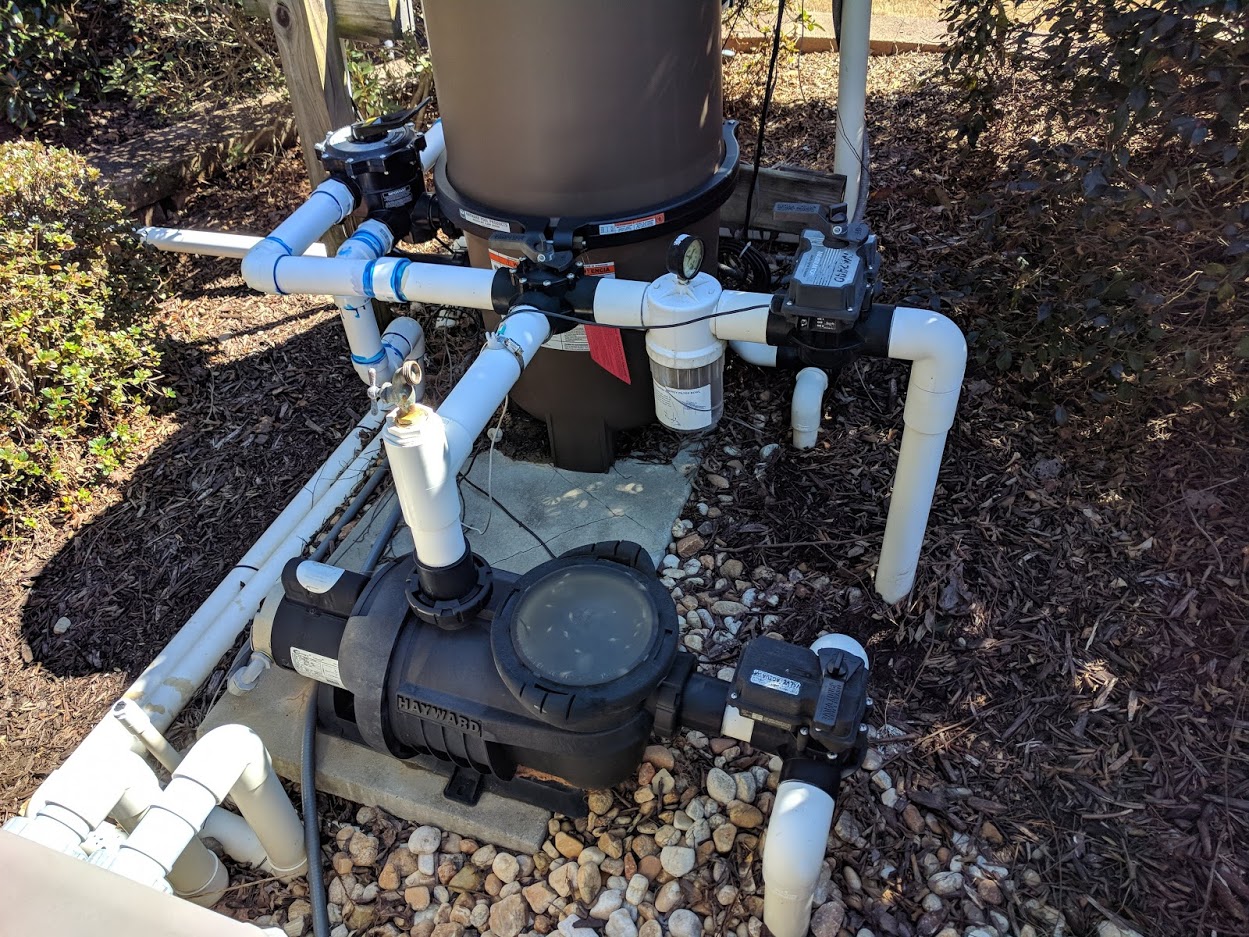

I need to confirm if part # 5224X is what I need to buy. I have included a picture of my pool equipment. Thanks
Hello Tracy, The 5224x is the right motor for the one you have. I would recommend replacing the seal kit as well. If you send us another picture of the front end of the pump. (Where the pump basket is) We can get you the proper kit.
Reply
