Flotec AG Pump, Models FP6022, FP6042 Parts

MODELS FP6022 - 3/4HP, FP6032 - 1HP, FP6042 - 1 1/2HP

Flotec AG Pump, Models FP6022, FP6042 Diagram

Click to zoom in

Diagram #	Part Title
1	3/4 HP 115V Thru Bolt Motor
*	Protective Pool Motor Cover
3	SCREW, HOUSING
4	ADAPTER BRACKET (17140-0012)
5	GASKET
6	SEAL, PUMP 201 (PSR201) (PS201)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
7	DIFFUSER DELTA PUMP
8	IMPELLER
9	O.E.M - COVER, TRAP
10	O-RING, TRAP COVER
11	BASKET, 5" TRAP
12	DRAIN PLUG With O-RING
13	WASHER, BASE (2 NEEDED)
14	SCREW, CAP
15	LOCK WASHER
16	STRAINER, TRAP BODY
17	PLUG 1/4 7840T
18	GASKET, POT TO VOLUTE (C-20-103-R)
19	SEAL PLATE, DELTA SERIES
20	SCREW, CAP 3/8-16 X 3-4" (SAMPLE S-5)
21	BASE, PUMP
22	WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)
22	WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)

View Parts List

Diagram #	Part Title
1	3/4 HP 115V Thru Bolt Motor
*	Protective Pool Motor Cover
3	SCREW, HOUSING
4	ADAPTER BRACKET (17140-0012)
5	GASKET
6	SEAL, PUMP 201 (PSR201) (PS201)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
7	DIFFUSER DELTA PUMP
8	IMPELLER
9	O.E.M - COVER, TRAP
10	O-RING, TRAP COVER
11	BASKET, 5" TRAP
12	DRAIN PLUG With O-RING
13	WASHER, BASE (2 NEEDED)
14	SCREW, CAP
15	LOCK WASHER
16	STRAINER, TRAP BODY
17	PLUG 1/4 7840T
18	GASKET, POT TO VOLUTE (C-20-103-R)
19	SEAL PLATE, DELTA SERIES
20	SCREW, CAP 3/8-16 X 3-4" (SAMPLE S-5)
21	BASE, PUMP
22	WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)
22	WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)

Available Parts:

3/4 HP 115V Thru Bolt Motor

Part # BN24 Mfg # BN24V1

3/4 HP 115V Thru Bolt Motor

$177.83 IN STOCK

Qty:

1 H.P 115V Thru Bolt Motor

Part # BN25 Mfg # BN25V1

1 H.P 115V Thru Bolt Motor

$188.93 IN STOCK

Qty:

A.O. Smith 1.5 HP Thru-Bolt 48Y Motor - BN35V1

Part # BN35V1 Mfg # BN35V1

A.O. Smith 1.5 HP Thru-Bolt 48Y Motor - BN35V1

$230.13 IN STOCK

Qty:

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$35.89 IN STOCK

Qty:

SCREW, HOUSING

Part # 5056-33 Mfg # U30-152SS

SCREW, HOUSING

$19.08

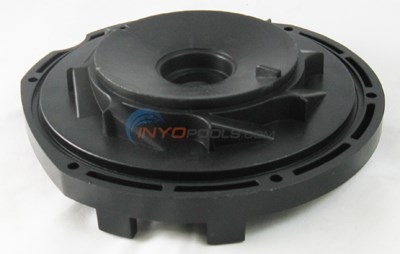

ADAPTER BRACKET (17140-0012)

Part # 5056-34 Mfg # 17140-0012M

ADAPTER BRACKET (17140-0012)

$94.46

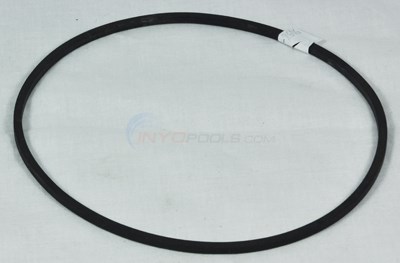

GASKET

Part # 5056-38 Mfg # 17140-0026

GASKET

$11.04 IN STOCK

Qty:

SEAL, PUMP 201 (PSR201) (PS201)

Part # 5250-102 Mfg # PS-201

SEAL, PUMP 201 (PSR201) (PS201)

$7.53 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$5.01

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

Part # LUBE-10ML

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

$30.14 IN STOCK

Qty:

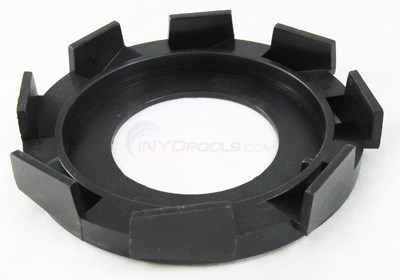

DIFFUSER DELTA PUMP

Part # 5056-39 Mfg # 17140-0007

DIFFUSER DELTA PUMP

$45.21

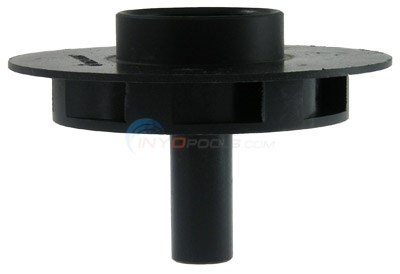

IMPELLER

Part # 5056-42 Mfg # C105-226PB

IMPELLER

$165.81

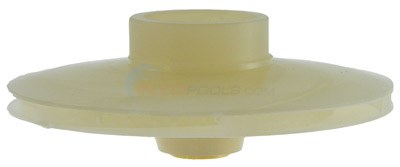

IMPELLER 1 HP DELTA PUMP

Part # 5056-43 Mfg # C105-226PC

IMPELLER 1 HP DELTA PUMP

$137.67

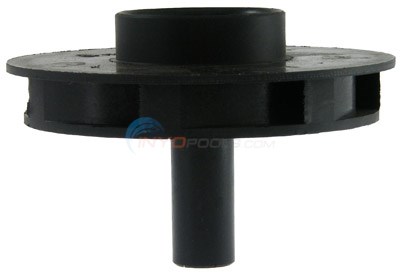

IMPELLER 1 1/2HP

Part # 5056-44 Mfg # C105-226PD

IMPELLER 1 1/2HP

$141.69

O.E.M - COVER, TRAP

Part # 5056-14 Mfg # C3-139P1

O.E.M - COVER, TRAP

$66.32 IN STOCK

Qty:

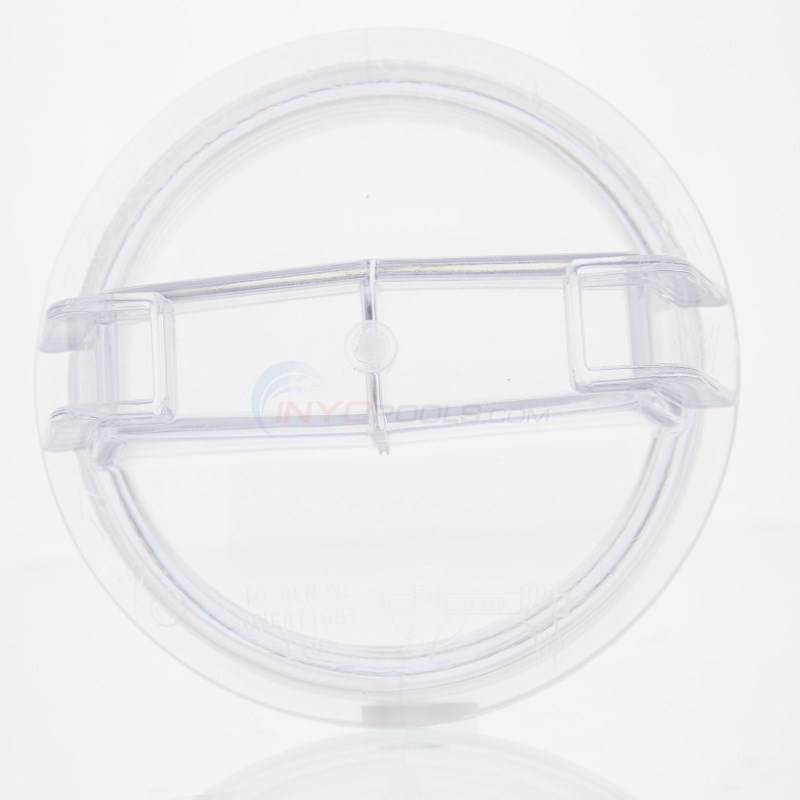

GENERIC - COVER, TRAP (C3-139P1)

Part # 25304-000-020 Mfg # 25304-000-020

GENERIC - COVER, TRAP (C3-139P1)

$42.20 IN STOCK

Qty:

O-RING, TRAP COVER

Part # 5056-15 Mfg # 435

O-RING, TRAP COVER

$11.65 IN STOCK

Qty:

BASKET, 5" TRAP

Part # 5050-16 Mfg # C108-33P

BASKET, 5" TRAP

$15.76 IN STOCK

Qty:

DRAIN PLUG With O-RING

Part # 5051-30 Mfg # U178-920P

DRAIN PLUG With O-RING

$5.01 IN STOCK

Qty:

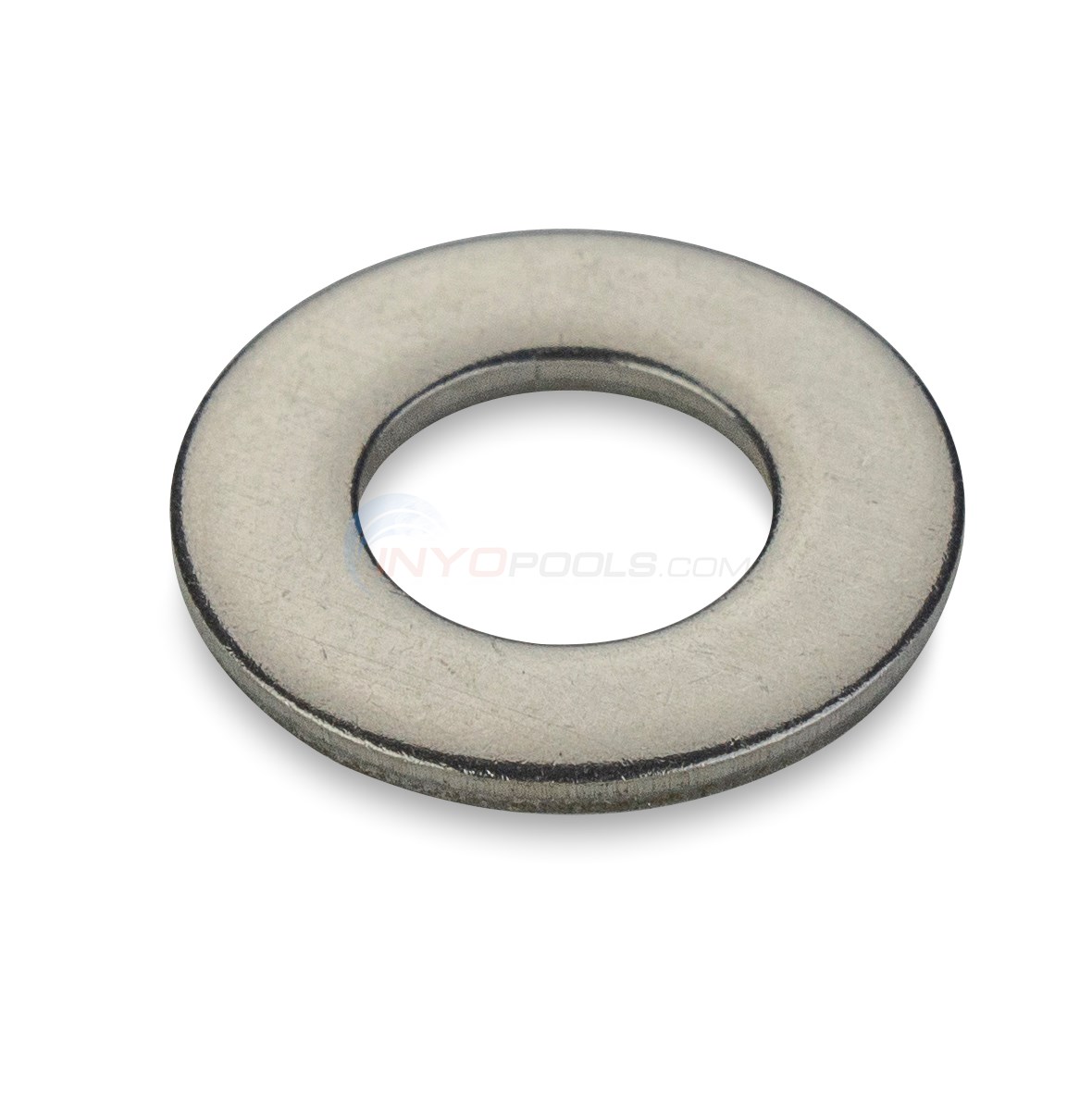

WASHER, BASE (2 NEEDED)

Part # 5055-22 Mfg # U43-41SS

WASHER, BASE (2 NEEDED)

$5.01 IN STOCK

Qty:

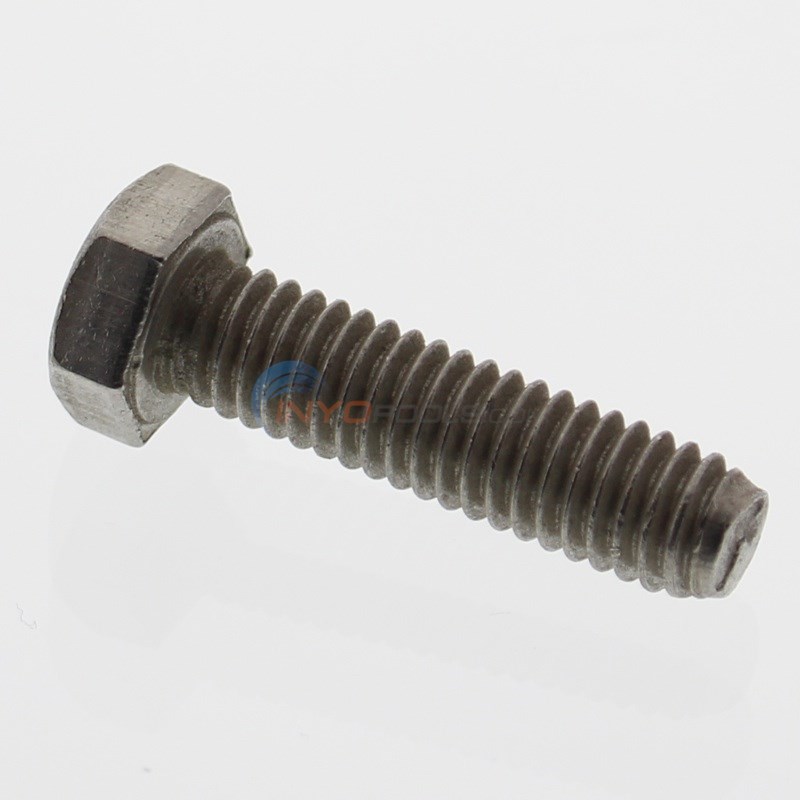

SCREW, CAP

Part # 5056-19 Mfg # U30-64SS

SCREW, CAP

$4.01 IN STOCK

Qty:

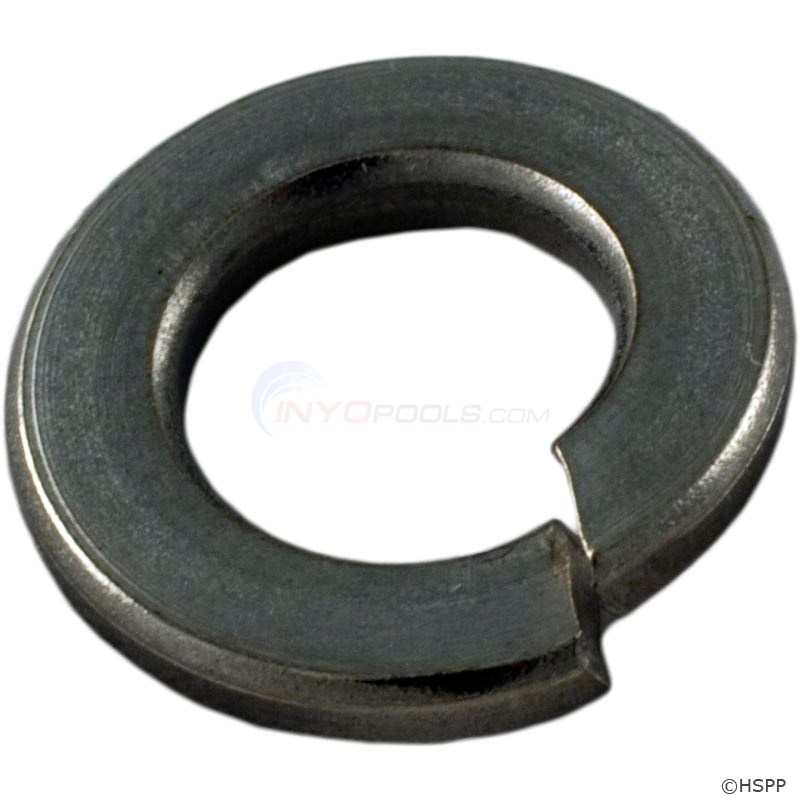

LOCK WASHER

Part # 5056-20 Mfg # U43-11SS

LOCK WASHER

$3.00 IN STOCK

Qty:

STRAINER, TRAP BODY

Part # 5056-17 Mfg # C153-53P1

STRAINER, TRAP BODY

$104.63 IN STOCK

Qty:

Generic ABG Pool Strainer Pot

Part # 25303-054-000

Generic ABG Pool Strainer Pot

$89.43

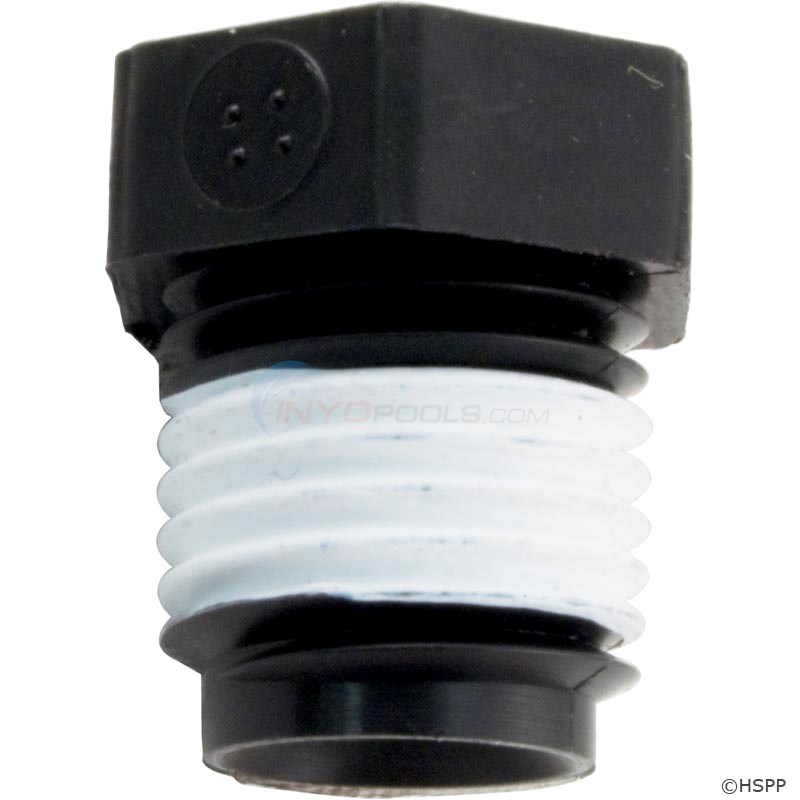

PLUG 1/4 7840T

Part # 9239-13B Mfg # WC78-40T

PLUG 1/4 7840T

$12.05 IN STOCK

Qty:

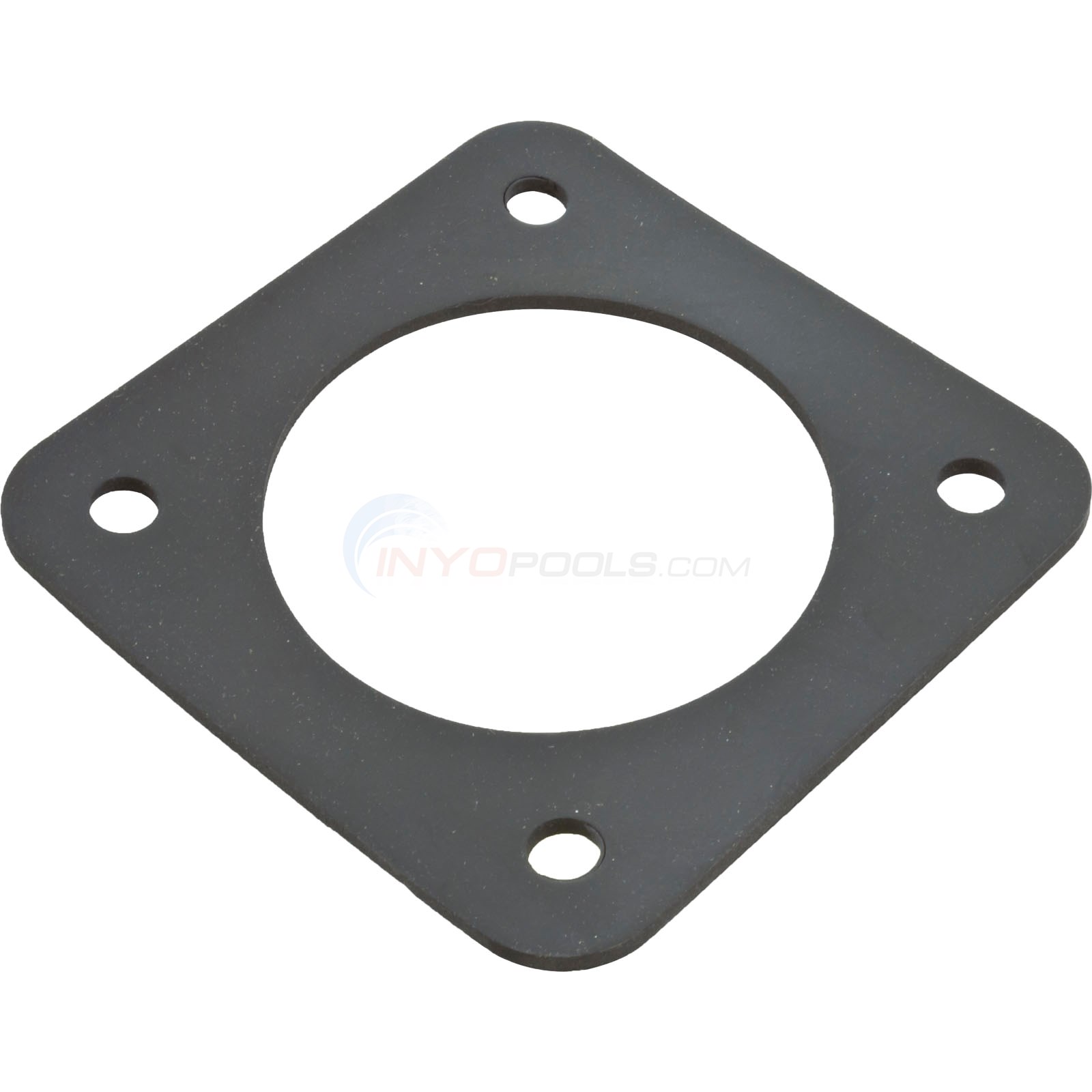

GASKET, POT TO VOLUTE (C-20-103-R)

Part # 5050-21R Mfg # G-99R

GASKET, POT TO VOLUTE (C-20-103-R)

$13.78 IN STOCK

Qty:

SEAL PLATE, DELTA SERIES

Part # 5056-45 Mfg # C276-57P

SEAL PLATE, DELTA SERIES

$280.38

SCREW, CAP 3/8-16 X 3-4" (SAMPLE S-5)

Part # 6916-0 Mfg # U3072SS

SCREW, CAP 3/8-16 X 3-4" (SAMPLE S-5)

$10.04 IN STOCK

Qty:

BASE, PUMP

Part # 5056-40 Mfg # 16920-0015

BASE, PUMP

$83.40

WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)

Part # 6982-0 Mfg # 072184

WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)

$3.00 IN STOCK

Qty:

WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)

Part # 6982-0 Mfg # 072184

WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)

$3.00 IN STOCK

Qty:

ALSO SOLD AS THE STA-RITE “DELTA” SERIES
*NOT SHOWN
