Hayward Sand Master Parts

SAND FILTER SYSTEM MODELS SM1700T, SM1900T, SM2300T
ALSO SOLD AS IN THE SWIM AND HUGHES SUPPLY BRAND

USED ON HUGHES SUPPLY “POOL SEASONS” FILTER SYSTEM

Hayward Sand Master Diagram

Click to zoom in

Diagram #	Part Title
1	Generic Top Mount Valve for Sand 1.5"
1	Hayward Vari-Flo SP0714T Top Mount Valve for Pro Series Sand Filters, 1-1/2" FPT
2	PRESSURE GAUGE
3	O-RING, ID 6-3/4", OD 7-1/8"
4	FLANGE CLAMP (VALVE-TANK) - NORYL
5	OBSOLETE PROTECTOR CAP
6	LATERAL ASSEMBLY WITH CENTER PIPE (SM1700T)
7	LATERAL (THREADED STYLE)
7	LATERAL (NEW PIVOT STYLE)
7	LATERAL (THREADED STYLE)
7	LATERAL (NEW PIVOT STYLE)
8	OBSOLETE FILTER TANK - SM1700T
9	GASKET, DRAIN CAP
10	DRAIN CAP W/ GASKET KIT (1 5/16” Dia)
11	FILTER SUPPORT STAND (SKIRT) - SM1700T
12	PUMP BASE- SM1700T ONLY
15	HOSE, 31" LONG (SM1900T, SM2300T)
16	ELBOW ADAPTOR, 1 1/2" BARB X 1 1/2" MPT
17	HOSE CLAMP
18	COMBO ADAPTER - SM1700T

View Parts List

Diagram #	Part Title
1	Generic Top Mount Valve for Sand 1.5"
1	Hayward Vari-Flo SP0714T Top Mount Valve for Pro Series Sand Filters, 1-1/2" FPT
2	PRESSURE GAUGE
3	O-RING, ID 6-3/4", OD 7-1/8"
4	FLANGE CLAMP (VALVE-TANK) - NORYL
5	OBSOLETE PROTECTOR CAP
6	LATERAL ASSEMBLY WITH CENTER PIPE (SM1700T)
7	LATERAL (THREADED STYLE)
7	LATERAL (NEW PIVOT STYLE)
7	LATERAL (THREADED STYLE)
7	LATERAL (NEW PIVOT STYLE)
8	OBSOLETE FILTER TANK - SM1700T
9	GASKET, DRAIN CAP
10	DRAIN CAP W/ GASKET KIT (1 5/16” Dia)
11	FILTER SUPPORT STAND (SKIRT) - SM1700T
12	PUMP BASE- SM1700T ONLY
15	HOSE, 31" LONG (SM1900T, SM2300T)
16	ELBOW ADAPTOR, 1 1/2" BARB X 1 1/2" MPT
17	HOSE CLAMP
18	COMBO ADAPTER - SM1700T

Available Parts:

Generic Top Mount Valve for Sand 1.5"

Part # PL0714

Generic Top Mount Valve for Sand 1.5"

$99.00 IN STOCK

Qty:

Hayward Vari-Flo SP0714T Top Mount Valve for Pro Series Sand Filters, 1-1/2" FPT

Part # SP0714T

Hayward Vari-Flo SP0714T Top Mount Valve for Pro Series Sand Filters, 1-1/2" FPT

$159.73 IN STOCK

Qty:

PRESSURE GAUGE

Part # 4726-0 Mfg # 101D-204D

PRESSURE GAUGE

$15.37 IN STOCK

Qty:

O-RING, ID 6-3/4", OD 7-1/8"

Part # 4822-04 Mfg # 364

O-RING, ID 6-3/4", OD 7-1/8"

$11.15 IN STOCK

Qty:

FLANGE CLAMP (VALVE-TANK) - NORYL

Part # 4802-03D Mfg # GMX600NM

FLANGE CLAMP (VALVE-TANK) - NORYL

$52.97 IN STOCK

Qty:

Replacement Valve Clamp for Hayward Sand Filters - Generic

Part # 27515-154-070

Replacement Valve Clamp for Hayward Sand Filters - Generic

$33.11 IN STOCK

Qty:

5

OBSOLETE PROTECTOR CAP

OBSOLETE PROTECTOR CAP

NOT AVAILABLE

LATERAL ASSEMBLY WITH CENTER PIPE (SM1700T)

Part # 4802-04B Mfg # SX164DA

LATERAL ASSEMBLY WITH CENTER PIPE (SM1700T)

$142.61 IN STOCK

Qty:

LATERAL ASSEMBLY WITH CENTER PIPE (SM1900T)

Part # 4802-04C Mfg # SX180DA

LATERAL ASSEMBLY WITH CENTER PIPE (SM1900T)

$143.87 IN STOCK

Qty:

LATERAL ASSEMBLY WITH CENTER PIPE (SM2300T)

Part # 4802-04E Mfg # SX220DA

LATERAL ASSEMBLY WITH CENTER PIPE (SM2300T)

$130.86 IN STOCK

Qty:

LATERAL (THREADED STYLE)

Part # 4800-15 Mfg # SX200Q

LATERAL (THREADED STYLE)

$7.23 IN STOCK

Qty:

LATERAL (NEW PIVOT STYLE)

Part # 4800-30 Mfg # SX200QN

LATERAL (NEW PIVOT STYLE)

$11.95 IN STOCK

Qty:

LATERAL (THREADED STYLE)

Part # 4800-15A Mfg # SX240D

LATERAL (THREADED STYLE)

$10.34 IN STOCK

Qty:

LATERAL (NEW PIVOT STYLE)

Part # 4800-31 Mfg # SX240DN

LATERAL (NEW PIVOT STYLE)

$8.27 IN STOCK

Qty:

8

OBSOLETE FILTER TANK - SM1700T

Mfg # DPX10298

OBSOLETE FILTER TANK - SM1700T

NOT AVAILABLE

8

OBSOLETE FILTER TANK - SM1900T

Mfg # SX180AC

OBSOLETE FILTER TANK - SM1900T

NOT AVAILABLE

8

OBSOLETE FILTER TANK - SM2300T

Mfg # DPX10299

OBSOLETE FILTER TANK - SM2300T

NOT AVAILABLE

GASKET, DRAIN CAP

Part # 4802-08 Mfg # G-382

GASKET, DRAIN CAP

$8.53 IN STOCK

Qty:

Drain Cap Ass'y, Cap, Gasket & Screen

Part # 4802-16 Mfg # SX180LA

Drain Cap Ass'y, Cap, Gasket & Screen

$9.07 IN STOCK

Qty:

DRAIN CAP W/ GASKET KIT (1 5/16” Dia)

Part # 4802-09B Mfg # SX180HG

DRAIN CAP W/ GASKET KIT (1 5/16” Dia)

$11.07 IN STOCK

Qty:

DRAIN CAP ASSY. (1 3/4” Dia)

Part # 4802-16 Mfg # SX180LA

DRAIN CAP ASSY. (1 3/4” Dia)

$9.07 IN STOCK

Qty:

FILTER SUPPORT STAND (SKIRT) - SM1700T

Part # 4802-37 Mfg # SX164B

FILTER SUPPORT STAND (SKIRT) - SM1700T

$102.46 IN STOCK

Qty:

FILTER SUPPORT BASE (SM1900T, SM2300T)

Part # 4800-19 Mfg # SX200J

FILTER SUPPORT BASE (SM1900T, SM2300T)

$139.73 IN STOCK

Qty:

PUMP BASE- SM1700T ONLY

Part # 4802-44 Mfg # SX164C

PUMP BASE- SM1700T ONLY

$60.03 IN STOCK

Qty:

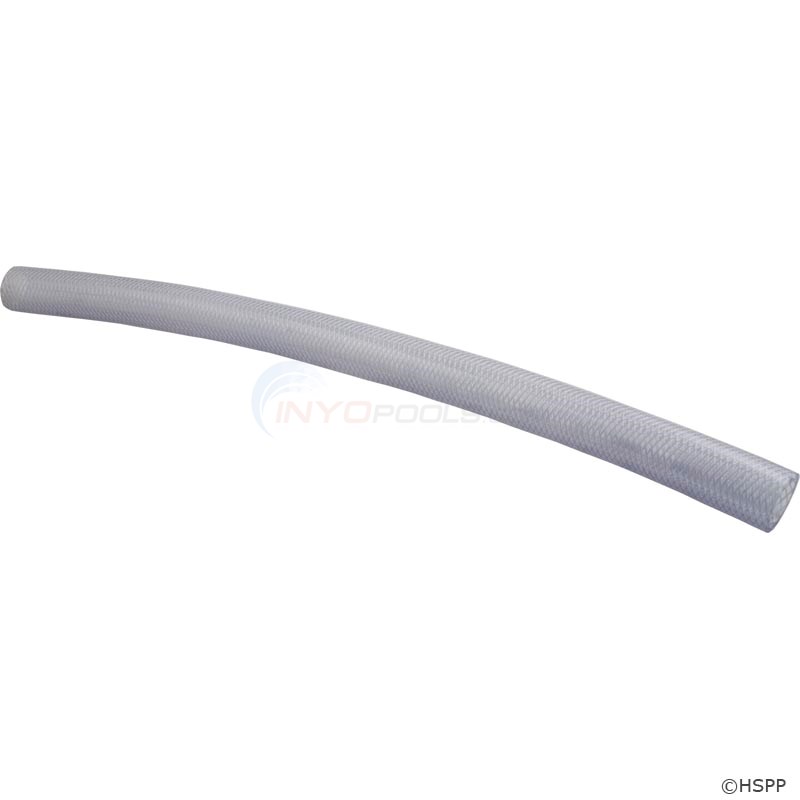

HOSE, 31" LONG (SM1900T, SM2300T)

Part # 4824-06 Mfg # SX160Z3

HOSE, 31" LONG (SM1900T, SM2300T)

$61.98 IN STOCK

Qty:

ELBOW ADAPTOR, 1 1/2" BARB X 1 1/2" MPT

Part # 7251-0 Mfg # SPX1105Z4

ELBOW ADAPTOR, 1 1/2" BARB X 1 1/2" MPT

$13.68 IN STOCK

Qty:

HOSE CLAMP

Part # 6660-0 Mfg # 276-28

HOSE CLAMP

$3.09 IN STOCK

Qty:

18

COMBO ADAPTER - SM1700T

Part # 7249B Mfg # SPX1091Z7

COMBO ADAPTER - SM1700T

NOT AVAILABLE

1 1/2” STRAIGHT HOSE ADAPTER (SM1900T, SM2300T)

Part # 7249F Mfg # SPX1091Z2

1 1/2” STRAIGHT HOSE ADAPTER (SM1900T, SM2300T)

$11.19 IN STOCK

Qty:
