KD Pools Cartridge CFR-50, 50EF Parts

CFR50(BLACK), 50EF(GRAY)

KD Pools Cartridge CFR-50, 50EF Diagram

Click to zoom in

Diagram #	Part Title
1	LOCK NUT (JACUZZI FILTERS) (42285007R000)
2	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
3	VALVE, AIR BLEEDER (39254701R000)
4	O-RING
5	COVER, CFR 50,100 (42285205R000)
6	O-RING
7	No Longer Available BODY, 50EF Replace With 4638-17A
8	GENERIC FILTER CARTRIDGE 50 SQ.FT. (C-9650)
9	DIRTCATCHER, 50 SQ. FT. (42294207R000)
11	TAB LOCKING (EACH) (42360107R000)
12*	DRAIN ASSEMBLY (31063605RKIT)
13	CAP, DRAIN WITH GASKET (85826300R000)
14	GASKET, DRAIN CAP (13102306R000)
15**	PLUG, 1 1/2" With GASKET (43309103R000)
15**	PLUG, 1 1/2" With GASKET (43309103R000)

View Parts List

Diagram #	Part Title
1	LOCK NUT (JACUZZI FILTERS) (42285007R000)
2	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
3	VALVE, AIR BLEEDER (39254701R000)
4	O-RING
5	COVER, CFR 50,100 (42285205R000)
6	O-RING
7	No Longer Available BODY, 50EF Replace With 4638-17A
8	GENERIC FILTER CARTRIDGE 50 SQ.FT. (C-9650)
9	DIRTCATCHER, 50 SQ. FT. (42294207R000)
11	TAB LOCKING (EACH) (42360107R000)
12*	DRAIN ASSEMBLY (31063605RKIT)
13	CAP, DRAIN WITH GASKET (85826300R000)
14	GASKET, DRAIN CAP (13102306R000)
15**	PLUG, 1 1/2" With GASKET (43309103R000)
15**	PLUG, 1 1/2" With GASKET (43309103R000)

Available Parts:

LOCK NUT (JACUZZI FILTERS) (42285007R000)

Part # 4666-10 Mfg # 42285007R

LOCK NUT (JACUZZI FILTERS) (42285007R000)

$51.23 IN STOCK

Qty:

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$10.34 IN STOCK

Qty:

VALVE, AIR BLEEDER (39254701R000)

Part # 4666-11 Mfg # 39254701R

VALVE, AIR BLEEDER (39254701R000)

$10.75 IN STOCK

Qty:

O-RING

Part # 4666-12 Mfg # 106

O-RING

$7.11 IN STOCK

Qty:

COVER, CFR 50,100 (42285205R000)

Part # 4666-13 Mfg # 42285205R

COVER, CFR 50,100 (42285205R000)

$63.81 IN STOCK

Qty:

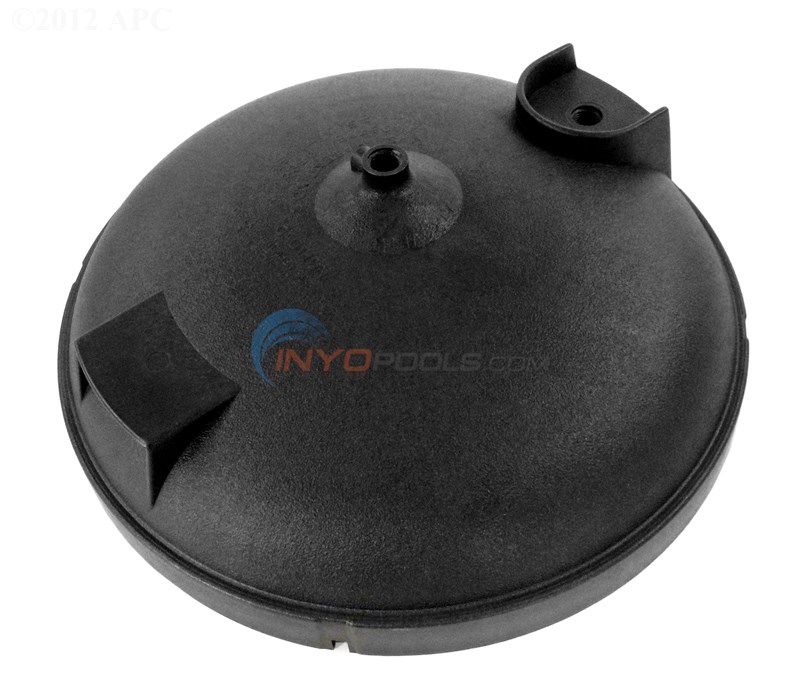

COVER 50 EF GRAY (42361212R000)

Part # 4639-002 Mfg # 42361212R

COVER 50 EF GRAY (42361212R000)

$104.53 IN STOCK

Qty:

O-RING

Part # 4666-05 Mfg # O-413

O-RING

$8.06 IN STOCK

Qty:

7

No Longer Available BODY, 50EF Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352013056.htm">4638-17A</a>

Mfg # 42-3621-11-R

No Longer Available BODY, 50EF Replace With 4638-17A

NOT AVAILABLE

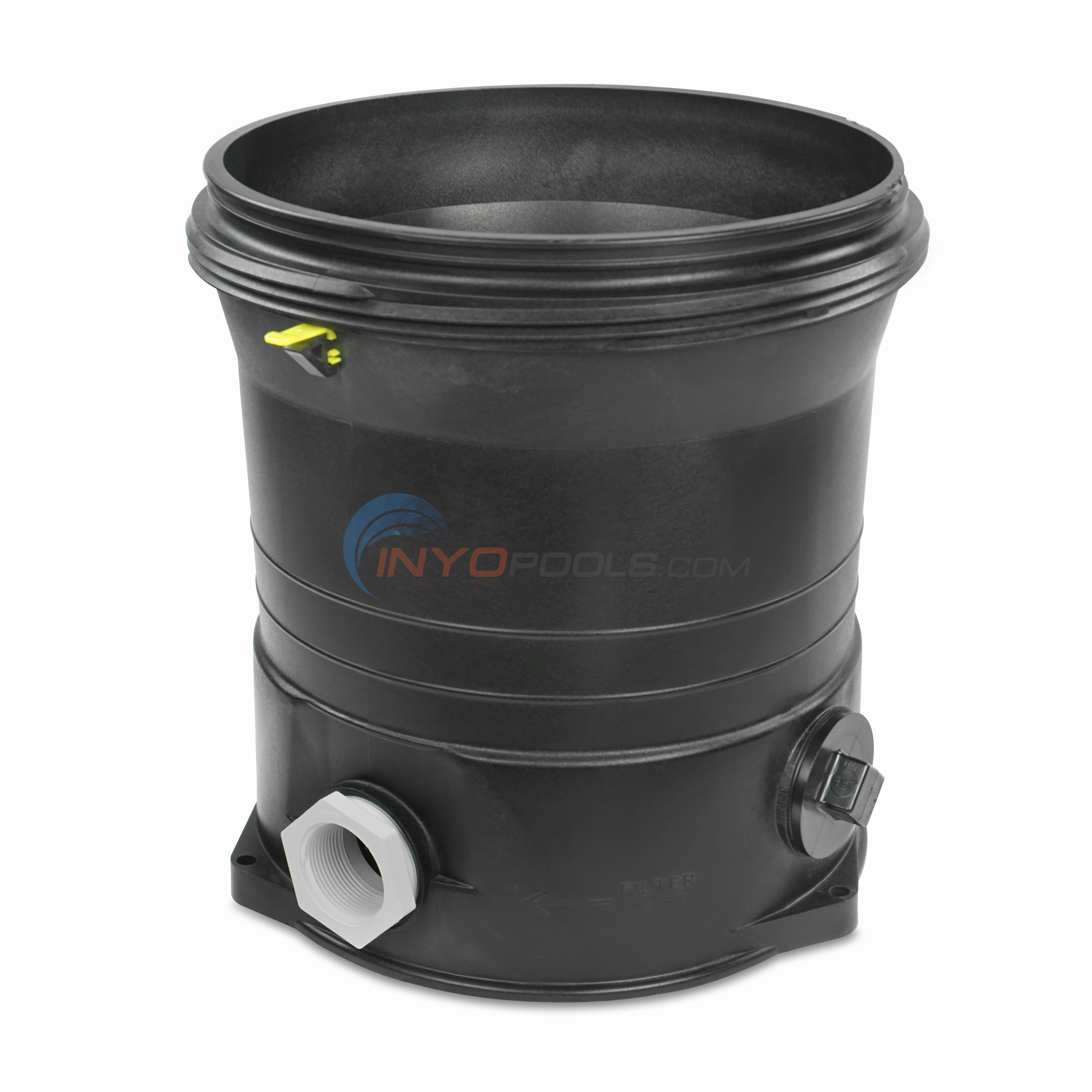

BODY 1.5 NPT, LS40 SYSTEMS (42362301R000)

Part # 4638-17A Mfg # 42362301R

BODY 1.5 NPT, LS40 SYSTEMS (42362301R000)

$190.46 IN STOCK

Qty:

8

GENERIC FILTER CARTRIDGE 50 SQ.FT. (C-9650)

Part # NFC1460 Mfg # 42-2940-09

GENERIC FILTER CARTRIDGE 50 SQ.FT. (C-9650)

NOT AVAILABLE

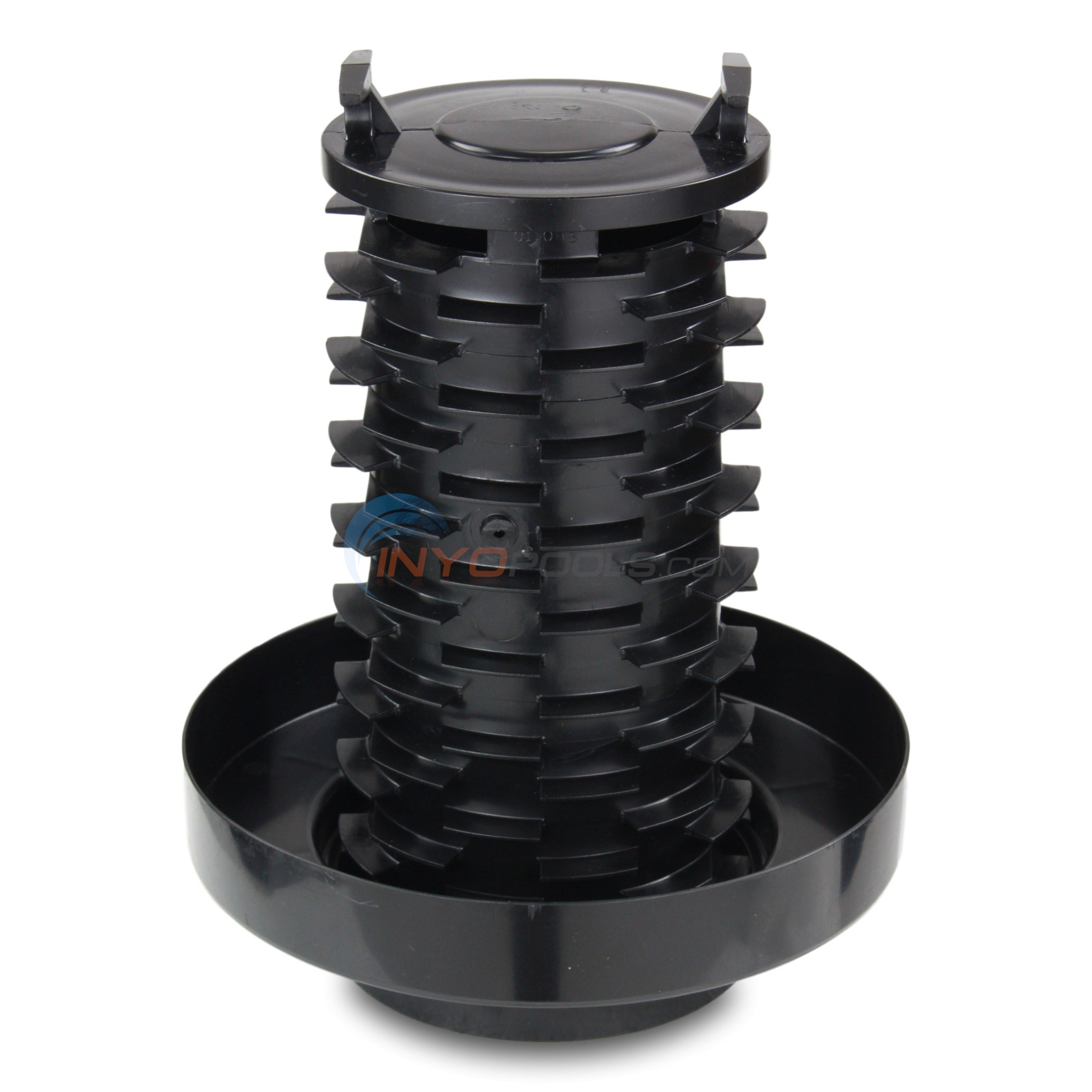

DIRTCATCHER, 50 SQ. FT. (42294207R000)

Part # 4666-15 Mfg # 42294207R

DIRTCATCHER, 50 SQ. FT. (42294207R000)

$97.09 IN STOCK

Qty:

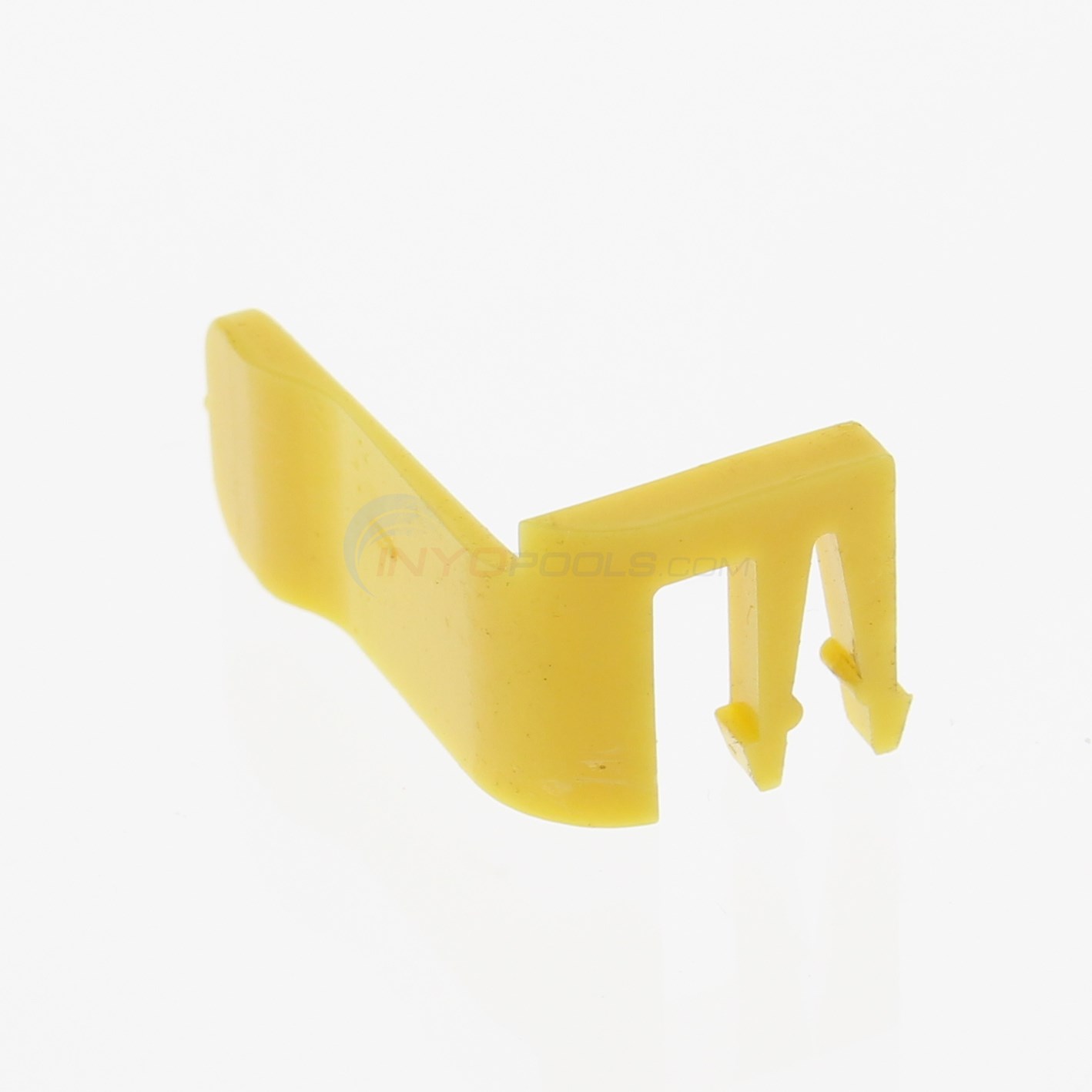

TAB LOCKING (EACH) (42360107R000)

Part # 4638-33 Mfg # 42360107R

TAB LOCKING (EACH) (42360107R000)

$21.62 IN STOCK

Qty:

DRAIN ASSEMBLY (31063605RKIT)

Part # 4666-17 Mfg # 31063605K

DRAIN ASSEMBLY (31063605RKIT)

$33.11 IN STOCK

Qty:

CAP, DRAIN WITH GASKET (85826300R000)

Part # 4626-16 Mfg # 85826300R

CAP, DRAIN WITH GASKET (85826300R000)

$10.75 IN STOCK

Qty:

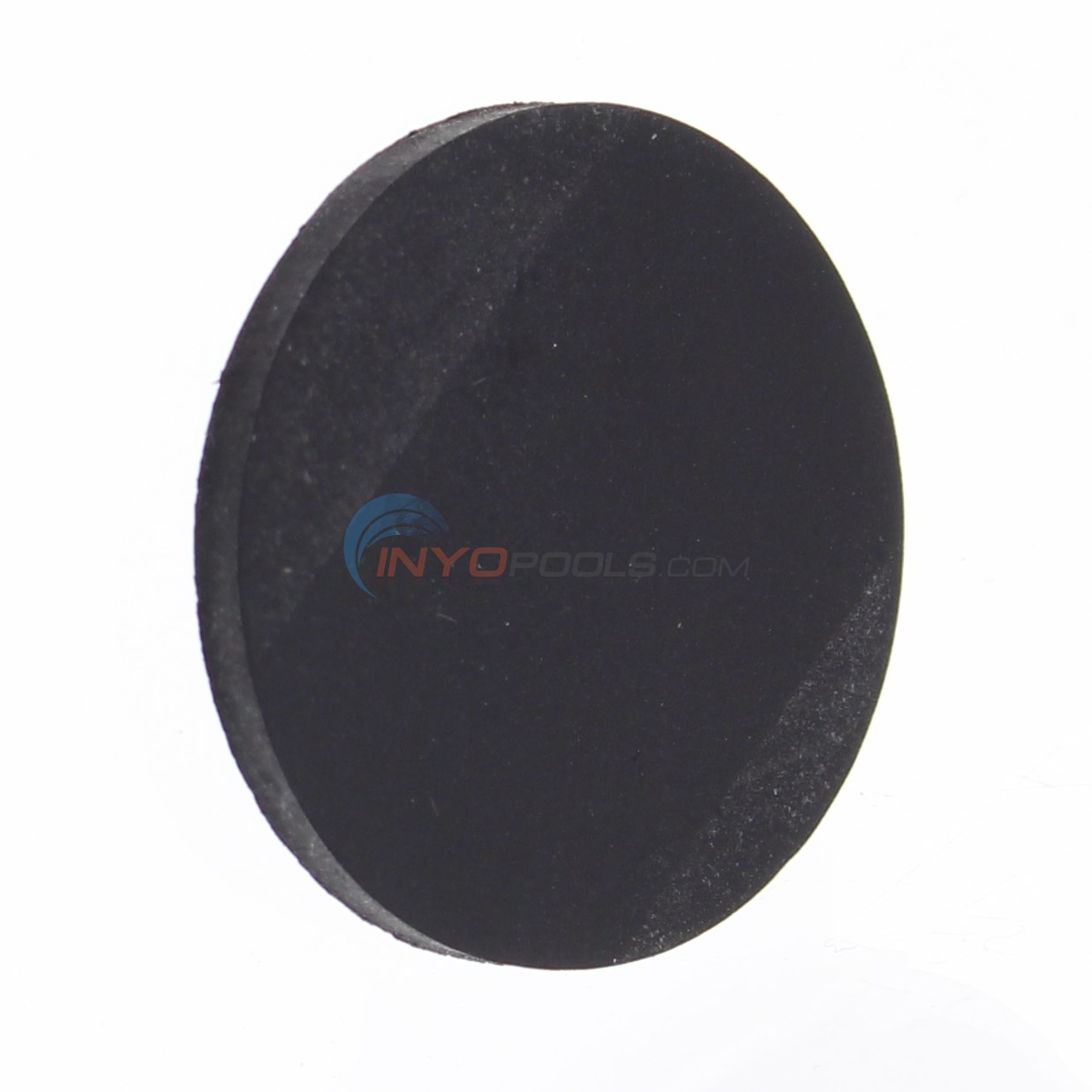

GASKET, DRAIN CAP (13102306R000)

Part # 4626-15 Mfg # 13102306R

GASKET, DRAIN CAP (13102306R000)

$10.58 IN STOCK

Qty:

PLUG, 1 1/2" With GASKET (43309103R000)

Part # 4052-08A Mfg # 43309103R

PLUG, 1 1/2" With GASKET (43309103R000)

$14.48 IN STOCK

Qty:

PLUG, 1 1/2" With GASKET (43309103R000)

Part # 4052-08A Mfg # 43309103R

PLUG, 1 1/2" With GASKET (43309103R000)

$14.48 IN STOCK

Qty:

BLACK FILTER PRIOR TO 1995
GRAY FILTER 1995-1998
ALSO SOLD AS SPLASH BRAND 1995-96
ALSO SOLD AS POWER PAC 1997-98
* USED ON BLACK UNITS 1993-1995
** USED ON GRAY UNITS
FILTER CARTRIDGE IS 9 15/16” DIAMETER X 10” LONG
