Sta-Rite HRPB Sand Parts

GLASS REINFORCED THERMOPLASTIC FILTER MODELS HRPB 20, 24, 30

Sta-Rite HRPB Sand Diagram

Click to zoom in

Diagram #	Part Title
1A	SR PRESSURE GAUGE
2	VALVE, AIR RELEASE
4	BOLT, 3/8 - 16 X 2 1/4IN
5	WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)
6	INTERNAL ASSY. KIT, HRP20-01B
7	O-RING, MAIN HRPB20
9	NUT, 3/8IN (SAMPLE N-2)
11	BASE, MODEL HRP20
12	PLUG
13	ADAPTER, UNION DEP 36-01B
14	NUT, FITTING 2IN
15	LTD QTY (SA) LABEL, INLET-OUTLET
16	O-RING
17	FILTER, AIR BLEED
18	TUBE (WC37-384P)
19	ELBOW, COMPRESSION
21	ADAPTER, LATERAL EXTENSION
22	GAUGE/AIR RELIEF KIT
*	VALVE ASSY., MULTIPORT 1 1/2IN, With UNION
*	No Longer Available PUSH PULL VALVE, 2” Replace With 4685-1

View Parts List

Diagram #	Part Title
1A	SR PRESSURE GAUGE
2	VALVE, AIR RELEASE
4	BOLT, 3/8 - 16 X 2 1/4IN
5	WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)
6	INTERNAL ASSY. KIT, HRP20-01B
7	O-RING, MAIN HRPB20
9	NUT, 3/8IN (SAMPLE N-2)
11	BASE, MODEL HRP20
12	PLUG
13	ADAPTER, UNION DEP 36-01B
14	NUT, FITTING 2IN
15	LTD QTY (SA) LABEL, INLET-OUTLET
16	O-RING
17	FILTER, AIR BLEED
18	TUBE (WC37-384P)
19	ELBOW, COMPRESSION
21	ADAPTER, LATERAL EXTENSION
22	GAUGE/AIR RELIEF KIT
*	VALVE ASSY., MULTIPORT 1 1/2IN, With UNION
*	No Longer Available PUSH PULL VALVE, 2” Replace With 4685-1

Available Parts:

SR PRESSURE GAUGE

Part # 4680-23T Mfg # 33600-0023T

SR PRESSURE GAUGE

$55.16 IN STOCK

Qty:

CAP ASSEMBLY

Part # 4680-16 Mfg # 24750-0065

CAP ASSEMBLY

$37.17

O-RING, BULKHEAD 1 1/2IN

Part # 4600-4491 Mfg # 330

O-RING, BULKHEAD 1 1/2IN

$10.27 IN STOCK

Qty:

VALVE, AIR RELEASE

Part # 4680-03C Mfg # U212-252D

VALVE, AIR RELEASE

$23.05 IN STOCK

Qty:

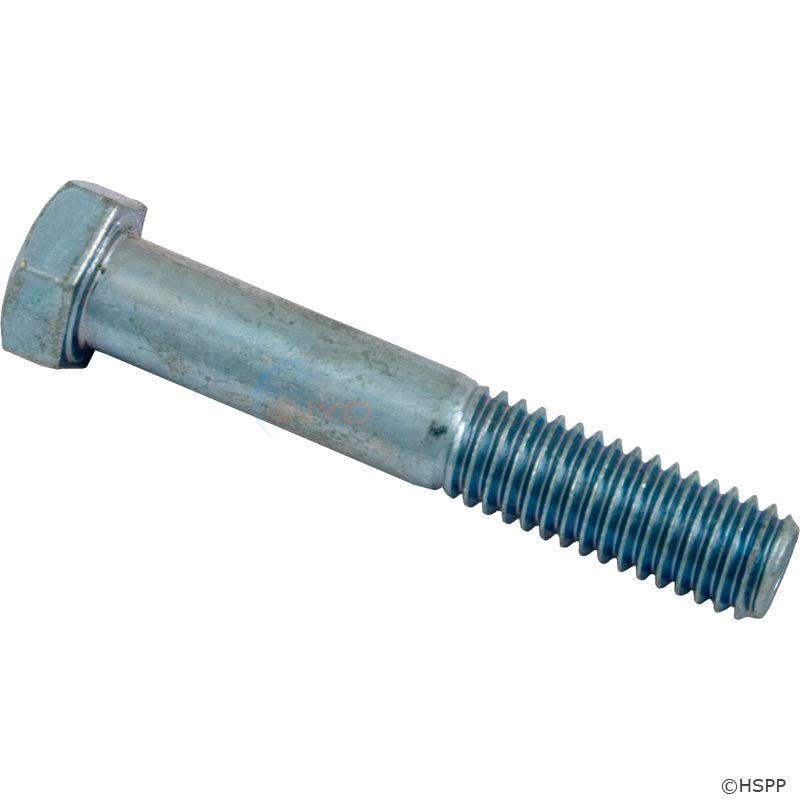

BOLT, 3/8 - 16 X 2 1/4IN

Part # 4680-04C Mfg # U30-884ZP

BOLT, 3/8 - 16 X 2 1/4IN

$11.04

BOLT, HEX HEAD (U30-91C)

Part # 4680-04B Mfg # U30-91ZP

BOLT, HEX HEAD (U30-91C)

$12.05

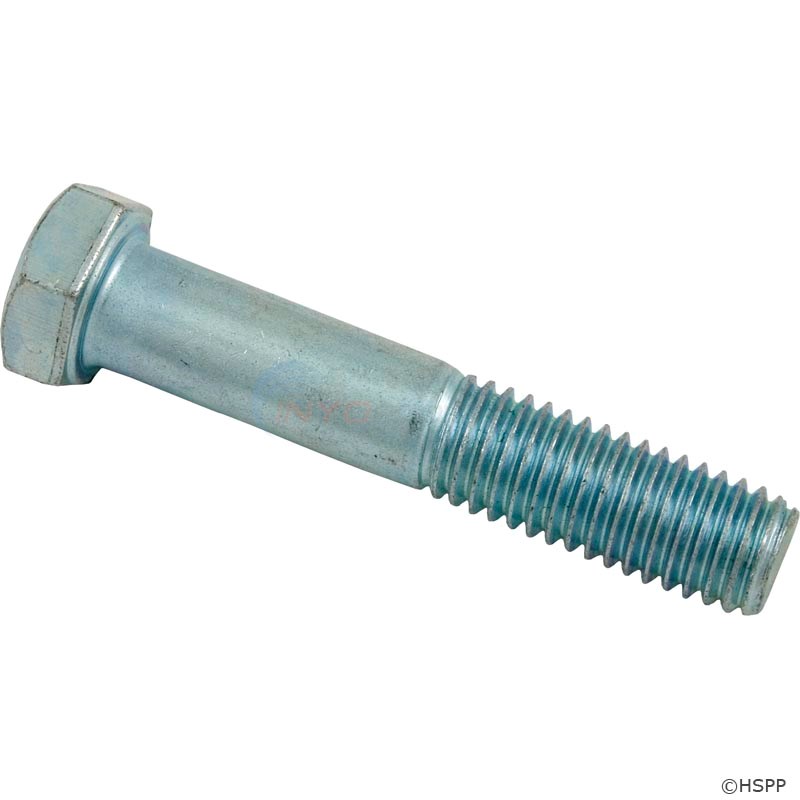

BOLT, 1/2 - 13 X 2 3/4IN

Part # 4680-04D Mfg # U30-901ZP

BOLT, 1/2 - 13 X 2 3/4IN

$12.05

WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)

Part # 6982-0 Mfg # 072184

WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)

$3.00 IN STOCK

Qty:

WASHER, FLAT

Part # 4680-05 Mfg # U43-129ZP

WASHER, FLAT

$18.08

INTERNAL ASSY. KIT, HRP20-01B

Part # 4680-06 Mfg # 24750-0520A

INTERNAL ASSY. KIT, HRP20-01B

$352.74

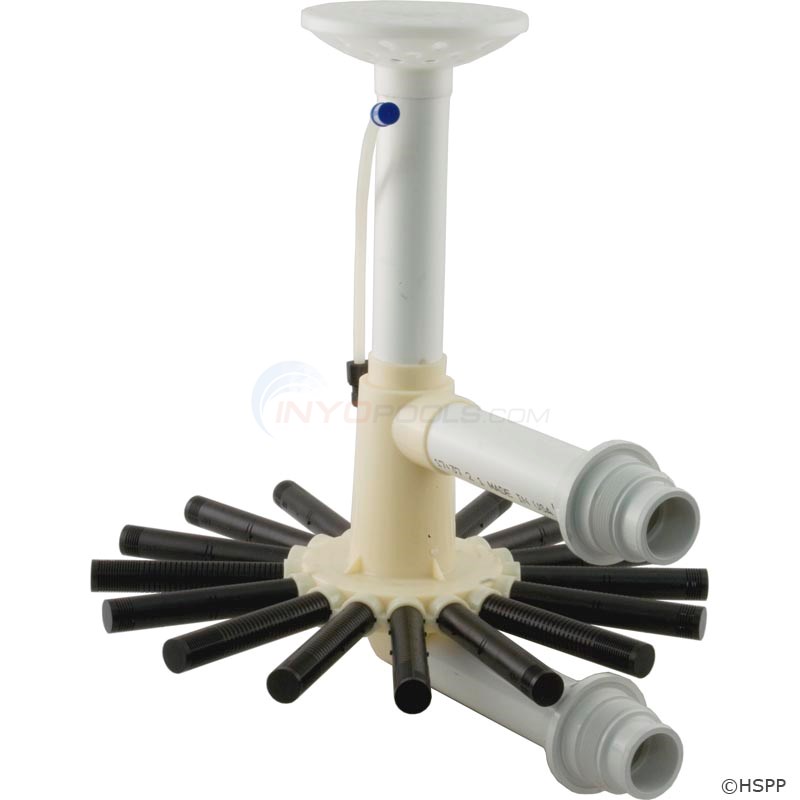

INTERNAL ASSY. HRP-24

Part # 4680-08A Mfg # 24751-0106

INTERNAL ASSY. HRP-24

$435.15

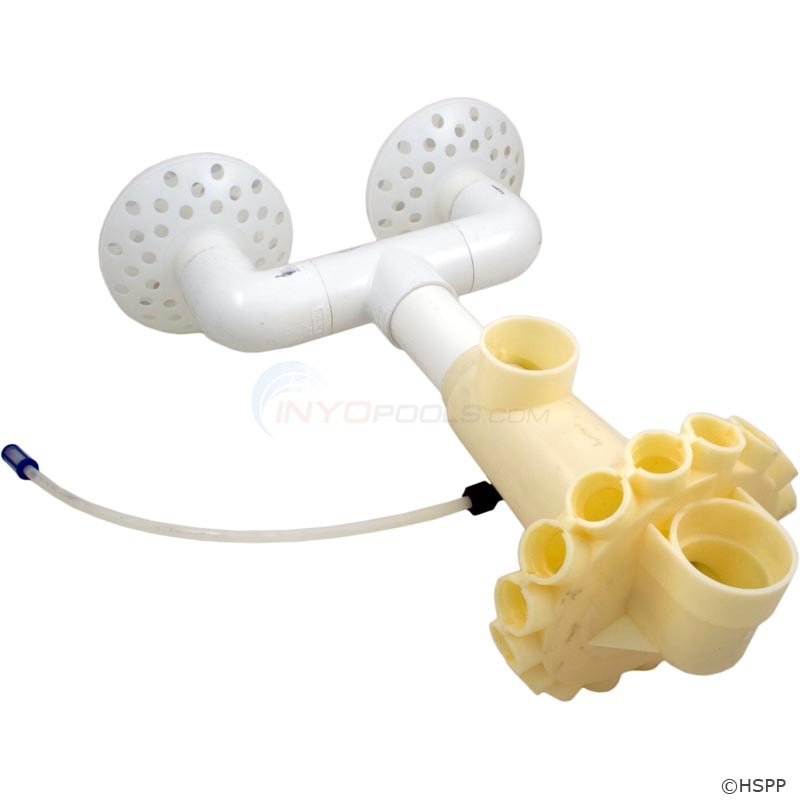

INTERNAL ASSY. HRP-30

Part # 4680-08B Mfg # 24752-0530

INTERNAL ASSY. HRP-30

$542.69

LATERAL, SHORT HRPB20

Part # 4681-04 Mfg # 24735-0011

LATERAL, SHORT HRPB20

$29.13

LATERAL, LONG

Part # 4680-08C Mfg # 24600-0003

LATERAL, LONG

$11.04 IN STOCK

Qty:

FITTING ASSY., TANK HRPB20

Part # 4681-05 Mfg # WC178-93P

FITTING ASSY., TANK HRPB20

$96.47

6D2

No Longer Available LATERAL, HRPB24, 6” Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352020522.htm">4680-08C</a>

Mfg # 24700-0375

No Longer Available LATERAL, HRPB24, 6” Replace With 4680-08C

NOT AVAILABLE

LATERAL, LONG (24700-0075)

Part # 4680-08D Mfg # 24700-0075Z

LATERAL, LONG (24700-0075)

$14.06 IN STOCK

Qty:

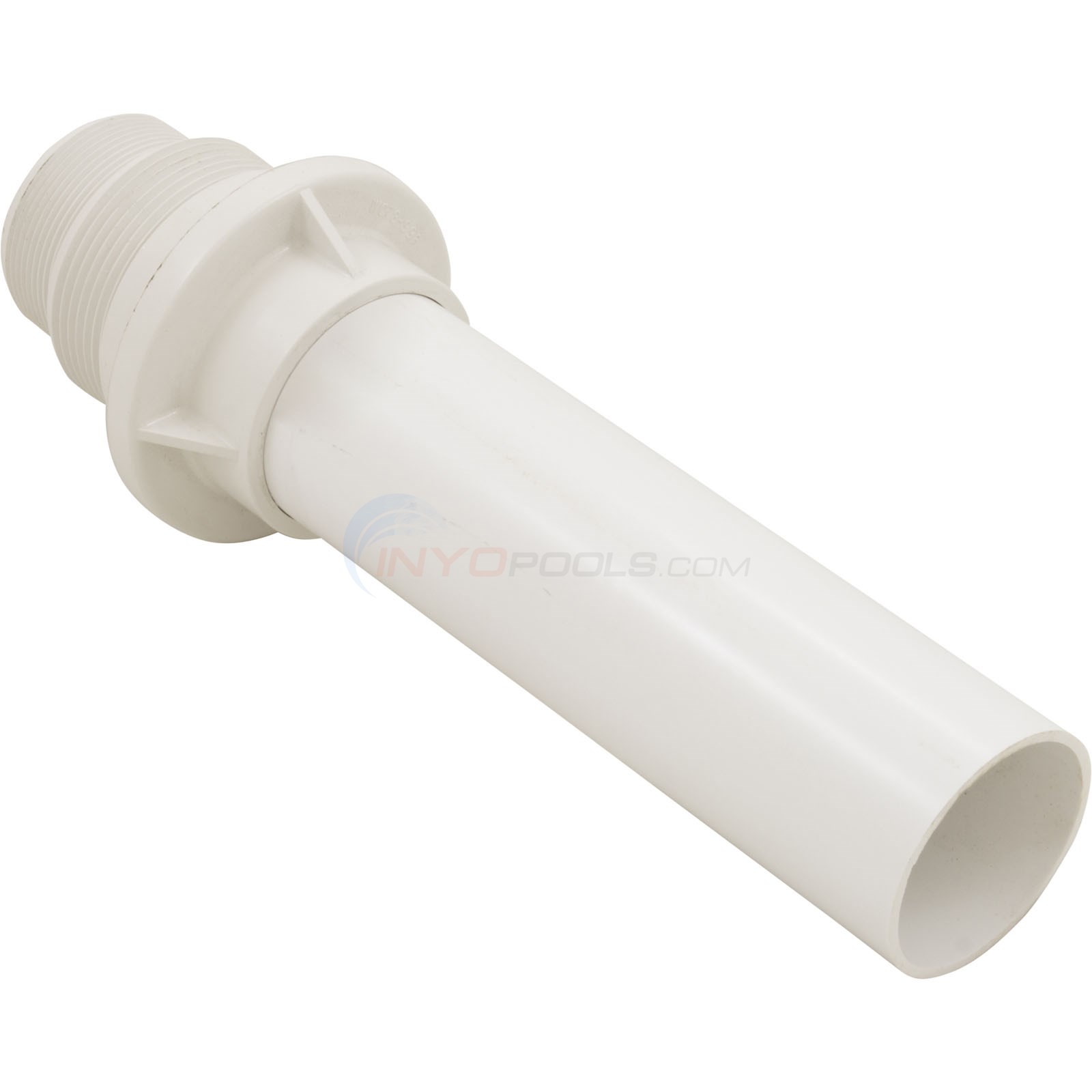

FITTING ASSEMBLY, TANK 24130

Part # 4681-05A Mfg # 24751-0010

FITTING ASSEMBLY, TANK 24130

$76.37 IN STOCK

Qty:

TUBE (WC37-384P)

Part # 4681-02 Mfg # 150100

TUBE (WC37-384P)

$27.12 IN STOCK

Qty:

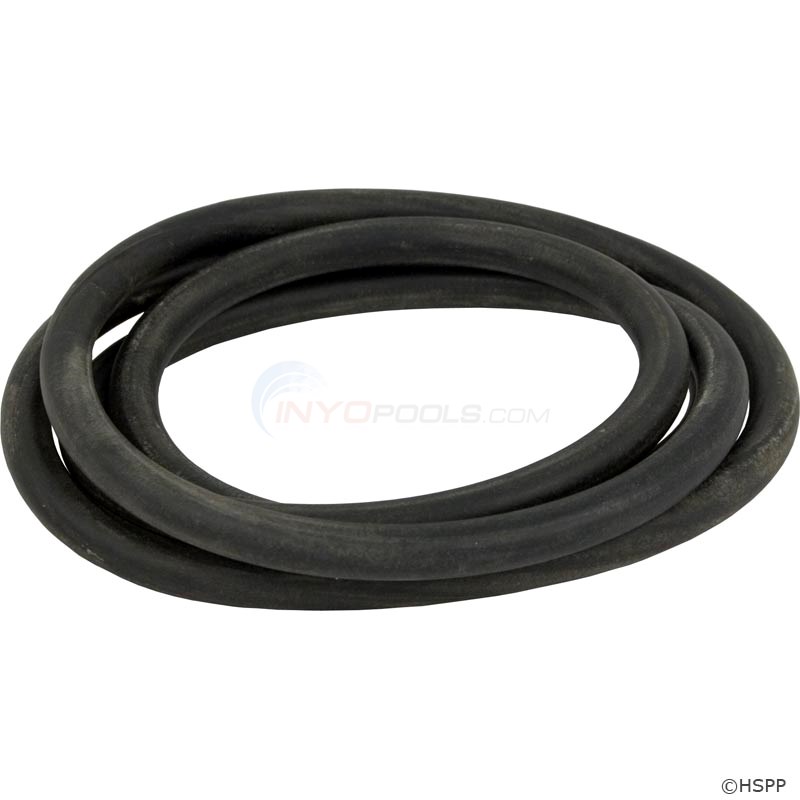

O-RING, MAIN HRPB20

Part # 4681-07 Mfg # 24750-0006

O-RING, MAIN HRPB20

$55.26

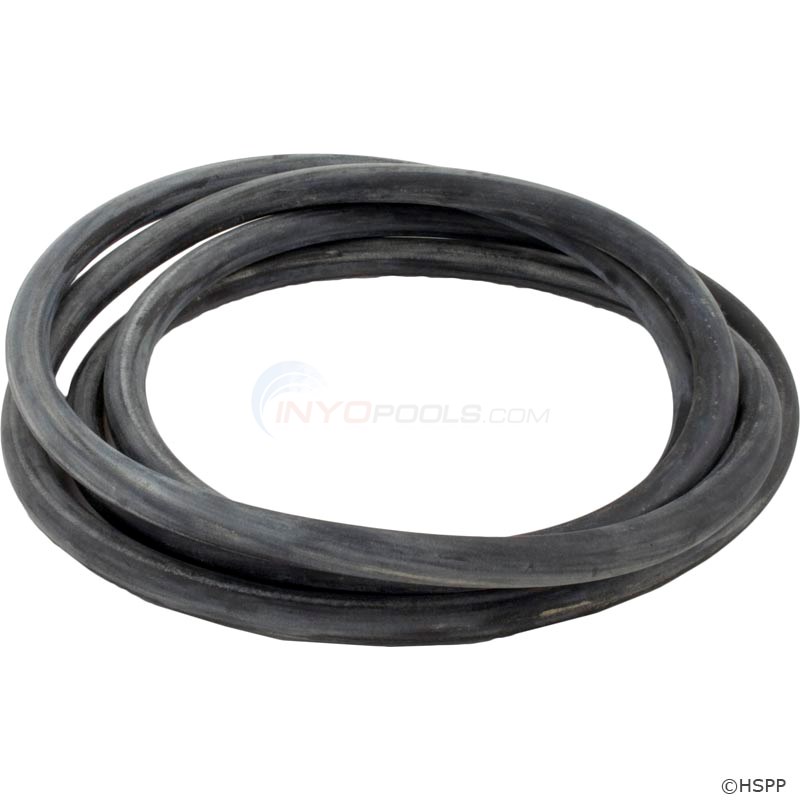

O-RING, MAIN HRPB24

Part # 4681-07A Mfg # 24751-0006

O-RING, MAIN HRPB24

$45.37 IN STOCK

Qty:

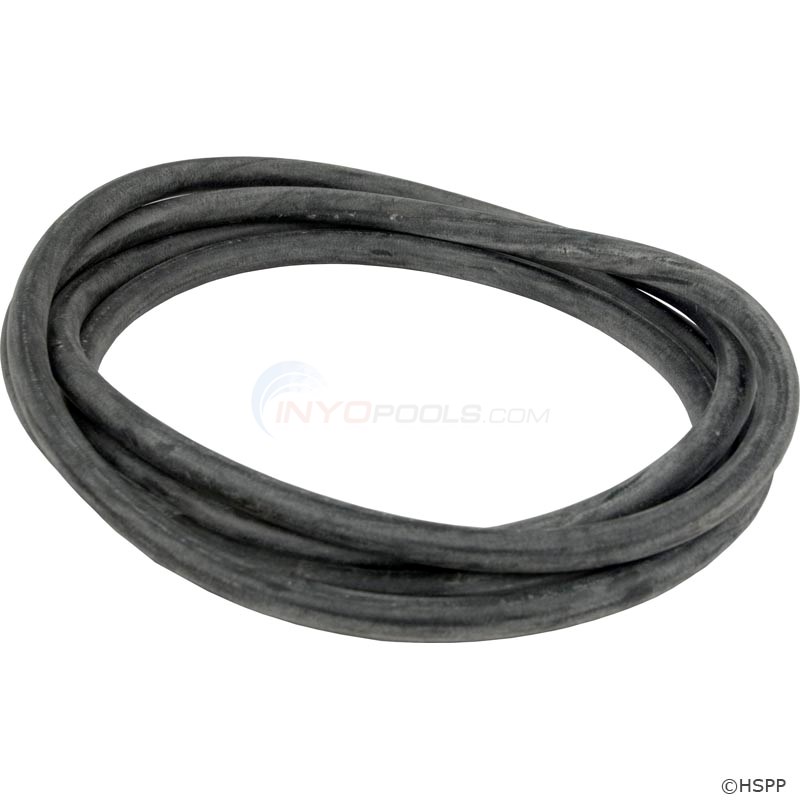

O-RING, MAIN HRPB30

Part # 4681-07B Mfg # 24752-0006

O-RING, MAIN HRPB30

$75.85

NUT, 3/8IN (SAMPLE N-2)

Part # 6932-0 Mfg # 071403

NUT, 3/8IN (SAMPLE N-2)

$8.03 IN STOCK

Qty:

NUT, HEX HEAD

Part # 4680-10 Mfg # U36-39C

NUT, HEX HEAD

$12.05

BASE, MODEL HRP20

Part # 4680-14 Mfg # 23900-0105

BASE, MODEL HRP20

$194.60

BASE, MODELS HRP24-30

Part # 4680-14A Mfg # 23901-0005

BASE, MODELS HRP24-30

$293.45

PLUG

Part # 4680-15 Mfg # 24700-0413

PLUG

$64.31

ADAPTER, UNION DEP 36-01B

Part # 4687-14 Mfg # U11-198P

ADAPTER, UNION DEP 36-01B

$12.80 IN STOCK

Qty:

NUT, FITTING 2IN

Part # 4680-11 Mfg # 24752-0049

NUT, FITTING 2IN

$42.20 IN STOCK

Qty:

LTD QTY (SA) LABEL, INLET-OUTLET

Part # 4681-12

LTD QTY (SA) LABEL, INLET-OUTLET

$25.11

O-RING

Part # 4680-12 Mfg # O-109

O-RING

$18.08 IN STOCK

Qty:

FILTER, AIR BLEED

Part # 4681-01 Mfg # WC8-126

FILTER, AIR BLEED

$34.81 IN STOCK

Qty:

TUBE (WC37-384P)

Part # 4681-02 Mfg # 150100

TUBE (WC37-384P)

$27.12 IN STOCK

Qty:

ELBOW, COMPRESSION

Part # 4681-03 Mfg # WC78-84P

ELBOW, COMPRESSION

$30.14 IN STOCK

Qty:

ADAPTER, LATERAL EXTENSION

Part # 4681-15 Mfg # 24700-0029

ADAPTER, LATERAL EXTENSION

$20.09 IN STOCK

Qty:

GAUGE/AIR RELIEF KIT

Part # 4680-16B Mfg # 24750-0027

GAUGE/AIR RELIEF KIT

$157.77

VALVE ASSY., MULTIPORT 1 1/2IN, With UNION

Part # 4685-0 Mfg # 18202-0150

VALVE ASSY., MULTIPORT 1 1/2IN, With UNION

$215.78 IN STOCK

Qty:

VALVE ASSY., MULTIPORT 2IN

Part # 4685A Mfg # 18201-0200

VALVE ASSY., MULTIPORT 2IN

$319.05 IN STOCK

Qty:

*

No Longer Available PUSH PULL VALVE, 2” Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352028319.htm">4685-1</a>

Mfg # WC212-134P

No Longer Available PUSH PULL VALVE, 2” Replace With 4685-1

NOT AVAILABLE

* NOT SHOWN
