Sta-Rite/Swimquip HRP - 01B Series Parts

MODELS HRP20-01B, HRP24-01B, HRP30-01B

Sta-Rite/Swimquip HRP - 01B Series Diagram

Click to zoom in

Diagram #	Part Title
1A	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
2	VALVE, AIR RELEASE
3	OBSOLETE UPPER SHELL
4	SCREW, HOUSING CAP 3/8-16 X 2 (37C200HCS1) 4 Pack
5	WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)
6A	INTERNAL ASSY. KIT, HRP20-01B
7	O-RING, TANK (HW S-200-Z7)
8	OBSOLETE LOWER SHELL
9	NUT, 3/8IN (SAMPLE N-2)
11	BASE, MODEL HRP20
12	PLUG
13	No Longer Available ADAPTER Replace With 4687-14
14	NUT, FITTING 2IN
15	LTD QTY (SA) LABEL, INLET-OUTLET
*	ADAPTER, LATERAL EXTENSION
16	O-RING
17	FILTER, AIR BLEED
18	TUBE (WC37-384P)
19	ELBOW, COMPRESSION
20	GAUGE/AIR RELIEF KIT
*	VALVE ASSY., MULTIPORT 1 1/2IN, With UNION

View Parts List

Diagram #	Part Title
1A	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
2	VALVE, AIR RELEASE
3	OBSOLETE UPPER SHELL
4	SCREW, HOUSING CAP 3/8-16 X 2 (37C200HCS1) 4 Pack
5	WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)
6A	INTERNAL ASSY. KIT, HRP20-01B
7	O-RING, TANK (HW S-200-Z7)
8	OBSOLETE LOWER SHELL
9	NUT, 3/8IN (SAMPLE N-2)
11	BASE, MODEL HRP20
12	PLUG
13	No Longer Available ADAPTER Replace With 4687-14
14	NUT, FITTING 2IN
15	LTD QTY (SA) LABEL, INLET-OUTLET
*	ADAPTER, LATERAL EXTENSION
16	O-RING
17	FILTER, AIR BLEED
18	TUBE (WC37-384P)
19	ELBOW, COMPRESSION
20	GAUGE/AIR RELIEF KIT
*	VALVE ASSY., MULTIPORT 1 1/2IN, With UNION

Available Parts:

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$10.34 IN STOCK

Qty:

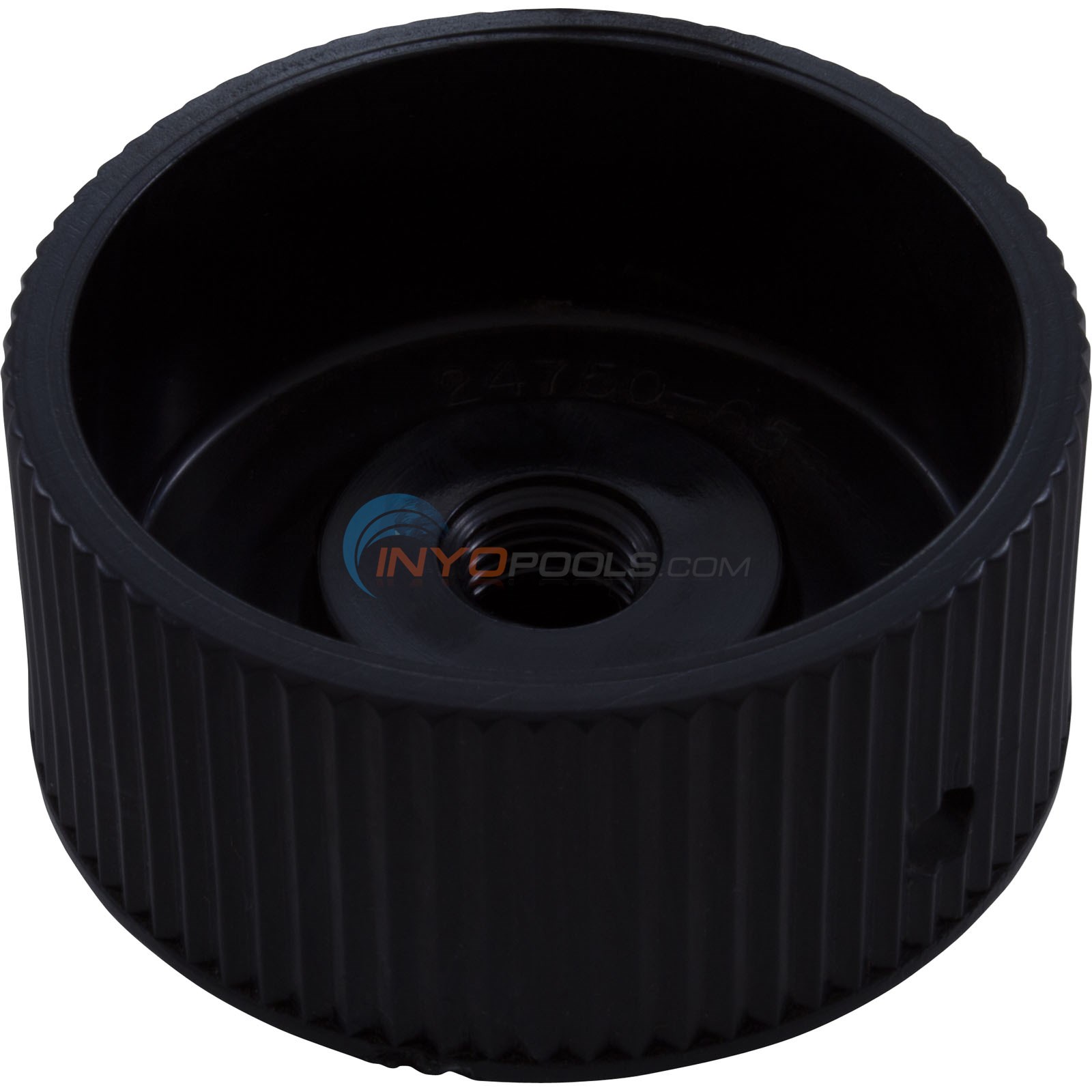

CAP ASSEMBLY

Part # 4680-16 Mfg # 24750-0065

CAP ASSEMBLY

$38.29

O-RING, BULKHEAD 1 1/2IN

Part # 4600-4491 Mfg # 330

O-RING, BULKHEAD 1 1/2IN

$10.58 IN STOCK

Qty:

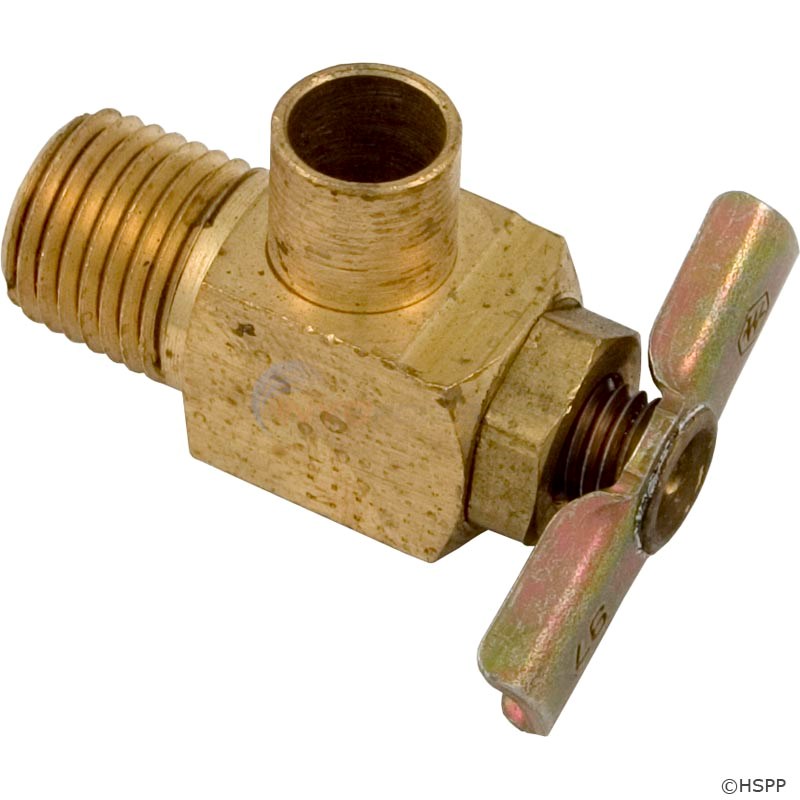

VALVE, AIR RELEASE

Part # 4680-03C Mfg # U212-252D

VALVE, AIR RELEASE

$23.74 IN STOCK

Qty:

3

OBSOLETE UPPER SHELL

OBSOLETE UPPER SHELL

NOT AVAILABLE

SCREW, HOUSING CAP 3/8-16 X 2 (37C200HCS1) 4 Pack

Part # 5110-15 Mfg # 37C200HCS1

SCREW, HOUSING CAP 3/8-16 X 2 (37C200HCS1) 4 Pack

$5.14 IN STOCK

Qty:

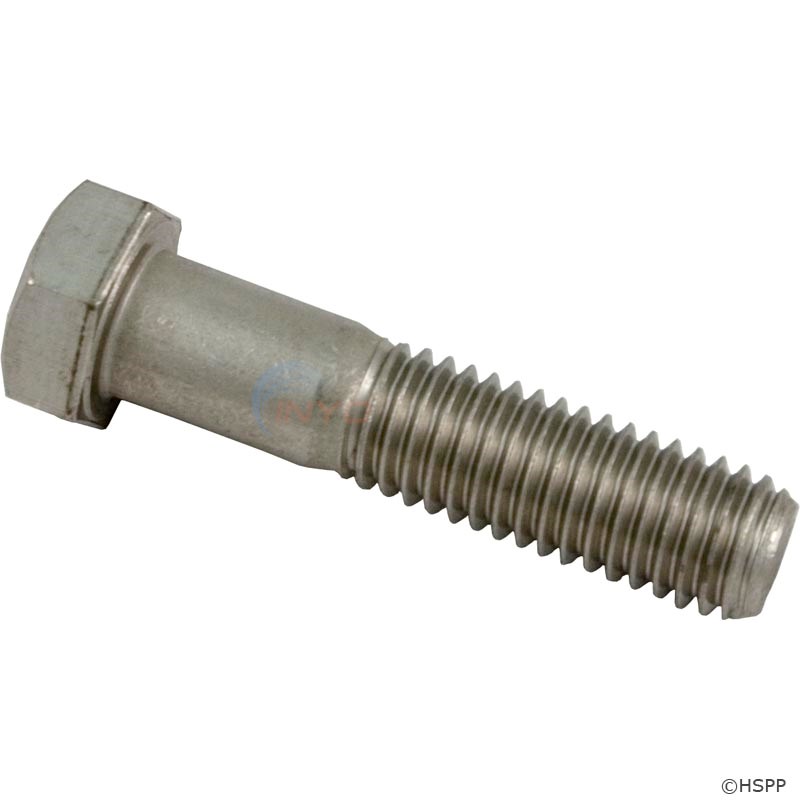

BOLT, HEX HEAD(1/2-13 X 2 1/4 SS HEX HD)

Part # 4680-04A Mfg # 30726-4260

BOLT, HEX HEAD(1/2-13 X 2 1/4 SS HEX HD)

$22.76

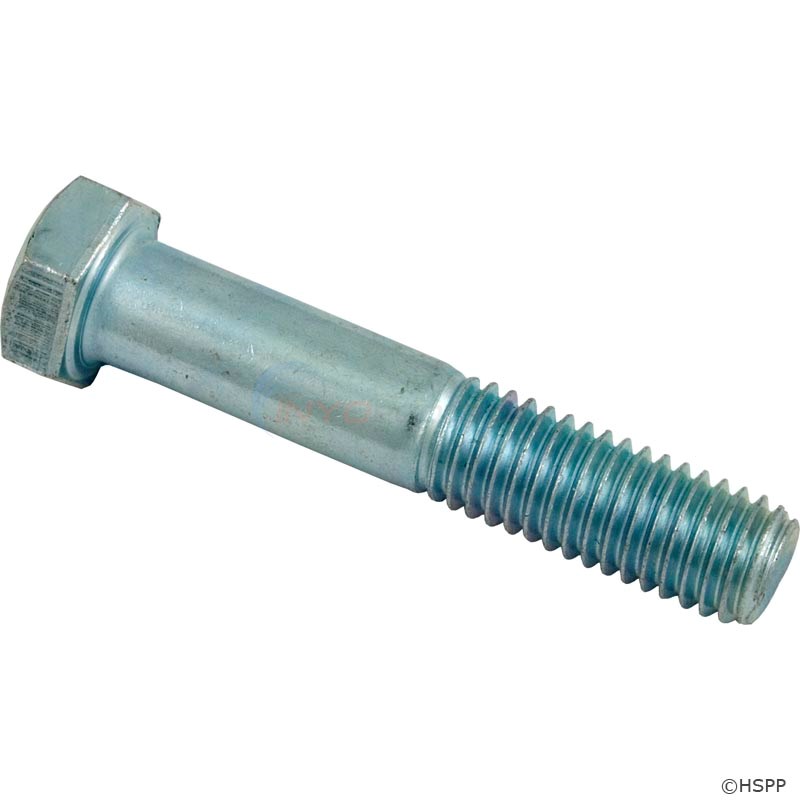

BOLT, HEX HEAD (U30-91C)

Part # 4680-04B Mfg # U30-91ZP

BOLT, HEX HEAD (U30-91C)

$12.41

WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)

Part # 6982-0 Mfg # 072184

WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)

$3.09 IN STOCK

Qty:

WASHER, FLAT

Part # 4680-05 Mfg # U43-129ZP

WASHER, FLAT

$18.62

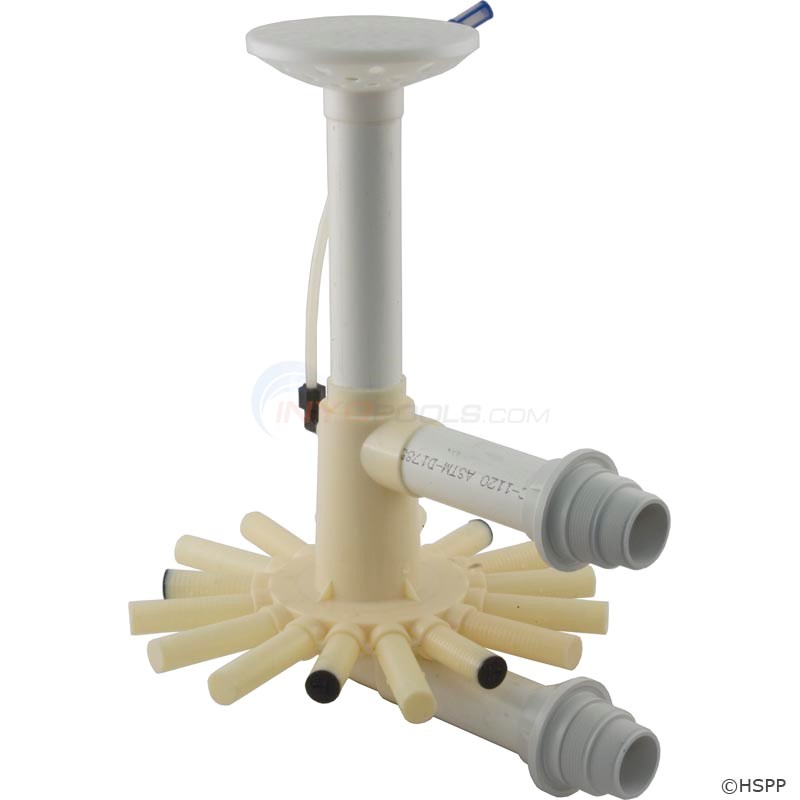

INTERNAL ASSY. KIT, HRP20-01B

Part # 4680-06 Mfg # 24750-0520A

INTERNAL ASSY. KIT, HRP20-01B

$363.32

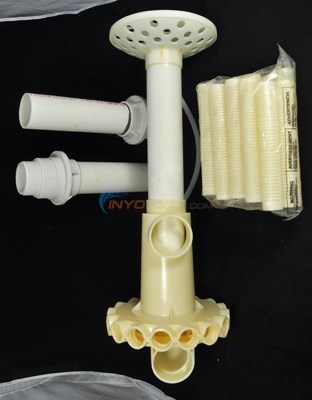

INTERNAL ASSY. KIT, HRP24-01B

Part # 4680-06A Mfg # 24751-0106A

INTERNAL ASSY. KIT, HRP24-01B

$436.82

INTERNAL ASSY. KIT, HRP30-01B

Part # 4680-06B Mfg # 24752-0530A

INTERNAL ASSY. KIT, HRP30-01B

$566.87

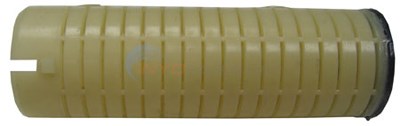

LATERAL, SHORT HRPB20

Part # 4681-04 Mfg # 24735-0011

LATERAL, SHORT HRPB20

$30.00

LATERAL, LONG

Part # 4680-08C Mfg # 24600-0003

LATERAL, LONG

$11.37 IN STOCK

Qty:

FITTING ASSY., TANK HRPB20

Part # 4681-05 Mfg # WC178-93P

FITTING ASSY., TANK HRPB20

$99.36

6D2

No Longer Available LATERAL, 6” Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352020522.htm">4680-08C</a>

Mfg # 24700-0375

No Longer Available LATERAL, 6” Replace With 4680-08C

NOT AVAILABLE

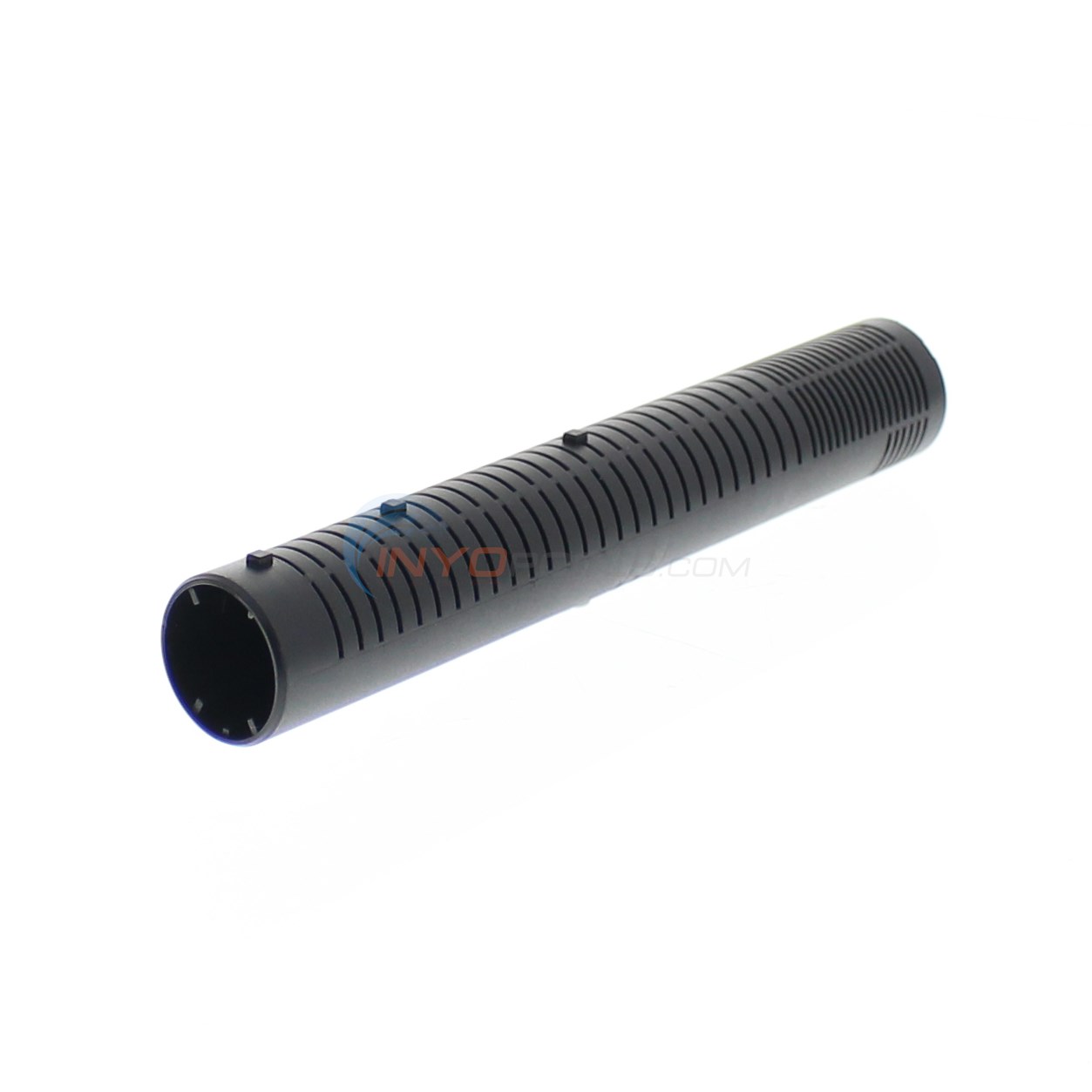

LATERAL, LONG (24700-0075)

Part # 4680-08D Mfg # 24700-0075Z

LATERAL, LONG (24700-0075)

$14.48 IN STOCK

Qty:

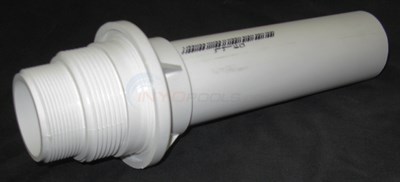

FITTING ASSY., TANK HRP24-01B

Part # 4681-05B Mfg # WC178-94P

FITTING ASSY., TANK HRP24-01B

$73.48

FITTING ASSY., TANK HRP30-01B

Part # 4681-05C Mfg # WC178-95P

FITTING ASSY., TANK HRP30-01B

$107.65

O-RING, TANK (HW S-200-Z7)

Part # 4800-14 Mfg # SX200Z7

O-RING, TANK (HW S-200-Z7)

$53.76 IN STOCK

Qty:

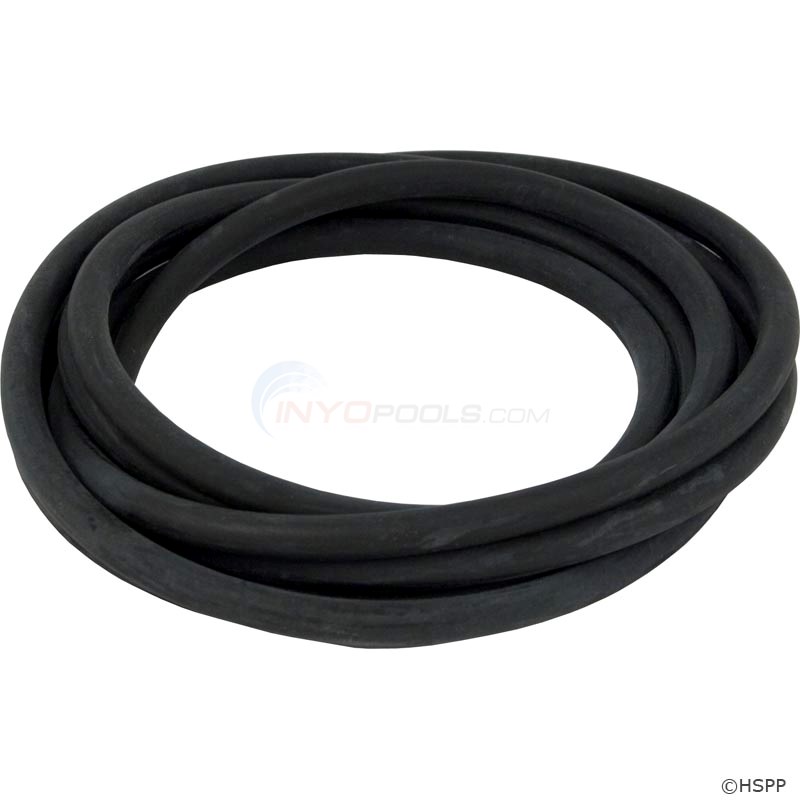

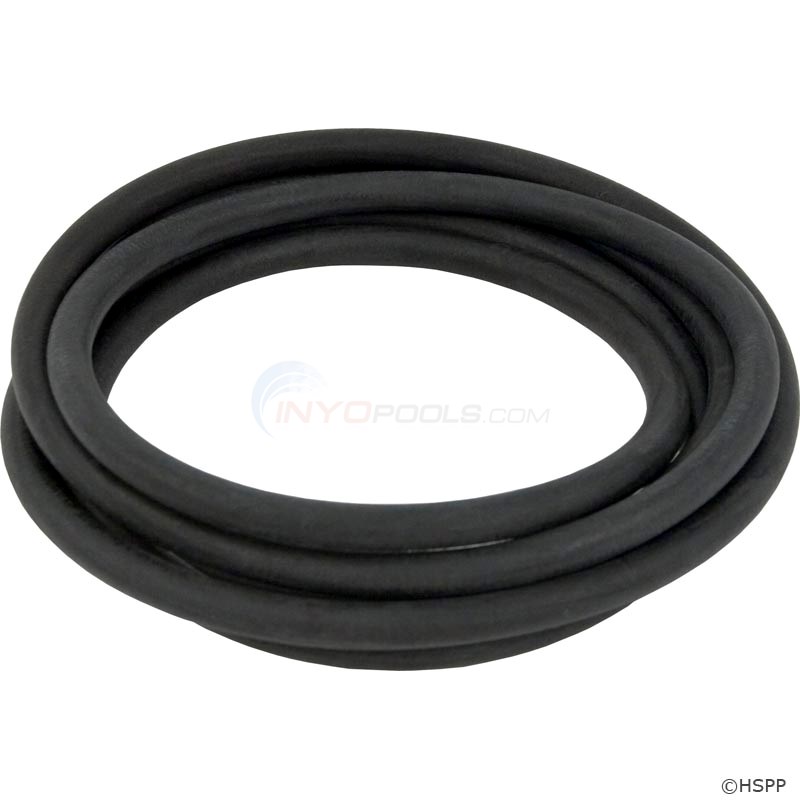

O-RING, TANK

Part # 4680-07A Mfg # SQ24751-5

O-RING, TANK

$11.61 IN STOCK

Qty:

O-RING, TANK

Part # 4680-07B Mfg # SQ24752-5

O-RING, TANK

$23.79 IN STOCK

Qty:

8

OBSOLETE LOWER SHELL

Mfg # 24750-0039

OBSOLETE LOWER SHELL

NOT AVAILABLE

NUT, 3/8IN (SAMPLE N-2)

Part # 6932-0 Mfg # 071403

NUT, 3/8IN (SAMPLE N-2)

$8.27 IN STOCK

Qty:

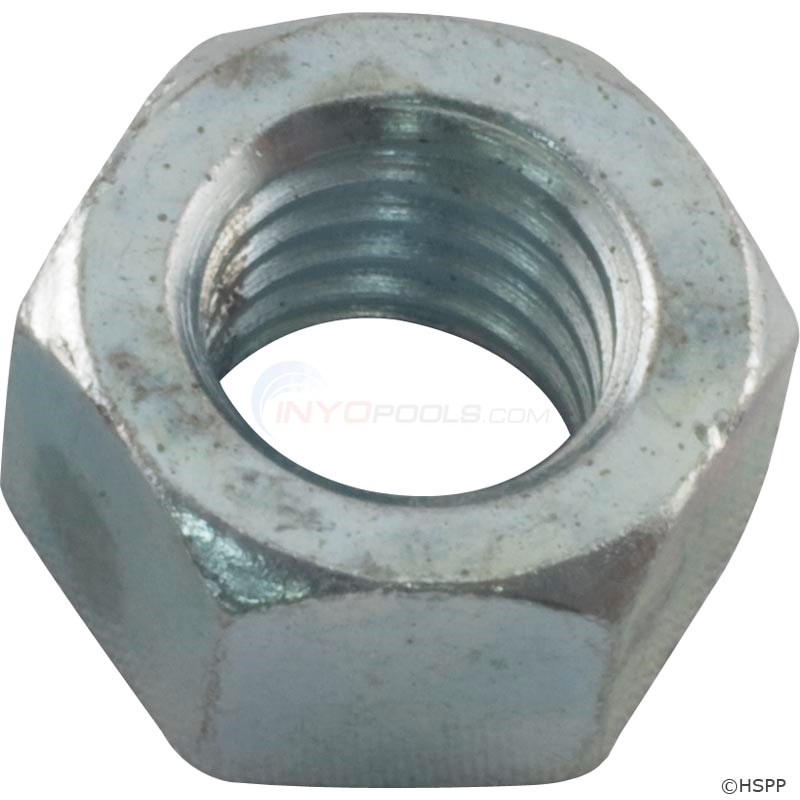

NUT, HEX HEAD

Part # 4680-10 Mfg # U36-39C

NUT, HEX HEAD

$12.41

BASE, MODEL HRP20

Part # 4680-14 Mfg # 23900-0105

BASE, MODEL HRP20

$200.44

BASE, MODELS HRP24-30

Part # 4680-14A Mfg # 23901-0005

BASE, MODELS HRP24-30

$302.25

PLUG

Part # 4680-15 Mfg # 24700-0413

PLUG

$66.24

13

No Longer Available ADAPTER Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352011664.htm">4687-14</a>

Mfg # U11-198P

No Longer Available ADAPTER Replace With 4687-14

NOT AVAILABLE

NUT, FITTING 2IN

Part # 4680-11 Mfg # 24752-0049

NUT, FITTING 2IN

$43.47 IN STOCK

Qty:

LTD QTY (SA) LABEL, INLET-OUTLET

Part # 4681-12

LTD QTY (SA) LABEL, INLET-OUTLET

$25.86

ADAPTER, LATERAL EXTENSION

Part # 4681-15 Mfg # 24700-0029

ADAPTER, LATERAL EXTENSION

$20.69 IN STOCK

Qty:

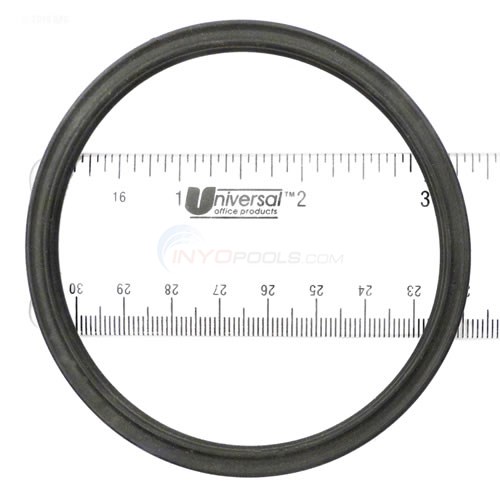

O-RING

Part # 4680-12 Mfg # O-109

O-RING

$18.62 IN STOCK

Qty:

FILTER, AIR BLEED

Part # 4681-01 Mfg # WC8-126

FILTER, AIR BLEED

$35.85 IN STOCK

Qty:

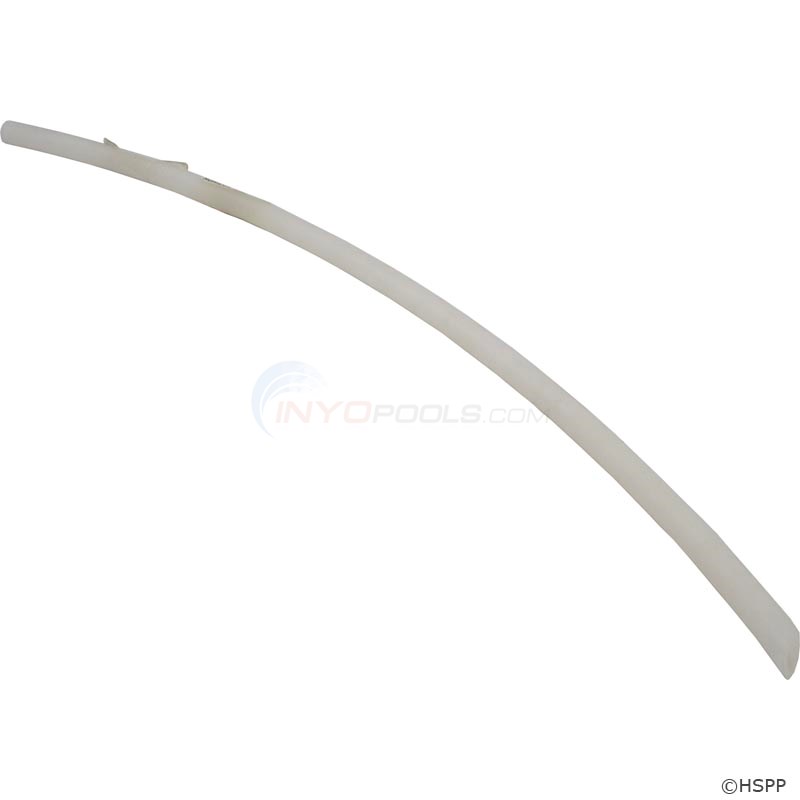

TUBE (WC37-384P)

Part # 4681-02 Mfg # 150100

TUBE (WC37-384P)

$27.93 IN STOCK

Qty:

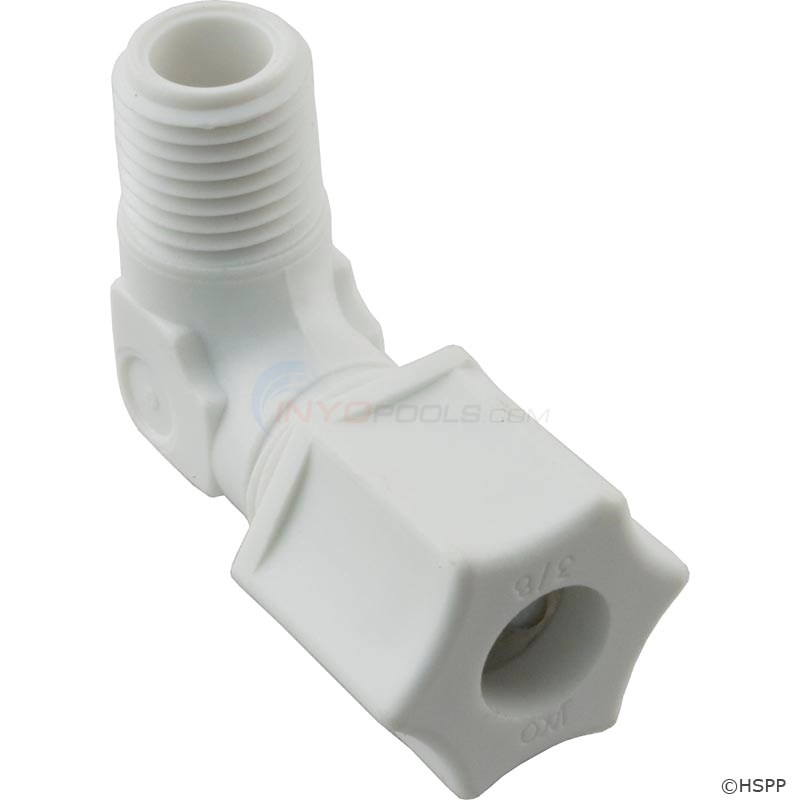

ELBOW, COMPRESSION

Part # 4681-03 Mfg # WC78-84P

ELBOW, COMPRESSION

$31.04 IN STOCK

Qty:

GAUGE/AIR RELIEF KIT

Part # 4680-16B Mfg # 24750-0027

GAUGE/AIR RELIEF KIT

$162.50

VALVE ASSY., MULTIPORT 1 1/2IN, With UNION

Part # 4685-0 Mfg # 18202-0150

VALVE ASSY., MULTIPORT 1 1/2IN, With UNION

$222.25 IN STOCK

Qty:

VALVE ASSY., MULTIPORT 2IN

Part # 4685A Mfg # 18201-0200

VALVE ASSY., MULTIPORT 2IN

$328.62 IN STOCK

Qty:

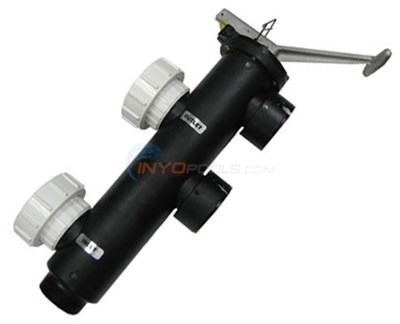

PUSH PULL VALVE, 2”

Part # 4685C Mfg # WC212-134P

PUSH PULL VALVE, 2”

$236.00

Green or Grey Color Tank.
Filter Valve Connects to Tank
with Unions on this Version.

* NOT SHOWN
