Flo Pro K Series Pump Parts

KM, KH, KHM MODELS (GREY COLOR)

Flo Pro K Series Pump Diagram

Click to zoom in

Diagram #	Part Title
1	No Longer Available COVER Replace With KEYS 16 & 17
3	O-RING 4-7/8 X 3/16
4	BASKET, STRAINER
5	STRAINER CASE With 2 PLUGS KM SERIES
6	O-RING 3/16” THICKNESS KM SERIES
7	Wear Ring, Carvin, Various Pumps, 0.5thp-3.0thp, All Dates
8	IMPELLER FOR S7K
9	SHAFT SEAL
***	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
10A	BRACKET, KH SERIES USED IN CARTRIDGE FILTER SYSTEM
11	FASTENER FOR KM SERIES MACHINE THREAD
13	PLUG With O-RING, SET OF 2
14	3/4 HP Thru Bolt Motor
*	Protective Pool Motor Cover
15	3-Prong Pump Power Cord, 6', 14 GA
16	STRAINER NUT
17	STRAINER COVER

View Parts List

Diagram #	Part Title
1	No Longer Available COVER Replace With KEYS 16 & 17
3	O-RING 4-7/8 X 3/16
4	BASKET, STRAINER
5	STRAINER CASE With 2 PLUGS KM SERIES
6	O-RING 3/16” THICKNESS KM SERIES
7	Wear Ring, Carvin, Various Pumps, 0.5thp-3.0thp, All Dates
8	IMPELLER FOR S7K
9	SHAFT SEAL
***	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
10A	BRACKET, KH SERIES USED IN CARTRIDGE FILTER SYSTEM
11	FASTENER FOR KM SERIES MACHINE THREAD
13	PLUG With O-RING, SET OF 2
14	3/4 HP Thru Bolt Motor
*	Protective Pool Motor Cover
15	3-Prong Pump Power Cord, 6', 14 GA
16	STRAINER NUT
17	STRAINER COVER

Available Parts:

1

No Longer Available COVER Replace With KEYS 16 & 17

Mfg # 39-2562-01-R

No Longer Available COVER Replace With KEYS 16 & 17

NOT AVAILABLE

O-RING 4-7/8 X 3/16

Part # 5063-03 Mfg # 47035241

O-RING 4-7/8 X 3/16

$16.72 IN STOCK

Qty:

BASKET, STRAINER

Part # 5067-30 Mfg # 16072902R

BASKET, STRAINER

$12.65 IN STOCK

Qty:

STRAINER CASE With 2 PLUGS KM SERIES

Part # 5066-01 Mfg # 16110108R

STRAINER CASE With 2 PLUGS KM SERIES

$117.57

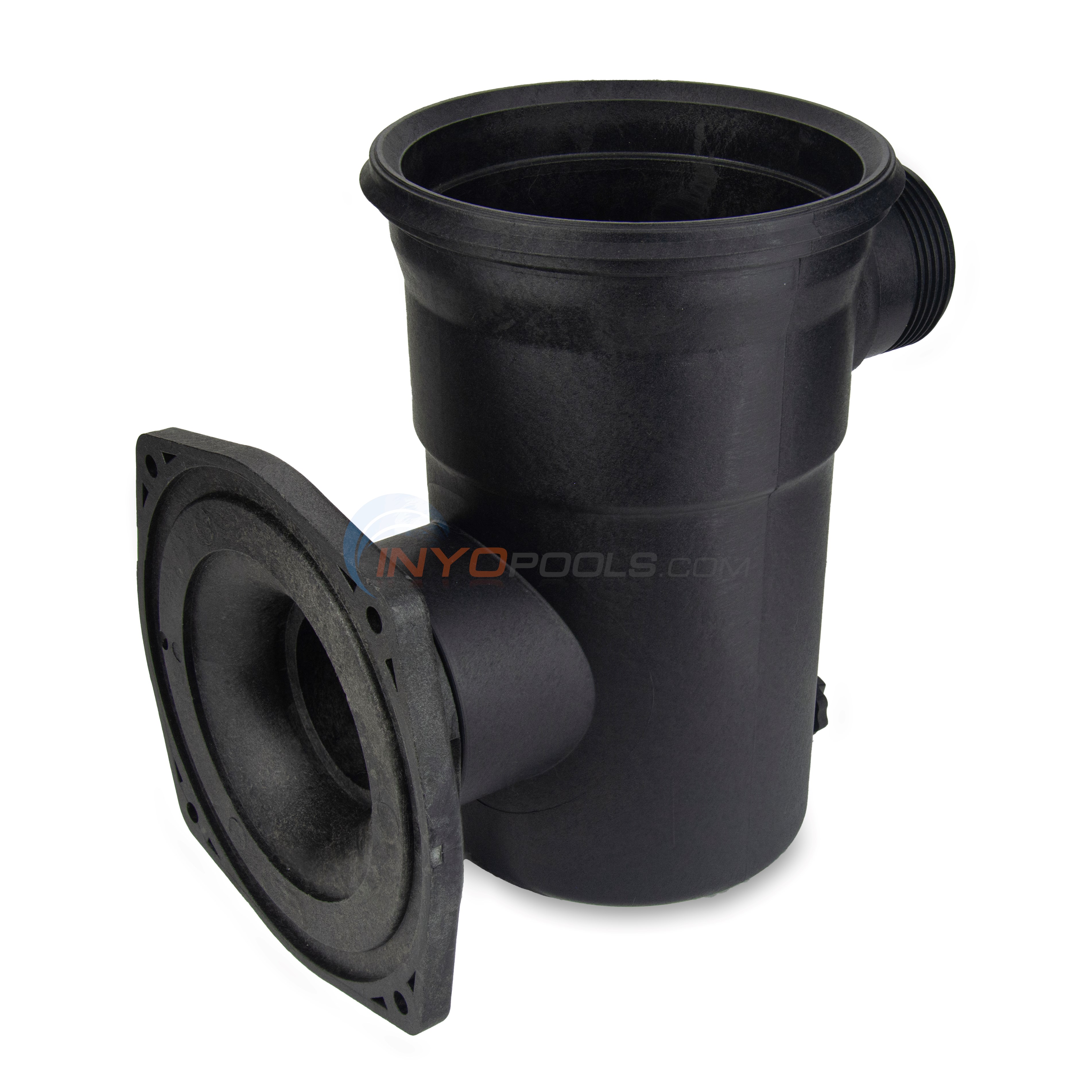

STRAINER CASE With 1 PLUG KH & KHM SERIES

Part # 5069-21 Mfg # 16111403R

STRAINER CASE With 1 PLUG KH & KHM SERIES

$107.52 IN STOCK

Qty:

O-RING 3/16” THICKNESS KM SERIES

Part # 5069-03A Mfg # 357

O-RING 3/16” THICKNESS KM SERIES

$10.78 IN STOCK

Qty:

O-RING 1/8” THICKNESS KH & KHM SERIES

Part # 5069-22 Mfg # 47025408R

O-RING 1/8” THICKNESS KH & KHM SERIES

$48.23

Wear Ring, Carvin, Various Pumps, 0.5thp-3.0thp, All Dates

Part # 5062-17 Mfg # 10146207R

Wear Ring, Carvin, Various Pumps, 0.5thp-3.0thp, All Dates

$12.78 IN STOCK

Qty:

IMPELLER FOR S7K

Part # 5069-24 Mfg # 05386206R

IMPELLER FOR S7K

$42.20 IN STOCK

Qty:

SHAFT SEAL

Part # 5063-09 Mfg # 10000206R

SHAFT SEAL

$17.66 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$5.01 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

Part # LUBE-10ML

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

$30.14 IN STOCK

Qty:

BRACKET, KH SERIES USED IN CARTRIDGE FILTER SYSTEM

Part # 5069-32

BRACKET, KH SERIES USED IN CARTRIDGE FILTER SYSTEM

$110.54

BRACKET, KM SERIES USED IN CARTRIDGE FILTER SYSTEM

Part # 5069-26 Mfg # 02161321R

BRACKET, KM SERIES USED IN CARTRIDGE FILTER SYSTEM

$142.70

10C

OBSOLETE BRACKET, KHM SERIES USED WITH SAND FILTER, CURRRENT

Mfg # 02-1673-00-R000

OBSOLETE BRACKET, KHM SERIES USED WITH SAND FILTER, CURRRENT

NOT AVAILABLE

FASTENER FOR KM SERIES MACHINE THREAD

Part # 6912-0 Mfg # 1/4-20 SS HEX CAP

FASTENER FOR KM SERIES MACHINE THREAD

$11.04 IN STOCK

Qty:

11

OBSOLETE FASTENERS FOR KH & KHM SERIES SELF TAPING, 1 5/16” LONG

Mfg # 14-4339-08-R000

OBSOLETE FASTENERS FOR KH & KHM SERIES SELF TAPING, 1 5/16” LONG

NOT AVAILABLE

PLUG With O-RING, SET OF 2

Part # 4665-07 Mfg # 31160906R2

PLUG With O-RING, SET OF 2

$7.38 IN STOCK

Qty:

3/4 HP Thru Bolt Motor

Part # BN24 Mfg # BN24V1

3/4 HP Thru Bolt Motor

$177.83 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 9.8 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 9.8 Frame 48Y

Qty:

1 H.P 115V Thru Bolt Motor

Part # BN25 Mfg # BN25V1

1 H.P 115V Thru Bolt Motor

$188.93 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 12.0 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 12.0 Frame 48Y

Qty:

14

1.5 H.P 115V / 230V Thru Bolt Motor

Part # BN35 Mfg # BN35

1.5 H.P 115V / 230V Thru Bolt Motor

NOT AVAILABLE

Service Factor 1.0 Voltage 115/230 Max Amps 16.0/8.0 Frame 48Y

Service Factor 1.0 Voltage 115/230 Max Amps 16.0/8.0 Frame 48Y

BN40 Motor, 2 HP, 115V/230V, Single Speed

Part # BN40SS Mfg # BN40SS

BN40 Motor, 2 HP, 115V/230V, Single Speed

$250.11 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 20.0/10.0 Frame 48Y

Service Factor 1.0 Voltage 115/230 Max Amps 20.0/10.0 Frame 48Y

Qty:

3/4 HP 2 Speed 115V Motor

Part # BN36 Mfg # BN36

3/4 HP 2 Speed 115V Motor

$209.03 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 8.8/2.6 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 8.8/2.6 Frame 48Y

Qty:

1 HP 2 Speed 115V Thru-Bolt Motor

Part # BN37 Mfg # BN37V1

1 HP 2 Speed 115V Thru-Bolt Motor

$259.32 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 11.0/2.9 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 11.0/2.9 Frame 48Y

Qty:

1 1/2 HP 2 Speed 115V Motor

Part # BN50 Mfg # BN50V1

1 1/2 HP 2 Speed 115V Motor

$287.76 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 16.4/4.4 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 16.4/4.4 Frame 48Y

Qty:

A.O. Smith 2 HP Thru-Bolt 48Y Dual Speed Motor - BN51

Part # BN51 Mfg # BN51

A.O. Smith 2 HP Thru-Bolt 48Y Dual Speed Motor - BN51

$331.64 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 10.5/2.6 Frame 48Y

Service Factor 1.0 Voltage 230 Max Amps 10.5/2.6 Frame 48Y

Qty:

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$35.89 IN STOCK

Qty:

3-Prong Pump Power Cord, 6', 14 GA

Part # 3118-0 Mfg # SPX1250WA

3-Prong Pump Power Cord, 6', 14 GA

$44.77 IN STOCK

Qty:

3-Prong Pump Power Cord With Twist Lock,

Part # 5111-26 Mfg # SPX1550WA1

3-Prong Pump Power Cord With Twist Lock,

$58.44 IN STOCK

Qty:

STRAINER NUT

Part # 5063-01 Mfg # 42167809R

STRAINER NUT

$43.98 IN STOCK

Qty:

STRAINER COVER

Part # 5063-02 Mfg # 39075304R

STRAINER COVER

$28.90 IN STOCK

Qty:

VERY SIMILAR TO THE SPLASH PAK K
SERIES PUMPS SEE PG G-53 & 87

** KM SERIES BRACKET ATTACHES TO THE POT WITH
MACHINE FASTENERS
KHM & KH USE SELF TAPING FASTENERS *** NOT SHOWN
